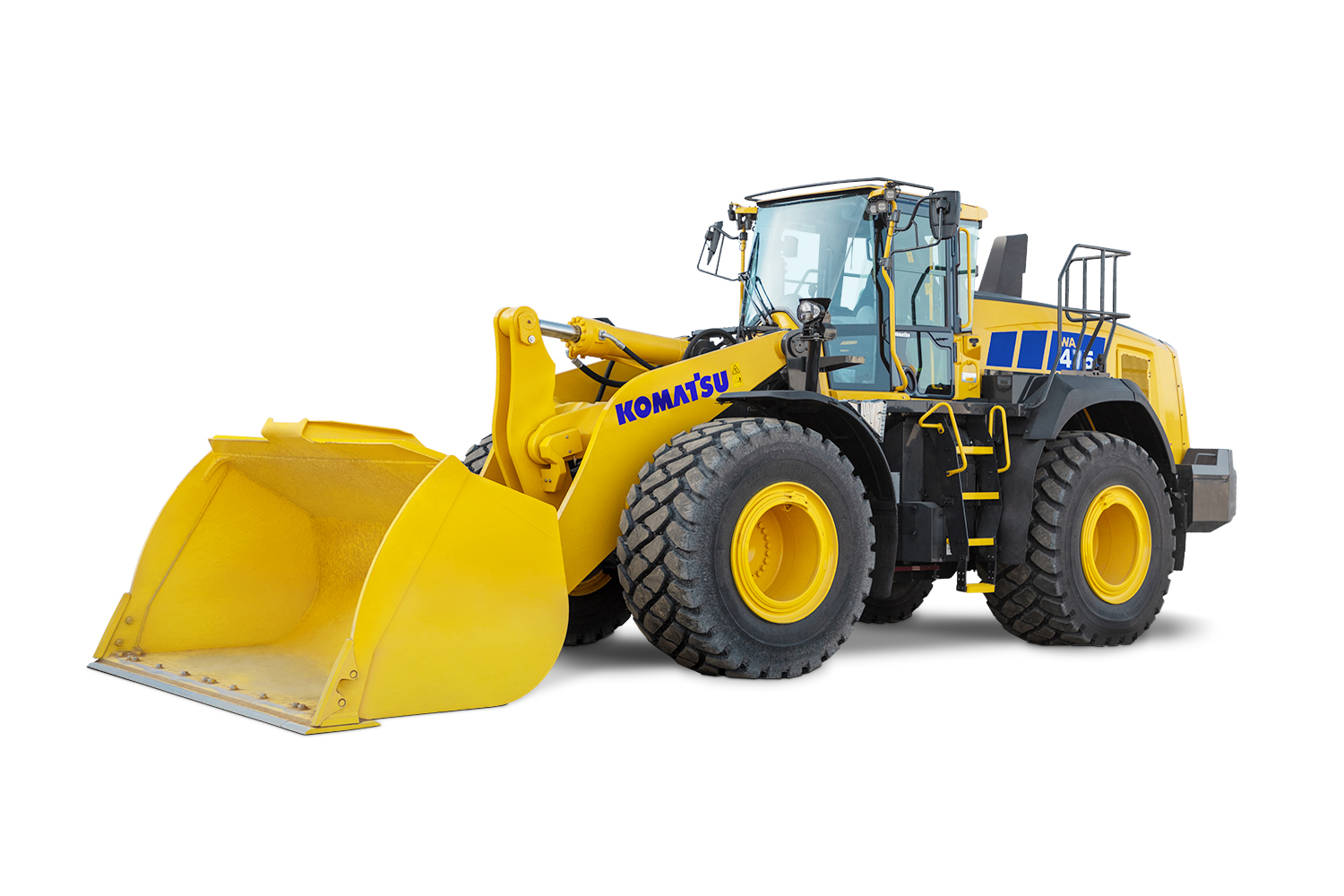

Wheel loaders
WA475-11
Large wheel loaders
- Horsepower (HP) 362 HP @ 1,600 rpm
- Horsepower (kW) 270 kW @ 1 600 rpm
- Operating weight (kg) 25 620 - 25 890
- Operating weight (lbs) 56,482 - 57,077
- Bucket capacity (m^3) 4.2 - 5.2
- Bucket capacity (yd^3) 5.5 - 6.8
Next-level performance and economy
The Komatsu WA475-11 builds upon the award-winning and popular WA475-10 and adds new features and design refinements that take this workhorse to a new level of operational efficiency. The result is a solid and reliable wheel loader engineered for fuel efficiency, engine power and climbing speed enhancements.
- 7% lower fuel consumption*
- 18% more engine power*
- 40% greater climbing speed (on a 6° slope)*
*Compared to the WA475-10
Features and benefits
Redesigned engine for power and efficiency
Next generation Komatsu DBA127 engine is compliant with U.S. EPA Tier 4 Final emissions. Redesigned with many advancements, including proprietary technology to eliminate exhaust gas recirculation (EGR). This engine is designed for lower fuel consumption, and more power and torque at lower engine speeds.

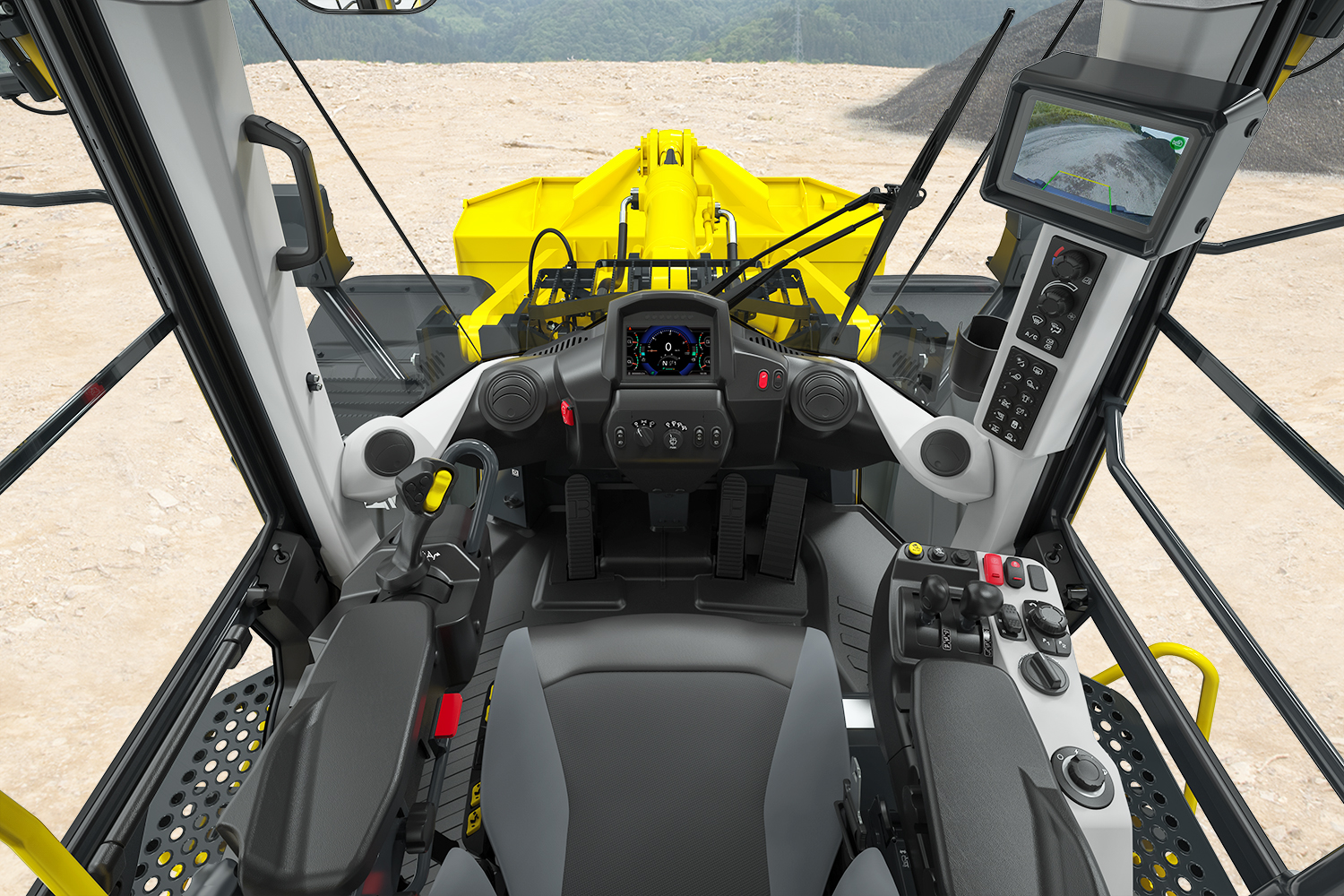

Comfortable operator cab
Pressurized, large cab designed to provide a quiet environment with a new intuitive console design. Visibility is increased by 21% with more glass area than the previous model. Five-way adjustable console and integrated switch, window roll curtain, electric heated side mirrors and more make this an efficient work environment.
Komatsu Hydraulic Mechanical Transmission (KHMT)
Designed for high efficiency with a continuously variable transmission. The combination of HST and mechanical transmission in a dual power path delivers excellent controllability and high transmission efficiency while promoting low fuel consumption. Dynamic transmission braking eliminates a separate brake cooling system.
Yard loader (YL) option
Best for quarry and aggregate applications, the YL configuration is designed for loading aggregate and other materials into on-highway trucks. This configuration includes heavier counterweight, wide low-profile tires and rims, reinforced frame and optimized bucket size for quarry work.
Reduced maintenance cost
Compared to the previous model, you may realize up to a 26% average reduction in maintenance costs. This is chiefly due to extended intervals for hydraulic and oil filter changes, as well as lengthening the time needed between KDPF cleanings.
Angle feedback joystick steering (AFJS)
With AFJS, the vehicle body articulates based on the tilt angle of the joystick. This technology converts joystick operation into electrical signals, delivering a smooth feel with less operating force for reduced wrist strain. Operators can adjust this low-effort drive-by-wire system. A steering wheel option is still available.
Independent work equipment levers
The work equipment speed can be controlled with levers. The engine speed is automatically optimized based on lever operation without pressing an accelerator pedal. Separating the transmission control from work equipment simplifies operations with less brake wear during hopper or truck loading.

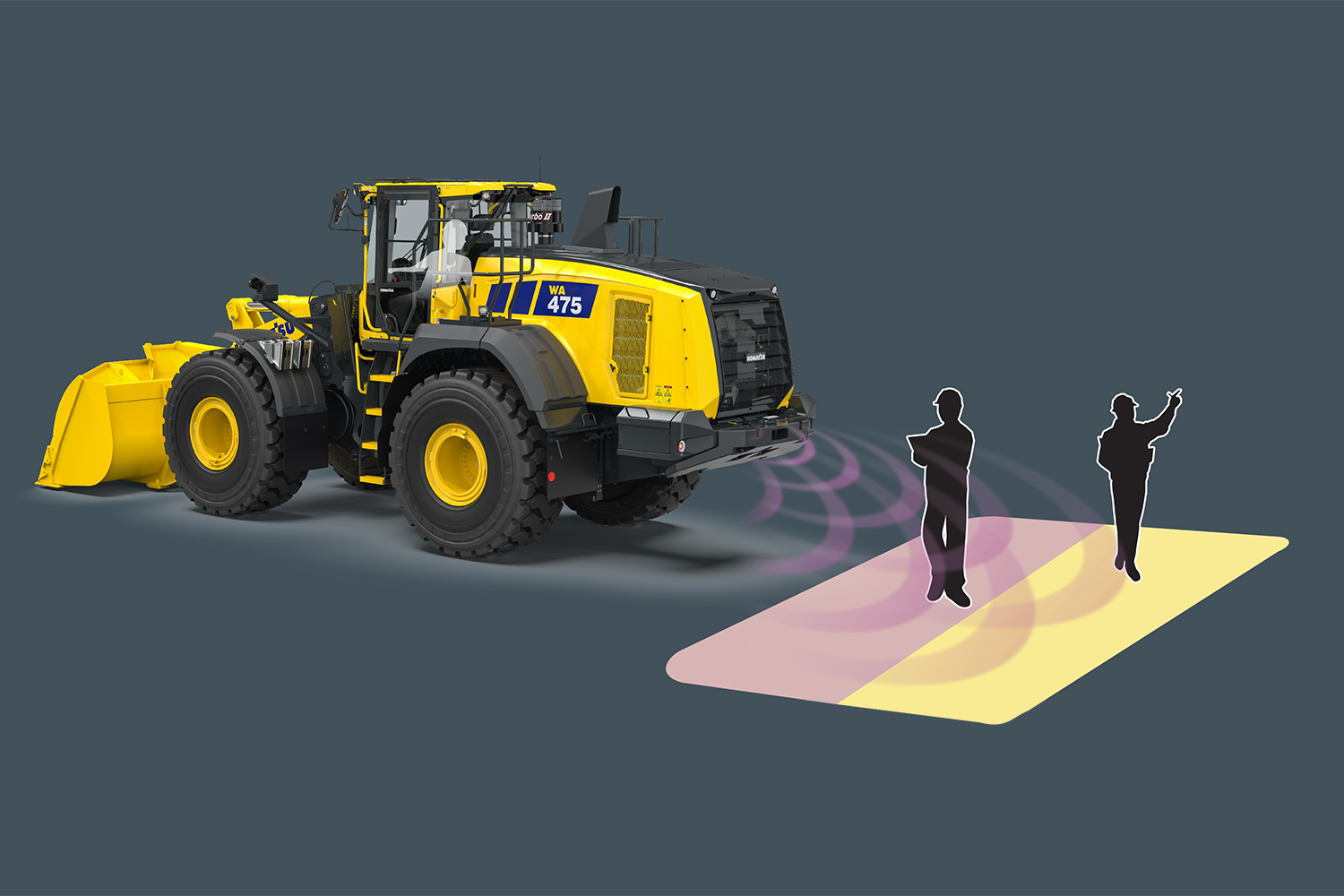

Standard rear object detection
Dual rear-side radars help detect objects and working machines as they approach the direction of travel while reversing the machine. A warning buzzer and indicator light alert the operator of a potential collision. This system also features false detection technology to help maintain uptime while promoting zero harm.

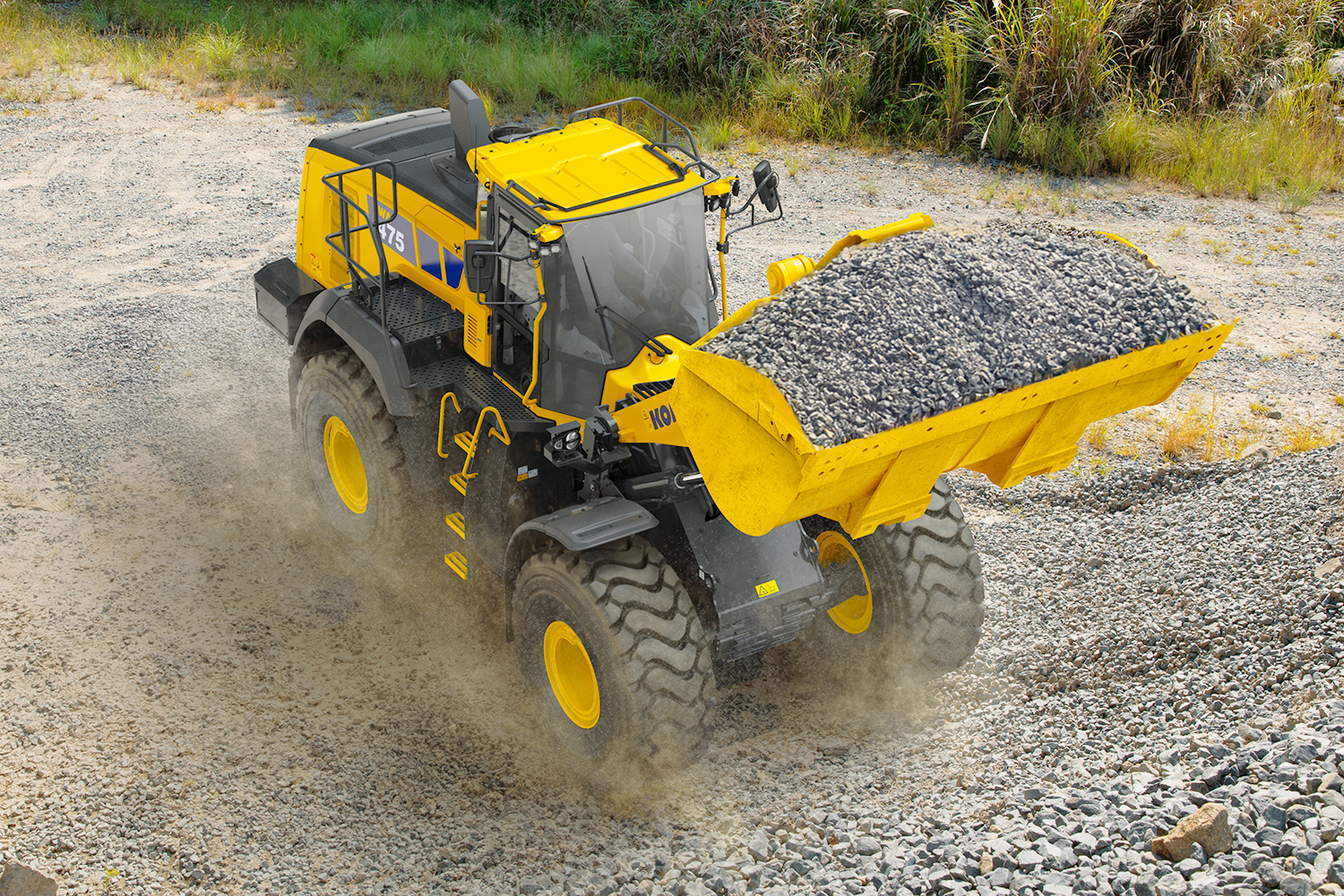

Bucket designed for productivity
The bucket's cross-sectional shape is intended for digging efficiency with material scooped and rolled up along the inclined floor of the bucket. Combining this redesigned bucket and the auto digging system helps boost productivity and is especially beneficial for newer operators on your crew.
Specifications
- Full specs
- Standard equipment
- Optional equipment
-
Steering System
- Hydraulic pump for steering system: Piston pump
- Capacity for steering system (at rated rpm) (L/min): 157.7
- Hydraulic cylinders type for steering system: Double-acting, piston type
- Number of cylinders in hydraulic cylinders: 2
- Bore x stroke (in): 3.75 x 17.4
- Bore x stroke (mm): 95 x 441
-
Loader control
- Hydraulic cylinder type for loader control: Double-acting, piston type
- Hydraulic pump: Piston pump
- Capacity (at rated rpm) (L/min): 333
- Relief valve setting (Mpa / kgf/cm^2): 35.3 / 360
- Number of cylinders: 6
-
Cylinders
- Lift cylinder - 2 (mm): 150 x 764
- Lift cylinder - 2 (in): 2-5.9 x 30
- Bucket cylinder - 1 (mm): 180 x 540
- Bucket cylinder - 1 (in): 1-7.1 x 21.25
- Control valve: 2-spool type
-
Control positions
- Boom: Raise, hold, lower, and float
- Bucket: Tilt-back, hold, and dump
-
Hydraulic cycle time (rated load in bucket)
- Raise (s): 5.7
- Dump (s): 1.8
- Lower (Empty) (s): 3.1
- Transmission footnote: Measured with 26.5R25 tires
- Type: Hydraulic mechanical planetary type
-
Travel speed
- Forward (mph): 1.86 – 23.61
- Forward (kph): 3.0 - 38.0
- Reverse (kph): 3.0 - 28.0
- Reverse (mph): 1.86 – 17.40
- Cooling system (US gal): 17.4
- Cooling system (L): 66
- Fuel tank (L): 359
- Fuel tank (US gal): 94.8
- Engine (L): 41
- Engine (US gal): 10.8
- Hydraulic system (US gal): 34.8
- Hydraulic system (L): 132
- Axle front (L): 56.5
- Axle front (US gal): 15
- Axle rear (L): 56.5
- Axle rear (US gal): 15
- DEF tank (US gal): 15.9
- DEF tank (L): 60
- Transfer case (US gal): 10.6
- Transfer case (L): 40
- Service brake: Hydraulically actuated, wet multiple-disc brakes actuate on four wheels
- Parking brake: Wet multiple-disc brake
- Secondary brake: One of dual service brake circuits is commonly used
- Engine Model: Komatsu DBA127
- Aspiration: Turbo-charged, after-cooled
- Bore x stroke of engine (in): 5.1 x 6.3
- Bore x stroke of engine (mm): 130 x 160
- Piston displacement (L): 12.74
- Governor: All-speed, electronic
- Model footnote: * Net horsepower at the maximum speed of radiator cooling fan is 328 HP (245 kW). U.S, EPA Tier 4 Final and EU Stage V emissions certified.
-
Lubrication system
- Method: Gear pump, force-lubrication
- Filter: Full-flow type
- Air cleaner: Dry type with double elements and dust evacuator, plus dust indicator
-
Horsepower
- SAEJ1995 - Gross (HP): 345
- SAEJ1995 - Gross (kW): 257
- ISO 9249 / SAE J1349 - Net (HP): 343
- ISO 9249 / SAE J1349 - Net (kW): 256
- Rated RPM: 1,600
- Fan drive method for radiator cooling: Hydraulic
- Fuel system: Direct injection
- Drive System: Four-wheel drive
- Front Axle: Fixed, semi-floating
- Axle Rear: Center-pin support, semi-floating, 26° total oscillation
- Final reduction gear: Planetary gear, single reduction
- Differential gear: Conventional type
- Reduction gear: Spiral bevel gear
- Steering system type: Articulated type, full-hydraulic power steering
- Steering angle: 35° each direction (40° end stop)
- Minimum turning radius at the center of outside tire (ft , in): 21 ft. 9 in
- Minimum turning radius at the center of outside tire (mm): 6 630
Engine
- Engine, Komatsu DBA127
- Komatsu Diesel Particulate Filter
- Alternator, 24 V/140 A
- Starting motor, 24 V/11.0 kW
- Maintenance free batteries, 2 x 12 V / 136 A
- Engine air intake pre-cleaner with extension
Cab
- Seat, air suspension type with reclining
- Seat mounted 5-way adjustable console R.H.
- Electronic pilot control fingertip control with directional selector switch, two levers
- ROPS/FOPS (ISO 3471/ISO 3449) cab
- High-definition color monitor l Angle feedback joystick steering (AFJS)
- Auto air conditioner
- Multifunction Audio
- DC12 V electrical outlets
- Floor mat
- Rain visor l Rear defroster (electric)
- Front wiper (with washer and intermittent)
- Machine monitor with trouble shooting function
- Rear window washer and wiper
- Seat belt
- Large utility space
- Cup holder
Lighting system
- Rear working lamps on grill, LED, L.H. and R.H. side, 2 lamps
- Rear working lamps, LED, L.H. and R.H. side, 2 lamps
- Additional rear working lamps on platform, LED, L.H. and R.H. side, 2 lamps
- Front working lamps, LED, L.H. and R.H. side, 4 lamps
- Side working lamps, LED, L.H. and R.H. side, 2 lamps
- Stop and tail lamps, LED and turn signal lamps
- Headlamps, LED, L.H. and R.H. side
- Directional signal
- Hazard lamps
- Back-up lights, LED
Safety equipment
- Service brakes, wet disc type
- Back-up alarm
- Electric controlled mirror with heater
- Rearview monitoring system
- Horn, electric
- Parking brake, electric
- Anchorage points for tie off
- Handrails for platform
- Handrails for roof
- Front frame step for cleaning window
- Secondary steering
- Rear object detection system
Tires
- 26.5R25 (L-3) l 875/65R29 (L-3)
Other
- Engine shutdown secondary switch
- Radiator, wide core
- Radiator mask, swing out
- Komatsu hydraulic mechanical transmission (KHMT)
- Loader linkage with standard boom
- 2-spool valve for boom and bucket controls
- Counterweight, standard
- Additional counterweight
- Lift cylinders and bucket cylinder
- Electronically controlled suspension system
- Remote bucket positioner, in-cab adjustable, three positions
- Remote boom positioner, in-cab adjustable
- Auto idle stop timer setting
- Auto shift control
- Battery disconnect switch
- Hydraulic-driven fan with automatic reverse rotation
- Vandalism protection
- Front fenders with extensions
- Rear full fenders
- Komtrax
- ECO guidance
- Fuel pre-filter with water separator
- Limited slip differential (front and rear)
Engine
- Engine, Komatsu DBA127
- Komatsu Diesel Particulate Filter
- Alternator, 24 V/140 A
- Starting motor, 24 V/11.0 kW
- Maintenance free batteries, 2 x 12 V / 136 A
- Engine air intake pre-cleaner with extension
Cab
- Seat, air suspension type with reclining
- Seat mounted 5-way adjustable console R.H.
- Electronic pilot control fingertip control with directional selector switch, two levers
- ROPS/FOPS (ISO 3471/ISO 3449) cab
- High-definition color monitor l Angle feedback joystick steering (AFJS)
- Auto air conditioner
- Multifunction Audio
- DC12 V electrical outlets
- Floor mat
- Rain visor l Rear defroster (electric)
- Front wiper (with washer and intermittent)
- Machine monitor with trouble shooting function
- Rear window washer and wiper
- Seat belt
- Large utility space
- Cup holder
Lighting system
- Rear working lamps on grill, LED, L.H. and R.H. side, 2 lamps
- Rear working lamps, LED, L.H. and R.H. side, 2 lamps
- Additional rear working lamps on platform, LED, L.H. and R.H. side, 2 lamps
- Front working lamps, LED, L.H. and R.H. side, 4 lamps
- Side working lamps, LED, L.H. and R.H. side, 2 lamps
- Stop and tail lamps, LED and turn signal lamps
- Headlamps, LED, L.H. and R.H. side
- Directional signal
- Hazard lamps
- Back-up lights, LED
Safety equipment
- Service brakes, wet disc type
- Back-up alarm
- Electric controlled mirror with heater
- Rearview monitoring system
- Horn, electric
- Parking brake, electric
- Anchorage points for tie off
- Handrails for platform
- Handrails for roof
- Front frame step for cleaning window
- Secondary steering
- Rear object detection system
Tires
- 26.5R25 (L-3) l 875/65R29 (L-3)
Other
- Engine shutdown secondary switch
- Radiator, wide core
- Radiator mask, swing out
- Komatsu hydraulic mechanical transmission (KHMT)
- Loader linkage with standard boom
- 2-spool valve for boom and bucket controls
- Counterweight, standard
- Additional counterweight
- Lift cylinders and bucket cylinder
- Electronically controlled suspension system
- Remote bucket positioner, in-cab adjustable, three positions
- Remote boom positioner, in-cab adjustable
- Auto idle stop timer setting
- Auto shift control
- Battery disconnect switch
- Hydraulic-driven fan with automatic reverse rotation
- Vandalism protection
- Front fenders with extensions
- Rear full fenders
- Komtrax
- ECO guidance
- Fuel pre-filter with water separator
- Limited slip differential (front and rear)
Cab
- Multifunction mono-lever loader control with transmission F-N-R switch
- Steering wheel, tiltable, telescopic
Tires
- 875/65R29 (L-3)
Other
- 3-spool valve with lever and piping
- Cutting edge (bolt on type)
- Various bucket options
- Various tire options
Cab
- Multifunction mono-lever loader control with transmission F-N-R switch
- Steering wheel, tiltable, telescopic
Tires
- 875/65R29 (L-3)
Other
- 3-spool valve with lever and piping
- Cutting edge (bolt on type)
- Various bucket options
- Various tire options
