Underground hard rock haulage

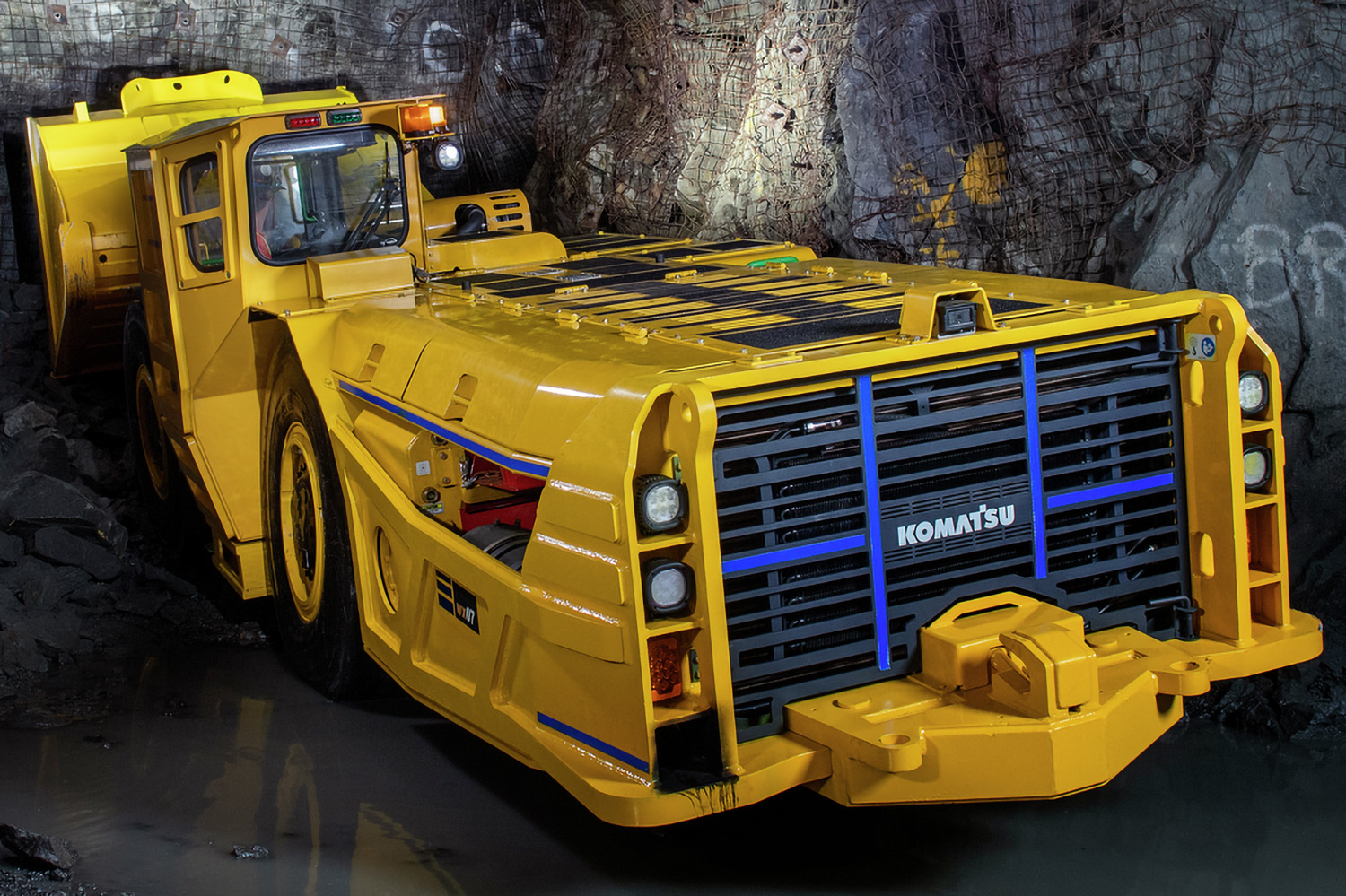

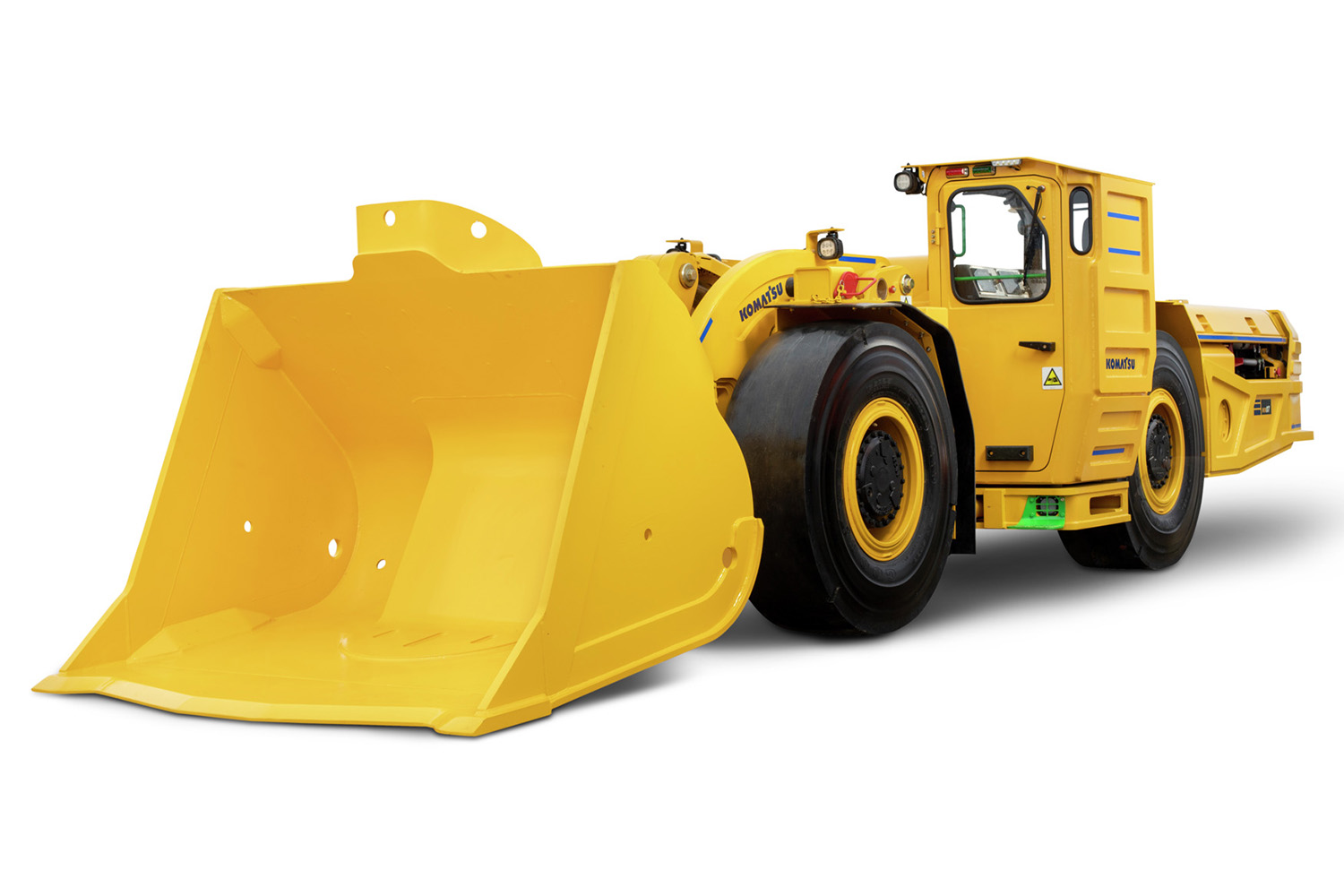

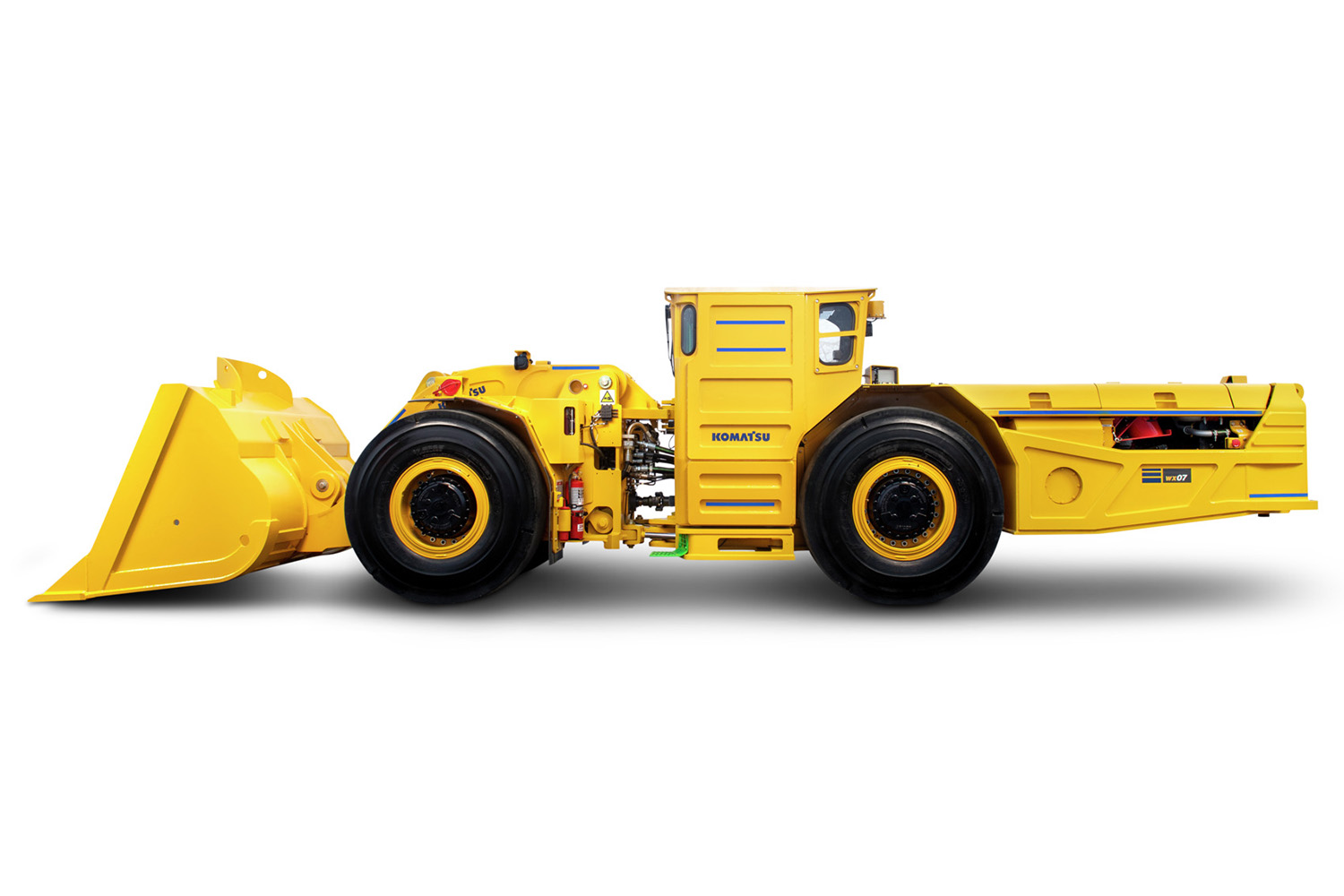

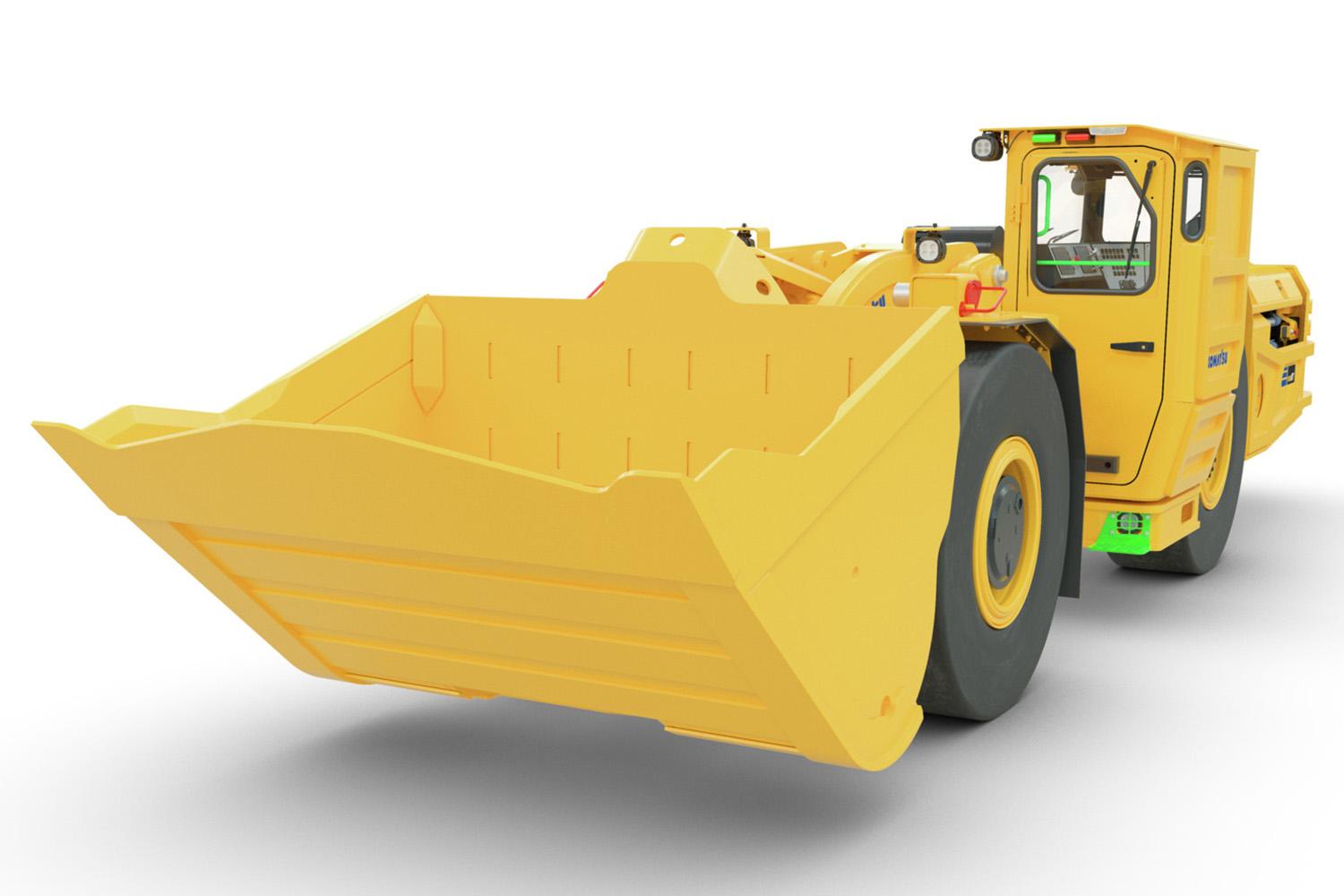

WX07

LHD

  • Tramming capacity (kg) 7 000
  • Tramming capacity (lbs) 15432
  • Bucket Capacity (m^3) 3.1
  • Bucket Capacity (yd^3) 4
  • Height to top of canopy (in) 85.4
  • Height to top of canopy (mm) 2 169

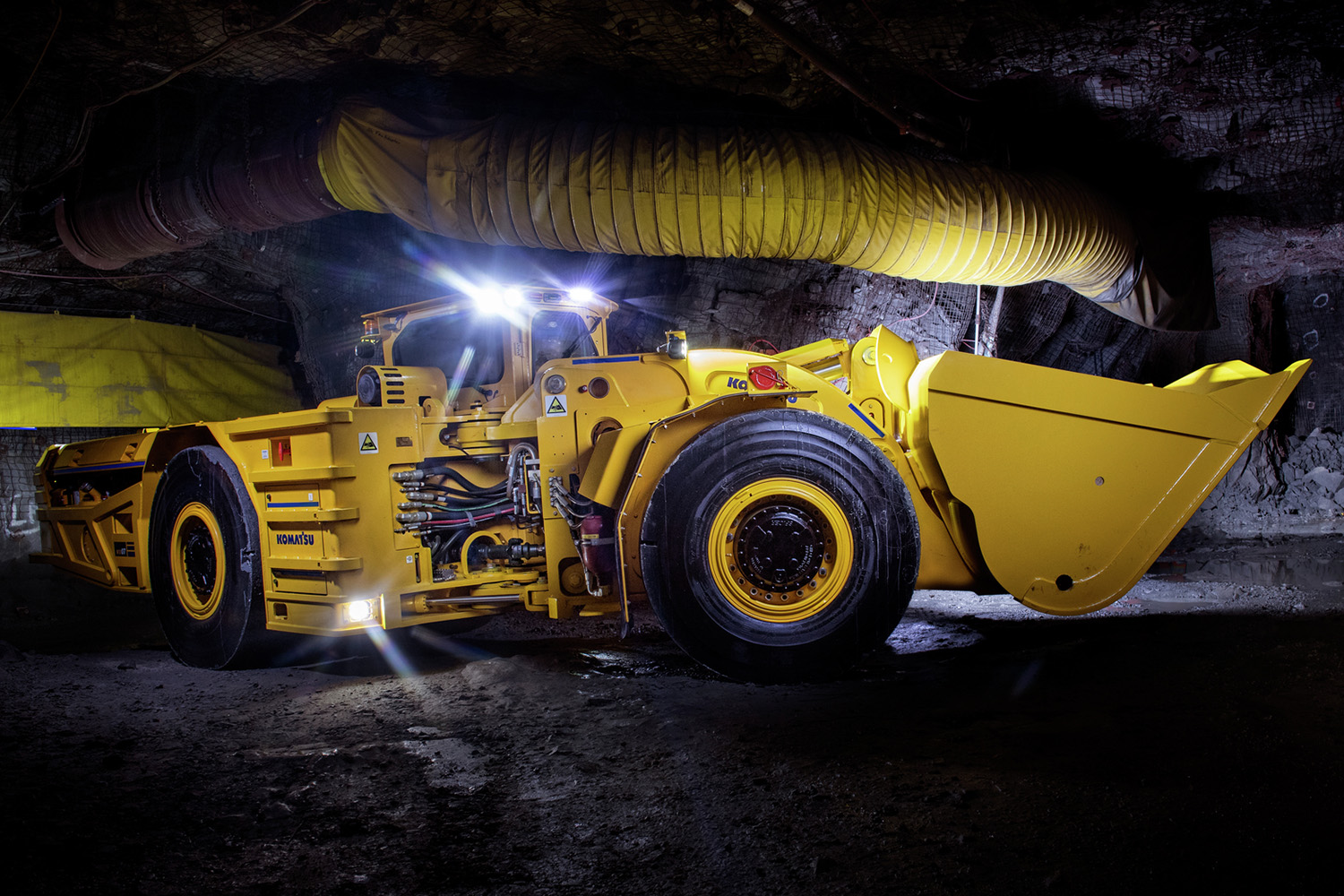

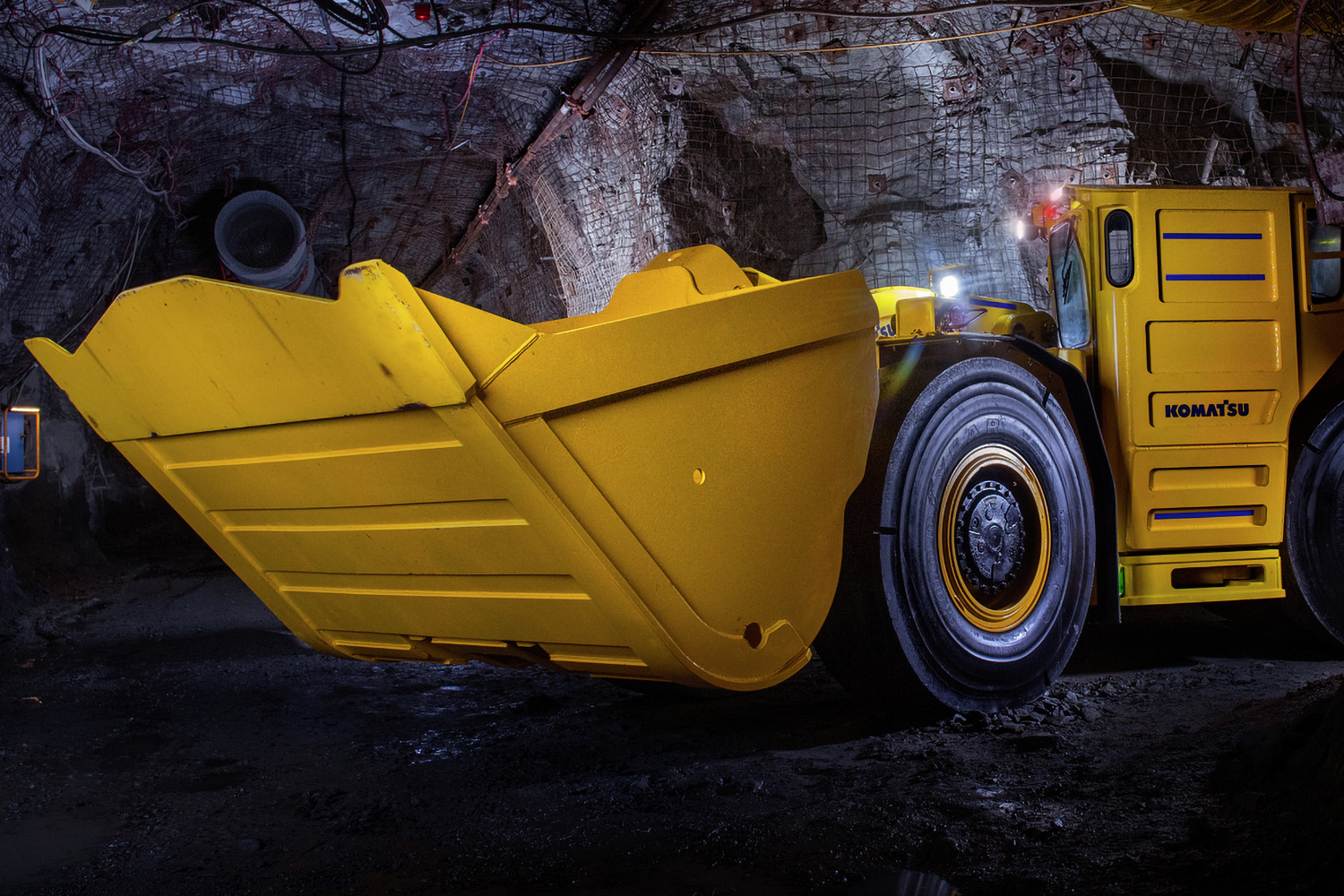

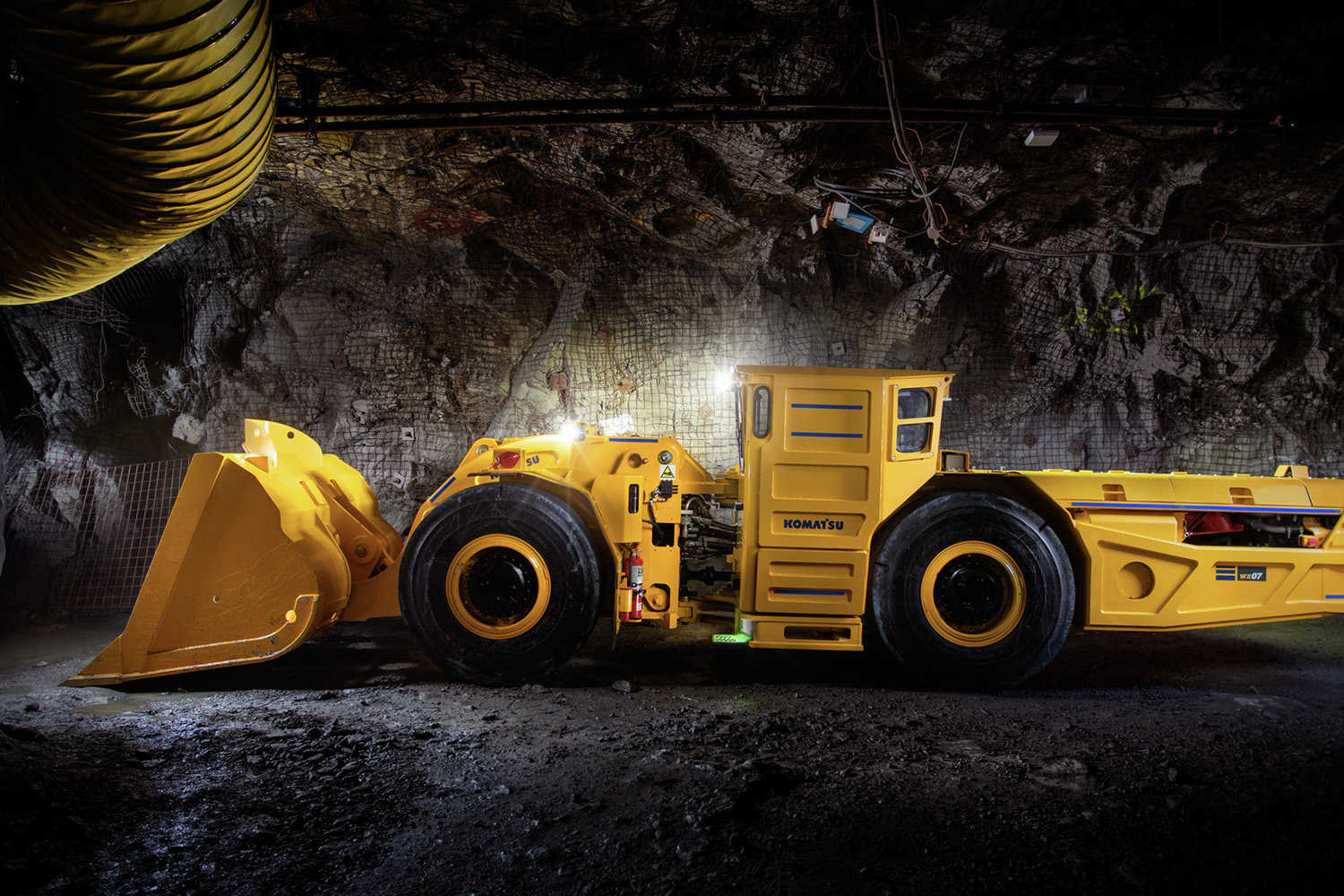

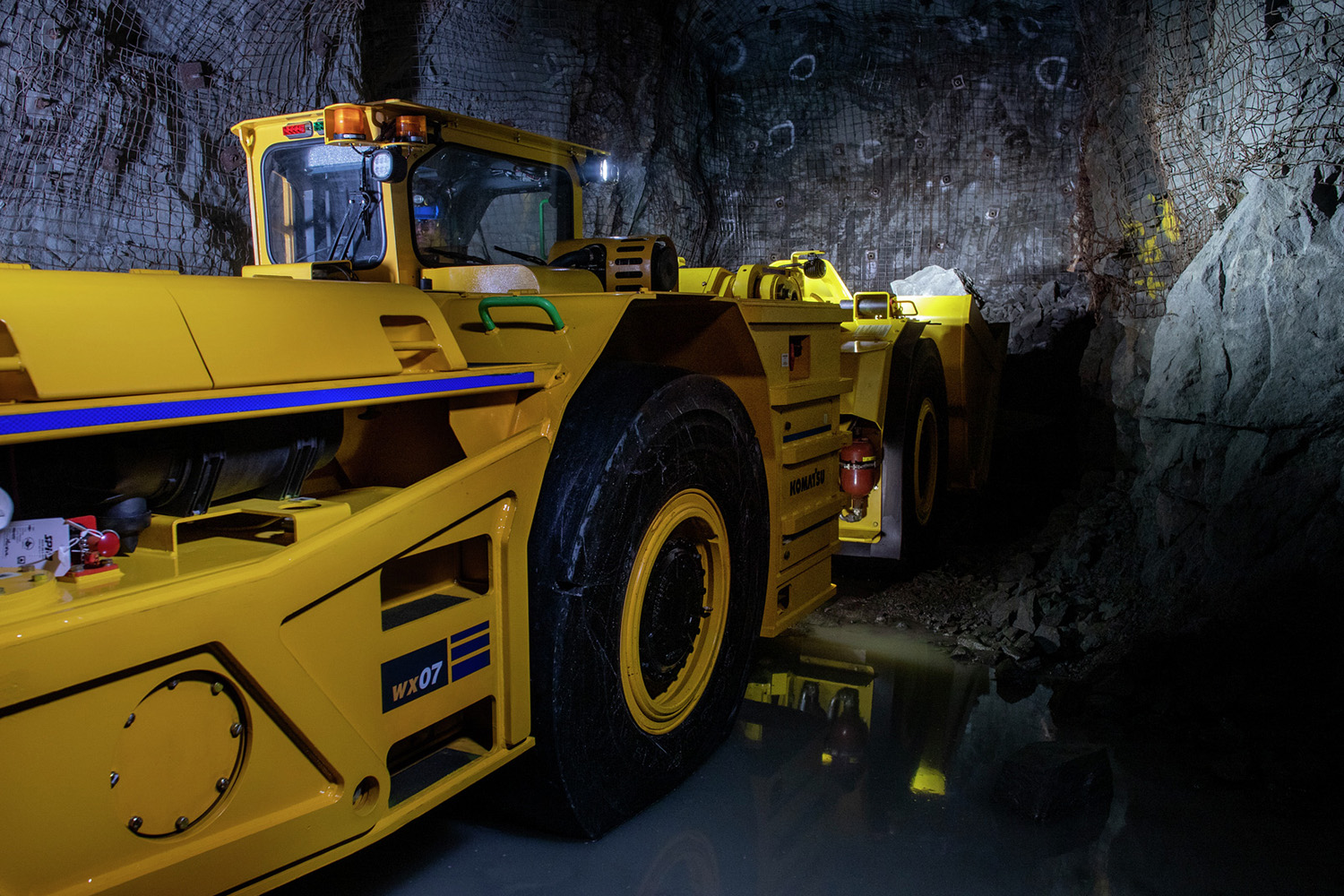

Drive productivity and performance with a reliable 7-tonne class LHD loader

The WX07 has been developed for you from the ground up with a whole new chassis, new powertrain and optimized ergonomic operator cabin with enhanced visibility to help boost productivity. The WX07 is ideal for small and narrow vein mines, particularly operations using cut-and-fill methods.

  • Up to 10% more breakout force of any machine in its class*
  • Up to 15% faster operating speed with loaded bucket**

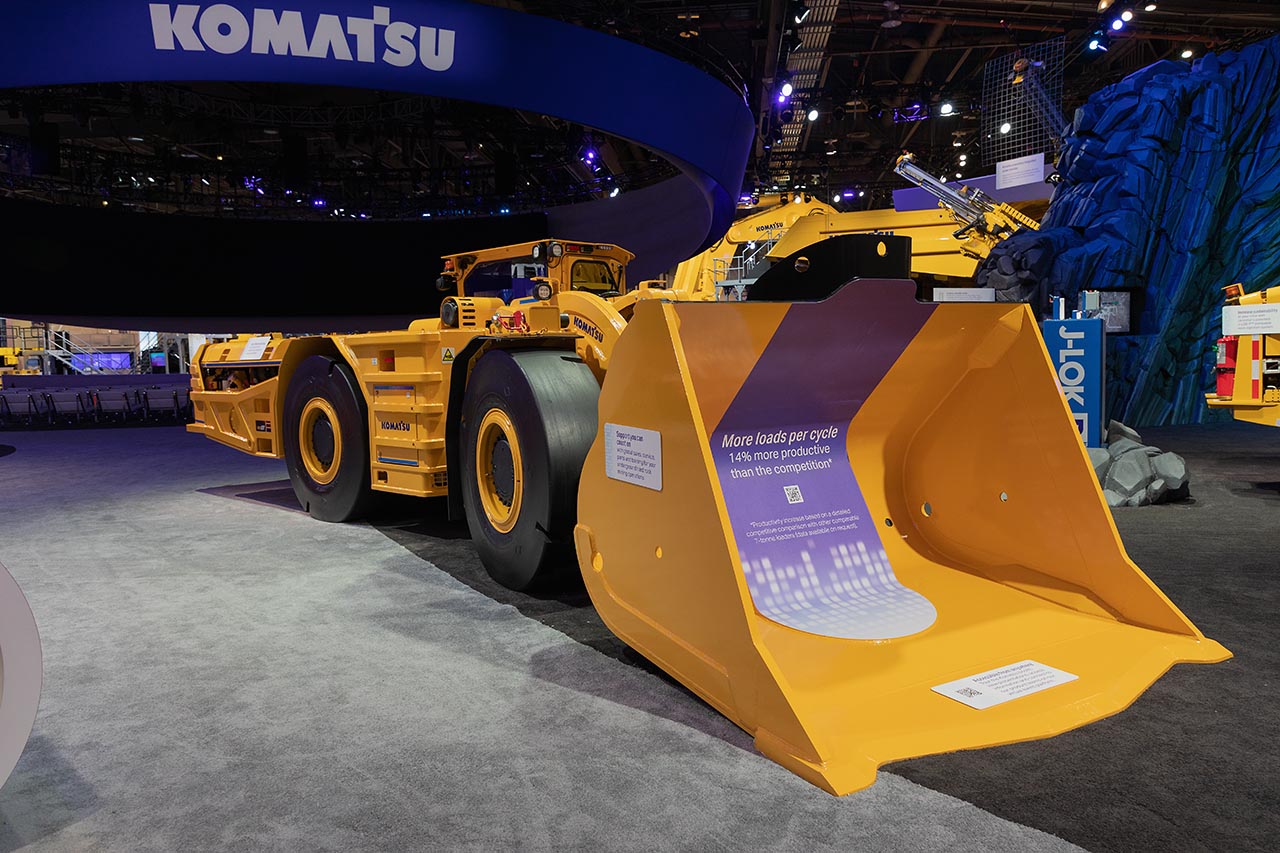

  • 14% more productive than the competition***

Note: *breakout force is based on a comparison of published competitor information of similar LHDs in the 7-tonne class

Note: **operating speed measured with loaded bucket on grade, based on published competitor information

Note: ***productivity increase based on a detailed competitive comparison with other comparable 7-tonne loaders (data available on request)

Features and benefits

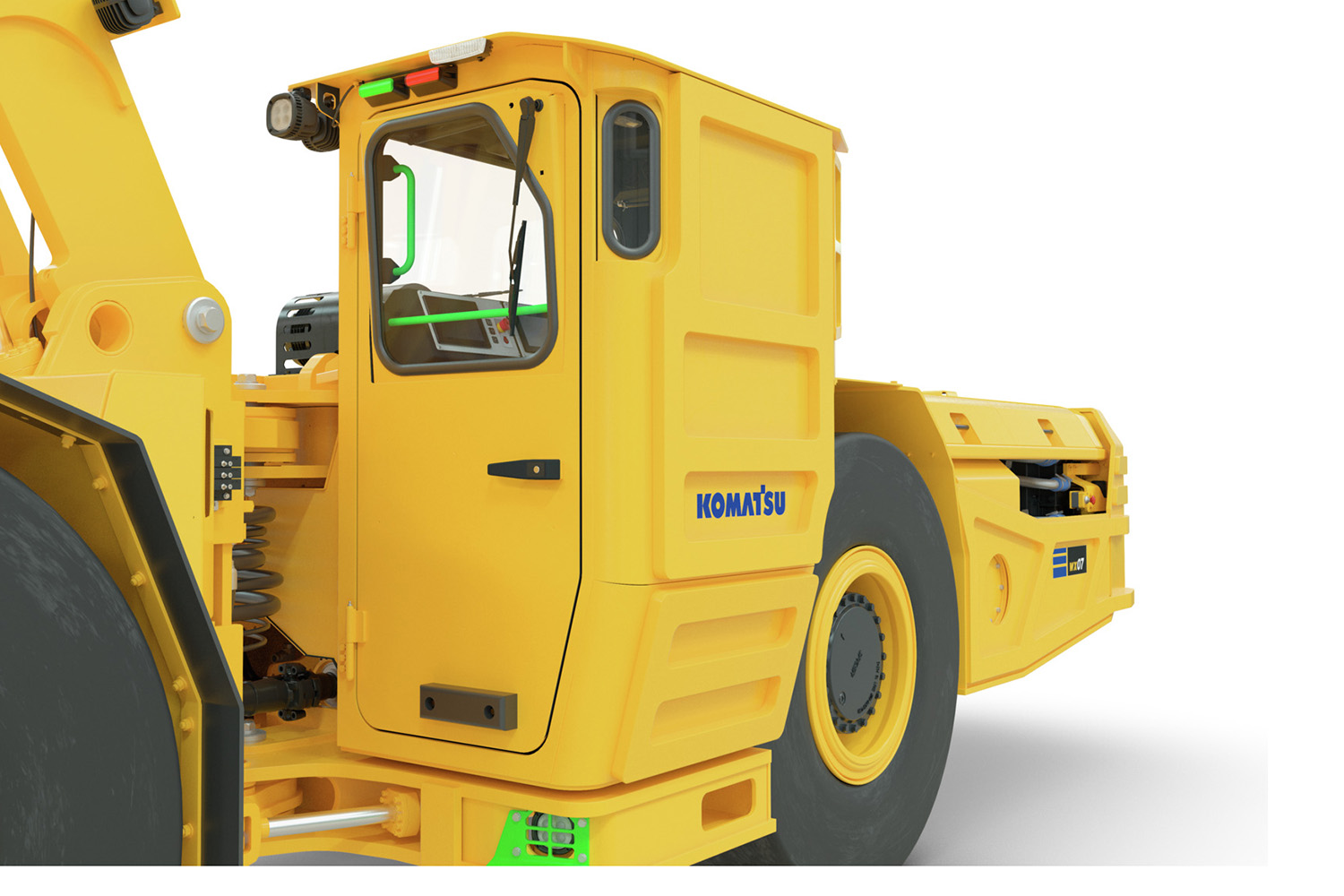

FOPS/ROPS-certified and ergonomic cabins

FOPS/ROPS-certified and ergonomic cabins

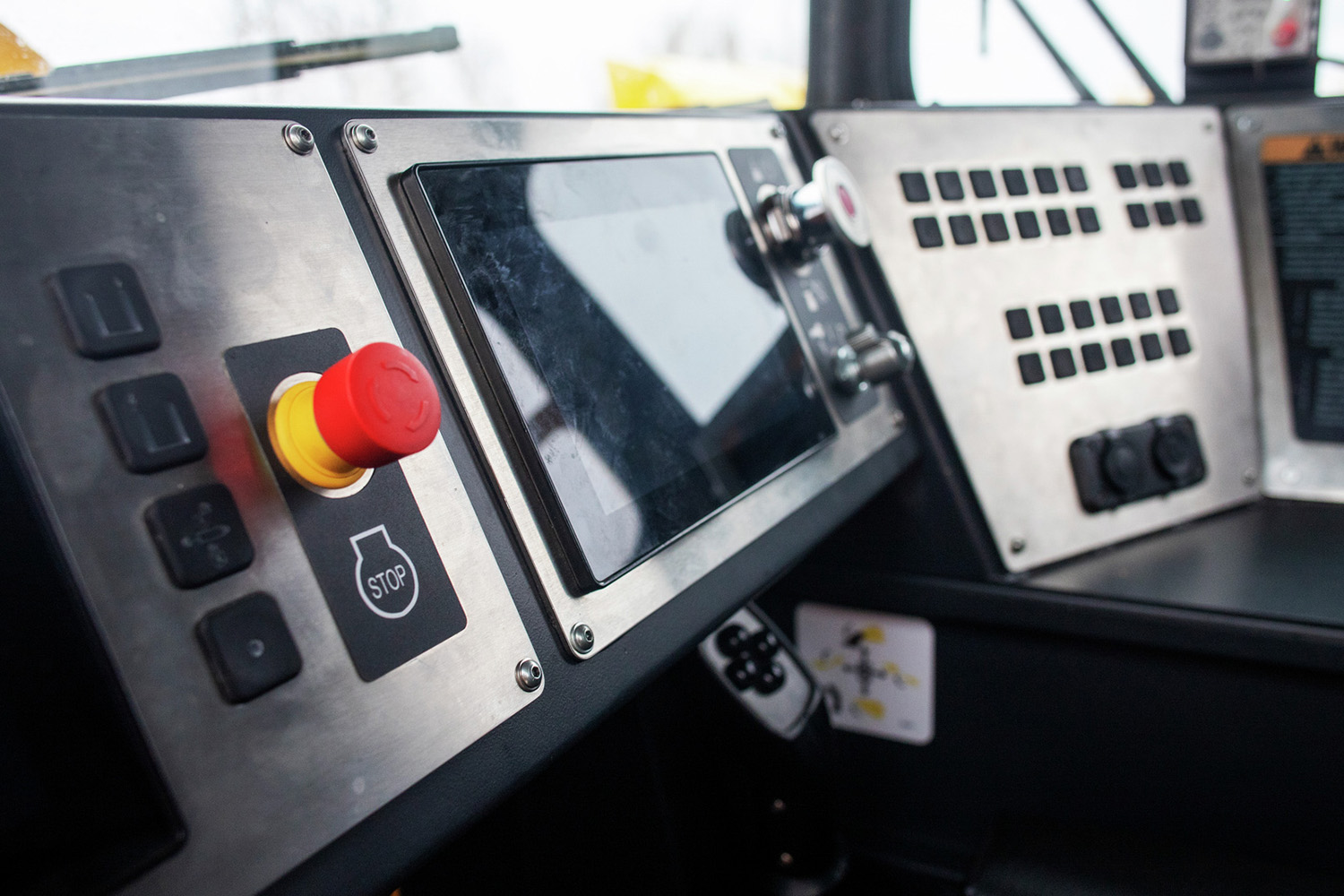

The WX07 cabin is designed to improve operator performance through enhanced ergonomics, intuitive and easy-to-operate controls, and comfort features to reduce fatigue on long shifts. The new design also offers superior operator visibility from the cabin.

Ground-level maintenance design

Ground-level maintenance design

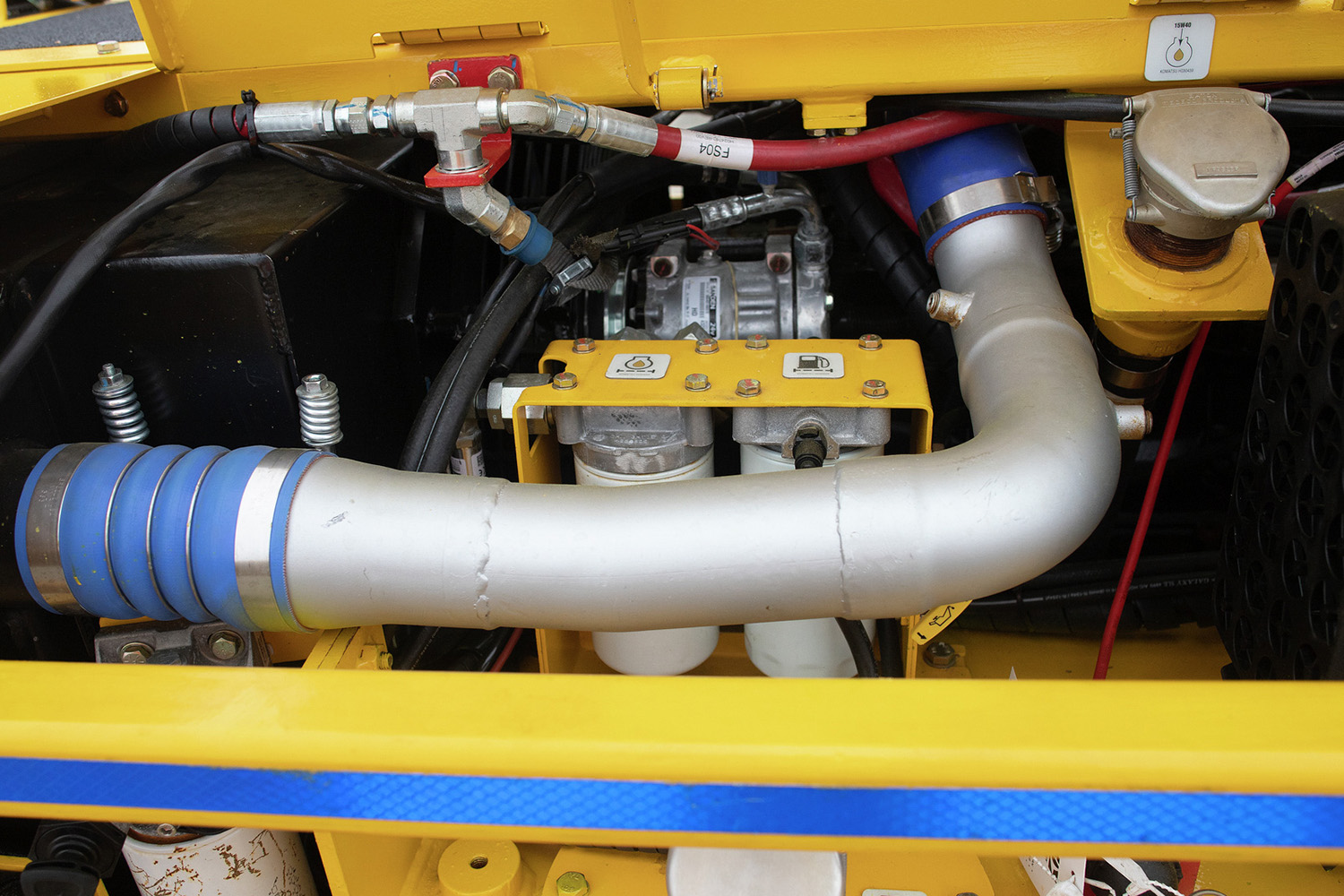

Get exceptional serviceability with vital maintenance components accessible from the ground level. Ensure fast, efficient repairs with added protection for your service crew.

Data management

Data management

The WX07 data management features allow you to monitor, store and manage operational data to enhance servicing, troubleshooting, training, and overall performance.

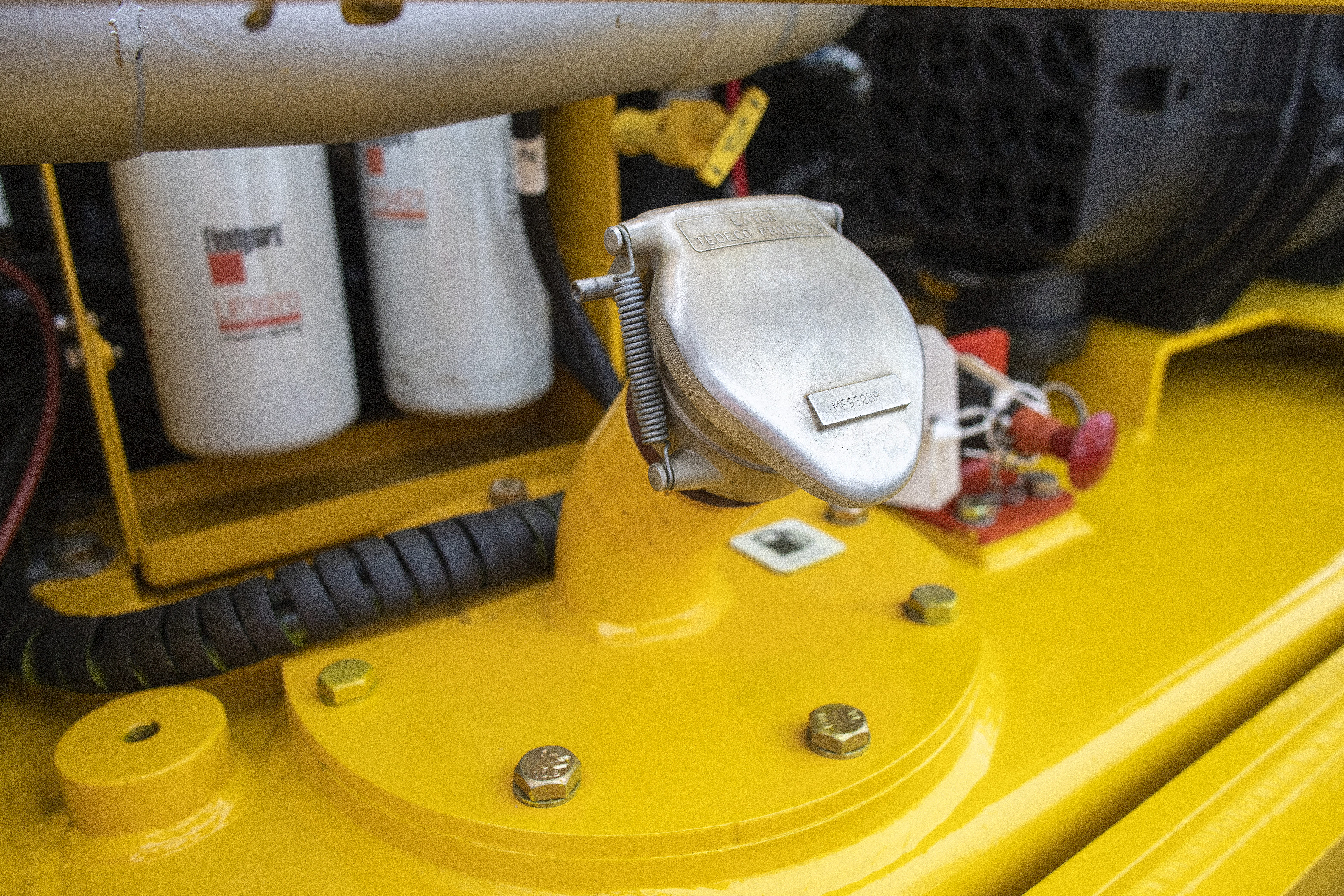

Large 243-liter fuel tank

Large 243-liter fuel tank

With a large 64-gallon (243-liter) fuel tank, you can operate longer underground without stopping to refuel. The WX07’s large fuel tank volume allows for longer working hour shifts and less refueling handling and frequency.

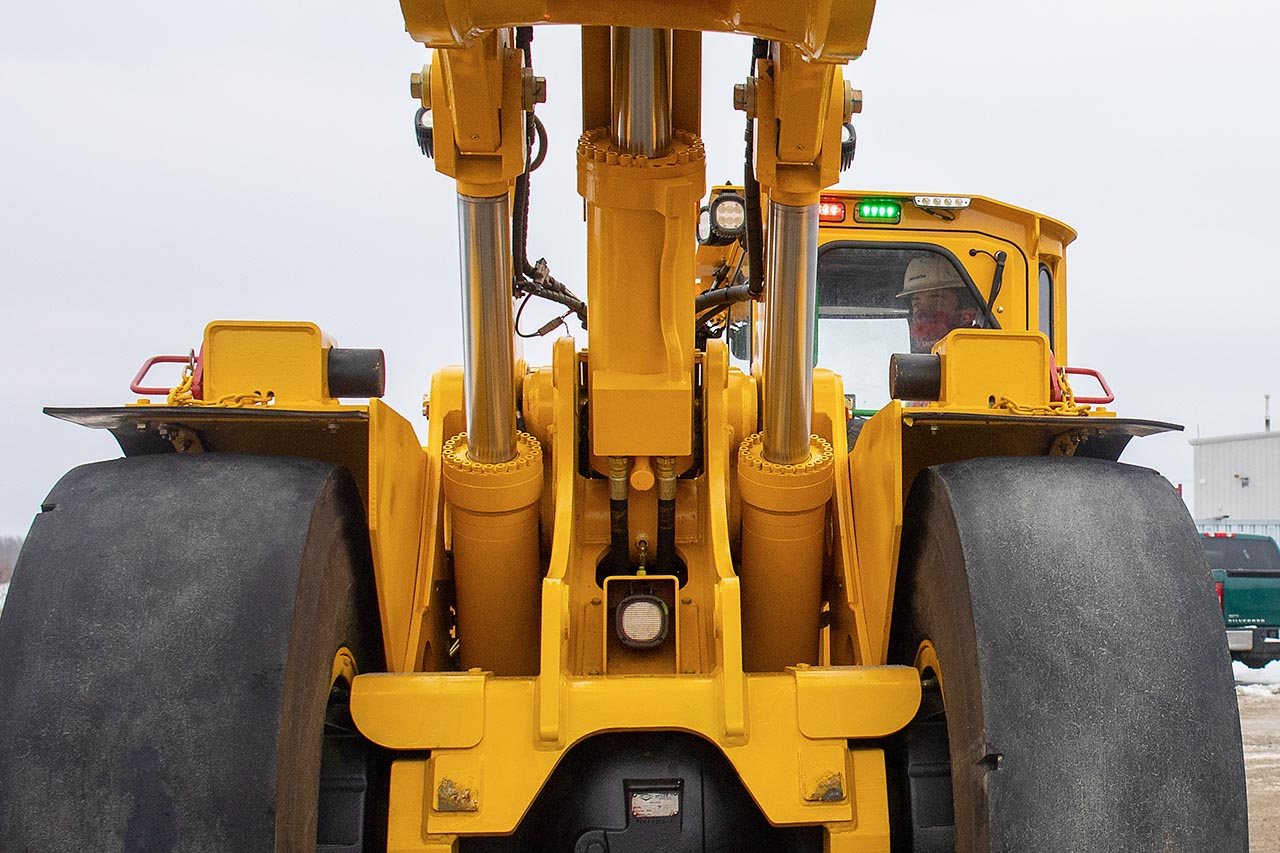

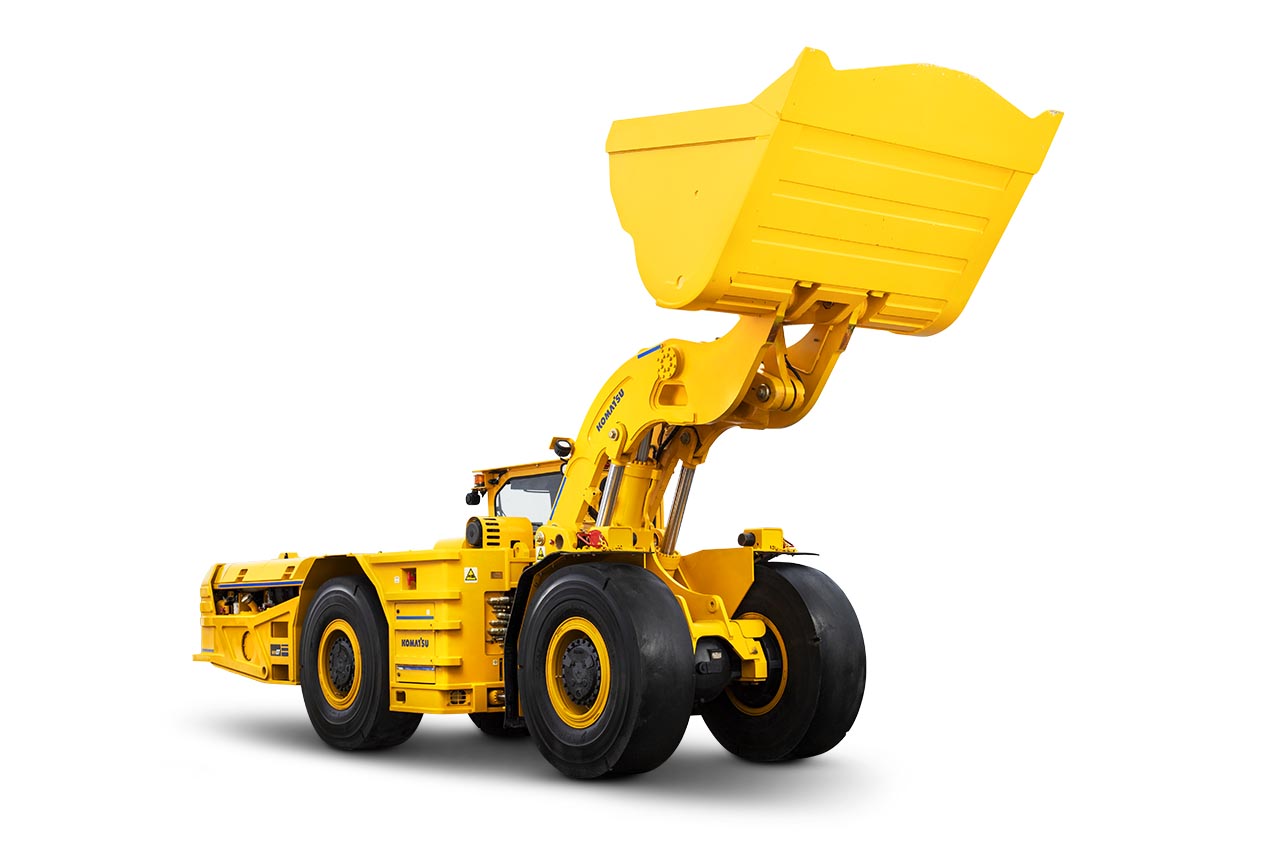

Cast Z-link and cast boom cross-tube

Cast Z-link and cast boom cross-tube

The WX07 has reinforced boom design and a refined unit geometry. See what results you can get with an improved 20- to 22-tonne truck loading range, superior breakout force and the fastest boom cycle in its class.

Optimized Z-bar linkage

Optimized Z-bar linkage

The WX07 features new Z-bar linkage, generating powerful breakout force and a refined attack angle for enhanced material penetration.


Specifications

Metric Imperial (US)
Expand all

  • Engine (standard): Cummins QSB 6.7 EPA Tier 3, MSHA/CANMET
  • Output (standard)(HP): 215 HP @ 2,100 rpm
  • General

    • Air filtration: Donaldson (dry type)
    • Powertrain exhaust system: DOC
    • Fuel tank capacity (L): 243
    • Fuel tank capacity (US gal): 64
    • Converter: Dana C3000 series
    • Transmission: Dana TE14
    • Shifting: Powershift with auto and manual modes
    • Speeds: 4 forward / 4 reverse
    • Lock-up: Yes
  • Axles

    • Front and rear: Dana 17D
    • Differentials: LSD front axle, no spin rear axle
    • Brakes: Spring applied, hydraulic release
    • Oscillation angle (deg): +/- 6
    • Tires: Bias L5S or Radial
    • Size (in): 17.50 x 25

  • Dump motion time (s): 2
  • Rollback time (s): 2.45
  • Raising time (s): 5.95
  • Lowering time (s): 3.45

  • Operating weight (kg): 22 340
  • Operating weight (lbs): 49251
  • Total loaded weight (kg): 29 340
  • Total loaded weight (lbs): 64683
  • Axle weight with load

    • Front axle (kg): 20 244
    • Front axle (lbs): 44630
    • Rear axle (kg): 9 096
    • Rear axle (lbs): 20053
  • Axle weight without load

    • Front axle (kg): 9 639
    • Front axle (lbs): 21250
    • Rear axle (kg): 12 701
    • Rear axle (lbs): 28001

  • Tramming capacity (kg): 7 000
  • Tramming capacity (lbs): 15432
  • Hydraulic breakout force lift (lbs): 31447
  • Hydraulic breakout force lift (kg): 14 264
  • Hydraulic breakout force tilt (lbs): 30082
  • Hydraulic breakout force tilt (kg): 13 645
  • SAE breakout force (lbs): 27816
  • SAE breakout force (kg): 12 617
  • SAE static tipping load (kg): 21 258
  • SAE static tipping load (lbs): 46866
  • Bucket volume (m^3): 3.1
  • Bucket volume (y^3): 4

  • Front and rear frames: Welded steel box construction
  • Material: A572 GR50 (CSA G40.21-50W)

  • Alternator: 24V/120A Prestolite
  • Batteries: 2 x 12V
  • Starter: 24V heavy duty
  • Driving and working lights: 8 forward / 3 rear
  • Cabin lights: 3 interior lights (LED)

  • Engine rated power (standard)(HP): 215
  • Engine rated power (standard)(kW): 160
Metric Imperial (US)
  • Certified ROPS/FOPS open Cabin
    • Air ride seat
    • Two LCD screens on dash
    • Selectable two position throttle and brake pedal location
    • 12V, 2-way radio power receptacle (radio supplied by customer)
    • 12 VDC power port in Cabin

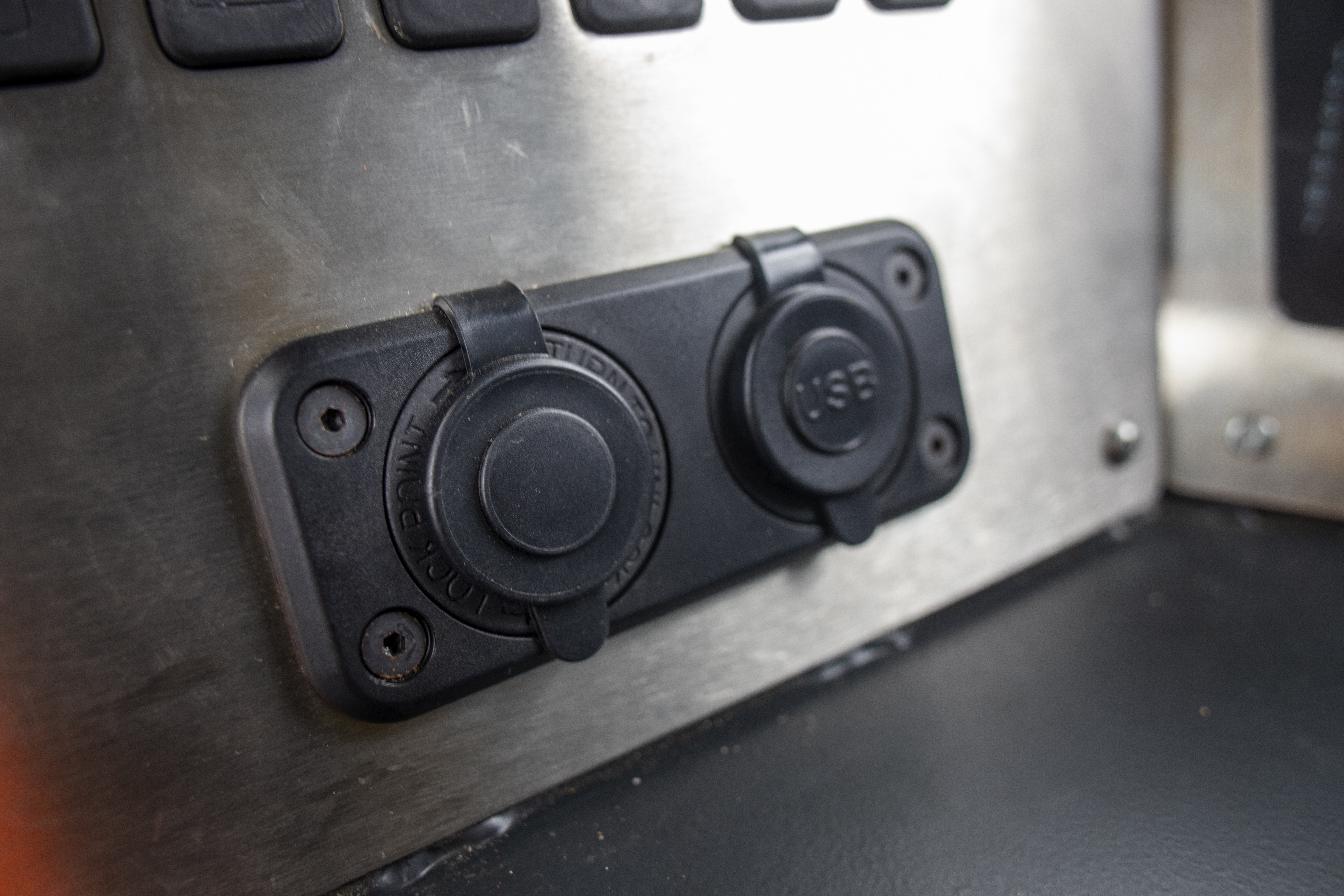

    • Two 2.1A USB power ports in Cabin
    • Engine diagnostic port in Cabin
    • Maximum grade exceeded warning display
  • 3.1 m3bucket with plate lip
  • Three emergency stops
  • Automatic Engine shut down: low coolant level, low Engine oil pressure, Engine coolant temperature exceeded, hydraulic oil temperature exceeded, fire suppression discharge
  • Electronic fill pump for hydraulic tank
  • Filter clog warning display for Engine air intake filter, hydraulic pressure filters, hydraulic return filter
  • Radial Tires
  • Articulation and boom lock pins
  • 3-Point access to Cabin
  • Double wall insulated exhaust piping
  • DOC exhaust
  • Heavy duty reflective tape
  • 10 lb fire extinguisher
  • Heavy duty grip tape on hoods
  • Certified ROPS/FOPS open Cabin
    • Air ride seat
    • Two LCD screens on dash
    • Selectable two position throttle and brake pedal location
    • 12V, 2-way radio power receptacle (radio supplied by customer)
    • 12 VDC power port in Cabin
    • Two 2.1A USB power ports in Cabin
    • Engine diagnostic port in Cabin
    • Maximum grade exceeded warning display
  • 3.1 m3bucket with plate lip
  • Three emergency stops
  • Automatic Engine shut down: low coolant level, low Engine oil pressure, Engine coolant temperature exceeded, hydraulic oil temperature exceeded, fire suppression discharge
  • Electronic fill pump for hydraulic tank
  • Filter clog warning display for Engine air intake filter, hydraulic pressure filters, hydraulic return filter
  • Radial Tires
  • Articulation and boom lock pins
  • 3-Point access to Cabin
  • Double wall insulated exhaust piping
  • DOC exhaust
  • Heavy duty reflective tape
  • 10 lb fire extinguisher
  • Heavy duty grip tape on hoods
Metric Imperial (US)
  • Automatic lubrication system
  • DPF exhaust
  • Manual or automatic fire suppression system (remote ready)
  • Ride control
  • Turbo and exhaust manifold insulation wrap
  • Wiggins fill for hydraulic and/or fuel tank
  • Directional lightening
  • Reverse warning lights
  • Red taillights
  • Back up camera
  • Wheel chocks with brackets
  • Bias ply Tires
  • Additional rear work lights
  • Power-on strobe light
  • Back-up alarm
  • 10 lbs. fire extinguisher

Attachment options

  • 2.6 m3bucket with plate lip or cast lip
  • 2.8 m3 bucket with plate lip or cast lip
  • 3.4 m3bucket with cast lip
  • 3.8 m3 bucket with plate lip or cast lip
  • 4.3 m3 bucket with plate lip or cast lip
  • 2.5 m3 ejector bucket
  • Quick attach – master hitch
  • 2.5 m3 quick attach bucket
  • Quick attach hydraulically adjusted fork rack
  • Quick attach manually adjusted fork rack

Cabin options

  • Certified ROPS/FOPS enclosed Cabin
    • Air conditioning
    • 3 window wiper and washer
    • Stereo system with audio jack: USB and bluetooth input capability
    • Remote washer bottle fill port
    • 3/4 inch safety glass windows
    • Sound deadening insulation
    • Filtered and pressurized
  • Optional heater

Ambient temperature options

  • Arctic package (-40°C to 10°C)

Technology options

  • Data management system (load weighing system included)
  • Line of site radio remote control system

Altitude options

  • High altitude (3000-4000 masl)
  • Automatic lubrication system
  • DPF exhaust
  • Manual or automatic fire suppression system (remote ready)
  • Ride control
  • Turbo and exhaust manifold insulation wrap
  • Wiggins fill for hydraulic and/or fuel tank
  • Directional lightening
  • Reverse warning lights
  • Red taillights
  • Back up camera
  • Wheel chocks with brackets
  • Bias ply Tires
  • Additional rear work lights
  • Power-on strobe light
  • Back-up alarm
  • 10 lbs. fire extinguisher

Attachment options

  • 2.6 m3bucket with plate lip or cast lip
  • 2.8 m3 bucket with plate lip or cast lip
  • 3.4 m3bucket with cast lip
  • 3.8 m3 bucket with plate lip or cast lip
  • 4.3 m3 bucket with plate lip or cast lip
  • 2.5 m3 ejector bucket
  • Quick attach – master hitch
  • 2.5 m3 quick attach bucket
  • Quick attach hydraulically adjusted fork rack
  • Quick attach manually adjusted fork rack

Cabin options

  • Certified ROPS/FOPS enclosed Cabin
    • Air conditioning
    • 3 window wiper and washer
    • Stereo system with audio jack: USB and bluetooth input capability
    • Remote washer bottle fill port
    • 1.9 cm safety glass windows
    • Sound deadening insulation
    • Filtered and pressurized
  • Optional heater

Ambient temperature options

  • Arctic package (-40°C to 10°C)

Technology options

  • Data management system (load weighing system included)
  • Line of site radio remote control system

Altitude options

  • High altitude (3000-4000 masl)
