Underground hard rock haulage
WX03
LHD
- Tramming capacity (kg) 3 000
- Tramming capacity (lbs) 6600
- Bucket Capacity (m^3) 1.5
- Bucket Capacity (yd^3) 2
- Height to top of canopy (in) 76
- Height to top of canopy (mm) 1 938

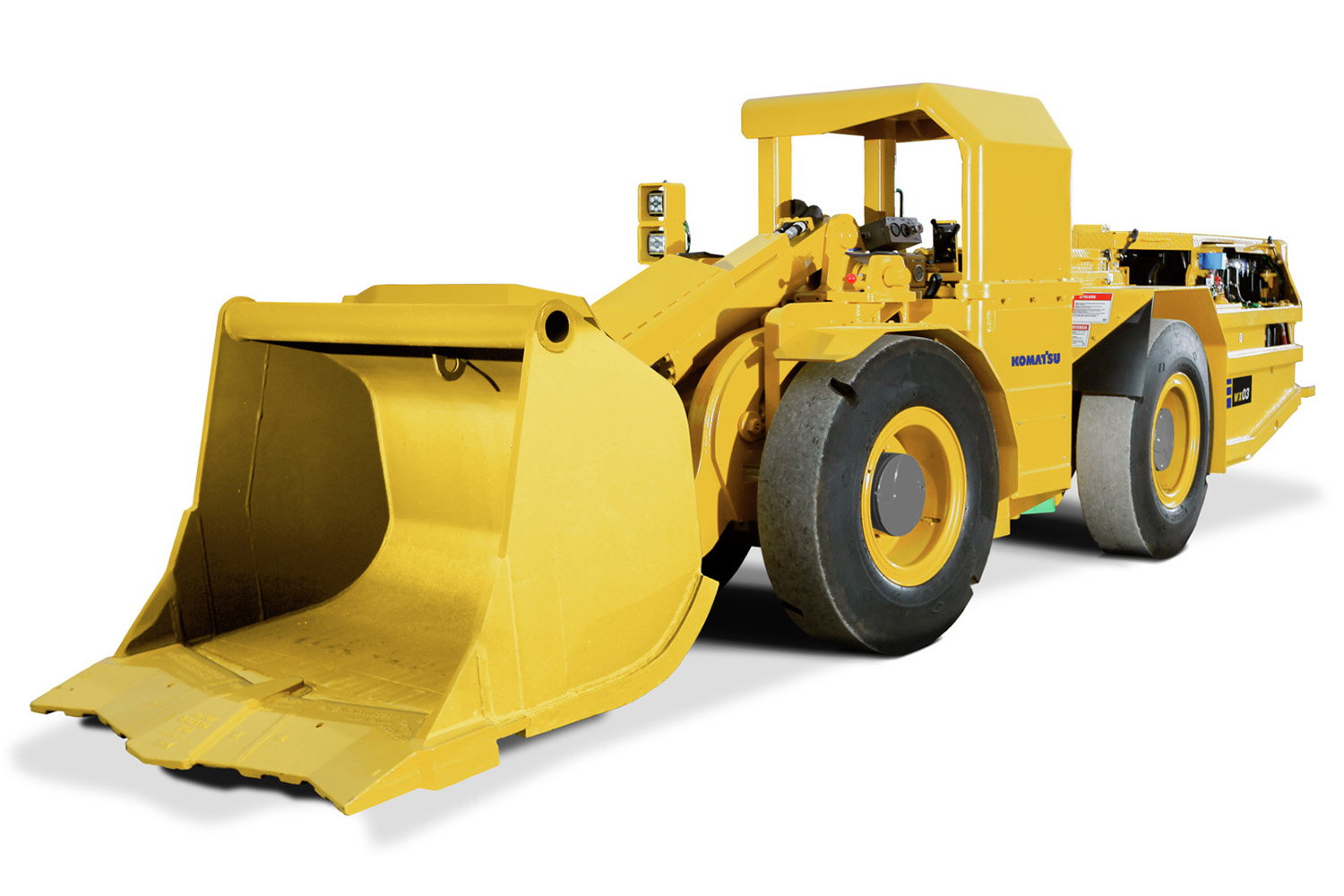

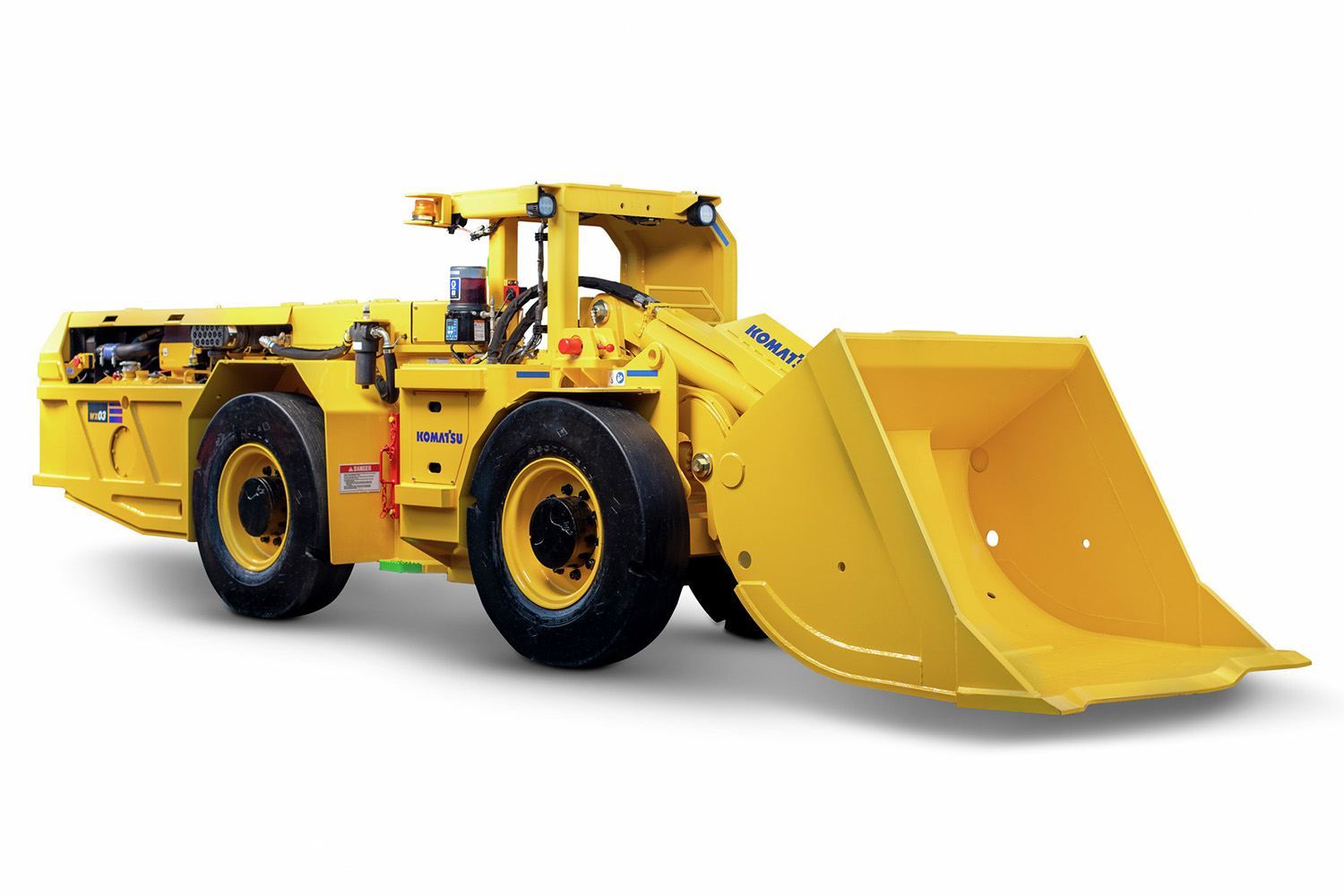

A small-class LHD designed for big performance
The WX03 is a reliable 3-tonne LHD for narrow vein applications. This small-class LHD features a high-strength steel frame design with a heavy-duty, all-mechanical powertrain. This workhorse is engineered to help you hit your production targets while controlling costs.
- 74 kW (99 HP) water-cooled engine for low environmental heat
- Outstanding breakout power for fast bucket filling
- Pre-engineered options to suit most applications and requirements
Features and benefits
Designed to help drive toward zero harm
Multiple features include a ROPS/FOPS-certified enclosure, a spring-applied braking system, operation interlocks, three-point mounting, anti-slip steps and hot component isolation.

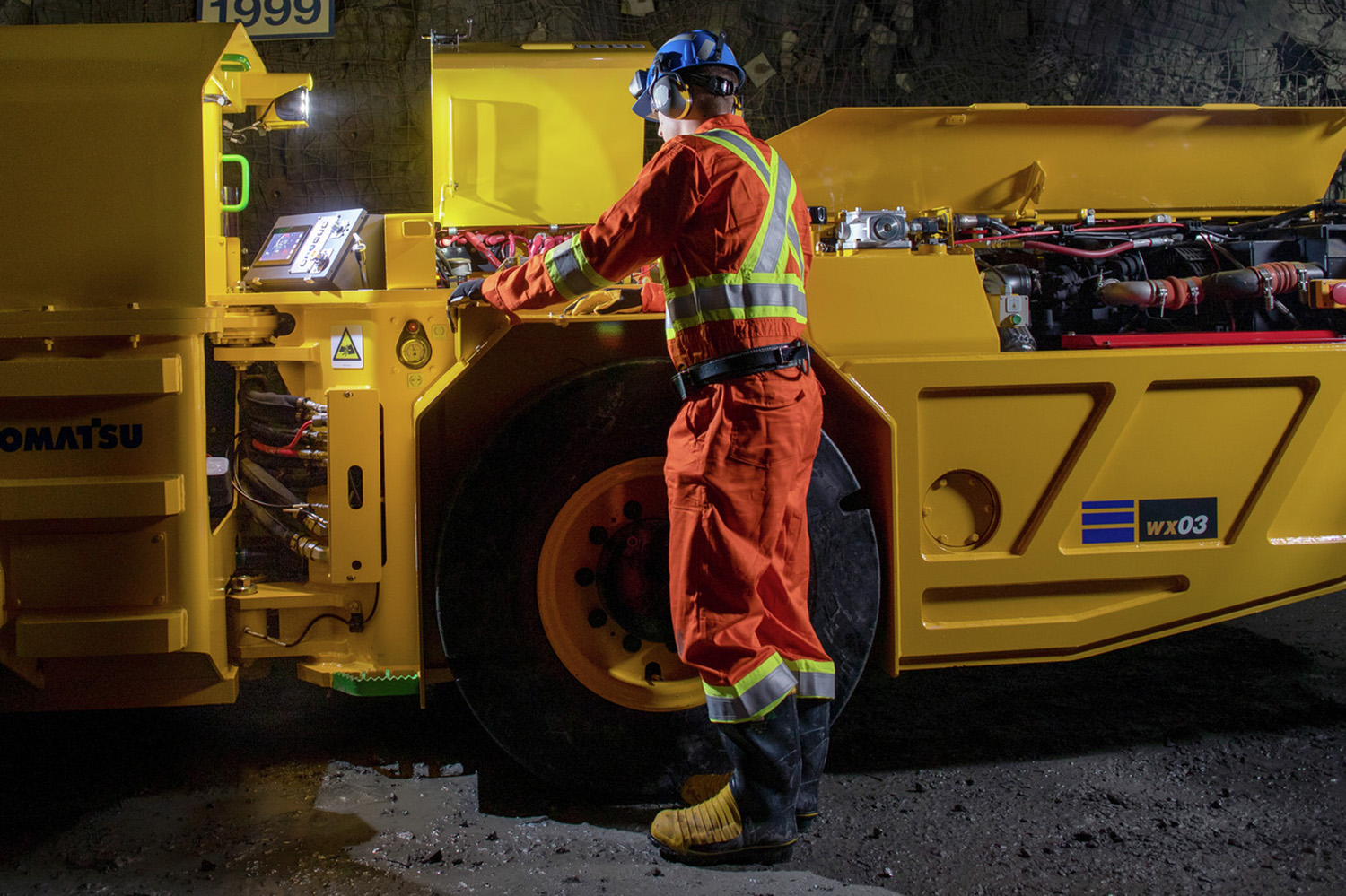

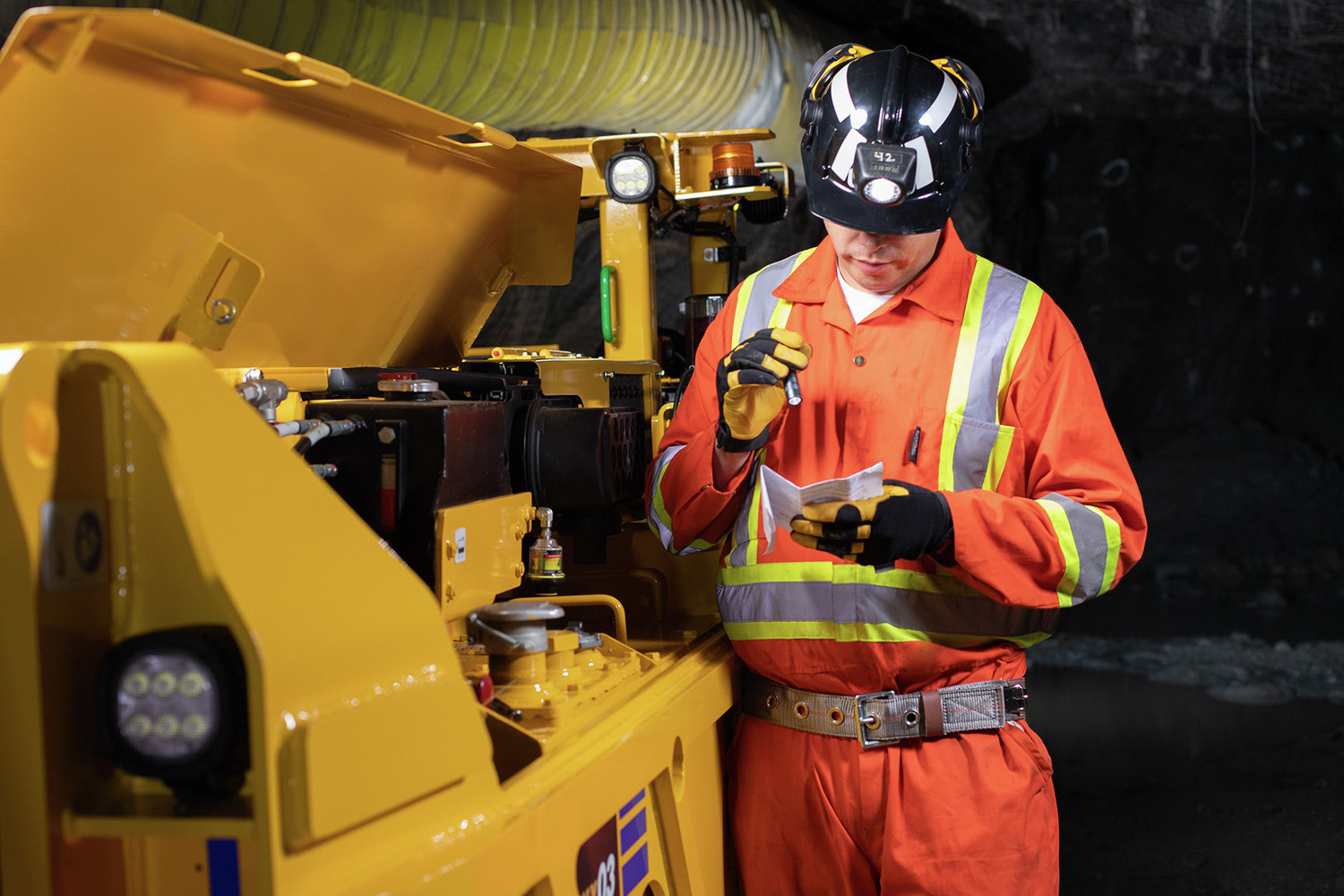

Ground-level maintenance
Exceptional serviceability with vital maintenance components easily and conveniently accessible from the ground level. This design offers fast, efficient repairs by your service crew.
Engineered for reliability
Designed for long component life. Rugged steel frame, mining grade components, heavy-duty all-mechanical powertrain, severe-duty electrical system and collet-style pins.
Customizable
Tailor your LHD to meet your operational needs. Some of the available options include an automatic lubrication system, ejector bucket, fire suppression system, quick attach coupling system, radio remote control, and recovery hook.

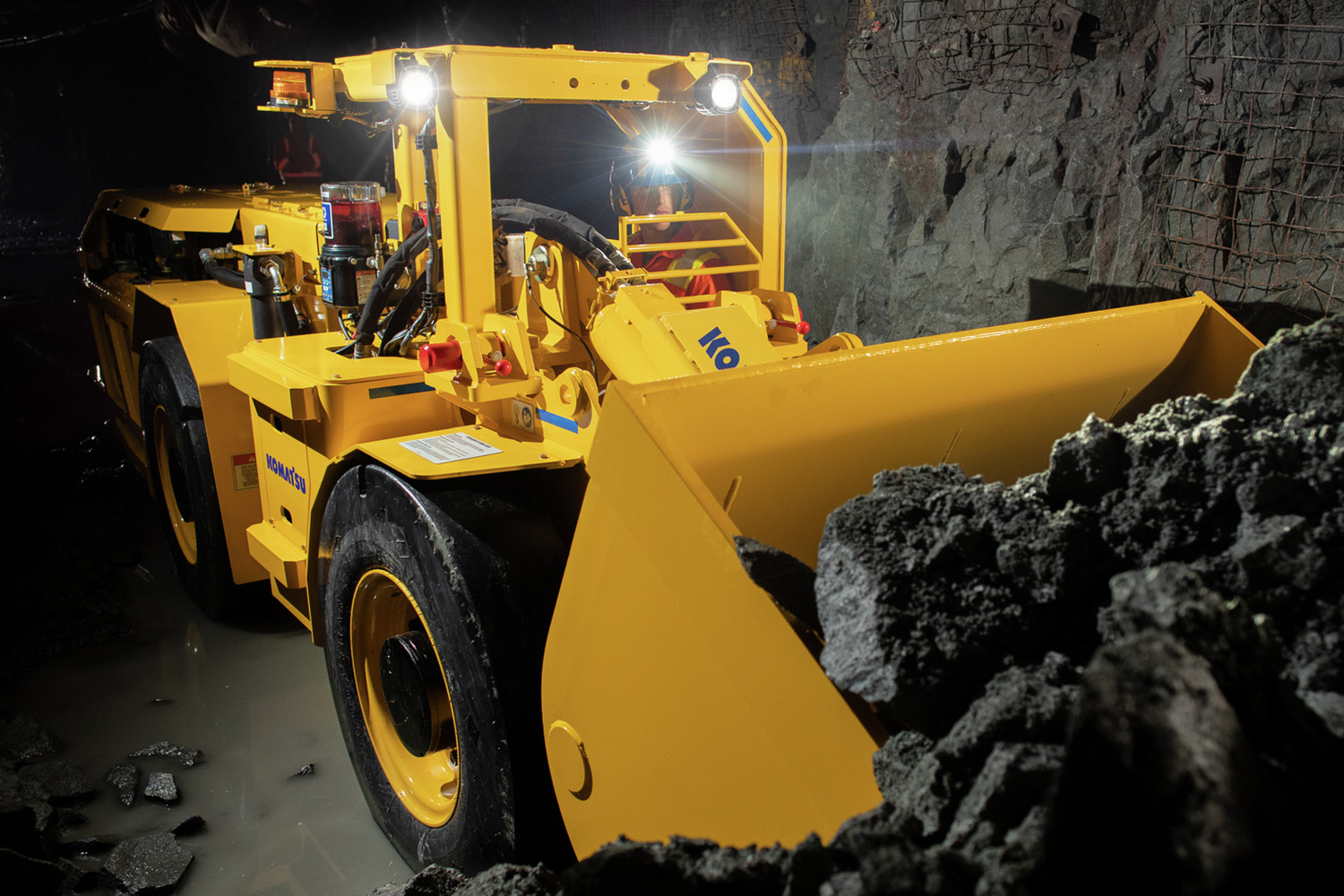

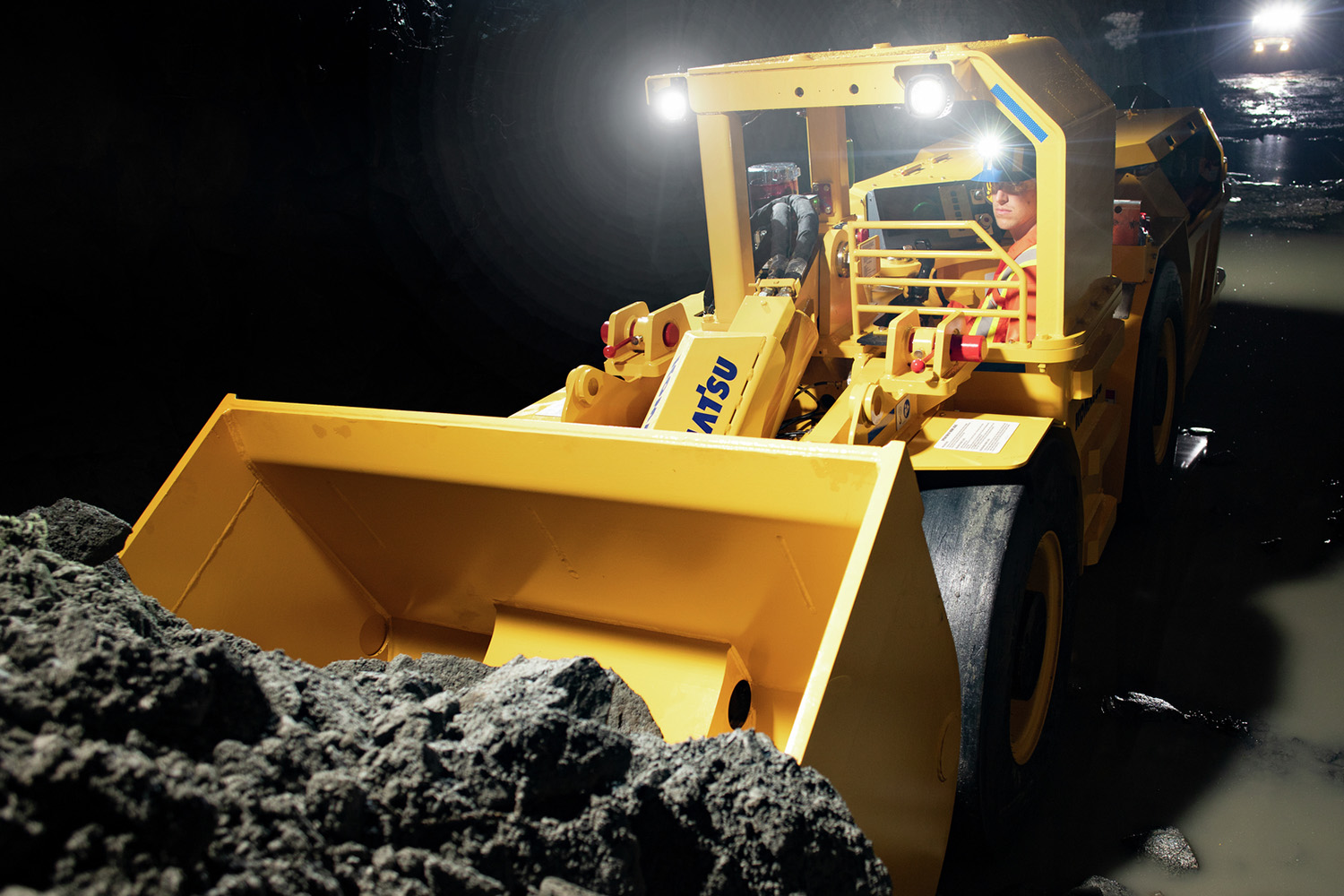

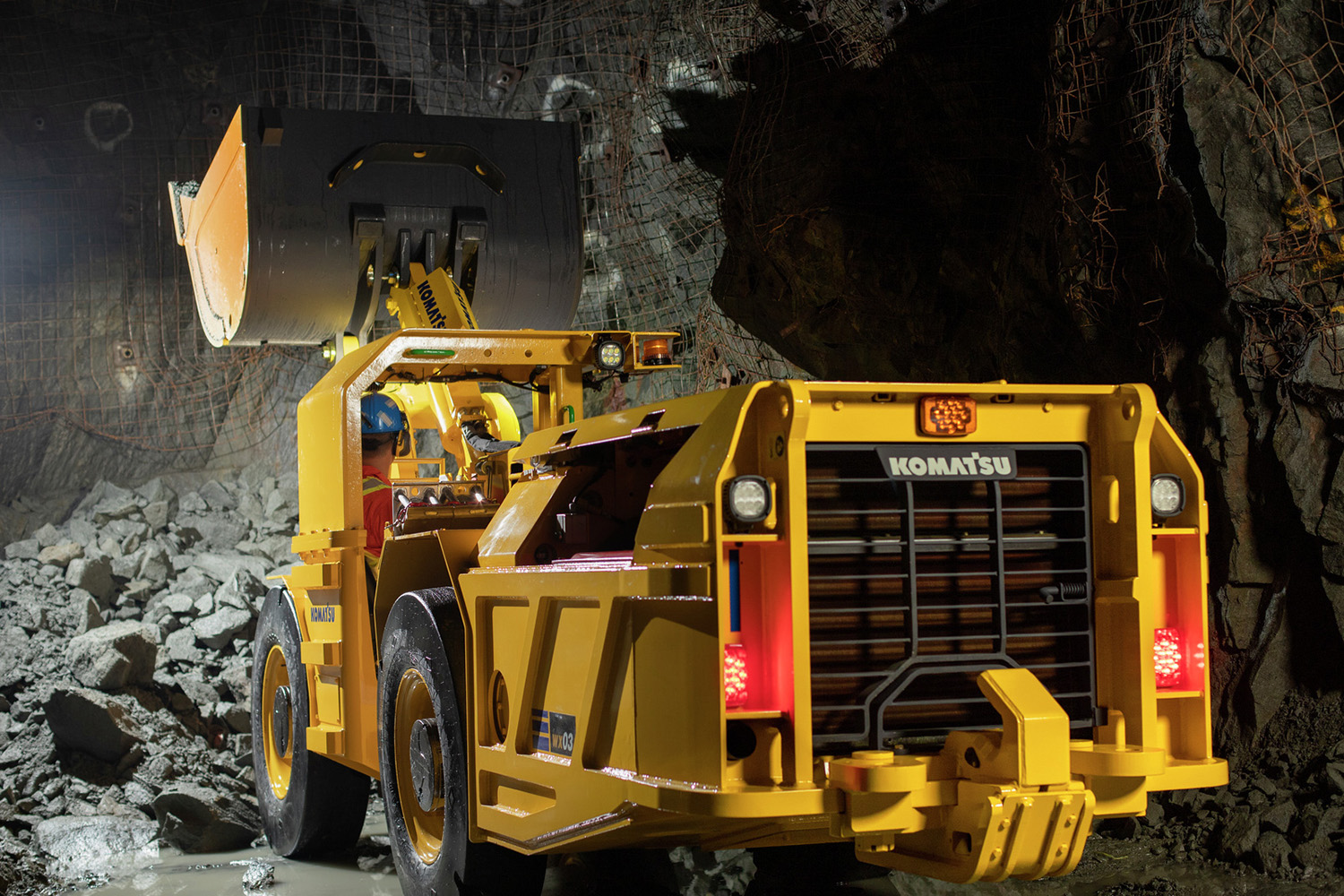

Bucket design
Unique bucket geometry designed to optimize efficient filling and less spillage for increased productivity.

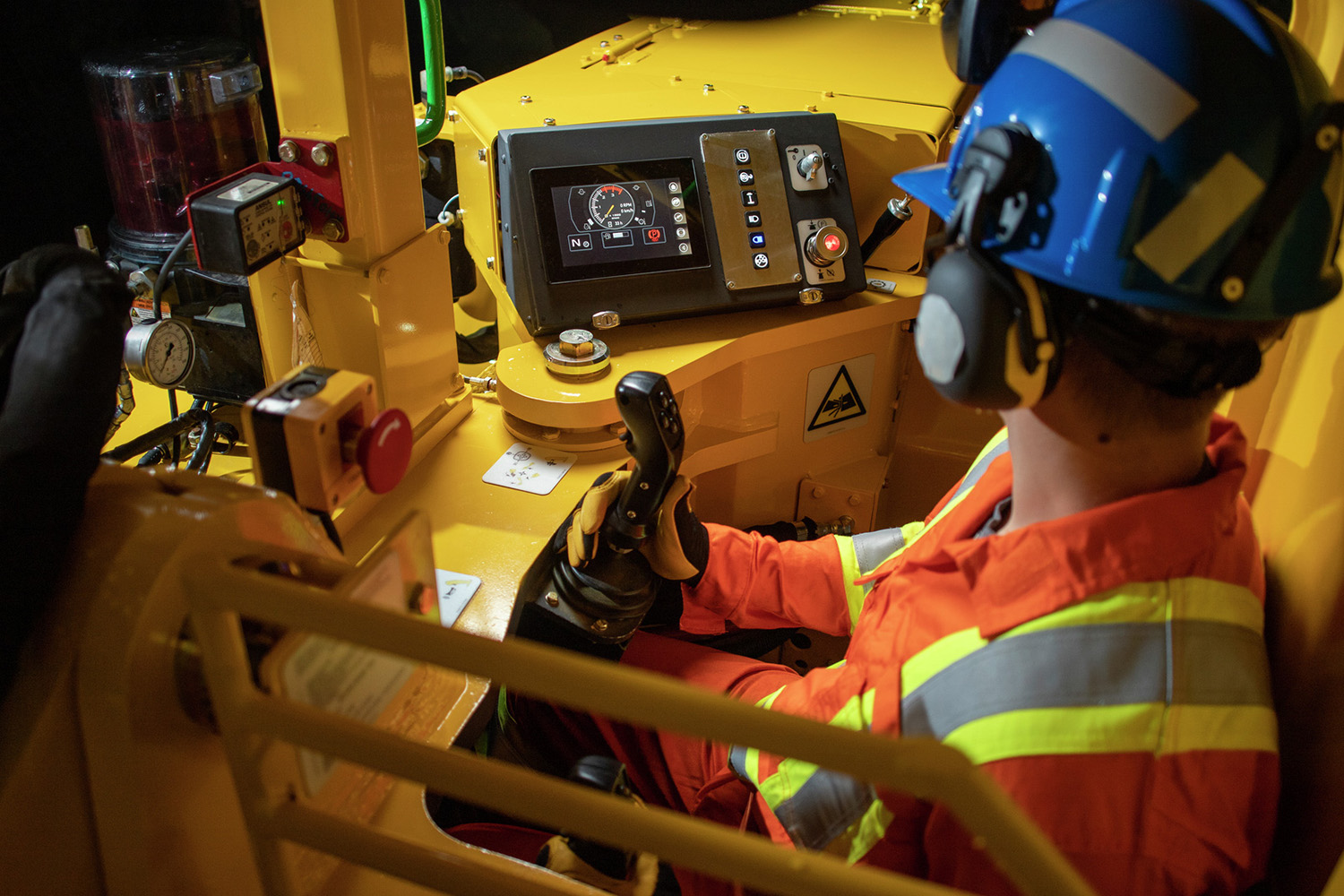

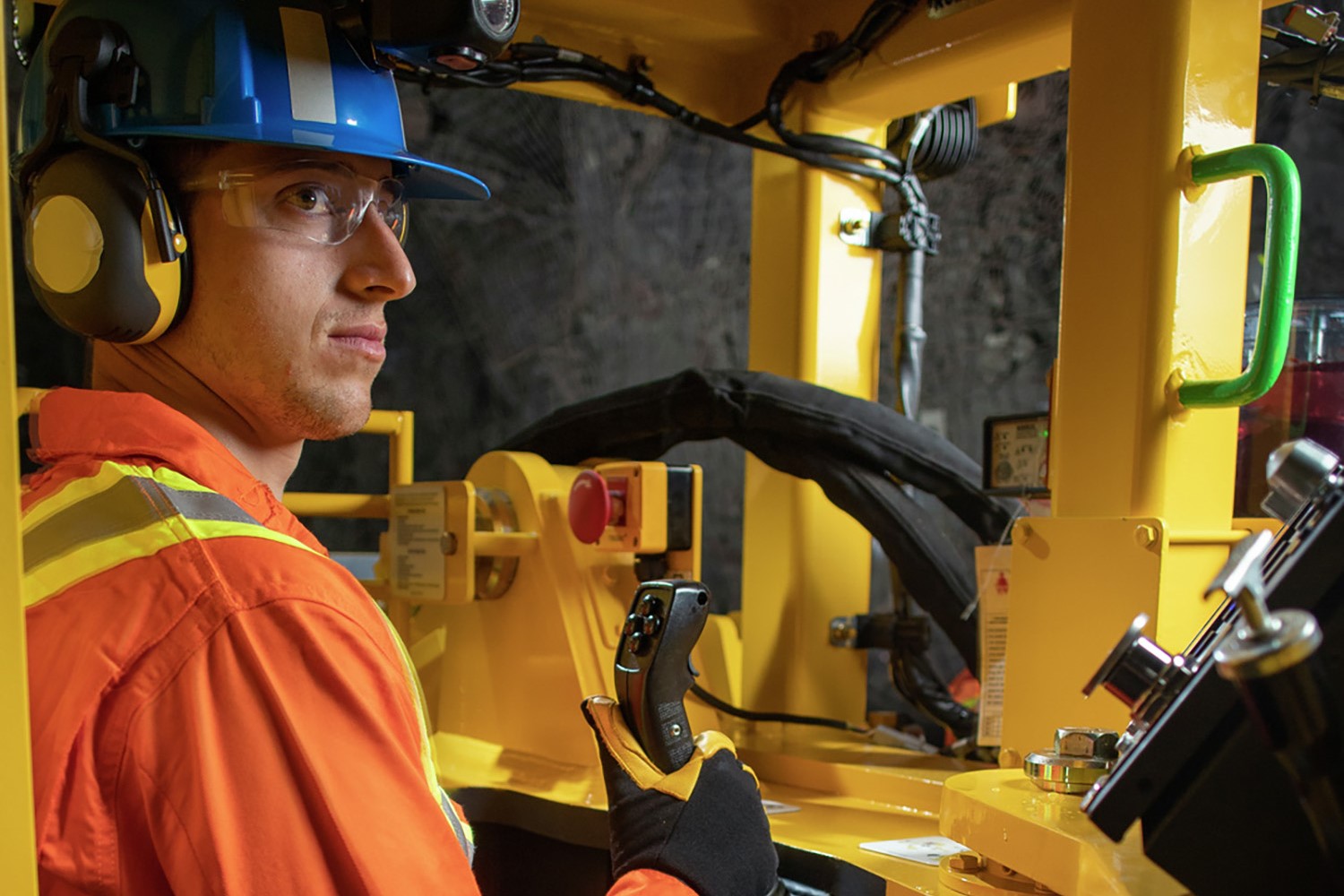

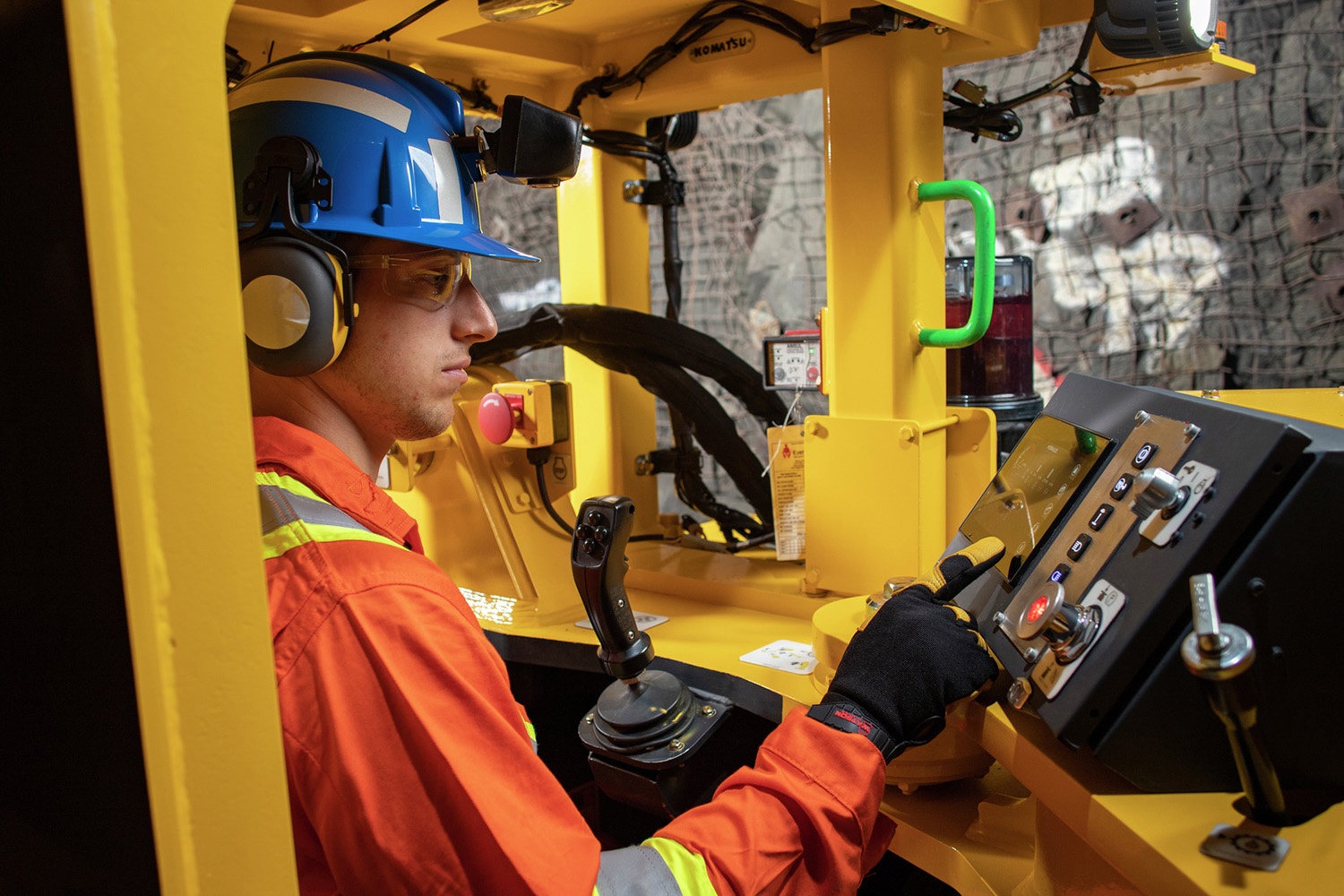

Intuitive controls and ergonomics
Built for operator comfort and visibility to help promote performance and zero harm. Easy-to-use two-handed controls simplify training and operating this LHD.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Engine (standard): Cummins QSB 3.3 EPA Tier 3, MSHA, CANMET
- Output (standard)(kW): 74 kW @ 2 200 rpm
- Output (standard)(HP): 99 HP @ 2,200 rpm
- Displacement (L): 3.3
- Induction type: Turbo charged
- Governor for powertrain: Electronic
- Cooling Type: Liquid cooling
-
General
- Air filtration: Donaldson (dry type)
- Powertrain exhaust system: DOC with silencer standard/DPF optional
- Fuel tank capacity (L): 138
- Fuel tank capacity (US gal): 36.5
- Converter: Dana C2000 series
- Transmission: Dana T20000 powershift with modulation
- Shifting: Electric
- Speeds: 3 forward/3 reverse
-
Axles
- Front and rear: Dana182
- Differentials: No spin
- Brakes: Spring applied, hydraulic release
- Oscillation angle (deg): +/- 7 (frame)
- Tires: Bias L5S
- Size (in): 9.50 x 20
- Dump motion time (s): 4.2
- Raising time (s): 3.4
- Lowering time (s): 2.3
- Operating weight (kg): 10 319
- Operating weight (lbs): 22750
- Total loaded weight (kg): 13 319
- Total loaded weight (lbs): 29363
-
Axle weight with load
- Front axle (kg): 8 391
- Front axle (lbs): 18500
- Rear axle (kg): 4 928
- Rear axle (lbs): 10684
-
Axle weight without load
- Front axle (kg): 3 515
- Front axle (lbs): 7750
- Rear axle (kg): 6 804
- Rear axle (lbs): 15000
- 1st gear (mph): 2.5
- 1st gear (kph): 4
- 2nd gear (kph): 8
- 2nd gear (mph): 5
- 3rd gear (mph): 12.4
- 3rd gear (kph): 20
- Hydraulic breakout force lift (lbs): 8203
- Hydraulic breakout force lift (kg): 3 721
- Hydraulic breakout force tilt (lbs): 16540
- Hydraulic breakout force tilt (kg): 7 502
- SAE breakout force (lbs): 11376
- SAE breakout force (kg): 5 160
- SAE static tipping load (kg): 9 569
- SAE static tipping load (lbs): 21097
- Bucket volume (m^3): 1.5
- Bucket volume (y^3): 2
- Haulage capacity (kg): 3 000
- Haulage capacity (lbs): 6600
- Bucket: EZ-fill cast cutting edge
- Front and rear frames: Welded steel box construction
- Material: ASTM A572 GR50 (CSA G40.21-50W)
- Alternator: 24VDC/75A Delco REmy
- Batteries: 2x12V
- Starter: Electric
- Driving and working lights: 2 front/2 rear
- Turning time: left (s): 3.3
- Turning motion time: right (s): 3
- Engine rated power (standard)(HP): 99
- Engine rated power (standard)(kW): 74
- FOPS/ROPS-certified operator compartment
- 2.0 yd3 bucket with spade plate lip
- Manuals: operator, service, online parts
- Manual centralized chassis lubrication
- FOPS/ROPS-certified operator compartment
- 1.5 m3 bucket with spade plate lip
- Manuals: operator, service, online parts
- Manual centralized chassis lubrication
- 1.7 yd3 bucket with spade plate lip
- Ejector bucket: 1.4 yd3
- Quick attach system (bucket, forks)
- Fire suppression system - manual or automatic activation
- Radio remote control
- Retrieval hook
- Exhaust insulation/blanket
- Wheel chocks and holders
- Automatic lubrication system
- Backup alarm
- Spare wheel
- Wiggins fast fuel fill
- Directional lighting
- 1.3 m3 bucket with spade plate lip
- Ejector bucket: 1.1 m3
- Quick attach system (bucket, forks)
- Fire suppression system - manual or automatic activation
- Radio remote control
- Retrieval hook
- Exhaust insulation/blanket
- Wheel chocks and holders
- Automatic lubrication system
- Backup alarm
- Spare wheel
- Wiggins fast fuel fill
- Directional lighting
