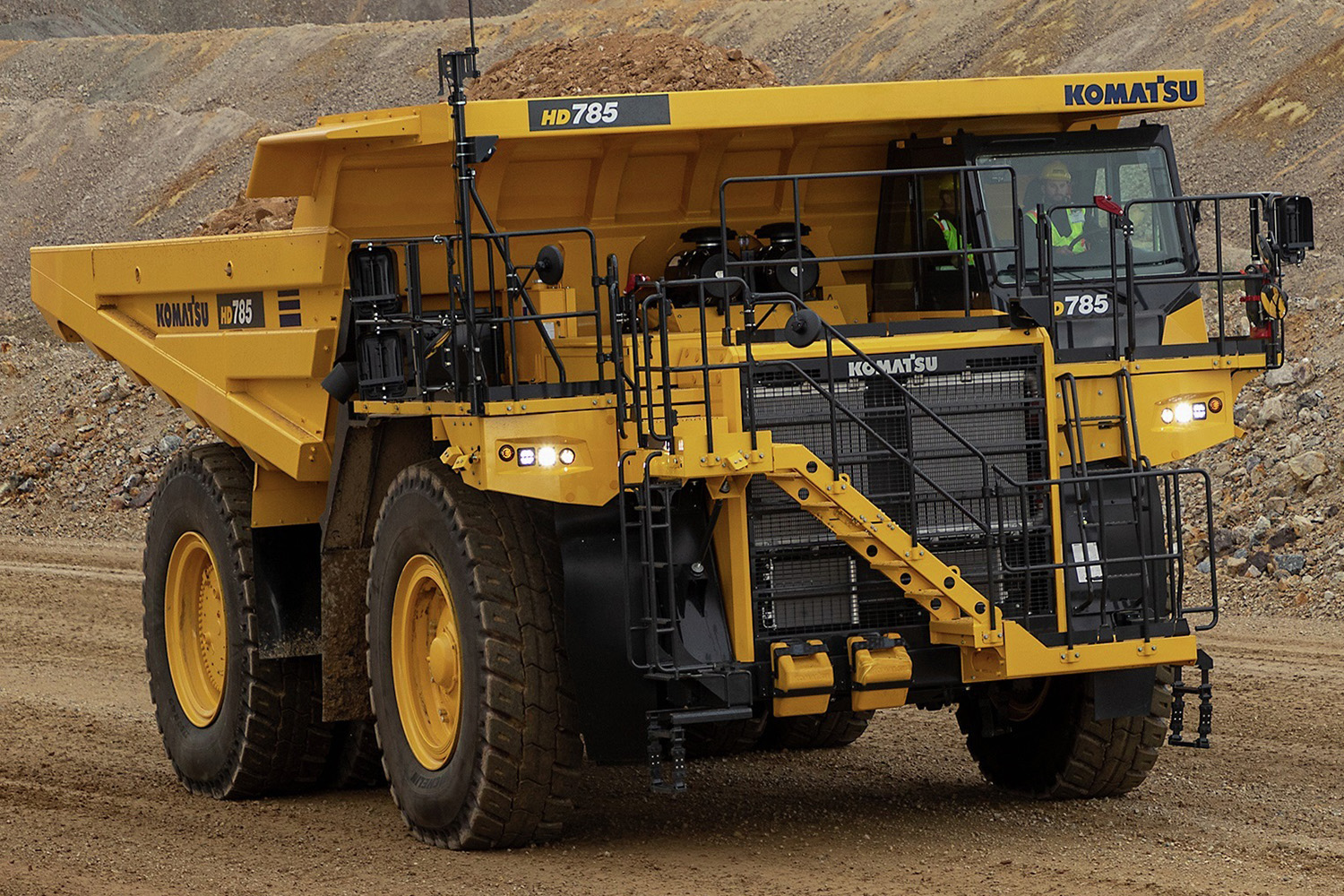

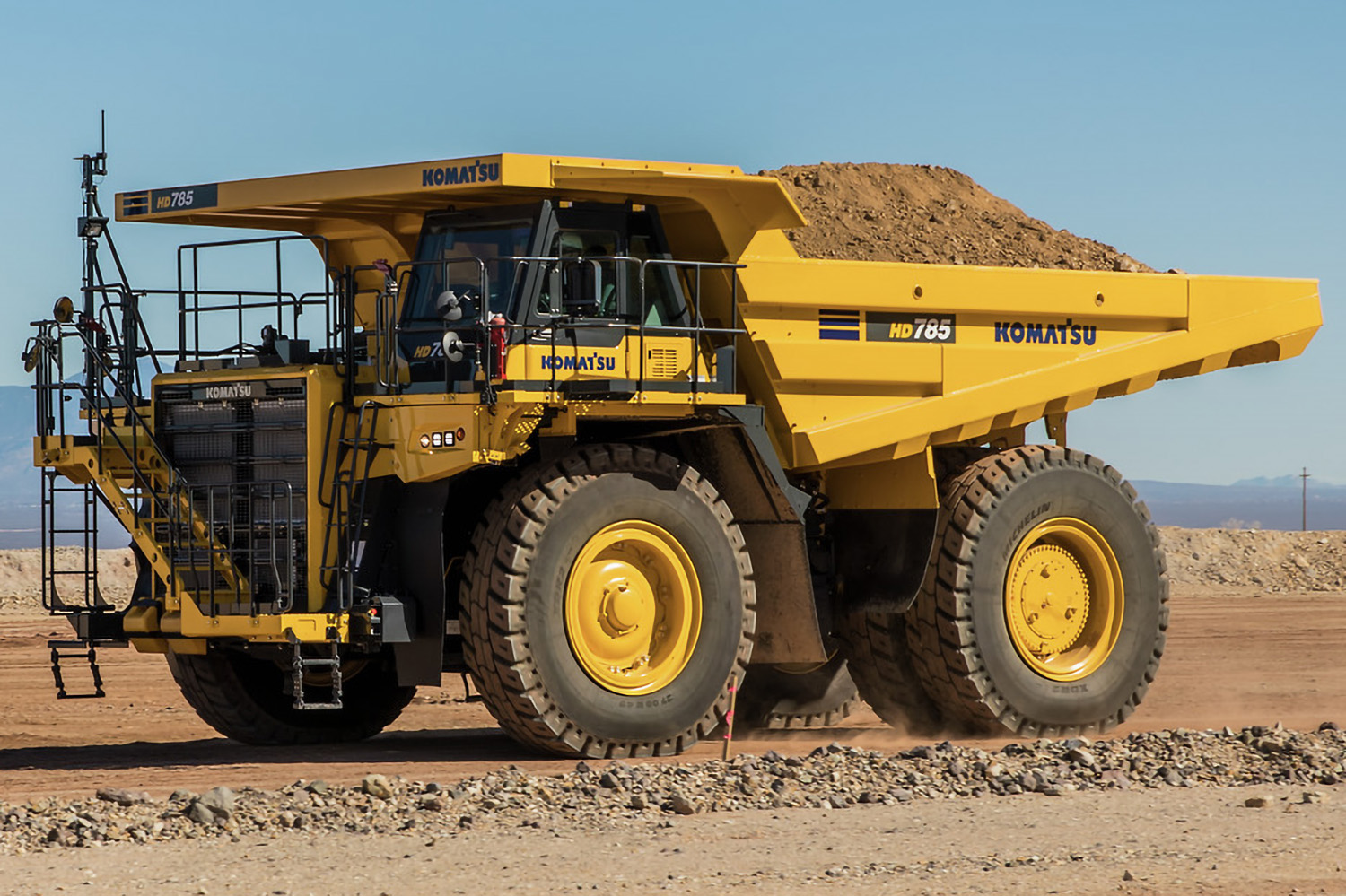

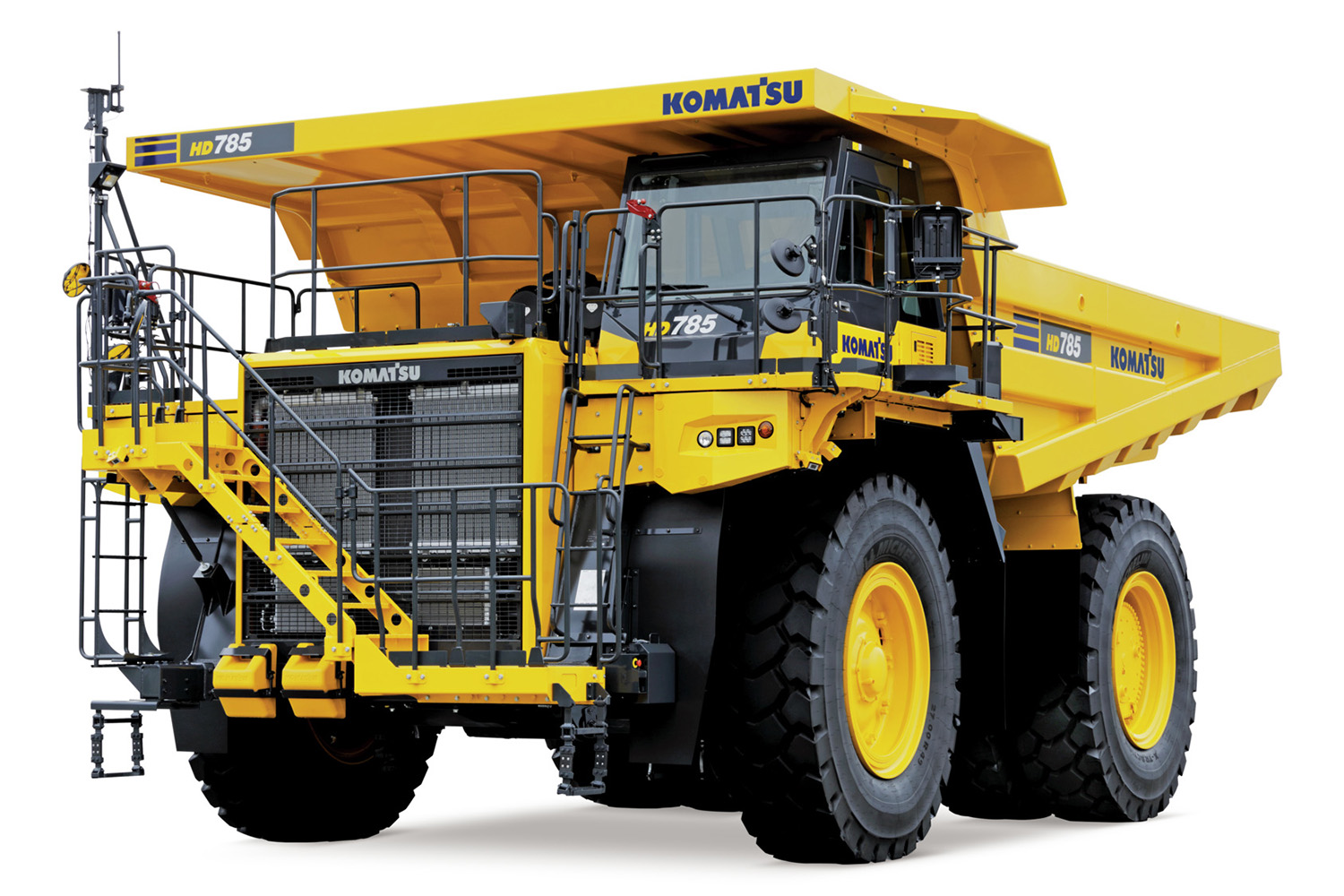

HD785-8

Mechanical trucks

  • Capacity (mt) 92.2
  • Capacity (st) 101.6
  • Gross horsepower (HP) 1,200 @ 1,900 rpm
  • Gross horsepower (kW) 895 kW @ 1 900 rpm
  • Operating weight (kg) 166 000
  • Operating weight (lbs) 365,967

Purchase options

Request a quote Find a dealer

Power on grade. Exceptional brake-retarding performance.

With a rated payload of 101.6 U.S. tons, the HD785-8 is ready to produce in your mining, quarry, and aggregate applications. The Komatsu SAA12V140E-7 engine provides 1,140 net horsepower for excellent speed-on-grade. Oil-cooled, multiple-disc brakes on the front and rear wheels offer excellent brake-retarding capability when descending grades.

  • 101.6 U.S. ton-rated payload / 78.5 yd³ V-shape dump body
  • 33'2" turning radius due to the MacPherson-strut-type independent suspension
  • Wet disc brakes on all four wheels deliver 1,770 HP of retarder-absorption capacity

Features and benefits

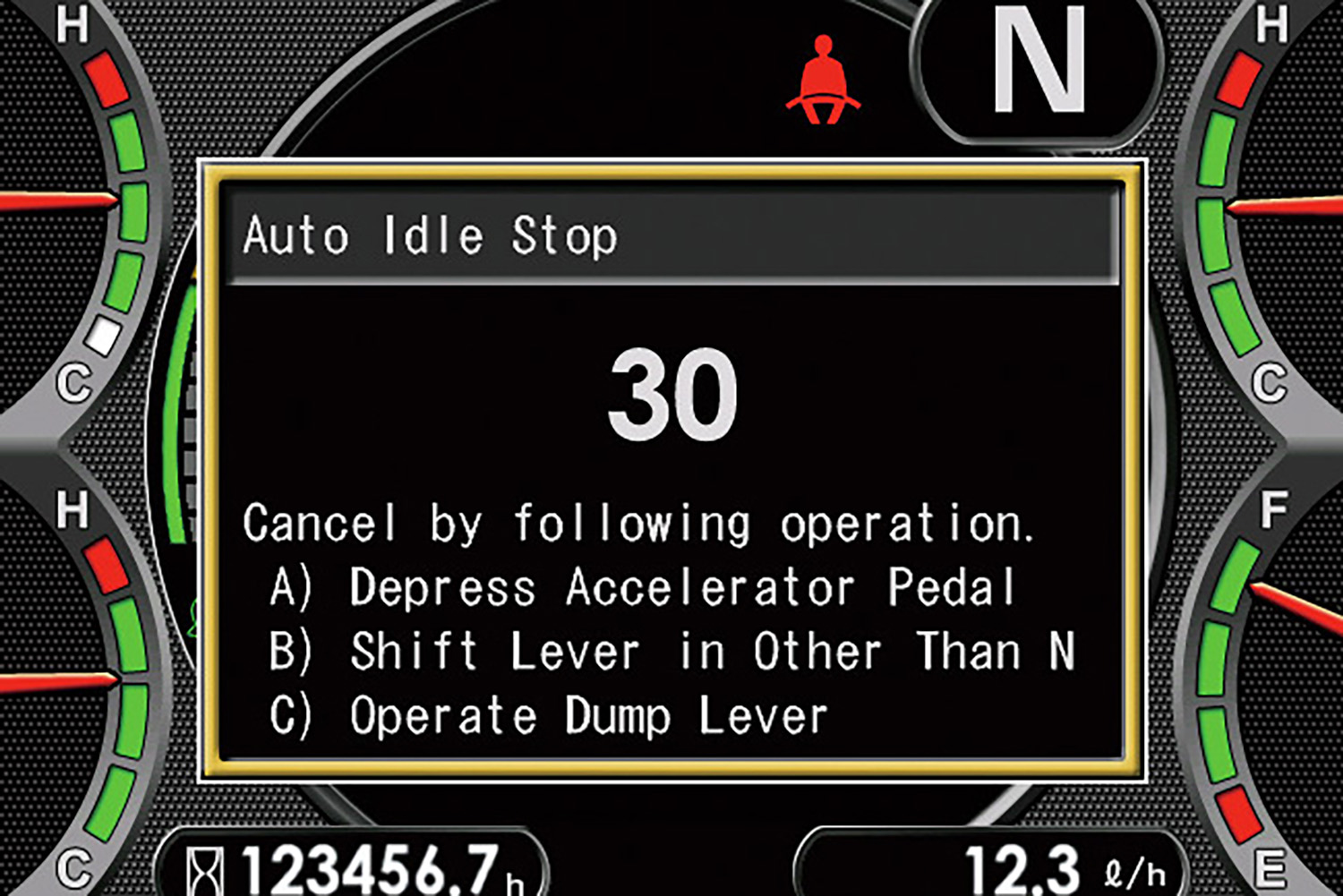

Auto idle shutdown

Auto idle shutdown

Control unnecessary fuel consumption. When the engine is idling for the set time — adjustable from five to 60 minutes — the auto idle shutdown function automatically stops and applies the parking brake.

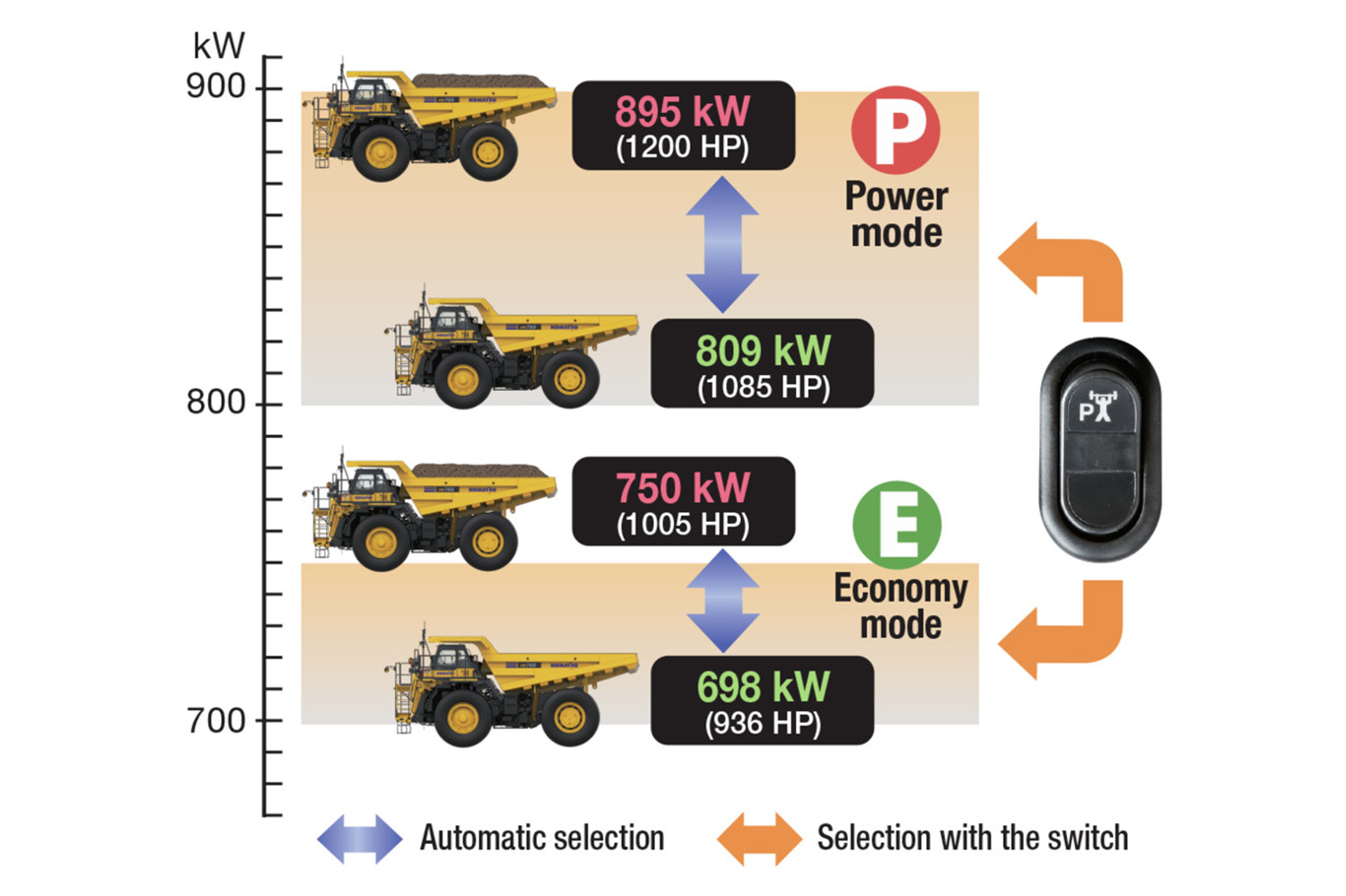

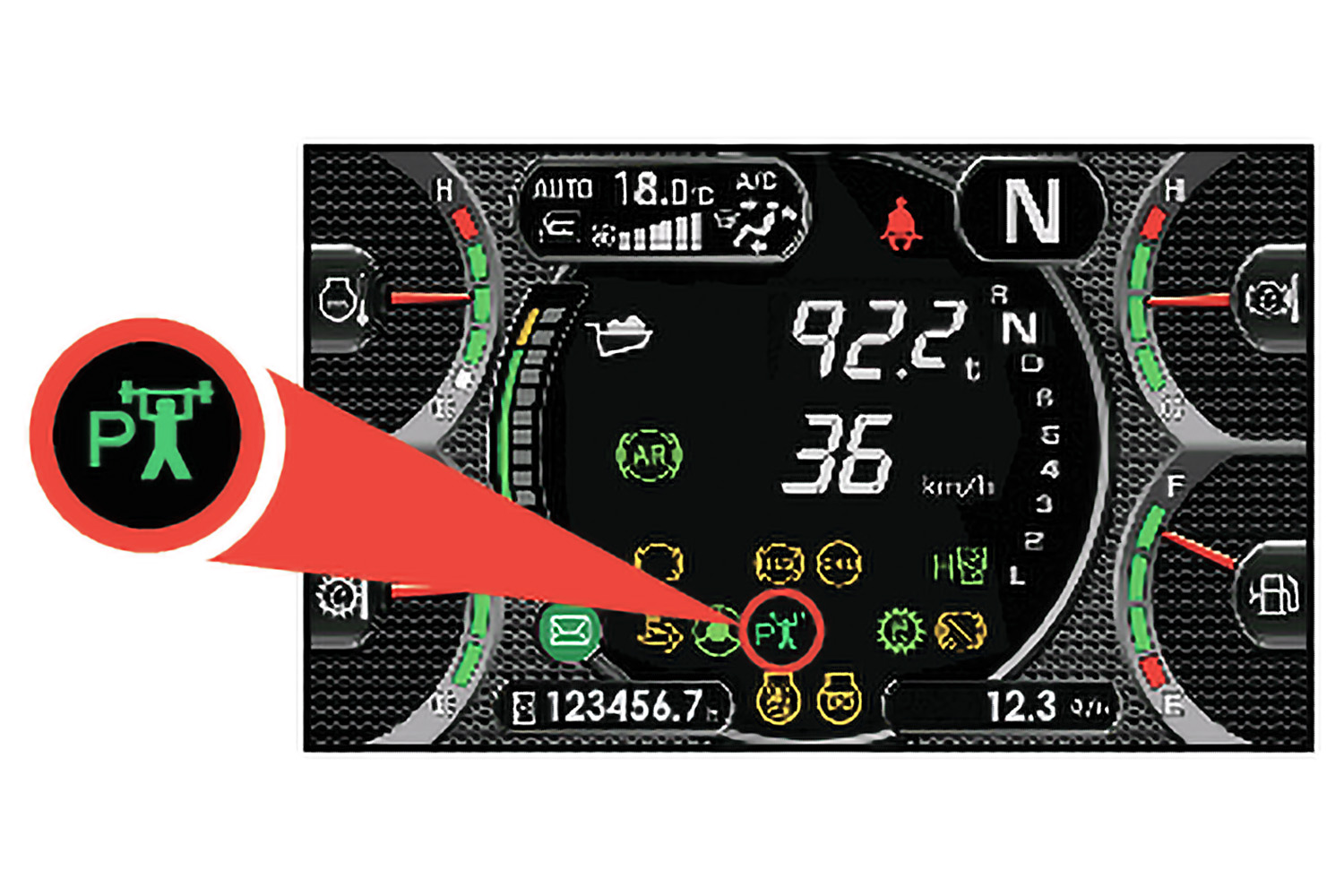

Selectable operating modes

Selectable operating modes

Your operator can choose between two operating modes: Economy mode to save fuel or Power mode for enhanced performance.

Variable Horsepower Control

Variable Horsepower Control

The Variable Horsepower Control system is designed to deliver you high production with low fuel consumption. It automatically detects whether the machine is loaded or unloaded and selects the best horsepower setting.

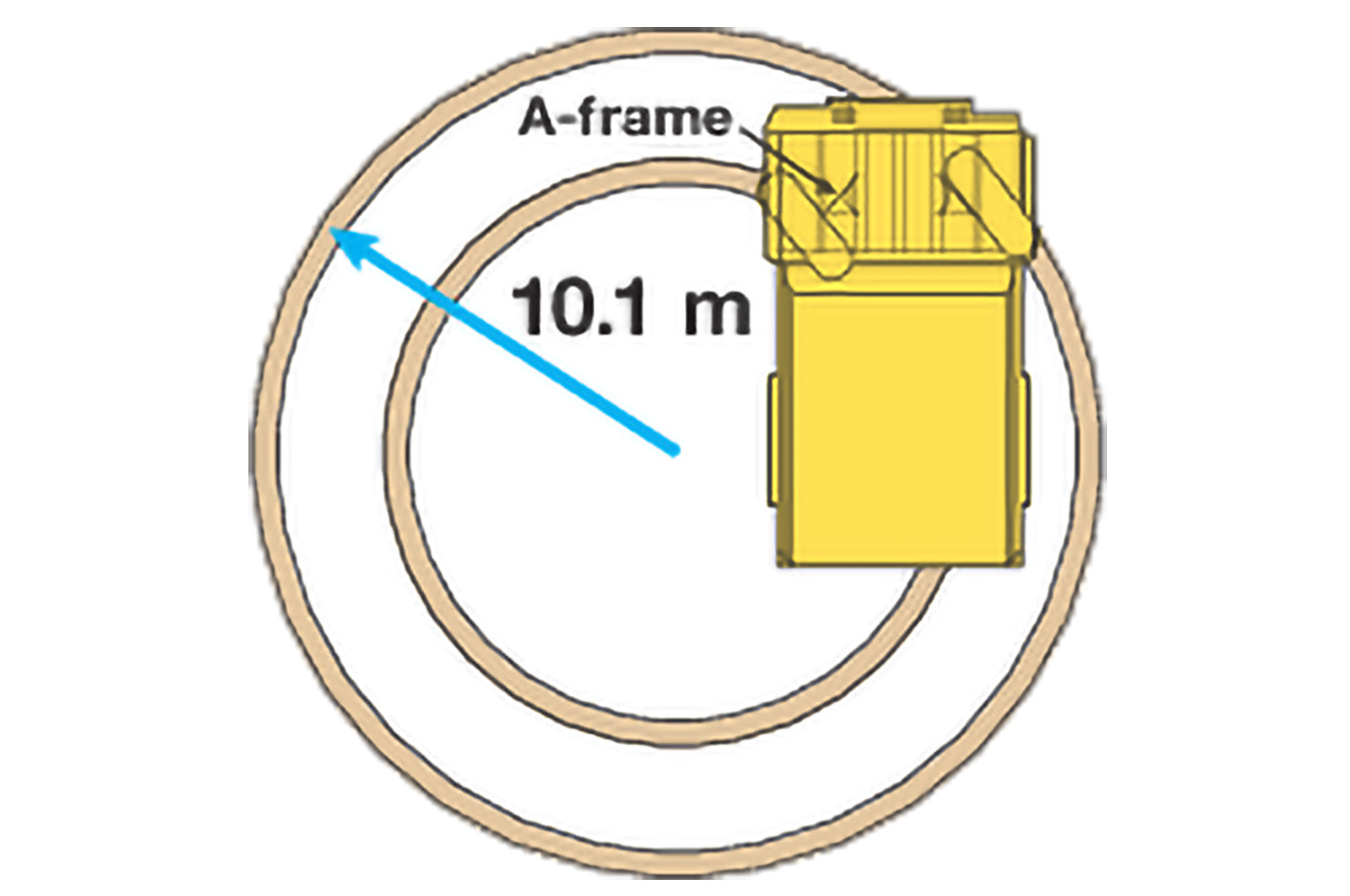

Turning radius

Turning radius

The MacPherson-strut-type independent front suspension features an A-arm design for wider spacing and easy access to the engine bay. The turning angle is a tight turning radius of 33' 2." The smooth ride helps to reduce material spillage, too.

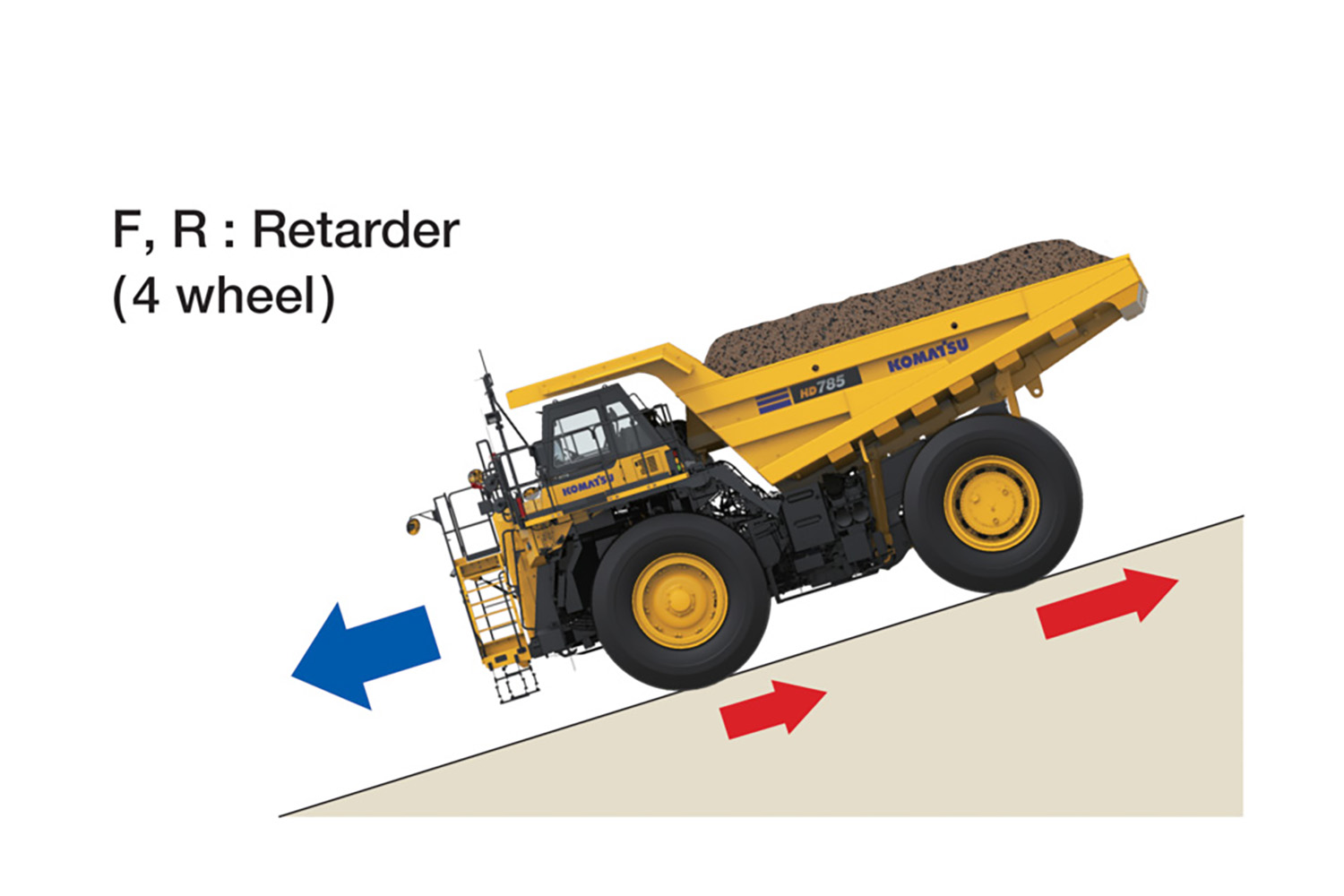

Wet multiple-disc brakes and retarder

Wet multiple-disc brakes and retarder

Fully hydraulic-controlled wet multiple-disc brakes on all four wheels help promote reliable and stable brake performance. Large-capacity, continuously-oil-cooled, multiple-disc brakes also function as a responsive retarder for operator confidence at higher downhill speeds.

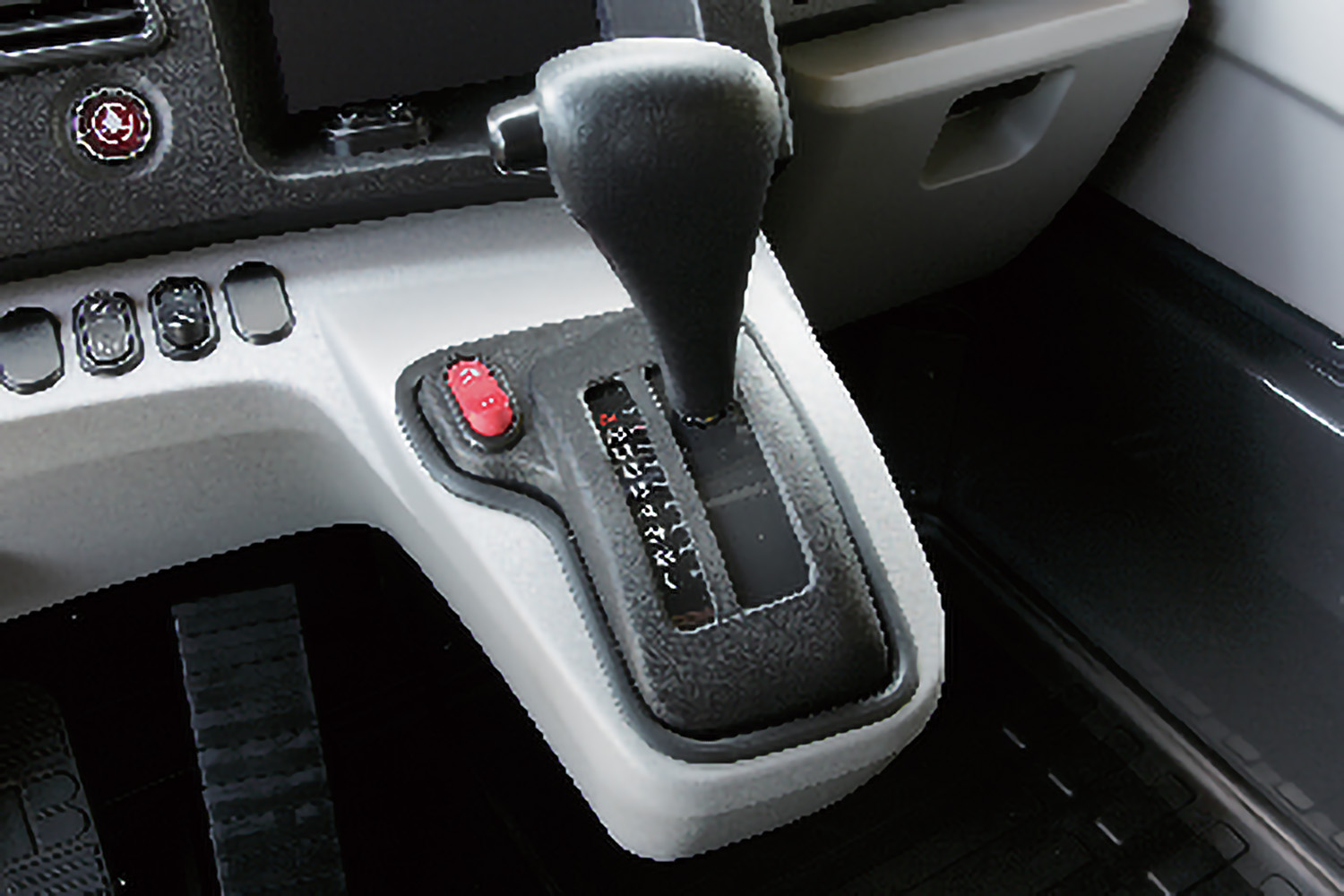

K-ATOMiCS transmission

K-ATOMiCS transmission

Komatsu Advanced Transmission with Optimum Modulation Control System (K-ATOMiCS) helps avoid unnecessary fuel consumption, reduce material spillage and provide a smoother ride for operators by automatically selecting a gear position depending on grade, speed and acceleration.

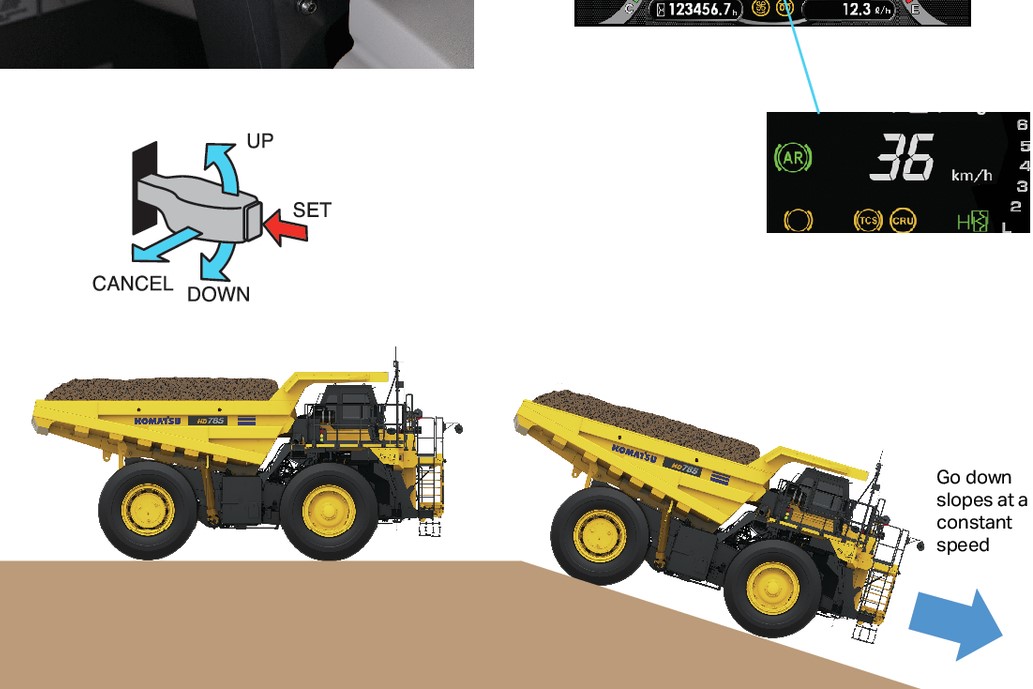

Automatic Retard Speed Control

Automatic Retard Speed Control

The Automatic Retard Speed Control (ARSC) allows your operator to set the desired downhill travel speed. The ARSC system automatically applies the brake retarder to maintain that setting, enabling the operator to stay focused on the haul road.

Komatsu Traction Control System

Komatsu Traction Control System

The Komatsu Traction Control System (KTCS) monitors the rear wheels for slippages and automatically applies the brakes independently to each wheel for enhanced traction. This function occurs automatically without operator input and without compromising steering performance.

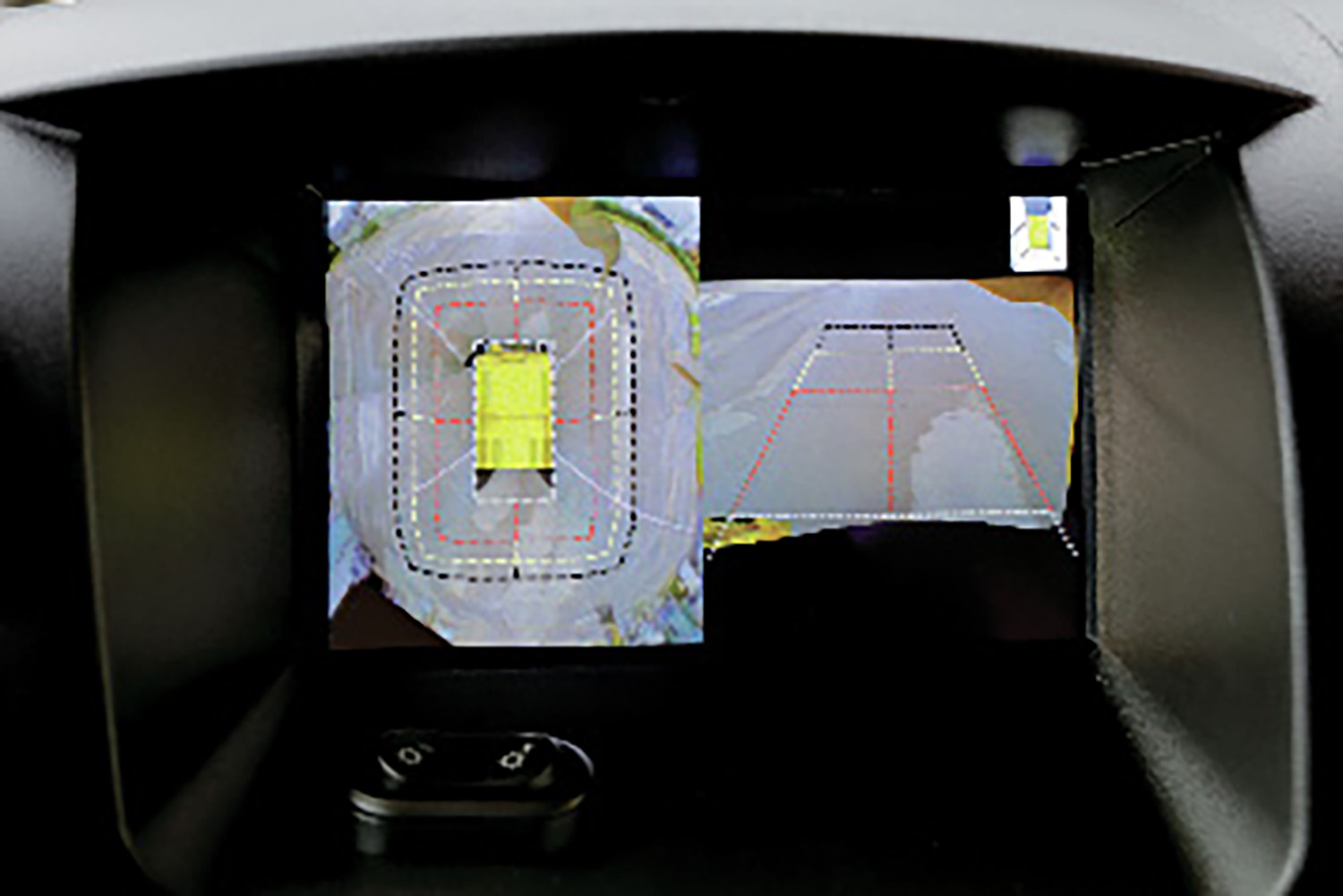

All-around monitoring

All-around monitoring

KomVision provides your operator with a 360-degree view of the surrounding work area on a dedicated monitor located in the dash via a six-camera system.

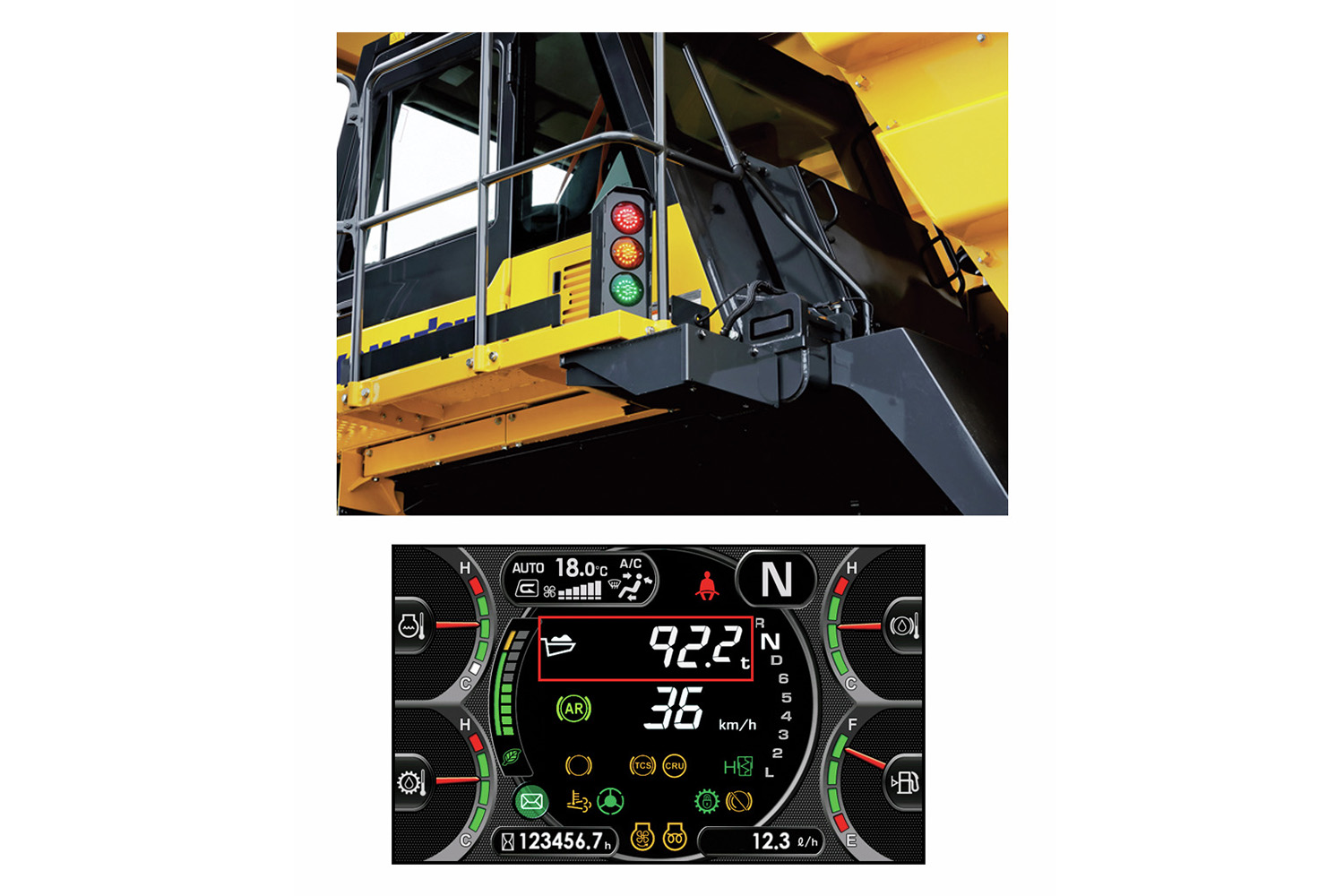

Integrated Payload Meter

Integrated Payload Meter

Enhance payloads, promote productivity and control the life cycle costs of your truck. The Integrated Payload Meter (PLM) manages the payload of each hauling cycle, analyzing the production volume and the working conditions of the machine.

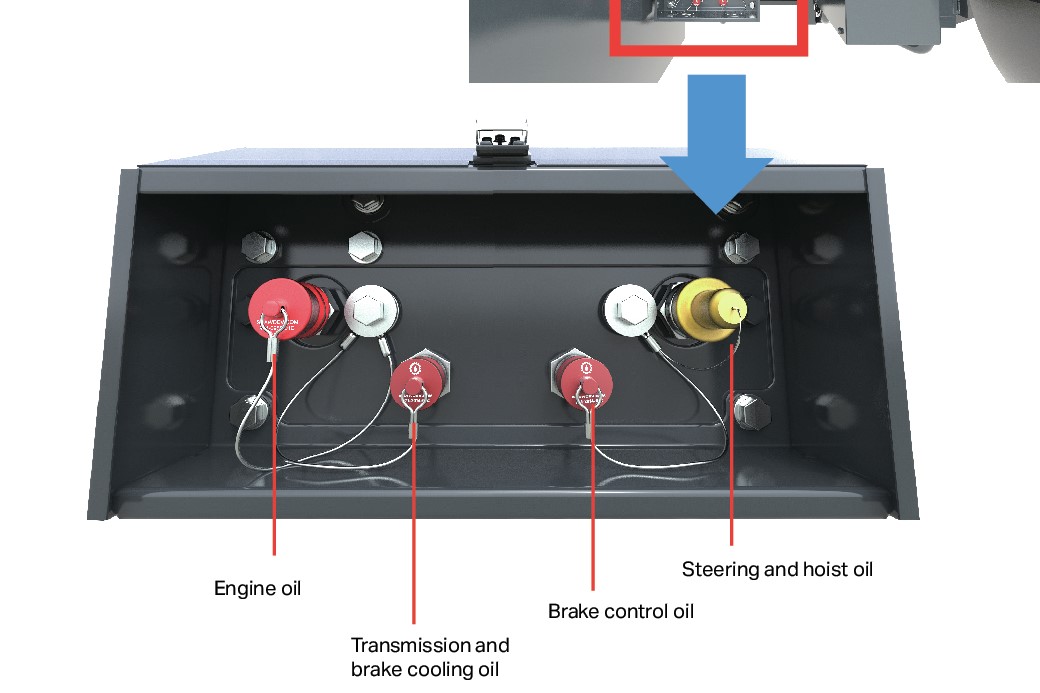

Ground-level service center

Ground-level service center

Designed for quick preventative maintenance and servicing. A ground-level service center is located at the bottom of the hydraulic tank: Engine oil, transmission and brake cooling oil, brake control oil and hydraulic oil filling ports are accessible in one location.

Zero-harm features

Zero-harm features

Lockable battery and starter isolators are accessible from the ground level. A machine immobilization switch enables engine ignition yet disables steering and hoist operation while preventing parking brake release. An emergency engine stop switch shuts down the engine from the ground level.


Specifications

Metric Imperial (US)
Expand all

  • Relief pressure (Mpa): 20.6
  • Hoist cylinder type: Twin, 2-stage telescopic type
  • Hoist time (s): 11.5
  • Relief pressure (psi): 2,990
  • Relief pressure (kg/cm^2 / Mpa): 210

  • Material thickness

    • Front (mm): 12
    • Bottom (in): 0.75
    • Bottom (mm): 19
    • Sides (mm): 9
    • Sides (in): 0.35
    • Target area (ft x in): 23 ft.2 in. x 16 ft. 11 in.
    • Target area (mm x mm): 7 070 x 5150
    • Heating: Exhaust heating
    • Height at full dump (mm): 10 080
    • Height at full dump (ft.): 33 ft. in
    • Front (in): 0.47
  • Capacity

    • Struck 16.9 Capacity (m^3): 40
    • Struck 16.9 capacity (yd^3): 52.3
    • Structure: V-shape body with V-bottom
    • Heaped 2:1 SAE Capacity (m^3): 60
    • Heaped 2:1 SAE Capacity (yd^3): 78.5
    • Payload (metric tons): 92.2
    • Payload (US tons): 101.6

  • Front suspension (mm): 320
  • Front suspension (ft X in): 1 ft. 0.6 in
  • Rear suspension (mm): 127
  • Rear suspension (in): 5
  • Rear axle oscillation oil stopper (degree): 5.3
  • Rear axle oscillation mechanical stopper (degree): 6
  • McPherson strut type: Front suspension and four-link type rear axle suspension with independent, hydropneumatic cylinders.
  • Effective cylinder stroke front suspension (ft) (in): 1 ft. 0.6 in
  • Effective cylinder stroke front suspension (mm): 320
  • Effective cylinder stroke rear suspension (in): 5
  • Effective cylinder stroke rear suspension (mm): 127
  • Rear axle oscillation

    • Mechanical stopper (degrees): 6
    • Oil stopper (degrees): 5.3

  • Piston displacement (in^3): 1,860
  • Piston displacement (L): 30.48
  • Engine Model: Komatsu SAA12V140E-7 (EPA Tier 4 Final emissions certified)
  • Engine type: Water-cooled, 4-cycle
  • Aspiration: Turbo-charged, after-cooled, cooled EGR
  • Number of cylinders: 12
  • Bore (mm): 140
  • Bore (in): 5.51
  • Stroke (mm): 165
  • Stroke (in): 6.5
  • Lubrication system

    • Method: Gear pump, force-lubrication
    • Filter: Full-flow type
    • Air cleaner: Dry type with double elements, precleaner and evacuator valve
  • Horsepower

    • SAEJ1995 - Gross (kW): 895
    • SAEJ1995 - Gross (HP): 1,200
    • Fan drive type: Mechanical
    • Fuel system: Direct injection
    • Governor: Electronically controlled
    • ISO 9249 / SAE J1349 - Net (HP): 1,178
    • ISO 9249 / SAE J1349 - Gross (kW): 879
    • Maximum torque (ft-lbs): 3,739
    • Maximum torque (kg-m): 517
    • Rated RPM: 1,900

  • Brakes standard: ISO 3450
  • Front brake surface (in^2): 6,075
  • Front brake surface (cm^2): 39 195
  • Rear brake surface (in^2): 11,138
  • Rear brake surface (cm^2): 71 858
  • Service brakes

    • Parking brake type: Spring applied, multiple-disc type
    • Retarder: Oil-cooled, multiple-disc front and rear brakes act as retarder
    • Front brake type: Fully hydraulic control, oil-cooled multiple-disc type
    • Rear service brakes: Fully hydraulic control, oil-cooled multiple-disc type
    • Service parking brakes: Spring applied, multiple-disc type
    • Service retarder brakes: Oil-cooled, multiple-disc front and rear brakes act as retarder
    • Secondary service brakes: Manual pedal operation when hydraulic pressure drops below the rated level, parking brake is automatically actuated
  • Brake surface

    • Front (in^2): 6,075
    • Front (cm^2): 39 195

  • Torque converter: 3 elements, 1 stage, 2 phase
  • Transmission: Full-automatic, planetary type
  • Speed range: Seven speeds forward and two reverse
  • Lockup clutch: Wet, multiple-disc clutch
  • Forward: Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears
  • Reverse: Torque converter drive and direct (lockup)
  • Shift control: Electronic shift control with automatic clutch modulation in all gears
  • Maximum travel speed (kph): 65
  • Maximum travel speed (mph): 40.4

  • Fuel tank (L): 1 322
  • Fuel tank (US gal): 349.2
  • Hydraulic system (US gal): 101.7
  • Hydraulic system (L): 385
  • Engine oil (US gal): 36.5
  • Engine oil (L): 138
  • Torque converter transmission retarder (US gal): 140
  • Torque converter transmission retarder (L): 530
  • Differentials (L): 203
  • Differentials (US gal): 59.6
  • Final drive (L): 116
  • Final drive (US gal): 30.6
  • Suspension (US gal): 24.5
  • Suspension (L): 92.6

  • Minimum turning radius wall to wall (m): 10.1
  • Minimum turning radius wall to wall (ft): 33 ft. 2 in
  • Steering system type: Fully hydraulic power steering with two double-acting cylinder
  • Secondary steering: Automatic/Manual control (Meets ISO 5010 and SAE J1511)
  • Maximum steering angle (degrees): 41

  • Final drive type: Planetary gear
  • Differential ratio: 2.944
  • Planetary ratio: 7.235
  • Rear axles: Full-floating

  • Type

    • Articulated type: Box-sectioned structure

  • Empty weight (kg): 73 800
  • Empty weight (lbs): 162,701
  • Gross vehicle weight (lbs): 365,967
  • Gross vehicle weight (kg): 166 000
    • Loaded

      • Front axle - loaded (%): 33.2
      • Rear axles - loaded (%): 66.8

      Empty

      • Front axle - empty (%): 51.5
      • Rear axles - empty (%): 48.5

  • Standard tire 23.5 R25: 27.00 R49

  • FOPS and ROPS standard: FOPS (ISO 3449 level II), ROPS (ISO 3471)
Metric Imperial (US)
Engine and related components
  • Air cleaner, double element with restriction indicator (qty 2)
  • Auto Idle Shutdown
  • Automatic Idling Setting System (AISS)
  • Electric priming fuel pump
  • Engine, KOMATSU SAA12V140E-7, 12 cylinder, turbocharged, after cooled, EGR cooled, diesel
    Gross HP: 895 kW / 1900 RPM (SAE J1995)
    Net HP: 849 kW / 1900 RPM (ISO 9249 / SAE J1349)
  • Engine pre-lubrication system
  • Engine secondary shutdown switch
  • Fan, hydraulically driven, reversible
  • Komatsu diesel particulate filter (KDPF) (qty 2)
  • Radiator, lead free, modular core
Electrical system
  • Alternator, 140 amp, 24 volt
  • Back-up alarm
  • Batteries, 4 x 12V
  • Battery isolator
  • Electric circuit breakers, 24V
  • Emergency stop switch, ground level
  • Horn, electric
  • Lights
  • Access ladder lamps
  • Back-up Lamps, rear
  • Engine compartment lamp
  • Fog lamps
  • Head lamps, high and low beam, LED
  • Side working lamps, LH & RH, LED
  • Stop and tail Lamps, LED
  • Turn signals, hazard warning, front & rear, LED
  • Starter isolator
  • Starting motors, 2 x 11.0 kW, electric
Power train and controls
  • 7-speed transmission, fully automatic, (7F, 2R)
  • Brake cooling oil recovery tank
  • Brakes, oil cooled, multiple disc, hydraulically controlled, front & rear
  • Komatsu Traction Control System (KTCS)
  • Neutral coast inhibitor
  • Parking brake, integrated in front & rear brakes
  • Retarder, automatic & manual
  • Secondary brake, pedal actuated, variable
  • Skip shift function
  • Speed limiter
  • Torque converter with electronic lockup control
Operator environment
  • Cab with built-in ROPS/FOPS (ISO 3471/ISO 3449)
  • 12V outlet (qty 2)
  • Automatic climate control system with Cab pressurization
  • Body hoist control, electric
  • Cigarette lighter and ashtray
  • Cup holder
  • Door, LH & RH
  • KomVision camera system with dedicated monitor
  • Machine monitor with 7" color LCD display
  • Mode selection system with Variable Horsepower Control (VHPC)
  • Operator seat, air suspension, heated, ventilated with 3-point 3" retractable seat belt
  • Power windows, LH & RH
  • Radio, AM/FM with aux input, USB, & bluetooth
  • Rearview mirror, outside Cab mount, heated (qty 2)
  • Rearview monitoring system with dedicated monitor
  • Secondary steering, automatic & manual
  • Steering wheel, tilt and telescopic
  • Sunvisor (qty 2)
  • Tinted glass with electric defogger
  • Trainer seat with 3" retractable lap belt
  • Underview mirror
  • Wiper/washer, windshield (intermittent)
  • Diagonal access stairway
Guard and cover group
  • Cab & platform guard
  • Catwalk with handrails, skid resistant
  • Driveline guards, front & rear
  • Engine side covers
  • Engine underguard
  • Exhaust thermal guard
  • Fire safety shield (located behind Engine)
  • Mud flaps
  • Rock ejector bars
  • Transmission underguard
Other standard equipment
  • Anchor points, tie off type (ISO 14567)
  • Automatic Retard Speed Control (ARSC)
  • Cold weather package (electric heaters for Engine oil & coolant heater)
  • Dump counter
  • Ecology guidance and ecology gauge
  • Engine oil & coolant heater, electric
  • Fast fill coupler for fuel tank
  • Filler cap lock & cover lock
  • Ground level service center
    -Centralized KOWA sampling
    -Fluids ports
    Transmission, Engine, brake control, steering and hoist oil
  • Hydropneumatic Suspension, Front & Rear
  • Jump start receptacle
  • KOMTRAX Plus®
  • Machine immobilization switch
  • Overload prevention system
  • Overrun warning and prevention
  • Overturn warning system
  • Payload meter
  • PM service connectors
  • Rims for 27.00 R49 Tires with large bore valve stems (qty 6)
  • Safety pins (qty 2)
  • Wheel chocks (qty 2)
Engine and related components
  • Air cleaner, double element with restriction indicator (qty 2)
  • Auto Idle Shutdown
  • Automatic Idling Setting System (AISS)
  • Electric priming fuel pump
  • Engine, KOMATSU SAA12V140E-7, 12 cylinder, turbocharged, after cooled, EGR cooled, diesel
    Gross HP: 1200 HP / 1900 RPM (SAE J1995)
    Net HP: 1140 HP / 1900 RPM (ISO 9249 / SAE J1349)
  • Engine pre-lubrication system
  • Engine secondary shutdown switch
  • Fan, hydraulically driven, reversible
  • Komatsu diesel particulate filter (KDPF) (qty 2)
  • Radiator, lead free, modular core
Electrical system
  • Alternator, 140 amp, 24 volt
  • Back-up alarm
  • Batteries, 4 x 12V
  • Battery isolator
  • Electric circuit breakers, 24V
  • Emergency stop switch, ground level
  • Horn, electric
  • Lights
  • Access ladder lamps
  • Back-up Lamps, rear
  • Engine compartment lamp
  • Fog lamps
  • Head lamps, high and low beam, LED
  • Side working lamps, LH & RH, LED
  • Stop and tail Lamps, LED
  • Turn signals, hazard warning, front & rear, LED
  • Starter isolator
  • Starting motors, 2 x 11.0 kW, electric
Power train and controls
  • 7-speed transmission, fully automatic, (7F, 2R)
  • Brake cooling oil recovery tank
  • Brakes, oil cooled, multiple disc, hydraulically controlled, front & rear
  • Komatsu Traction Control System (KTCS)
  • Neutral coast inhibitor
  • Parking brake, integrated in front & rear brakes
  • Retarder, automatic & manual
  • Secondary brake, pedal actuated, variable
  • Skip shift function
  • Speed limiter
  • Torque converter with electronic lockup control
Operator environment
  • Cab with built-in ROPS/FOPS (ISO 3471/ISO 3449)
  • 12V outlet (qty 2)
  • Automatic climate control system with Cab pressurization
  • Body hoist control, electric
  • Cigarette lighter and ashtray
  • Cup holder
  • Door, LH & RH
  • KomVision camera system with dedicated monitor
  • Machine monitor with 7" color LCD display
  • Mode selection system with Variable Horsepower Control (VHPC)
  • Operator seat, air suspension, heated, ventilated with 3-point 3" retractable seat belt
  • Power windows, LH & RH
  • Radio, AM/FM with aux input, USB, & bluetooth
  • Rearview mirror, outside Cab mount, heated (qty 2)
  • Rearview monitoring system with dedicated monitor
  • Secondary steering, automatic & manual
  • Steering wheel, tilt and telescopic
  • Sunvisor (qty 2)
  • Tinted glass with electric defogger
  • Trainer seat with 3" retractable lap belt
  • Underview mirror
  • Wiper/washer, windshield (intermittent)
  • Diagonal access stairway
Guard and cover group
  • Cab & platform guard
  • Catwalk with handrails, skid resistant
  • Driveline guards, front & rear
  • Engine side covers
  • Engine underguard
  • Exhaust thermal guard
  • Fire safety shield (located behind Engine)
  • Mud flaps
  • Rock ejector bars
  • Transmission underguard
Other standard equipment
  • Anchor points, tie off type (ISO 14567)
  • Automatic Retard Speed Control (ARSC)
  • Cold weather package (electric heaters for Engine oil & coolant heater)
  • Dump counter
  • Ecology guidance and ecology gauge
  • Engine oil & coolant heater, electric
  • Fast fill coupler for fuel tank
  • Filler cap lock & cover lock
  • Ground level service center
    -Centralized KOWA sampling
    -Fluids ports
    Transmission, Engine, brake control, steering and hoist oil
  • Hydropneumatic Suspension, Front & Rear
  • Jump start receptacle
  • KOMTRAX Plus®
  • Machine immobilization switch
  • Overload prevention system
  • Overrun warning and prevention
  • Overturn warning system
  • Payload meter
  • PM service connectors
  • Rims for 27.00 R49 Tires with large bore valve stems (qty 6)
  • Safety pins (qty 2)
  • Wheel chocks (qty 2)
Metric Imperial (US)

Body

  • Dump Body, 78.5 yd3
  • Steel liners for rock Body (78.5 yd3)
  • Body heating kit

Tires

  • Michelin XDR2B (qty 6)
  • Bridgestone VMTP (qty 6)

Others

  • Power boarding ladder
Body
  • Dump Body, 78.5 yd3
  • Steel liners for rock Body (78.5 yd3)
  • Body heating kit
Tires
  • Michelin XDR2B (qty 6)
  • Bridgestone VMTP (qty 6)
Others
  • Power boarding ladder

Technology that works as hard as you do

Select continent

DISPATCH

The DISPATCH Fleet Management System (FMS) helps mines achieve enhanced load and haul cycle efficiency and productivity through its proprietary optimization algorithm. The DISPATCH FMS provides mines with increased potential for end-to-end monitoring of production and auxiliary equipment, improved compliance with planning objectives, shorter hang/queue times and more.

technology-image

MineCare

The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilization and reduced maintenance costs and equipment degradation.

technology-image

The ProVision Guided Spotting System helps to optimize the loading cycle by presenting truck operators with precise directional guidance via intuitive visual cues when spotting at a loading unit. By helping the operators hit the spot the first time they reverse into position, potentially eliminating the need for a hanging bucket or flag, the Guided Spotting System promotes faster loading times for increased productivity.

technology-image

Telematics

Telematics data can drive results for business operations, but only when you can collect and analyze it efficiently. Get the insights that can benefit your bottom line.

technology-image
