Trucks

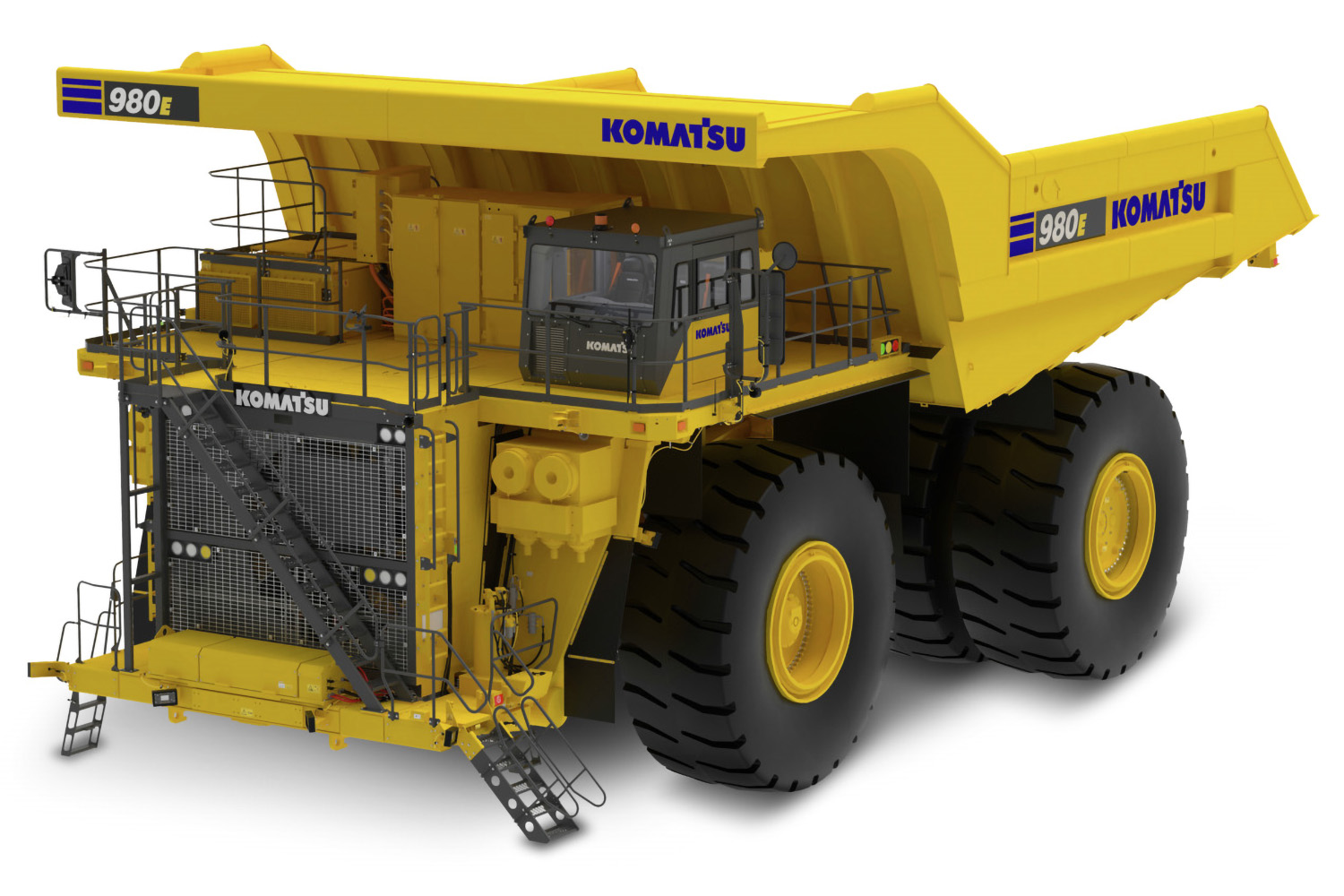

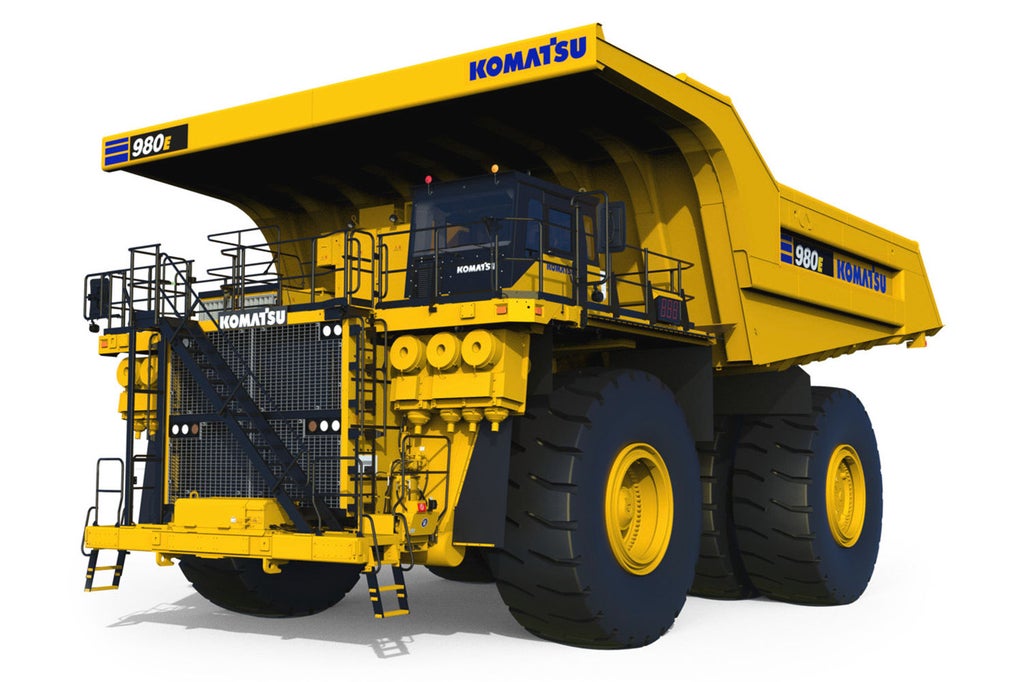

980E-5SE

Electric drive mining trucks

  • Gross horsepower (HP) 4,400 @1,800 rpm
  • Gross horsepower (kW) 2 610 @ 1 800 rpm
  • Operating weight (kg) 635 029
  • Operating weight (lbs) 1,400,000
  • Capacity (mt) 363
  • Capacity (st) 400

Purchase options

Request a quote Find a dealer

Built for performance, operability and sustainability

From its high-horsepower diesel engine and electric-drive powertrain to the ergonomically designed operator cab, the 980E-5SE has been engineered to promote increased productivity, an upgraded driving experience and a reduced carbon footprint.

  • 4,400 HP engine
  • Increased speed-on-grade
  • Automotive-style cabin

Features and benefits

Operator comfort

Operator comfort

Automotive-styled operator cabin meets the latest ISO standards. Ergonomic features, spacious cabin, and user-friendly display offer comfort and promote operator efficiency.

Structurally designed frame

Structurally designed frame

Durability is vital when cycling through big loads. Developed using advanced computer-aided design, finite element analysis and full-scale dynamic testing, the 930E-5SE’s frame can carry rated payload with structural reliability.

Cruise control

Cruise control

Automotive-stlye cruise control governs acceleration and deceleration. Helps operators maintain a constant speed while concentrating on steering and situational awareness.

Traction control

Traction control

Helps operators stay on task and operate efficiently, even in slippery conditions. Wheel traction control technology detects and corrects wheel spin or slide events — engages automatically and independently of the service brakes.

Monitor efficiency with payload data

Monitor efficiency with payload data

Payload Meter IV (PLM IV) helps increase production by working to optimize payloads, maximize cycle efficiency and reduce the life cycle costs of your machine. PLM IV tracks and records key production parameters.

Electric drive system

Electric drive system

Electric drive means fewer mechanical components, driving less maintenance and improved fuel efficiency. May help improve truck availability and reduce life cycle costs.


Specifications

Metric Imperial (US)
Expand all

  • Fuel tank (L): 5 300
  • Fuel tank (US gal): 1,400
  • Hydraulic system (L): 1 930
  • Hydraulic system (US gal): 510

  • Nominal payload (short tons): 400
  • Nominal payload (metric tons): 363
  • Empty vehicle weight

    • Empty vehicle weight - front axle distribution (kg): 149 813
    • Empty vehicle weight - front axle distribution (lbs): 330,282
    • Empty vehicle weight - rear axle distribution (kg): 117 710
    • Empty vehicle weight - rear axle distribution (lbs): 259,506
    • Total empty vehicle weight (kg): 267 523
    • Total empty vehicle weight (lbs): 589,788
  • Gross vehicle weight

    • Empty vehicle weight - front axle (lbs): 476,000
    • Empty vehicle weight - front axle (kg): 215 910
    • Empty vehicle weight - rear axle (lbs): 924,000
    • Empty vehicle weight - rear axle (kg): 419 119
    • Nominal gross vehicle weight (lbs): 1,400,000
    • Nominal gross vehicle weight (kg): 635 029

  • Engine Model: Komatsu SDA16V190-1
  • Number of cylinders: 16
  • Gross horsepower (HP) @ 1,800 rpm: 4,400
  • Gross horsepower (kW) @ 1,800 rpm: 2 610
  • Dry weight (lbs): 29,950
  • Dry weight (kg): 13 585
  • Net fly wheel power @ 1,800 rpm (kW): 2 460
  • Net fly wheel power @ 1,800 rpm (HP): 3,346
  • Number of operating cycles: 4
  • Truck fuel type: Diesel

  • Flange mount, five piece rim (in): 44 x 63 x 5.5 in Rims rated at 758 kPa 110 psi cold inflation pressure.
  • Flange mount, five piece rim (mm): 1 118 x 1 600 x 140 mm Rims rated at 758 kPa 110 psi cold inflation pressure
  • Standard tire weight (lbs): 71,838
  • Standard tire weight (kg): 32 585
  • Rock service, tubeless, radial tires

    • Standard tire: 59/80 R63

  • Casting material and tensile strength steel (psi): 90,000
  • Casting material and tensile strength steel (MPa): 620.5
  • Drive axle alignment: Swing link between frame and axle
  • Drive axle mounting: Pin and spherical bushing
  • Plate material and tensile strength steel (psi): 70,000
  • Plate material and tensile strength steel (MPa): 482.6
  • Rail depth minimum (mm): 864
  • Rail depth minimum (in): 34
  • Rail width (mm): 305
  • Rail width (in): 12
  • Side plate thickness front (mm): 32
  • Side plate thickness front (in): 1.26
  • Side plate thickness rear (mm): 25
  • Side plate thickness rear (in): 0.98
  • Top bottom plate thickness (mm): 45
  • Top bottom plate thickness (in): 1.77

  • Service brake: Oil-cooled, hydraulic actuated, multiple disc brakes at each wheel
  • Service brakes

    • Parking brake type: Multiple disc, spring-applied, hydraulically-released, dry brakes on inboard end of each wheel motor rotor shaft. Rated to hold on ±15% grade at maximum gross vehicle weight.

  • Lighting (volt): 24
  • Cranking motors (volt): Three, 24 volt
  • Alternator (volt): 24
  • Alternator (amps): 250

  • Cooling system (US gal): 262
  • Cooling system (L): 992
  • Crankcase (US gal): 132
  • Crankcase (L): 500

  • Floor sheet tensile strength steel (mm): 16 (outer), 21 (center)
  • Floor sheet tensile strength steel (in): 0.63 (outer), .75 (center)
  • Front sheet tensile strength steel outer (mm): 10
  • Front sheet tensile strength steel outer (in): 0.39
  • Side sheet tensile strength steel (mm): 8
  • Side sheet tensile strength steel (in): 0.39
  • Canopoy sheet (in): 0.24
  • Canopy sheet (mm): 6
  • SAE heaped 2:1 (yd^3): 327
  • SAE heaped 2:1 (m^3): 250
  • Standard Komatsu bodyweight (kg): 42 637
  • Standard Komatsu bodweight (lbs): 94,000

  • Hoist steering: Dual, in-line, high pressure
  • Turning circle (ft): 105
  • Turning circle (m): 32
  • Reservoir (US gal): 250
  • Reservoir (L): 947
  • Filtration type: In-line replaceable elements
  • Suction type: Single, full-flow, 100 mesh
  • Brake component cabinet: Above deck, easily accessible with diagnostic test connections
  • Hoist type: Two 3-stage dual-acting outboard cylinders, internal cushion valve, over-center dampening
  • Hoist times

    • Float-down empty: 17
    • Power-up loaded: 21
    • Power-down: 16
    • Pumps: Two pumps, single package, in-line
    • Hoist and brake cooling (psi): Tandem gear pump with output of 240 gpm at 1,800 rpm and 2,750 psi
    • Hoist and brake cooling (kPa): Tandem gear pump with output of 931 lpm at 1,800 rpm and 18 960 kPa
    • Steering and brake for system relief (kPa): Variable displacement piston pump with output of 246 lpm at 1,800 rpm and 20 685 kPa
    • Steering and brake for hoist (psi): Variable displacement piston pump with output of 64 gpm at 1,800 rpm and 3,000 psi
  • System relief pressures

    • Steering and brake (psi): 3,000
    • Steering and brake (kPa): 20,685
    • Hoist (kPa): 17,237
    • Hoist (psi): 2,500

  • Auto apply system: Automatically applied prior to hydraulic system pressure dropping below level required to meet secondary stopping requirements
  • Electric dynamic retarder (HP): 6,000
  • Electric dynamic retarder (kW): 4 476
  • Max service apply pressure (psi): 2,750
  • Max service apply pressure (kPa): 18,960
  • Secondary braking system: Complies with ISO-3450 Standards
  • Total friction area per brake (cm^2): 103 729
  • Total friction area per brake (in^2): 16,078
  • Traction system type: Wheel spin-slide control
  • Wheel brake locks: Switch activated

  • Single impeller in line blower (m^3/min) cfm: (127.4) 4,500
  • AC/DC current

    • Control: AC Torque Control System
    • Max speed (mph): 40
    • Max speed (kph): 64.5
    • Motorized wheels: GDY108D
    • Ratio: 35.02:1

  • Radiator frontal area (m^2): 8.46
  • Radiator frontal area (ft^2): 91

  • Max front stroke (mm): 303
  • Max front stroke (in): 11.92
  • Max rear axle osicillation (degrees): 6.5
  • Max rear stroke (in): 9.4
  • Max rear stroke (mm): 239

  • AC/DC Current

    • Alternator: GTA-63
Metric Imperial (US)
  • Air cleaners w/ auto evacuators
  • Alternator (24volt/1 x 275A)
  • Automatic lubrication system w/ground level fill, level indicator & dynamic timing
  • Back-up alarm
  • Batteries–4 x 8D (1400 CCA’s)
  • Battery charging/jump start connector
  • Body over-center device
  • Body-up sling (w/KAC supplied Body)
  • Brakes: oil-cooled, multiple disc front & rear
  • Control Cabinet
  • Cruise control
  • Electric start
  • Eliminator®, Cense®
  • Fast-fill fuel system (in tank)
  • Filters, high pressure hydraulic
  • Ground level radiator fill
  • Mirrors, heated, multi-cambered convex LH & RH
  • Mud flaps
  • Muffled exhaust–deck-mounted
  • Power supply, 24 volt and 12 volt DC
  • Quick disconnects (steering, hoist and diagnostics)
  • Radiator sight gauge
  • Removable power module unit (radiator, Engine, alternator, blower)
  • Reverse retarding
  • Service center–LH
  • Thermostatic fan clutch
Operator environment and control
  • All hydraulic service brakes with auto apply
  • Back up alarm
  • Battery disconnect switch
  • Brake lock and drive system interlock
  • Circuit breakers, 24 volt
  • Diagonal staircase across grille
  • Dynamic retarding with continuous rated element grids
  • Engine shutdown at ground level
  • Hoist propulsion interlock
  • Horns (electric–front)
  • Integral ROPS/FOPS Cab Level 2
  • Maintenance and power lockout
  • Parking brakes with warning light & speed application protection
  • Power steering w/auto secondary steering
  • Protective deck handrails
  • Pump driveline protector
  • Radiator fan guard
  • Seat belts - Operator and Passenger (3" Lap, 2" Retractable Shoulder)
  • Slip-resistant walkways
Standard high visibility deluxe cab
  • AC drive interface display
  • Air conditioner HFC-134A
  • AM/FM radio with CD, USB & MP3
  • DEF Gauge
  • Digital air cleaner restriction gauges
  • Dome light
  • Electronic Dash & Status Panel
    - Body up
    - Engine oil temperature (high)
    - Parking brake
    - Propulsion system not ready
    - No DC link voltage
    - No propel
    - Service brake applied
    - Wheel brake lock applied
    - Maintenance monitor
  • Engine hourmeter, oil pressure gauge, coolant temperature gauge, hydraulic oil temperature
  • Engine shutdown w/ “Smart Timer” delay
  • Floor mat (double barrier)
  • Fuel gauge in Cab
  • Fuel low level light and buzzer
  • Gauges (w/backlight)
  • Headlight switch
  • Heater and defroster (heavy-duty)
  • Heater switch
  • High beam selector and indicator
  • Horn (center of steering wheel)
  • Indicator lights (blue)
    - Engine service
    - Komtrax Plussnapshot (IM)
  • Komatsu Payload Meter IV® (PLM IV)
  • Komtrax Plus
  • Operator seat, adjustable w/air suspension, lumbar support and arm rests
  • Panel lighting (adjustable)
  • Passenger seat, mechanical suspension
  • Power windows
  • Pressurized Cab air system w/fan on
  • Single brake/retarder pedal
  • Sunvisor (adjustable)
  • Tilt & telescoping steering column
  • Voltmeter (battery output)
  • Windshield (tinted safety glass)
  • Windshield wiper (dual) and washer (electric)
Lighting
  • Back-up lights–rear mount (2) LED
  • Back-up lights–R and L - deck mount (2) LED
  • Brake and retard lights on top of Cab (LED)
  • Clearance lights (LED)
  • Control Cabinet service light (LED)
  • Dynamic retarding, rear (2) LED
  • Engine compartment service lights (LED)
  • Fog lights (2) halogen
  • Headlights (8) halogen
  • Manual back-up light, switch and indicator
  • Payload lights R and L (LED)
  • Stairway lights (LED)
  • Stop & tail lights (2) LED
  • Turn signals (LED)
  • Air cleaners w/ auto evacuators
  • Alternator (24volt/1 x 275A)
  • Automatic lubrication system w/ground level fill, level indicator & dynamic timing
  • Back-up alarm
  • Batteries–4 x 8D (1400 CCA’s)
  • Battery charging/jump start connector
  • Body over-center device
  • Body-up sling (w/KAC supplied Body)
  • Brakes: oil-cooled, multiple disc front & rear
  • Control Cabinet
  • Cruise control
  • Electric start
  • Eliminator®, Cense®
  • Fast-fill fuel system (in tank)
  • Filters, high pressure hydraulic
  • Ground level radiator fill
  • Mirrors, heated, multi-cambered convex LH & RH
  • Mud flaps
  • Muffled exhaust–deck-mounted
  • Power supply, 24 volt and 12 volt DC
  • Quick disconnects (steering, hoist and diagnostics)
  • Radiator sight gauge
  • Removable power module unit (radiator, Engine, alternator, blower)
  • Reverse retarding
  • Service center–LH
  • Thermostatic fan clutch
Operator environment and control
  • All hydraulic service brakes with auto apply
  • Back up alarm
  • Battery disconnect switch
  • Brake lock and drive system interlock
  • Circuit breakers, 24 volt
  • Diagonal staircase across grille
  • Dynamic retarding with continuous rated element grids
  • Engine shutdown at ground level
  • Hoist propulsion interlock
  • Horns (electric–front)
  • Integral ROPS/FOPS Cab Level 2
  • Maintenance and power lockout
  • Parking brakes with warning light & speed application protection
  • Power steering w/auto secondary steering
  • Protective deck handrails
  • Pump driveline protector
  • Radiator fan guard
  • Seat belts - Operator and Passenger (3" Lap, 2" Retractable Shoulder)
  • Slip-resistant walkways
Standard high visibility deluxe cab
  • AC drive interface display
  • Air conditioner HFC-134A
  • AM/FM radio with CD, USB & MP3
  • DEF Gauge
  • Digital air cleaner restriction gauges
  • Dome light
  • Electronic Dash & Status Panel
    - Body up
    - Engine oil temperature (high)
    - Parking brake
    - Propulsion system not ready
    - No DC link voltage
    - No propel
    - Service brake applied
    - Wheel brake lock applied
    - Maintenance monitor
  • Engine hourmeter, oil pressure gauge, coolant temperature gauge, hydraulic oil temperature
  • Engine shutdown w/ “Smart Timer” delay
  • Floor mat (double barrier)
  • Fuel gauge in Cab
  • Fuel low level light and buzzer
  • Gauges (w/backlight)
  • Headlight switch
  • Heater and defroster (heavy-duty)
  • Heater switch
  • High beam selector and indicator
  • Horn (center of steering wheel)
  • Indicator lights (blue)
    - Engine service
    - Komtrax Plussnapshot (IM)
  • Komatsu Payload Meter IV® (PLM IV)
  • Komtrax Plus
  • Operator seat, adjustable w/air suspension, lumbar support and arm rests
  • Panel lighting (adjustable)
  • Passenger seat, mechanical suspension
  • Power windows
  • Pressurized Cab air system w/fan on
  • Single brake/retarder pedal
  • Sunvisor (adjustable)
  • Tilt & telescoping steering column
  • Voltmeter (battery output)
  • Windshield (tinted safety glass)
  • Windshield wiper (dual) and washer (electric)
Lighting
  • Back-up lights–rear mount (2) LED
  • Back-up lights–R and L - deck mount (2) LED
  • Brake and retard lights on top of Cab (LED)
  • Clearance lights (LED)
  • Control Cabinet service light (LED)
  • Dynamic retarding, rear (2) LED
  • Engine compartment service lights (LED)
  • Fog lights (2) halogen
  • Headlights (8) halogen
  • Manual back-up light, switch and indicator
  • Payload lights R and L (LED)
  • Stairway lights (LED)
  • Stop & tail lights (2) LED
  • Turn signals (LED)
Metric Imperial (US)
  • 300 gpm fast fuel: RH in-tank, LH remote
  • Amber becon light
  • Antifreeze: below 40°F
  • Body group, OEM ship loose
  • Body liners
  • Bumper access - Hydraulic retractable steps
  • Bumper mounted headlights
  • Cold weather suspensions - front & rear
  • Double wall exhaust tubes
  • Dump Body - standard design
  • Electric heater coolant
  • Electric heater Engine oil
  • Electric heater hydraulic oil
  • Engine access platform, LH
  • Exhaust for heated Body
  • Fire extinguisher
  • FLOC - LH service center
  • Hydraulic & Fuel tank - mud flaps only
  • Hydraulic tank - ladder & mud flaps
  • Komatsu Smart Type Rims
  • Komatsu wireless bridge
  • KomVision™ All Around Monitoring System
  • LED headlights
  • PLM scoreboard displays- RH & LH
  • Radiator shutters
  • Rock ejectors
  • Service center–RH (replacing LH)
  • Spare rim (1)
  • Spare Komatsu Smart Type Rim (1)
  • Suspension charging kit
  • Tier 4 Final Engine
  • Tool group
  • 300 gpm fast fuel: RH in-tank, LH remote
  • Amber becon light
  • Antifreeze: below 40°F
  • Body group, OEM ship loose
  • Body liners
  • Bumper access - Hydraulic retractable steps
  • Bumper mounted headlights
  • Cold weather suspensions - front & rear
  • Double wall exhaust tubes
  • Dump Body - standard design
  • Electric heater coolant
  • Electric heater Engine oil
  • Electric heater hydraulic oil
  • Engine access platform, LH
  • Exhaust for heated Body
  • Fire extinguisher
  • FLOC - LH service center
  • Hydraulic & Fuel tank - mud flaps only
  • Hydraulic tank - ladder & mud flaps
  • Komatsu Smart Type Rims
  • Komatsu wireless bridge
  • KomVision™ All Around Monitoring System
  • LED headlights
  • PLM scoreboard displays- RH & LH
  • Radiator shutters
  • Rock ejectors
  • Service center–RH (replacing LH)
  • Spare rim (1)
  • Spare Komatsu Smart Type Rim (1)
  • Suspension charging kit
  • Tier 4 Final Engine
  • Tool group

Technology that works as hard as you do

Select continent

DISPATCH

The DISPATCH Fleet Management System (FMS) helps mines achieve enhanced load and haul cycle efficiency and productivity through its proprietary optimization algorithm. The DISPATCH FMS provides mines with increased potential for end-to-end monitoring of production and auxiliary equipment, improved compliance with planning objectives, shorter hang/queue times and more.

technology-image

MineCare

The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilization and reduced maintenance costs and equipment degradation.

technology-image

The ProVision Guided Spotting System helps to optimize the loading cycle by presenting truck operators with precise directional guidance via intuitive visual cues when spotting at a loading unit. By helping the operators hit the spot the first time they reverse into position, potentially eliminating the need for a hanging bucket or flag, the Guided Spotting System promotes faster loading times for increased productivity.

technology-image

AHS combines driver-less trucks and remotely managed operation to optimize the movement of materials – removing people from harm’s way, while optimizing fuel usage and reducing the environmental footprint. With 10 years of proven success, the market for AHS continues to grow.

technology-image
