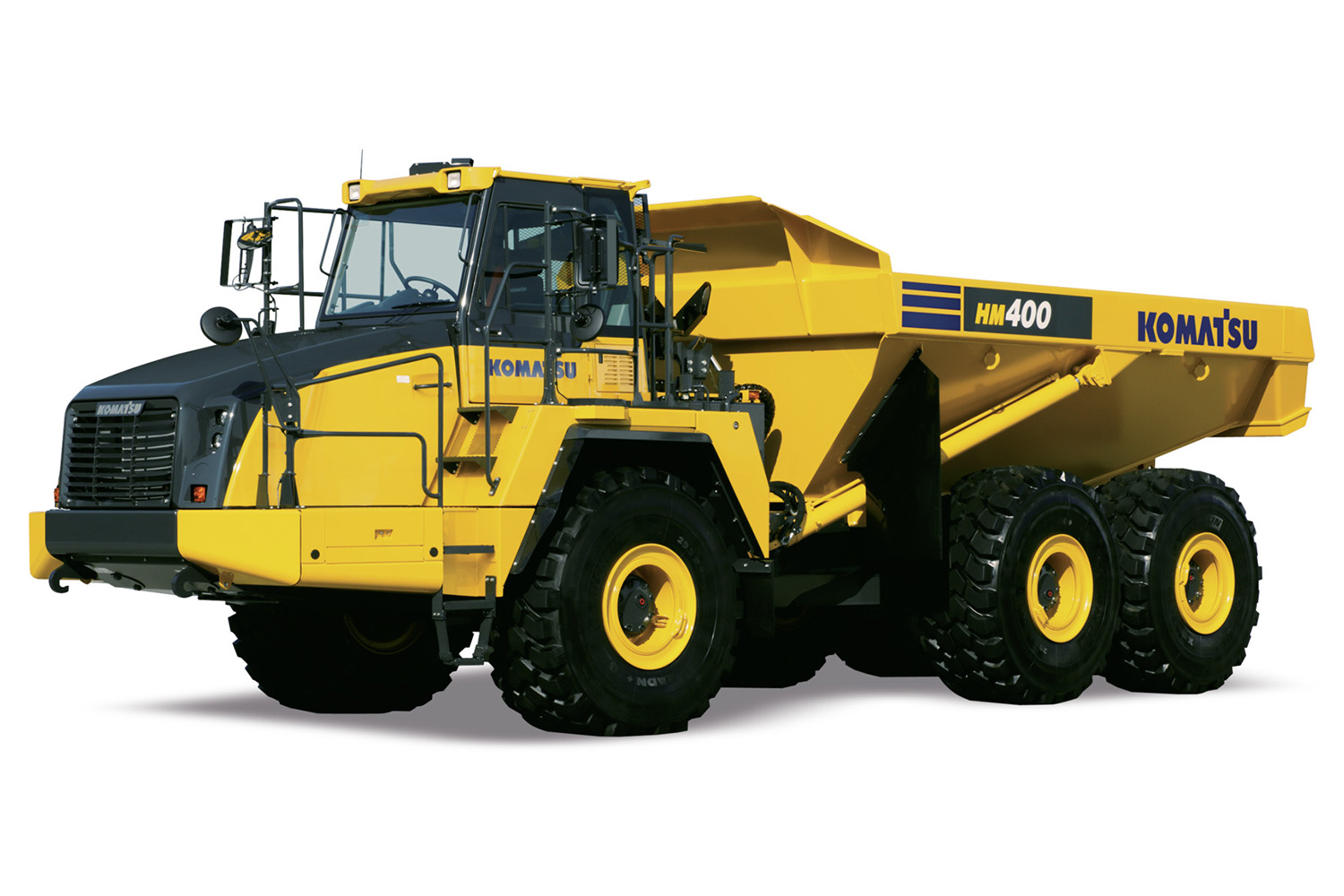

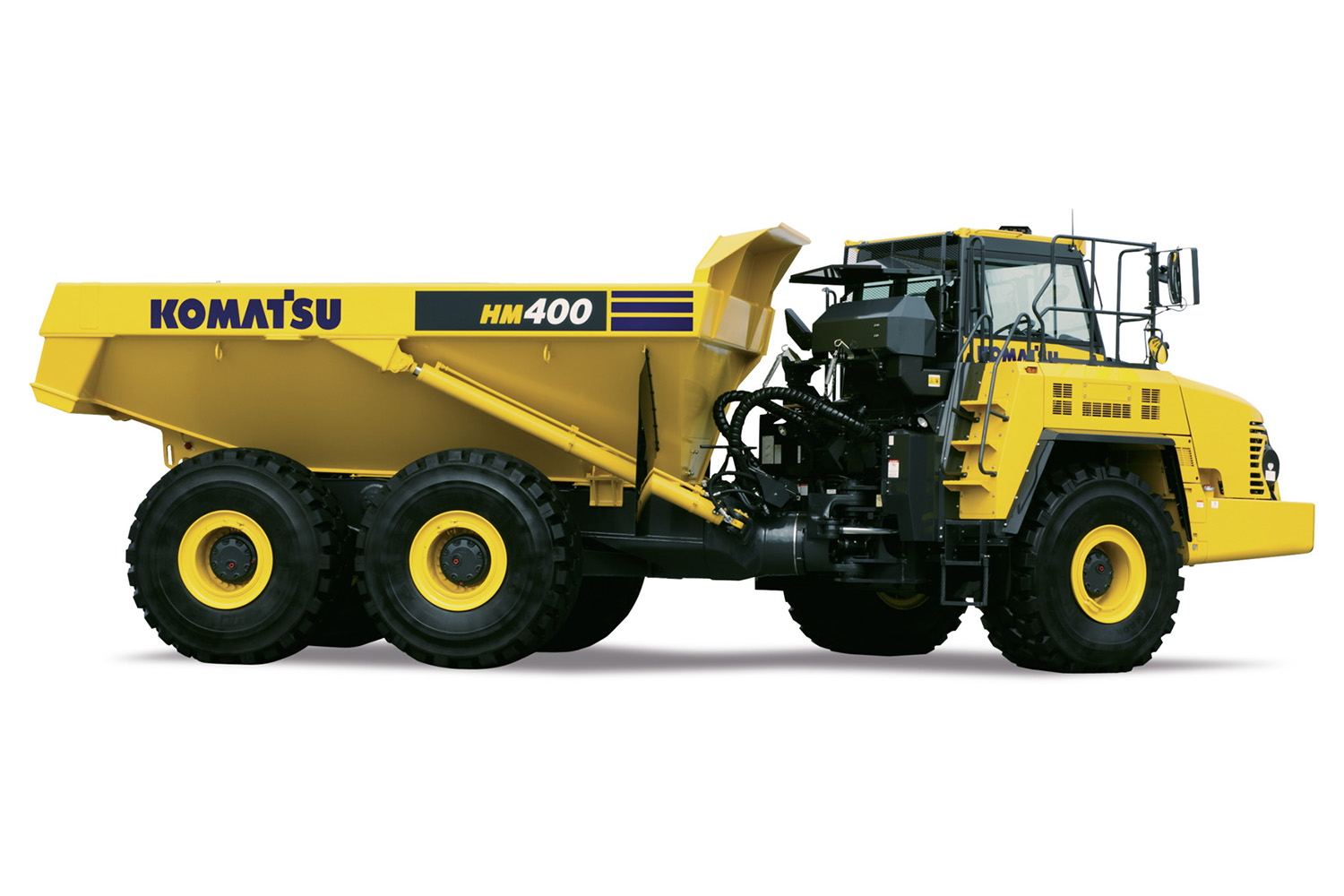

HM400-5

Articulated trucks

  • Gross horsepower (HP) 473 HP @ 2,000 rpm
  • Gross horsepower (kW) 353 kW @ 2 000 rpm
  • Operating weight (kg) 75 135
  • Operating weight (lbs) 165,644
  • Capacity (mt) 40
  • Capacity (st) 44.1

Purchase options

Request a quote Find a dealer

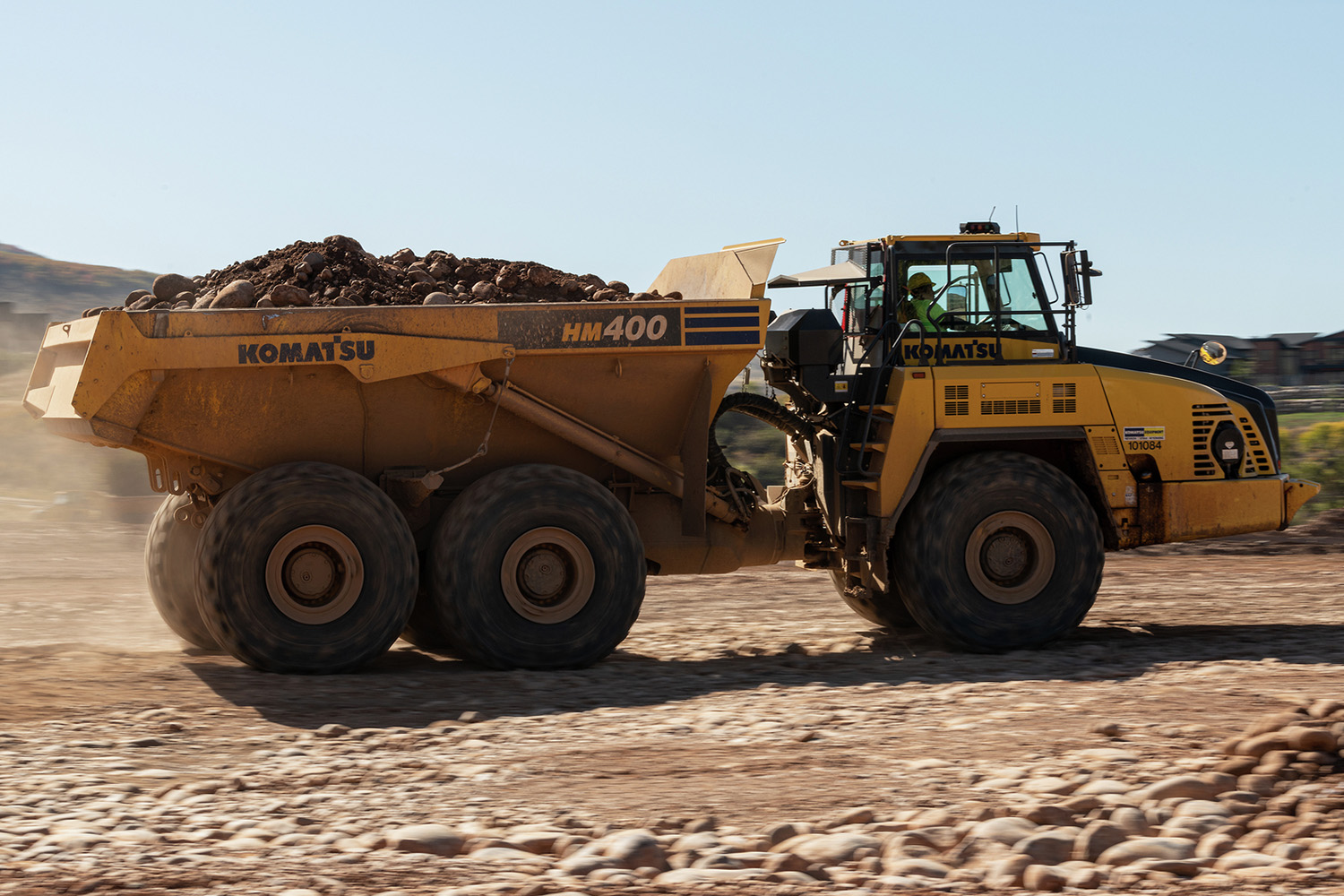

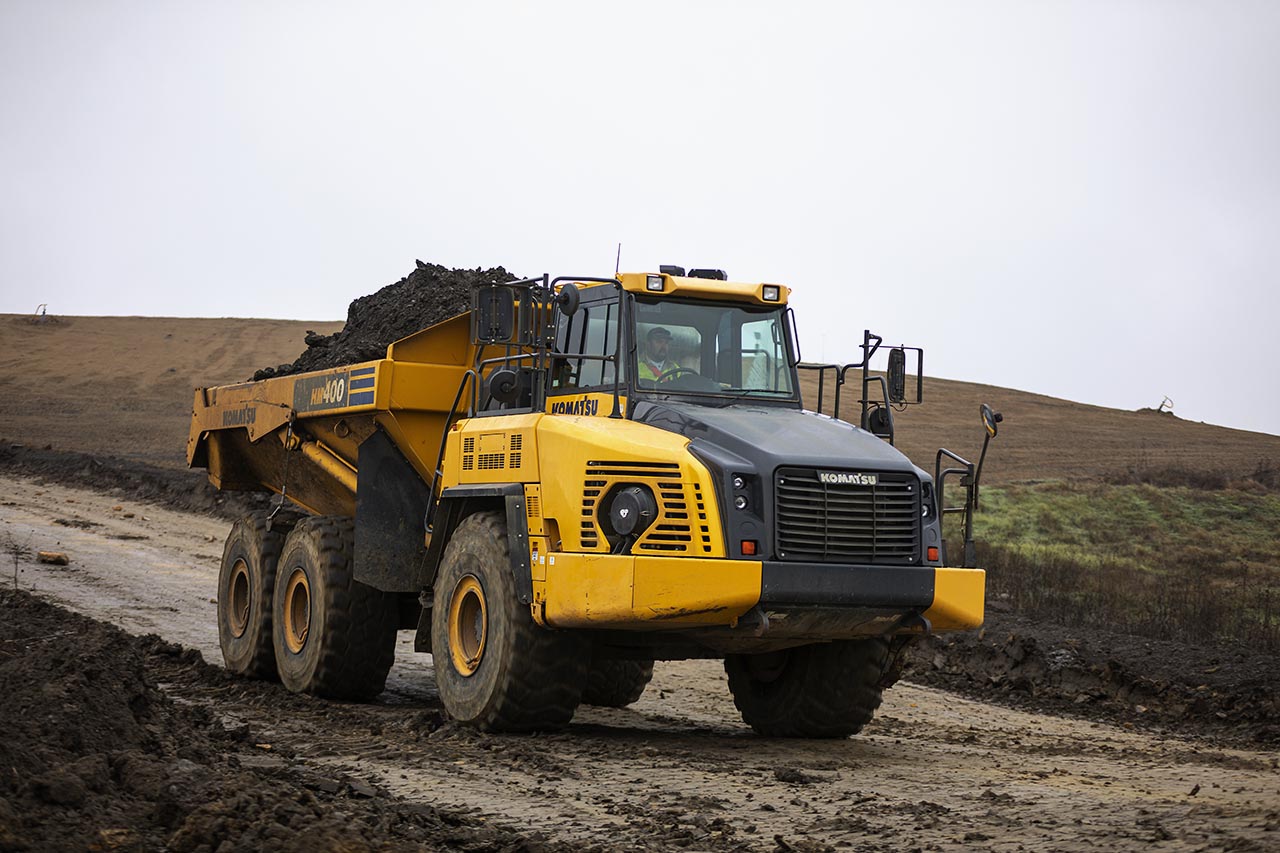

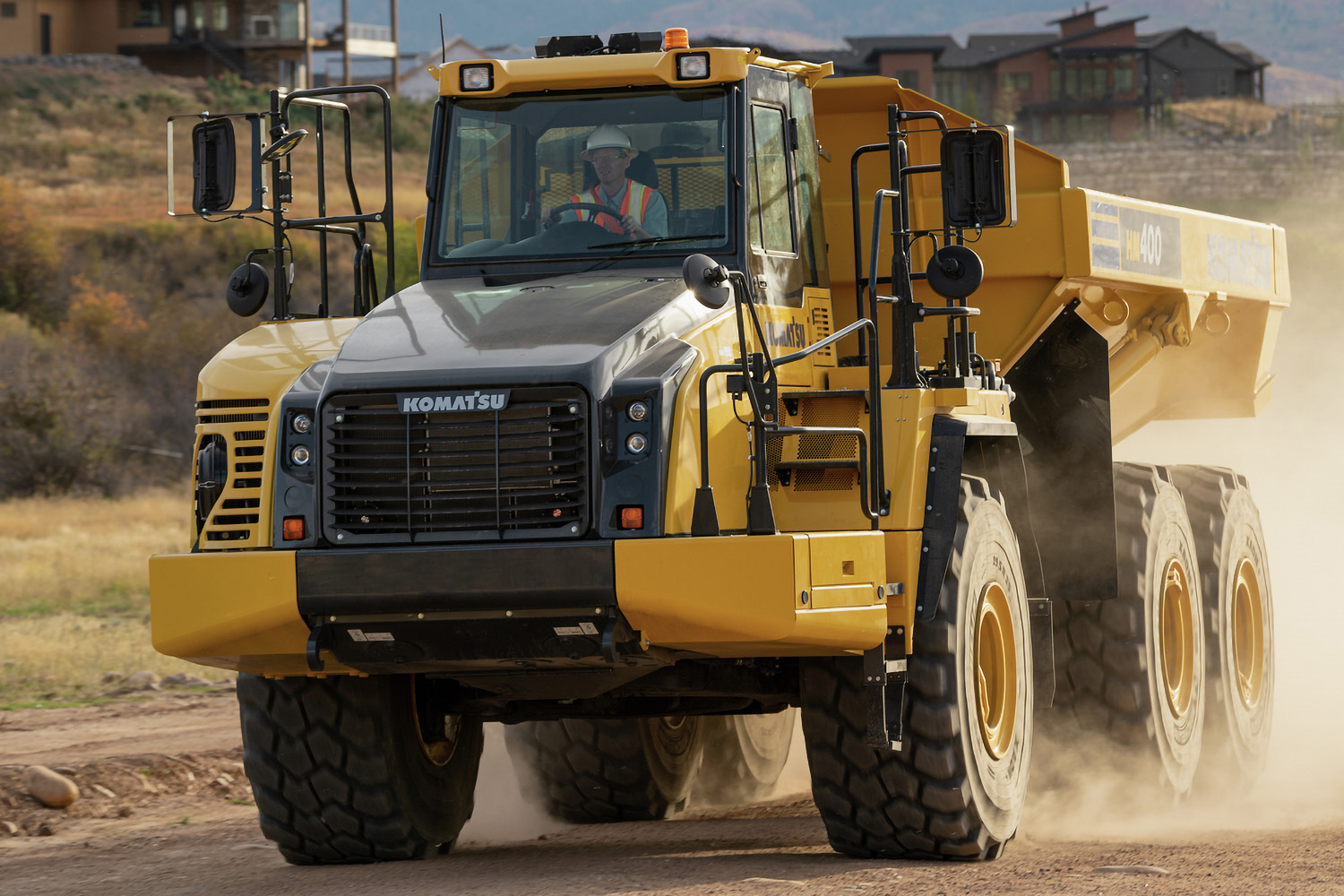

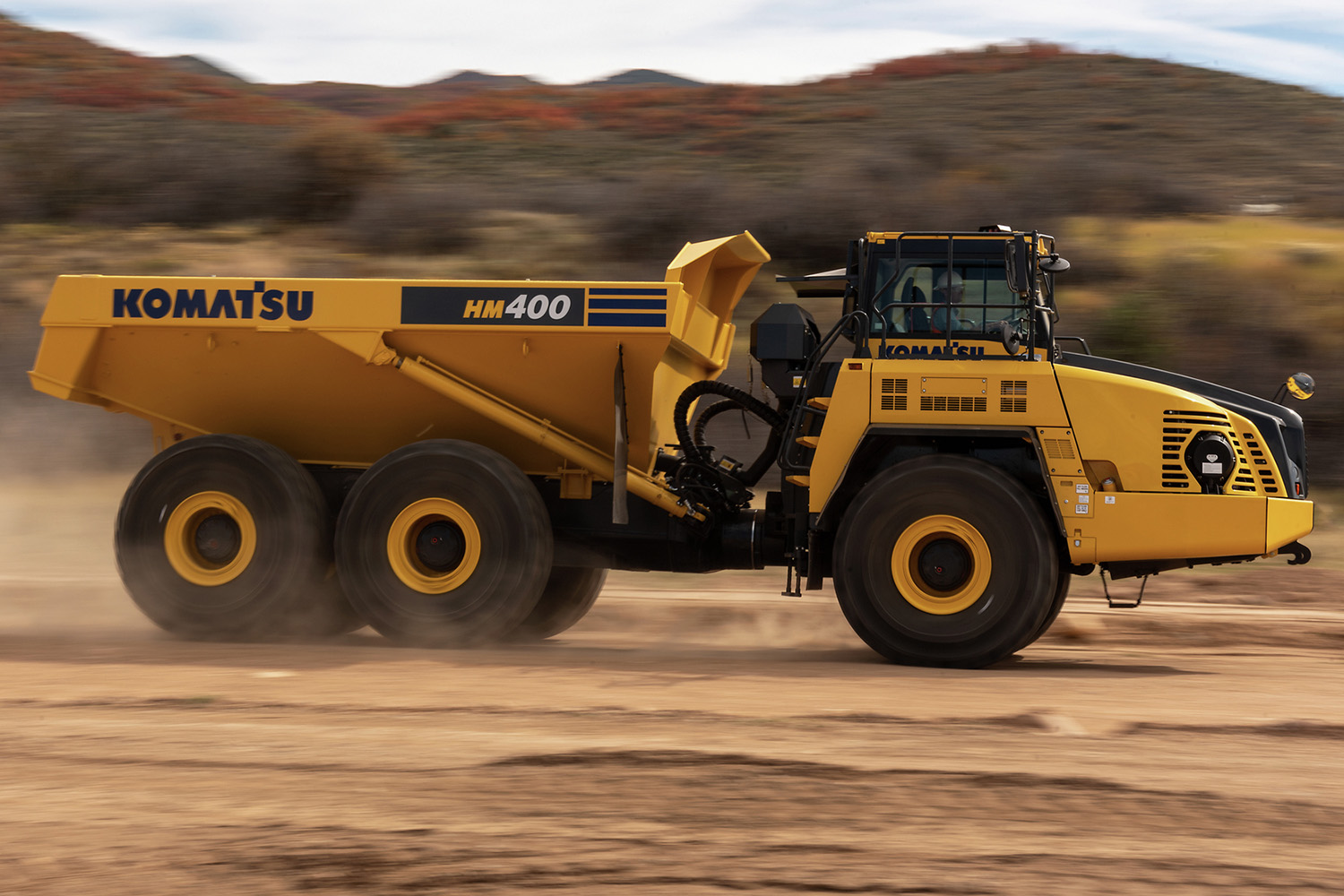

Ready for tough conditions

Move material across challenging, adverse terrain with the HM400-5 articulated truck. For job sites where roads may not exist or are not well established, this machine was designed and equipped to deliver productive, consistent performance — for operators of all experience levels.

  • Excellent maneuverability
  • Automated powertrain features
  • Customer-approved ride comfort
  • Designed for durability

Features and benefits

Komatsu Traction Control System

Komatsu Traction Control System

Monitor and adjust to changing conditions. Komatsu Traction Control System (KTCS) is designed to provide excellent machine performance in soft and slippery ground conditions without sacrificing steering performance.

Maximize transmission life

Maximize transmission life

Powerful acceleration, smooth down shifting and synchronized engine speed. The K-ATOMiCS transmission features a six-speed, fully automatic transmission with an advanced electronic system to reduce shift shock and torque cutoff for exceptional efficiency.

Greater confidence when traveling downhill

Greater confidence when traveling downhill

Increase operator confidence when traveling down hill through large capacity, continuously cooled, wet multiple-disk brakes that also function as a highly responsive retarder with 684 horsepower absorption capacity.

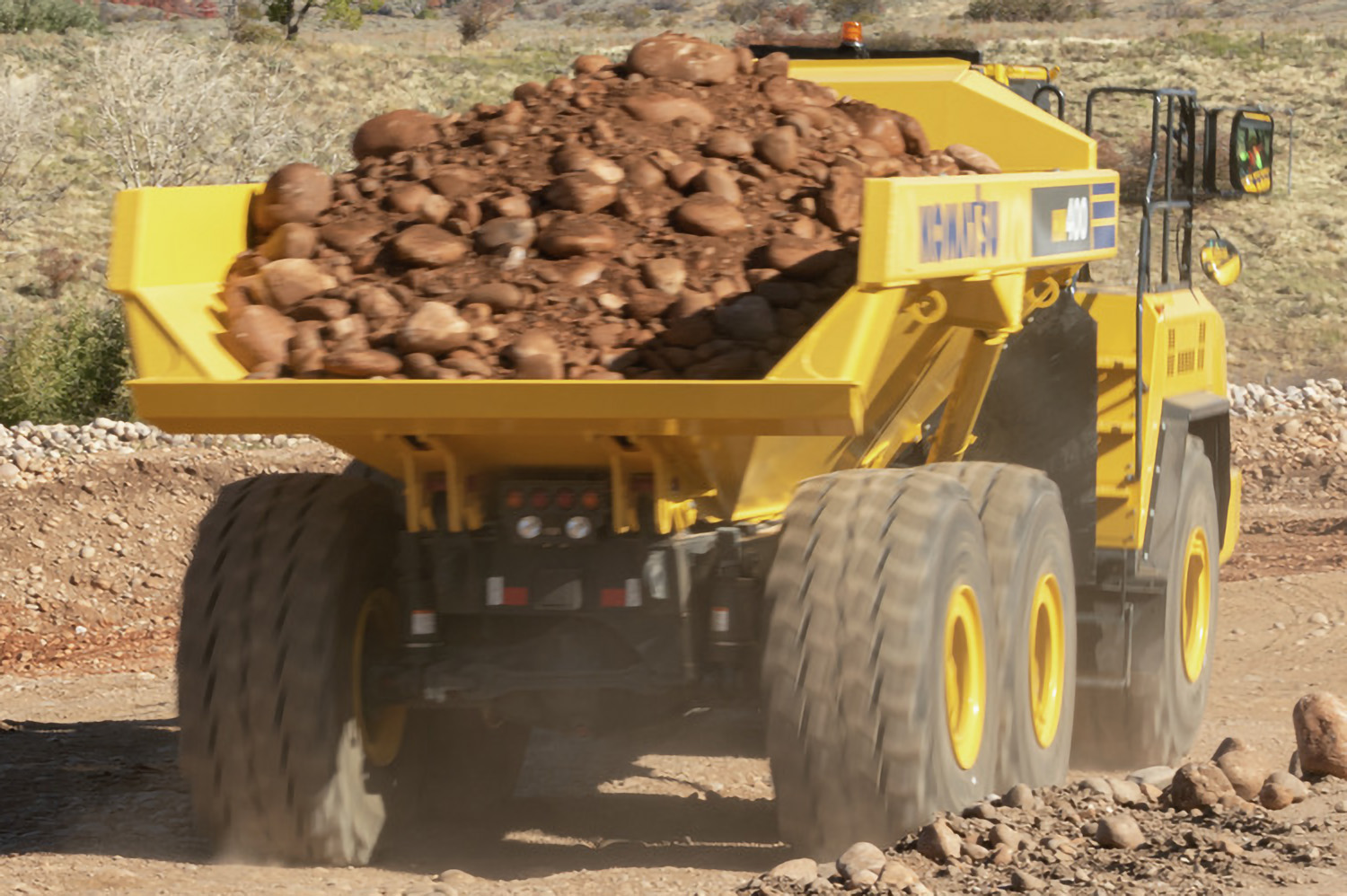

Smooth ride over rough terrain

Smooth ride over rough terrain

Discover a smooth ride over the rough terrain with front and rear axle hydro-pneumatic suspensions. The rear axles are mounted on a dynamic equalizer structure and the entire system is designed to help reduce operator fatigue while offering a comfortable ride.

Comfortable operator environment

Comfortable operator environment

Improved cab entry in front of the front axle. A curved front dash panel. Thoughtful design enhancements throughout the cab provide the operator excellent visibility and a large, quiet environment to promote productivity and comfort.

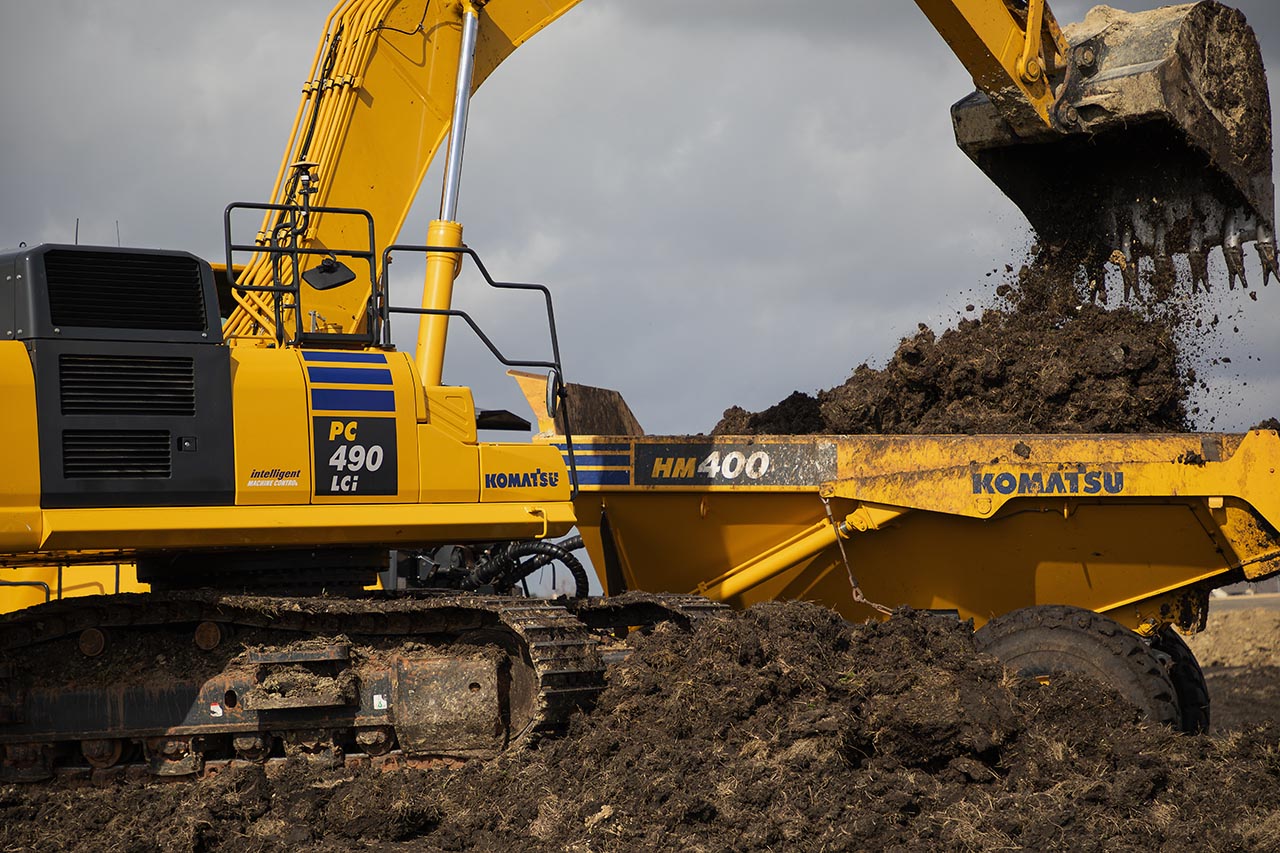

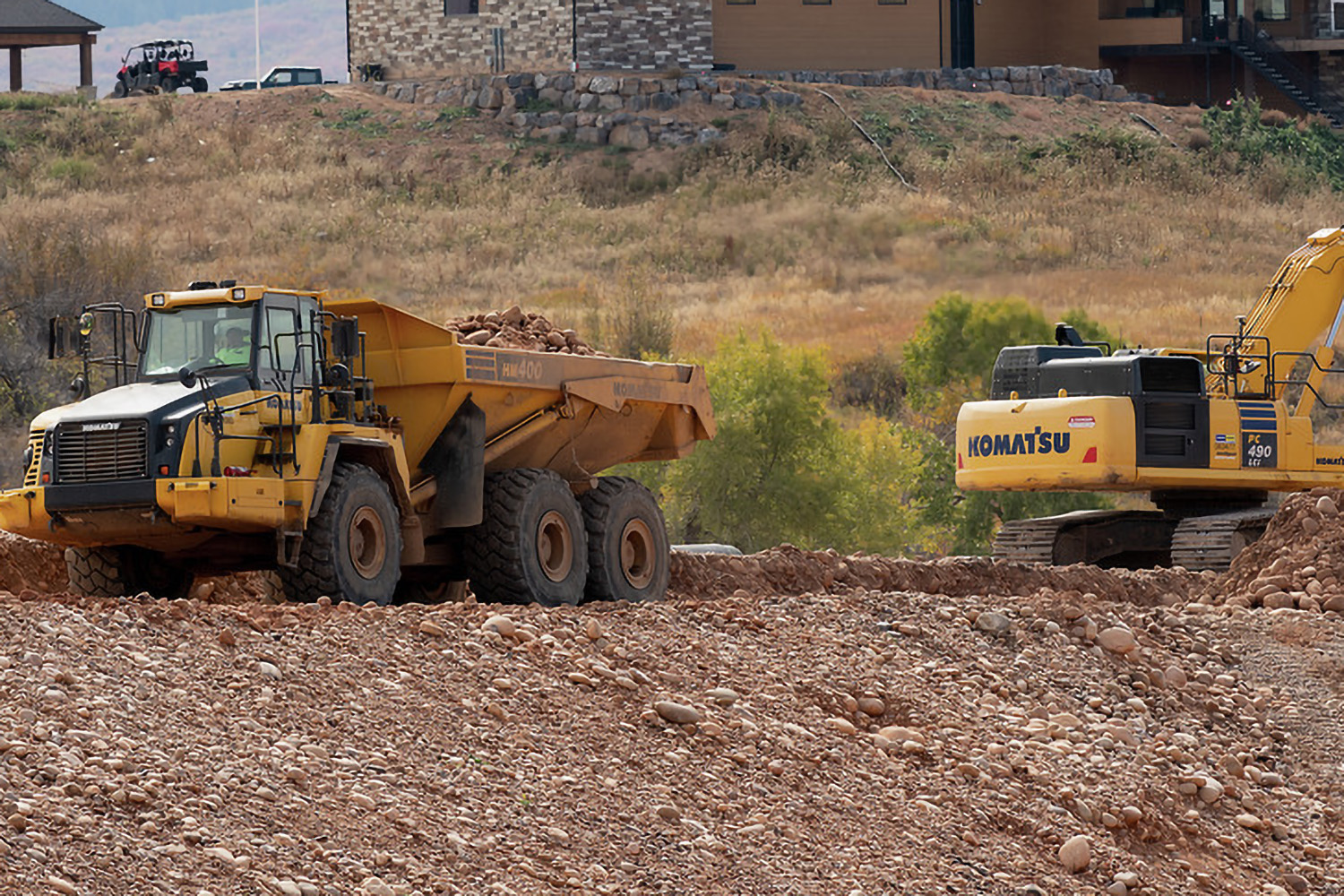

Efficient loading

Efficient loading

Monitor production with a standard, integrated payload meter that displays loaded material weight on the LCD monitor inside the cab. External lamps illuminate green, yellow or red as the payload increases to help prevent under and over loaded haul cycles.


Specifications

Metric Imperial (US)
Expand all

  • Material thickness

    • Bottom (in): 0.63
    • Bottom (mm): 16
    • Front (in): 0.31
    • Front (mm): 8
    • Sides (in): 0.47
    • Sides (mm): 12
    • Target area (ft x in): 25.58 x 10.5
    • Target area (mm x mm): 5 667 x 290
    • Heating: Exhaust heating (option)
  • Capacity

    • Struck 16.9 capacity (yd^3): 23.8
    • Struck 16.9 Capacity (m^3): 18.2
    • Heaped 2:1 SAE Capacity (yd^3): 31.4
    • Heaped 2:1 SAE Capacity (m^3): 24
    • Payload (US tons): 44.1
    • Payload (metric tons): 40
    • Material (psi): 184,925
    • Material (kg/mm^2): 130

  • Engine Model: Komatsu SAA6D140E-7 (EPA Tier 4 Final emissions certified)
  • Engine type: Water-cooled, 4-cycle
  • Aspiration: Komatsu variable geometry, turbo-charged, after-cooled, cooled EGR
  • Number of cylinders: 6
  • Bore (mm): 140
  • Bore (in): 5.51
  • Stroke (mm): 165
  • Stroke (in): 6.5
  • Piston displacement (L): 15.24
  • Piston displacement (in^3): 928
  • Horsepower

    • SAEJ1995 - Gross (HP): 473
    • SAEJ1995 - Gross (kW): 353
    • ISO 9249 / SAE J1349 - Net (HP): 466
    • ISO 9249 / SAE J1349 - Gross (kW): 348
    • Rated RPM: 2,000
    • Fan drive type: Hydraulic
    • Maximum torque (ft-lbs): 1,669
    • Maximum torque (kg-m): 231
    • Fuel system: Direct injection
    • Governor: Electronically controlled
  • Lubrication system

    • Method: Gear pump, force lubrication
    • Filter: Full-flow type
    • Air cleaner: Dry type with double elements and precleaner (cyclonpack type), plus dust indicator

  • Front suspension type: Hydro-pneumatic suspension
  • Rear suspension type: Combined hydro-pneumatic and rubber suspension system

  • Hoist cylinder type: Twin, telescopic type
  • Relief pressure (Mpa): 28.4
  • Relief pressure (kg/cm^2 / Mpa): 290
  • Relief pressure (psi): 4,119
  • Hoist time (s): 12

  • Torque converter: 3-elements, 1-stage, 2-phase
  • Transmission: Full-automatic, counter-shaft type
  • Speed range: 6 speeds forward and 2 reverse
  • Lockup clutch: Wet, single-disc clutch
  • Forward: Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears
  • Reverse: Torque converter drive and direct drive in all gear
  • Shift control: Electronic shift control with automatic clutch modulation in all gear
  • Maximum travel speed (kph): 55.9
  • Maximum travel speed (mph): 34.7

  • Service brake: Full-hydraulic control, oil-cooled multiple-disc type on front and center axles
  • Brakes standard: ISO3450
  • Service brakes

    • Parking brake type: Spring applied, caliper disc type
    • Retarder: Front and center axle brakes act as retarder

  • Final drive type: Planetary gear
  • Differential ratio: 3.727
  • Planetary ratio: 4.941

  • Rock service, tubeless, radial tires

    • Standard tire: 29.5 R25

  • Steering system type: Articulated type, fully hydraulic power steering with two double-acting cylinders
  • Supplementary steering: Automatically actuated, electrically powered
  • Standard: ISO5010, SAE J1511
  • Articulation angle (degrees): 45 each direction
  • Minimum turning radius wall to wall (ft): 28 ft. 10 in
  • Minimum turning radius wall to wall (m): 8.8

  • Empty weight (lbs): 77,283
  • Empty weight (kg): 35 005
  • Gross vehicle weight (lbs): 165,644
  • Gross vehicle weight (kg): 75 135
    • Loaded

      • Front axle - loaded (%): 30.4
      • Center axle - loaded (%): 35.8
      • Rear axles - loaded (%): 33.8

      Empty

      • Front axle - empty (%): 56.9
      • Center axle - empty (%): 23.6
      • Rear axles - empty (%): 19.5

  • Fuel tank (L): 525
  • Fuel tank (US gal): 138.7
  • DEF tank (L): 34
  • DEF tank (US gal): 9
  • Engine oil (L): 50
  • Engine oil (US gal): 13.2
  • Torque converter transmission retarder (L): 125
  • Torque converter transmission retarder (US gal): 33
  • Differentials (L): 108
  • Differentials (US gal): 28.5
  • Final drive (US gal): 8.5
  • Final drive (L): 32
  • Hydraulic system (L): 167
  • Hydraulic system (US gal): 44.1
  • Suspension (US gal): 5.7
  • Suspension (L): 21.4

  • Type

    • Articulated type: Articulated type, box-sectioned construction on front and rear Connected by strong torque tubes.

  • Cab standard: ISO3449 (FOPS) ISO3471 (ROPS)
Metric Imperial (US)

Engine

  • Air cleaner: dry type with double elements and pre-cleaner, plus dust indicator
  • Alternator, 24 V / 90 A
  • Batteries, 2 x 12 V / 160 Ah, 910 CCA
  • Engine, Komatsu SAA6D140E-7 (with EGR)
  • Hydraulically driven reversible cooling fan, after cooler
  • Hydraulically driven reversible cooling fan, radiator
  • Komatsu Diesel Particulate Filter (KDPF)
  • Komatsu Variable Displacement Turbocharger
  • Selective Catalytic Reduction (SCR)
  • Starting motor, 11.0 kW
  • Two mode power system (Power and Economy)

Cab

  • 2 x DC12V electrical outlets
  • Air conditioner
  • AM/FM radio with AUX terminal
  • Ashtray
  • Cigarette lighter
  • Color rear view monitor
  • Cup holder
  • Front wiper (with washer and intermittent)
  • Machine monitor (color LCD)
  • Operator seat, heated , reclining, air suspension type with 3-point retractable seat belt
  • Passenger seat with 2-point retractable seat belt
  • Power window (L.H)
  • Rear wiper (with washer)
  • Space for lunch box
  • Steering wheel, tilt and telescopic
  • Sun visor, front window
  • Tiltable ROPS Cab with FOPS, sound suppression type

Lighting system

  • Back-up lamp
  • Back work lamps, LH and RH side
  • Front, Cab mounted work lamps
  • Hazard lamps
  • Head lamps (High/Low)

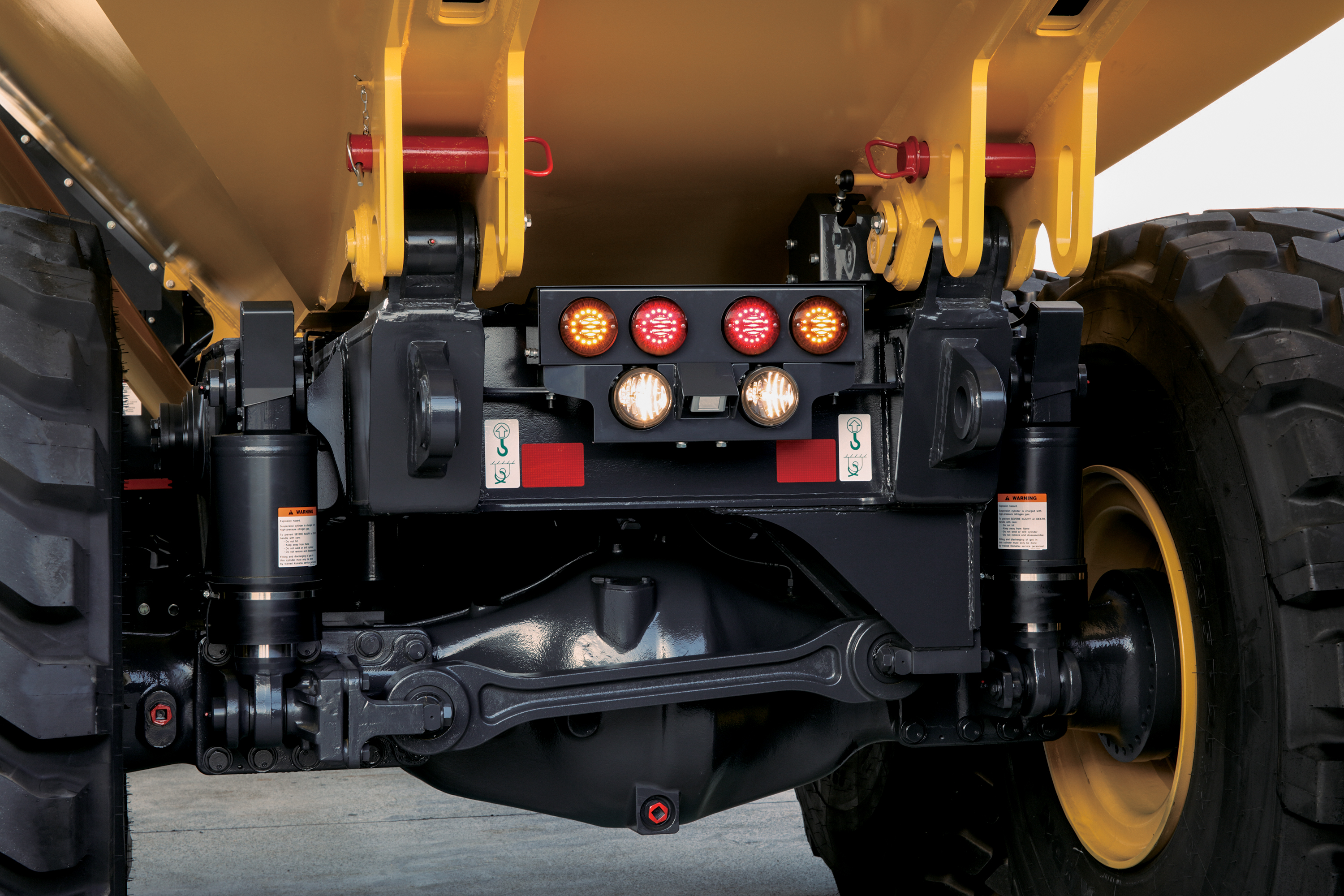

  • LED stop, tail and turn signal lamps

Guard and covers

  • Engine underguard
  • Exhaust muffler thermal guard
  • Fire prevention covers
  • Propeller shaft guards, front and rear
  • Transmission underguard

Body

  • Electronic hoist control system

Tires

  • 29.5 R25

Other

  • Alarm, backup
  • Anti-slip material on fenders
  • Auto idle stop function
  • Back-up alarm
  • Battery disconnect switch
  • Centralized greasing
  • Coolant temperature alarm and lamp
  • Dump counter
  • Ecology guidance and ecology gauge
  • Electric circuit breakers, 24 V
  • Electric priming fuel pump
  • Engine shutdown secondary switch
  • Full-automatic F6-R2 transmission with lock-up torque converter & K-ATOMiC shift control
  • Guard rails
  • Horn, electric
  • Hydropneumatic suspension, front and rear
  • Komatsu Traction Control System (KTCS)
  • KOMTRAX Level 5
  • Mud guards
  • Parking brake
  • Payload Meter (PLM)
  • Power Cab tilt
  • Protective grille for rear window
  • Provision for tailgate installation
  • Heated rear view mirrors
  • Rear view monitoring system
  • Retarder/brake system
  • Secondary brake
  • Secondary Engine shutdown switch
  • Secondary steering, automatic, electric
  • Side markers
  • Steering joint locking assembly
  • Step (right side) and ladder (left side)
  • Tool box
  • Under view mirrors

Engine

  • Air cleaner: dry type with double elements and pre-cleaner, plus dust indicator
  • Alternator, 24 V / 90 A
  • Batteries, 2 x 12 V / 160 Ah, 910 CCA
  • Engine, Komatsu SAA6D140E-7 (with EGR)
  • Hydraulically driven reversible cooling fan, after cooler
  • Hydraulically driven reversible cooling fan, radiator
  • Komatsu Diesel Particulate Filter (KDPF)
  • Komatsu Variable Displacement Turbocharger
  • Selective Catalytic Reduction (SCR)
  • Starting motor, 11.0 kW
  • Two mode power system (Power and Economy)

Cab

  • 2 x DC12V electrical outlets
  • Air conditioner
  • AM/FM radio with AUX terminal
  • Ashtray
  • Cigarette lighter
  • Color rear view monitor
  • Cup holder
  • Front wiper (with washer and intermittent)
  • Machine monitor (color LCD)
  • Operator seat, heated , reclining, air suspension type with 3-point retractable seat belt
  • Passenger seat with 2-point retractable seat belt
  • Power window (L.H)
  • Rear wiper (with washer)
  • Space for lunch box
  • Steering wheel, tilt and telescopic
  • Sun visor, front window
  • Tiltable ROPS Cab with FOPS, sound suppression type

Lighting system

  • Back-up lamp
  • Back work lamps, LH and RH side
  • Front, Cab mounted work lamps
  • Hazard lamps
  • Head lamps (High/Low)
  • LED stop, tail and turn signal lamps

Guard and covers

  • Engine underguard
  • Exhaust muffler thermal guard
  • Fire prevention covers
  • Propeller shaft guards, front and rear
  • Transmission underguard

Body

  • Electronic hoist control system

Tires

  • 29.5 R25

Other

  • Alarm, backup
  • Anti-slip material on fenders
  • Auto idle stop function
  • Back-up alarm
  • Battery disconnect switch
  • Centralized greasing
  • Coolant temperature alarm and lamp
  • Dump counter
  • Ecology guidance and ecology gauge
  • Electric circuit breakers, 24 V
  • Electric priming fuel pump
  • Engine shutdown secondary switch
  • Full-automatic F6-R2 transmission with lock-up torque converter & K-ATOMiC shift control
  • Guard rails
  • Horn, electric
  • Hydropneumatic suspension, front and rear
  • Komatsu Traction Control System (KTCS)
  • KOMTRAX Level 5
  • Mud guards
  • Parking brake
  • Payload Meter (PLM)
  • Power Cab tilt
  • Protective grille for rear window
  • Provision for tailgate installation
  • Heated rear view mirrors
  • Rear view monitoring system
  • Retarder/brake system
  • Secondary brake
  • Secondary Engine shutdown switch
  • Secondary steering, automatic, electric
  • Side markers
  • Steering joint locking assembly
  • Step (right side) and ladder (left side)
  • Tool box
  • Under view mirrors
Metric Imperial (US)
  • Body,31.4 yd3, SAE 2:1 heaped, unlined floor
  • Body, with exhaust heating ducting, 31.4 yd3, SAE 2:1 heaped, unlined floor
  • Spare rim, for 29.5 x 25 tire (1 rim only)
  • Tail gate, scissor type
  • Body, 24.0 m3, SAE 2:1 heaped, unlined floor
  • Body, with exhaust heating ducting, 24.0 m3, SAE 2:1 heaped, unlined floor
  • Spare rim, for 29.5 x 25 tire (1 rim only)
  • Tail gate, scissor type

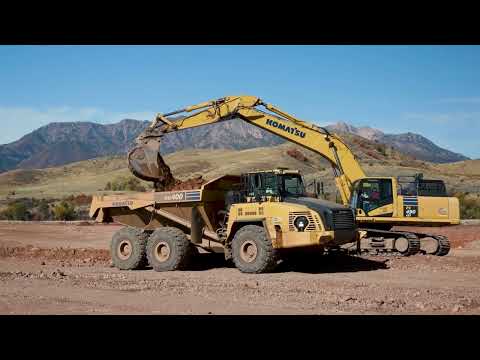

Move material across challenging terrain with Komatsu's productive HM400-5 articulated truck

The HM400-5 articulated truck is designed for ease of use, productivity and reliability. The Komatsu Traction Control System (KTCS) delivers exceptional performance in soft and slippery ground conditions.
