Industrial minerals equipment

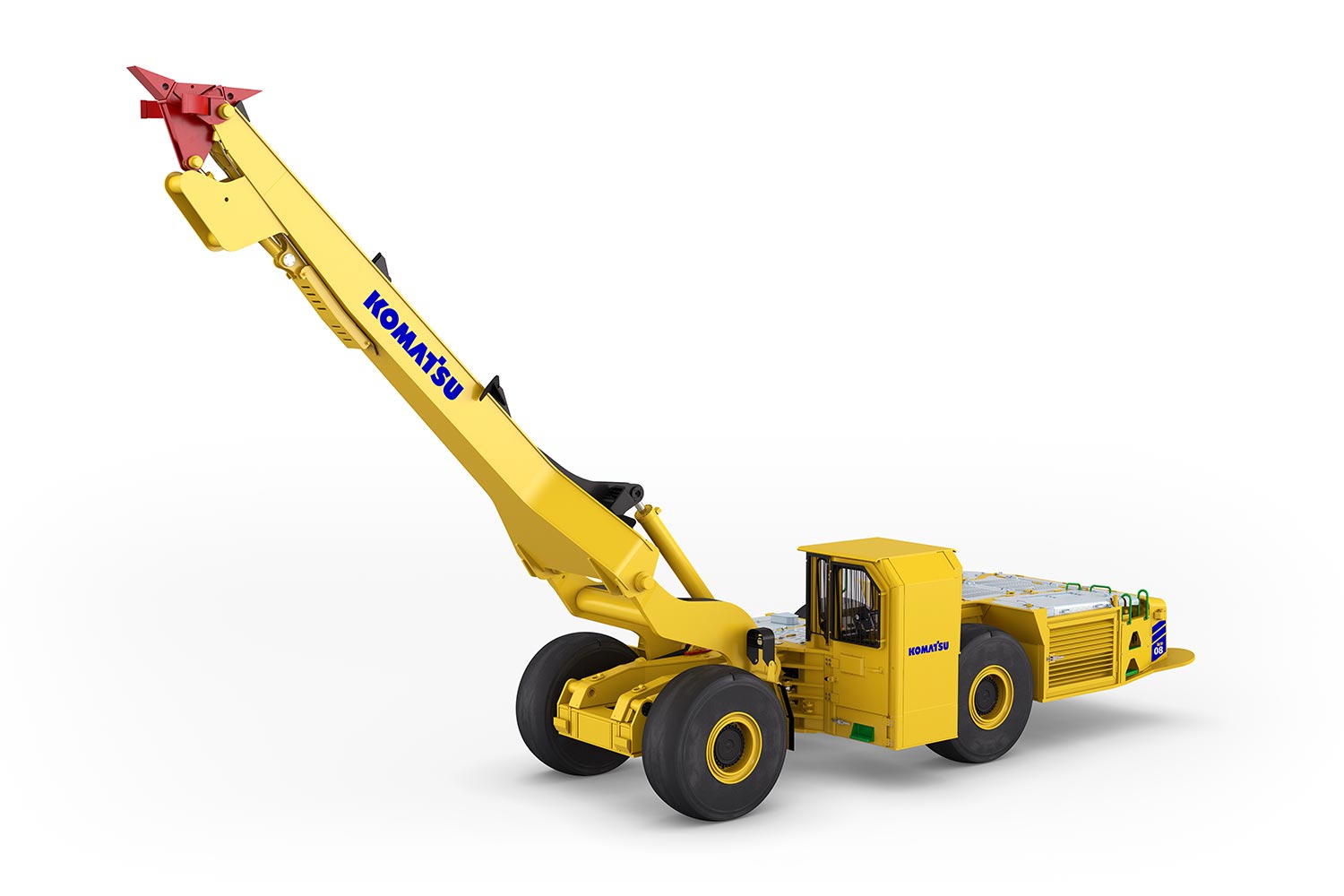

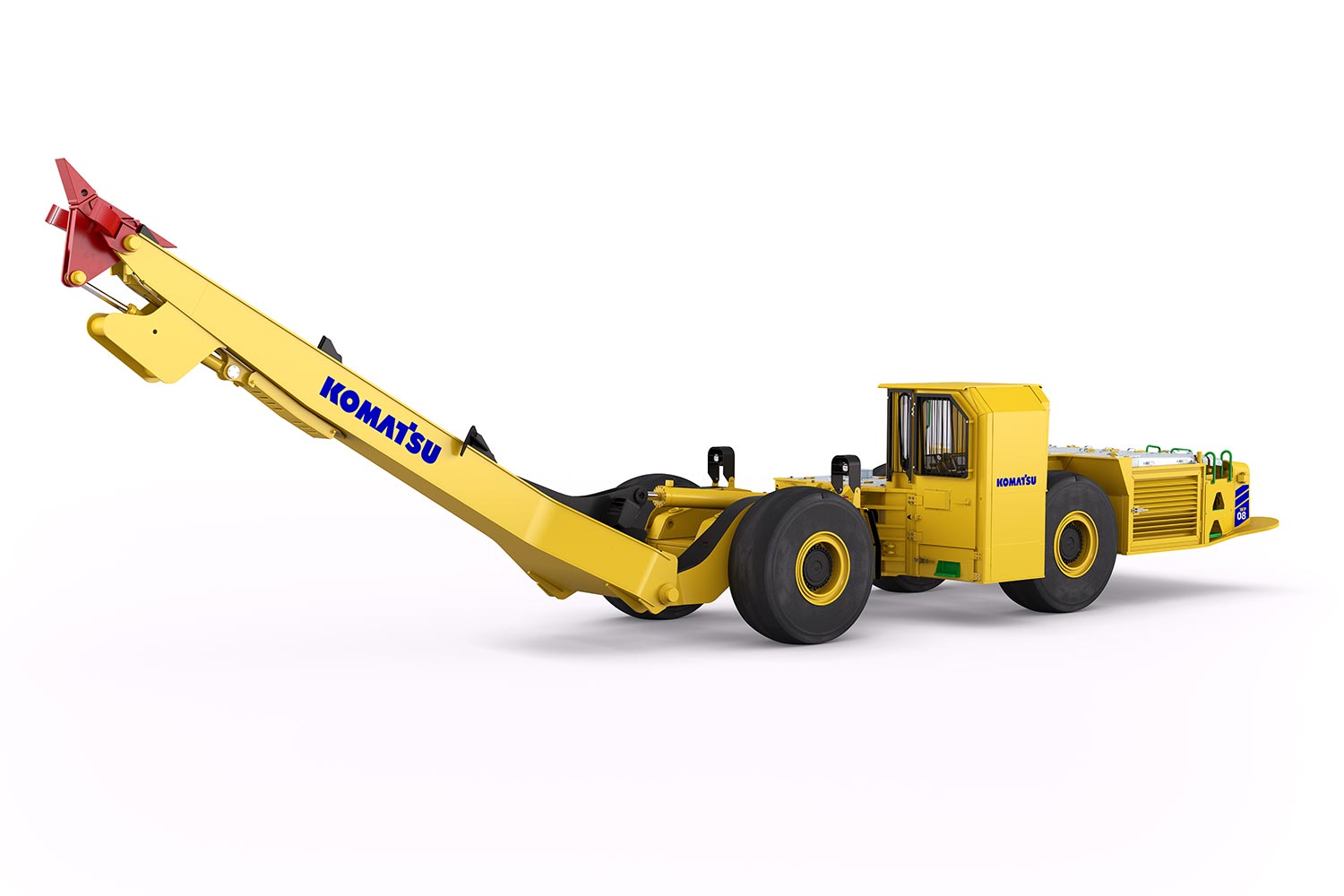

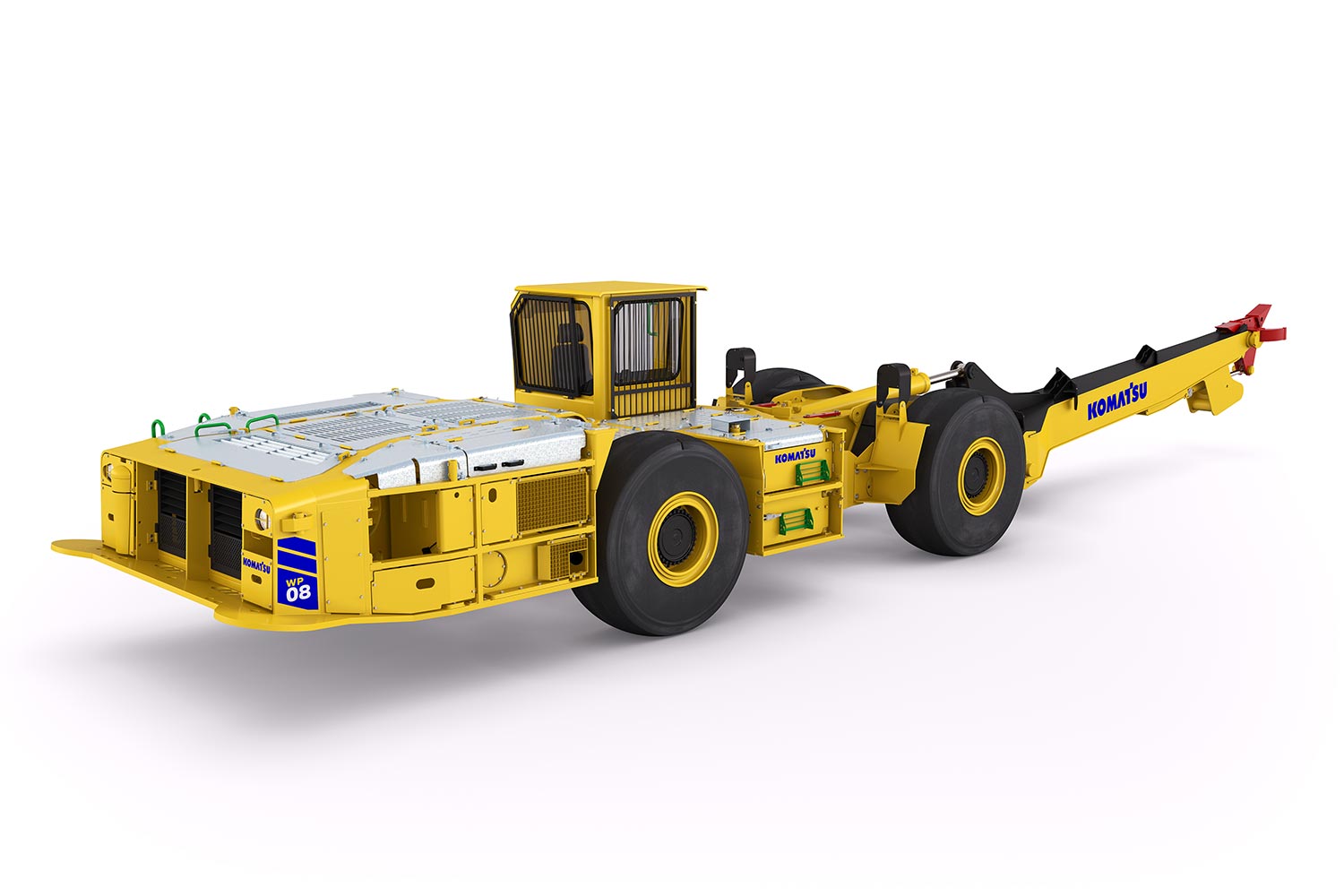

WP08
Scalers
- Scaling height (in) 256/296
- Scaling height (mm) 6 512/7 507
- Operating weight (kg) 33 660
- Operating weight (lbs) 74,208
- Engine rated power (standard)(HP) 241
- Engine rated power (standard)(kW) 180
A reliable and powerful scaler designed and built for industrial mineral applications with safety and performance in mind.
The WP08 is a powerful, reliable and ergonomic scaler with a reach of up to 7.8 meters — featuring a continuous peeling process that is designed for speed and efficiency compared to conventional methods. With its hydrostatic drivetrain, intuitive controls and reinforced safety cabin, the WP08 supports precise operation, promotes operator comfort and contributes to enhanced safety by rapidly clearing large areas of loose material for a more secure underground environment.
Resources
Features and benefits

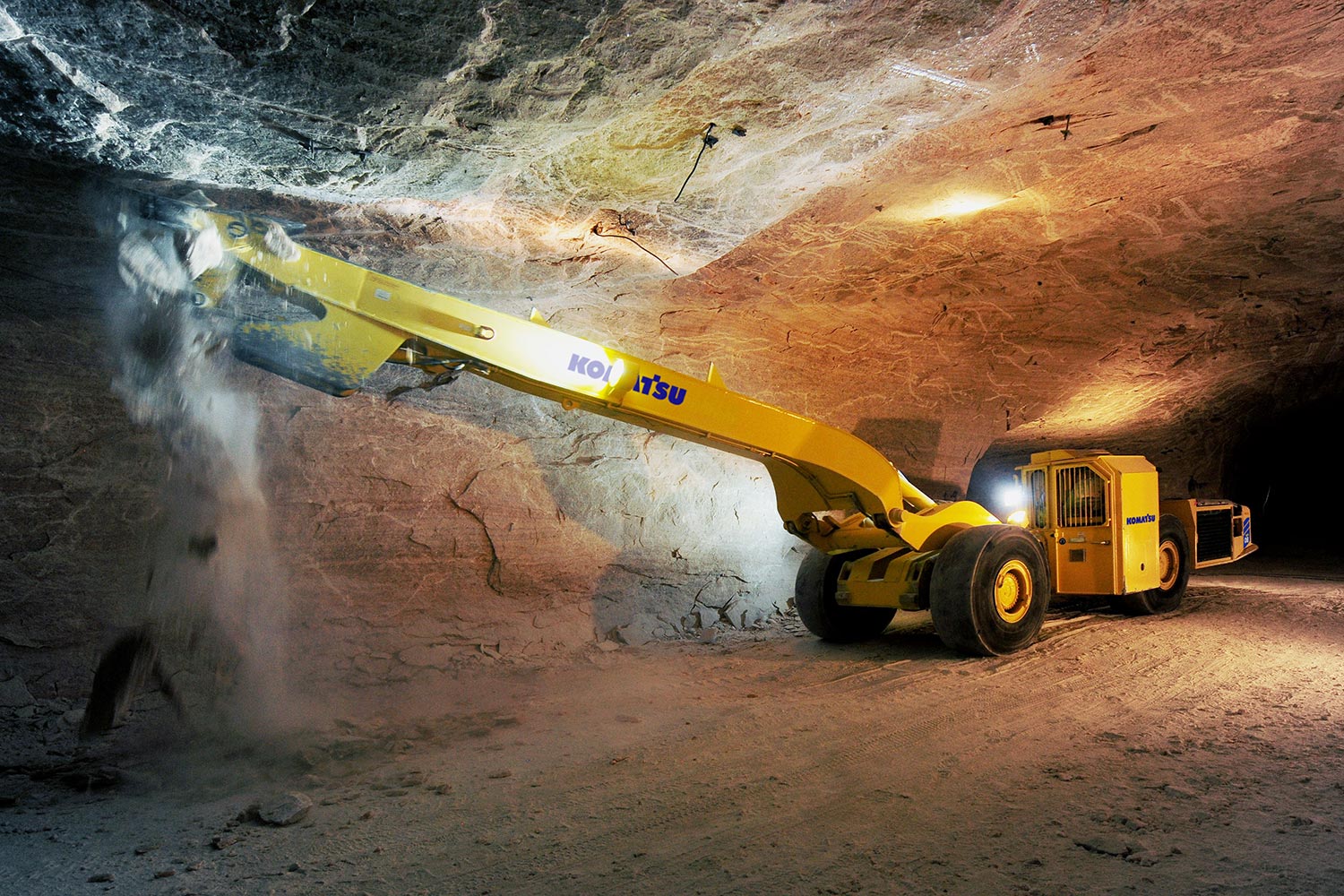

Continuous scaling efficiency
The continuous scaling process is designed for increased speed and efficiency compared to conventional pick hammer methods, supporting consistent and uniform surface results.

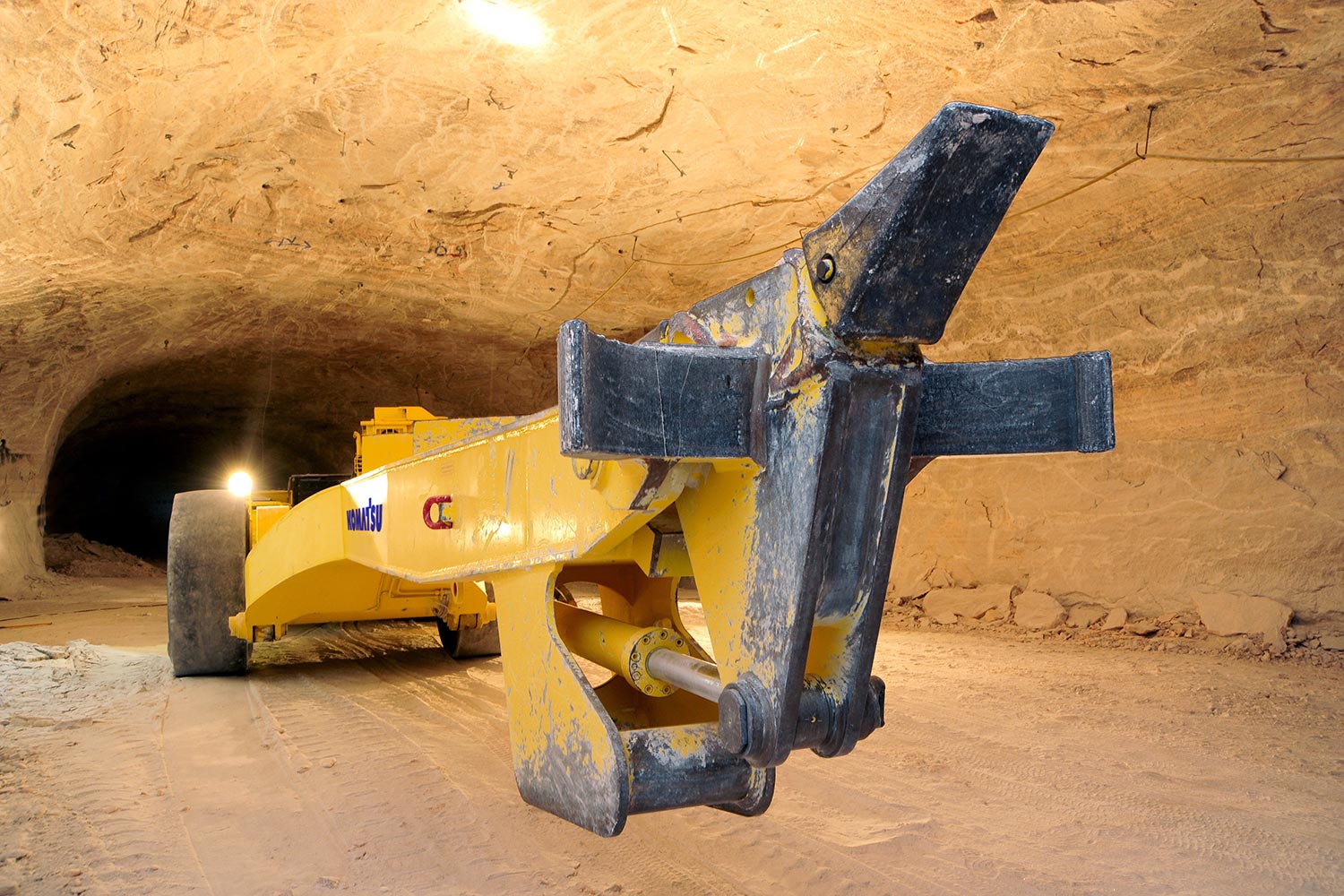

Hydrostatic drivetrain
Supports smooth, precise machine control to help promote operator comfort and minimize fatigue during extended operations.

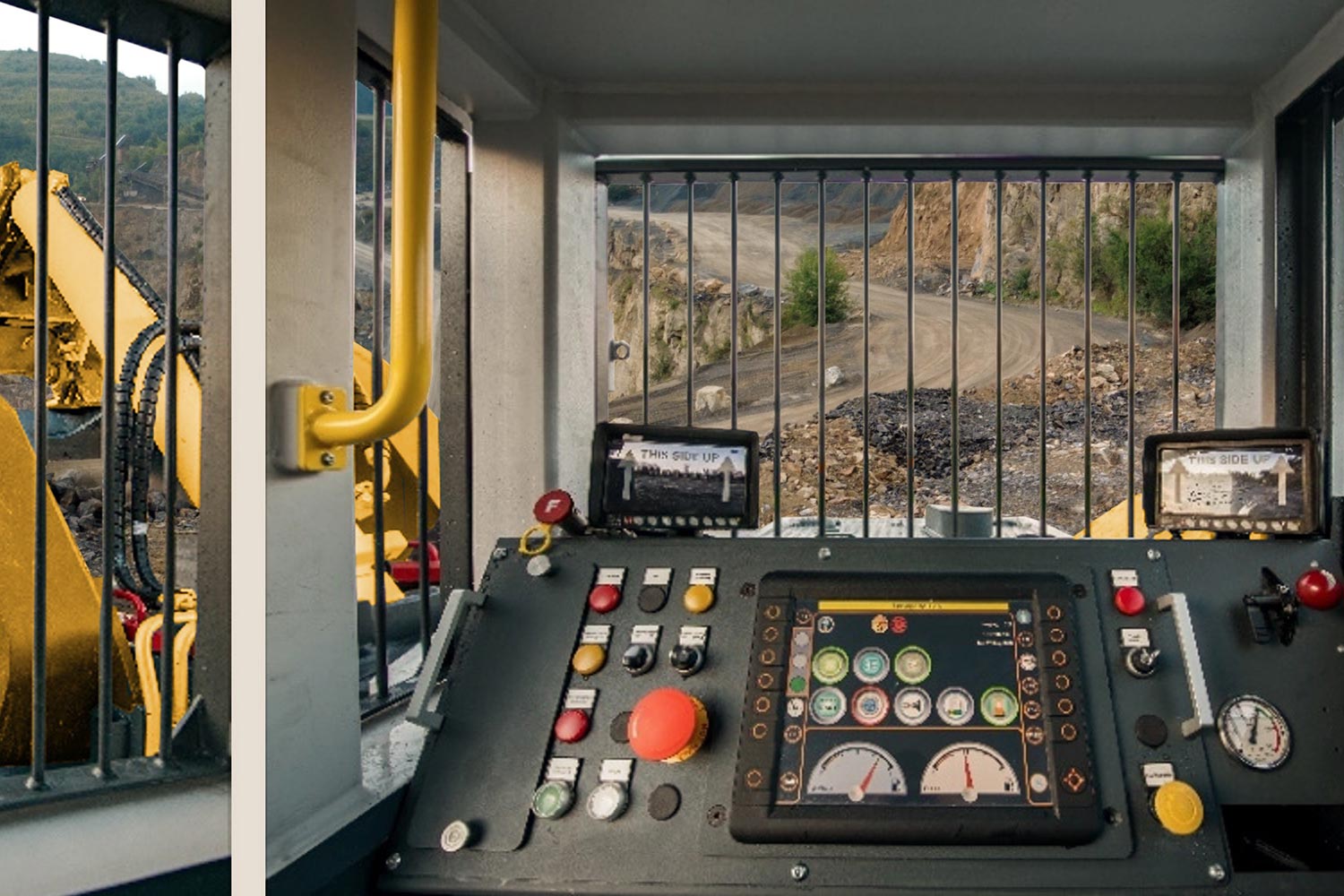

Intuitive control system
Features a user-friendly three-pedal layout, designed to enable accurate maneuvering and precise scaling performance.

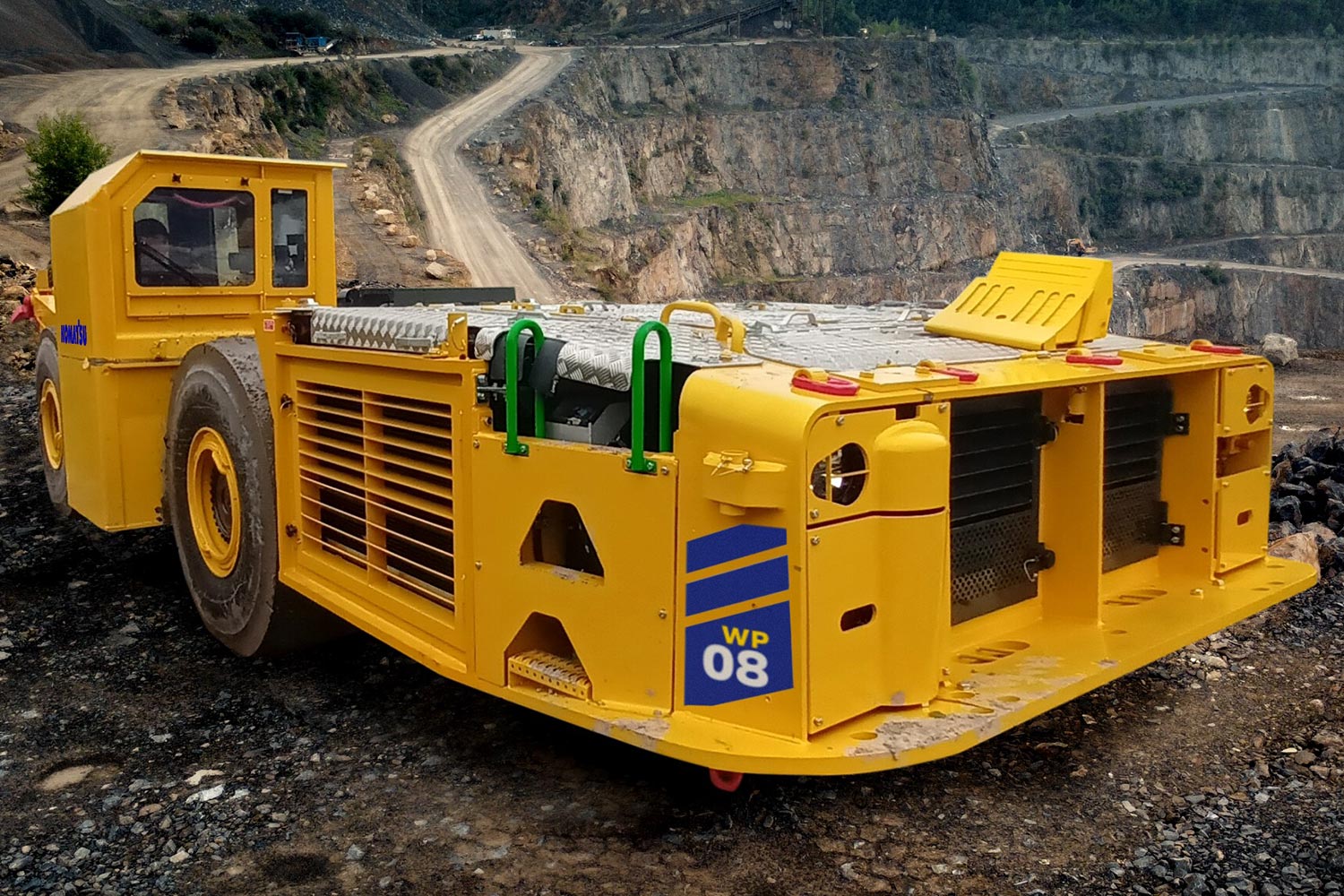

Reinforced safety cabin
Designed to withstand roof loads of up to 200 tonnes, contributing to robust protection in underground environments.

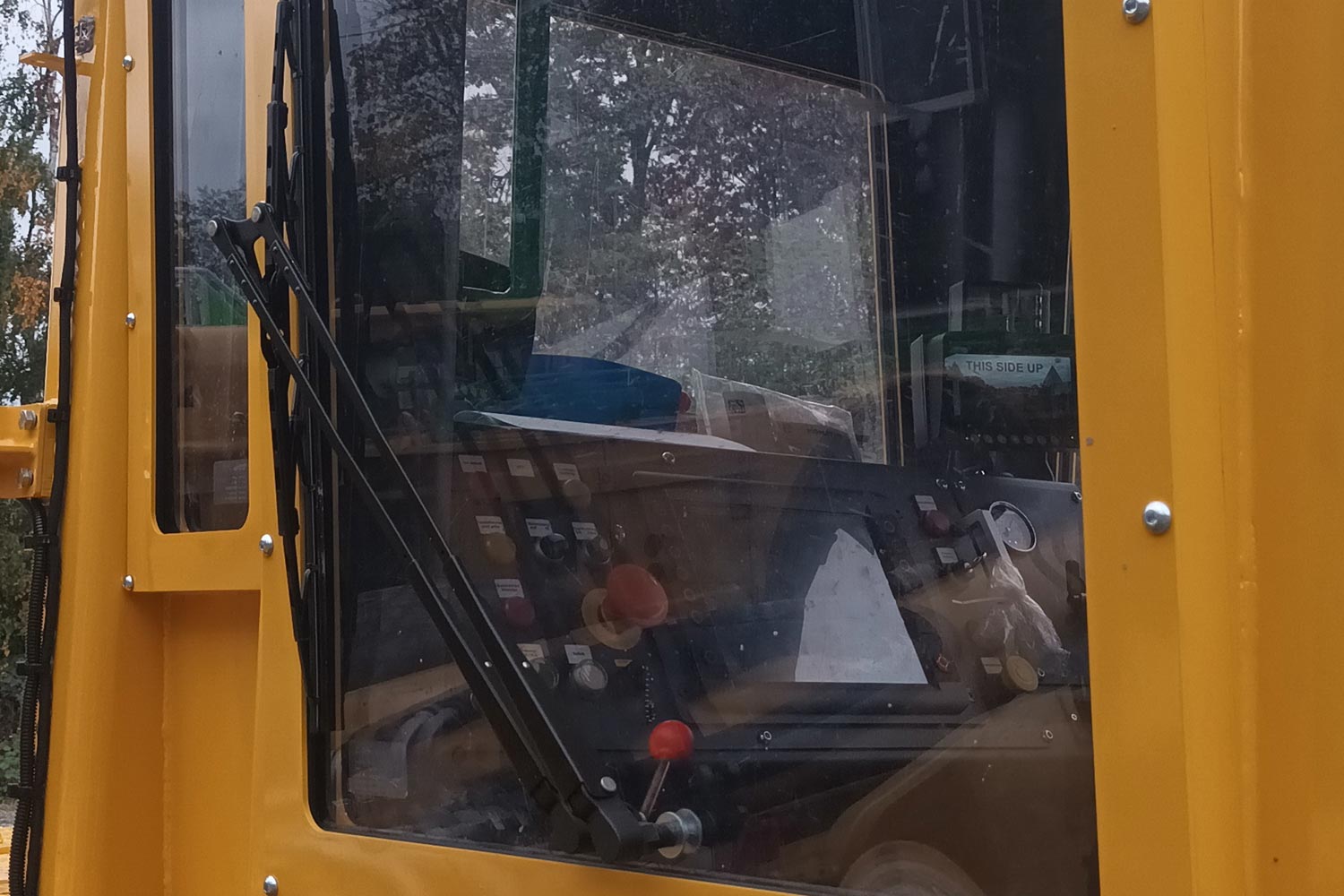

Impact-resistant windows
Equipped with 28 mm thick polycarbonate safety glazing, engineered to meet FOPS (falling object protective structure) certification standards.

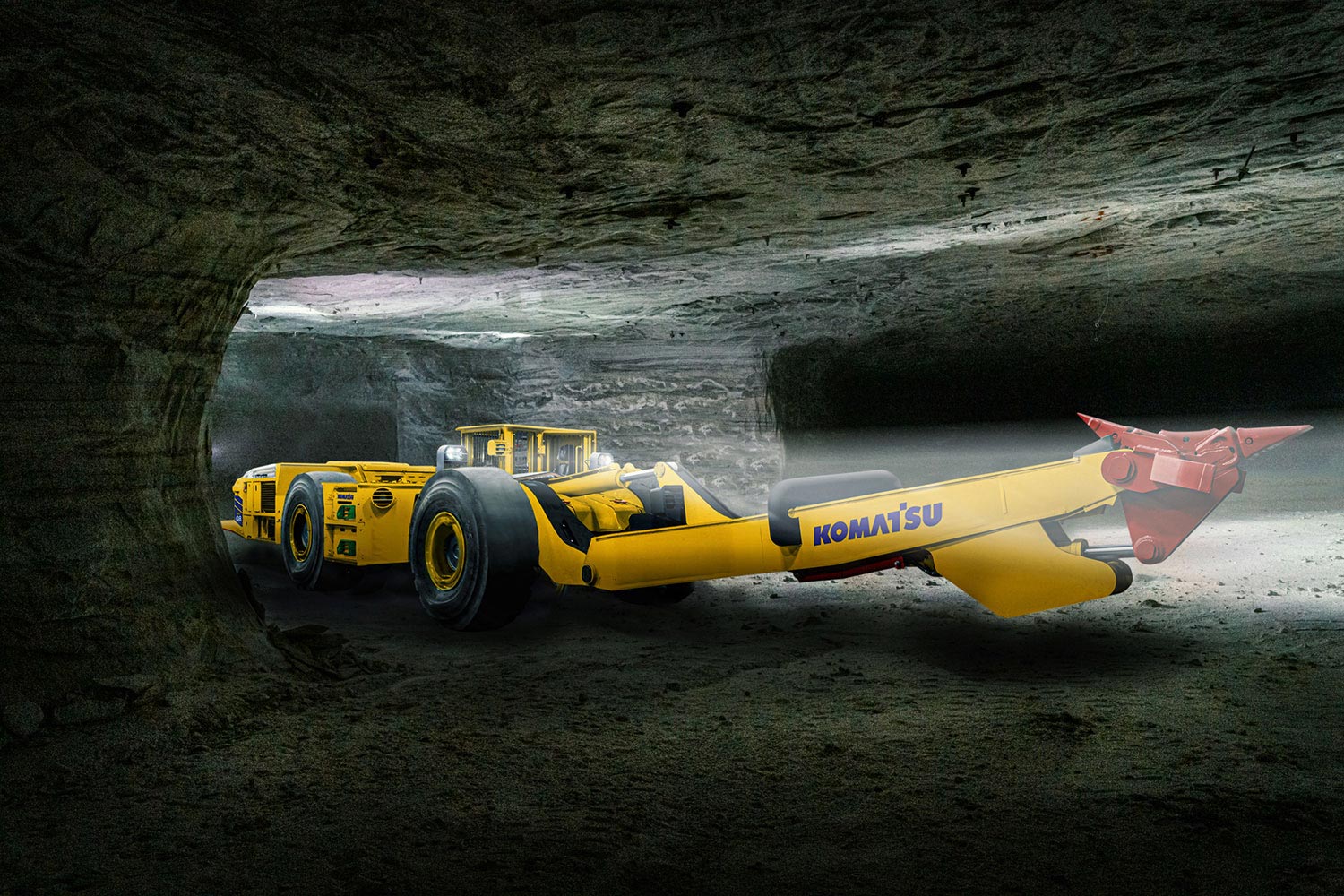

Enhanced visibility and illumination
Large viewing windows combined with strategically positioned high-performance LED work lights are designed to provide clear visibility of the scaling tool and roof area. This supports accurate assessment of roof conditions and aims to improve operational safety.
Specifications
- Full specs
- Alternator: 28VDC, 100A
- Batteries: 2x12V, 95Ah
- Starter: 4 kW, 24V heavy duty
- Driving and working lights: 2 forward, 2 rear, 1 side, 3 working - LED type
- Boom hoisting time (s): 9.0
- Boom lowering time (s): 8.0
- Scaling arm raising time (s): 8.0
- Scaling arm lowering time (s): 7.0
- Fuel tank capacity (L): 300
- Fuel tank capacity (US gal): 79.3
- Transmission: Hydrostatic drivetrain
- Rear axle oscillation angle: 10 degrees
- Tires: 23.50 - 25 L3 (As applications vary, local tire supplier should be consulted for appropriate tire.)
-
Engine
- Engine Model: Deutz TCD 6.1 L06
- Engine output (HP): 241 @ 2,300 rpm
- Engine output (kW): 180 @ 2 300 rpm
- Cooling Type: Liquid-cooled
- Certification: EPA Tier 4/EU Stage V
- Exhaust system: DPF/SCR
-
Axles
- Front and rear: Kessler D91
- Differential, front: Open
- Differential, rear: Open
- Brakes: Multi-disc spring brake SAHR, hydraulic actuated, externally cooled
- Front and rear frames: Welded steel construction
- Material: S 355J2 / S690
- Operating weight (kg): 33 660
- Operating weight (lbs): 74,208
-
Axle weight without load
- Front axle (kg): 16 660
- Front axle (lbs): 36,729
- Rear axle (kg): 17 000
- Rear axle (lbs): 37,479
- Machine boom hoist cylinder: Two single stage, double acting cylinders
- Steer cylinder: Two single stage, double acting cylinders
- Hydraulic tank volume (US gal): 143
- Hydraulic tank volume (L): 540
- Details of hydraulics system: Hydrostatic drive with variable displacement EP piston pumps and motors. Working hydraulics with variable displacement piston pump with load sensing closed center circuit design for optimal efficiency, steering has priority over working hydraulics.
- Boom controls: Electric joystick controlled
- Steering control: Electric joystick controlled
- Scaling tool cylinder: One single stage, double acting cylinder
- Scaling boom hoist cylinder: One single stage, double acting cylinder
- Controls: Symbols, critical alarms and warning lights on display. Audible and visible alarms.
- Instrument panel: Digital 12'' touch display, illuminated buttons, camera display
- Brake system: Service brakes are spring-applied, hydraulically released, wet multi-disc brakes on all four wheel ends. The SAHR brakes also function as emergency and parking brakes.
- Scaling height (roof)(mm): 2 000-6 512 (6 m scaling) or 2 000-7 507 (8 m scaling)
- Scaling height (roof)(in): 79-256 (6 m scaling) or 79-296 (8 m scaling)
- Scaling height (wall)(mm): 500-6 250 (6 m scaling) or 500-7 250 (8 m scaling)
- Scaling height (wall)(in): 20-246 (6 m scaling) or 20-285 (8 m scaling)
- Max. scaling force (kN): 100
- Typical compressive strength up to (Mpa): 50
- Turning time: right (s): 2.8
- Turning time: left (s): 2.8
