Forklifts

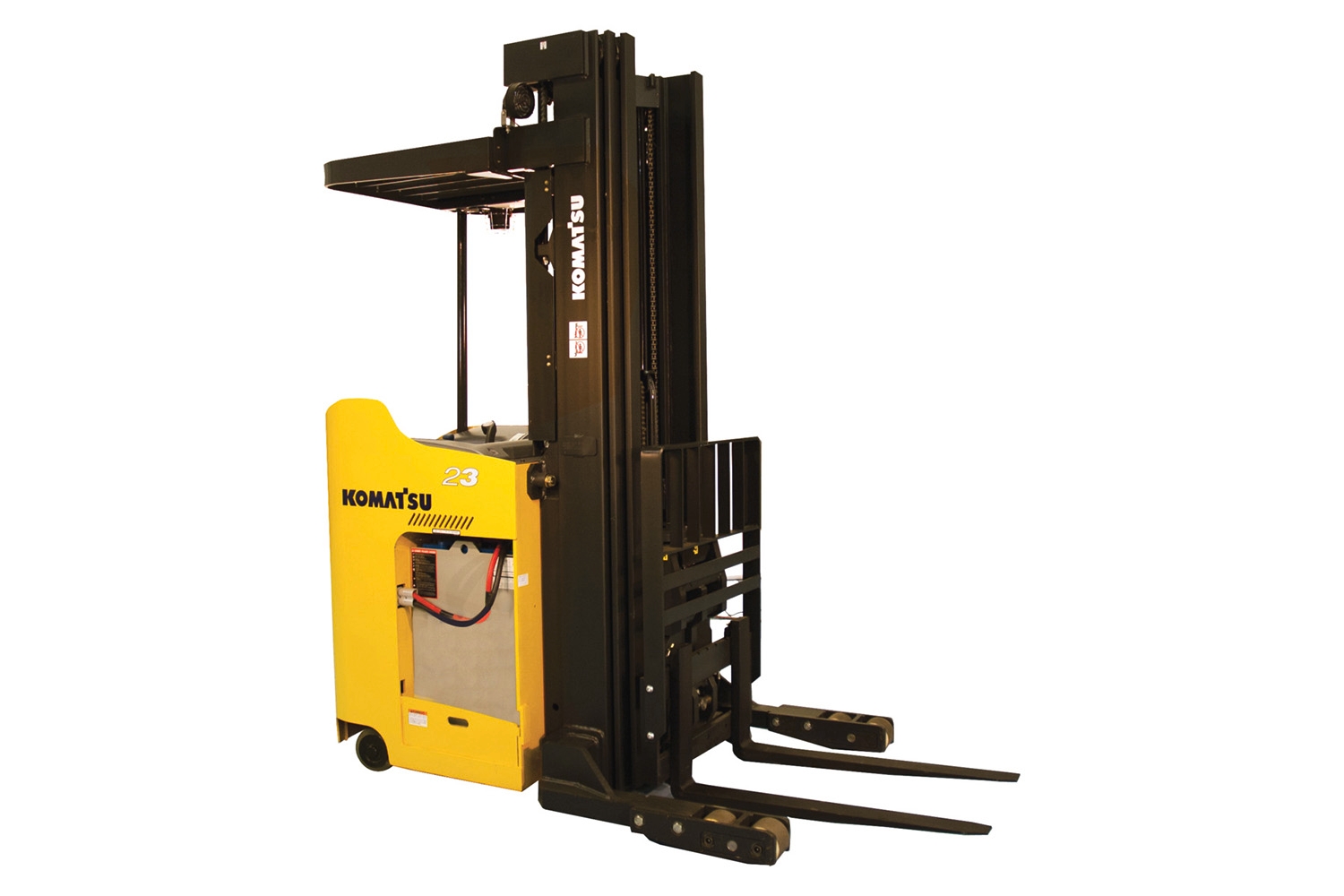

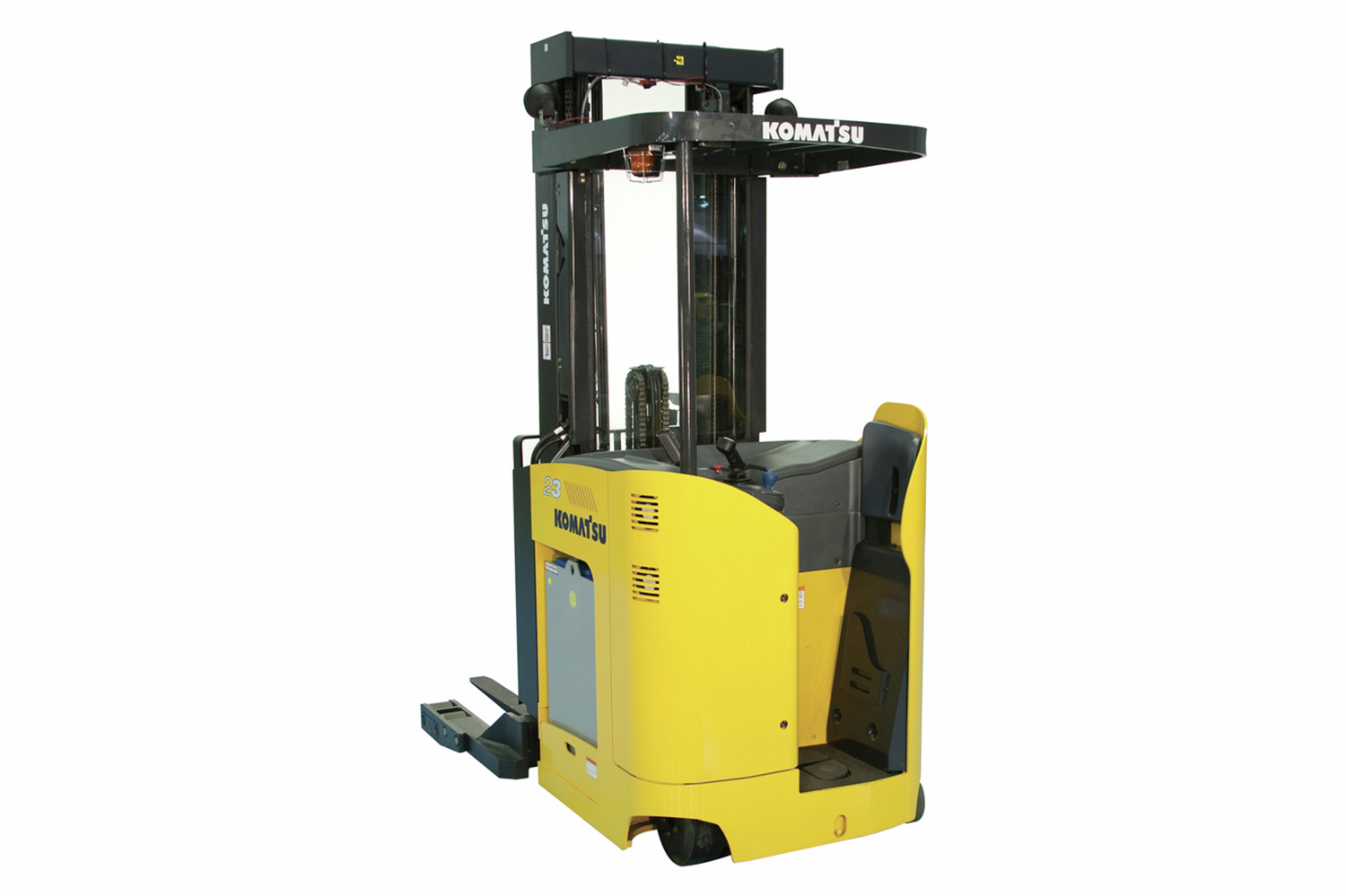

FR23K-3

Narrow aisle

  • Tire type Cushion/solid pneumatic
  • Power type Electric (36 V battery)
  • Capacity (kg) 2 500 - 2 250
  • Capacity (lbs) 3,000 - 4,500

Purchase options

Request a quote Find a dealer

Operating costs as small as its footprint

Need to store and move a lot of stock in a small space? Stand-up electric reach-type forklifts that excel at narrow aisle material handling, with a host of features designed to help extend run times, improve operator efficiency and minimize downtime, shift after shift.

  • Productivity-enhancing diagnostics and features
  • Precise handling to protect stock
  • Engineered with operator comfort in mind

Features and benefits

High performance with advanced AC

High performance with advanced AC

The FR50’s advanced and intelligent AC drive and hydraulic motor help control critical functions to extend run times, eliminate motor brush checks or replacements, and deliver higher efficiency and longer life versus DC motors.

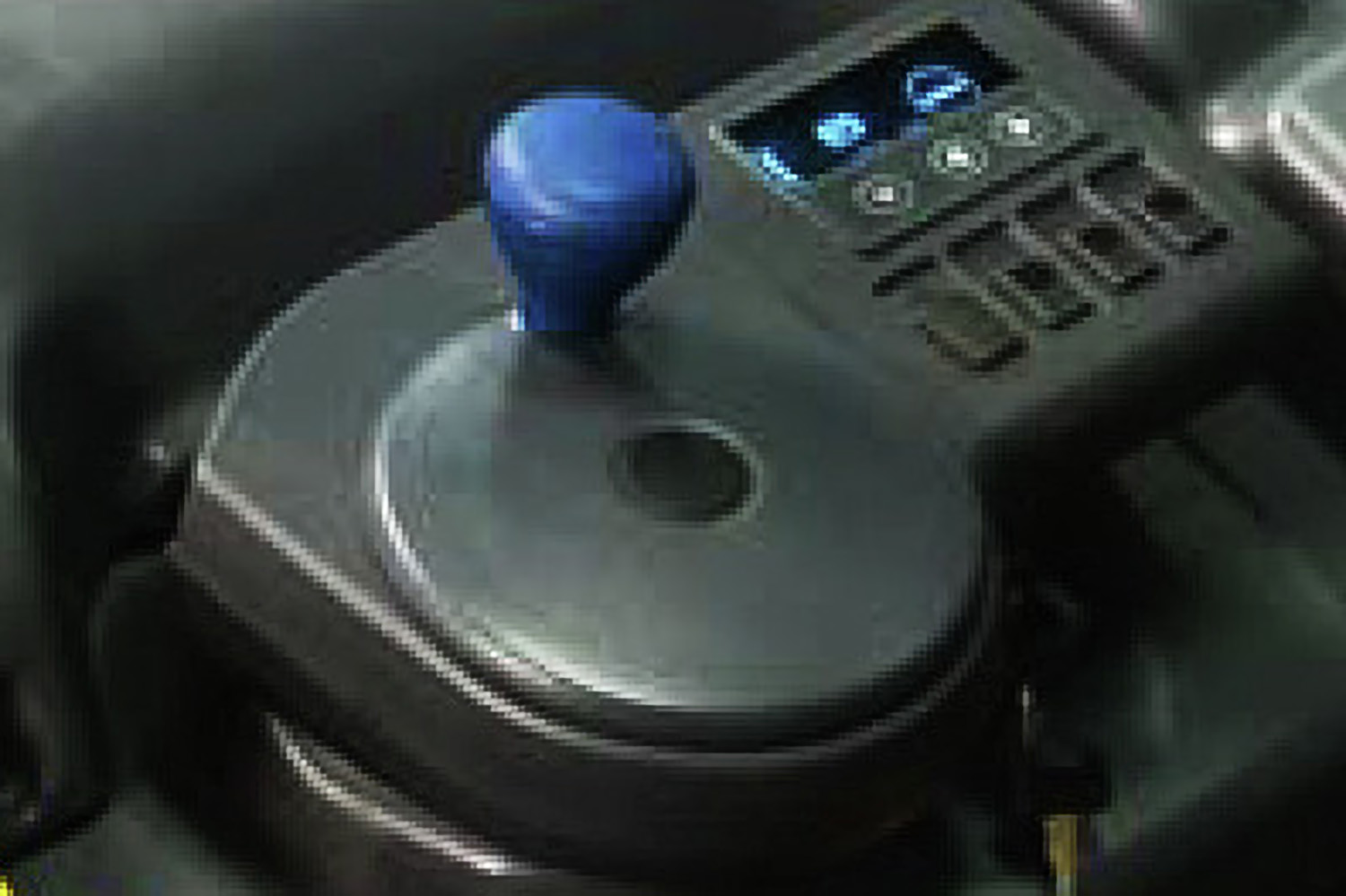

Dial in your application needs

Dial in your application needs

Performance settings can be adjusted using the onboard dash keypad to dial in optimal performance parameters for your application needs. In addition to diagnostics, the keypad displays state-of-battery charge, time of day and travel speed.

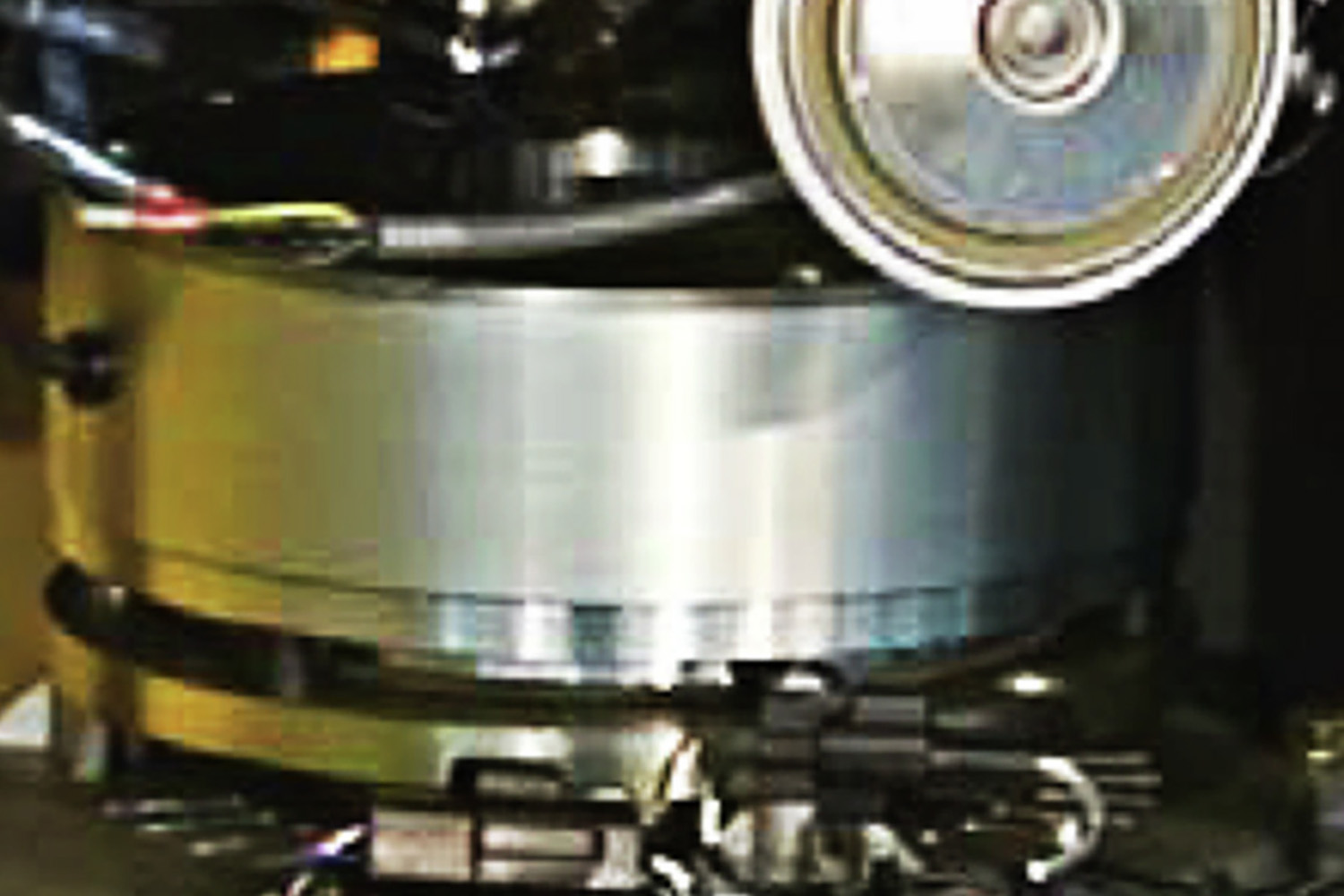

Regenerative, maintenance-free braking

Regenerative, maintenance-free braking

In addition to reversing the drive system to brake, the electromagnetic disc braking system provides smooth and consistent stops when releasing the brake pedal. Plus, it’s a regenerative system that re-captures current.

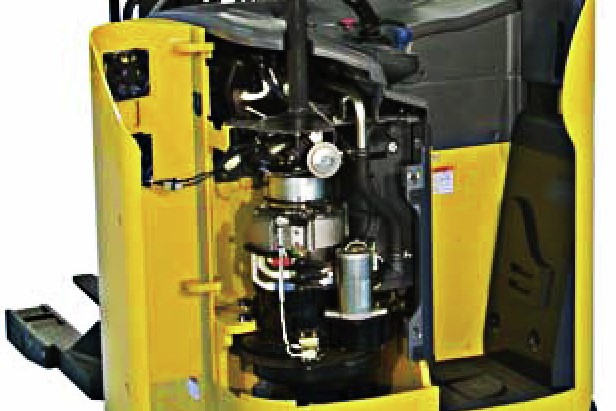

Fast and easy to service

Fast and easy to service

Built-in analyzer provides data on fault detection and other diagnostics. The trucks’ design enables easy access to the control system and drive motor, drive unit, electrical disc brake, and steer-by-wire system, and facilitates fast wheel/tire changes.

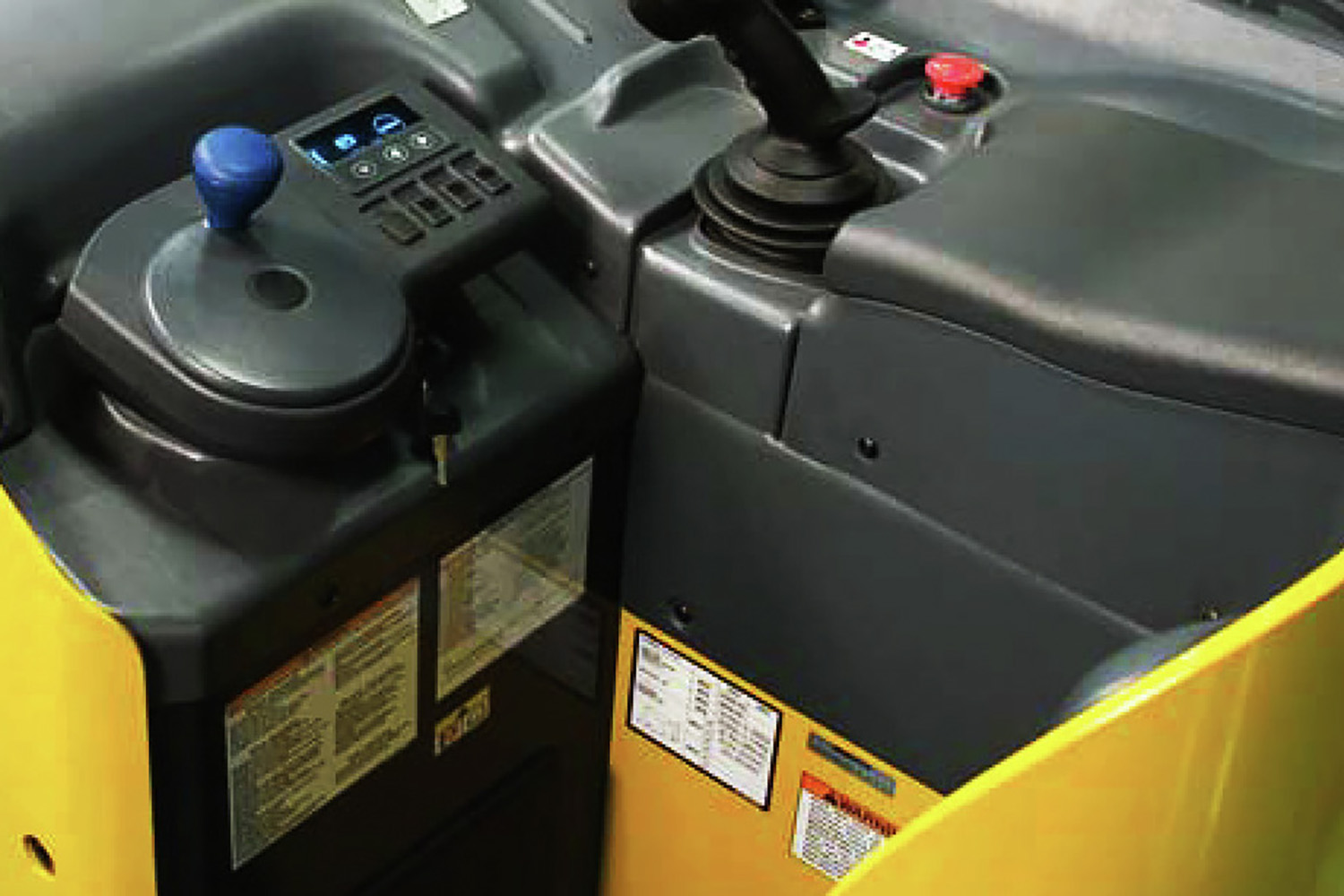

Precise control of heavy loads

Precise control of heavy loads

Oil flow is precisely controlled through a combination of the truck controller and the proportional control valve. That allows for smooth, full-feathering of hydraulic movements and minimal shocks, ideal if you’re handling sensitive or fragile materials.

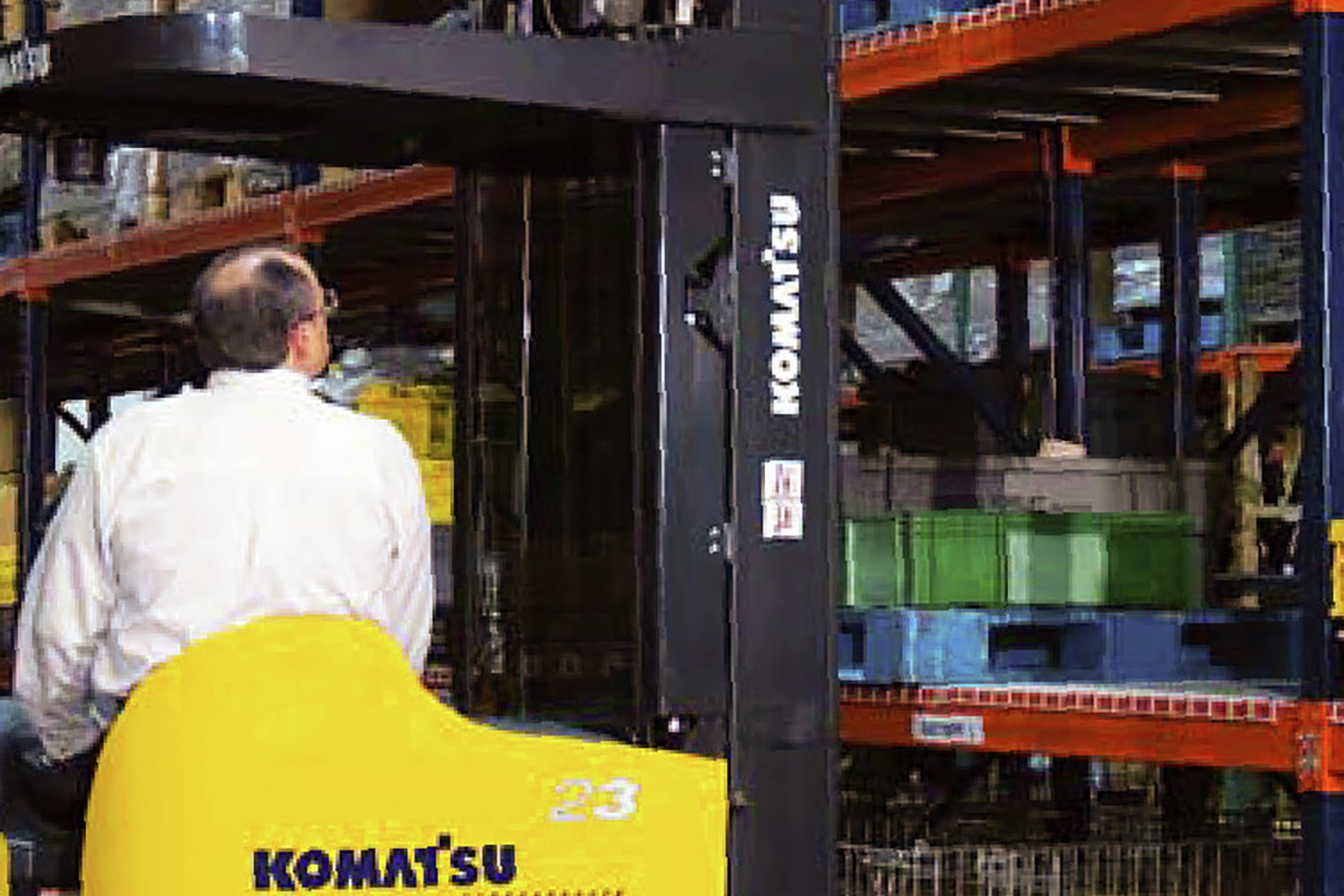

Designed to battle operator fatigue

Designed to battle operator fatigue

Help your operators function at their best, even over long shifts. They’ll appreciate the low step height, cushioned floorboard and pedals, padded cockpit, excellent visibility and intuitive steer-by-wire multi-function control for effortless maneuvering.


Specifications

Metric Imperial (US)
Expand all

  • Power steering motor (DC) (kW): 0.4
  • Power steering motor (DC) (HP): 0.5
  • Pump motor (AC) (HP): 18.8
  • Pump motor (AC) (kW): 14
  • Drive motor (AC) (HP):
  • Drive motor (AC) (kW): 6

  • Power source type: Electric
  • Operation type: Stand-Up
  • Capacity @ 600 mm load center (kg): 2 250
  • Capacity @ 24 in load center (lbs): 4,500

  • Height overhead guard (mm): 2 375
  • Step height (in): 9.3
  • Step height (mm): 235
  • Ground clearance, center of wheelbase (in):
  • Ground clearance, center of wheelbase (mm): 50
  • Wheelbase (in): 60.1
  • Length to fork face (in): 55.6
  • Length to fork face (mm): 1 415
  • Overall width, truck frame (mm): 1 090
  • Overall width, truck frame (in): 43
  • Forks, thickness x width x length (in): 1.75 x 4 x 42
  • Forks, thickness x width x length (mm): 40 x 100 x 1 070
  • Carriage width/ITa class (mm): 800 mm / II
  • Carriage width/ITa class (in): 31.5 in / II
  • Ground clearance, under mast (mm): 2
  • Ground clearance, under mast (in): 50
  • Wheelbase (mm): 1 525
  • Tilting angle, forward/backward: 3 / 4
  • Free lift height (in): 47.2
  • Free lift height (mm): 1 200
  • Height overhead guard (in): 93.5
  • Mast height - lowered (mm): 2 415
  • Mast height - lowered (in): 95
  • Mast height - extended (in): 260.3
  • Maximum reach stroke (in): 22.4
  • Maximum reach stroke (mm): 570
  • Mast height - extended (mm): 6 615
  • Turning radius, outside (mm): 1 790
  • Turning radius, outside (in): 70.4
  • Overall width, outrigger I.D. (min-max) (mm): 840 - 1 270
  • Overall width, outrigger I.D. (min-max) (in): 33-50
  • Maximum fork height (in): 210
  • Maximum fork height (mm): 5 335
  • Overall width, outrigger O.D. (min-max) (in): 44-60
  • Overall width, outrigger O.D. (min-max) (mm): 1 120 - 1 550
  • Right angle stacking aisle (in): 102
  • Right angle stacking aisle (mm): 2 590
  • Length, with standard forks (mm): 2 485
  • Length, with standard forks (in): 97.6

  • Travel speed loaded, forks leading/trailing (mph): 6.4 / 7.2
  • Travel speed loaded, forks leading/trailing (kph): 10.3 / 11.6
  • Travel speed unloaded, forks leading/trailing (mph): 6.4 / 7.2
  • Travel speed unloaded, forks leading/trailing (kph): 10.3 / 11.6
  • Lifting speed, loaded/unloaded (mm/s): 356 / 610
  • Lifting speed, loaded/unloaded (fpm): 70 / 120
  • Lowering speed, loaded/unloaded (fpm): 95 / 87
  • Lowering speed, loaded/unloaded (mm/s): 483 / 442

  • Service weight (lbs): 6,420
  • Service weight (kg): 2 250

  • Battery capacity, maximum: 930 Ah/6hr
  • Battery compartment, height (mm): 810
  • Battery compartment, height (in): 32
  • Battery compartment, length (mm): 415
  • Battery compartment, length (in): 16.4
  • Battery compartment, width (mm): 980
  • Battery compartment, width (in): 38.7
  • Battery voltage: 36 V
  • Battery weight, maximum (kg): 1 045
  • Battery weight, maximum (lbs): 2,305
  • Battery weight, minumum (kg): 935
  • Battery weight, minumum (lbs): 2,060

  • Load wheel size - tandem polyurethrane x 2 (in): 5 x 4
  • Load wheel size - tandem polyurethrane x 2 (mm): 127 x 100
  • Caster wheel size - dual polyurethrane (mm): 178 x 73
  • Caster wheel size - dual polyurethrane (in): 7 x 2.87
  • Drive tire size - cushion rubber (in): 13 x 5.5
  • Drive tire size - cushion rubber (mm): 330 x 140

  • Tire type details: Cushion/solid pneumatic
Metric Imperial (US)
  • AC Motor Controller with Built in Self-Diagnostics
  • Multi-function LED Display
  • Battery Discharge Indicator with Lift Interrupt
  • 4 Individual Hour Meter Readings
  • Multi-function Control Handle
  • Emergency Power Disconnect Switch
  • Motor and Controller Temperature Protection
  • AC Drive Motor
  • Battery Compartment Rollers and Side Gates
  • 48" High Load Backrest
  • 33" - 50" I.D. Base Legs
  • 5" x 4" Tandem Load Wheels
  • Operator Presence Pedal with Mast Lockout and Return-to-Neutral
  • Brake Pedal (Depress to Travel)
  • On-demand Electronic Power Steering
  • Small Radius Tiller Control
  • Steer Tire Position Indicator
  • 4-mode Regen Braking
  • Automatic Parking Brake with Anti-rollback
  • AC Hydraulic Pump Motor
  • Proportional Lift and Lower
  • 90 Degree Operator Side Stance
  • Anti-fatigue Arm, Knees and Back Padding
  • Adjustable Operator Backrest Cushion
  • Safety Glass Mast Guard
  • AC Motor Controller with Built in Self-Diagnostics
  • Multi-function LED Display
  • Battery Discharge Indicator with Lift Interrupt
  • 4 Individual Hour Meter Readings
  • Multi-function Control Handle
  • Emergency Power Disconnect Switch
  • Motor and Controller Temperature Protection
  • AC Drive Motor
  • Battery Compartment Rollers and Side Gates
  • 48" High Load Backrest
  • 33" - 50" I.D. Base Legs
  • 5" x 4" Tandem Load Wheels
  • Operator Presence Pedal with Mast Lockout and Return-to-Neutral
  • Brake Pedal (Depress to Travel)
  • On-demand Electronic Power Steering
  • Small Radius Tiller Control
  • Steer Tire Position Indicator
  • 4-mode Regen Braking
  • Automatic Parking Brake with Anti-rollback
  • AC Hydraulic Pump Motor
  • Proportional Lift and Lower
  • 90 Degree Operator Side Stance
  • Anti-fatigue Arm, Knees and Back Padding
  • Adjustable Operator Backrest Cushion
  • Safety Glass Mast Guard
Metric Imperial (US)
  • Automatic Fork Height Selector
  • Digital Fork Height Indicator
  • UL 'EE' Rating
  • 10.5" x 4" Single Load Wheels
  • 5" x 3" Tandem Low Profile Load Wheels
  • Tapered Outrigger Tips (Load Wheel Guard)
  • Operator Fan and Light
  • Front or Rear Work Lights
  • Strobe Lights
  • Wire Mesh Mast Guard
  • 2" and 4" sideshifters
  • Cold Storage Package
  • Automatic Fork Height Selector
  • Digital Fork Height Indicator
  • UL 'EE' Rating
  • 26.7cm x 10.2cm Single Load Wheels
  • 12.7cm x 7.6cm Tandem Low Profile Load Wheels
  • Tapered Outrigger Tips (Load Wheel Guard)
  • Operator Fan and Light
  • Front or Rear Work Lights
  • Strobe Lights
  • Wire Mesh Mast Guard
  • 5.1cm and 10.2cm sideshifters
  • Cold Storage Package
