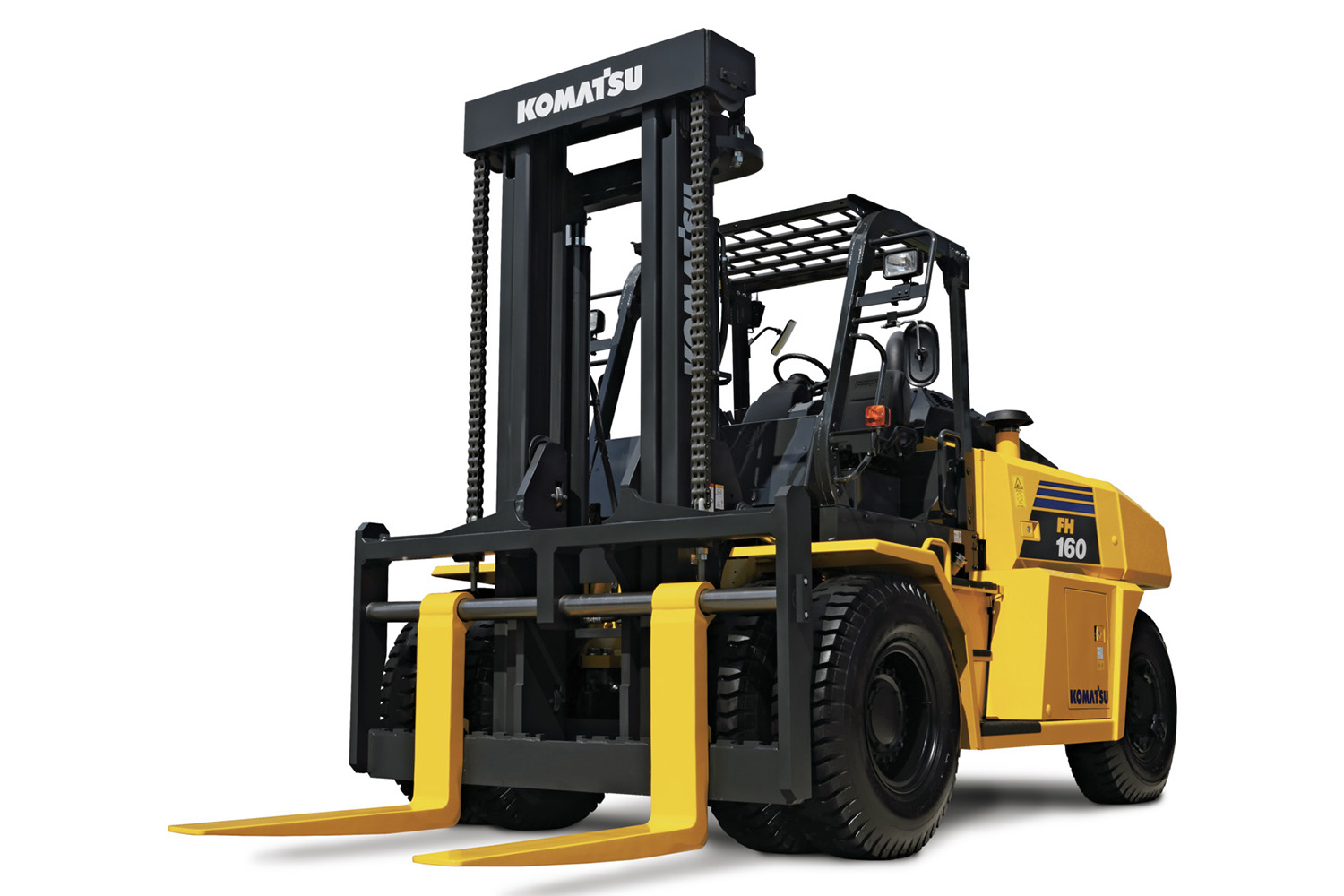

Forklifts
FH160-1
IC pneumatic
- Tire type Pneumatic
- Power type Diesel
- Capacity (kg) 16 000
- Capacity (lbs) 35,000
Construction strong
Need a way to move 20,000 lb.+ loads quickly, safely and efficiently? The FH series integrates components and technology proven over many years in Komatsu’s wheel loaders, bulldozers and excavators, so you know they’re built tough. The hydrostatic (HST) drive system allows FH100 series forklifts to shuttle back and forth in high-cycle operations with virtually no wear on drive and brake components, meaning more uptime and reduced maintenance costs. That translates to better performance than traditional torque converter systems, even in the most demanding applications.
- Reduced fuel consumption while reducing particulate exhaust by 90%
- Lower total cost of ownership
- Less maintenance and higher productivity with HST
Features and benefits

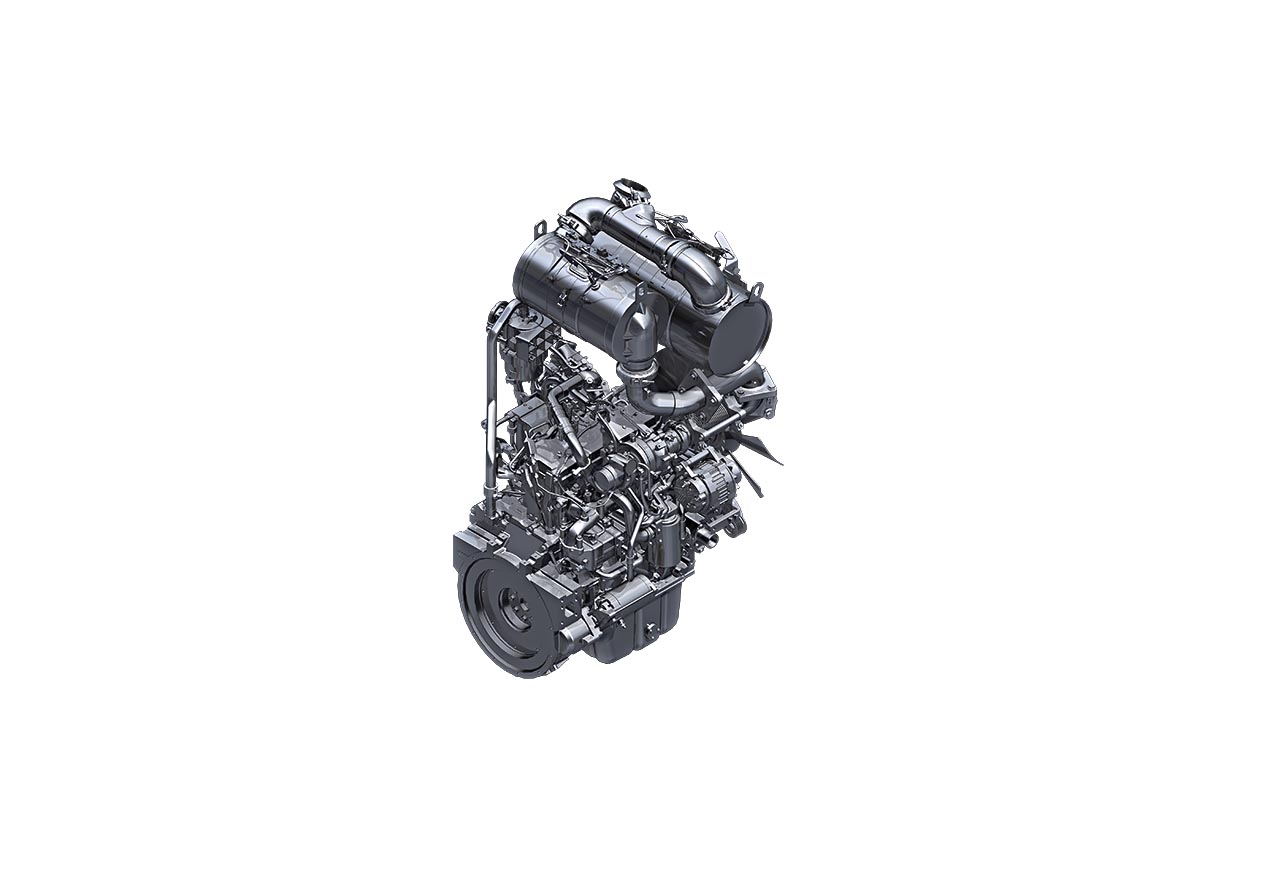

Highly efficient proprietary diesel technology
The FH family diesel engines are designed to reduce fuel use and significantly reduce exhaust particulate matter. They incorporate Komatsu proprietary technologies like Komatsu Diesel Oxidation Catalyst, Variable Flow Turbocharger and much more.
Makes engine revving unnecessary
Featuring a variable displacement pump with closed-center load sensing system, the FH family allows for controlled fluid flow in the hydraulic system while lifting, resulting in no engine revving and reduced fuel consumption.
Designed to lower operating costs
The highly efficient, electronically controlled hydrostatic transmission (HST) hydraulic pump and motor system increases operator control, minimizes power transmission loss, boosts fuel savings and reduces environmental impact.
Best-in-class warranty
Expect years of trouble-free service. But just in case, Komatsu stands behind the product with the longest and strongest warranty in the industry, up to 24 months and unlimited hours, 60mo/8k hours drive train. That’s coverage you can count on.
Technology that helps you manage your fleet
Komatsu’s Komtrax proprietary wireless tracking and reporting system allows the forklift to communicate daily usage, fuel consumption, operator productivity and more. Easy to use and web-based, it gives you secure usage data anywhere, anytime.
Engineered to exacting standards
Komatsu Engineering Standards (KES) are design and manufacturing standards that exceed those required in the industry. Through KES, we strive to deliver unmatched quality and durability across all our mining, construction and forklift machines.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Operation type: Sit Down
- Wheelbase (mm): 3 050
- Wheelbase (in): 120.1
- Load distance, front axle to fork face (in): 32.1
- Load distance, front axle to fork face (mm): 815
- Rated capacity (lbs): 35,000
- Rated capacity (kg): 16 000
- Rated load center (in): 24
- Rated load center (mm): 600
- Hydraulic oil capacity (gal): 59.4
- Relief Pressure - attachment (MPa): 21.6
- Relief Pressure - attachment (psi): 3,133
- Hydraulic oil capacity (L): 225
- Transmission: Hydrostatic
- Travel speed, loaded (mph): 13.7
- Travel speed, loaded (kph): 22
- Travel speed, unloaded (kph): 23
- Travel speed, unloaded (mph): 14.3
- Lifting speed, loaded (fpm): 60
- Lifting speed, loaded (mm/sec): 305
- Lifting speed, unloaded (mm/sec): 325
- Lifting speed, unloaded (fpm): 64
- Loweringspeed, loaded (mm/sec): 435
- Lowering speed, loaded (fpm): 85.6
- Loweringspeed, unloaded (mm/sec): 400
- Lowering speed, unloaded (fpm): 78.7
- Maximum drawbar pull (fpm): 18,299
- Maximum drawbar pull (kN): 81.4
- Maximum gradeability (%): 21
- Service brake, operation/control: Foot/Hydraulic
- Parking brake, operation/control: Hand/Mechanical
- Steering type: FHPS
- Rated RPM: 2,200 min-1
- Maximum torque (SaE net)(Nm): 1 500 Nm/min-1
- Maximum torque (SaE net)(HP): 620
- Rated output (SaE Net) (HP): 134
- Rated output (SaE Net) (kW): 100
- Engine manufacturer / model: Komatsu SAA4D107E-3-A
- Fuel tank capacity (L): 280
- Fuel tank capacity (US gal): 73.9
- Number of cylinders / Displacement (cm^3): 4 / 4 460
- Number of cylinders / Displacement (in^3): 4 / 272
- Height overhead guard (mm): 2 930
- Ground clearance, center of wheelbase (mm): 380
- Ground clearance, center of wheelbase (in): 15
- Length to fork face (in): 188.4
- Length to fork face (mm): 4 785
- Forks, thickness x width x length (in): 3.5 x 8.3 x 53.9
- Forks, thickness x width x length (mm): 90 x 210 x 1 370
- Ground clearance under mast (mm): 280
- Ground clearance under mast (in): 11
- Standard free lift (in): 0
- Standard free lift (mm): 0
- Standard lift height (mm): 4 000
- Standard lift height (in): 157.5
- Tilting angle, forward/backward (deg): 6 / 12
- Height overhead guard (in): 115.4
- Mast height - lowered (in): 149.2
- Mast height - lowered (mm): 3 790
- Width, at tire, double (in): 97.6
- Width, at tire, double (mm): 2 480
- Width, fork carriage (in): 87
- Width, fork carriage (mm): 2 210
- Mast height - extended (in): 228.3
- Mast height - extended (mm): 5 800
- Turning radius, outside (mm): 4 410
- Turning radius, outside (in): 173.6
- Length, with standard forks (in): 242.3
- Length, with standard forks (mm): 6 155
- Tire type details: Pneumatic
- Number of wheels, front/rear: 4x/2
- Tire size - front: 12.00-20-18PR
- Tire size - rear: 12.00-20-18PR
- Tread - front (in): 69.7
- Tread - front (mm): 1 770
- Tread - rear (in): 73.6
- Tread - rear (mm): 1 870
- Axle loading - loaded front (kg): 30 765
- Axle loading - loaded front (lbs): 67,825
- Axle loading - loaded rear (lbs): 7,804
- Axle loading - loaded rear (kg): 3 540
- Axle loading - unloaded front (kg): 8 950
- Axle loading - unloaded front (lbs): 19,731
- Axle loading - unloaded rear (kg): 10 455
- Axle loading - unloaded rear (lbs): 23,049
- Service weight (kg): 19 405
- Service weight (lbs): 42,781
- EPA Tier 4 Final compliant diesel Engine
- Cyclone air cleaner (double element)
- Electronic Engine control system
- Overheat prevention function
- Auto Engine warm-up function
- Auto air preheat function
- Auto Engine shutdown function
- Variable Engine output control function
- Variable displacement pump with CLSS
- Electronically controlled HST
- U.L. Type "D" compliant
- Bio diesel fuel B20 compliant
- Vinyl head guard cover
- Wet multiple-disc brakes
- Parking lever with release button
- Inside rearview mirror
- Outside rearview mirrors
- Rear under mirror
- Neutral start function
- Travel speed limiter
- Operator presence sensing system
- Key-off lift lock
- Deluxe full suspension seat with orange seat belt
- Fully hydrostatic power steering
- Tiltable steering column
- Small diameter steering wheel with spinner knob
- Steering knob synchronizer function
- Large LCD display
- Engine coolant temperature gauge
- Fuel gauge
- Fuel consumption gauge
- Hour meter (SMR)
- Speedometer
- Directional lever position indicator
- Parking brake warning indicator
- Seat belt warning indicator
- Backup alarm
- Overspeed alarm
- Arm rest
- Front handrail
- LED Headlights and rear combination lights
- Upward exhaust pipe (right side)
- Komtrax: Komatsu's state of the art remote monitoring system
- Fuel cap with key
- Load scale (with overload alarm)
- Toolkit
- Tires
- Front dual tire, pneumatic
- Rear tire, pneumatic
- EPA Tier 4 Final compliant diesel Engine
- Cyclone air cleaner (double element)
- Electronic Engine control system
- Overheat prevention function
- Auto Engine warm-up function
- Auto air preheat function
- Auto Engine shutdown function
- Variable Engine output control function
- Variable displacement pump with CLSS
- Electronically controlled HST
- U.L. Type "D" compliant
- Bio diesel fuel B20 compliant
- Vinyl head guard cover
- Wet multiple-disc brakes
- Parking lever with release button
- Inside rearview mirror
- Outside rearview mirrors
- Rear under mirror
- Neutral start function
- Travel speed limiter
- Operator presence sensing system
- Key-off lift lock
- Deluxe full suspension seat with orange seat belt
- Fully hydrostatic power steering
- Tiltable steering column
- Small diameter steering wheel with spinner knob
- Steering knob synchronizer function
- Large LCD display
- Engine coolant temperature gauge
- Fuel gauge
- Fuel consumption gauge
- Hour meter (SMR)
- Speedometer
- Directional lever position indicator
- Parking brake warning indicator
- Seat belt warning indicator
- Backup alarm
- Overspeed alarm
- Arm rest
- Front handrail
- LED Headlights and rear combination lights
- Upward exhaust pipe (right side)
- Komtrax: Komatsu's state of the art remote monitoring system
- Fuel cap with key
- Load scale (with overload alarm)
- Toolkit
- Tires
- Front dual tire, pneumatic
- Rear tire, pneumatic
- Deluxe steel Cab package with heater, defroster and air conditioner, rear-view camera and monitoring system, high-mount air pre-cleaner with automatic dust eject
- Tilt cylinder boots
- Power steering cylinder boots
- Cyclone air cleaner with pre-cleaner
- Vinyl head guard cover
- LED front working light(s)
- LED rear working light(s)
- LED rotating light
- Seat belt interlock function
- Tire
- Elastic cushion/solid pneumatic
- Forks
- Optional fork lengths available
- Fork positioner
- Fork positioner with sideshift function
- Fork positioner with sideshifter
- Deluxe steel Cab package with heater, defroster and air conditioner, rear-view camera and monitoring system, high-mount air pre-cleaner with automatic dust eject
- Tilt cylinder boots
- Power steering cylinder boots
- Cyclone air cleaner with pre-cleaner
- Vinyl head guard cover
- LED front working light(s)
- LED rear working light(s)
- LED rotating light
- Seat belt interlock function
- Tire
- Elastic cushion/solid pneumatic
- Forks
- Optional fork lengths available
- Fork positioner
- Fork positioner with sideshift function
- Fork positioner with sideshifter
