Forklifts

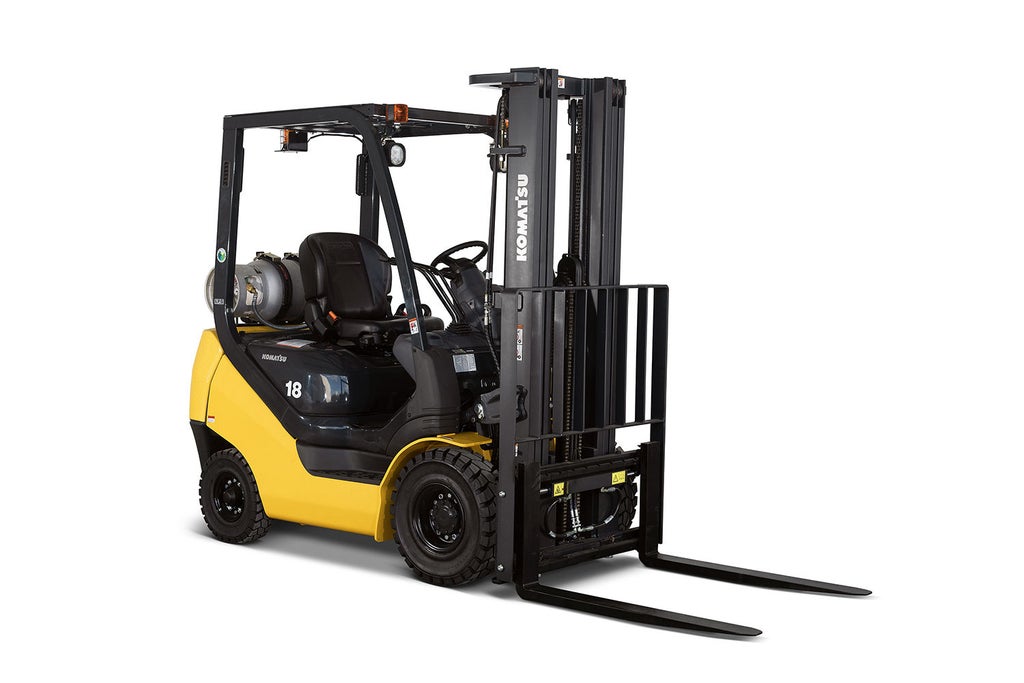

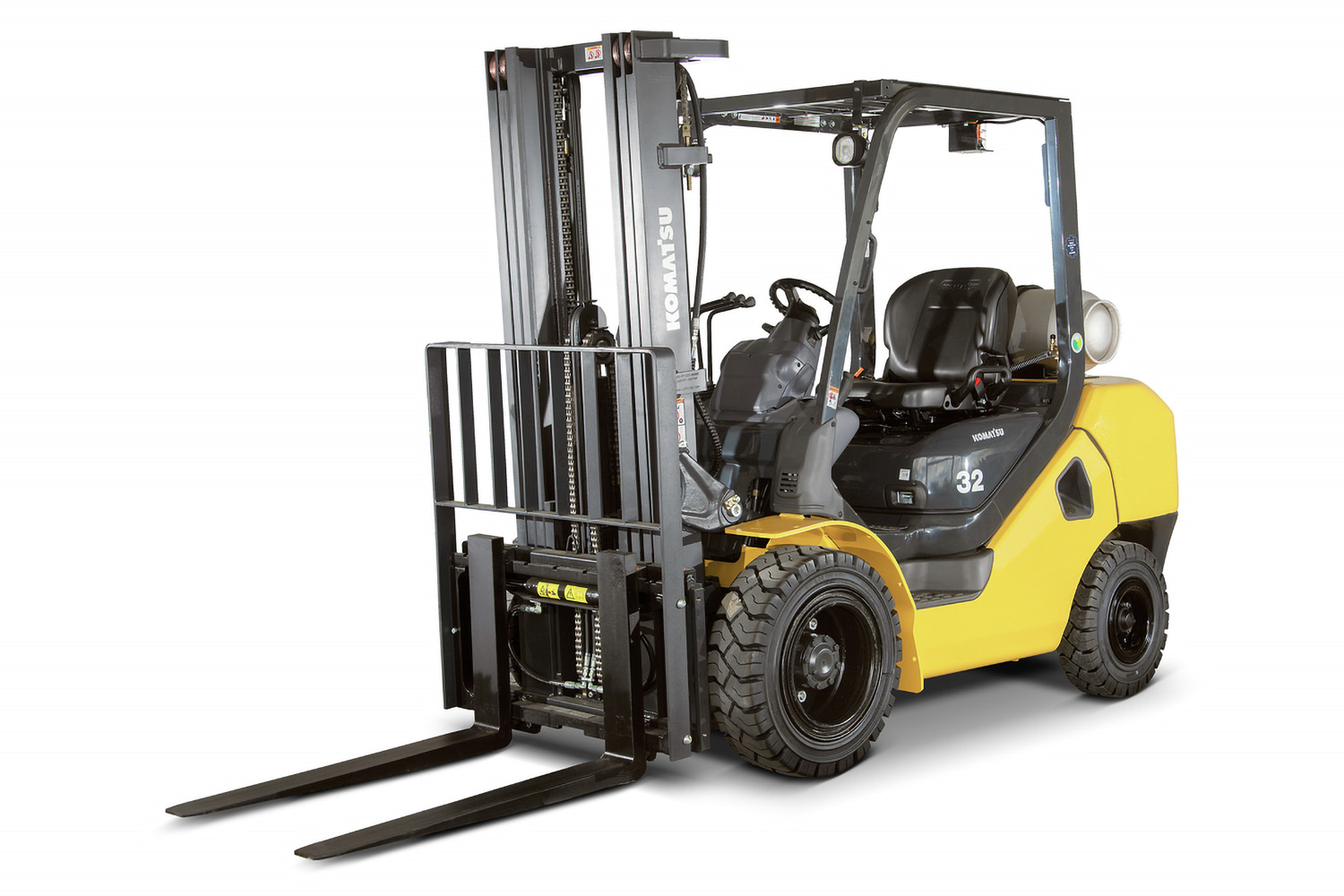

FG30HT-16

IC pneumatic

  • Tire type Pneumatic
  • Power type LPG/Dual fuel
  • Capacity (kg) 1 815 - 2 950
  • Capacity (lbs) 4,000 - 6,500

Purchase options

Request a quote Find a dealer

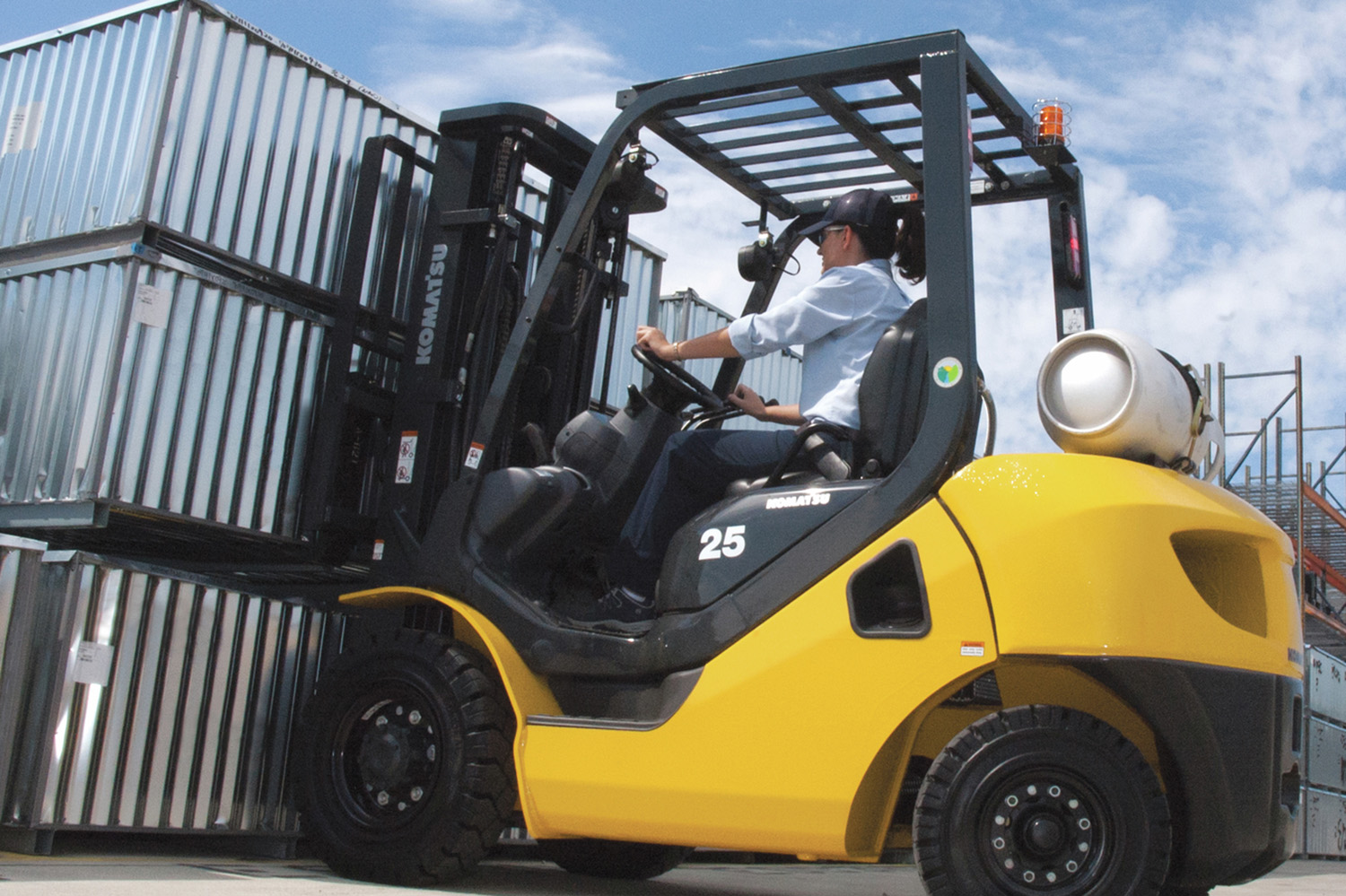

Big power and performance

The BX50 IC pneumatic forklift combines Komatsu’s long history of rigorous engineering in construction equipment with features designed to increase efficiency and reduce operator fatigue.

  • Fuel efficiency helps lower costs
  • Rugged, construction-inspired drive train
  • Designed for higher efficiency through improved operator comfort

Resources

Features and benefits

Enhanced safety for employees and goods

Enhanced safety for employees and goods

The Komatsu Operator Presence System (KOPS) Plus, standard with BX50 series, locks out lift, lower, tilt and travel functions when the operator leaves the seat for more than three seconds. The forks cannot lower while the key is in the off position.

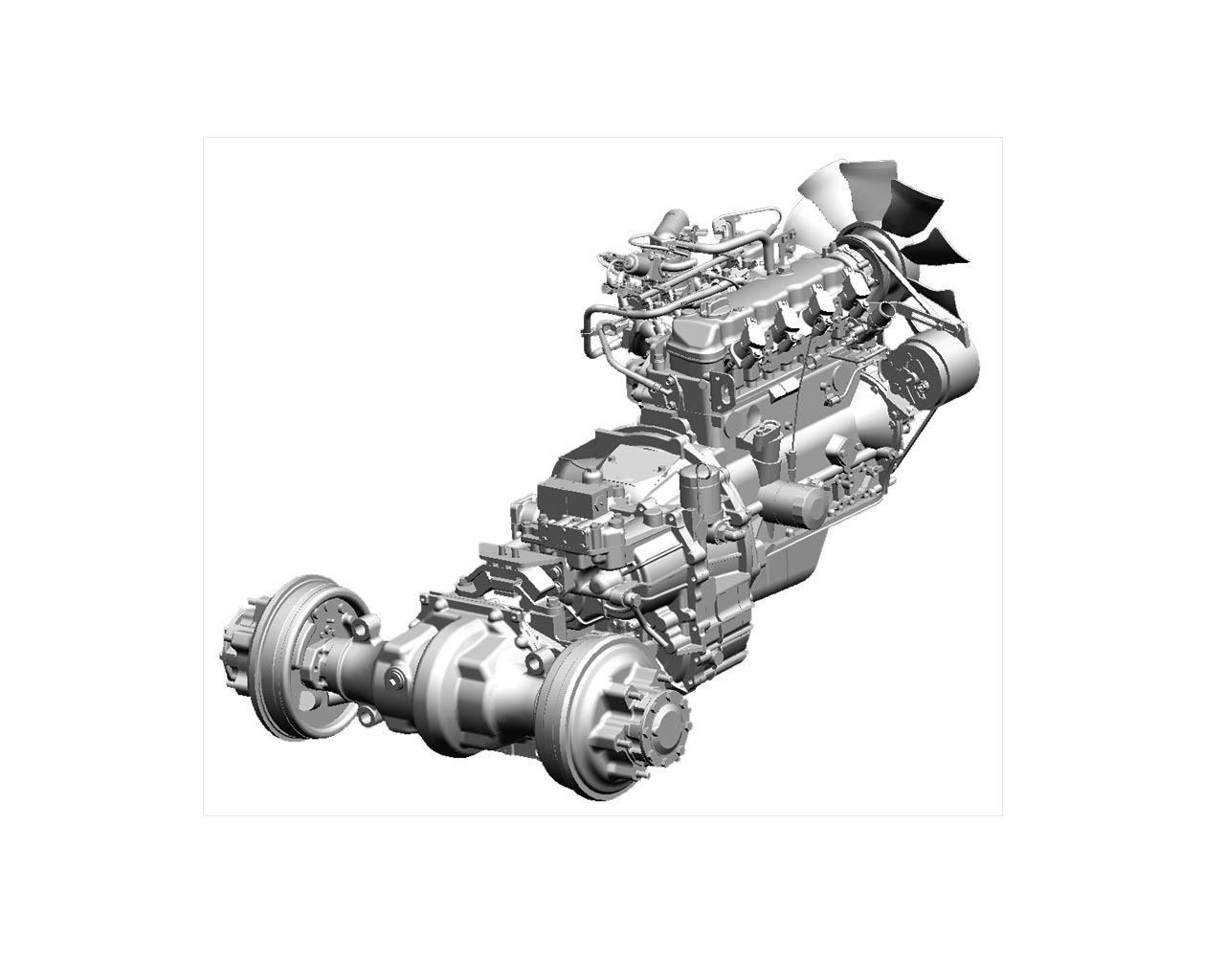

High-efficiency drivetrain

High-efficiency drivetrain

Our expertise in construction is behind the BX50’s full floating drive train. High torque delivered by powerful engines is channeled through a heat dissipating aluminum transmission case and a rugged dust- and leak-resistant, double-seal U-joint design.

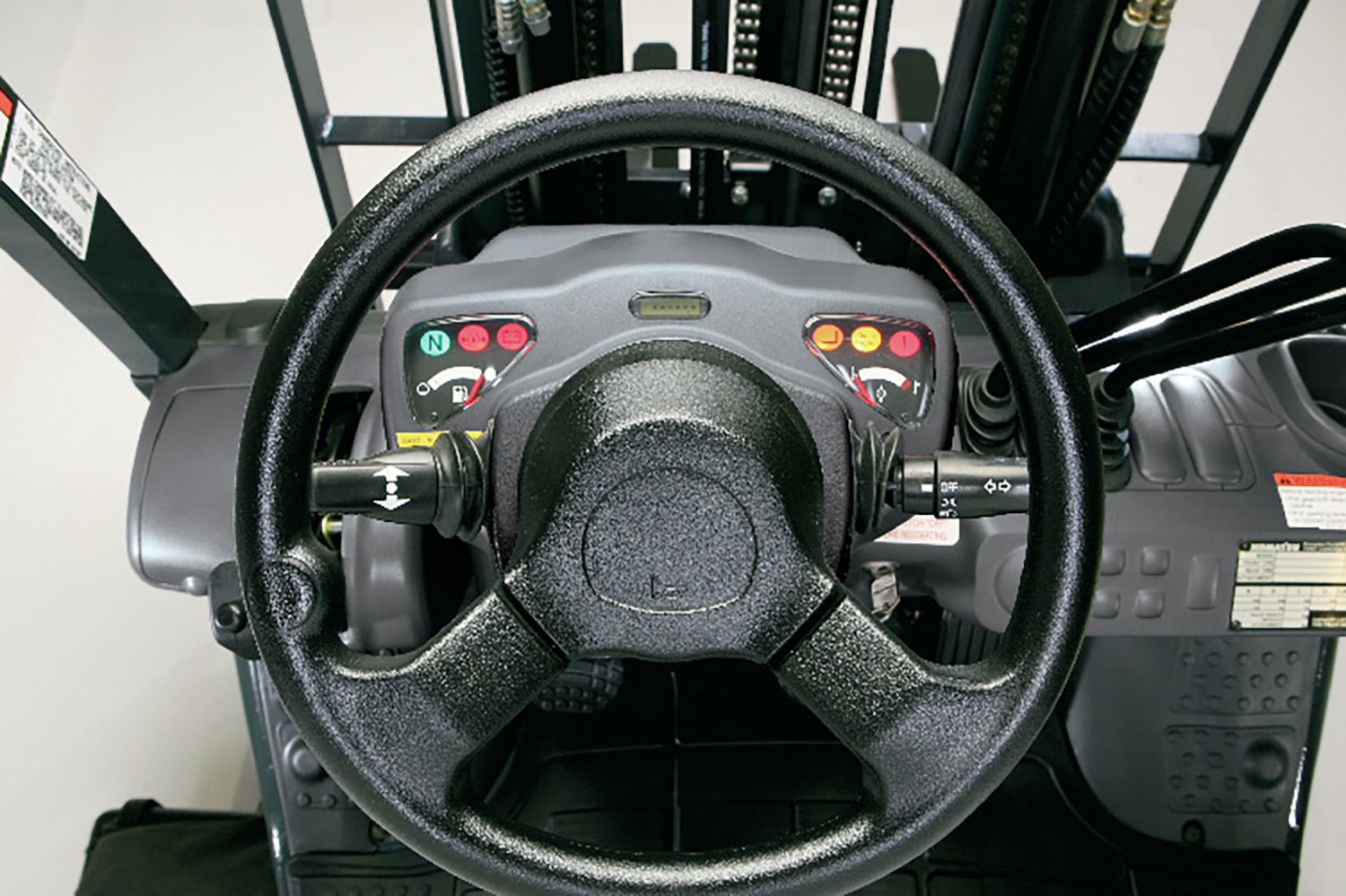

Multiple solutions to reduce operator fatigue

Multiple solutions to reduce operator fatigue

The fully hydrostatic power steering (FHPS) system offers you easy steering even at slow speeds and is engineered to eliminate kickback. Further improving operator feel are a small-diameter steering wheel and optional spinner knob for one-handed control.

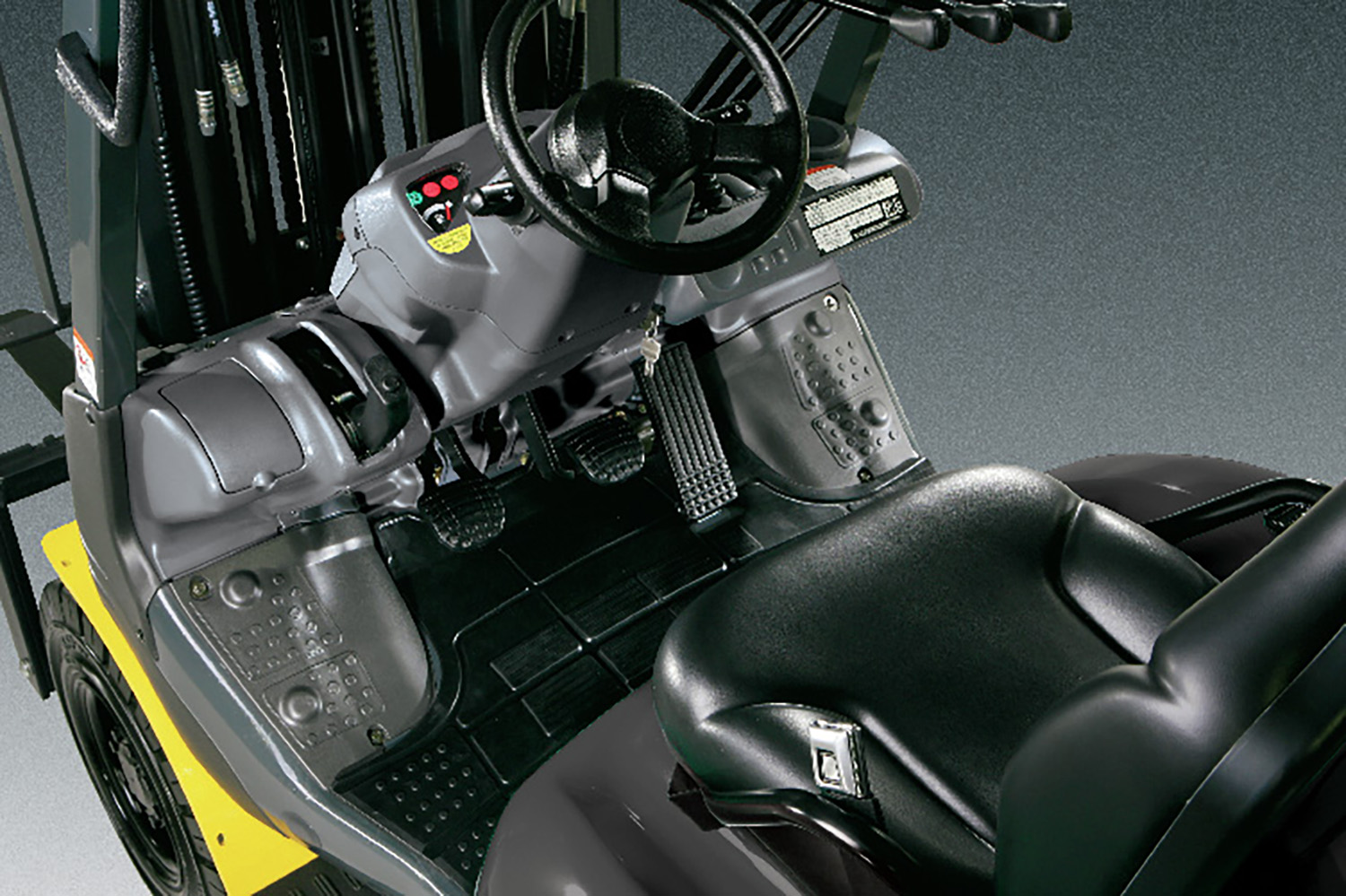

Advanced ergonomic design

Advanced ergonomic design

Designed to improve operator comfort and reduce fatigue, the Komatsu Komfort Zone is a dual floating structure: dampening mounts protect the frame from engine vibration; additional mounts isolate your operators from the frame. Sealed floorboard reduces engine noise and heat.

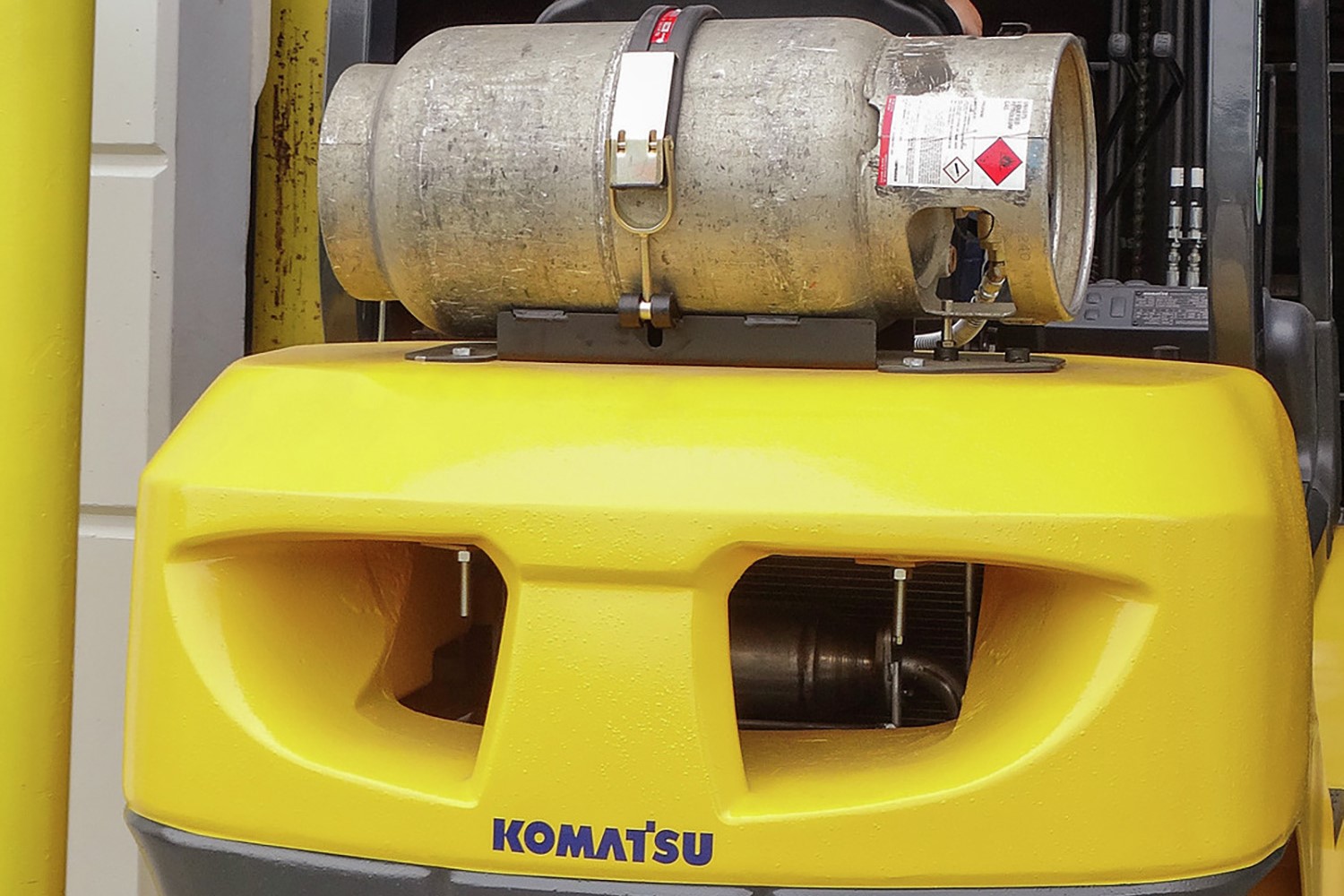

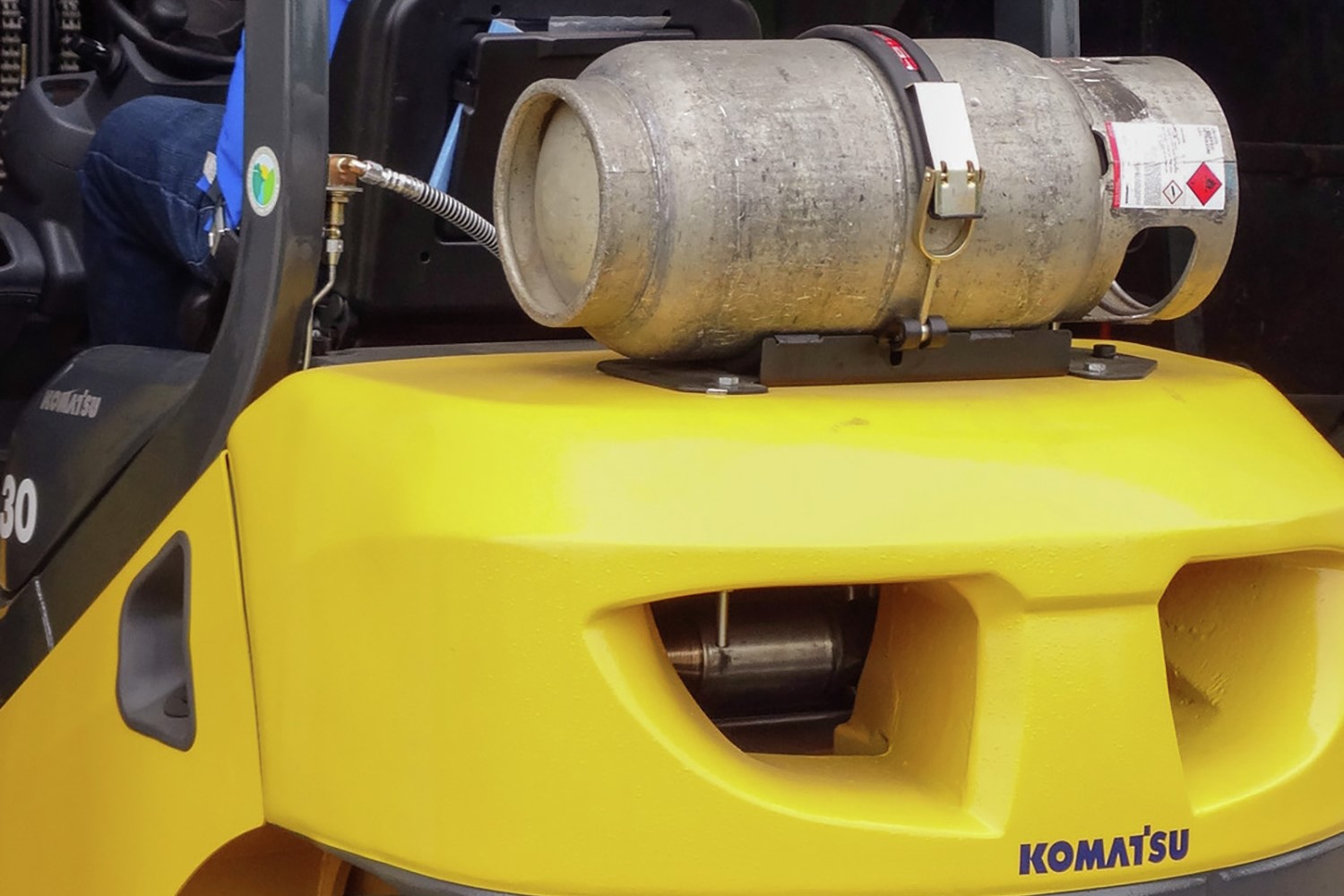

Angled ports to manage exhaust and dust

Angled ports to manage exhaust and dust

Hot engine air, dust and exhaust can affect operators over time. The BX50 series’ angled exhaust ports in the counterweight aim exhaust away while traveling in reverse. Exhaust vents low on the counterweight point away from the ground and don’t stir up dust.

Excellent sightlines front and rear

Excellent sightlines front and rear

An unrestricted view of the fork tips and surroundings for the operator. The thoughtfully designed EZ view mast, console and low-profile dash provide outstanding forward visibility. Upper corners of the counterweight are angled for clear sightlines in reverse.


Specifications

Metric Imperial (US)
Expand all

  • Operation type: Sit-Down
  • Capacity @ 600 mm load center (kg): 2 725
  • Capacity @ 24 in load center (lbs): 6,000
  • Wheelbase (mm): 1 700
  • Wheelbase (in): 66.9
  • Load distance from center axle (2 stage)(in): 19.1
  • Load distance from center axle (2 stage)(mm): 485

  • Relief pressure, maximum (psi): 2,630
  • Relief pressure, maximum (bar): 181
  • Sound level (dB): 83
  • Transmission: Powershift

  • Travel speed, loaded/unloaded (mph): 11.5 / 12.1
  • Travel speed, loaded/unloaded (kph): 18.5 / 19.5
  • Lifting speed when loaded/unloaded (mm/s): 530 / 630
  • Lifting speed when loaded/unloaded (fpm): 104 / 124
  • Lowering speed when loaded/unloaded (fpm): 98 / 98
  • Lowering speed when loaded/unloaded (mm/s): 500 / 500
  • Maximum drawbar pull, loaded (kN): 20.6
  • Maximum drawbar pull, loaded (lbs): 4,600
  • Maximum gradeability (%): 27
  • Service brake, operation/control: Foot / Hydraulic
  • Parking brake, operation/control: Hand / Mechanic
  • Steering type: FHPS

  • Maximum torque (SaE net)(Nm): 152 Nm @ 2 000 rpm
  • Maximum torque (SaE net)(lbs-ft): 136 lbs.-ft. @ 2,000 rpm
  • Rated output (SaE Net) (HP): 60 HP @ 2,700 rpm
  • Rated output (SaE Net) (kW): 44 kW @ 2 700 rpm
  • Engine manufacturer / model: GCT / GK25
  • Fuel tank capacity (L): 58
  • Fuel tank capacity (US gal): 15.3
  • Number of cylinders / Displacement (cm^3): 4 / 2 488
  • Number of cylinders / Displacement (in^3): 4 / 152

  • Height overhead guard (mm): 2 130
  • Ground clearance, center of wheelbase (mm): 190
  • Ground clearance, center of wheelbase (in): 7.5
  • Tilting angle, 2-Stage (FV) masts, forward/backward: 6 / 12
  • Tilting angle, 3-Stage (TFV) masts, forward/backward: 6 / 5
  • Length to fork face (in): 106.7
  • Length to fork face (mm): 2 710
  • Forks, thickness x width x length (in): 2 x 5 x 42
  • Forks, thickness x width x length (mm): 50 x 125 x 1 070
  • Carriage width/ITa class (mm): 1 041 mm / III
  • Carriage width/ITa class (in): 41 in / III
  • Ground clearance, under mast (in): 140
  • Ground clearance, under mast (mm): 5.5
  • Free lift height (in): 5.5
  • Free lift height (mm): 140
  • Height overhead guard (in): 83.9
  • Mast height - lowered (in): 85.5
  • Mast height - lowered (mm): 2 170
  • Mast height - extended (in): 176
  • Mast height - extended (mm): 4 470
  • Turning radius, outside (mm): 2 370
  • Turning radius, outside (in): 93.3
  • Maximum fork height (mm): 3 250
  • Maximum fork height (in): 128
  • Overall width at drive tires (in): 48.6
  • Overall width at drive tires (mm): 1 235
  • Right angle stacking aisle (in): 112.4
  • Right angle stacking aisle (mm): 2 855
  • Length, with standard forks (in): 148.8
  • Length, with standard forks (mm): 3 780

  • Tire type details: Pneumatic
  • Number of wheels, front/rear: 2x / 2
  • Tire size - front: 28 x 9 - 15 - 12PR (I)
  • Tire size - rear: 6.5 - 10 - 10PR
  • Tread - front (in): 40.4
  • Tread - front (mm): 1 025
  • Tread - rear (in): 38
  • Tread - rear (mm): 965

  • Axle loading - loaded front (kg): 6 130
  • Axle loading - loaded front (lbs): 13,510
  • Axle loading - loaded rear (lbs): 1,910
  • Axle loading - loaded rear (kg): 865
  • Axle loading - unloaded front (kg): 1 635
  • Axle loading - unloaded front (lbs): 3,600
  • Axle loading - unloaded rear (kg): 2 635
  • Axle loading - unloaded rear (lbs): 5,810
  • Service weight (kg): 4 270
  • Service weight (lbs): 9,410
Metric Imperial (US)
  • Low profile dash display: Fuel Gauge, Water Temperature Gauge and Hour Meter
  • Indicator lights: Neutral/Return to Neutral, Low Oil Pressure, Low Battery/ Alternator, Hydraulic Lock (Operator Presence), Check Engine Warning and Maintenance Error Code
  • Drawbar Pin in Counterweight
  • Electronic Ignition, Anti-Restart Ignition Switch
  • Fully Hydrostatic Power Steering
  • LED Tail/Stop/Rear Turn Lights
  • High-Mount Air Intake
  • Horn with Actuator on Center of Steering Wheel
  • Three Piece Overhead Guard
  • Three Function Hydraulic Control Valve
  • Parking Brake with Double-Action Release
  • Tilting Steering Column
  • Large, Open Floor Space with Operator Compartment Suspended-Mount Pedals
  • Transmission Torque Converter Oil Cooler
  • Load Backrest
  • Spacious Step Area, Large Entry Handgrip and Wide Open Floor Space allows easy entry/exit to the Komfort Zone
  • Engine Protection System
  • ITA Class II or Class III Fork Carriage
  • ITA Class II or Class III Forks
  • Critical Wiring Harness Connectors are Waterproof
  • Contoured, Easy to Grip, Hydraulic Control Lever Knobs
  • Overhead Guard Mounted LED Headlights
  • Fold-Back LP Tank Bracket (Optional on FG20ST)

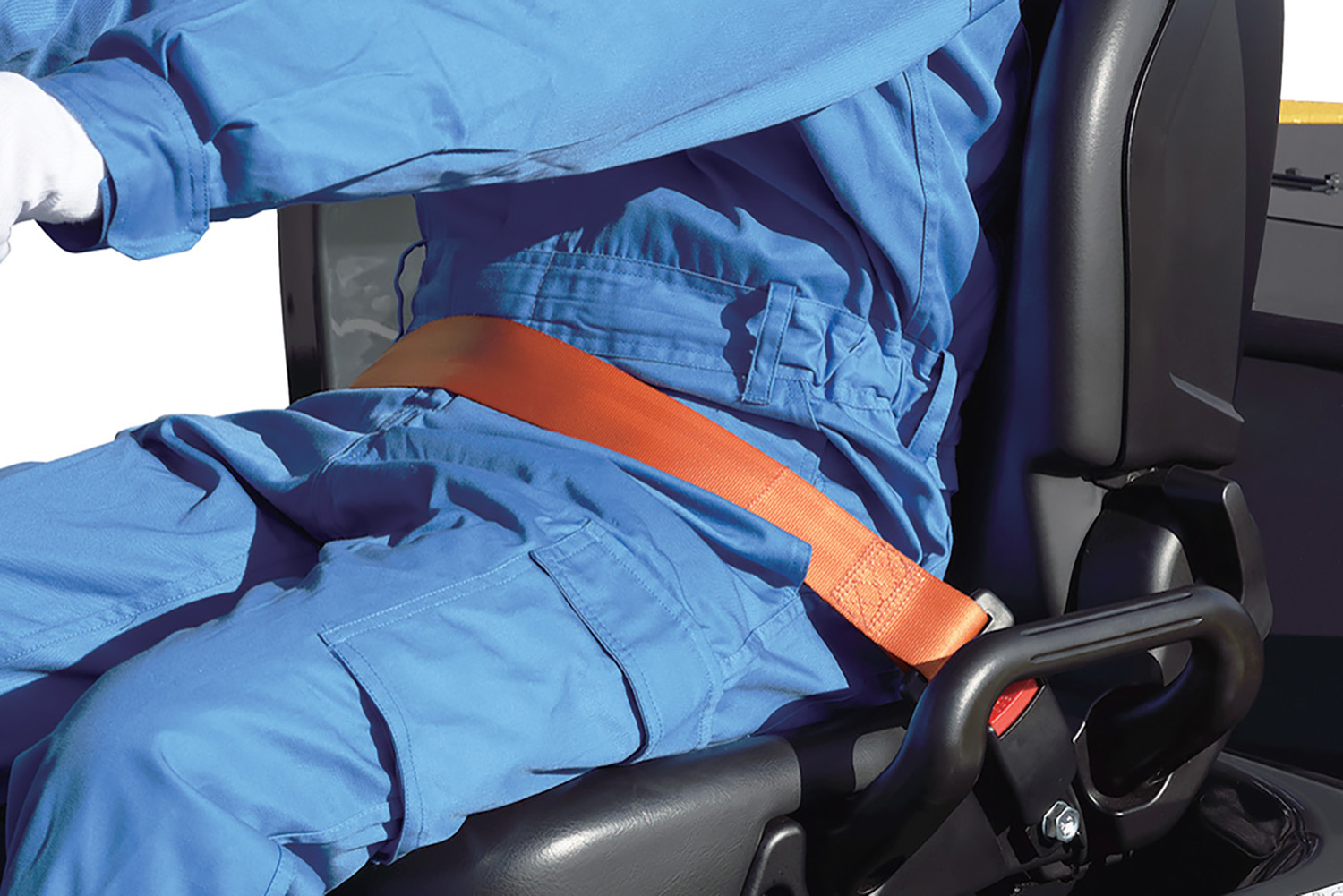

  • Full suspension seat with operator restraint system and orange seat belt is standard (Except FG20ST)
  • Tires:
    • Drive, Lug Cushion
    • Steer, Lug Cushion
  • Low profile dash display: Fuel Gauge, Water Temperature Gauge and Hour Meter
  • Indicator lights: Neutral/Return to Neutral, Low Oil Pressure, Low Battery/ Alternator, Hydraulic Lock (Operator Presence), Check Engine Warning and Maintenance Error Code
  • Drawbar Pin in Counterweight
  • Electronic Ignition, Anti-Restart Ignition Switch
  • Fully Hydrostatic Power Steering
  • LED Tail/Stop/Rear Turn Lights
  • High-Mount Air Intake
  • Horn with Actuator on Center of Steering Wheel
  • Three Piece Overhead Guard
  • Three Function Hydraulic Control Valve
  • Parking Brake with Double-Action Release
  • Tilting Steering Column
  • Large, Open Floor Space with Operator Compartment Suspended-Mount Pedals
  • Transmission Torque Converter Oil Cooler
  • Load Backrest
  • Spacious Step Area, Large Entry Handgrip and Wide Open Floor Space allows easy entry/exit to the Komfort Zone
  • Engine Protection System
  • ITA Class II or Class III Fork Carriage
  • ITA Class II or Class III Forks
  • Critical Wiring Harness Connectors are Waterproof
  • Contoured, Easy to Grip, Hydraulic Control Lever Knobs
  • Overhead Guard Mounted LED Headlights
  • Fold-Back LP Tank Bracket (Optional on FG20ST)
  • Full suspension seat with operator restraint system and orange seat belt is standard (Except FG20ST)
  • Tires:
    • Drive, Lug Cushion
    • Steer, Lug Cushion
Metric Imperial (US)
  • Warning Lights & Audible Travel Alarms
  • Tilt Cylinder Boots
  • Cotton-Core Radiator
  • Spinner Knob Steering Wheel
  • Sideshifter - Integral or Hang-On
  • 4-Way Valve and Internal Hosing
  • Seats
  • Tires
  • Masts: 2-Stage, 3-Stage & 4-Stage
  • Fire Extinguisher
  • Attachments
  • Rear Assist Grip with Horn Button
  • FORKS:
    • 915 mm
    • 1,070 mm
    • 1,220 mm
    • 1,370 mm
    • 1,520 mm
    • 1,820 mm
  • Warning Lights & Audible Travel Alarms
  • Tilt Cylinder Boots
  • Cotton-Core Radiator
  • Spinner Knob Steering Wheel
  • Sideshifter - Integral or Hang-On
  • 4-Way Valve and Internal Hosing
  • Seats
  • Tires
  • Masts: 2-Stage, 3-Stage & 4-Stage
  • Fire Extinguisher
  • Attachments
  • Rear Assist Grip with Horn Button
  • FORKS:
    • 915 mm
    • 1,070 mm
    • 1,220 mm
    • 1,370 mm
    • 1,520 mm
    • 1,820 mm
