Forestry
951XC-1
Wheeled harvesters
- Gross lifting torque (lbf-ft) 202,830
- Power (HP) 287 @ 1,850 rpm (EU Stage V and Tier 4F), 282 @ 1,850 rpm (Stage 2)
- Power (kW) 214 @ 1,850 rpm (EU Stage V and Tier 4F), 210 @ 1,850 rpm (Stage 2)
- Max tractive effort (kN) 242
- Max tractive effort (lbf) 54,400
- Gross lifting torque (kNm) 275
Powerful 8WD performance
The XH951XC-1 is one of the largest harvesters on the market, and its eight driven wheels deliver incredible traction, maneuverability and stability. Its cab has automotive quality and features for all-day comfort and control.
- ±180 degrees cab/crane rotation with automatic 4-way cab leveling
- Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
- Wide selection of Komatsu harvesting heads to meet your application
Resources
Features and benefits
Optimised for final felling
Our final logging harvesters deliver high productivity shift after shift while staying agile for their size. A powerful engine, high tractive force, portal bogie and our strongest crane ensure confident manoeuvring and efficient work in tough terrain.
Working hydraulics you can depend on
3PS is our innovative hydraulic system that delivers maximum power for simultaneous operations. You can slew, feed and manoeuvre at once, while lower‑power tasks use only part of the system, reducing energy loss and cutting fuel consumption.
Low ground pressure and high stability
XC harvesters, with their 8-wheel design, excel in hilly terrain and soft ground. Lower ground pressure protects sensitive surfaces, while a double oscillating bogie ensures stability and manoeuvrability on uneven terrain.
A great place to work
Komatsu harvesters offer a premium operator environment with a spacious cab, excellent visibility and an ergonomic seat with multiple adjustments. Cab levelling keeps you comfortable and relaxed, even on steep terrain.
Your productivity in focus
Our harvesters are refined for productivity and profitability with powerful transmission, balanced bogies and the stable Komatsu concept. Energy-efficient parallel cranes and the 3PS hydraulic system deliver strong, simultaneous performance.
Easy to perform service
Servicing a Komatsu harvester is quick and efficient. Daily checks are done from ground level, with grouped inspection points and easy fluid monitoring from the cab. Automatic calibration and simplified refills ensure smooth, stress-free maintenance.
Specifications
- Full specs
- Gross lifting torque (lbf-ft): 20,283
- Gross lifting torque (kNm): 275
- Model and reach (ft): 270H: 28 ft 7 in / 33 ft 10 in
- Model and reach (m): 270H: 8.7 / 10.3
- Gross slewing torque (lbf-ft): 44,253
- Gross slewing torque (kNm): 60
- Length front axle to middle joint (mm): 1,930
- Length front axle to middle joint (ft): 7 ft 7 in
- Length middle joint to rear axle (mm): 2,150
- Length middle joint to rear axle (ft): 7 ft 1 in
- Ground clearance (at stearing joint) (mm): 708
- Ground clearance (at stearing joint) (ft): 2 ft 3 in
- Width (ft): With 710/55x26.5 tires: 9 ft 9 in
- Width (mm): With 710/55x26.5 tires: 2,980
- Transport height with tire compression (mm): 3,980 to top of roof, straight cab. 3,940 backwards tilted cab with tilted light ramp. Both measurements with tire compression.
- Transport height with tire compression (ft): 13 ft. to top of roof, straight cab. 12 ft 11 in backwards tilted cab with tilted light ramp. Both measurements with tire compression.
- Voltage: 24 V
- Battery capacity: 2 x 180 Ah
- Generator: 200 A
- Type: AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and Stage 2.
- Stroke volume (gal): 1.95
- Torque (Nm): 1,280 @ 1,500 rpm (EU Stage V, Tier 4F and Stage 2)
- Torque (ft-lbs): 944 @ 1,500 rpm (EU Stage V, Tier 4F and Stage 2)
- Fuel tank (gal): 123
- Stroke volume (L): 7.4
- Fuel tank (L): 466
- Power (HP): 287 DIN @ 1,850 rpm (EU Stage V and Tier 4F), 282 DIN @ 1,850 rpm (Stage 2)
- Power (kW): 214 DIN @ 1,850 rpm (EU Stage V and Tier 4F), 210 DIN @ 1,850 rpm (Stage 2)
- Flow (l/min): 528 @ 1,600 rpm
- Flow (gal/min): 139 @ 1,600 rpm
- System pressure (bar): 280
- System pressure (psi): 4,061
- Approximate weight (kg): From 23,275
- Approximate weight (lbs): From 51,300
- Tractive force (lbf): 54,400
- Driving speed (mph): 0 - approx. 13
- Tractive force (kN): 242
- Driving speed (km/h): 0 - approx. 21

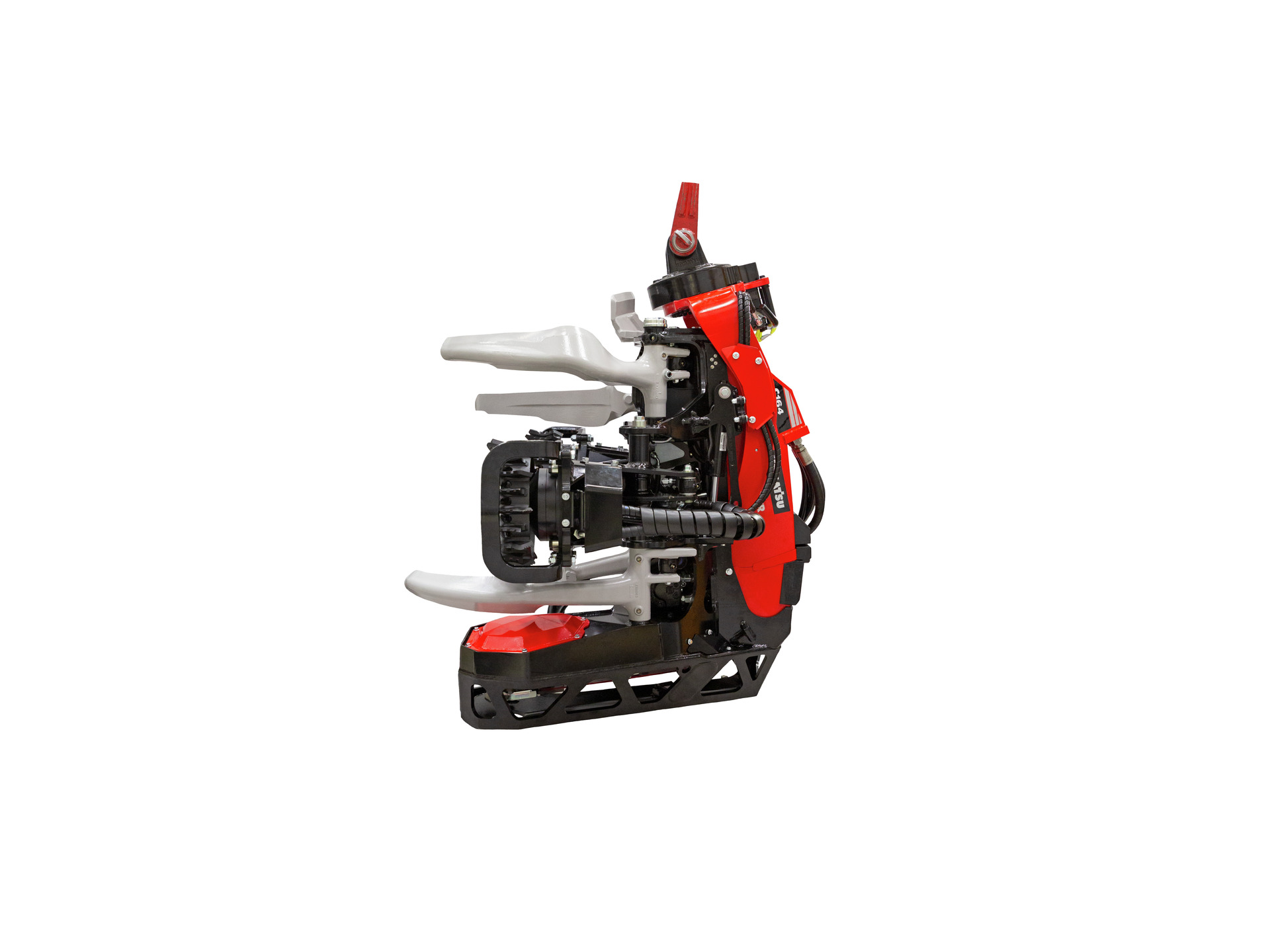

- Available heads: C124, S132, C144, S172, C164
