Forestry

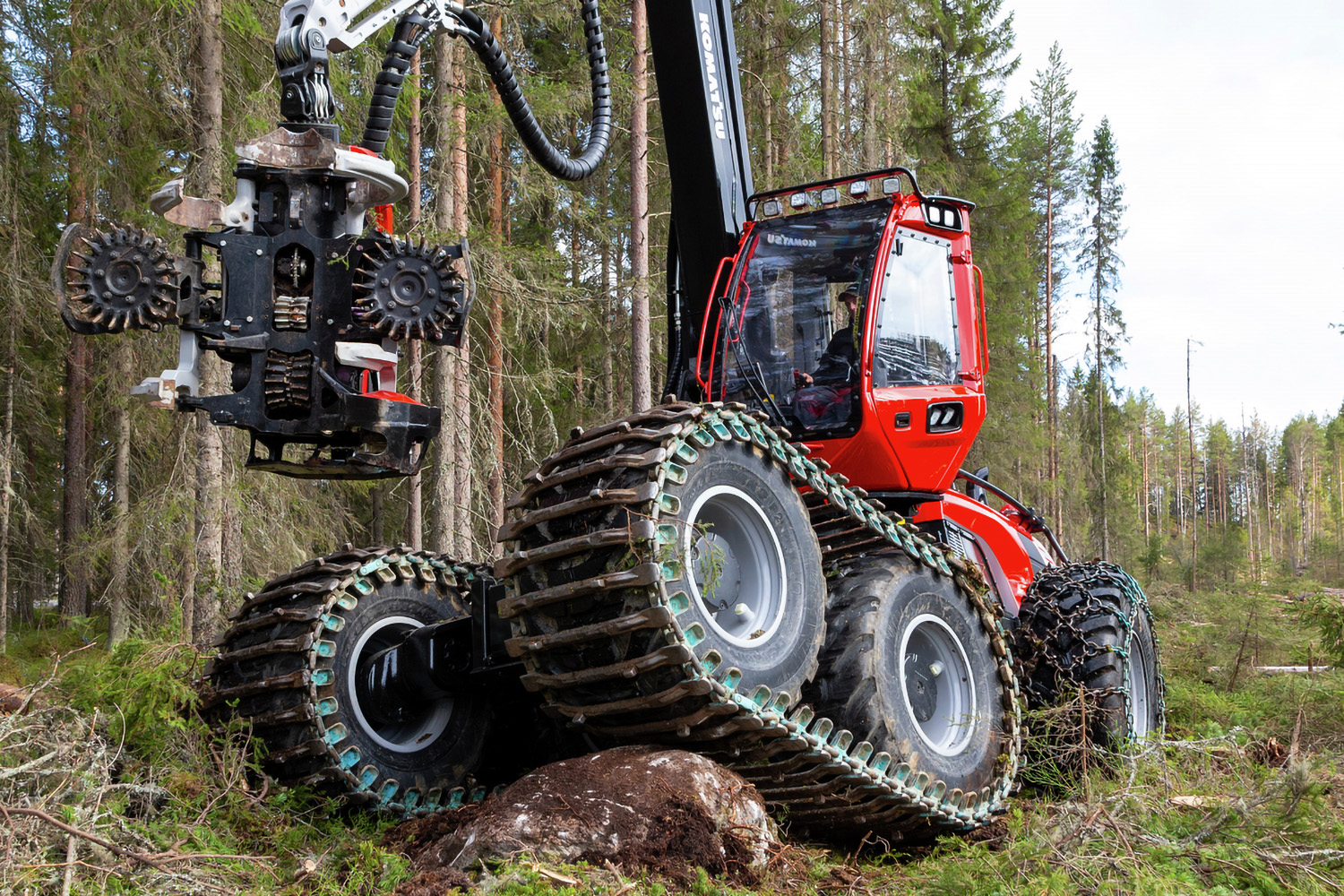

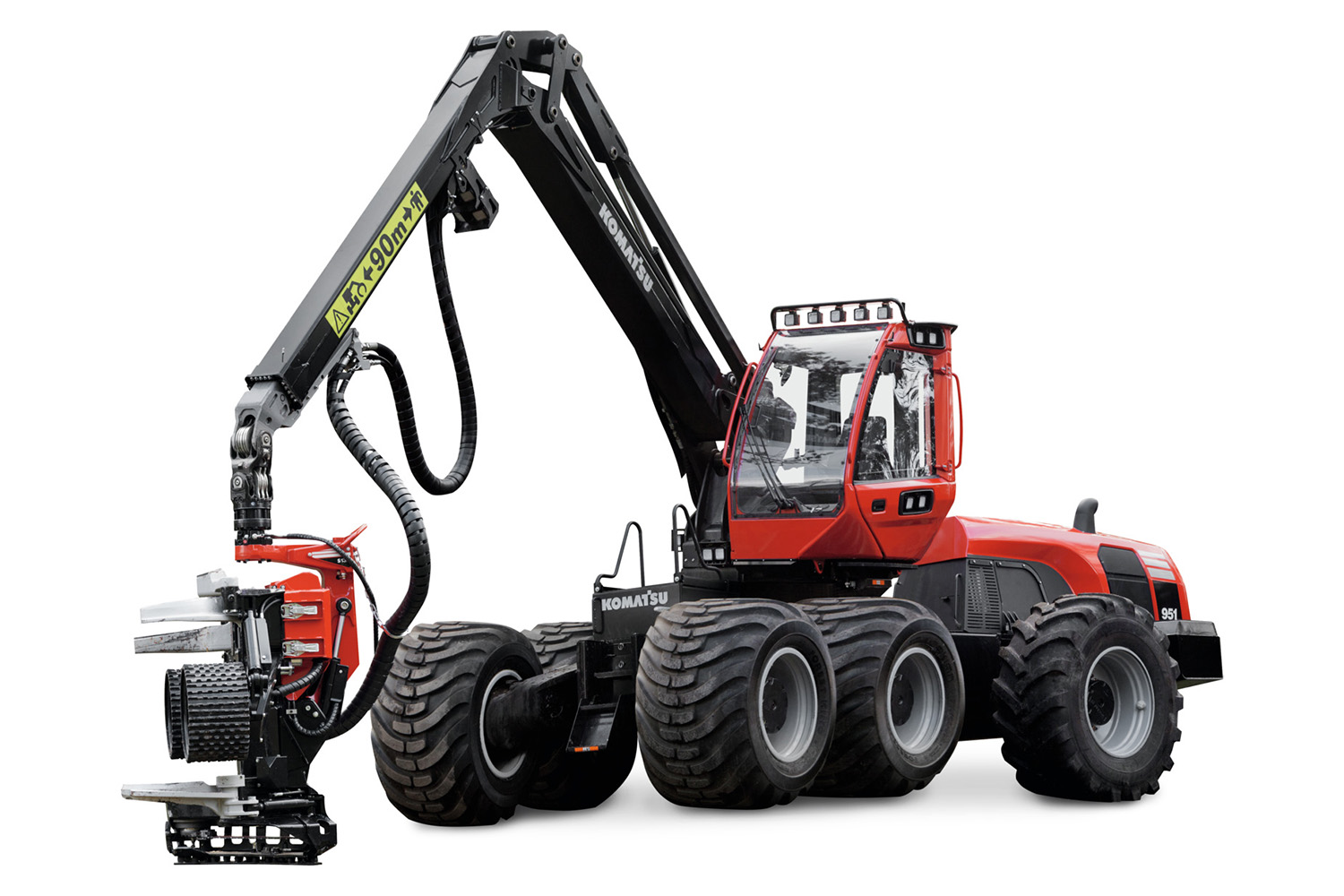

951-1

Wheeled harvesters

  • Weight (kg) From 22 790
  • Weight (lbs) From 50,243
  • Horsepower (HP) 287 net HP @ 1,850 rpm
  • Horsepower (kW DIN) 214 kW DIN @ 1 850 rmp
  • Tractive force (kN) 222
  • Tractive force (lbf) 52,156

Powerful performance

Tackle even the toughest assignments with confidence. The 951-1 is one of the largest harvesters on the market, with powerful performance features, like multifunction hydraulic system, dynamic cab/crane levelling and automotive-quality operator's cab.

  • ±180 degrees cab/crane rotation with automatic 4-way cab/crane leveling
  • Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
  • Wide selection of Komatsu harvesting heads to meet your application

Features and benefits

Excellent maneuverability

Excellent maneuverability

Confidently traverse difficult terrain, thanks to key drivetrain technologies, such as the Comfort Bogie system with high ground clearance and enhanced traction; hydrostatic transmission matching power and traction; and automatic cab/crane levelling.

Powerful parallel crane

Powerful parallel crane

A true production enhancer with a single control lever movement extending the boom/arm on a parallel path. Excellent lifting and slewing torque plus an industry-leading ±180° cab/crane rotation.

Modern, large, spacious cab

Modern, large, spacious cab

Operator comfort, visibility and man-machine interface are critical to your productivity. Automotive-quality cab includes a giant front window, ergonomic seat, automatic climate control, sound-deadening measures, and heated and cooled meal storage

3-PS hydraulic system

3-PS hydraulic system

Work faster. Our innovative three-pump hydraulic system enables you to operate several crane and head functions at the same time at full power — even while moving.

Service accessibility

Service accessibility

Daily service is made easy with an electrically operated engine hood. We’ve also placed inspection and service points, so you rarely need to climb onto the machine for maintenance. Automatic central lubrication system further reduces daily maintenance time.

MaxiXT

MaxiXT

State-of-the-art control system with intuitive graphical interface to manage all aspects of head control and performance. Easy programming of individual operator control preferences plus production parameters such as tree species, length and diameter.

Innovative 8WD system

Innovative 8WD system

Excellent stability and sure-footedness in rough terrain harvesting situations. Innovative Double Comfort Bogie suspension systems provide powerful 8-wheel drive confidence, especially in sloped, rough or soft terrain.

Excellent cold weather starting

Excellent cold weather starting

Special diesel heater system heats the batteries, engine coolant, DEF and hydraulic oil to help ensure easy starting in cold conditions.

Broad selection of harvesting heads

Broad selection of harvesting heads

Choose a high-performance Komatsu C93 or S92 harvesting head to meet your specific application needs.


Specifications

Metric Imperial (US)
Expand all

  • Model and reach (ft): 28 ft. 7 in or 33 ft. 10 in
  • Gross lifting torque (Nm): 275
  • Gross lifting torque (lbf-ft): 20,283
  • Gross slewing torque (lbf-ft): 44253
  • Gross slewing torque (Nm): 60

  • Width (ft): With 710/70x34 tires: 10 ft. 0 in
  • Width (mm): With 710/70x34 tires: 3 060 mm
  • Length, total (mm): 8 285
  • Length, total (ft): 27 ft. 2 in
  • Length, front axle to middle joint (mm): 2 300
  • Length, front axle to middle joint (ft): 7 ft. 7 in
  • Length, middle joint to rear axle (ft): 6 ft. 1 in
  • Length, middle joint to rear axle (mm): 1 850
  • Transport height with tire compression (mm): 3 960
  • Transport height with tire compression (ft): 13 ft. 0 in
  • Ground clearance (ft): 2 ft. 2 in
  • Ground clearance (mm): 665
  • Note on dimensions: Stated dimensions are nominal and may vary slightly depending on production tolerances and choice of equipment.

  • Voltage: 24 V
  • Battery capacity: 2 x 180 Ah

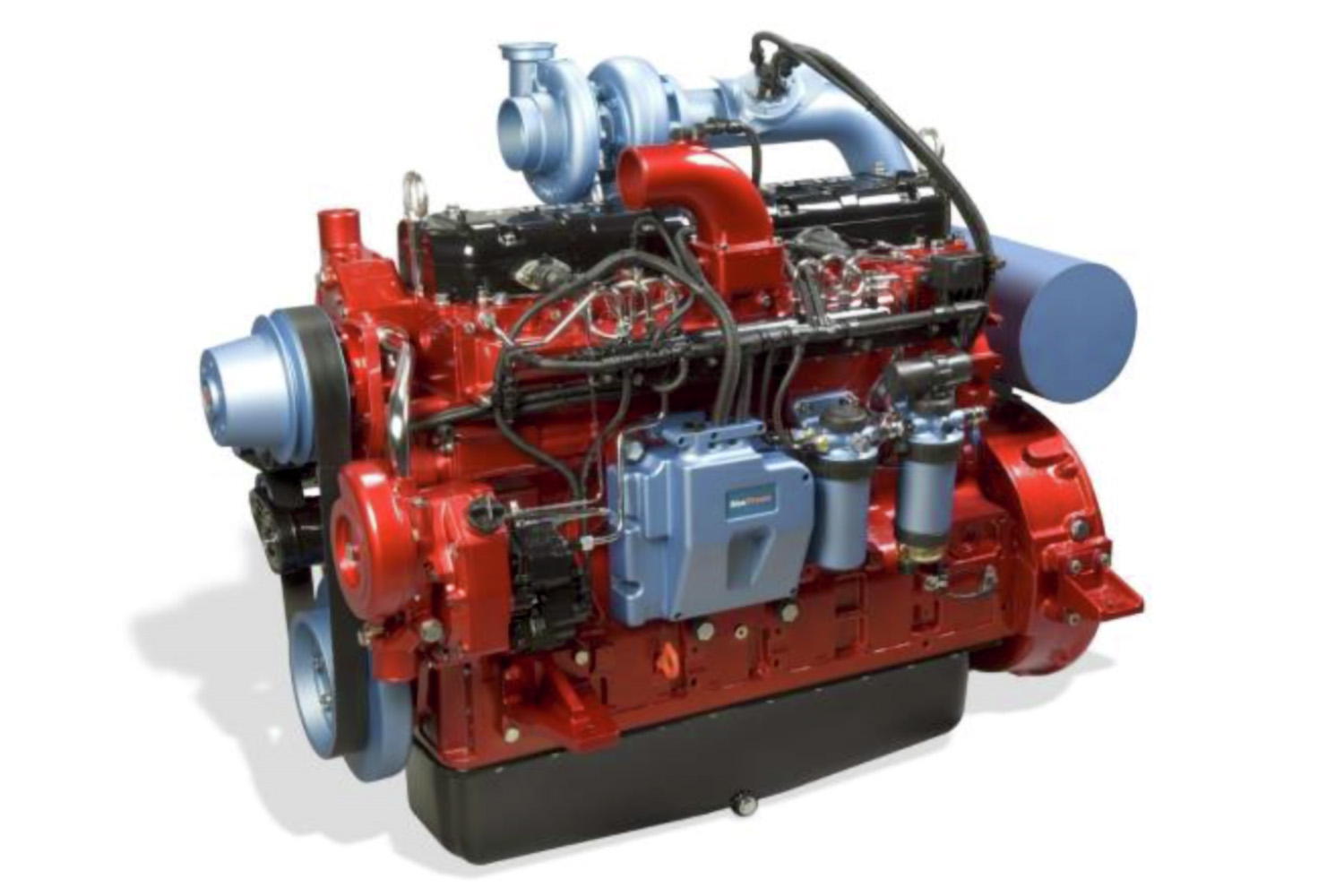

  • Type, Europe and North America: AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. Tier 4F.
  • Stroke volume (US gal): 1.95
  • Stroke volume (L): 7.4
  • Power (kW): 214 kW DIN @ 1 850 rmp
  • Power (HP): 287 net HP @ 1,850 rpm
  • Torque (Nm): 1,280 Nm at 1,500 rpm
  • Fuel tank (US gal): 139.7
  • Fuel tank (L): 529

  • Notes: The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.

  • Flow (L/min): 528 at 1 600 rpm
  • Flow (gpm): 139 at 1,600 rpm
  • System pressure (bar): 280
  • System pressure (psi): 4,061

  • Approximate weight (kg): From 22 790
  • Approximate weight (lbs): From 50,243

  • Driving speed (kph): 0 - approximately 24 kph
  • Driving speed (mph): 0 - approximately 14.9
  • Tractive force (lbf): 52,156
  • Tractive force (kN): 222

  • Available heads: C124, S132, C144, S172, C202
