Forestry

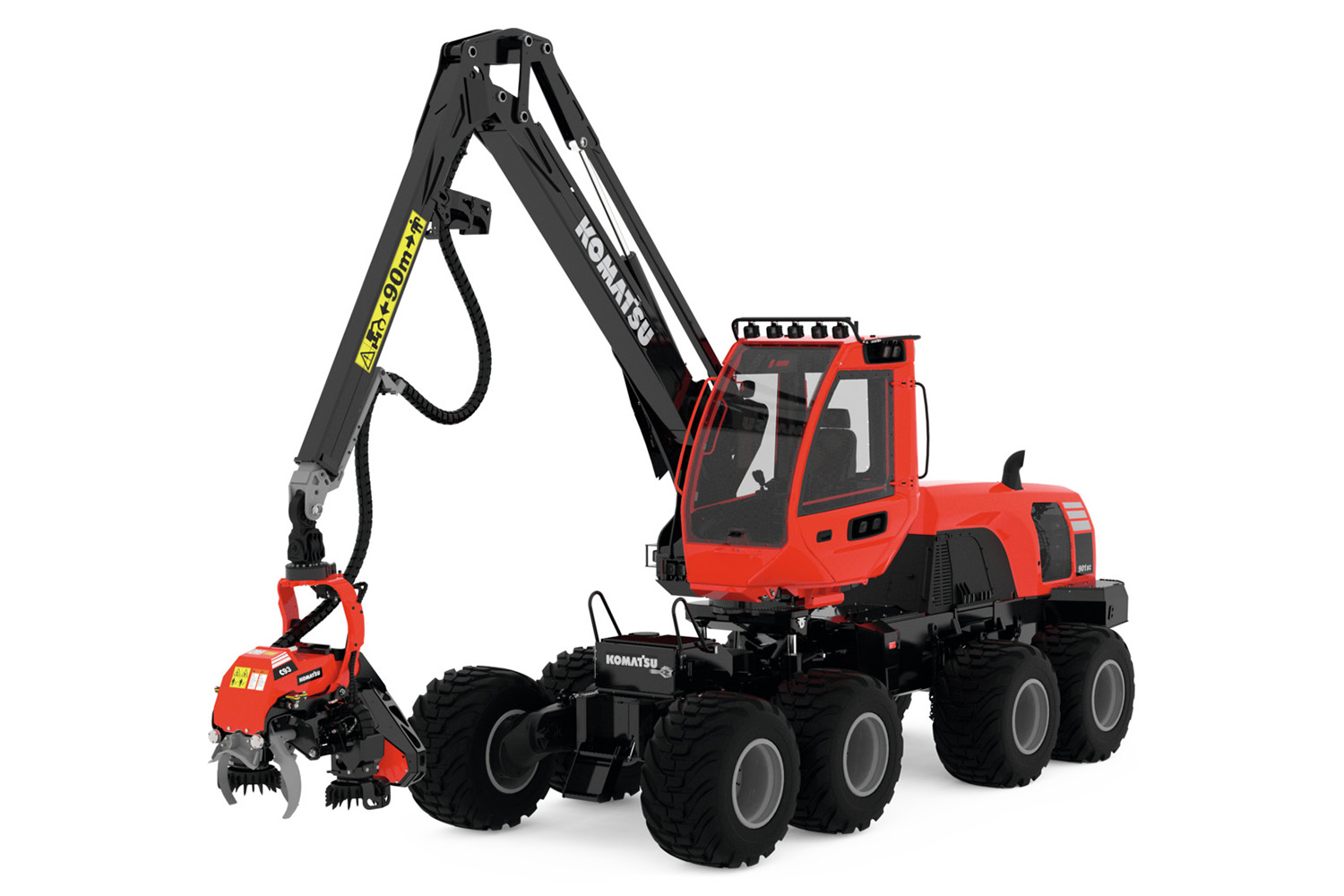

901XC-6
Wheeled harvesters
- Gross lifting torque (lbf-ft) 146,037
- Power (HP) 228 @ 1,900 rpm (EU Stage V, Tier 4F), 221 @ 1,900 rpm (Stage 2)
- Power (kW) 170 @ 1,900 rpm (EU Stage V, Tier 4F), 165 @ 1,900 rpm (Stage 2)
- Tractive force (kN) 184
- Tractive force (lbf) 41,365
- Gross lifting torque (kNm) 198
Reach further without losing ground

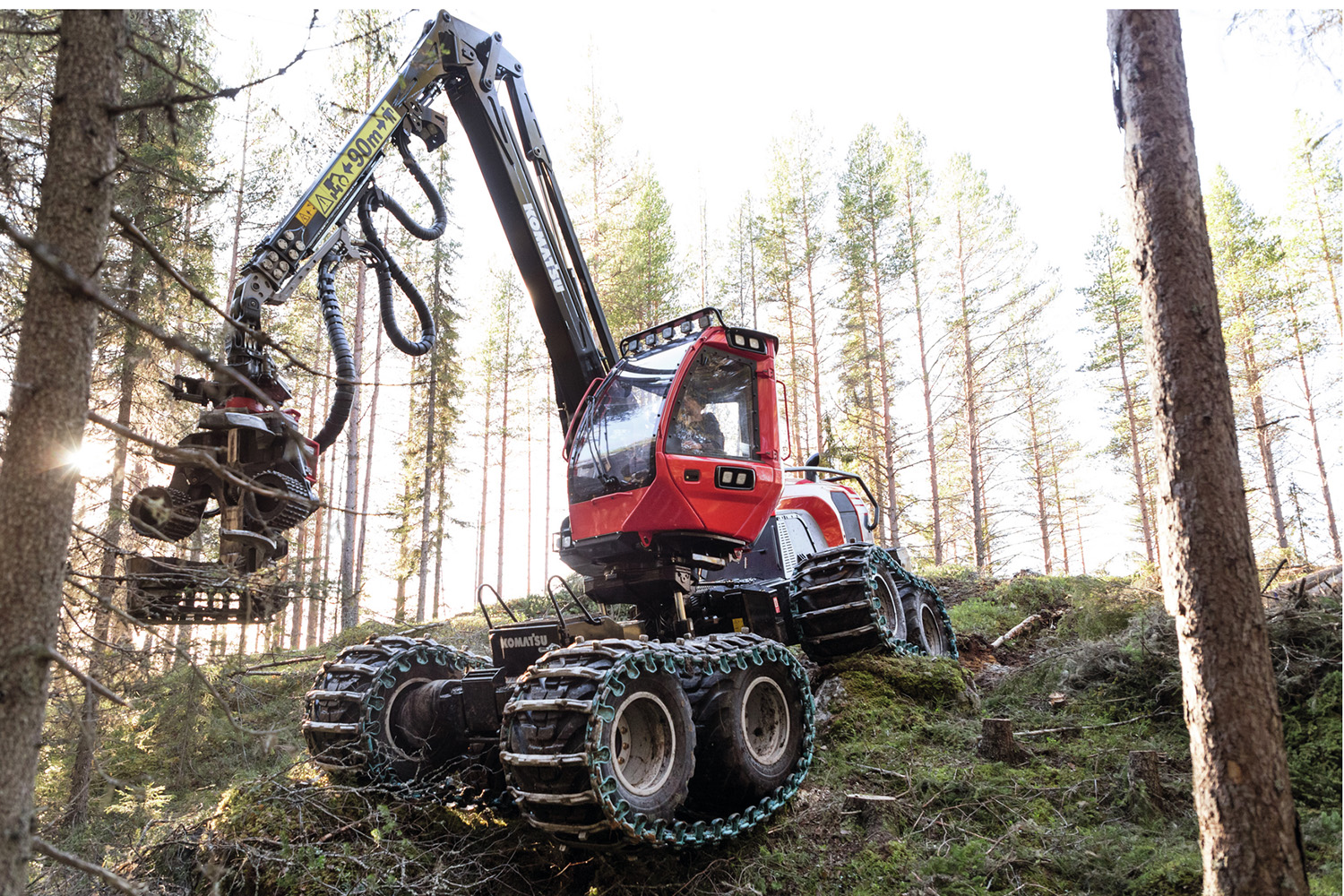

When you need thinning power with extreme stability, even at maximum reach. The 901XC-6 harvester's eight wheels enable you to maneuver softly, as well as harvest productively in steep or difficult terrain.
- ±180 degrees cab/crane rotation with automatic 4-way cab/crane leveling
- Three-pump hydraulic system enables simultaneous slewing, feeding and maneuvering
- Wide selection of Komatsu harvesting heads to meet your application
Features and benefits
Agile and low-impact thinning
Thinning in dense forests demands agility without harming standing trees. Our compact harvesters manoeuvre easily in tight spaces, with smooth cab and crane movements and a strong, fast parallel crane for efficient work.
A good overview simplifies the work
Good visibility is vital in thinning. Our harvester cab offers clear views of the head and treetops, while the crane placement beside the operator makes it easier to follow its movements, improving accuracy and reduces damage risk to standing forest.
A great place to work
Komatsu harvesters offer a premium operator environment with a spacious cab, excellent visibility and an ergonomic seat with multiple adjustments. Cab levelling keeps you comfortable and relaxed, even on steep terrain.
Your productivity in focus
Our harvesters are refined for productivity and profitability with powerful transmission, balanced bogies and the stable Komatsu concept. Energy-efficient parallel cranes and the 3PS hydraulic system deliver strong, simultaneous performance.
Easy to perform service
Servicing a Komatsu harvester is quick and efficient. Daily checks are done from ground level, with grouped inspection points and easy fluid monitoring from the cab. Automatic calibration and simplified refills ensure smooth, stress-free maintenance.
Specifications
- Full specs
- Gross lifting torque (lbf-ft): 14,604
- Gross lifting torque (kNm): 198
- Model and reach (ft): 200H: 32 ft 10 in / 36 ft 1 in
- Model and reach (m): 200H: 10 / 11
- Gross slewing torque (lbf-ft): 31,715
- Gross slewing torque (kNm): 43
- Length front axle to middle joint (mm): 1,850
- Length front axle to middle joint (ft): 6 ft 1 in
- Length middle joint to rear axle (mm): 2,100
- Length middle joint to rear axle (ft): 6 ft 11 in
- Ground clearance (at stearing joint) (mm): 650
- Ground clearance (at stearing joint) (ft): 12 ft 6 in
- Width (ft): With 600/45x24.5 tires: 9 ft 1 in
- Width (mm): With 600/45x24.5 tires: 2,776
- Transport height with tire compression (mm): 3,840 to top of roof, straight cab. 3,810 backwards tilted cab with tilted light ramp. Both measurements with tire compression.
- Transport height with tire compression (ft): 12 ft 7 in to top of roof, straight cab. 12 ft 6 in backwards tilted cab with tilted light ramp. Both measurements with tire compression.
- Voltage: 24 V
- Battery capacity: 2 x 180 Ah
- Generator: 2 x 100 A
- Type: AGCO Power 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4 F and Stage 2.
- Stroke volume (gal): 1.74
- Torque (Nm): 950 @ 1,500 rpm (EU Stage V, Tier 4F, Stage 2)
- Torque (ft-lbs): 701 @ 1,500 rpm (EU Stage V, Tier 4F, Stage 2)
- Fuel tank (gal): 102
- Stroke volume (L): 6.6
- Fuel tank (L): 415
- Power (HP): 228 DIN @ 1,900 rpm (EU Stage V, Tier 4F), 221 DIN @ 1,900 rpm (Stage 2)
- Power (kW): 170 DIN @ 1,900 rpm (EU Stage V, Tier 4F), 165 DIN @ 1,900 rpm (Stage 2)
- Flow (l/min): 400 @ 1,600 rpm
- Flow (gal/min): 139 @ 1,600 rpm
- System pressure (bar): 280
- System pressure (psi): 4,061
- Approximate weight (kg): From 20,210
- Approximate weight (lbs): From 44,555
- Tractive force (lbf): 41,365
- Driving speed (mph): 0 - approx. 13.4
- Tractive force (kN): 184
- Driving speed (km/h): 0 - approx. 21.5
- Available heads: S82, S92, C93, C124
