Komtrax monitoring system
Helps manage owning and operating costs by continuously monitoring and recording machine health and operational data such as fuel consumption and utilization. Tracks when maintenance is due so you can plan ahead.
Metric
Imperial (US)
Forestry
TL755D feller buncher
Tracked feller bunchers
- Horsepower (HP) 350
- Horsepower (kW) 261
- Tractive effort (kgf) Up to 46,984
- Tractive effort (lbf) Up to 103,583
- Lifting capacity (lb) Up to 14,900 at 20 feet
Robust leveling with a stable footprint and compact manueverability for high volume felling in difficult terrain with consistant productivity.
The TL755 is specifically designed for steep slope logging, with 350 hp to handle hydraulic demand and standard heavy-duty levelling system, increased tractive effort and wider stance for stability. Available with factory installed tethering hitches that are integrated into the carbody.
- 350 HP for full hydraulic flow and productivity
- Tight tail maneuverability and clearance
- Strength, durability and capability you can count on
Resources
Features and benefits
Power for productivity
To do more work, you need more power. The cooled-EGR Cummins L9 engine delivers 350 hp to run big attachments with full hydraulic capacity and handles multi-function operations with ease.
High lift capacity, big swing torque
Durable work equipment with large lift capacity for the heaviest attachments and high swing torque to move more with each rotation.
Revo Frame levelling
Promoting operator comfort and stability in challenging terrain, the upper features four-way levelling. It provides up to 24º of front, 7º of rear and 24º each way for lateral tilt. There is also automatic leveling available at the touch of a button.

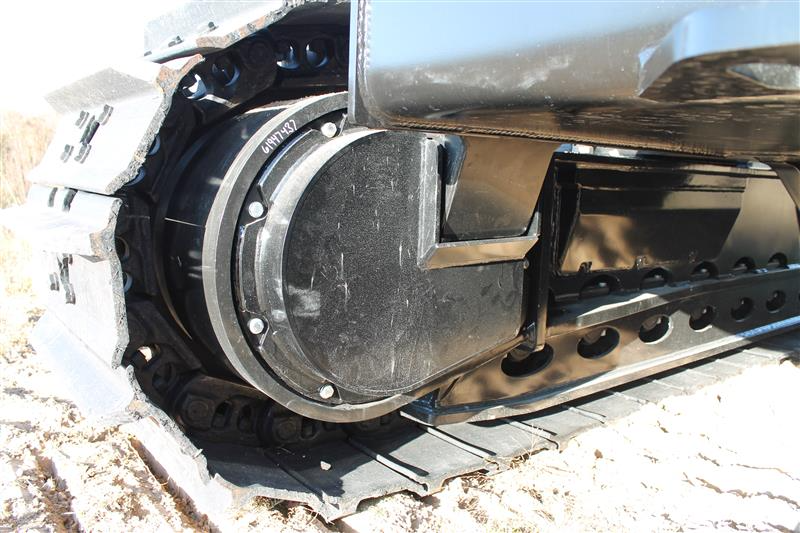

Closed loop track drives
With high output final drives, great traction and a stable wide-stance footprint, the TimberPro tracked machines make moving heavy loads up steep hills a breeze.
Benchmark tractive effort
To allow moving the machines through difficult terrain over stumps and boulders with ease.
High ground clearance
A broad footprint and centralized balance helps deliver a large working swath.
Planted stability at full reach
Large cab windows provide exellent operator line of sight visibility to the working area and factory camera systems help provide awareness to the surroundings.
Large, comfortable cab
A comfortable operator means less fatigue and more productivity shift after shift. The TimberPro cab features a spacious layout and available premium seating, with specially designed support, adjustability and multi-point restraints. Combined with sound reduction materials and high capacity climate controlled HVAC system, this operator cabin provides a luxurious and comfortable command center to get the job done.
Forestry specific design
With a ground up design, the TimberPro track machines were built to excel in tough forestry applications, with durability and capacity that match the requirements of the industry. From the specially designed work equipment, revo frames, undercarraige and hydraulics, these machines are built for the task at hand.
Easier serviceability
Keeping the machine running at its peak requires regular servicing, including clearing debris, so we designed access to be easier than previous models. Doors and panels are easy to open and storage areas — including a trunk — can store tools, fluids and more.
Forestry expertise that matters
TimberPro forest machines are built upon years of expertise and locally sourced quality. With vast experience in mechanized forestry technology and close relationships with end users, TimberPro is built by forest industry professionals for the forest industry, with product performance and function as a key component of the design ethos. When the application is demanding, demand the right machine for the job.
Support when you need it
With knowlegable support and world wide presence, you can be assured that the parts, service and support will be world class. Backed by a global brand name and reputation you can count on, you know that the ability to get the job done will be without question.
Specifications
- Full specs
Metric
Imperial (US)
Expand all
- Fuel tank (US gal): 256
- Fuel tank (L): 969
- Cooling system (US gal): 13.5
- Cooling system (L): 51
- Engine oil pan (US gal): 6.25
- Engine oil pan (L): 23.6
- Final drive per side (L): 10
- Final drive per side (US gal): 2.6
- Swing gear box (L): 4.43
- Swing gear box (US gal): 1.125
- Hydraulic tank (L): 454
- Hydraulic tank (US gal): 120
- DEF (US gal): 15
- DEF (L): 56.8
- Car body: HD boxed frame structure with flat bottom, storage trunk, integrated fuel tank
- Track frame: HD boxed structure with shoe support
- Track type: Grease sealed
- Number of shoes/links (per side): 48
- Track rollers (per side): 10
- Drive method type: Hydrostatic
- Parking brake type: Oil bath multi disc holding brake, spring applied, hybrid release
-
Max travel speed
- High (kph): 7.08
- High (mph): 4.4
- Low (kph): 2.25
- Low (mph): 1.4
- Swing speed (rpm): 6.6
- Swing torque (lbs-ft): 64608
- Swing torque (nm): 87.6
- Swing brake: Oil bath multi disc holding brake, spring applied, hybrid release
- Implement pump (gpm): 96
- Implement pump (L/min): 363
- Travel motor: Hydrostatic
- Engine Model: Cummins L9 Performance
- Engine type: Water cooled, 4-cycle, XPI fuel injection
- Aspiration: eVGT, after cooled, cooled EGR
- Bore (mm): 114
- Bore (in): 4.49
- Stroke (mm): 145
- Stroke (in): 5.86
- Piston displacement (in^3): 540
- Piston displacement (L): 8.9
- Fan drive type: Hybrid, variable speed, auto reverse
- Engine details: T4F/Stage 5 emissions certified
-
Horsepower
- Peak (HP): 350
- Peak (kW): 261
- Rated (kW): 350
- Rated (HP): 261
- Peak torque (Nm): 1561
- Peak torque (lbs-ft): 1151
- Operating weight (kg): 34850
- Operating weight (lbs): 76670
