Forestry

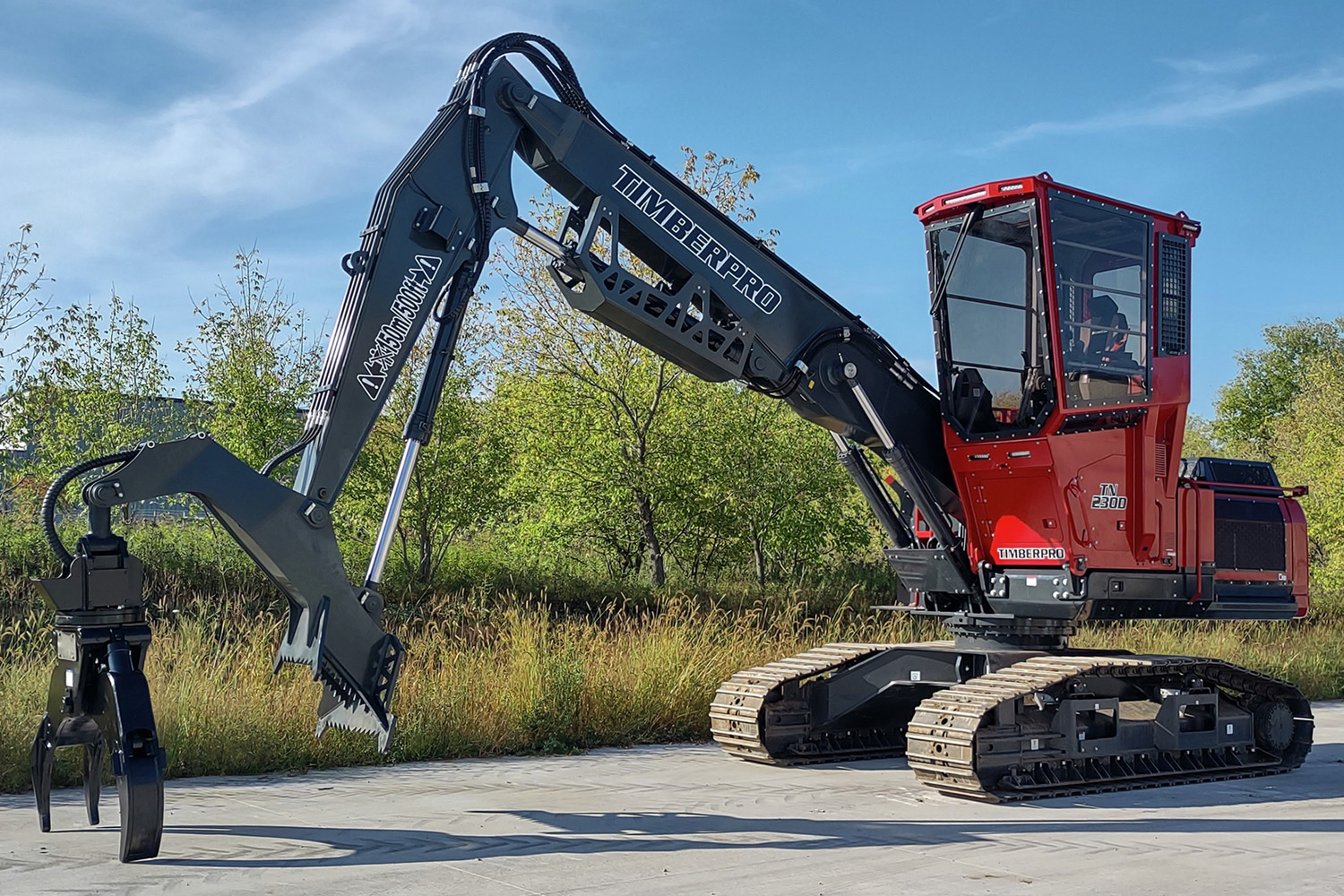

TN230D

Swing machines

  • Horsepower (HP) 197 HP @ 2,050 rpm
  • Horsepower (kW) 147 net kW @ 2 050 rpm
  • Operating weight (kg) 33 400
  • Operating weight (lbs) 73,500
  • Swing torque (ft-lbs) 58,334
  • Swing torque (kg-m) 8 065

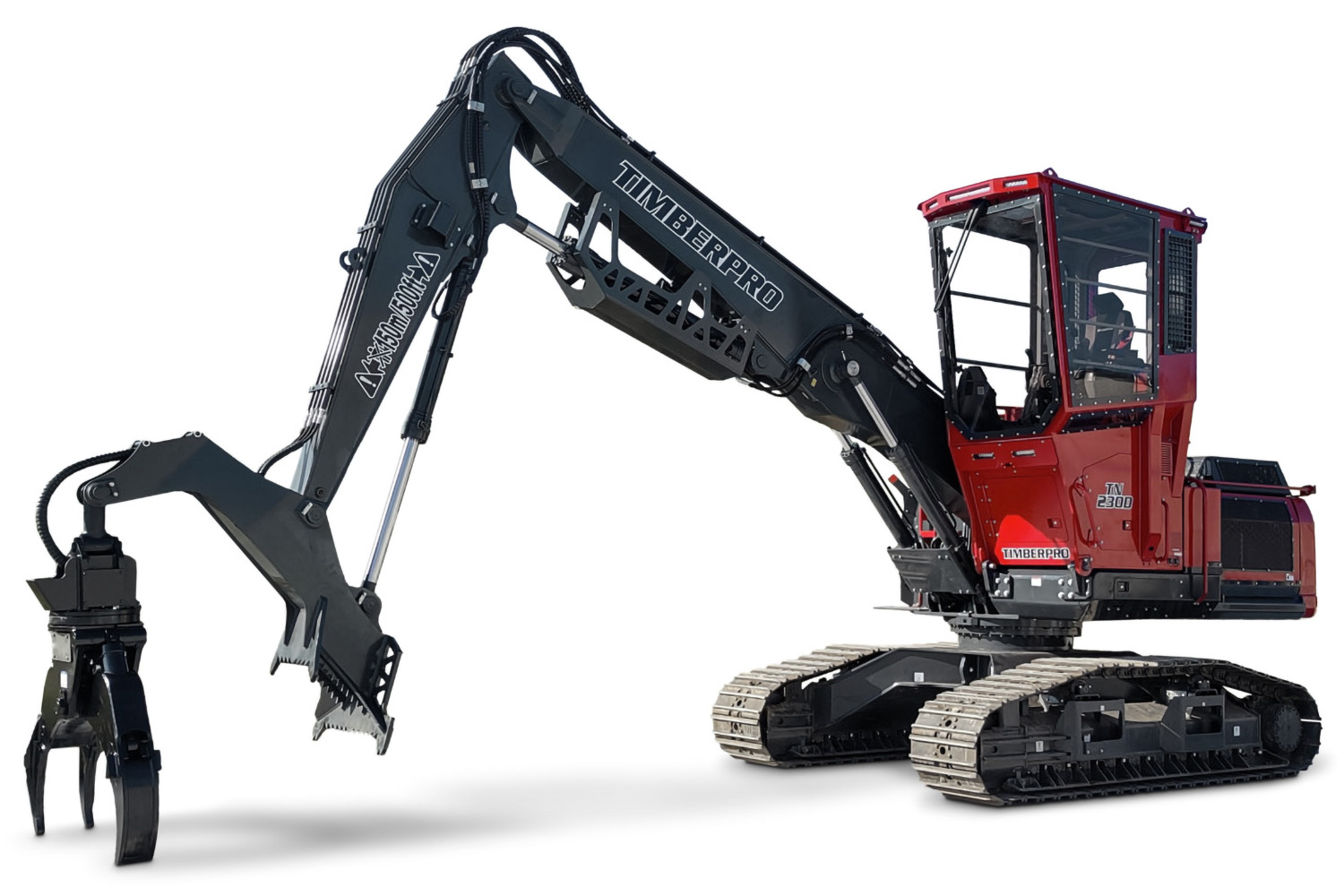

A swing machine purpose-built for productivity

We developed the TN230D from the ground up with one goal — merging quality components with the latest technology. Your forestry operation will benefit from increased horsepower and faster cycle times.* Operators will appreciate the wide views, rear-entry cab design and large cooling package.

  • Excellent visibility — elevated cabin with large windows, overhead skylight and front-view camera
  • Dual service platforms — the first in this machine class segment to offer this feature
  • Improved service access capabilities to components* such as the engine and hydraulic main valve

*Increased power, faster cycle times and improved service access compared to the PC210LL-10 Komatsu truck loader (a similar class machine).

Features and benefits

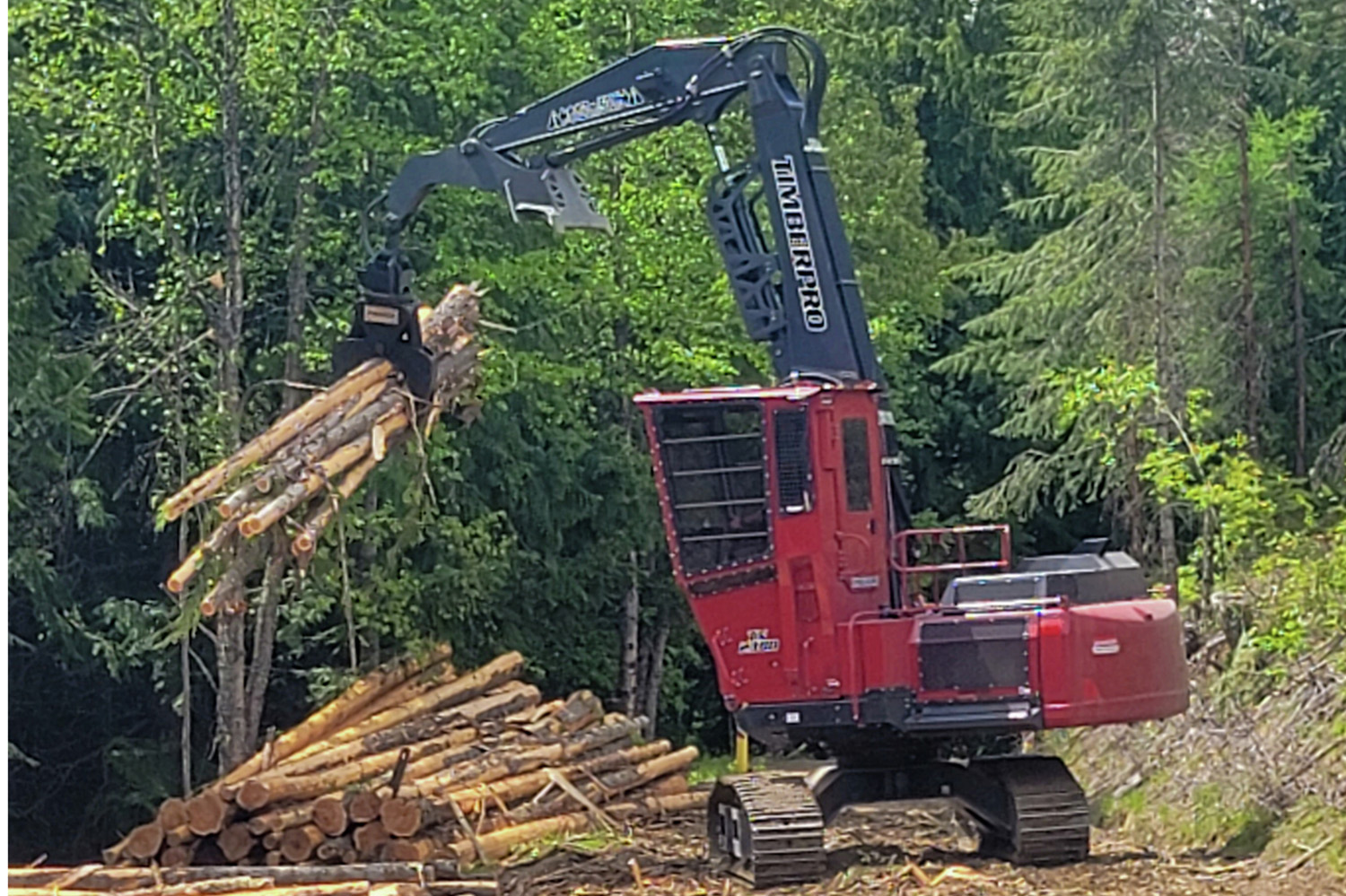

Purpose-built forestry machine

Purpose-built forestry machine

Total ground-up design for tough forestry jobs. Features and improvements were engineered by integrating customer feedback.

Exceptional serviceability

Exceptional serviceability

Electrically actuated left and right-side service platforms with repositioning of the main valve to allow better access. Also allows better entry to the engine through the large electronically powered engine hood.

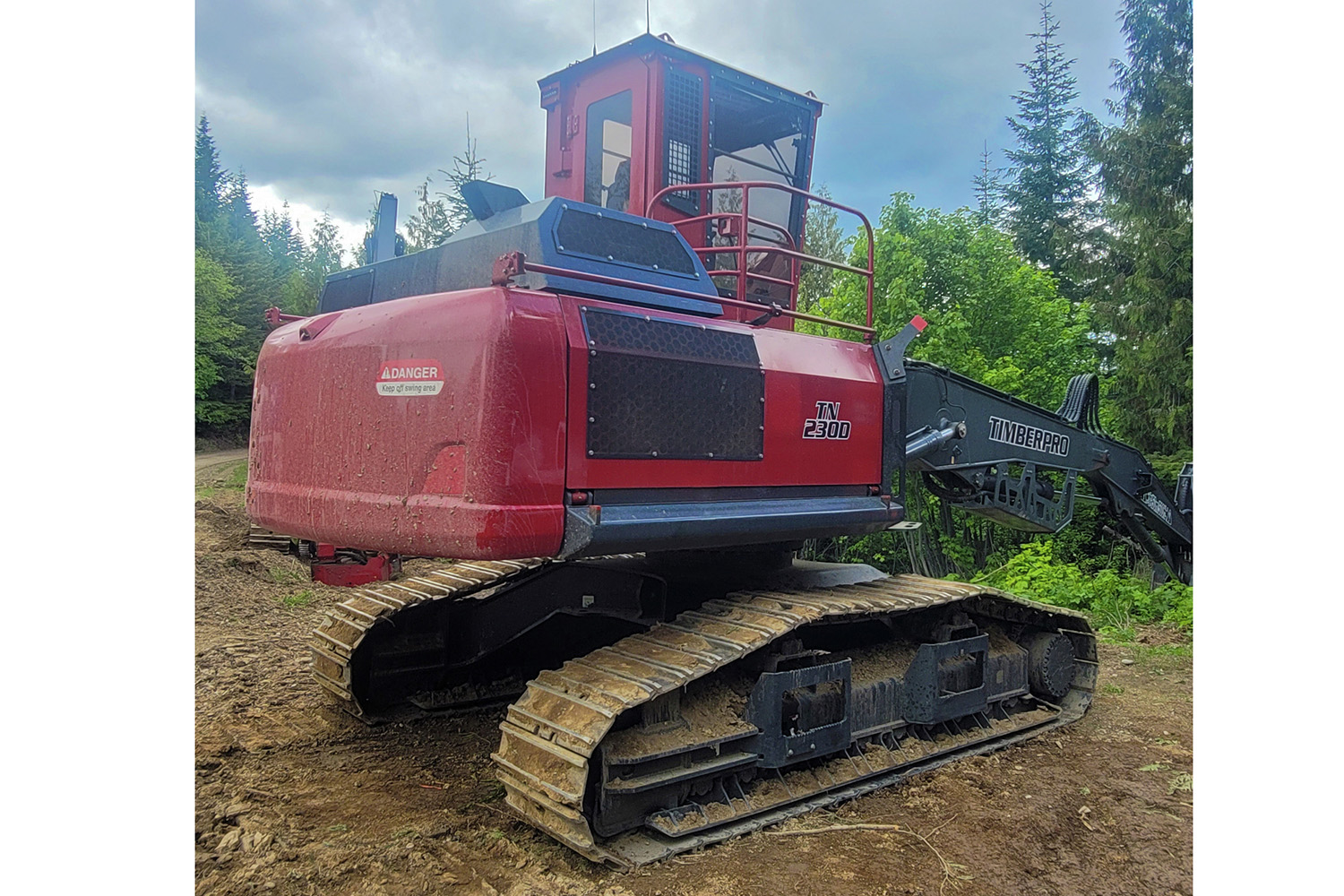

User-friendly operator accessibility

User-friendly operator accessibility

Swing machine is designed to drive zero harm when the operator is entering the cab. Rear entry cab includes walkways and safety railings.

Designed for reliability and durability

Designed for reliability and durability

Built with proven, high-quality components. Hydraulic system, powertrain, control valve and interior components are designed and manufactured in-house to help ensure performance and quality control.

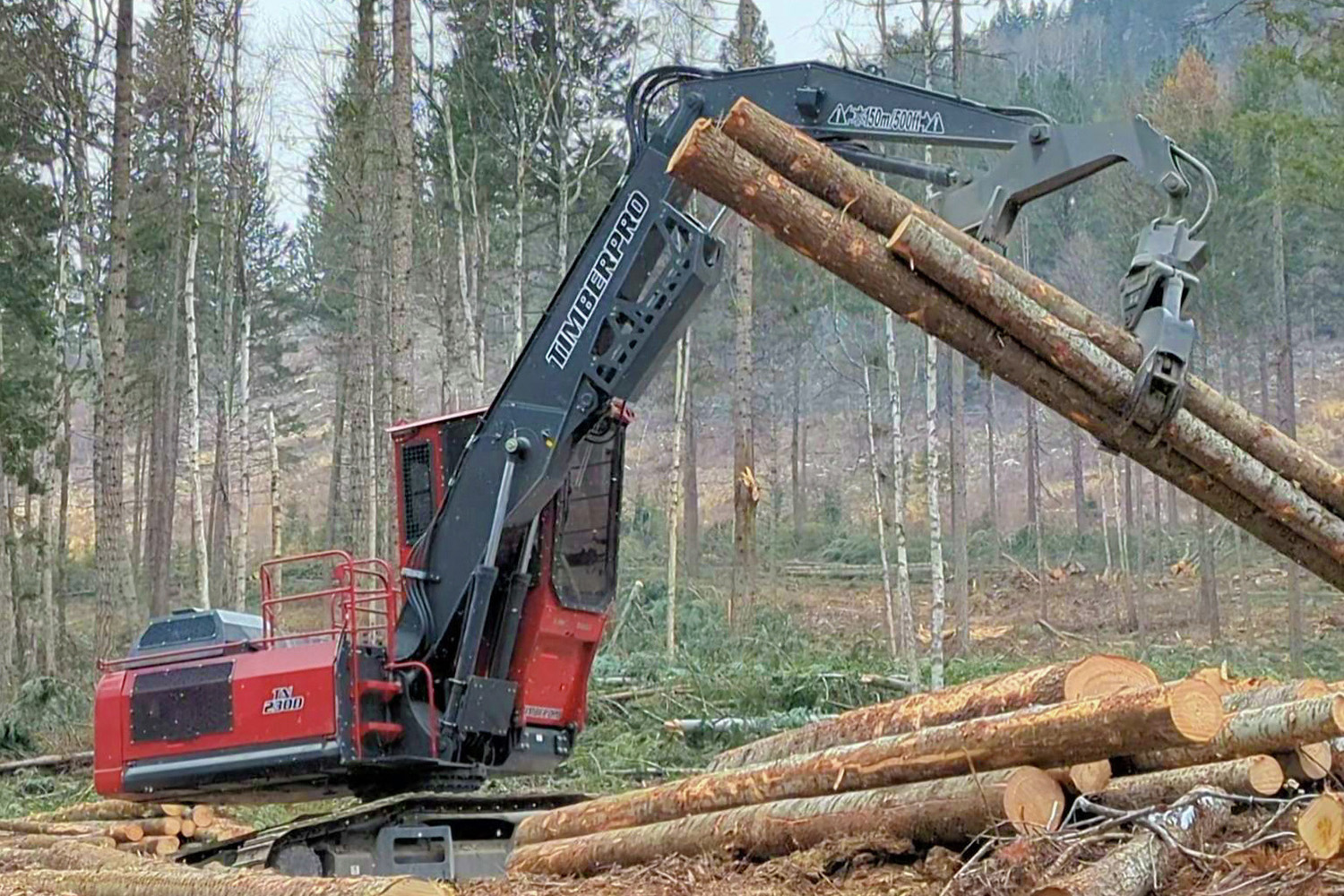

Excellent operator visibility

Excellent operator visibility

Elevated cabin with large windows and front view camera to optimize operator visibility. Large overhead skylight also allows better visibility and improves the operator experience.

Power Max

Power Max

Useful when your operators need a boost of power for forestry challenges. Power Max momentarily increases the engine horsepower and hydraulic flow to help accomplish a tough task.


Specifications

Metric Imperial (US)
Expand all

  • Hydraulics type: Hydra Mind (hydraulic mechanical intelligence system) is a closed-center system with load sensing valves and pressure-compensated valves
  • Number of selectable working modes: 6
  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motors with parking brake
  • Relief valve setting

    • Implement circuits (MPa): 387
    • Implement circuits (psi): 5,511
    • Implement circuits (kgf/cm^2): 38
    • Travel circuit (kgf/cm^2): 387
    • Travel circuit (MPa): 38
    • Travel circuit (psi): 5,511
    • Swing circuit (kgf/cm^2): 289
    • Swing circuit (psi): 4,119
    • Swing circuit (MPa): 3.3
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (psi): 478
    • Pilot circuit (MPa): 3.3
  • Main pump

    • Hydraulic type: Variable displacement piston type
    • Pumps for: Boom, arm, swing and travel circuits
    • Maximum flow (L/min): 475
    • Maximum flow (US gpm): 125.5
    • Supply for control circuit: Self-reducing valve
  • Hydraulic cylinders (Bore x Stroke x Rod Diameter)

    • Boom / 2 (mm): 135 x 1 335 x 95
    • Boom / 2 (in): 5.3 x 52.6 x 3.7
    • Arm / 1 (mm): 140 x 1 635 x 100
    • Arm / 1 (in): 5.3 x 64.4 x 3.9

  • Maximum drawbar pull: 210 kN, 21,618 kgf
  • Maximum drawbar pull (lbs): 47,659 lbf
  • Gradeability: 35 degrees
  • Maximum travel speed (auto-shift)

    • High (mph): 3.47
    • High (kph): 5.6
    • Mid (mph): 2.29
    • Mid (kph): 3.7
    • Low (kph): 2.9
    • Low (mph): 1.8
    • Parking brake: Mechanical disc brake
    • Service brake: Hydraulic lock

  • Drive method: Hydrostatic
  • Swing reduction: Planetary gear
  • Swing circle lubrication: Grease-bathed
  • Holding brake/Swing lock: Mechanical disc brake
  • Swing speed (rpm): 11.7
  • Swing torque (ft-lbs): 58,334
  • Swing torque (kg-m): 8 065

  • Fuel tank (US gal): 105.7
  • Fuel tank (L): 400
  • Coolant (L): 35.5
  • Coolant (US gal): 9.4
  • Engine (US gal): 6.1
  • Engine (L): 23.1
  • Final drive (US gal): 1.3
  • Final drive (L): 5
  • Swing drive (L): 7.2
  • Swing drive (US gal): 1.9
  • DEF tank (US gal): 6.1
  • DEF tank (L): 23.1
  • Hydraulic tank (L): 132
  • Hydraulic tank (US gal): 34.9
  • Hydraulic system (US gal): 66.8
  • Hydraulic system (L): 253

  • Engine Model: Komatsu SAA6D170E-3
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Komatsu variable geometry, turbo-charged, after-cooled, cooled Exhaust Gas Recirculation (EGR)
  • Number of cylinders: 6
  • Bore (in): 4.21
  • Bore (mm): 107
  • Stroke (in): 4.88
  • Stroke (mm): 124
  • Piston displacement (L): 6.69
  • Piston displacement (in^3): 408
  • Fan drive method for radiator cooling: Mechanical
  • Governor: All-speed control, electronic
  • Horsepower

    • ISO 9249 / SAE J1349 - Net (kW): 147 kW @ 2,050 rpm
    • ISO 9249 / SAE J1349 - Net (HP): 197 HP @ 2,050 rpm
    • SAEJ1995 - Gross (kW): 159 kW @ 2,050 rpm
    • SAEJ1995 - Gross (HP): 213 HP @ 2,050 rpm

  • Center frame: X-frame
  • Track frame: Box-section
  • Seal of track: Sealed track
  • Track adjuster: Hydraulic
  • Number of shoes (each side): 51
  • Number of carrier rollers (each side): 2
  • Number of track rollers (each side): 10
Metric Imperial (US)
Engine and related components
  • Engine, Komatsu SAA6D107E-3, Tier 4 final
    Gross HP (J1995): 213 HP
    Net HP (J1349): 197 HP
  • Komatsu Diesel Particulate Filter (KDPF)
  • Selective Catalytic Reduction (SCR)
  • After-cooled, turbocharged direct injection
  • Air cleaner, double element
  • Fuel pre-filter, 10 micron
Cooling system
  • Radiator/oil cooler (8.5 fins per inch)
  • Variable pitch, automatic reversing fan
Electrical system
  • Alternator (90 amps / 24V)
  • Large capacity batteries (2 x 12V)
  • Starter motor (5.5 kW / 24 V x1)
  • Working Lights: 12 LED Lights (13 tree deflector guard)
  • Engine shutdown secondary switch
  • Battery disconnect switch
  • 24 V-12 converter, 30 A
Undercarriage
  • High/wide forestry undercarriage
  • Heavy-duty revolving frame
  • 28” double grouser shoes
  • Track rollers, HD 10/side
  • Carrier rollers (2), track type/side
  • Heavy-duty recoil spring
  • Heavy-duty tow hooks
  • Track guard full-length ski-type
Guards and covers
  • Dustproof net for radiator and oil cooler
  • Heavy-duty forestry guards
  • Heavy-duty doors, .24” thick
  • Heavy-duty under guard .24” thick
  • Pump/engine partition cover
  • Forestry debris screens
  • Grip strut walkways
  • Boom cylinder guard
  • Brush deflector guard
Operating equipment
  • Komatsu forestry cab with 48” fixed riser
  • 1.25” polycarbonate front window
  • ROPS/OPS/TOPS/FOPS/WCB/Oregon OSHA certified
  • Automatic HVAC
  • Monitor panel, LCD, high-resolution color
  • Equipment management monitoring system (EMMS)
  • Seat, high back, air suspension, heated/cooled
  • Radio with Bluetooth
  • Adjustable arm rests
  • Cup holder
  • 3" lap belt
Work equipment
  • Forestry boom 20.2'
  • Forestry arm 11'5"
  • Truck loading-specific piping package
  • Case drain filter, high pressure filtration
  • Boom and arm holding valve
Hydraulic controls
  • Axial piston swing motor (1)
  • Axial piston travel motors (2)
  • Variable capacity piston pumps (2)
  • Closed Center Load Sensing Pumps (CCLS)
  • Hydraulic pump high-pressure discharge filters
  • PC240-class swing bearing and swing machinery
  • Engine/hydraulic overheat prevention system
Drive and brake system
  • PC240-class final drives
  • 3-speed travel with auto shift
<>Other equipment
  • Komtrax Level 5.0 monitoring system
  • Rear view monitoring camera
  • Electronically fold-down service platforms (2)
  • Tie-off point for service
Engine and related components
  • Engine, Komatsu SAA6D107E-3, Tier 4 final
    Gross HP (J1995): 159 kW
    Net HP (J1349): 147 kW
  • Komatsu Diesel Particulate Filter (KDPF)
  • Selective Catalytic Reduction (SCR)
  • After-cooled, turbocharged direct injection
  • Air cleaner, double element
  • Fuel pre-filter, 10 micron
Cooling system
  • Radiator/oil cooler (8.5 fins per inch)
  • Variable pitch, automatic reversing fan
Electrical system
  • Alternator (90 amps / 24V)
  • Large capacity batteries (2 x 12V)
  • Starter motor (5.5 kW / 24 V x1)
  • Working Lights: 12 LED Lights (13 tree deflector guard)
  • Engine shutdown secondary switch
  • Battery disconnect switch
  • 24 V-12 converter, 30 A
Undercarriage
  • High/wide forestry undercarriage
  • Heavy-duty revolving frame
  • 700 mm double grouser shoes
  • Track rollers, HD 10/side
  • Carrier rollers (2), track type/side
  • Heavy-duty recoil spring
  • Heavy-duty tow hooks
  • Track guard full-length ski-type
Guards and covers
  • Dustproof net for radiator and oil cooler
  • Heavy-duty forestry guards
  • Heavy-duty doors, 6 mm thick
  • Heavy-duty under guard .6 mm thick
  • Pump/engine partition cover
  • Forestry debris screens
  • Grip strut walkways
  • Boom cylinder guard
  • Brush deflector guard
Operating equipment
  • Komatsu forestry cab with 48” fixed riser
  • 32 mm polycarbonate front window
  • ROPS/OPS/TOPS/FOPS/WCB/Oregon OSHA certified
  • Automatic HVAC
  • Monitor panel, LCD, high-resolution color
  • Equipment management monitoring system (EMMS)
  • Seat, high back, air suspension, heated/cooled
  • Radio with Bluetooth
  • Adjustable arm rests
  • Cup holder
  • 3" lap belt
Work equipment
  • Forestry boom 6 155 mm
  • Forestry arm 3 500 mm
  • Truck loading-specific piping package
  • Case drain filter, high pressure filtration
  • Boom and arm holding valve
Hydraulic controls
  • Axial piston swing motor (1)
  • Axial piston travel motors (2)
  • Variable capacity piston pumps (2)
  • Closed Center Load Sensing Pumps (CCLS)
  • Hydraulic pump high-pressure discharge filters
  • PC240-class swing bearing and swing machinery
  • Engine/hydraulic overheat prevention system
Drive and brake system
  • PC240-class final drives
  • 3-speed travel with auto shift
Other equipment
  • Komtrax Level 5.0 monitoring system
  • Rear view monitoring camera
  • Electronically fold-down service platforms (2)
  • Tie-off point for service
Metric Imperial (US)
Guards and covers
  • Tree guard and toolbox protector
Operator environment
  • Top, front, rear and side sunshades
Other equipment
  • 4-point operator's harness
Guards and covers
  • Tree guard and toolbox protector
Operator environment
  • Top, front, rear and side sunshades
Other equipment
  • 4-point operator's harness

Technology that works as hard as you do

Select continent

Komtrax monitoring system

Helps manage owning and operating costs by continuously monitoring and recording machine health and operational data such as fuel consumption and utilization. Tracks when maintenance is due so you can plan ahead.
