Forestry

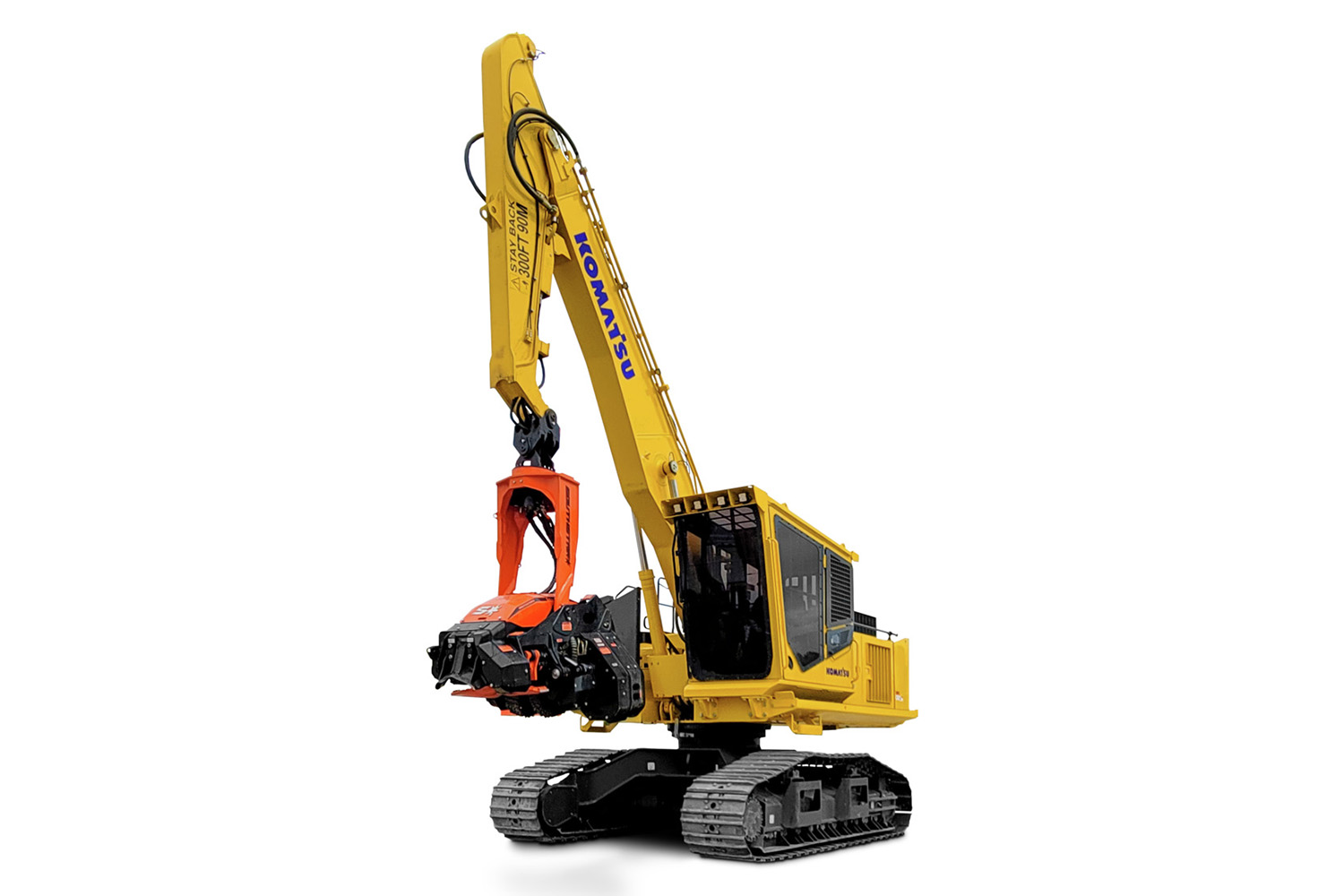

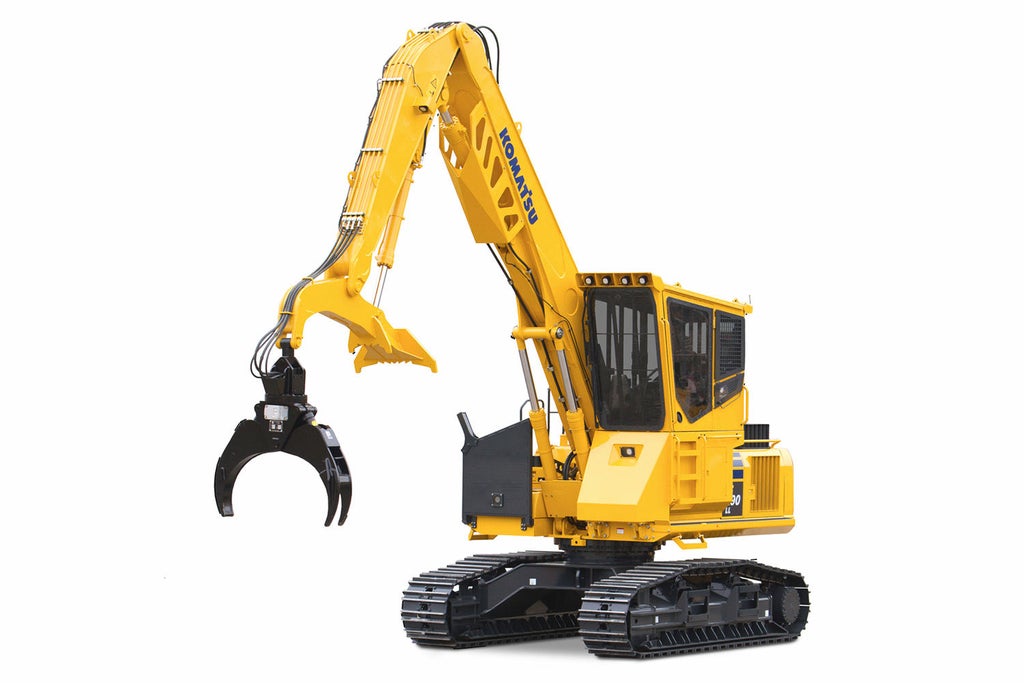

PC230F-11

Swing machines

  • Horsepower (HP) 197
  • Horsepower (kW) 147
  • Operating weight (kg) 30 625
  • Operating weight (lbs) 67,516
  • Swing torque (ft-lbs) 58,334
  • Swing torque (kg-m) 8 065

Powerful and rugged

Your crews need equipment that can deliver exceptional performance in difficult environments. With its rugged design, high and wide undercarriage, powerful swing motor and ability to withstand high-debris conditions, the PC230F-11 processor is built specifically for the job. A comfortable and quiet cab, too.

  • High and wide undercarriage
  • Powerful swing system
  • Double-capacity fuel tank
  • Comfortable, quiet cab
  • Engineered for high-debris environments

Features and benefits

Exceptional range of motion

Exceptional range of motion

Move large trees around easily thanks to a powerful swing system and a large swing circle. Achieve exceptional reach, as well — up to 29 feet (8,951 mm). Superior maneuverability helps you drive productivity.

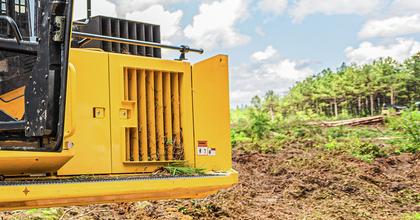

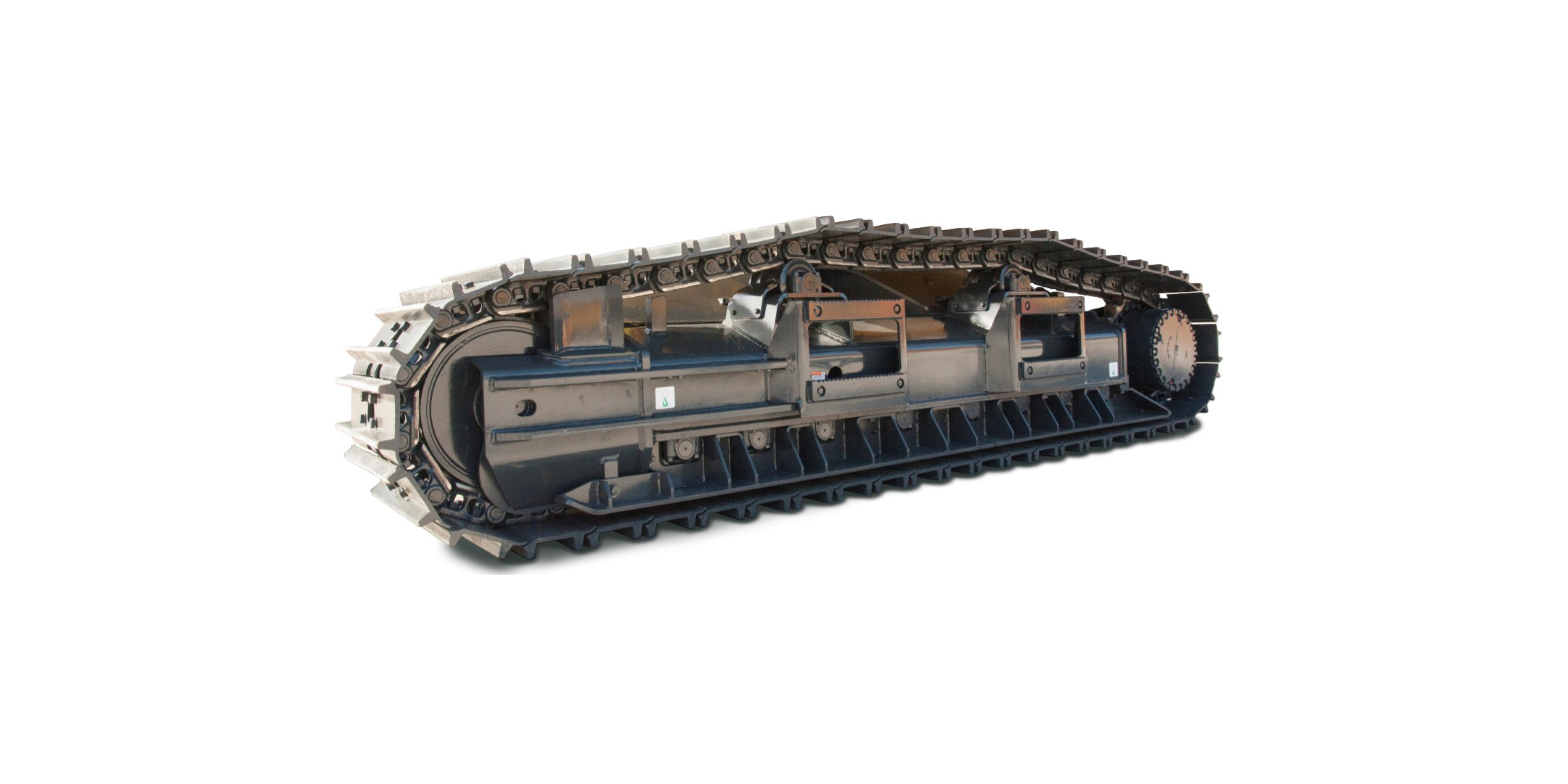

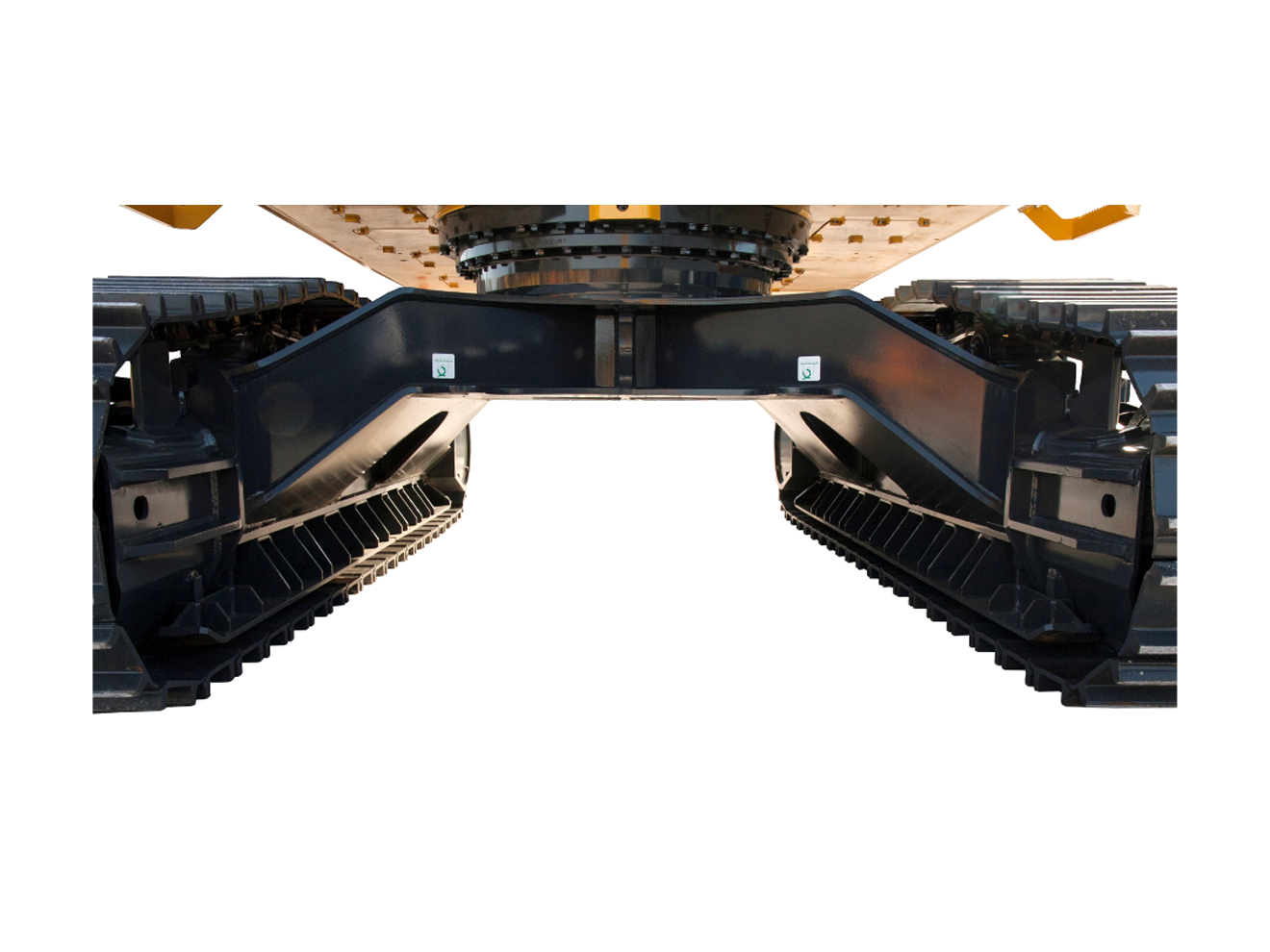

Excellent ground clearance

Excellent ground clearance

Maneuvers reliably in tough forestry environments thanks to a high and wide undercarriage designed with larger class-size components.

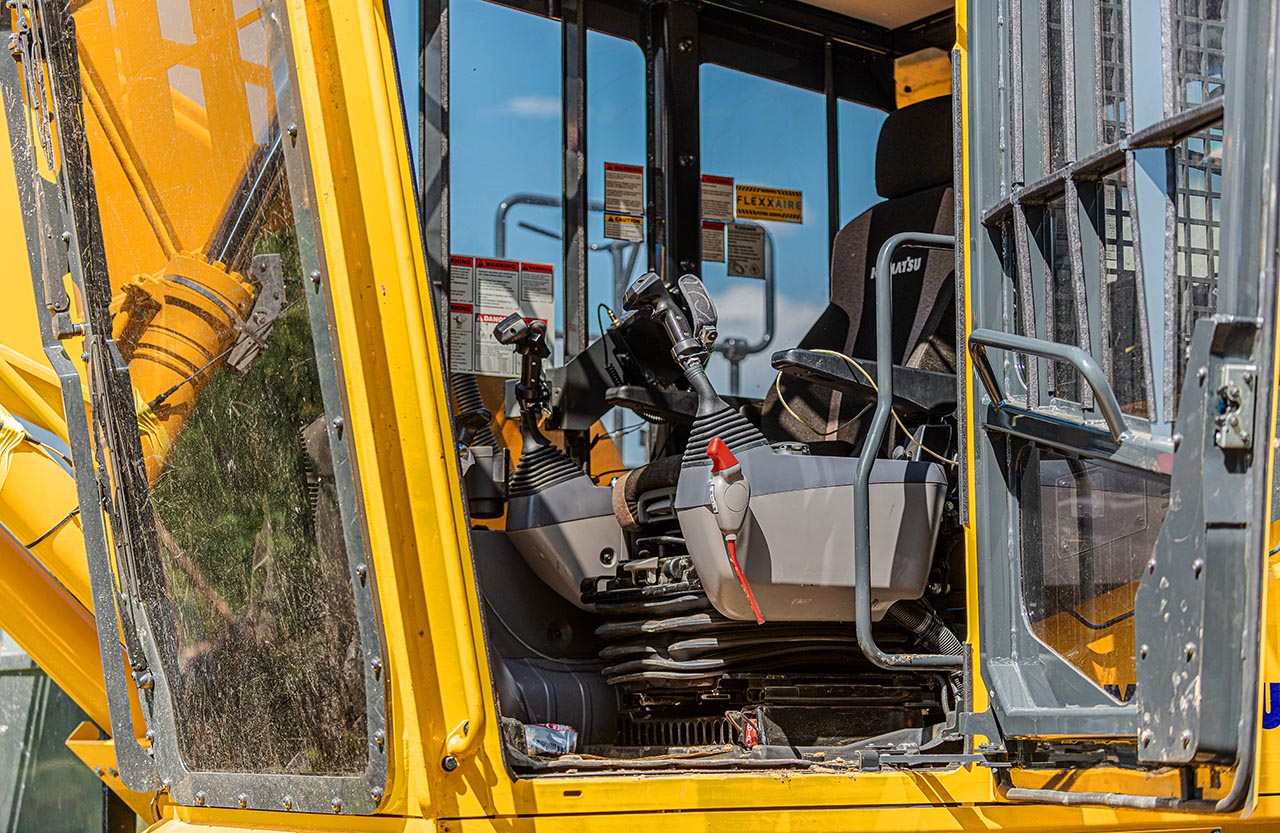

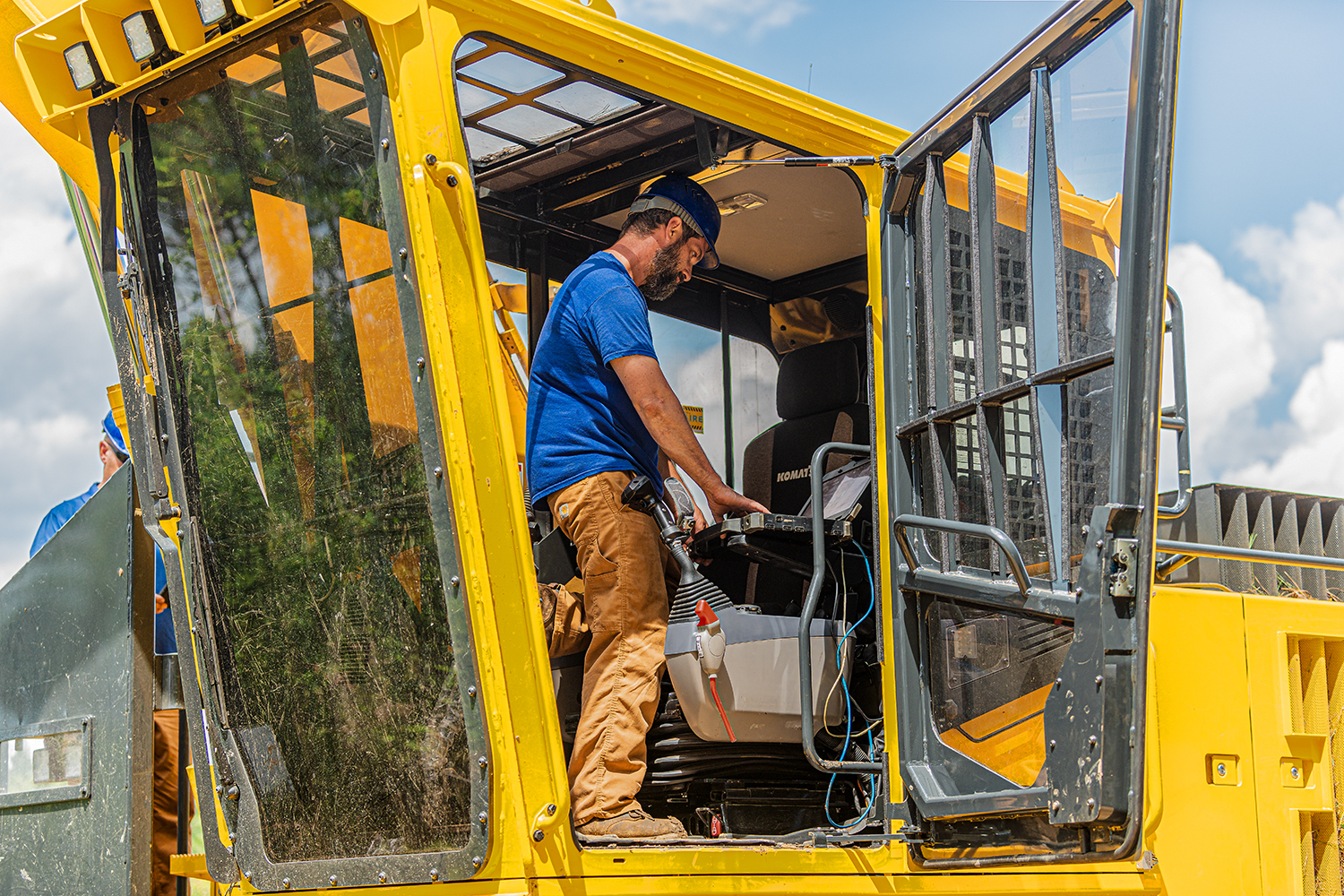

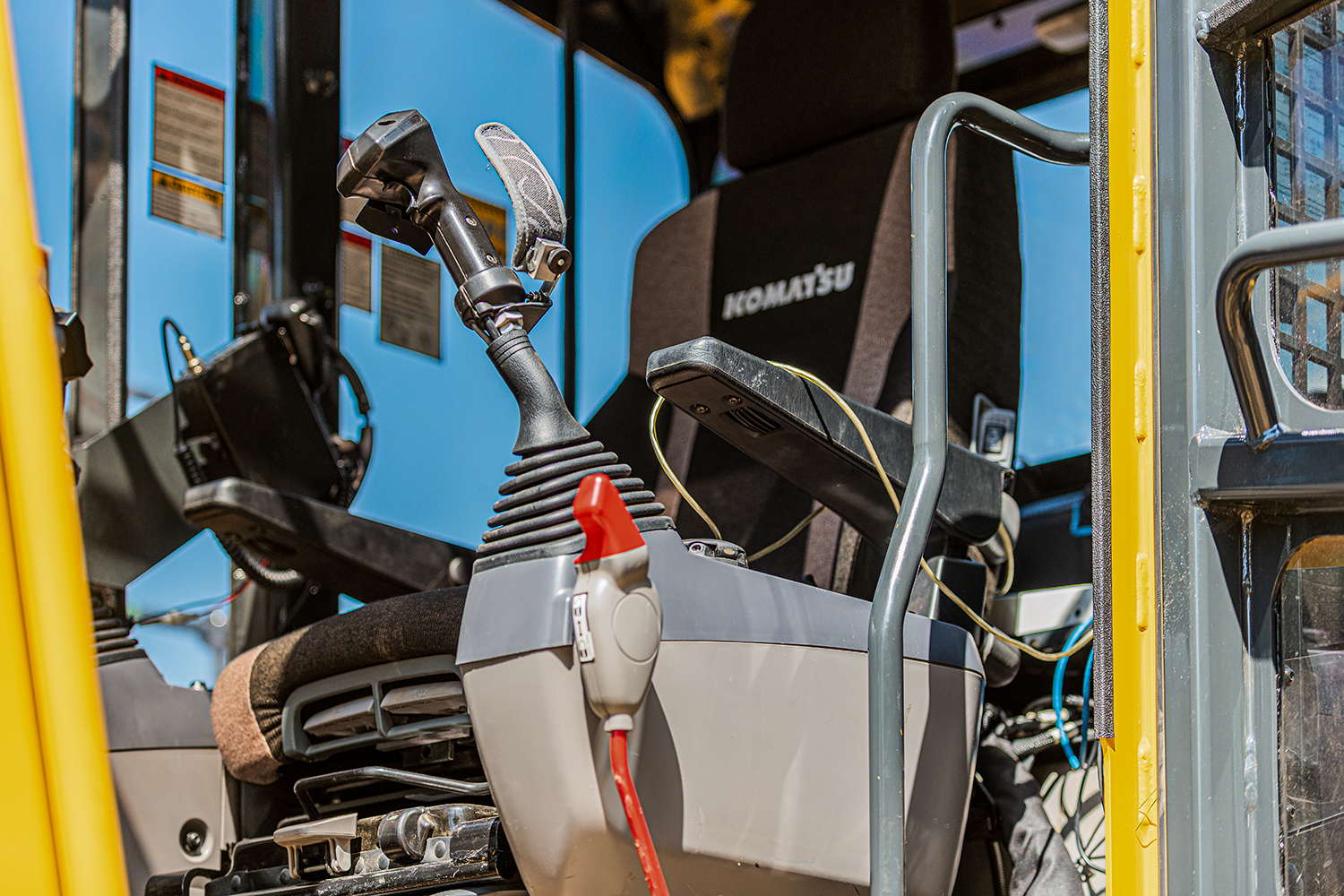

Comfortable, quiet cab

Comfortable, quiet cab

Reduce fatigue and support productivity by giving your operators a quiet, comfortable work environment. Cabs are climate-controlled and equipped with Bluetooth technology. The cushioned air-suspension seat can be heated or cooled.

Protects against falling limbs

Protects against falling limbs

An extra-rugged exterior protects your investment by guarding against falling limbs, with glass and metal are thick enough withstand demanding environments. Thicker service undercover guards, thicker rear compartment doors, right corner guard with tree deflector and much more.

Stands up to debris

Stands up to debris

Minimize worries when working in high-debris conditions with a machine engineered to handle the situation. A robust wide-fin radiator design is protected by fine screens and a variable pitch reversing fan delivers improved airflow.

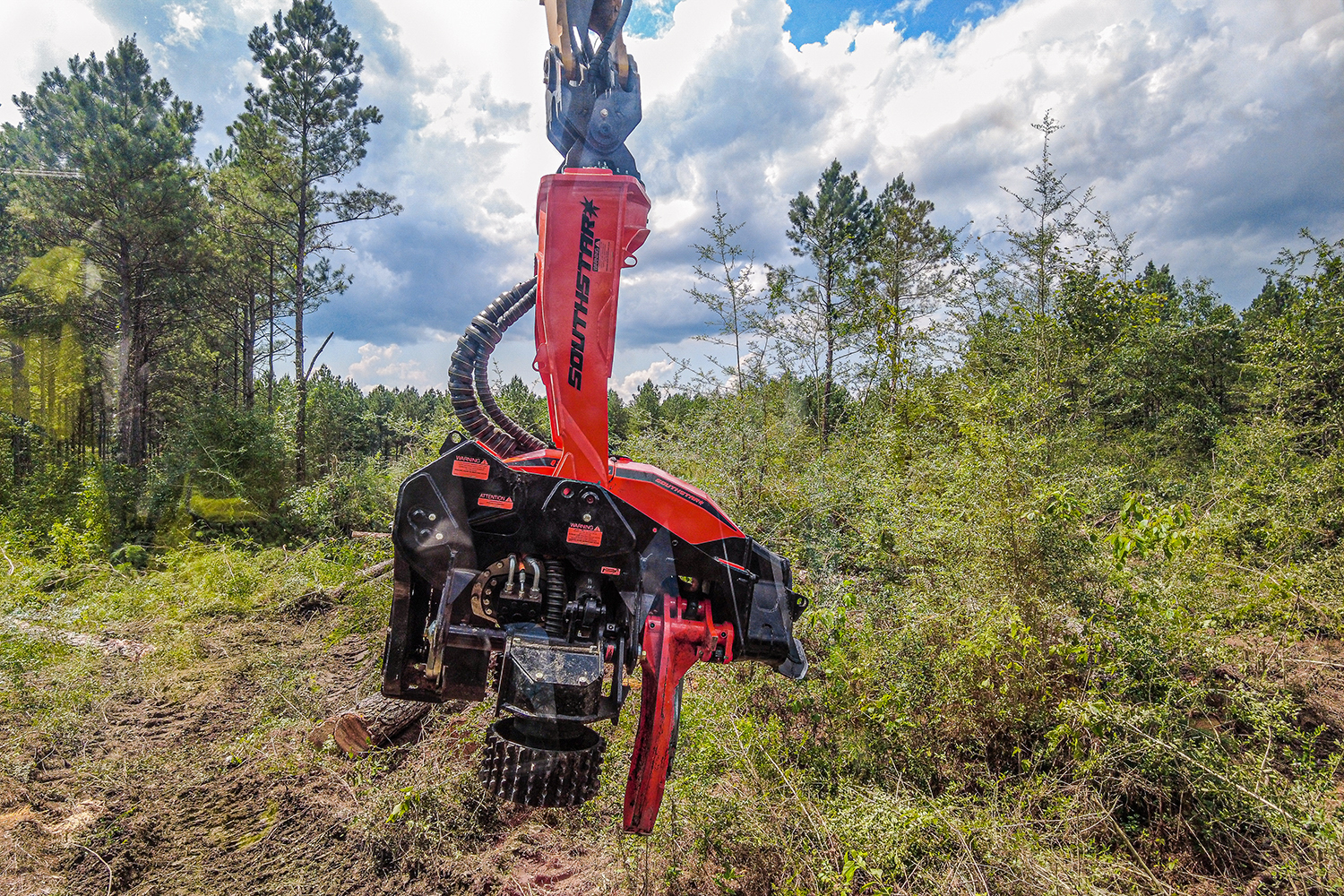

Purpose-built

Purpose-built

Engineered for processing with Komatsu-designed setups to help you maximize productivity.

Quick power for productivity

Quick power for productivity

Adjust quickly to a sudden change in load weight without losing productivity. The Auto Power Max feature automatically senses the change and reacts with an 8.5-second burst of additional horsepower to help pull the trees through during the delimbing process of the wood.

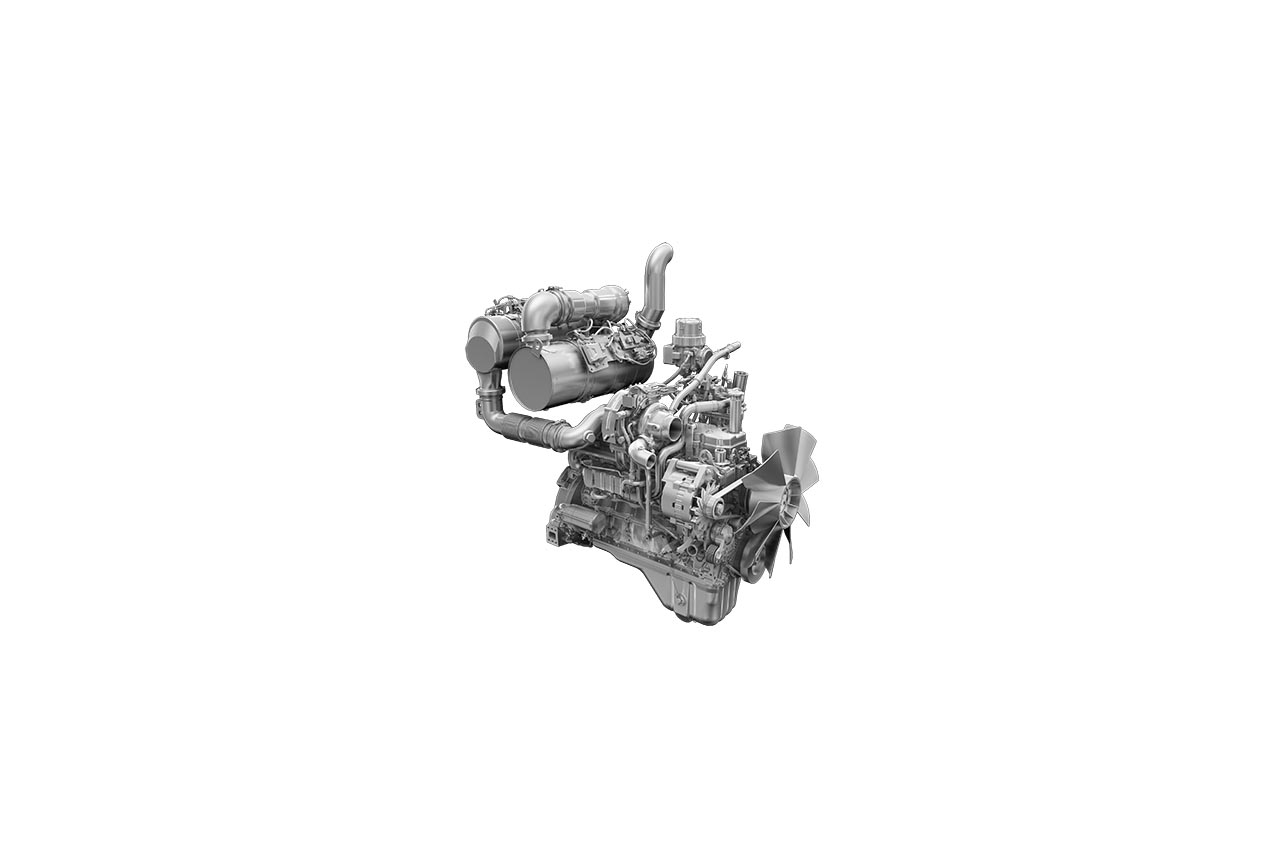

Efficient and powerful

Efficient and powerful

Achieve exceptional performance with low fuel consumption thanks to a powerful PC290LL-11 Size Class engine from factory. Proprietary Komatsu technology delivers exceptional performance with high fuel efficiency.

Fewer refueling trips

Fewer refueling trips

Spend more time on the job and less time refueling with additional fuel storage. The tank is located in the rear of the carrier and built into the counterweight, delivering double the fuel capacity compared to the prior model. * * Comparison is to the PC210LL-10 (813 L)


Specifications

Metric Imperial (US)
Expand all

  • Operating weight inclusions (imperial units): Forestry cab with 7" riser, 28" double grouser shoes, processor boom 20.2 ft., processor arm 9.58 ft., variable pitch reversing fan, heavy counterweight with additional capacity fuel tank, rated capacity of lubricants, coolant, operator and standard equipment (no head)
  • Operating weight inclusions (metric units): Forestry cab with 178 mm riser, 700 mm double grouser shoes, processor boom 6 160 mm, processor arm 2 920 mm, variable pitch reversing fan, heavy counterweight with additional capacity fuel tank, rated capacity of lubricants, coolant, operator and standard equipment (no head)
  • Approximate operating weight (kg): 30 625
  • Approximate operating weight (lbs): 67,516
  • Approximate ground pressure (psi): 7.53
  • Approximate ground pressure (kg/cm^2): 0.52

  • Hydraulics type: Type: HydrauMind (Hydraulic Mechanical Intelligence System), closed-center system with load sensing valves and pressure compensated valves
  • Number of selectable working modes: 6
  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motors with parking brake
  • Relief valve setting

    • Implement circuits (MPa): 38
    • Implement circuits (psi): 5,511
    • Implement circuits (kgf/cm^2): 387
    • Travel circuit (kgf/cm^2): 387
    • Travel circuit (MPa): 38
    • Travel circuit (psi): 5,511
    • Swing circuit (kgf/cm^2): 289
    • Swing circuit (psi): 4,119
    • Swing circuit (MPa): 28.4
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (psi): 478
    • Pilot circuit (MPa): 3.3
  • Main pump

    • Hydraulic type: Variable displacement piston type
    • Pumps for: Boom, arm, bucket, swing, and travel circuits
    • Maximum flow (L/min): 475
    • Maximum flow (US gpm): 125.5
    • Supply for control circuit: Self-reducing valve
  • Hydraulic cylinders (Bore x Stroke x Rod Diameter)

    • Boom / 2 (mm): 1 135 x 1 335 x 95
    • Boom / 2 (in): 5.3 x 52.6 x 3.7
    • Arm / 1 (mm): 140 x 1 635 x 100
    • Arm / 1 (in): 5.3 x 64.4 x 3.9

  • Drive method type: Hydrostatic
  • Maximum drawbar pull: 21 618
  • Maximum drawbar pull (lbs): 47,659
  • Gradeability: 70%, 35°
  • Maximum travel speed (auto-shift)

    • High (mph): 3.5
    • High (kph): 5.6
    • Mid (mph): 2.3
    • Mid (kph): 3.7
    • Low (kph): 2.9
    • Low (mph): 1.8
    • Parking brake: Mechanical disc brake
    • Service brake: Hydraulic lock

  • Swing reduction: Planetary gear
  • Swing circle lubrication: Grease-bathed
  • Holding brake/Swing lock: Mechanical disc brake
  • Swing speed (rpm): 11.7
  • Swing torque (ft-lbs): 58,334
  • Swing torque (kg-m): 8 065

  • Fuel tank (US gal): 214.8
  • Fuel tank (L): 813
  • Coolant (L): 35.5
  • Coolant (US gal): 9.4
  • Engine (US gal): 6.1
  • Engine (L): 23.1
  • Final drive (US gal): 1.3
  • Final drive (L): 5
  • Swing drive (L): 7.2
  • Swing drive (US gal): 1.9
  • DEF tank (US gal): 6.1
  • DEF tank (L): 23.1
  • Hydraulic tank (L): 132
  • Hydraulic tank (US gal): 34.9
  • Hydraulic system (US gal): 66.8
  • Hydraulic system (L): 253

  • Engine Model: Komatsu SAA6D107E-3*
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Komatsu Variable Geometry Turbocharged, aftercooled, cooled EGR
  • Number of cylinders: 6
  • Bore (in): 4.21
  • Bore (mm): 107
  • Stroke (in): 4.88
  • Stroke (mm): 124
  • Piston displacement (L): 6.69
  • Piston displacement (in^3): 408
  • Fan drive method for radiator cooling: Mechanical with viscous fan clutch
  • Governor: All-speed control, electric
  • Horsepower

    • ISO 9249 / SAE J1349 - Net (kW): 147
    • ISO 9249 / SAE J1349 - Net (HP): 197
    • SAEJ1995 - Gross (kW): 159
    • SAEJ1995 - Gross (HP): 213

  • Center frame: X-frame
  • Track frame: Box-section
  • Seal of track: Sealed track
  • Track adjuster: Hydraulic
  • Number of shoes (each side): 48
  • Number of carrier rollers (each side): 2
  • Number of track rollers (each side): 10
Metric Imperial (US)
Engine and related components
  • Engine, Komatsu SAA6D107E-3, Tier 4 final Gross HP (J1995): 213 HP Net HP (J1349): 197 HP
  • Komatsu Diesel Particulate Filter (KDPF)
  • Selective Catalytic Reduction (SCR)
  • After-cooled, turbocharged direct injection
  • Air cleaner, double element
  • Fuel pre-filter, 10 micron
Cooling system
  • Radiator/oil cooler (8.5 fins per inch)
  • Variable pitch, automatic reversing fan
Electrical system
  • Alternator (90 amps / 24V)
  • Large capacity batteries (2 x 12V)
  • Starter motor (5.5 kW / 24 V x1)
  • Working Lights: 11 LED Lights
  • Engine shutdown secondary switch
  • Battery disconnect switch
Undercarriage
  • High/wide forestry undercarriage
  • Heavy duty revolving frame
  • 28" double grouser shoes
  • Track rollers, HD 10/side
  • Carrier rollers (2), track type/side
  • Heavy duty recoil spring
  • Heavy duty tow hooks
  • Track guard full-length ski-type
Guards and covers
  • Dustproof net for radiator and oil cooler
  • HD forestry guards
  • HD doors, 1/4" thick
  • HD underguard .27" thick
  • Corner post/front guard
  • Pump/Engine partition cover
  • Forestry debris screens
  • Grip strut walkways
  • Boom cylinder guard
Operating equipment
  • Komatsu Forestry Cab with 7" fixed riser
  • 1.25" polycarbonate front window
  • ROPS/OPS/TOPS/FOPS/WCB/Oregon OSHA certified
  • Automatic HVAC
  • Low vibration viscous Cab floor mounts
  • Monitor panel, LCD, high resolution color
  • (EMMS) management system
  • Seat, high back, air suspension, heated/cooled
  • Radio with Bluetooth
Work equipment
  • Processor boom 20.2 ft.
  • Processor arm 9.58 ft.
  • Processor-specific piping package
  • Case drain filter, high pressure filtration
Hydraulic controls
  • Axial piston swing motor (1)
  • Axial piston travel motors (2)
  • Variable capacity piston pumps (2)
  • Closed Center Load Sensing Pumps (CCLS)
  • Hydraulic pump high-pressure discharge filters
  • PC240-class swing bearing and swing machinery
  • Engine/hydraulic overheat prevention system
Drive and brake system
  • PC240-class final drives
  • 3-speed travel with auto shift
Other equipment
  • Komtrax Level 5.0 monitoring system
  • Rear view monitoring camera
Engine and related components
  • Engine, Komatsu SAA6D107E-3, Tier 4 final Gross HP (J1995): 159 kW Net HP (J1349): 147 kW
  • Komatsu Diesel Particulate Filter (KDPF)
  • Selective Catalytic Reduction (SCR)
  • After-cooled, turbocharged direct injection
  • Air cleaner, double element
  • Fuel pre-filter, 10 micron
Cooling system
  • Radiator/oil cooler (8.5 fins per inch)
  • Variable pitch, automatic reversing fan
Electrical system
  • Alternator (90 amps / 24V)
  • Large capacity batteries (2 x 12V)
  • Starter motor (5.5 kW / 24 V x1)
  • Working Lights: 11 LED Lights
  • Engine shutdown secondary switch
  • Battery disconnect switch
Undercarriage
  • High/wide forestry undercarriage
  • Heavy duty revolving frame
  • 700 mm double grouser shoes
  • Track rollers, HD 10/side
  • Carrier rollers (2), track type/side
  • Heavy duty recoil spring
  • Heavy duty tow hooks
  • Track guard full-length ski-type
Guards and covers
  • Dustproof net for radiator and oil cooler
  • HD forestry guards
  • HD doors, 6mm thick
  • HD underguard 6mm thick
  • Corner post/front guard
  • Pump/Engine partition cover
  • Forestry debris screens
  • Grip strut walkways
  • Boom cylinder guard
Operating equipment
  • Komatsu Forestry Cab with 7" fixed riser
  • 32mm polycarbonate front window
  • ROPS/OPS/TOPS/FOPS/WCB/Oregon OSHA certified
  • Automatic HVAC
  • Low vibration viscous Cab floor mounts
  • Monitor panel, LCD, high resolution color
  • (EMMS) management system
  • Seat, high back, air suspension, heated/cooled
  • Radio with Bluetooth
Work equipment
  • Processor boom 6.16 m
  • Processor arm 2.92 m
  • Processor-specific piping package
  • Case drain filter, high pressure filtration
Hydraulic controls
  • Axial piston swing motor (1)
  • Axial piston travel motors (2)
  • Variable capacity piston pumps (2)
  • Closed Center Load Sensing Pumps (CCLS)
  • Hydraulic pump high-pressure discharge filters
  • PC240-class swing bearing and swing machinery
  • Engine/hydraulic overheat prevention system
Drive and brake system
  • PC240-class final drives
  • 3-speed travel with auto shift
Other equipment
  • Komtrax Level 5.0 monitoring system
  • Rear view monitoring camera
Metric Imperial (US)
Electrical system
  • 24V-12V converter, 30 amp
Work equipment
  • Return filtration
Other equipment
  • Side view monitoring camera
Electrical system
  • 24V-12V converter, 30 amp
Work equipment
  • Return filtration
Other equipment
  • Side view monitoring camera

Technology that works as hard as you do

Select continent

Komtrax monitoring system

Helps manage owning and operating costs by continuously monitoring and recording machine health and operational data such as fuel consumption and utilization. Tracks when maintenance is due so you can plan ahead.

technology-image

Komatsu PC230F-11 swing machine is built to last

Forestry work sites are tough, so operators need a powerful, rugged processor built for the job. The Komatsu's PC230F-11 swing machine features a high and wide undercarriage for maneuverability and a powerful swing motor for exceptional performance.
