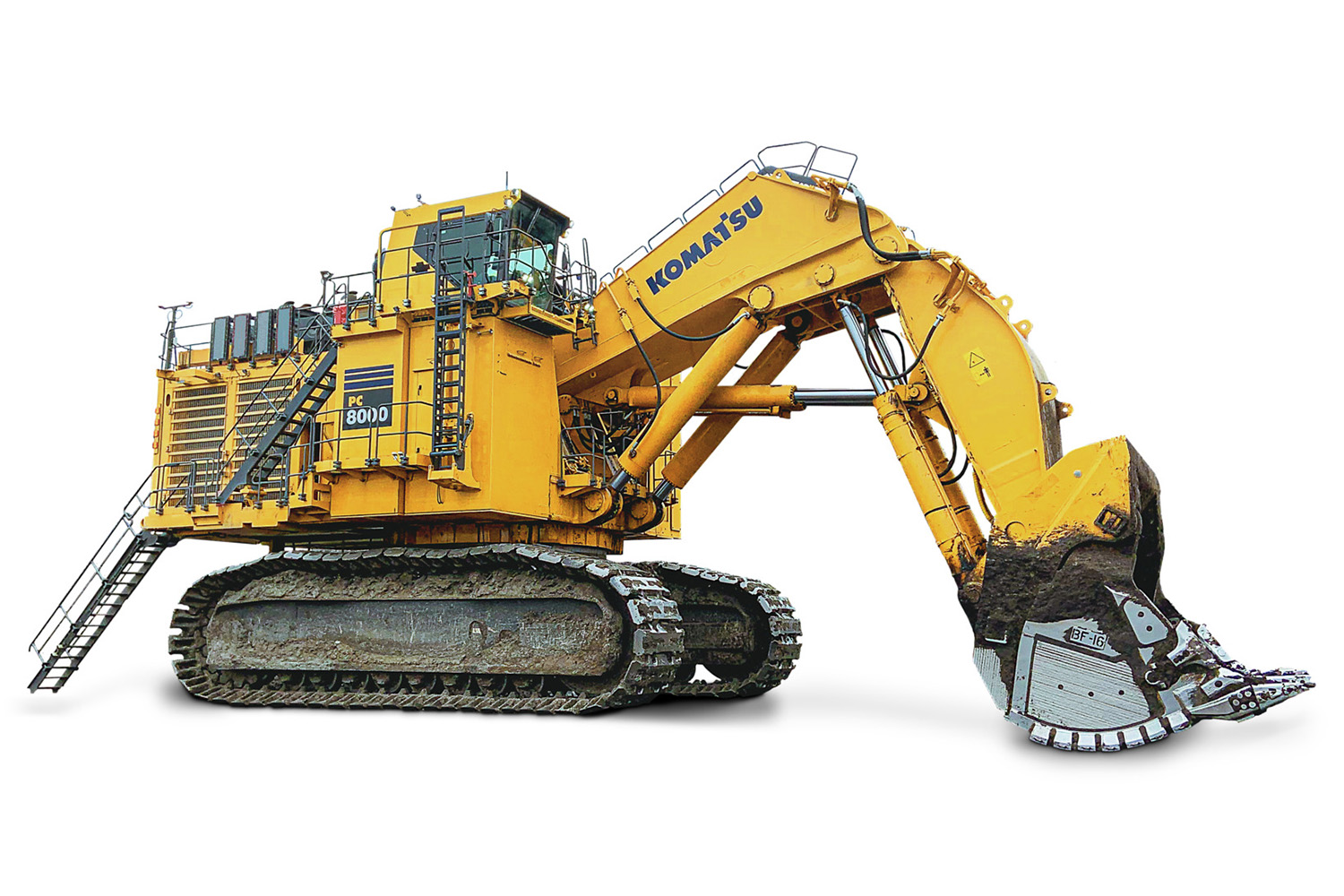

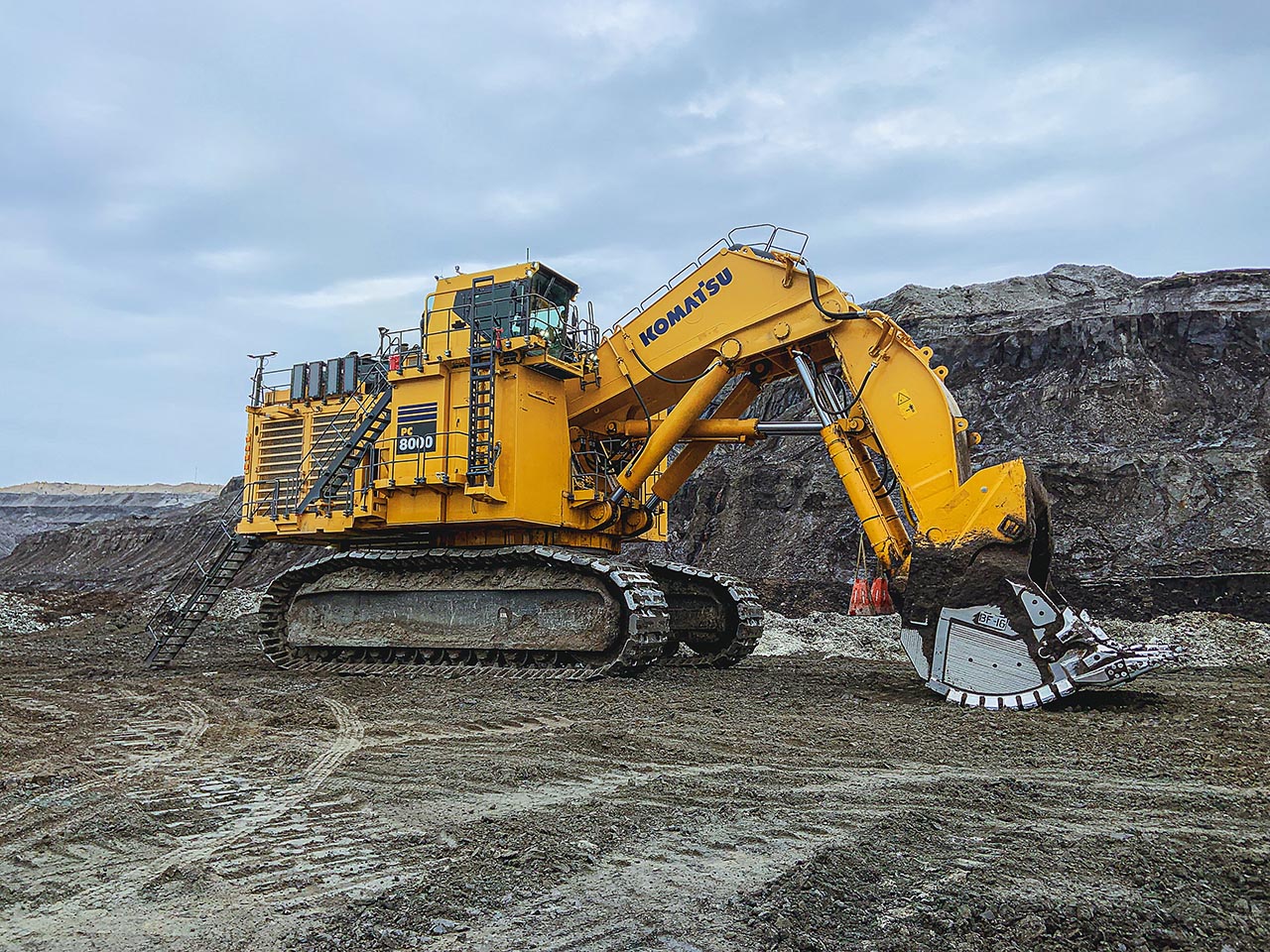

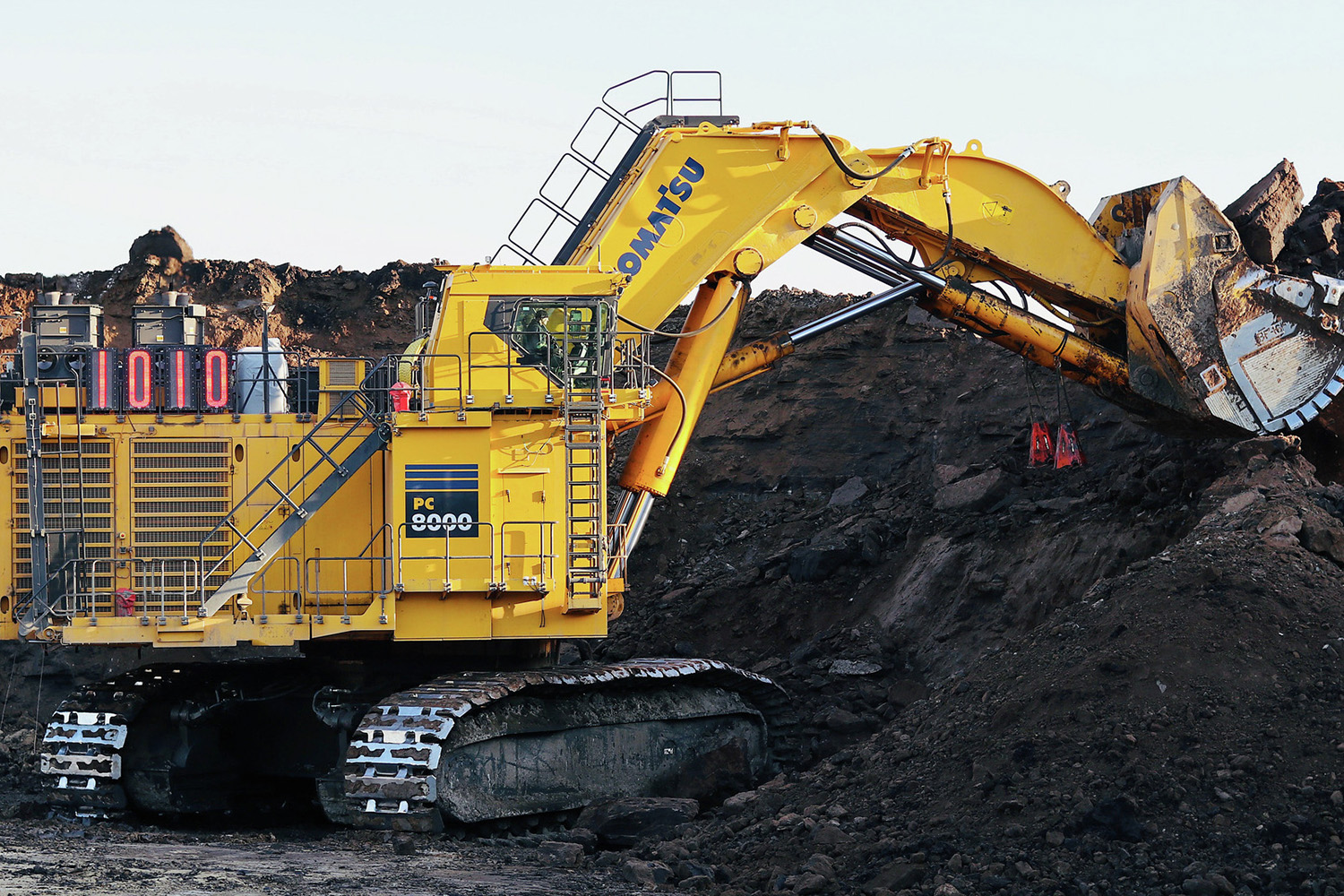

When you need to cycle through large loads, the PC8000 has you covered. It was designed with input from mining operations around the globe to maximize productivity with 240-400 st trucks.

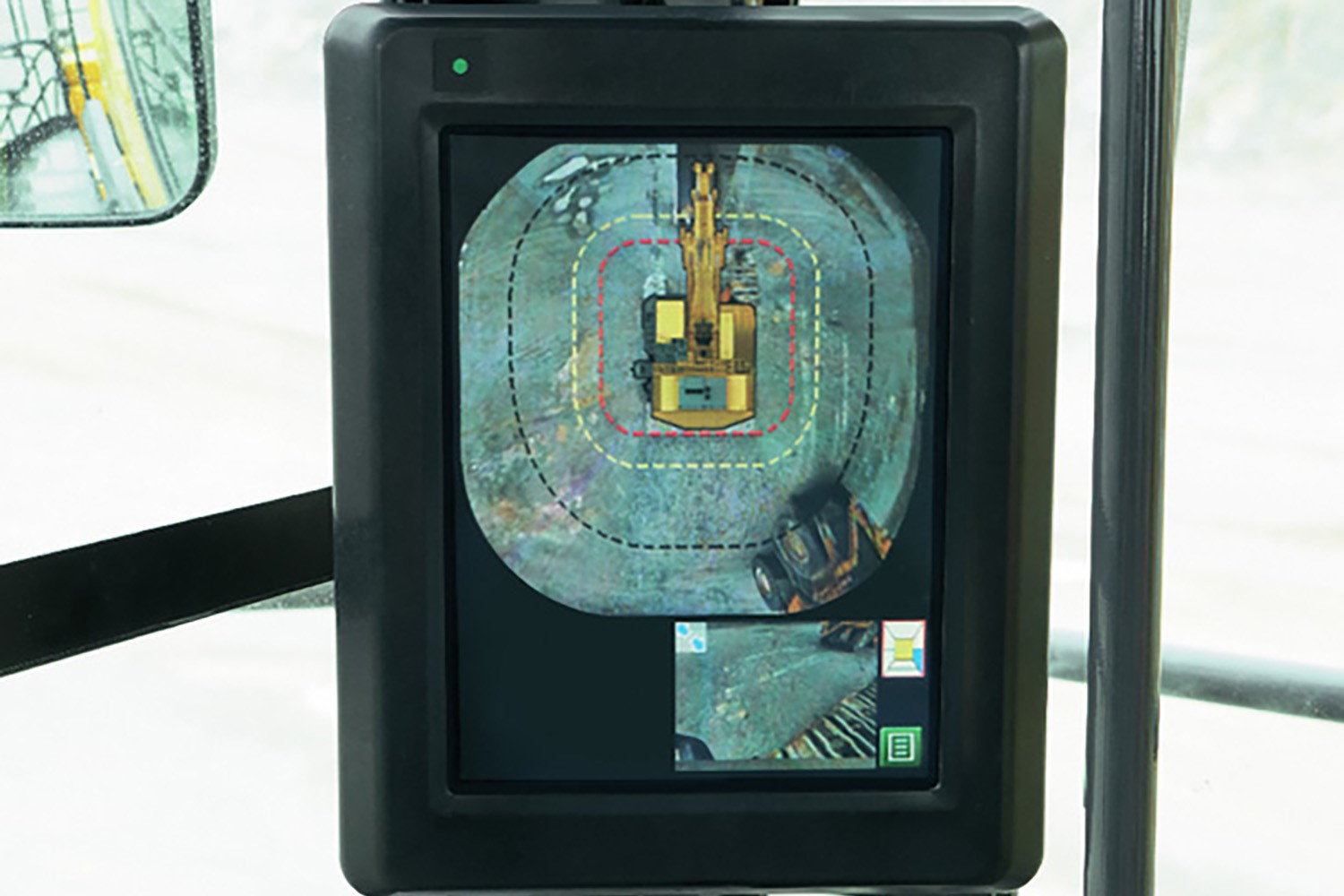

Operator and work site safety are a priority. Komatsu hydraulic excavators have an LED screen to give your operator a 360-degree view, each meet ISO 10262, 6394, 10263-4 safety stand-ards, and all include anti-slip gratings, easy ingress/egress and an innovative emergency es-cape system.
Customized to your operation

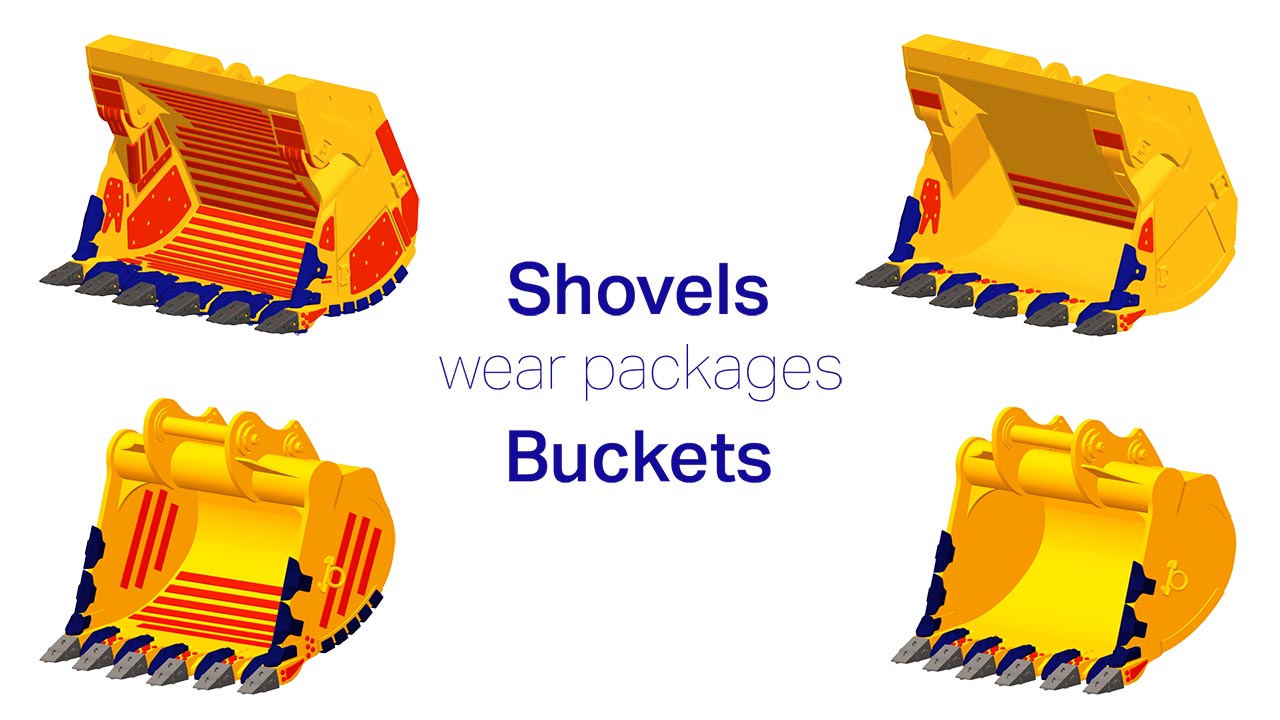

While Komatsu shovels and backhoes meet the density benchmark of 1.8 t/m³, you have the option to customize your machine to the bucket size and wear package you need, and choose your heating/cooling systems, travel gear protections, special track pad variations and more.
Sustainable, powerful engines

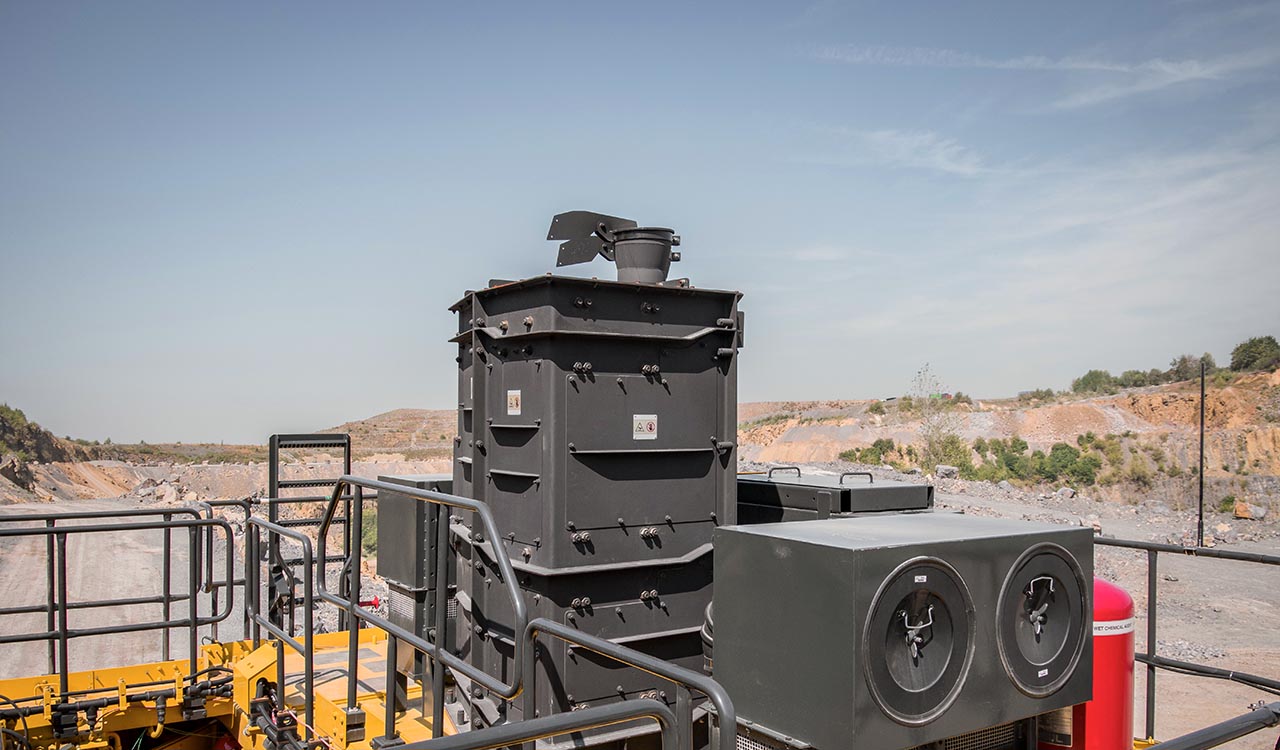

Tier 4 engines deliver plenty of power with outstanding sustainability. An exhaust after-treatment system reduces particulate matter, sulfur oxides and dangerous NOx, and easy servicing of emissions components.
The choice for your biggest jobs

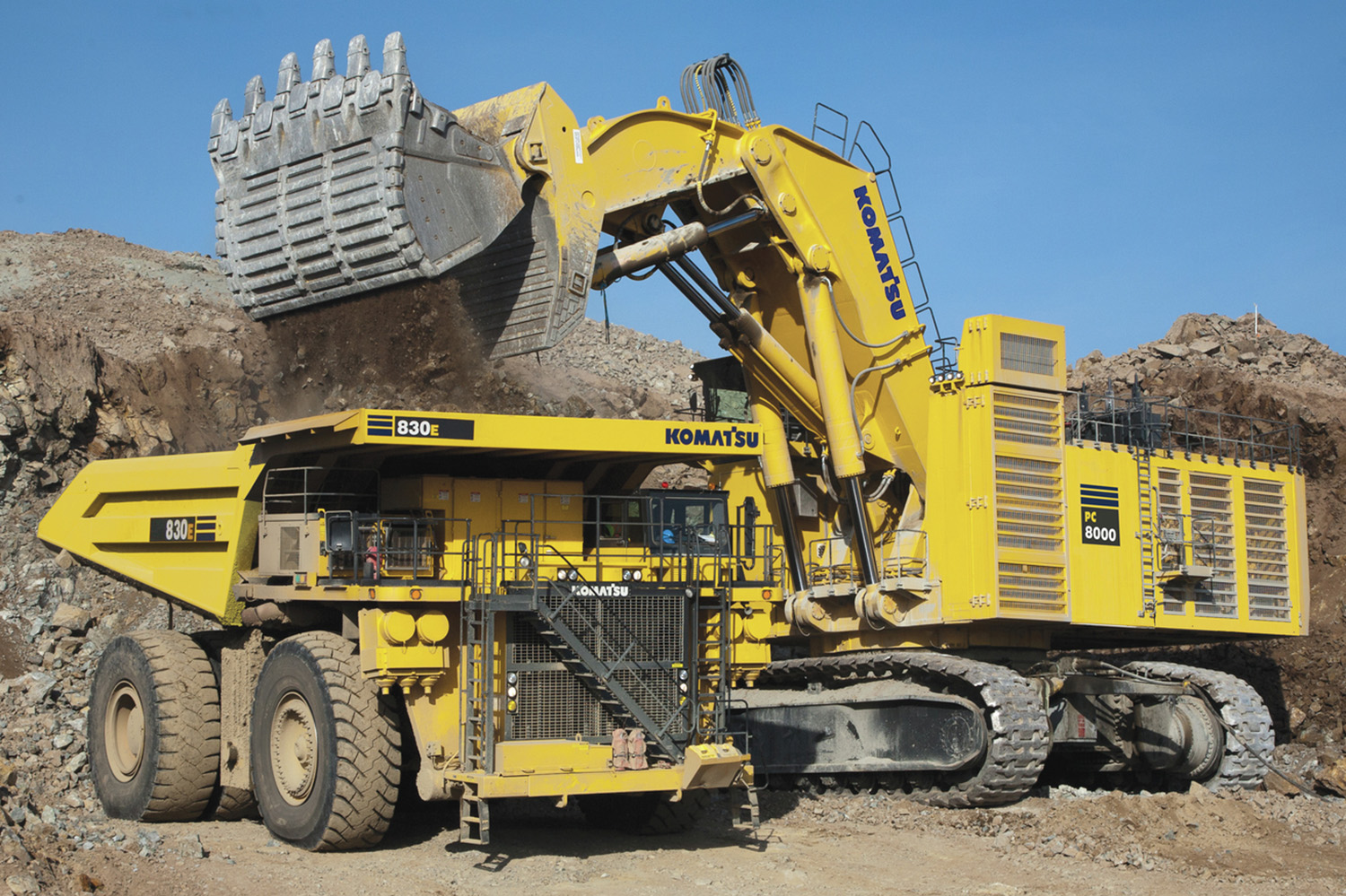

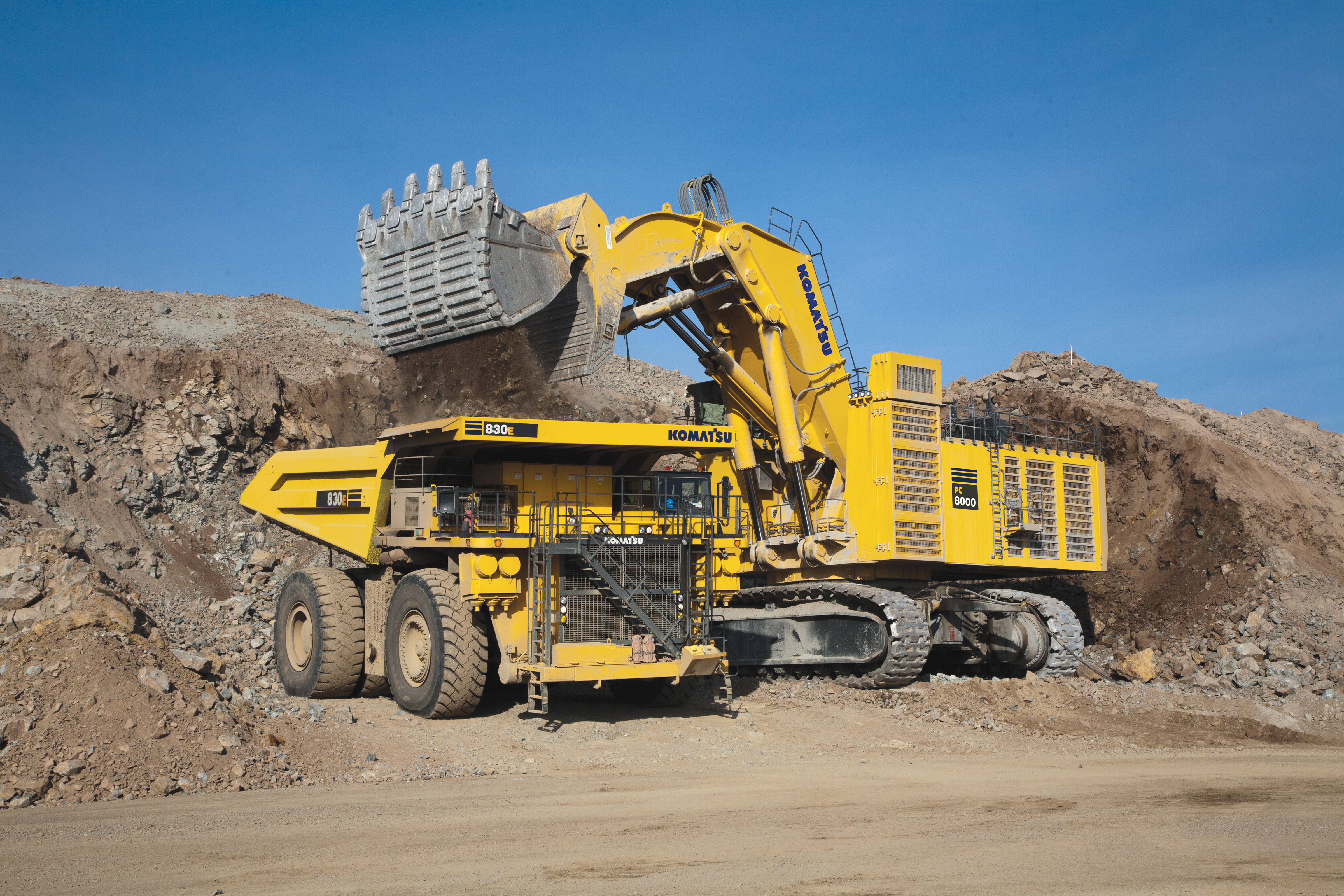

Whether in shovel or backhoe configuration, the PC8000 is designed to deliver the highest pro-duction from trucks 240 tons and higher. With up to a 42m3 bucket available, it has the potential to give your mining operation a significant productivity boost.
Hydraulic system features:The power train consists of two main drives. Each of the two gearboxes drives four identical main pumps which draw hydraulic oil from an unpressurized hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency.
Flow description:The four-circuit systems feature a load-limiting governor with oil delivery summation to the working circuits and incorporates pressure cut-off control. Hydropilot prioritizes hydraulic flow giving smooth hydraulic response, simple hydraulic system layout, and a reduced number of components. The hydraulic system includes large swing-out vertical air-to-oil hydraulic coolers with temperature-regulated hydraulically driven fans.
Type of main hydraulic pumps:8 identical swash plate pumps
Swing flow rate(L/min):2 070
Swing flow rate(gpm):547
Hydraulic pressure (all circuits)(bar):310
Hydraulic pressure (all circuits)(psi):4,495
Main hydraulic flow per pump(gpm):273
Main hydraulic flow per pump(L/min):1 035
High pressure screens:200 microns
Hand-lever (ISO 5349-1):Lower than 2.5 m/s2
Whole body vibration and shock (ISO 2631-1):Below 0.5 m/s2
Greenhouse gas:R 134 A
D CO2 equivalent(t):5.005 - 11.869
D quantity of gas(kg):3.5 - 8.3
E CO2 equivalent(t):10.240 - 17.16
E quantity of gas(kg):7.2 - 12
Model (Tier 4):2x Komatsu SDA16V160E-3
Aspiration:Turbocharged and aftercooled
Number of cylinders:16
Engines amount (Diesel):2
Rated power per engine (kW):1 500 kW @ 1 800 rpm
Rated power per engine (HP):2,010 HP @ 1,800 rpm
Governor:All-speed, electronic
DEF tank capacity (tier 4) (L):2 x 592.4
DEF tank capacity (tier 4) (gal):2 x 156.5
Mining Type_Diesel drive:4-cycle, water-cooled, direct injection
Hydraulic motors and swing gears:3
Swing brake, dynamic:Hydraulic brake
Swing brake, parking:Multiple-disc
Swing ring teeth:External
Swing speed (max)(rpm):2.7
Gradeability:Up to 50%
Travel speed (max)(kph):2.4
Travel speed (max)(mph):1.5
Service brake:Hydraulic brake
Parking brake:Multiple brake
Argus PLM ready:Yes
Komtrax plus features:The Komtrax Plus monitoring system is designed for Komatsu mining equipment to provide real time and stored information about the operating status of the machine. Fault messages are immediately available to the operator via a digital display and in the event of critical malfunctions the engine is also shut down. The digital storage provides failure summary and analysis, which can be down loaded by laptop computer. This data will assist in predicting or reduction downtime. Optionally available is Orbcomm satellite transmission (check for availability in your territory).
Version:Komtrax Plus 2
Hydraulic oil tank (L):7 750
Hydraulic oil tank (US gal):2,047
Hydraulic system (US gal):3,038
Hydraulic system (L):11 500
Fuel (L):13 925
Fuel (US gal):3,679
Engine oil (US gal):153
Engine oil (L):580
Lubrication system (total)(US gal):238
Lubrication system (total)(L):900
Engine coolant(L):860
Engine coolant(US gal):227
Damping pads (amount):Enclosed steel cab mounted on viscous pads
AC System:Air-condition unit
Suspension of seat:Full suspension operator seat with belt
Foot controls:Foot control for shovel clam, crawler and swing brake
Radio version:AM-FM radio with MP3 ready CD player and AUX in
Windshield washers:1 large parallel windshield wash wiper
Windshield washer speed:Two speeds and intermittent operation
Additional mirrors:2 heated rear mirrors
Sun blinds:Internal and external
Roller blinds:Standard on all windows (excluding rear door)
Sliding window:ESG escape window, VSG according to ECE R43
Window tinting:Parsol green
Penetration proof windows:Impact resistant front window (21 mm and tolerances)
Walkway:Walkway around the cab
Engineering standards:ISO 3449, ISO 6394, ISO 10263-4 TL: EN474-1, EN 474-5, DIN 15018, BR2-S DIN EN 1063, ECE R43, ISO 10262
Type_Electric drive:Asynchronous motor
E-drive availability-11:Not available
Engines amount (Electric):2
Rated power per engine (kW):1 448.93 kW @ 1,800 rpm
Rated power per engine (HP):1,970 HP @ 1,800 rpm
Voltage:6 000 - 7 200 V
Amperage (approx.):2 x 155 A - 2 x 128 A
Frequency standard:60 Hz @ 1 800 rpm
Frequency option:50 Hz @ 1 500 rpm
Track adjustment:Automatic hydraulic type
Number of bottom rollers each side:8
Number of top rollers each side:3
Number of track shoes each side:49
System:24 V
Batteries:8 x 12 V
Alternator:2 x 140 A
Standard service lights:Throughout the platform including emergency egresses and stairways
Standard working lights (amount):14 LED lights
Automatic lubrication system (L):Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1 x 600 and 1 x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
Automatic lubrication system (US gal):Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1 x 600 and 1 x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
The Argus Payload Monitoring System weighs each bucket in real-time, which helps eliminate the need to stop and calculate payload before loading the truck. Immediate feedback promotes loading accuracy, while peer benchmarking works to reinforce best practices to improve operator performance.
The ProVision Machine Guidance System promotes increased operator efficiency and productivity through the use of high-precision global navigation satellite system (HP-GNSS) positioning. Capable of providing up to 1 cm accuracy, the ProVision System helps guide excavator operators to dig the right material, keep the designed bench grade, respect dig limits, and work within the machine’s prime operating specifications. The system also provides guidance to truck operators to help promote precise spotting at a loading unit.
The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilization and reduced maintenance costs and equipment degradation.
The DISPATCH Fleet Management System (FMS) helps mines achieve enhanced load and haul cycle efficiency and productivity through its proprietary optimization algorithm. The DISPATCH FMS provides mines with increased potential for end-to-end monitoring of production and auxiliary equipment, improved compliance with planning objectives, shorter hang/queue times and more.
Telematics data can drive results for business operations, but only when you can collect and analyze it efficiently. Get the insights that can benefit your bottom line.

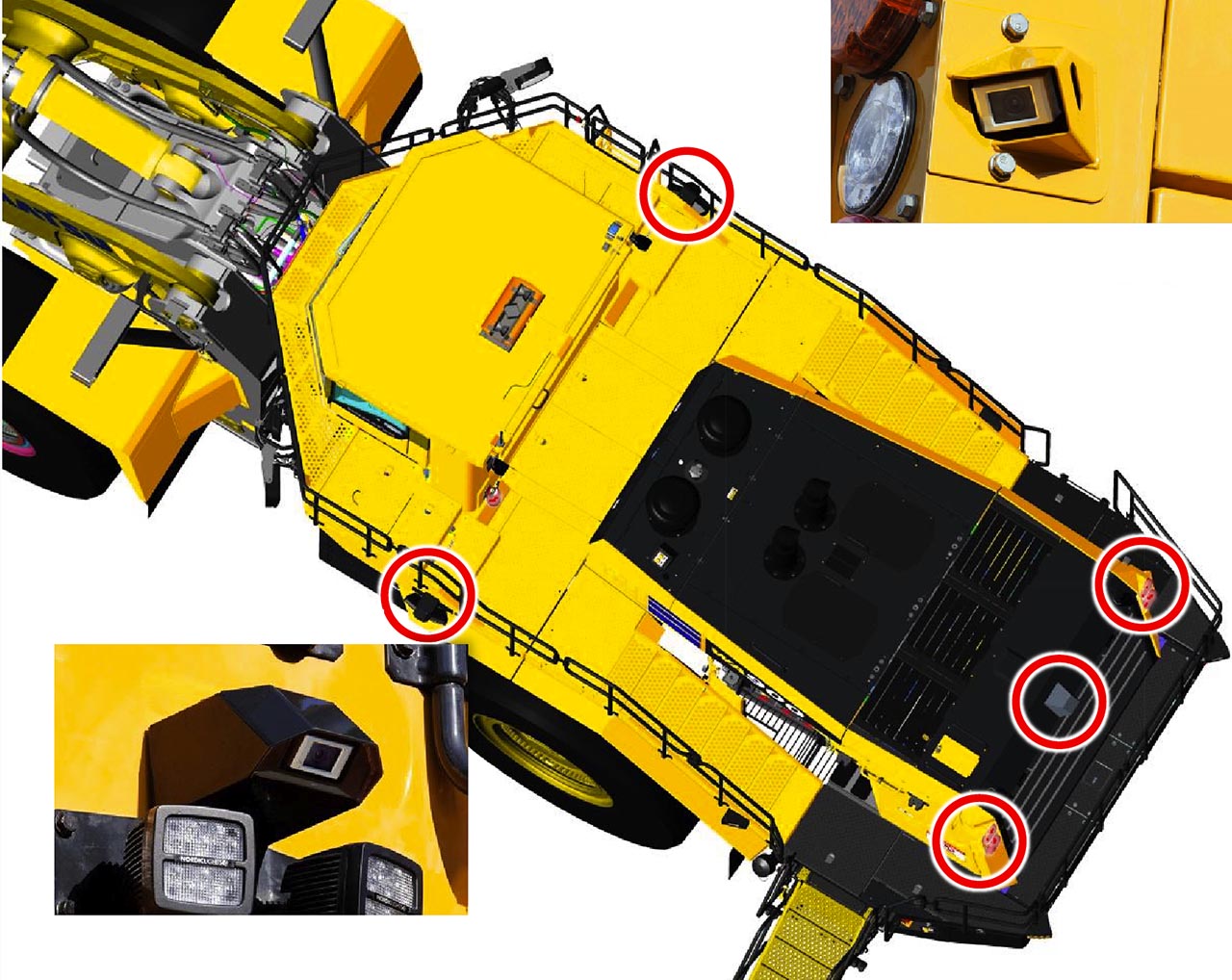

Enhance visibility with KomVision, an all-around monitoring system that uses high-definition cameras to provide operators with a real-time bird’s eye-view of their machines’ immediate working area.

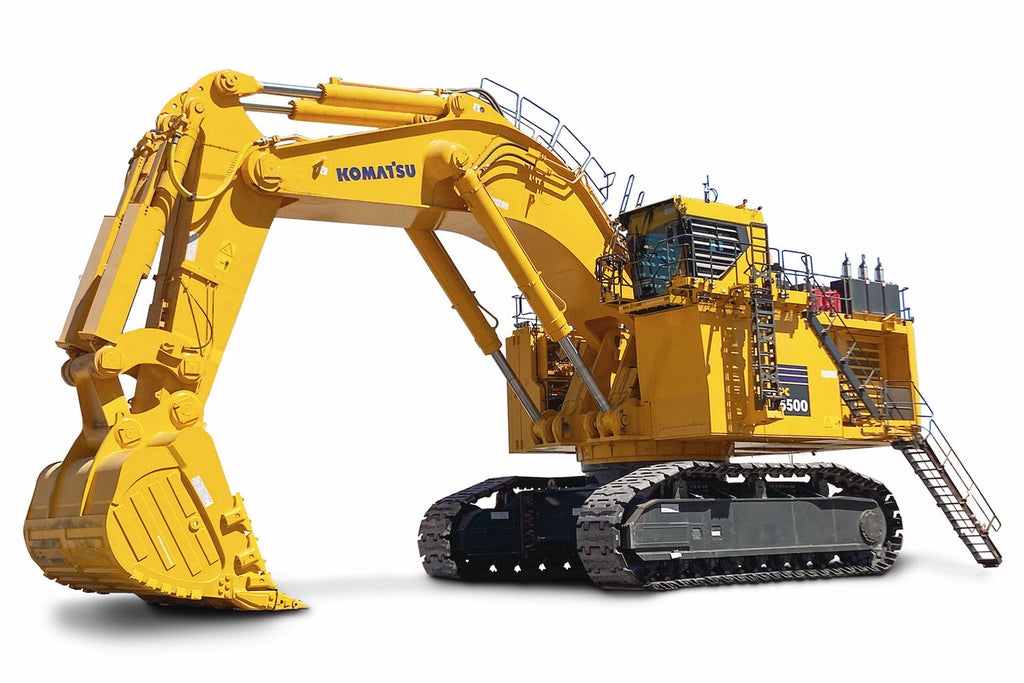

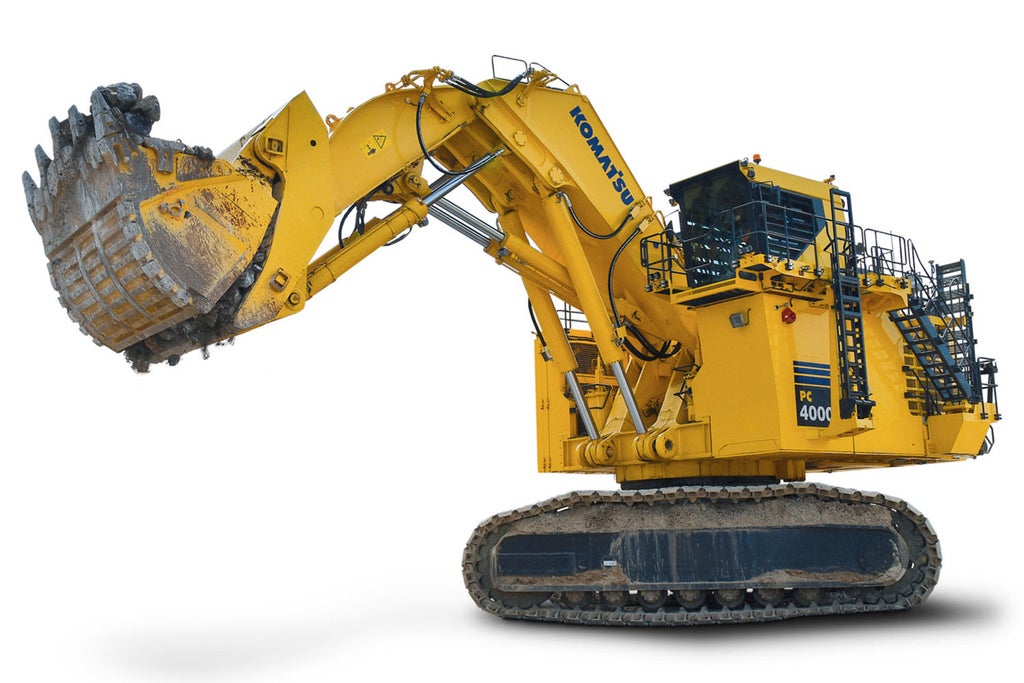

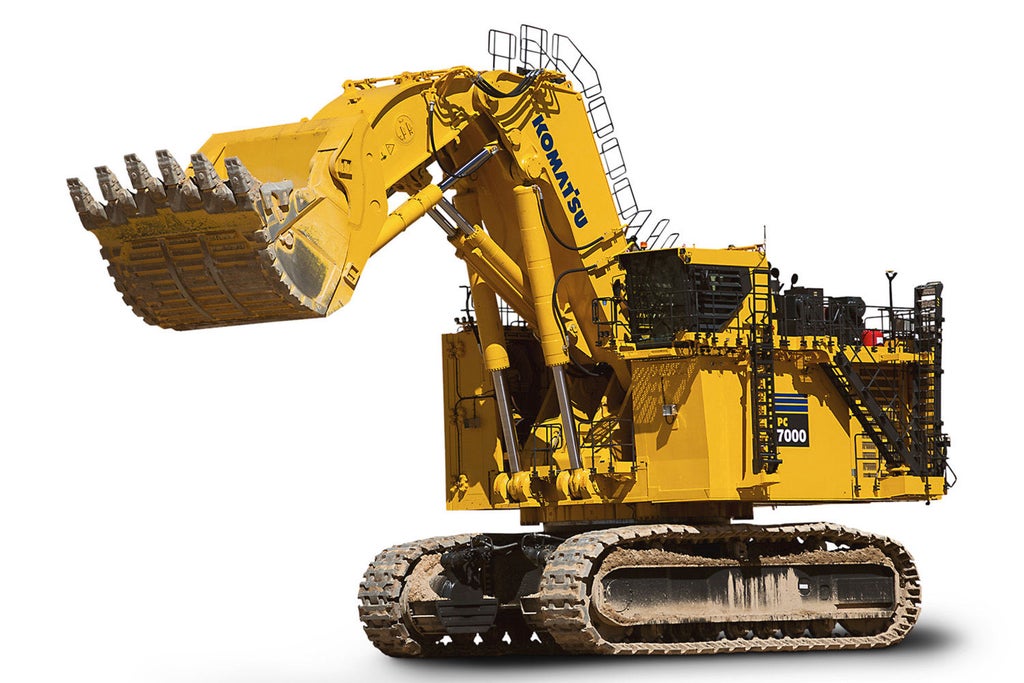

Get the job done with Komatsu's family of hydraulic excavators
