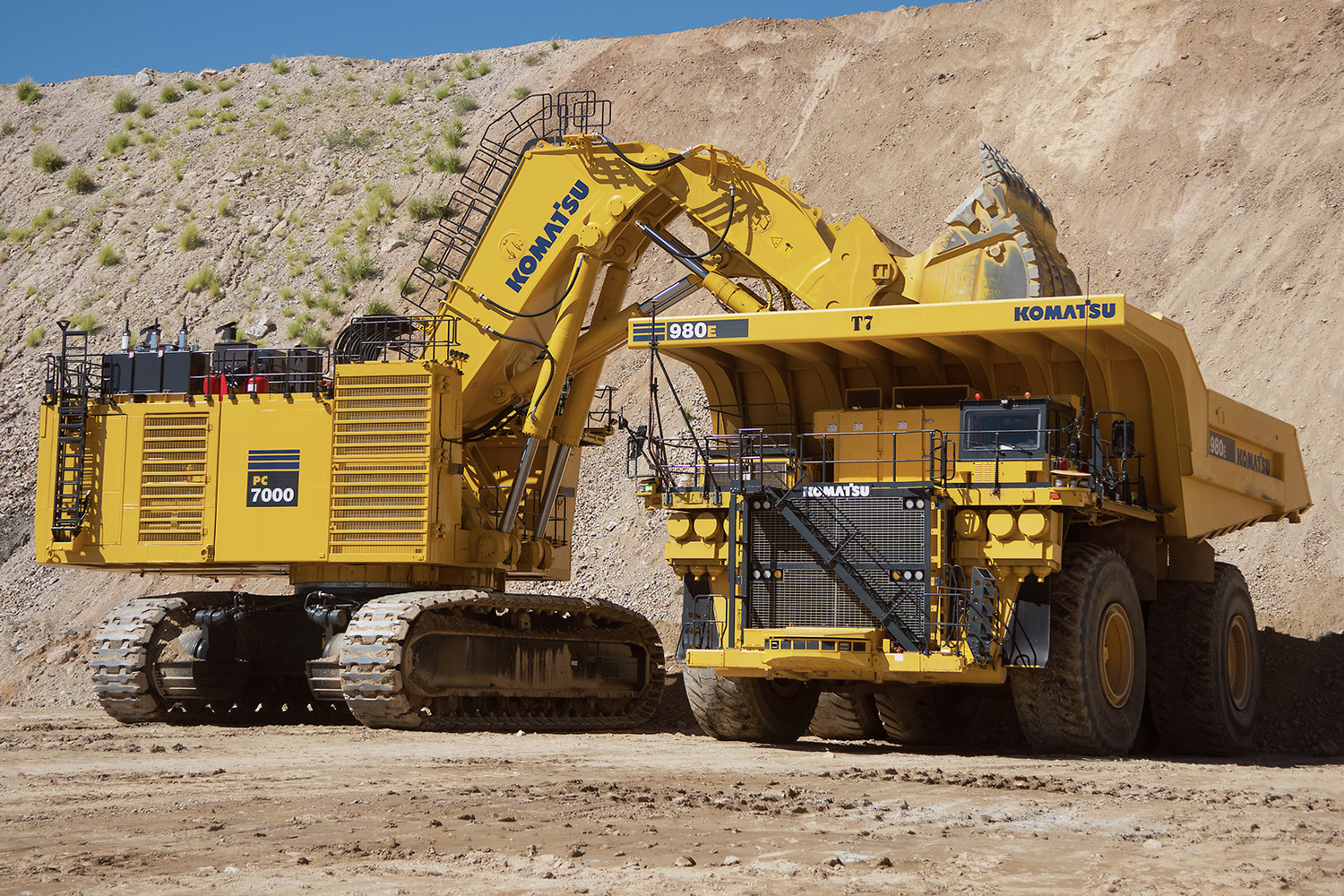

Keep your 240-290 trucks productive with the intelligent, robust and versatile PC7000. Its 38m³ shovel is sized to cycle big loads fast, while its advanced intelligent data solutions and performance monitoring can help you optimize the transfer of every load.
Operator and work site safety are a priority. Komatsu hydraulic excavators have an LED screen to give your operator a 360-degree view, each meet ISO 10262, 6394, 10263-4 safety stand-ards, and all include anti-slip gratings, easy ingress/egress and an innovative emergency es-cape system.
Customized to your operation
While Komatsu shovels and backhoes meet the density benchmark of 1.8 t/m³, you have the option to customize your machine to the bucket size and wear package you need, and choose your heating/cooling systems, travel gear protections, special track pad variations and more.
Sustainable, powerful engines
Tier 4 engines deliver plenty of power with outstanding sustainability. An exhaust after-treatment system reduces particulate matter, sulfur oxides and dangerous NOx, and easy servicing of emissions components.
Diagnostics to help improve productivity
To improve productivity and limit downtime, you need accurate, reliable machine data. The exca-vator’s newly revamped monitoring system helps you dial in efficient machine movement, quickly identify opportunities to improve productivity, and troubleshoot any issues quickly.
Critical data to help boost efficiency
A built-in payload meter helps you optimize the efficiency of your truck traffic flow and your fleet. Knowing just how much load is in the bucket versus your trucks’ capacity gives you data you need to calculate optimal loading times and truck passes for maximum productivity.
Hydraulic system features:The power train consists of two main drives. Each of the two gearboxes drives three identical pumps which draw hydraulic oil from an unpressurised hydraulic tank. Open circuit hydraulics provide maximum cooling and filtering efficiency.
Relief valve setting (psi):4,495
Relief valve setting (bar):310
Swing flow rate(L/min):1 035
Swing flow rate(gpm):273
Rated flow (total output) (L/min):6 210
Rated flow (total output) (US gal):1,640
Case drain return line filters (one double element):3 microns
Full flow return line filters (5 double) at head of hydraulic tank:10 µm
High pressure in line filters one per pump located at the valve blocks:200 µm
Automatic centralized lubrication (US gal):Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1x 600 and 1x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
Automatic centralized lubrication (L):Three hydraulically powered Lincoln single line automatic lubrication systems are provided as standard, complete with time and volume variable controls. The two central lubrication circuits and open gear grease circuit are supplied by identical pump assemblies from refillable containers which have a capacity of 1x 600 and 1x 300 L (total 238 gal). Replenishment of the containers is through the Wiggins connections on the service arm.
Model (Tier 2):2 x Komatsu SSDA16V159E-2 Tier 2
Aspiration:Turbocharged and aftercooled
Number of cylinders:16
Rated power per engine (kW):2 x 1 250 kW @ 1 800
Rated power per engine (HP):2 x 1,675 HP @1,800 rpm
Governor:All-speed, electronic
Diesel drive features:The integrated engine oil and filter system combining the oil stabilising systems, Reserve and Centinel, with Eliminator oil filter extends the oil change interval up to 4.000 hours based on oil analysis. The high capacity Mesabi engine radiators are cooled by a hydraulically driven fan for superior cooling efficiency.
Mining Type_Diesel drive:4-cycle, water-cooled, direct injection
Hydraulic motors and swing gears:3
Swing brake, dynamic:Hydraulic brake
Swing brake, parking:Wet, multiple-disc
Swing ring teeth:External
Swing speed (max)(rpm):3.1
Gradeability:Up to 50%
Travel speed (max)(kph):2.5
Travel speed (max)(mph):1.55
Service brake:Hydraulic brake
Parking brake:Wet, multiple-disc
Travel control:2 foot pedals
Komtrax plus features:Komtrax Plus is designed for Komatsu mining equipment to provide real time information about the operating status of the machine via a coloured display. The integrated digital storage provides a full event history and trend data, which can be downloaded by laptop. Optionally available are W-LAN or Orbcomm satellite transmission (check for availability in your territory).
Hydraulic oil tank (L):4 750
Hydraulic oil tank (US gal):1,255
Hydraulic system (US gal):2,510
Hydraulic system (L):9 500
Fuel (L):13 033
Fuel (US gal):3,443
Engine oil (US gal):2 x 62
Engine oil (L):.2 x 236
Engine coolant(L):2 x 440
Engine coolant(US gal):2 x 116
Reserve engine oil make up tank (L):2 x 665
Reserve engine oil make up tank (US gal):2 x 176
Operator cab features:The large and comfortable cab is mounted on 18 viscous damping pads and sound insulated. The cab has automatic climate control and is pressurised. The operator’s seat is air suspended, electrically heated and has a lap seat belt and offers multiple adjustments. The trainer seat is also equipped with a seat belt. Low-effort joystick controls are electrohydraulic with foot controls for front shovel clam, crawler and swing brake. Full instrumentation, Komtrax Plus and an AM/FM radio with MP3 ready CD player with AUX in is fitted. The windshield wash wiper has two speeds and intermittent operation. Amenities include a refrigerator and storage cabinets. Powered and heated mirrors are adjusted from inside the cab. External metal sun blinds on the cab side window and internal roller blinds on all windows are standard. The left hand window is an emergency exit. All windows are tinted parsol green. The front window is a 19 mm thick impact resistant window. A walkway is mounted in front of cabin.
Type_Electric drive:2 x Squirrel cage induction motor
Voltage:6 000 - 7 200 V*
Amperage (approx.):2 x 128 A - 2 x 107 A
Frequency standard:60 Hz @ 1 800 rpm
Frequency option:50 Hz @ 1 500 rpm
Power output:2 x 1 200 kW
Start-up:Soft start each motor in succession
Center frame:H-type
Track frame:Steel box-section
System:24 V
Batteries:8 x 12 V
Alternator:2 x 140 A
Standard service lights:Throughout platform incl. emergency egresses and stairways
Standard working lights (amount):16 LED lights
MetricImperial (US)

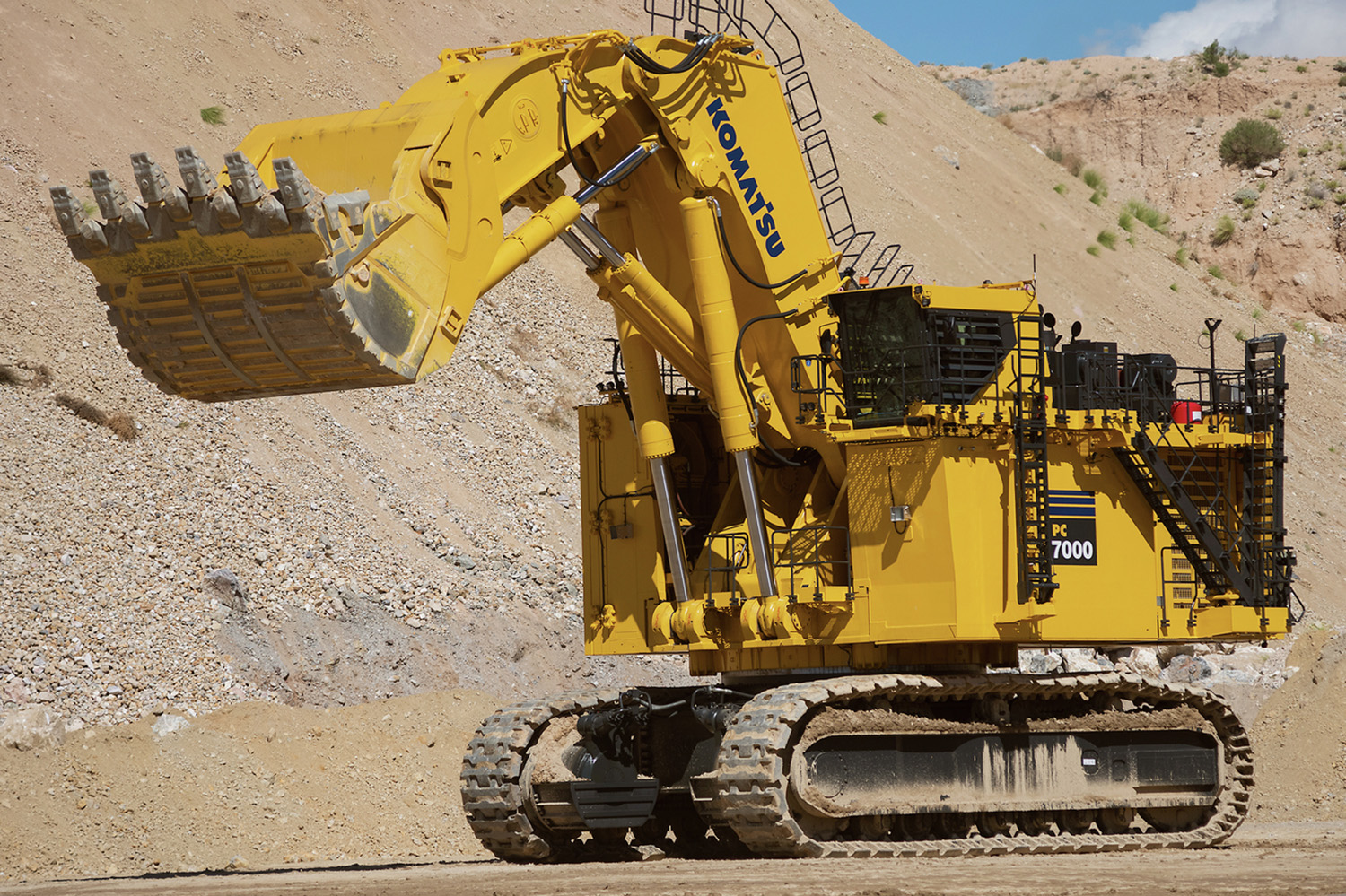

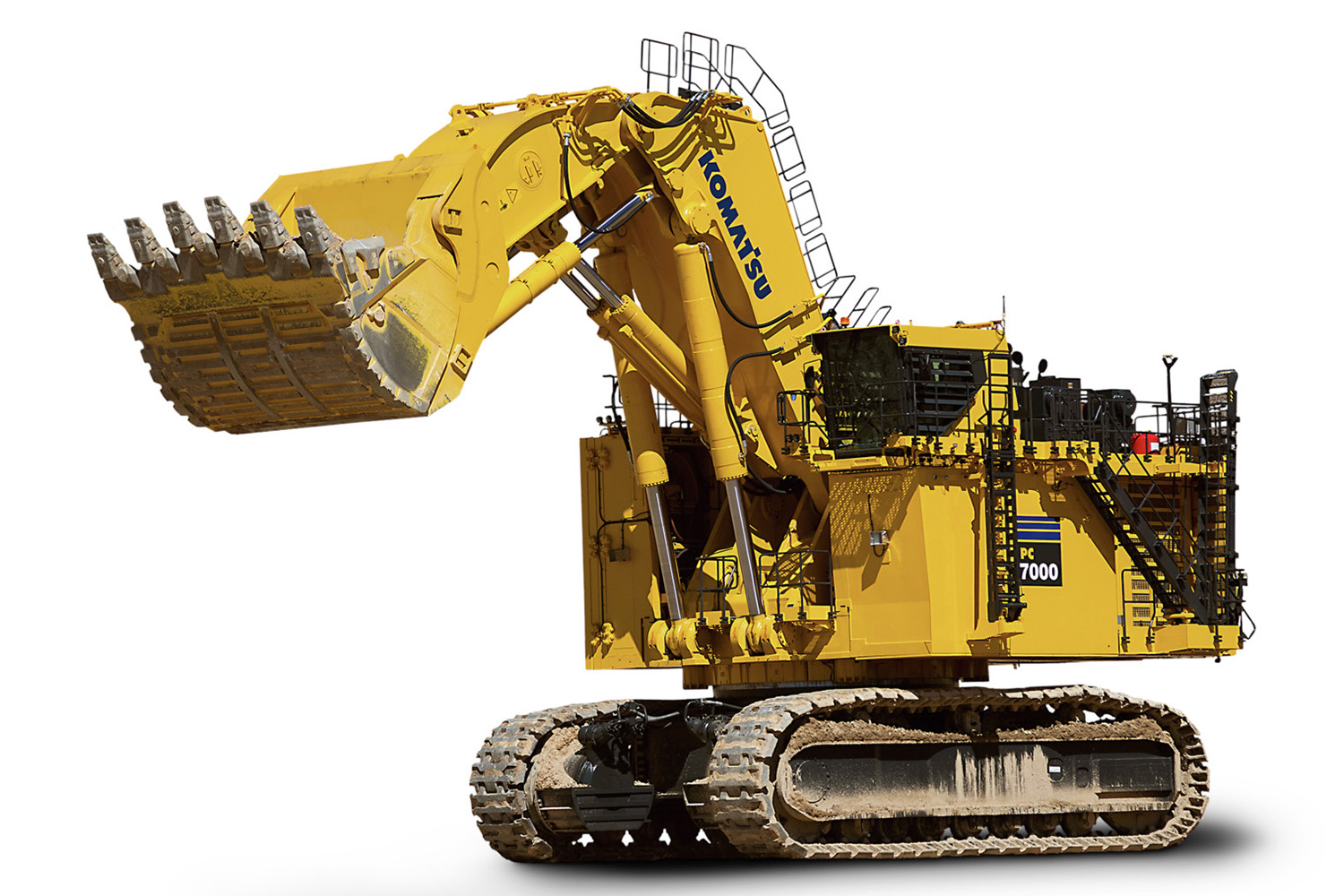

Front shovel attachment
26’3” boom
18’1“ stick
Set of cylinders
47 yd3(SAE 2:1) shovel bucket incl. standard wear package with hammerless GET system
OR

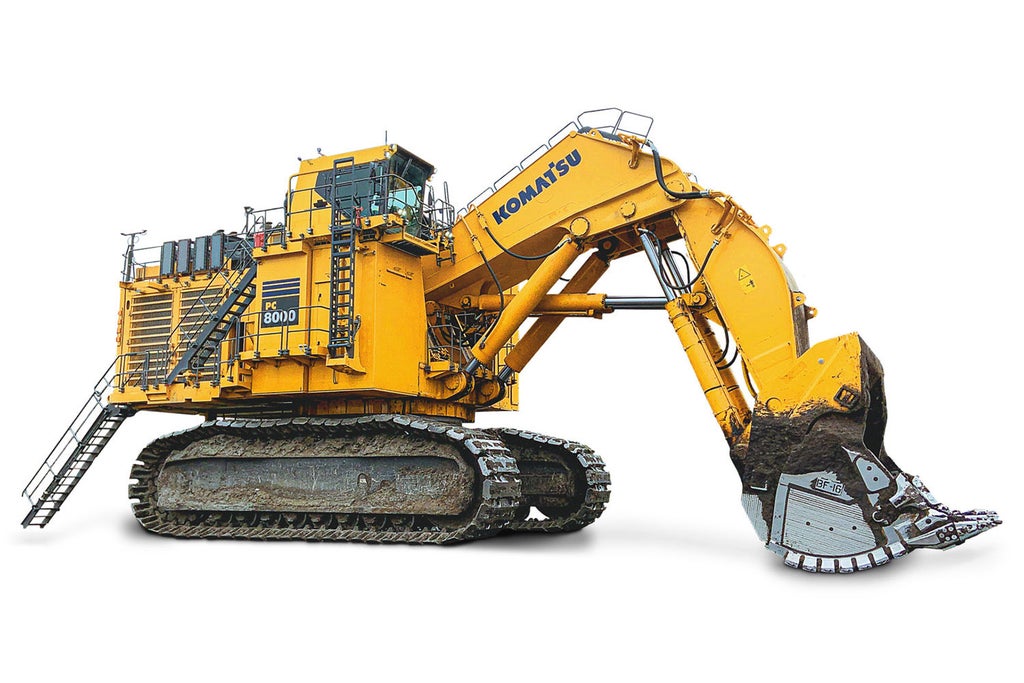

Backhoe attachment
36’1” boom
16’9” stick
Set of cylinders
47 yd3(SAE 1:1) bucket incl. standard wear package with hammerless GET system
Crawler undercarriage
Heavy-duty shovel type undercarriage
Centre carBody
2 heavy box-type track frames
7 bottom rollers and 3 top rollers each side
59” cast steel track shoes
Hydraulic track adjustment and parking brake
Drive gear box protection
Superstructure
Main frame mounted over an externally toothed swing circle carries the drive module
2 x Komatsu SSDA16V159E-2 Tier 2 diesel Engines
Oil and fuel reservoirs
Hydraulic components
Counterweight
Lighting
16 LED high performance working lights
Service lights throughout the platform incl. emergency egresses and stairways
Operator cab
Enclosed steel Cab mounted on viscous pads
FOPS according ISO 3449
Air-conditioning unit Sütrak
Full suspension operator seat with belt
Controls ergonomic
KOMTRAX Plus (Monitoring System)
Joysticks are electro-hydraulic
1 large parallel windshield wash wiper
AM-FM radio with MP3 ready CD player & aux port
Internal and external sun blinds
All windows tinted parsol green
Impact resistant front window (19mm)
Walkway in front of Cab
Lubrication and service
LINCOLN central lubrication for basic machine and attachment
LINCOLN central lubrication for bucket and bucket stick assembly
LINCOLN automatic pinion lubrication system for swing circle teeth
WIGGINS service arm carrying fluid receiving connectors for filling of fuel, Engine oil and coolant, hydraulic oil, grease, and the evacuation of coolant, hydraulic and Engine oils
Accessories included
Acoustic travel alarm
Hydraulically actuated ground access ladder
45° primary access and egress stairway
45° access swing stairway
3 emergency egresses - Cab and machinery house roof - machinery house escape
36 m3(SAE 2:1) shovel bucket incl. standard wear package with hammerless GET system
OR
Backhoe attachment
11,0 m boom
5,1 m stick
Set of cylinders
36 m3(SAE 1:1) bucket incl. standard wear package with hammerless GET system
Crawler undercarriage
Heavy-duty shovel type undercarriage
Centre carBody
2 heavy box-type track frames
7 bottom rollers and 3 top rollers each side
1500 mm cast steel track shoes
Hydraulic track adjustment and parking brake
Drive gear box protection
Superstructure
Main frame mounted over an externally toothed swing circle carries the drive module
2 x Komatsu SSDA16V159E-2 Tier 2 diesel Engines
Oil and fuel reservoirs
Hydraulic components
Counterweight
Lighting
16 LED high performance working lights
Service lights throughout the platform incl. emergency egresses and stairways
Operator cab
Enclosed steel Cab mounted on viscous pads
FOPS according ISO 3449
Air-conditioning unit Sütrak
Full suspension operator seat with belt
Controls ergonomic
KOMTRAX Plus (Monitoring System)
Joysticks are electro-hydraulic
1 large parallel windshield wash wiper
AM-FM radio with MP3 ready CD player & aux port
Internal and external sun blinds
All windows tinted parsol green
Impact resistant front window (19mm)
Walkway in front of Cab
Lurication and service
LINCOLN central lubrication for basic machine and attachment
LINCOLN central lubrication for bucket and bucket stick assembly
LINCOLN automatic pinion lubrication system for swing circle teeth
WIGGINS service arm carrying fluid receiving connectors for filling of fuel, Engine oil and coolant, hydraulic oil, grease, and the evacuation of coolant, hydraulic and Engine oils
Accessories included
Acoustic travel alarm
Hydraulically actuated ground access ladder
45° primary access and egress stairway
45° access swing stairway
3 emergency egresses - Cab and machinery house roof - machinery house escape
The Argus Payload Monitoring System weighs each bucket in real-time, which helps eliminate the need to stop and calculate payload before loading the truck. Immediate feedback promotes loading accuracy, while peer benchmarking works to reinforce best practices to improve operator performance.
The ProVision Machine Guidance System promotes increased operator efficiency and productivity through the use of high-precision global navigation satellite system (HP-GNSS) positioning. Capable of providing up to 1 cm accuracy, the ProVision System helps guide excavator operators to dig the right material, keep the designed bench grade, respect dig limits, and work within the machine’s prime operating specifications. The system also provides guidance to truck operators to help promote precise spotting at a loading unit.
The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilization and reduced maintenance costs and equipment degradation.
The DISPATCH Fleet Management System (FMS) helps mines achieve enhanced load and haul cycle efficiency and productivity through its proprietary optimization algorithm. The DISPATCH FMS provides mines with increased potential for end-to-end monitoring of production and auxiliary equipment, improved compliance with planning objectives, shorter hang/queue times and more.
