Excavators

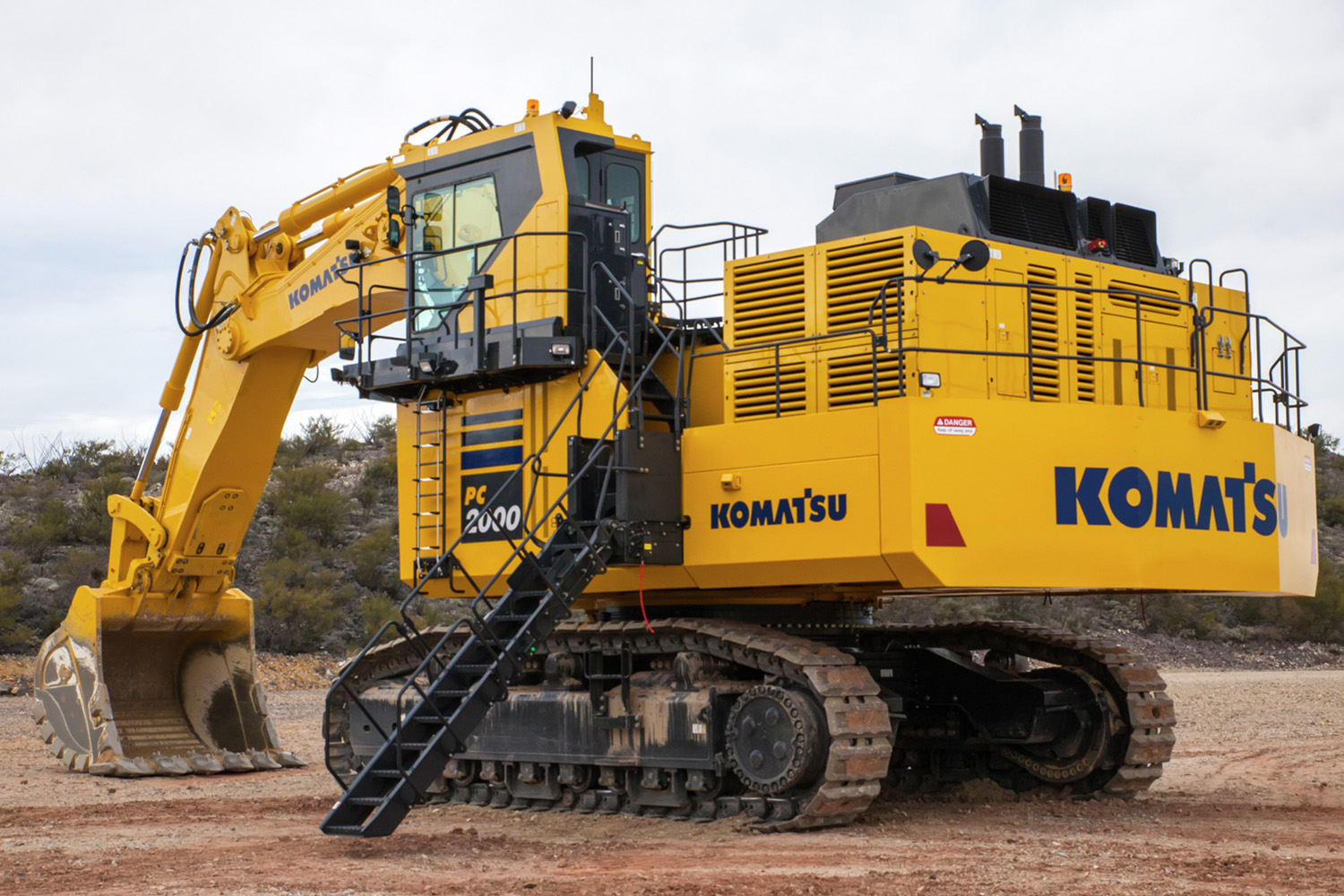

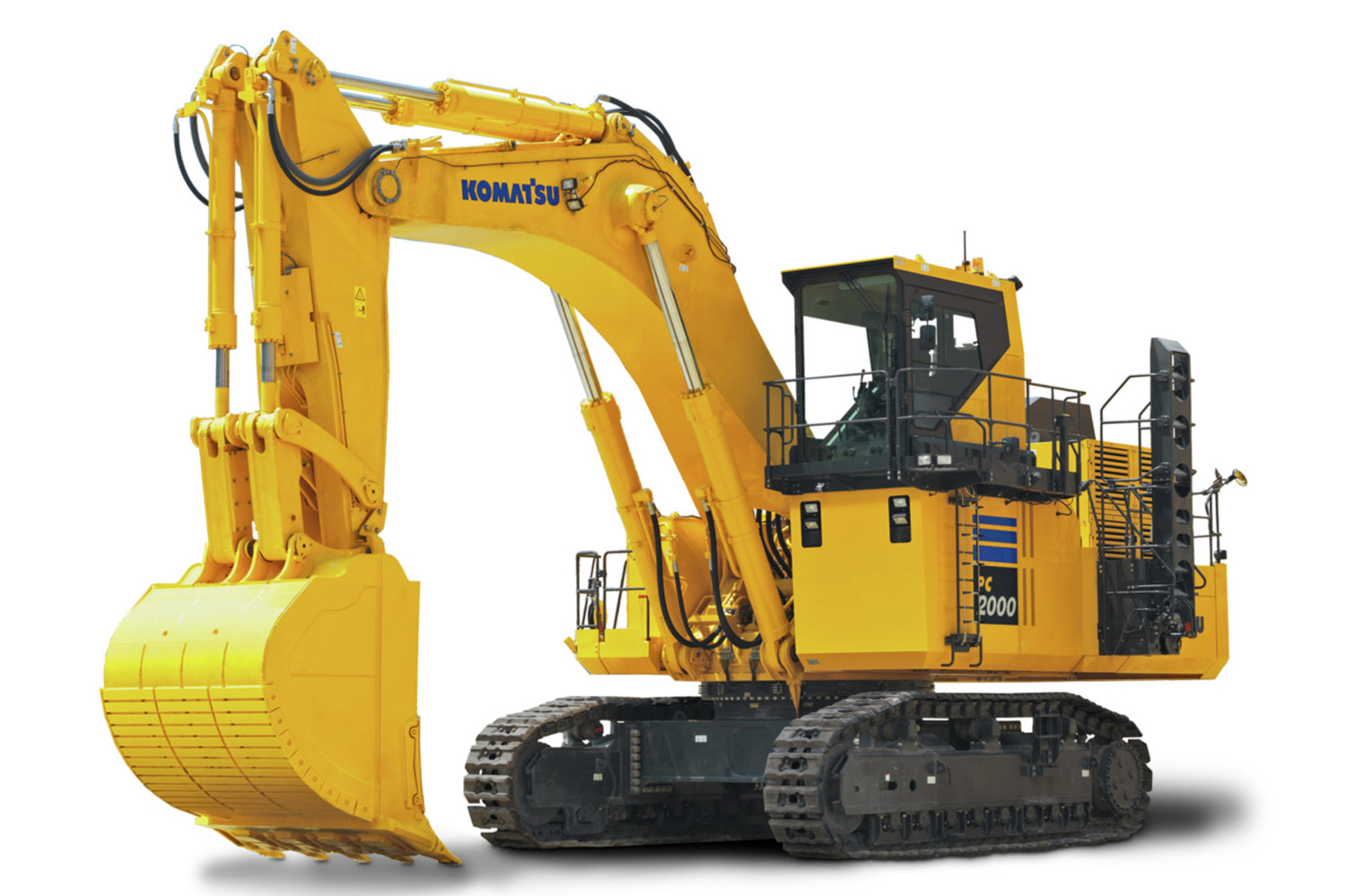

PC2000-11

Surface mining excavators

  • Horsepower (HP) 1,046 HP @ 1,800 rpm
  • Horsepower (kW) 780 kW @ 1 800 rpm
  • Operating weight (kg) 201 930 - 207 258
  • Bucket Capacity (m^3) 12.0 - 13.7
  • Bucket Capacity (yd^3) 15.7 - 17.9
  • Operating weight (lbs) 445,179 - 456,926

Purchase options

Request a quote Find a dealer

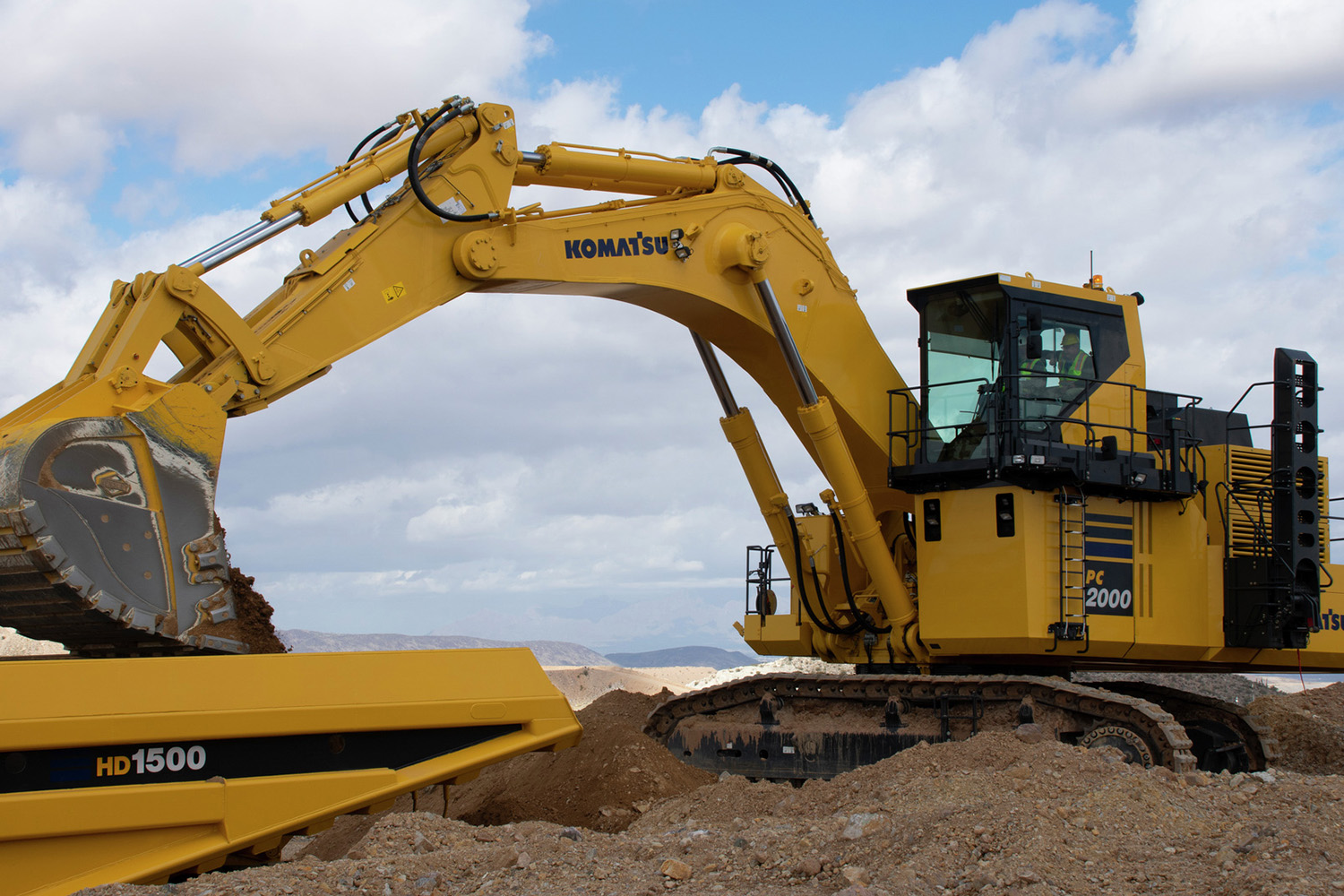

Productive and efficient loading

The PC2000-11 can load more trucks per shift. Increased engine power, a more efficient hydraulic system and new engine-pump control logic provide faster cycle times and improved multifunction performance.*

  • Up to 11% faster cycle times*
  • Productivity increased by up to 12%*
  • 9% more available engine horsepower*

Note: *compared to previous models

Features and benefits

Greater productivity

Greater productivity

High production fuels an eight percent decrease in production costs ($/ton) compared to previous models. The new “Power Plus” operating mode delivers nine percent more engine horsepower. New engine-pump control logic and a more efficient hydraulic system.

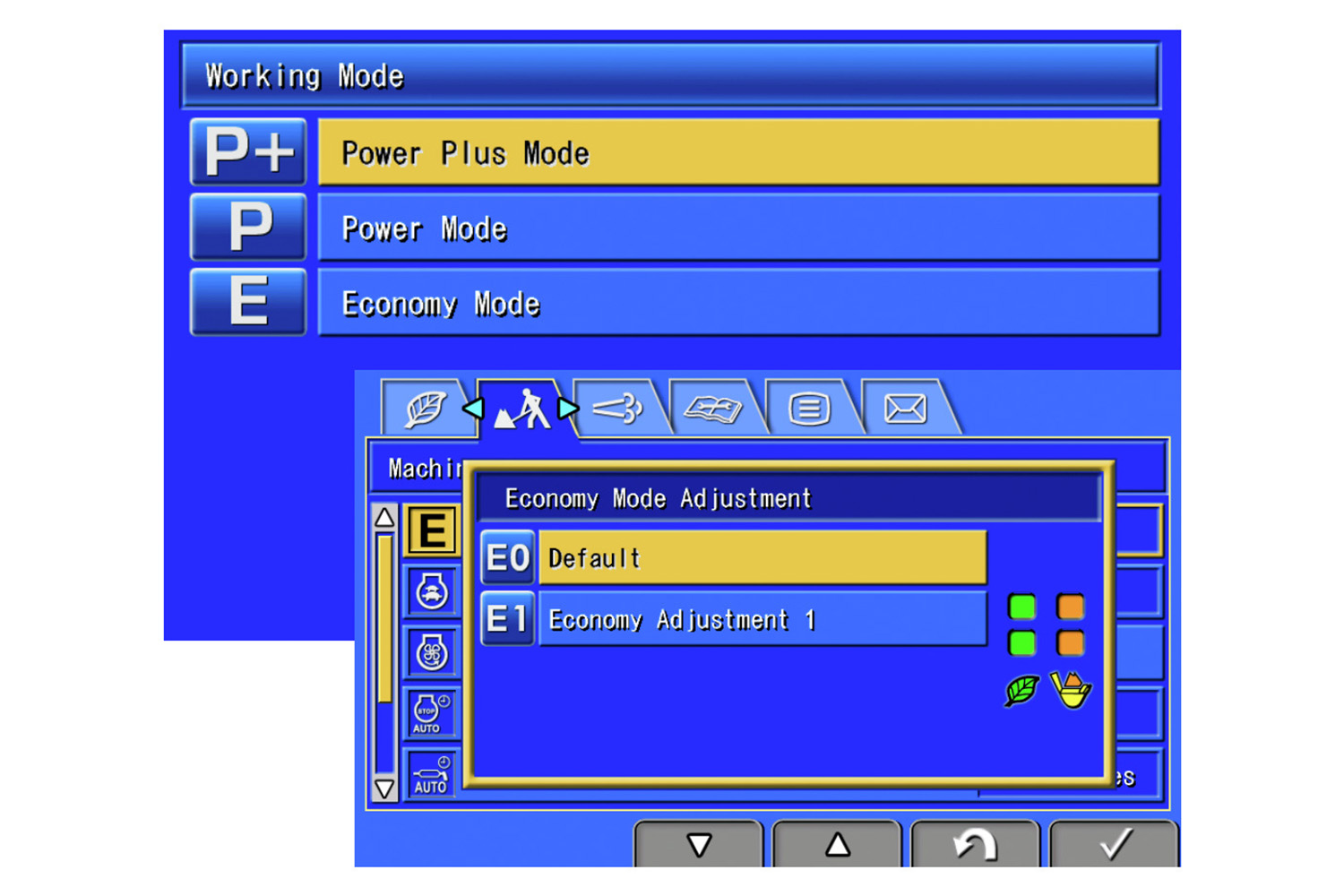

Four working modes

Four working modes

Tailor machine performance to your application requirements with four selectable working modes — production increased up to 12% with Power Plus mode over previous models.

Enhanced accessibility

Enhanced accessibility

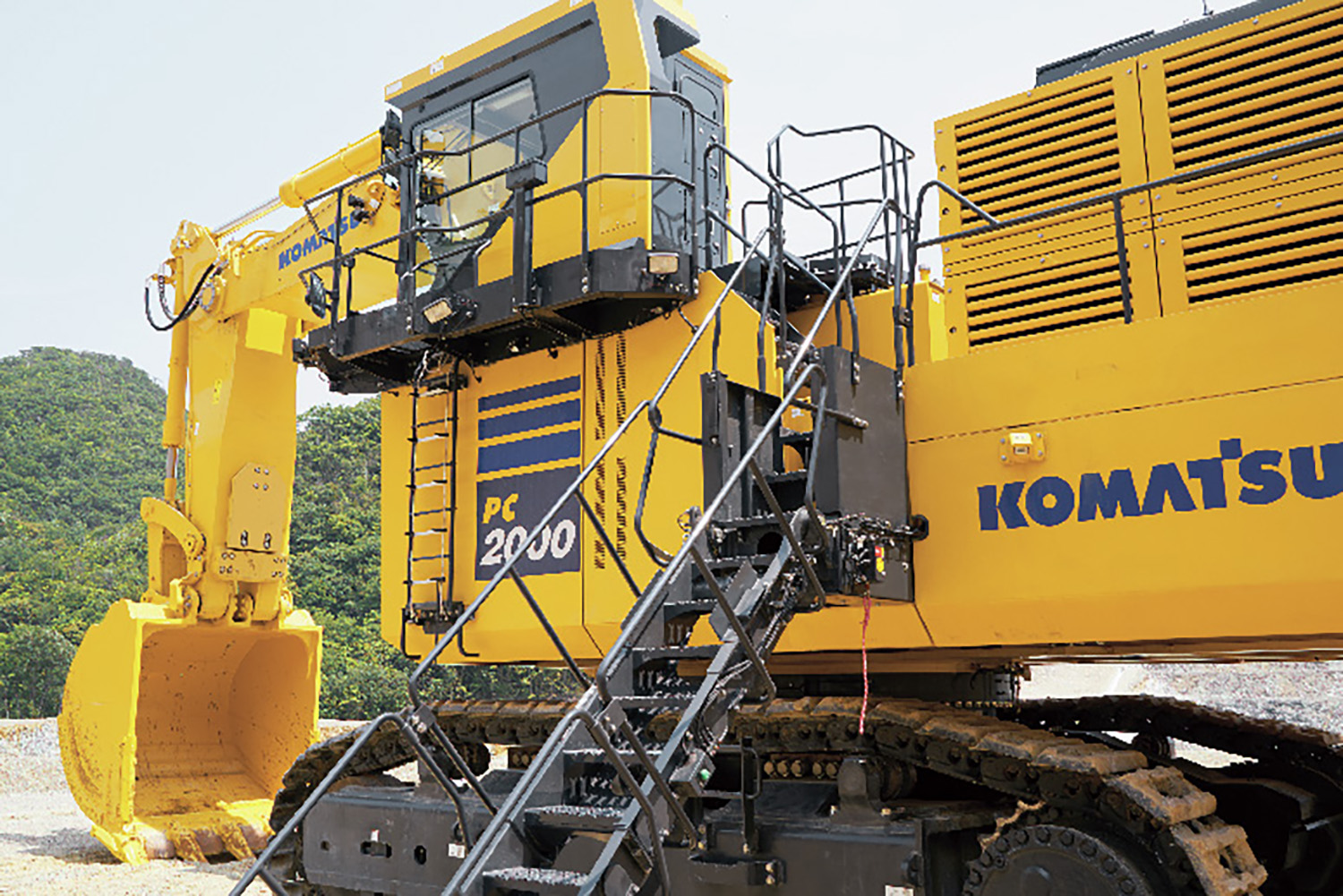

The 45-degree, hydraulically actuated boarding ladder for operators offer better accessibility and stability when boarding. Platforms and handrails make scheduled maintenance easier.

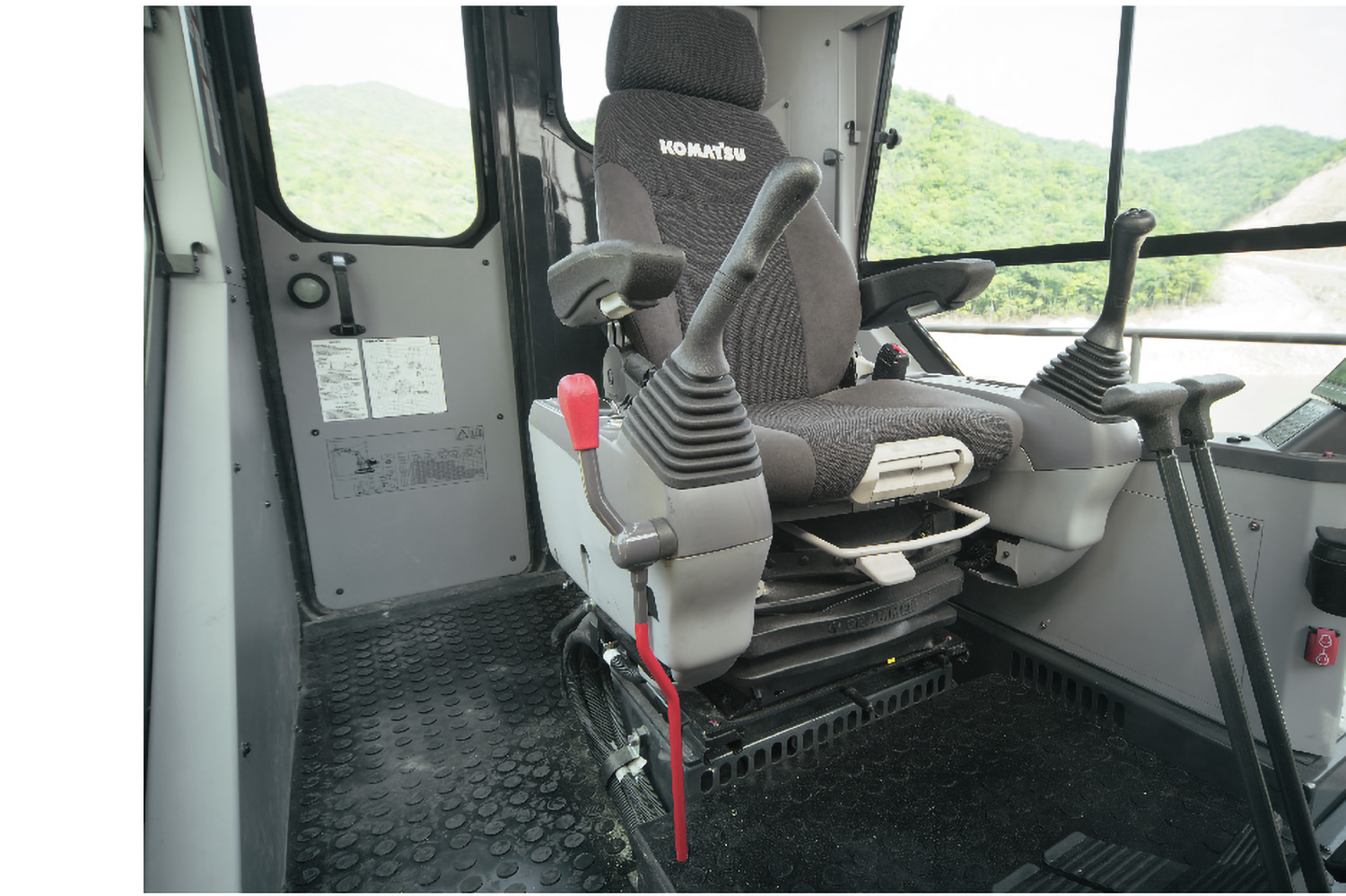

Operator comfort

Operator comfort

Heated air suspension seat and suspension-mounted controls deliver operator comfort. Noise suppression provides low, cabin noise levels of 64.1 dbA. New, large-capacity air conditioning system. High resolution 7-inch monitor with rearview camera. Trainer seat standard.

Exceptional visibility

Exceptional visibility

Provide your operator with a 360-degree view of the surrounding work area on a dedicated 10.4-inch LCD monitor. Standard KomVision seven-camera system can improve situational awareness, which promotes Zero Harm.

Designed for easy access maintenance

Designed for easy access maintenance

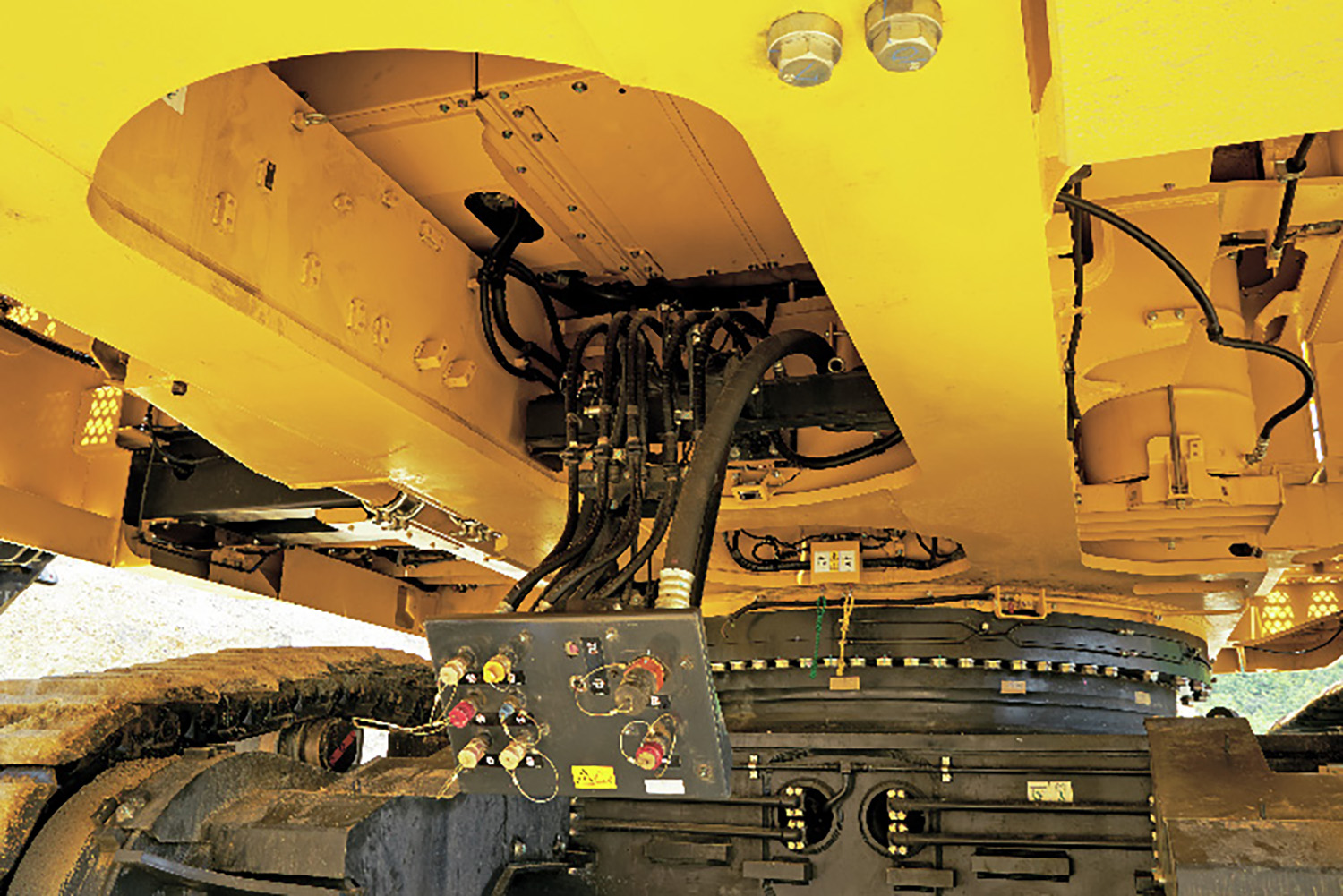

To help you minimize downtime and boost production, major components are located within the power modular, which can be quickly removed and replaced or rebuilt. Ground-level service, centralized for fuel, oil, greasing and coolant hydraulically raises and lowers at the rear of machine.

Durability and reliability

Durability and reliability

Designed to withstand tough operations, revolving frame, center frame and crawler frame structures are strengthened and redesigned boom and arm are highly resistant to bending and torsional loads.

Work equipment and hydraulics

Work equipment and hydraulics

New EPC valves optimize main valve spool control for increased speed, especially during compound movement. New, stronger boom design for increased durability and productivity. Heavy lift mode — 10 percent more boom lifting force.

Actionable insights

Actionable insights

Track your machine and productivity with Komtrax Plus, which enables expanded fleet monitoring via satellite and wireless LAN. Analyze machine information on a near-real-time basis remotely via computer or smartphone.


Specifications

Metric Imperial (US)
Expand all

  • Operating weight features (ft): Operating weight, including 28 ft. 7 in boom, 12 ft. 10 in arm, SAE J 296 heaped 15.7 yd3 general purpose backhoe bucket lubricant, coolant, full fuel tank, and the standard equipment.
  • Operating weight features (mm): Operating weight, including 8 700 mm boom, 3 900 mm arm, SAE J 296 heaped 12.0 m3 general purpose backhoe bucket lubricant, coolant, full fuel tank, and the standard equipment.
  • Triple grouser shoes

    • Operating weight with triple grouser 40 in (psi): 22.8
    • Operating weight with triple grouser 1 010 mm (kg/cm^2): 1.6
    • Operating weight with triple grouser 1 010 mm (kPa): 157.2
    • Operating weight with triple trouser 1 010 mm (kg): 206 050

      Hydraulic cycle time (rated load in bucket)

      • Operating weight with triple grouser 40 in (lbs): 454,134
  • Double grouser shoes

    • Operating weight with double grouser 32 in (lbs): 445,054
    • Operating weight with double grouser 810 mm (kg): 201 930
    • Operating weight with double grouser 810 mm (kg/cm^2): 1.96
    • Operating weight with double grouser 810 mm (kPa): 192.1

      Hydraulic cylinders

      • Operating weight with double grouser 32 in (psi): 27.9

  • Engine Model: Komatsu SAA12V140E-7*
  • Cooling Type: Water-cooled, 4-cycle, direct injection
  • Bore (mm): 140
  • Bore (in): 5.51
  • Stroke (in): 6.5
  • Stroke (mm): 165
  • Piston displacement (L): 30.48
  • Piston displacement (in^3): 1,860
  • Engine Rated (rpm): 1,800
  • Fan drive method for radiator cooling: Hydraulic
  • Horsepower

    • SAEJ1995 - Gross (HP): 1,065
    • SAEJ1995 - Gross (kW): 794
    • ISO 9249 / SAE J1349 - Net (kW): 780
    • ISO 9249 / SAE J1349 - Net (HP): 1,046

  • HydrauMind Type: Open-center load sensing system, 3 selectable working modes
  • Main pump

    • Maximum flow for attachment, swing and travel (gpm): 612
    • Maximum flow for fan drive (L/min): 324
    • Gear Type: Variable capacity piston pumps
    • Main pumps for: Boom, arm, bucket, swing, and travel circuits
    • Pumps for: Boom, arm, bucket, swing, and travel circuits
    • Variable Type: Variable capacity piston pumps

      Hydraulic cylinders

      • Maximum flow for fan drive (gpm): 85.6
      • Maximum flow for attachment, swing and travel (L/min): 2 317
  • Relief valve setting

    • Pilot circuit (psi): 464
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (MPa): 3.2
    • Swing circuit (psi): 4 270
    • Travel circuit (psi): 4 760
    • Swing circuit (kgf/cm^2): 300
    • Swing circuit (MPa): 29.4
    • Travel circuit (kgf/cm^2): 335
    • Travel circuit (MPa): 32.9
    • Backhoe (psi): 4 270
    • Backhoe (kgf/cm^2): 300
    • Backhoe (Mpa): 29.4
  • Hydraulic cylinders

    • Boom (Number of cylinders – bore x stroke x rod diameter)(in): 11.8 x 104.2
    • Boom (Number of cylinders – bore x stroke x rod diameter)(mm): 300 x 2 647
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(in): 7.9 x 85.4
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(mm): 200 x 2 170
    • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 9.8 x 84.2
    • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 250 x 2 138
  • Hydraulic motors

    • Swing: 2 x axial piston motors with swing holding brake
    • Travel: 2 x axial piston motors with parking brake

  • Maximum travel speed (kph): 2.7
  • Maximum travel speed (mph): 1.7

  • Aspiration: Turbocharged, aftercooled, cooled, EGR
  • Number of cylinders: 12
  • Governor: All-speed, electronic

  • Swing circle lubrication: Grease-bathed
  • Swing gear: 2 x Planetary gear
  • Swing holding brakes: Oil disc brakes
  • Swing speed (rpm): 4.8

  • Fuel tank (L): 3 400
  • Fuel tank (US gal): 898.3
  • Radiator (L): 240
  • Radiator (US gal): 63.4
  • Engine (US gal): 33.8
  • Engine (L): 128
  • Travel gear, each side (US gal): 22.5
  • Travel gear, each side (L): 85
  • Swing drive (L): 2 x 30
  • Swing drive (US gal): 2 x 7.9
  • Hydraulic tank (L): 1 300
  • Hydraulic tank (US gal): 343.5
  • Power Take Off (US gal): 10.6
  • Power Take Off (L): 40

  • Gradeability: 70%, 35°
  • Parking brake: Oil disc brakes

  • Number of shoes (each side): 49
  • Number of track rollers (each side): 8
  • Number of carrier rollers (each side): 3
  • Track adjuster: Grease
Metric Imperial (US)
Engine and related items
  • Air cleaner, double element dry
  • Automatic Engine warm-up system
  • Electric priming pump for fuel
  • Engine, Komatsu SAA12V140E-7turbocharged, U.S. EPA Tier 4 Finalcertified.
  • Fuel pre-filters with water separators
  • Two cooling fans with fan guard(Hydraulic drive, for radiator and oilcooler), reversible
Electrical system
  • Alternators, 24 V/2 x 90 A
  • Auto decelerator and auto idlingsystem
  • Auto idle shutdown (adjustable)
  • Batteries, 4 x 12 V/140 Ah
  • Battery isolator and starting motorisolator
  • Circuit breakers
  • Electrical Engine oil pan heater andcoolant heater
  • Horn interconnected with warning light
  • Ladder operating alarm
  • Lever lock auto-lock
  • Lighting switches instrument panel
  • Radio w/ auxiliary input (3.5 mm jack)
  • Rear working light
  • Secondary Engine stop switch (groundaccess)
  • Starting motors, 2 x 11 kW
  • Working lights, 4 boom, 4 Cab base, 3fuel tank top front, 1 left front and 1 leftunder Cab side catwalk, LED lampsystem (2 lamps)
Guards and covers
  • Dust resistant net for radiator and oilcooler
  • Pump/Engine room partition cover
  • Power module under cover
  • Travel motor guard
Drive system
  • Planetary travel gear with axial pistonmotor
  • Travel parking brake
Hydraulic system
  • 4 variable displacement piston pumps(2 tandem pumps) for work equipment,travel and swing, 2 variable displacementpiston pumps (1 tandem pump)for fan drive
  • Control levers for work equipment andswing with PPC system
  • Control levers and pedals for travelwith PPC system
  • Drain-filters for pumps & motors
  • Electric open-center load sensingsystem
  • Four control valves (two integratedvalves) for work equipment, swing andtravel
  • Heavy lift mode
  • High-pressure in-line oil filters
  • Oil cooler
  • One axial piston motor per track fortravel with counterbalance valve
  • Optimized electrical valve control forsmooth and efficient compoundmovement
  • Shockless boom control
  • Two axial piston motors for swing withsingle stage relief valve
  • Two-mode pressure setting for boom
Operator's cab
  • Automatic air conditioners (Twin)
  • Built-in top guard conforming to OPGlevel 2 (ISO10262)
  • KomVision, all round monitoringsystem
  • Large damper mounted and pressurizedmining shovel Cab with largewindshield, lockable door, large twinwipers and washers, floor mats, cigarettelighter, ashtray, 12V power supplyx 2, and cup holders
  • Large high resolution LCD colormonitor
  • Lock lever
  • Rearview monitoring system
  • Seat belt indicator
  • Seat belt, 3"
  • Seat, heated, high back, fully adjustableair suspension with retractableseat belt
  • Sun shield
  • Trainer's seat
Other
  • Automatic swing holding brake
  • Beacon, 2 (Cab top, Engine hood)
  • Dual rearview mirrors
  • Emergency Engine stop switch andfuel cut-off lever
  • Fuel tank, 898.2 U.S. Gal
  • Fully-automatic greasing system with52.8 U.S. Gal
  • Fully hydraulic operated stairway andfull 45° access to Cab
  • General tool kit
  • Jump start receptacle
  • KOMTRAX Plus® (vehicle health monitoringsystem)
  • Light in machine Cab
  • Maintenance light
  • Manual grease gun for track adjuster
  • PM tune-up service connection
  • Rear reflectors
  • Satellite communication system forKOMTRAX Plus® (Iridium)
  • Service center system, full quickcharge system (grease, oils, fuel,coolant)
  • Slip-resistant plates
  • Step light with timer
  • Travel alarm
  • Wide catwalk and large handrail
Undercarriage
  • 32" double grouser shoes
  • 8 track rollers/3 carrier rollers (Each side)
  • Hydraulic Idler Cushion (HIC) with shock absorbing accumulator
  • Track guiding guard (Separate type)
Engine and related items
  • Air cleaner, double element dry
  • Automatic Engine warm-up system
  • Electric priming pump for fuel
  • Engine, Komatsu SAA12V140E-7turbocharged, U.S. EPA Tier 4 Finalcertified.
  • Fuel pre-filters with water separators
  • Two cooling fans with fan guard(Hydraulic drive, for radiator and oilcooler), reversible
Electrical system
  • Alternators, 24 V/2 x 90 A
  • Auto decelerator and auto idlingsystem
  • Auto idle shutdown (adjustable)
  • Batteries, 4 x 12 V/140 Ah
  • Battery isolator and starting motorisolator
  • Circuit breakers
  • Electrical Engine oil pan heater andcoolant heater
  • Horn interconnected with warning light
  • Ladder operating alarm
  • Lever lock auto-lock
  • Lighting switches instrument panel
  • Radio w/ auxiliary input (3.5 mm jack)
  • Rear working light
  • Secondary Engine stop switch (groundaccess)
  • Starting motors, 2 x 11 kW
  • Working lights, 4 boom, 4 Cab base, 3fuel tank top front, 1 left front and 1 leftunder Cab side catwalk, LED lampsystem (2 lamps)
Guards and covers
  • Dust resistant net for radiator and oilcooler
  • Pump/Engine room partition cover
  • Power module under cover
  • Travel motor guard
Drive system
  • Planetary travel gear with axial pistonmotor
  • Travel parking brake
Hydraulic system
  • 4 variable displacement piston pumps(2 tandem pumps) for work equipment,travel and swing, 2 variable displacementpiston pumps (1 tandem pump)for fan drive
  • Control levers for work equipment andswing with PPC system
  • Control levers and pedals for travelwith PPC system
  • Drain-filters for pumps & motors
  • Electric open-center load sensingsystem
  • Four control valves (two integratedvalves) for work equipment, swing andtravel
  • Heavy lift mode
  • High-pressure in-line oil filters
  • Oil cooler
  • One axial piston motor per track fortravel with counterbalance valve
  • Optimized electrical valve control forsmooth and efficient compoundmovement
  • Shockless boom control
  • Two axial piston motors for swing withsingle stage relief valve
  • Two-mode pressure setting for boom
Operator's cab
  • Automatic air conditioners (Twin)
  • Built-in top guard conforming to OPGlevel 2 (ISO10262)
  • KomVision, all round monitoringsystem
  • Large damper mounted and pressurizedmining shovel Cab with largewindshield, lockable door, large twinwipers and washers, floor mats, cigarettelighter, ashtray, 12V power supplyx 2, and cup holders
  • Large high resolution LCD colormonitor
  • Lock lever
  • Rearview monitoring system
  • Seat belt indicator
  • Seat belt, 78 mm
  • Seat, heated, high back, fully adjustableair suspension with retractableseat belt
  • Sun shield
  • Trainer's seat
Other
  • Automatic swing holding brake
  • Beacon, 2 (Cab top, Engine hood)
  • Dual rearview mirrors
  • Emergency Engine stop switch andfuel cut-off lever
  • Fuel tank, 3400 L
  • Fully-automatic greasing system with200 L
  • Fully hydraulic operated stairway andfull 45° access to Cab
  • General tool kit
  • Jump start receptacle
  • KOMTRAX Plus® (vehicle health monitoringsystem)
  • Light in machine Cab
  • Maintenance light
  • Manual grease gun for track adjuster
  • PM tune-up service connection
  • Rear reflectors
  • Satellite communication system forKOMTRAX Plus® (Iridium)
  • Service center system, full quickcharge system (grease, oils, fuel,coolant)
  • Slip-resistant plates
  • Step light with timer
  • Travel alarm
  • Wide catwalk and large handrail
Undercarriage
  • 810 mm double grouser shoes
  • 8 track rollers/3 carrier rollers (Each side)
  • Hydraulic Idler Cushion (HIC) with shock absorbing accumulator
  • Track guiding guard (Separate type)
Metric Imperial (US)
  • 40" triple grouser shoes
  • 12'10" backhoe arm assembly
  • 28'7" backhoe boom assembly
  • Coolant heater, fuel combustion type
  • Full length track guiding guards
  • Heavy-duty rock bucket
  • 1010 mm triple grouser shoes
  • 3900 mm backhoe arm assembly
  • 8700 mm backhoe boom assembly
  • Coolant heater, fuel combustion type
  • Full length track guiding guards
  • Heavy-duty rock bucket

Technology

Select continent

Argus

The Argus Payload Monitoring System weighs each bucket in real-time, which helps eliminate the need to stop and calculate payload before loading the truck. Immediate feedback promotes loading accuracy, while peer benchmarking works to reinforce best practices to improve operator performance.

technology-image

ProVision

The ProVision Machine Guidance System promotes increased operator efficiency and productivity through the use of high-precision global navigation satellite system (HP-GNSS) positioning. Capable of providing up to 1 cm accuracy, the ProVision System helps guide excavator operators to dig the right material, keep the designed bench grade, respect dig limits, and work within the machine’s prime operating specifications. The system also provides guidance to truck operators to help promote precise spotting at a loading unit.

technology-image

MineCare

The MineCare Maintenance Management System combines the benefits of real-time remote equipment health monitoring with cloud computing technology and advanced analytics capabilities. The MineCare System promotes the advanced detection of issues before they occur, thus helping to reduce unplanned maintenance events, promoting increased uptime and utilization and reduced maintenance costs and equipment degradation.

technology-image

DISPATCH

The DISPATCH Fleet Management System (FMS) helps mines achieve enhanced load and haul cycle efficiency and productivity through its proprietary optimization algorithm. The DISPATCH FMS provides mines with increased potential for end-to-end monitoring of production and auxiliary equipment, improved compliance with planning objectives, shorter hang/queue times and more.

technology-image

Telematics

Telematics data can drive results for business operations, but only when you can collect and analyze it efficiently. Get the insights that can benefit your bottom line.

technology-image

KomVision

Enhance visibility with KomVision, an all-around monitoring system that uses high-definition cameras to provide operators with a real-time bird’s eye-view of their machines’ immediate working area.

technology-image
