Excavators

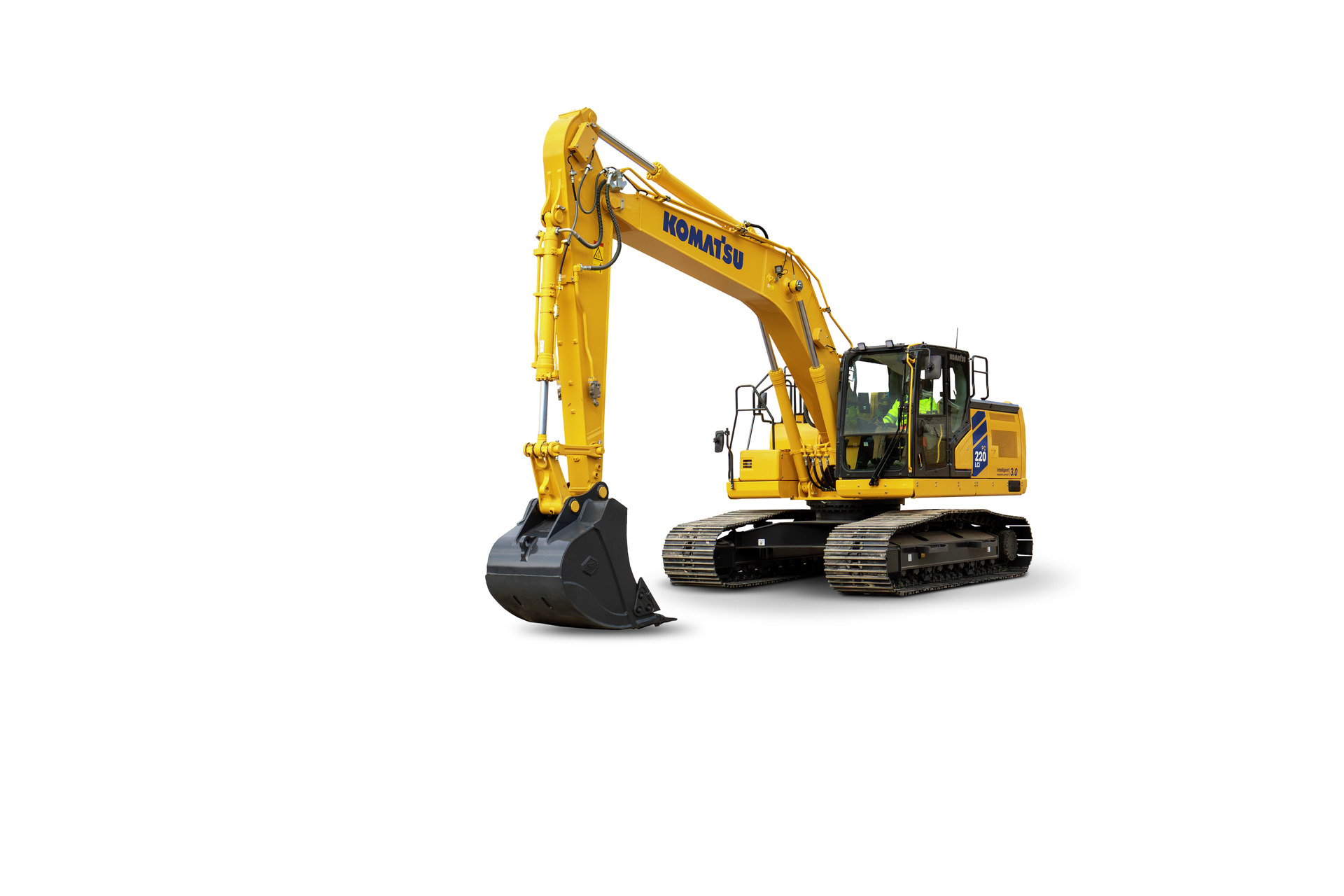

PC220LCi-12
Mid-size excavators
- Horsepower (HP) 173 @ 2,000 rpm
- Horsepower (kW) 129 @ 2,000 rpm
- Operating weight (kg) 24,200-24,800
- Operating weight (lbs) 53,352-54,675
- Bucket capacity (m^3) 0.50-1.41
- Bucket capacity (yd^3) 0.65-1.85
Essential digital tools, complementary for one year
Purchase an IMC-equipped machine and get 12 months of Smart Construction Dashboard, Smart Construction Remote and Smart Construction Fleet Lite.
Next-level technology for enhanced operator enablement
We’ve reimagined the operator environment and added our latest smart tech for an excavator built to help unleash the full potential of human and machine on every shift. The PC220LCi-12 was engineered with the goal of creating the most comfortable, advanced, customizable, and efficient working environment in a Komatsu excavator. Additionally, the PC220LCI-12 incorporates Komatsu’s latest IMC 3.0 smart technology, as well as advanced payload and machine swinging automation.
- Up to an 18% increase in workload productivity in the new P plus mode
- Up to an 8% increase in digging force and up to a 7% increase in overall lifting capacity
- 3D boundary control factory-integrated technology is a unique feature and the first in the construction industry
- The cab is 28% larger with 30% more legroom and 50% improved visibility*
- New multi-function, comfortable operator seat with heating and air suspension
- Up to a 20% reduction in fuel and diesel exhaust fluid costs*
Note: *All percentage claims are based on a comparison to the previous PC210LC-11 model. Cost reductions are achieved through a new electronically controlled hydraulic system and a high-output engine.
Features and benefits

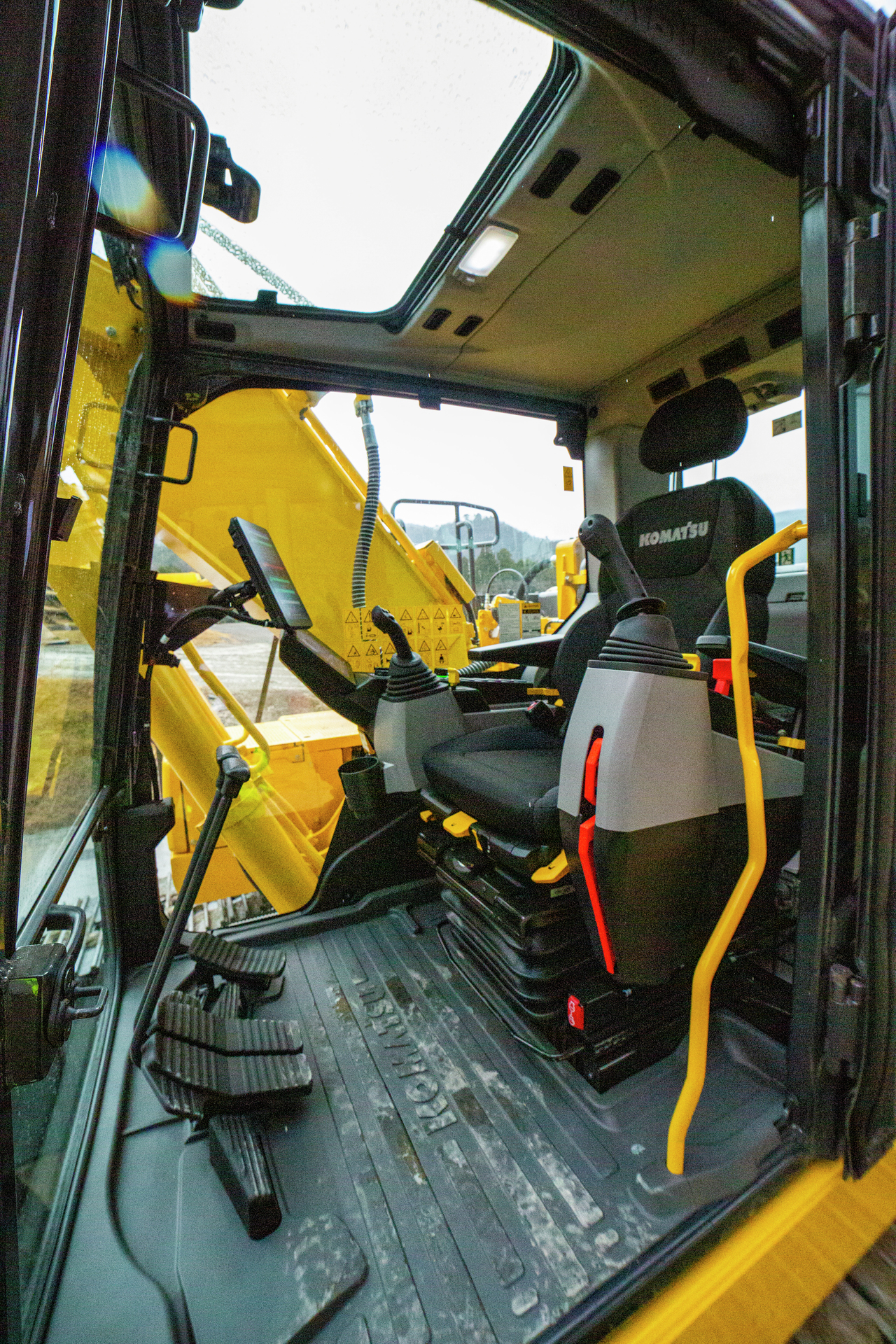

Updated cab design
This new cab design enhances operator comfort and visibility, helping to maintain productivity during long shifts. Improved legroom and visibility (compared to the PC210LC-11).
Intuitive and customizable cab monitor
A clear interface, combined with high-definition visuals, provides an intuitive, user-friendly, and customizable experience for the operator. Joystick controls are also customizable.

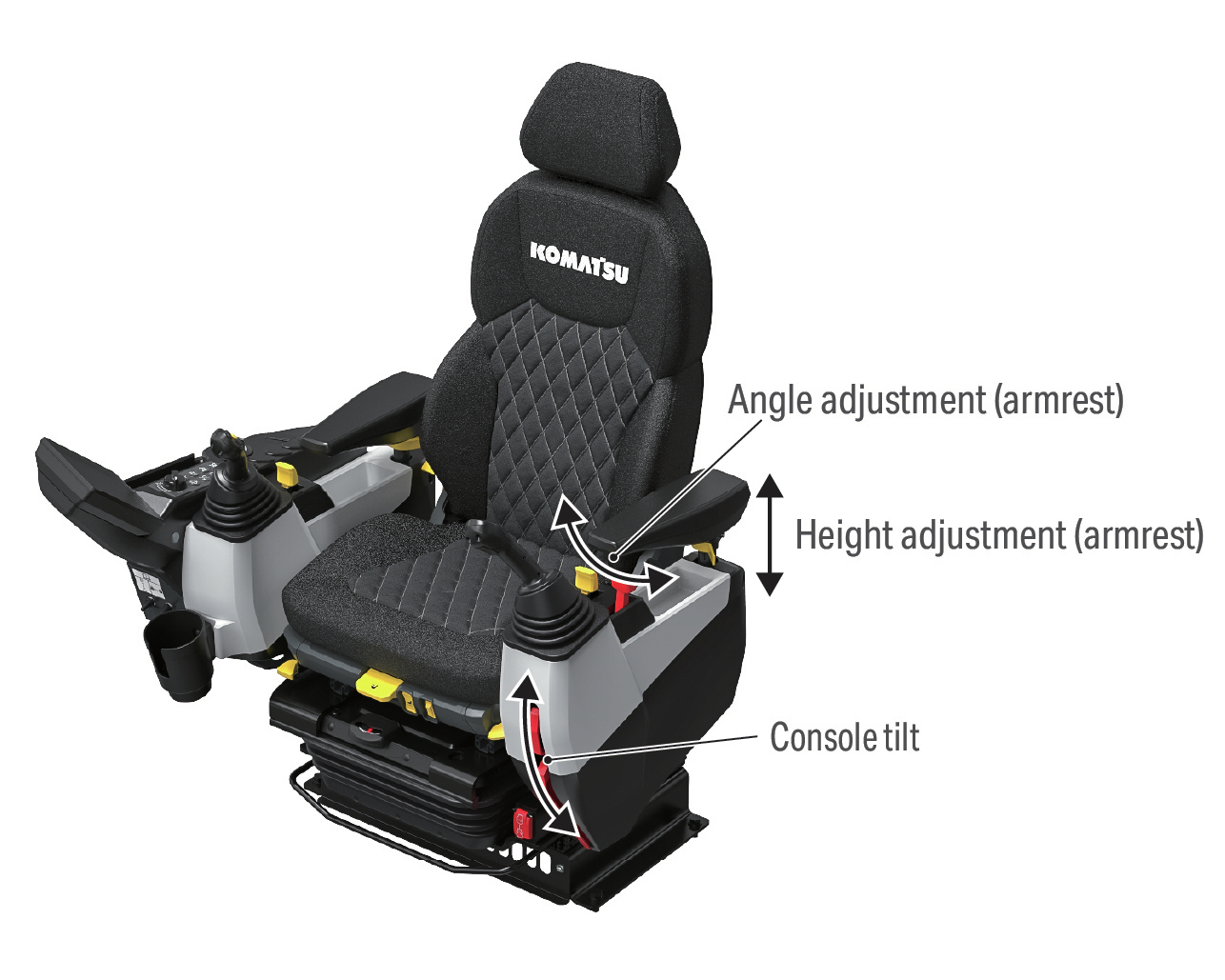

Air-suspension multi-function seat
Komatsu has improved the operator experience and comfort with upgraded seats. The most innovative seat has variable heat/cool settings and is adjustable to a maximum of 60 mm across six levels. The premium seat also features shock absorption providing additional comfort. The air suspension feature can be adjusted to a maximum height of 80 mm, with no level intervals.

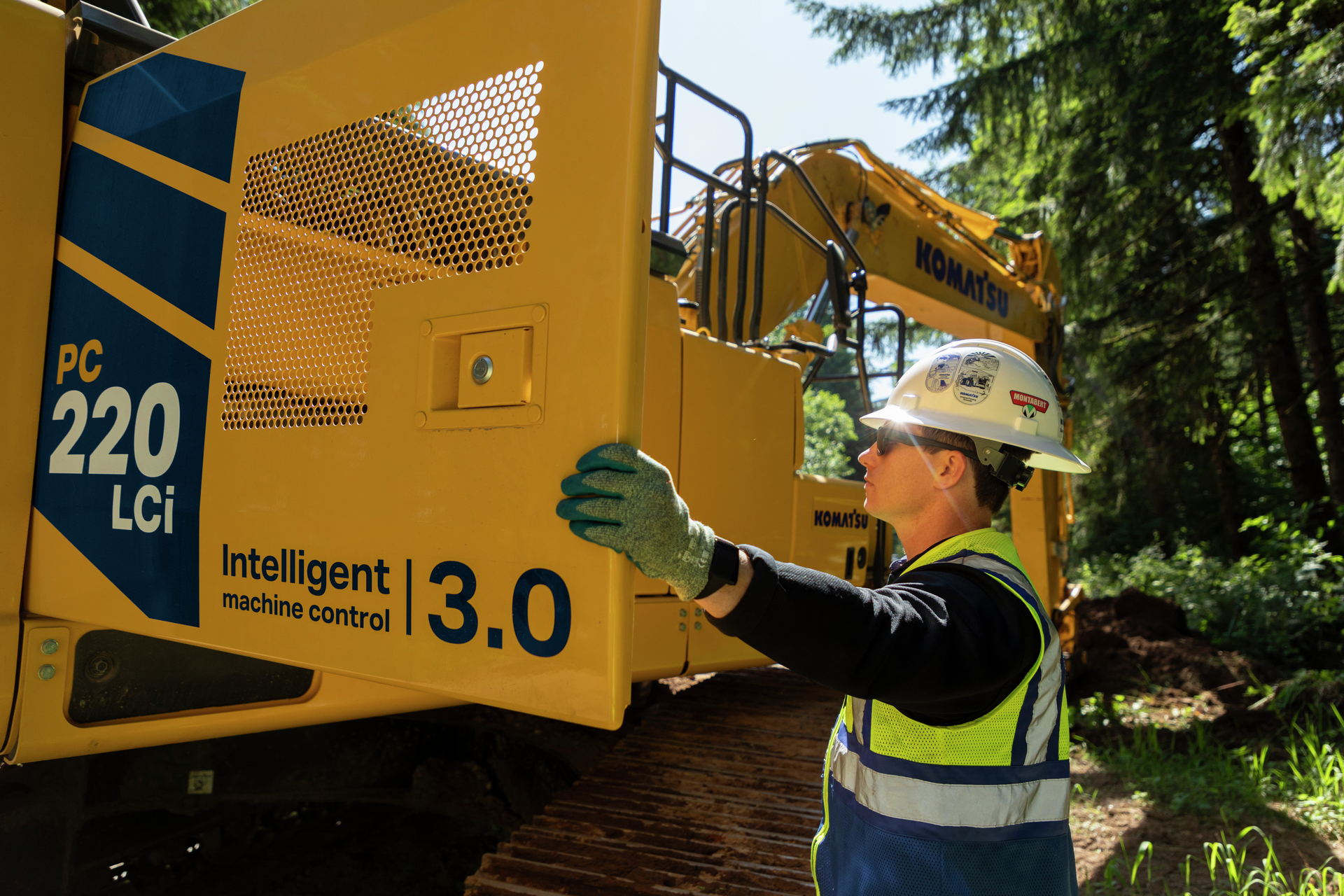

IMC 3.0
IMC 3.0 introduces valuable new technology layers, including auto-swing and auto-return dig for loading trucks, alongside existing grade control systems. It also offers seamless integration with Smart Construction solutions.
:photo-3x2-sm)

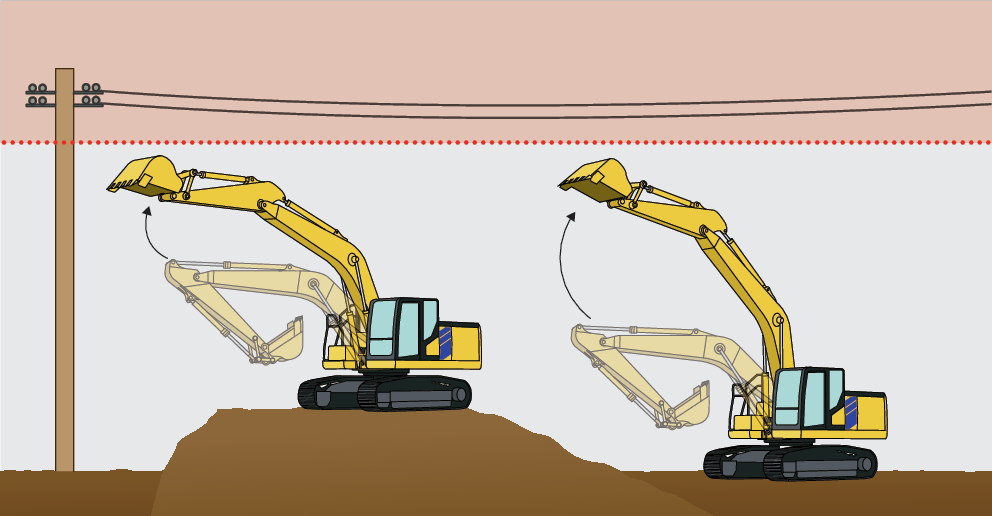

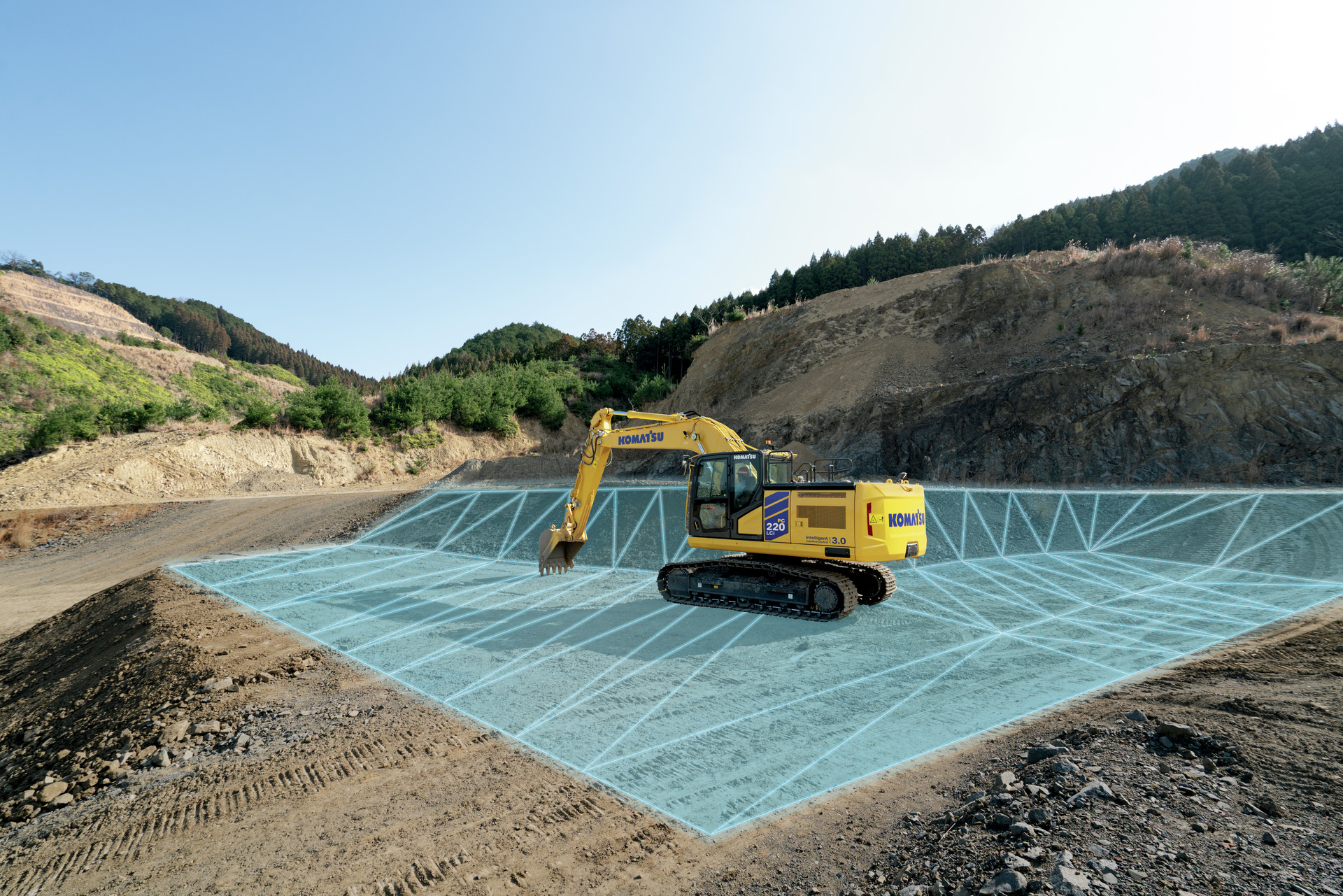

3D boundary control
Set a work-restriction surface for height, depth, front, back and side boundaries. The machine is designed to stop automatically when it approaches a restricted zone. Can be used for multiple work restriction surfaces.
:photo-3x2-sm)
Advanced payload, swing automation
Payload meter helps optimize loading and prevent insufficient hauls with real-time monitoring. Auto swing allows operator to specify swing speed and loading swing bucket hold angle.

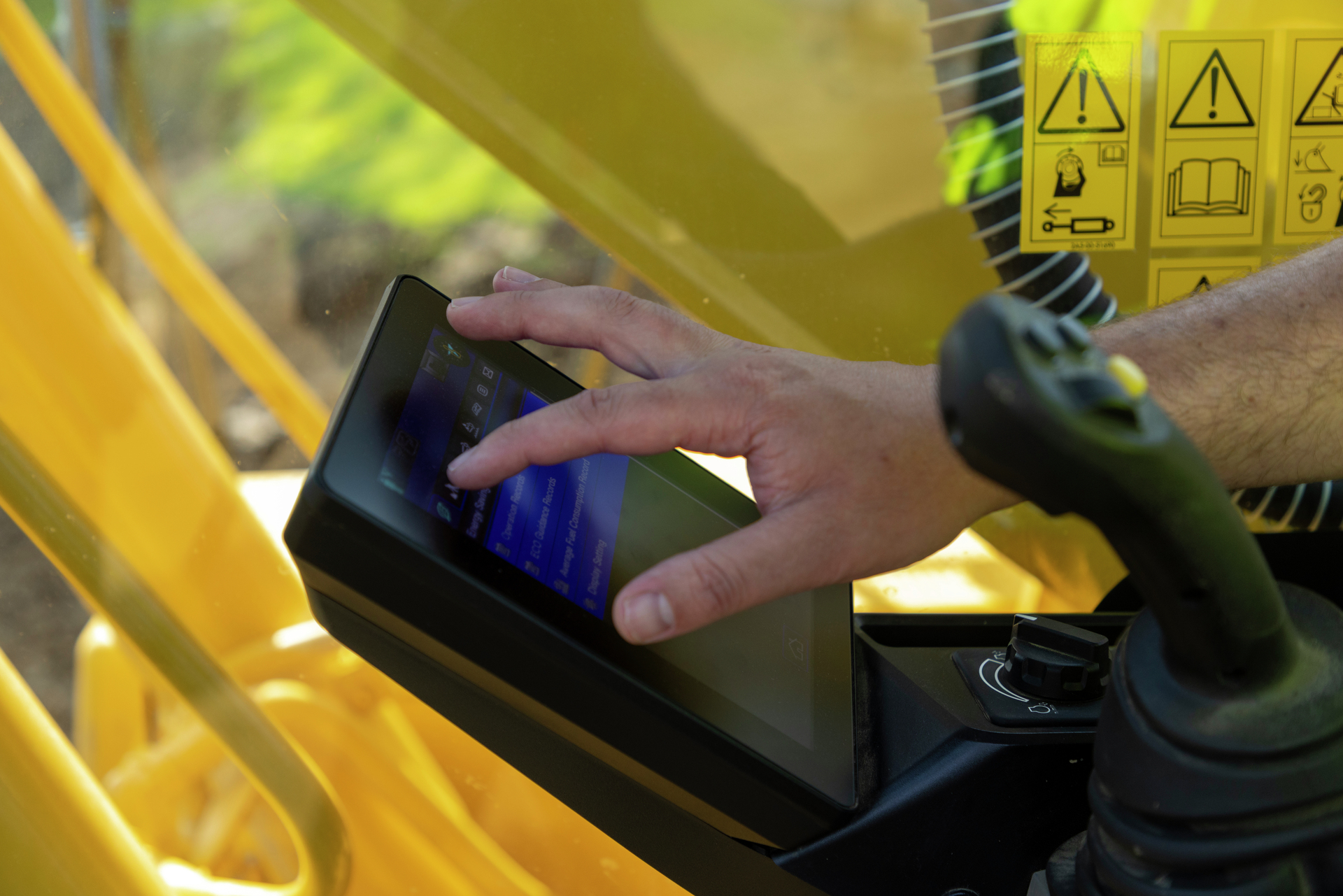

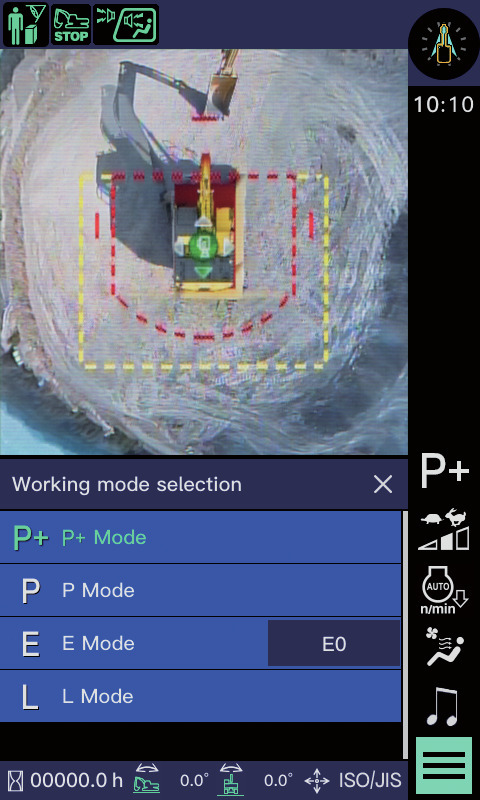

User interface enhancements
Upgraded from the previous model to an 8-inch touch-panel monitor. High-resolution display and easy access to various machine functions. Intuitive controls for attachment, working mode, and travel mode.

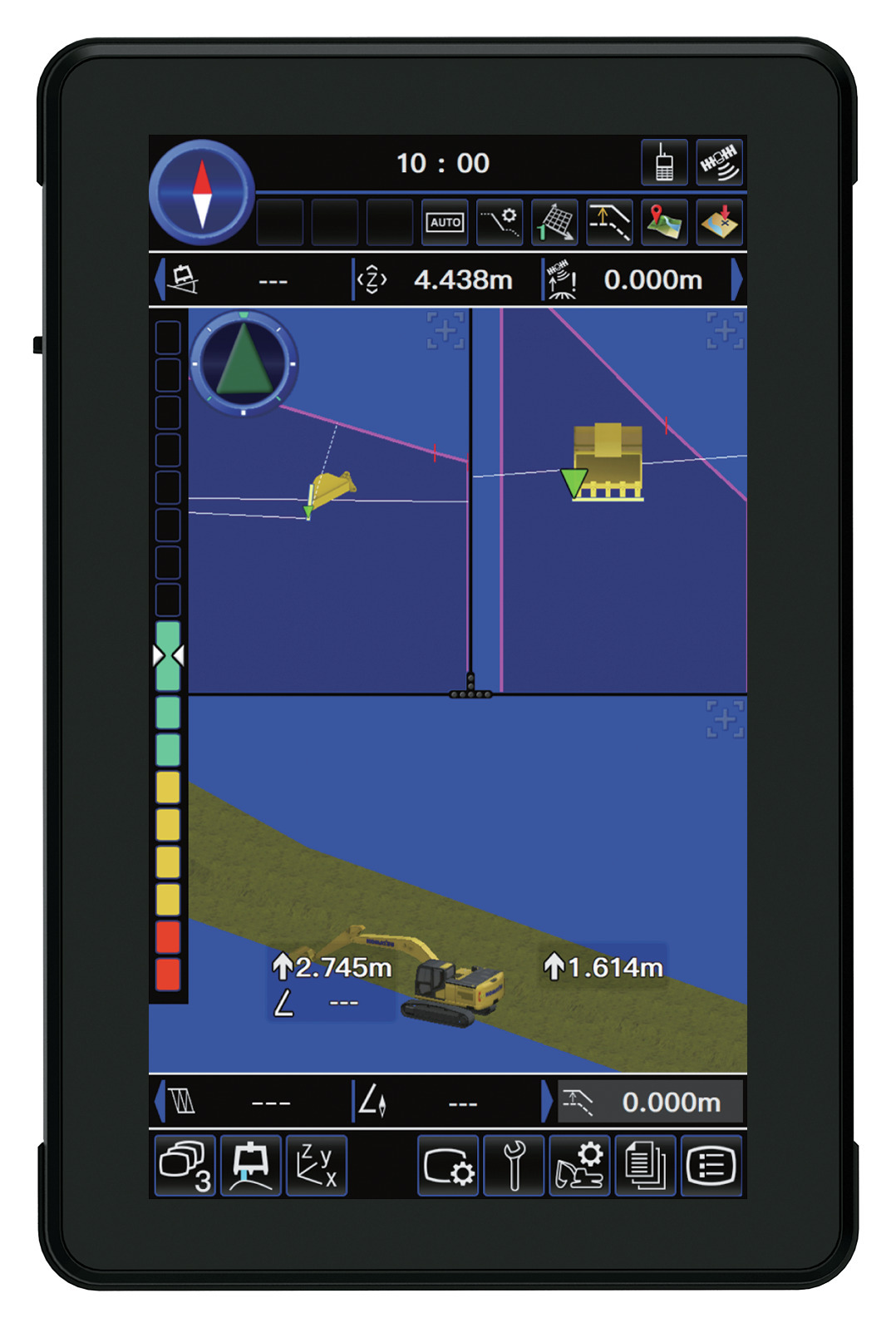

Future-ready ICT monitor
The 10.1-inch ICT monitor offers intuitive controls and real-time data visualization. The system supports over-the-air software updates, enabling continuous improvement and future enhancements.
Revamped work equipment
Enhanced work equipment through thick plating and reinforced castings. Provides additional strength and power for the operator in tough work conditions.

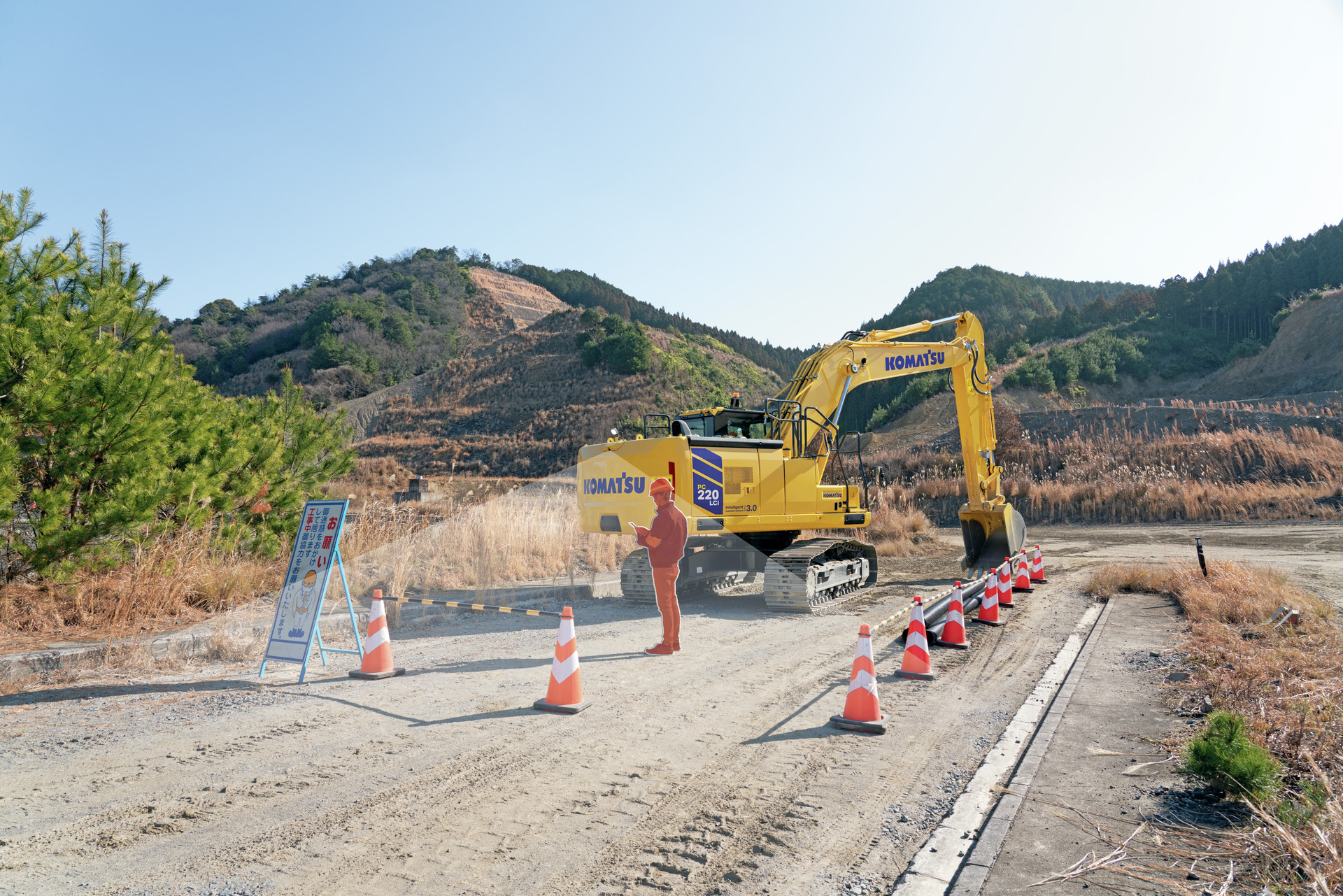

Enhanced operator features promote zero harm
Rollover avoidance alerts. KomVision 360 camera for enhanced bird’s eye views. Unbuckled seat belt reminders and human detection alerts. Courtesy lights and handrails designed for high visibility.
:photo-3x2-sm)
2D machine control
Enhances excavation and grading by automatically managing the cutting edge's position relative to a design surface. Includes auto stop control, auto grade assist, and touch point functionality.
Control maintenance costs
Compared to the PC210LC-11, up to a 20% reduction in overall maintenance costs can be achieved for extended intervals with hydraulic oil and filter replacement, as well as KDPF cleaning.
Specifications
- Full specs
- Standard equipment
- Optional equipment
- Drive method: Hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Mechanical disc brake
- Swing speed (rpm): 12.4
- HydrauMind Type: HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure-compensated valves
- Number of selectable working modes: 4
-
Main pump
- Variable Type: Variable displacement piston type
- Maximum flow (L/min): 504
- Maximum flow (US gpm): 133.1
- Supply for control circuit: Self-reducing valve
- Main pumps for: Boom, arm, bucket, swing, and travel circuits
-
Relief valve setting
- Implement circuits (psi): 5400
- Travel circuit (psi): 5400
- Swing circuit (psi): 410
- Implement circuits (MPa): 37.3
- Pilot circuit (psi): 470
- Implement circuits (kgf/cm^2): 380
- Pilot circuit (kgf/cm^2): 33
- Pilot circuit (MPa): 3.2
- Swing circuit (kgf/cm^2): 295
- Swing circuit (MPa): 28.9
- Travel circuit (kgf/cm^2): 380
- Travel circuit (MPa): 37.3
-
Hydraulic cylinders
- Boom (Number of cylinders – bore x stroke x rod diameter)(mm): 130 x 1335 x 90
- Boom (Number of cylinders – bore x stroke x rod diameter)(in): 5.1 x 52.7 x 3.5
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 140 x 1490 x 100
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 5.5 x 58.7 x 3.9
- Bucket (Number of cylinders – bore x stroke x rod diameter)(in): 4.7 x 43.9 x 3.4
- Bucket (Number of cylinders – bore x stroke x rod diameter)(mm): 120 x 1114 x 85
-
Hydraulic motors
- Travel: 2 x axial piston motors with parking brake
- Swing: 1 x axial piston motor with swing holding brake
- Operating weight features (mm): Operating weight including 5,700 mm one-piece boom, 2,925 mm arm, heaped 0.8 m3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator and standard equipment.
-
Triple grouser shoes
- Ground pressure with triple-grouser shoes 700 mm (kg/cm^2): 0.44
- Ground pressure with triple-grouser shoes 700 mm (kPa): 43
- Ground pressure with triple-grouser shoes 800 mm (kg/cm^2): 0.39
- Ground pressure with triple-grouser shoes 800 mm (kPa): 38
- Ground pressure with triple-grouser shoes 900 mm (kg/cm^2): 0.35
- Operating weight with triple-grouser shoes 700 mm (kg): 24200
- Operating weight with triple-grouser shoes 800 mm (kg): 24500
- Operating weight with triple-grouser shoes 900 mm (kg): 24800
- Engine Model: Komatsu SAA4D107E-5 (U.S. EPA Tier 4 Final and EU Stage 5 emissions certified.)
- Aspiration: Turbocharged, aftercooled
- Number of cylinders: 4
- Bore (mm): 107
- Bore (in): 4.21
- Stroke (mm): 124
- Stroke (in): 4.88
- Piston displacement (in^3): 272.17
- Piston displacement (L): 4.46
- Engine Rated (rpm): 2000
- Governor: All-speed, electronic
- Fan drive method for radiator cooling: Mechanical
-
Horsepower
- SAEJ1995 - Gross (HP): 173
- SAEJ1995 - Gross (kW): 129
- ISO 9249 / SAE J1349 - Net (HP): 172
- ISO 9249 / SAE J1349 - Net (kW): 129
- Fuel tank (US gal): 92.5
- Coolant (US gal): 7.6
- Engine (US gal): 4.8
- Final drive (US gal): 1.1
- Swing drive (US gal): 1.7
- Swing drive (L): 6.5
- Hydraulic tank (L): 119
- Hydraulic tank (US gal): 31.4
- DEF tank (US gal): 16.6
- Fuel tank (L): 350
- Coolant (L): 28.2
- Engine (L): 18
- Final drive (L): 4.1
- DEF tank (L): 62.9
- Drive method type: Water-cooled, 4-cycle, direct injection
- Maximum drawbar pull (lbf): 45415
- Maximum drawbar pull (kgf): 20600
- Service brake type: Hydraulic lock
- Parking brake: Mechanical disc brake
- Gradeability: 70%, 35 degrees
- Drive method for drives and brakes: Hydrostatic
-
Maximum travel speed
- High (kph): 5.5
- High (mph): 3.4
- Mid (mph): 2.6
- Mid (kph): 4.1
- Low (mph): 1.9
- Low (kph): 3
- Center frame: X-frame
- Track frame: Box-section
- Track adjuster: Hydraulic
- Number of shoes (each side): 49
- Number of carrier rollers (each side): 2
- Number of track rollers (each side): 9
- Seal of track: Sealed track
- Dial type fuel control
- Auto-decelerator
- Swing lock switch
- Working mode selector
- Three-gear travel
- Travel automatic gear shift
- Auto idle stop
- ROPS cab (compliant with ISO 12117-2)
- Keyless start
- Engine shutdown secondary switch
- Battery disconnect switch
- Cab rear window for emergency escape
- Emergency escape hammer
- Large movable side view mirror (left and right) and side confirmation mirror
- LED working lamp (left and right boom, front right of the cab, rear of machine)
- LED headlamp (two on cab)
- KomVision (Object avoidance)
- Oil pressure lock lever
- Retractable seat belt
- Handrail
- Anti-slip plate
- Thermal guard
- Full cover fan guard
- Firewall divider
- Travel alarm (with on/off switch function)
- Reflector
- Large damper-mounted pressurized cab
- Air suspension seat
- High definition 8 inch touch panel monitor
- Large-capacity, fully automatic air conditioner with fresh air intake
- Defroster
- Room light
- Drink box
- Front window sunroller blind
- Luggage box
- Magazine rack
- USB charging terminal
- Cup holder
- Remote intermittent wiper (with washer)
- Multi functional audio
- Washable floor mat
- Footrest
- Travel pedal with wing
- 12 V accessory power supply
- Openable polycarbonate roof window
- Air cleaner double element
- Deck guard
- High efficiency fuel filter
- Hydraulic oil filter
- Komtrax
- Lockout, tagout
- Radiator dustproof net
- V-shaped fin radiator
- Dial type fuel control
- Auto-decelerator
- Swing lock switch
- Working mode selector
- Three-gear travel
- Travel automatic gear shift
- Auto idle stop
- ROPS cab (compliant with ISO 12117-2)
- Keyless start
- Engine shutdown secondary switch
- Battery disconnect switch
- Cab rear window for emergency escape
- Emergency escape hammer
- Large movable side view mirror (left and right) and side confirmation mirror
- LED working lamp (left and right boom, front right of the cab, rear of machine)
- LED headlamp (two on cab)
- KomVision (Object avoidance)
- Oil pressure lock lever
- Retractable seat belt
- Handrail
- Anti-slip plate
- Thermal guard
- Full cover fan guard
- Firewall divider
- Travel alarm (with on/off switch function)
- Reflector
- Large damper-mounted pressurized cab
- Air suspension seat
- High definition 8 inch touch panel monitor
- Large-capacity, fully automatic air conditioner with fresh air intake
- Defroster
- Room light
- Drink box
- Front window sunroller blind
- Luggage box
- Magazine rack
- USB charging terminal
- Cup holder
- Remote intermittent wiper (with washer)
- Multi functional audio
- Washable floor mat
- Footrest
- Travel pedal with wing
- 12 V accessory power supply
- Openable polycarbonate roof window
- Air cleaner double element
- Deck guard
- High efficiency fuel filter
- Hydraulic oil filter
- Komtrax
- Lockout, tagout
- Radiator dustproof net
- V-shaped fin radiator
- Cab guard - Full front guard OPG level 2 (ISO 10262)
- Cab guard - Bolt-on top guard OPG level 2 (ISO 10262)
- Cab guard - Half front guard
- Fire extinguisher
- Handrail (rear of the cab)
- In-line filter
- Revolving lamp for stoppage control identification
- Seat belt reminder revolving lamp
- Track frame full roller guard
- Track frame undercover
- Cab guard - Full front guard OPG level 2 (ISO 10262)
- Cab guard - Bolt-on top guard OPG level 2 (ISO 10262)
- Cab guard - Half front guard
- Fire extinguisher
- Handrail (rear of the cab)
- In-line filter
- Revolving lamp for stoppage control identification
- Seat belt reminder revolving lamp
- Track frame full roller guard
- Track frame undercover
