Excavators

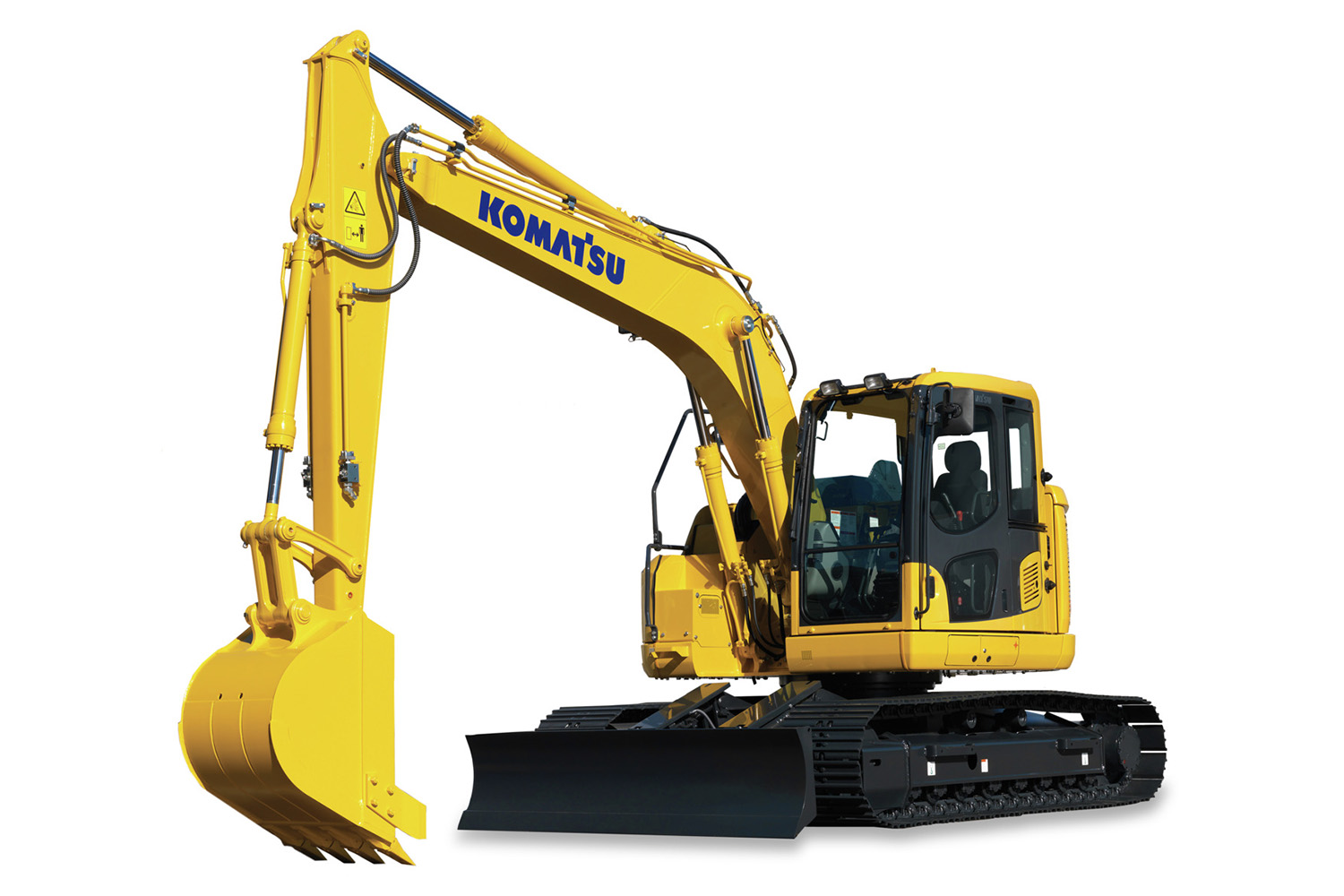

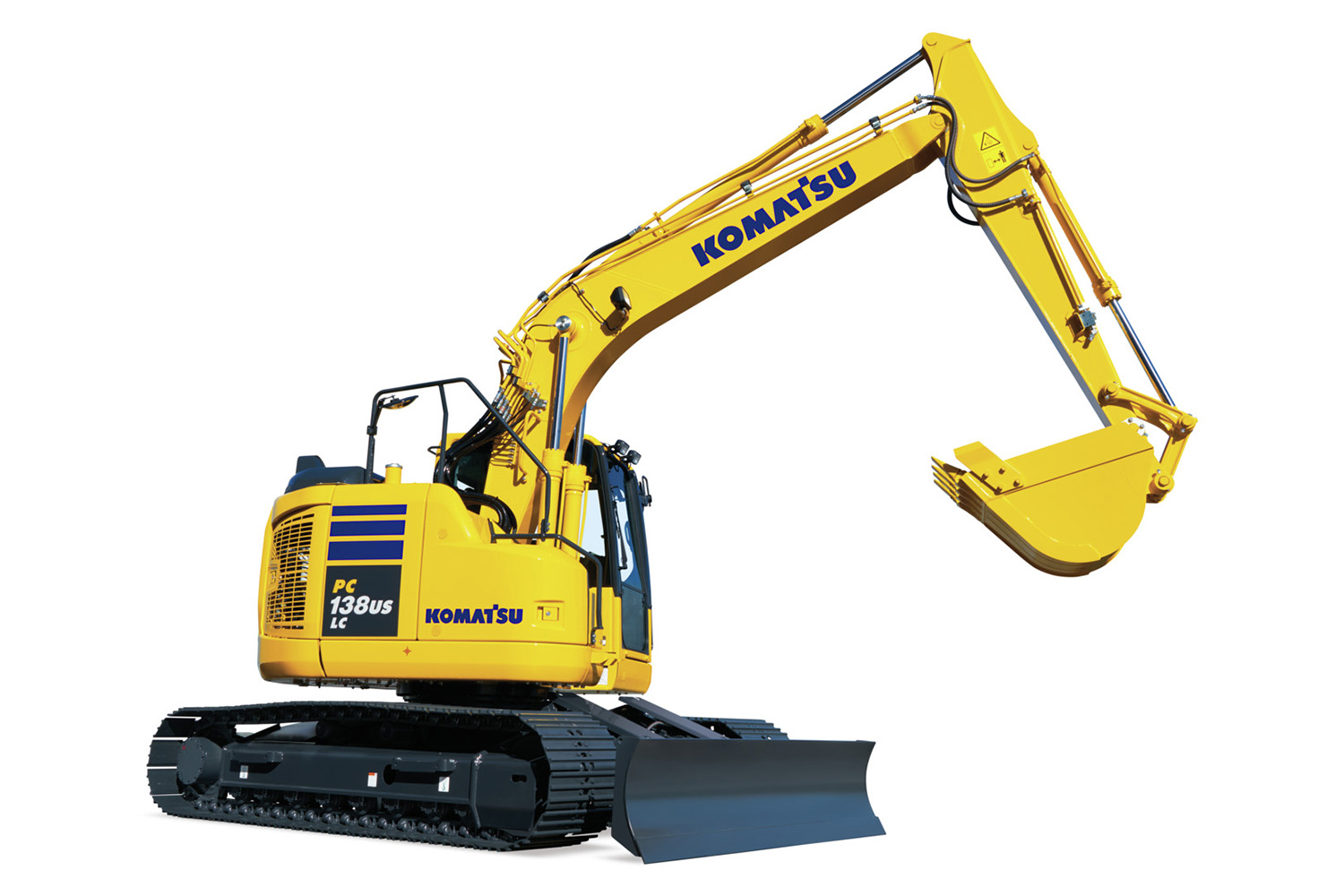

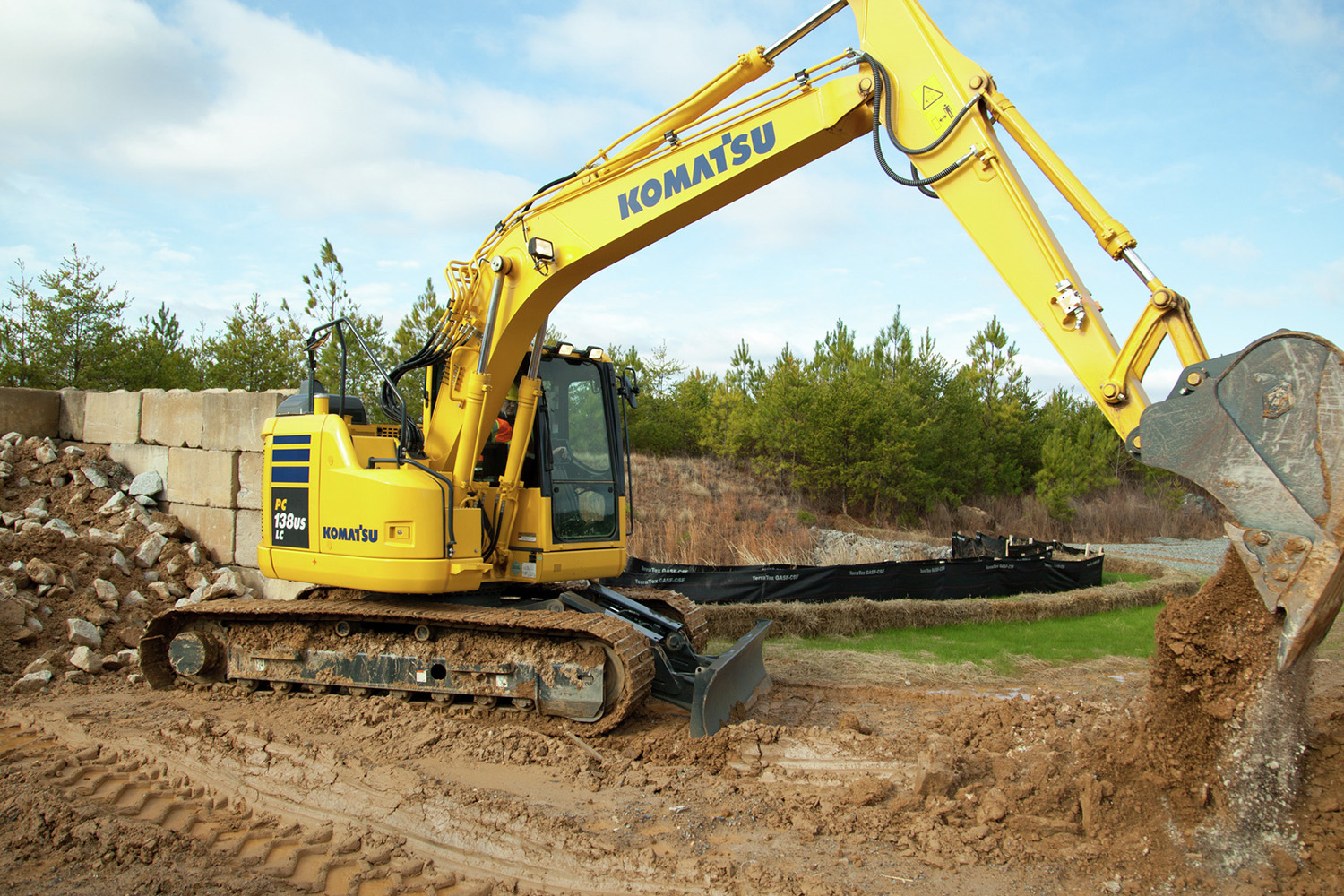

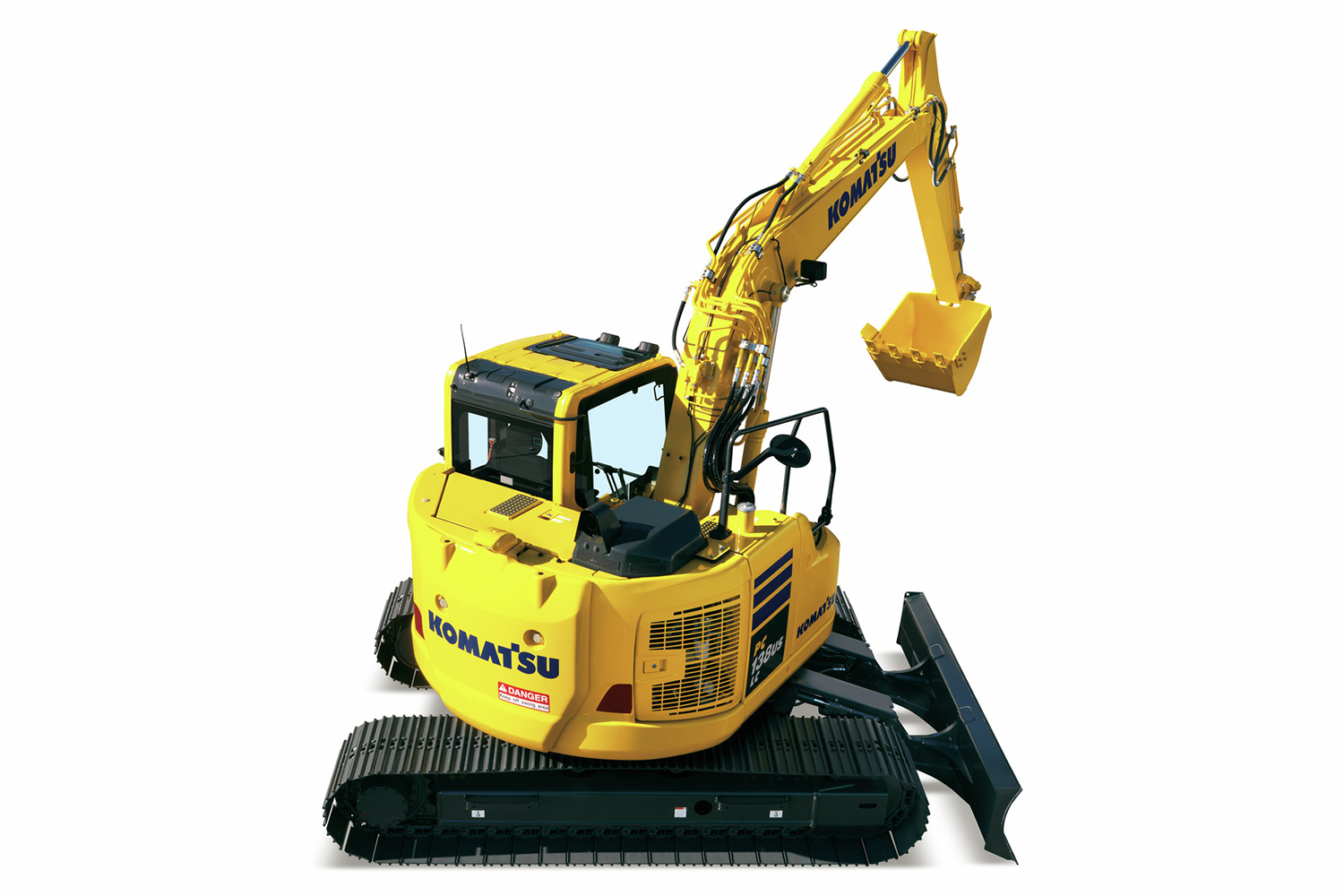

PC138USLC-11

Mid-size excavators

  • Horsepower (HP) 97.2 HP @ 2,050 rpm
  • Horsepower (kW) 72.5 kW @ 2 050 rpm
  • Operating weight (kg) 15 682 - 17 032
  • Operating weight (lbs) 34,563 - 37,547
  • Bucket Capacity (m^3) 0.26 - 0.76
  • Bucket Capacity (yd^3) 0.34 - 1.00

Purchase options

Request a quote Find a dealer

Stability and power for tight spaces

Built for working in tight spaces like roadways, bridges or urban areas, this tight tail swing radius excavator is designed for exceptional stability, with responsive quick arm speed and a purpose-built cab for operator comfort.

  • Quick and powerful
  • Impressive fuel efficiency
  • Spacious and comfortable
  • Designed for exceptional stability

Features and benefits

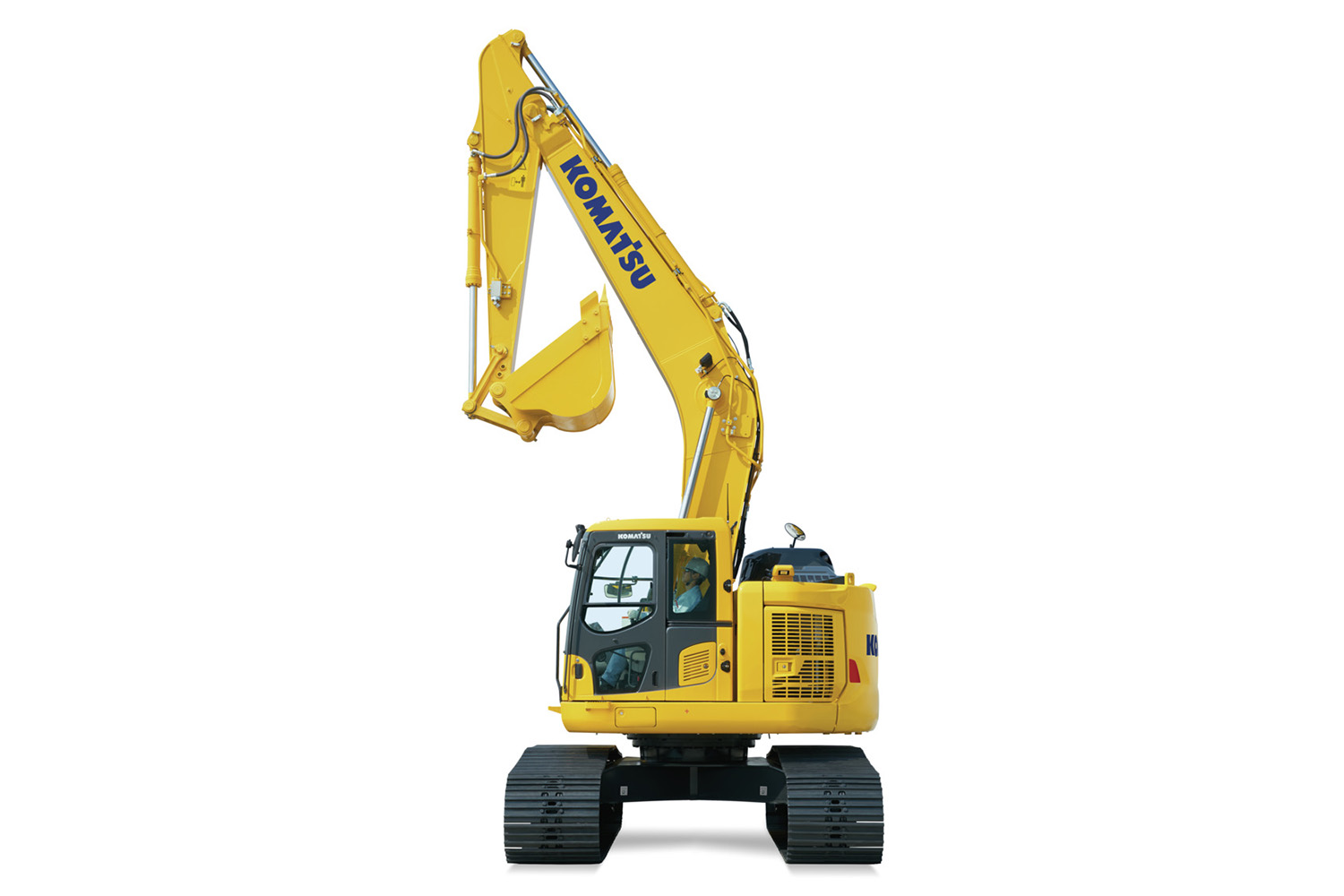

Short implement swing radius

Short implement swing radius

Get greater clearance when space is limited with a higher boom raise angle than our standard excavator that reduces the minimum front implement swing radius.

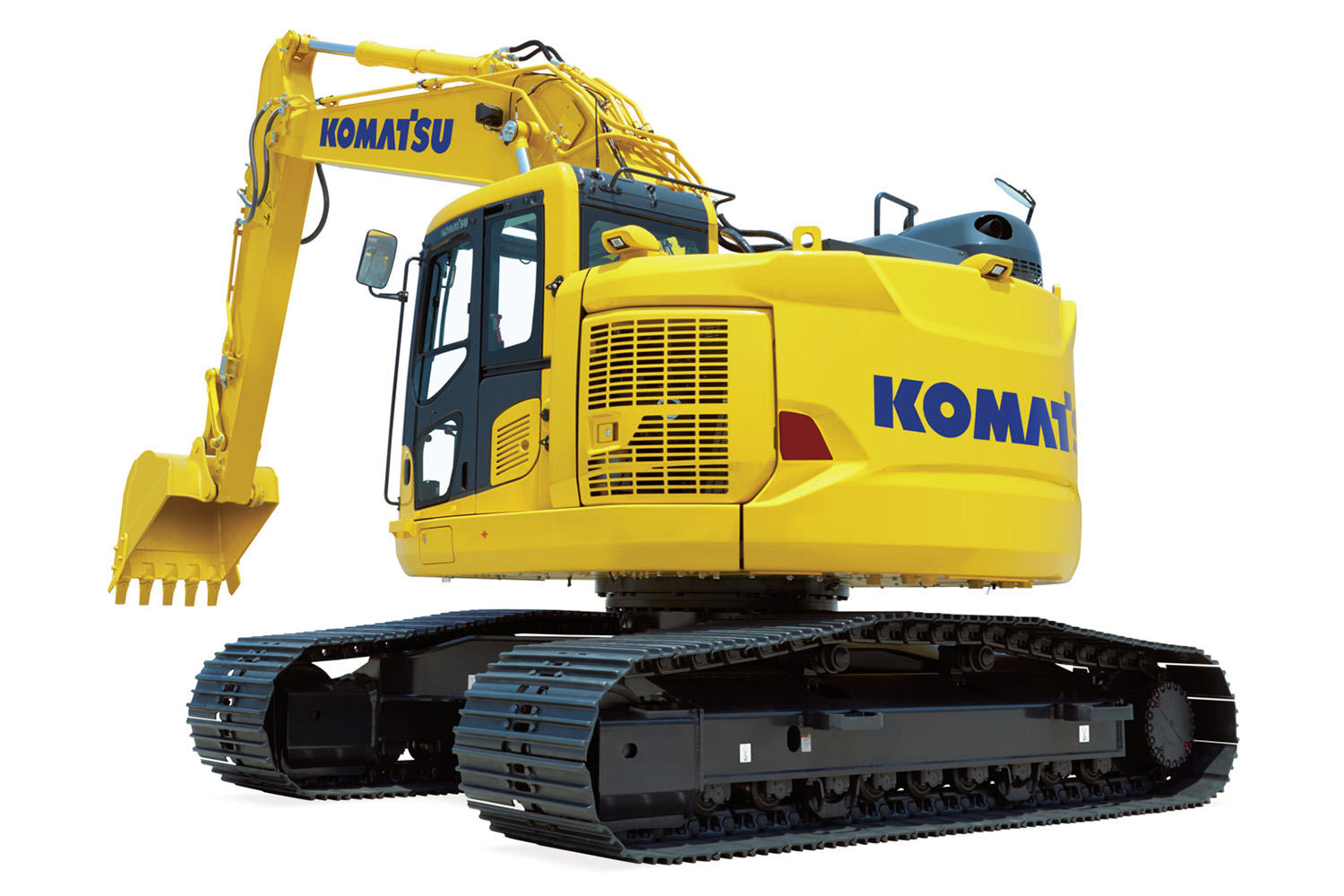

Short tail swing radius

Short tail swing radius

Get more done in confined areas with the short tail swing radius that allows the machine to work in more spaces than our conventional excavator.

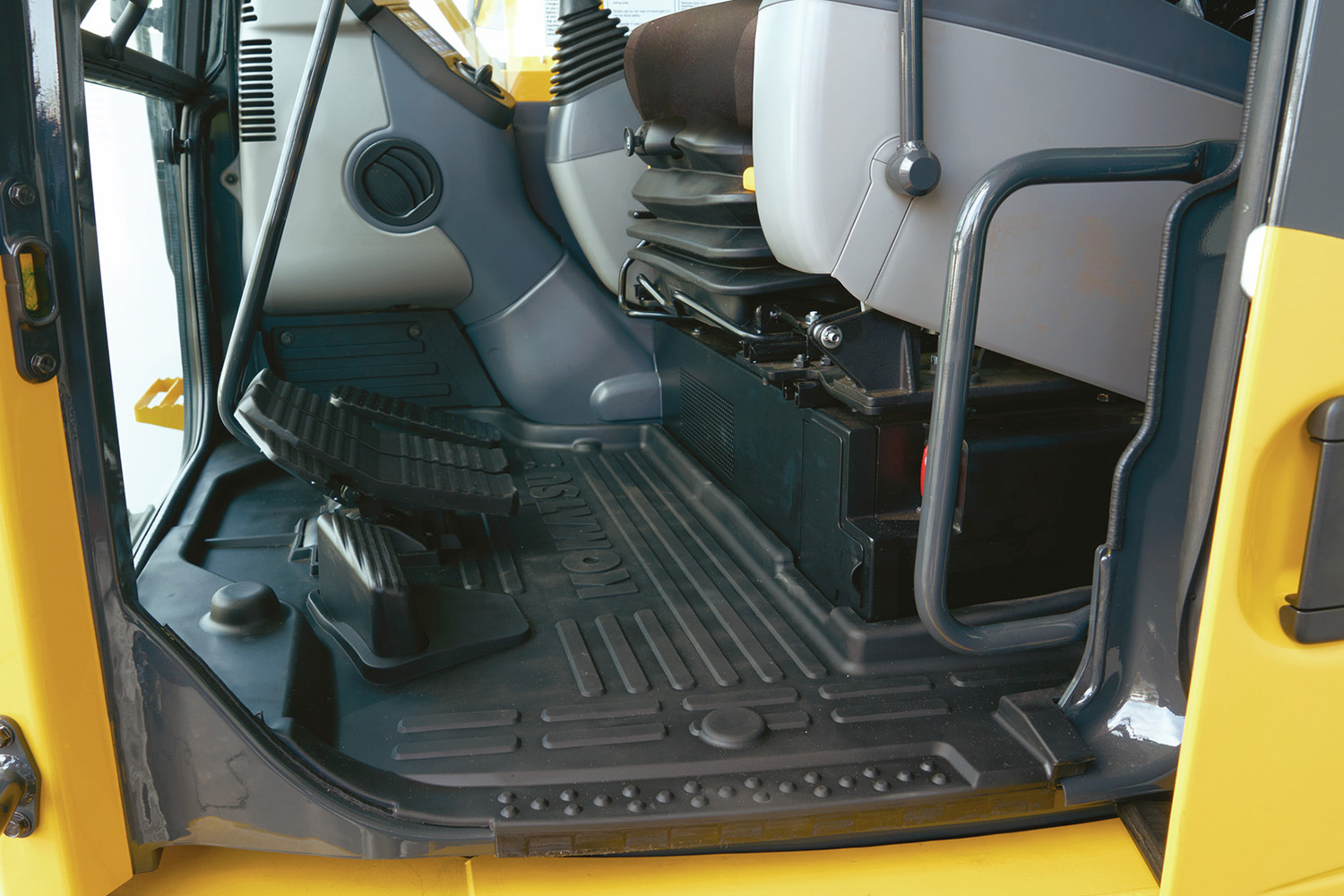

Rounded cab design with sliding door

Rounded cab design with sliding door

High maneuverability is achieved through the purpose-built cabs that swings within the same radius as the counterweight. The sliding cab door allows operators to easily enter and exit when space is limited.

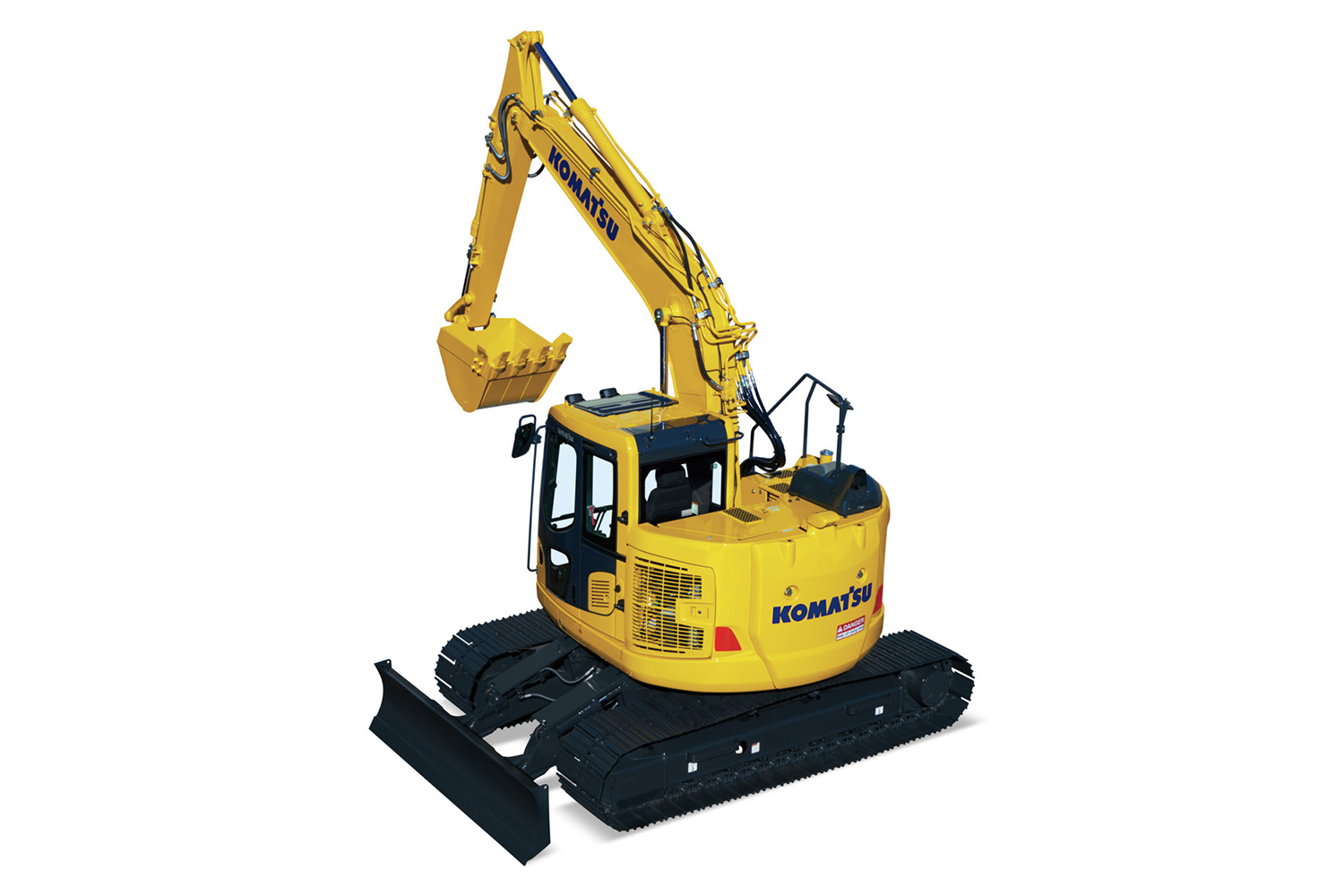

Stable platform

Stable platform

The compact counterweights provide exceptional lifting capability and stability providing a comfortable, confident operating experience.

Arm quick return valve

Arm quick return valve

Help improve efficiency with the quick return valve that directs additional oil through a second line directly back to the tank when the arm is extended, helping to reduce back pressure and fuel consumption.

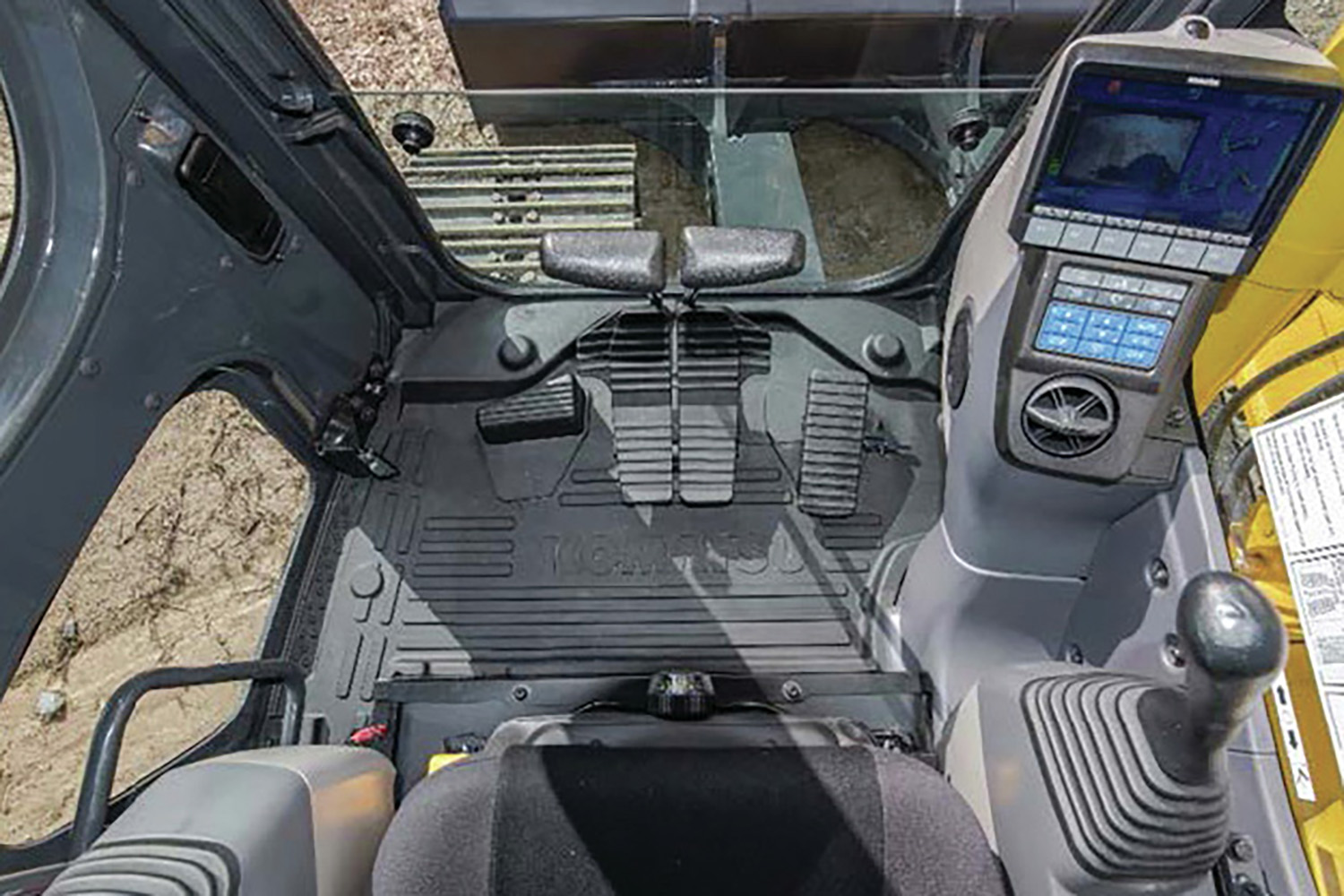

Efficient hydraulic system

Efficient hydraulic system

For quick response to operator demands, the closed-center loading system (CLSS) helps improve fuel efficiency. Pilot proportional control (PPC) hydraulics and optional proportional joysticks provide exceptional control.


Specifications

Metric Imperial (US)
Expand all

  • Drive method: Hydraulic motor
  • Swing reduction: Planetary gear
  • Holding brake/Swing lock: Wet, multiple-disc brake
  • Swing speed (rpm): 11
  • Swing torque (kg-m): 2 991
  • Swing torque (ft-lbs): 21,627

  • HydrauMind Type: HydrauMind (Hydraulic Mechanical Intelligence) system, closed-center system with load sensing valve and pressure compensated valve
  • Number of selectable working modes: 6
  • Main pump

    • Variable Type: Variable capacity piston type
    • Maximum flow (L/min): 242
    • Maximum flow (US gpm): 64
    • Main pumps for: Boom, arm, bucket, swing, and travel circuits
  • Relief valve setting

    • Implement circuits (psi): 5,050
    • Travel circuit (psi): 5,050
    • Maximum Auxiliary Flow at 250 kgf/cm^2 (L/min): 242
    • Swing circuit (psi): 4,240
    • Implement circuits (MPa): 34.8
    • Pilot circuit (psi): 470
    • Implement circuits (kgf/cm^2): 355
    • Max auxiliary flow rate at 3,553 psi (gpm): 64
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (MPa): 3.2
    • Swing circuit (kgf/cm^2): 298
    • Swing circuit (MPa): 29.2
    • Travel circuit (kgf/cm^2): 355
    • Travel circuit (MPa): 34.8
  • Hydraulic cylinders

    • Boom (Number of cylinders – bore x stroke x rod diameter)(mm): 105 x 1 055 x 70
    • Boom (Number of cylinders – bore x stroke x rod diameter)(in): 4.1 x 41.5 x 2.76
    • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 110 x 1 175 x 75
    • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 4.3 x 46.3 x 2.95
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(in): 3.7 x 34.8 x 2.56
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(mm): 95 x 885 x 65
  • Hydraulic motors

    • Travel: 2 x piston motor with parking brake
    • Swing: 1 x piston motor with swing holding brake

  • Operating weight features (mm): Operating weight includes 4 600 mm one-piece boom, 2 500 mm arm, SAE heaped 0.51 m3 backhoe bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
  • Operating weight features (ft): Operating weight includes 15 ft. 1 in one-piece boom, 8 ft. 2 in arm, SAE heaped 0.67 yd3 backhoe bucket, rated capacity of lubricants, coolant, full fuel tank, operator, and standard equipment.
  • Ground pressure

    • Ground pressure with triple grouser 500 mm (kg/cm^2): 0.46
    • Ground pressure with triple grouser 500 mm (kPa): 45.3
    • Ground pressure with triple grouser 600 mm (kg/cm^2): 0.39
    • Ground pressure with triple grouser 20 in (psi): 6.57
    • Ground pressure with triple grouser 600 mm (kPa): 37.86
    • Ground pressure with triple grouser 24" (psi): 5.49
  • Triple grouser shoes

    • Ground pressure with triple-grouser shoes 700 mm (kg/cm^2): 0.34
    • Ground pressure with triple-grouser shoes 28 in (psi): 4.77
    • Ground pressure with triple-grouser shoes 700 mm (kPa): 32.9
    • Operating weight with triple-grouser shoes 28 in (lbs): 35,114
    • Operating weight with triple-grouser shoes 700 mm (kg): 15 932
  • Operating weight

    • Operating weight with triple grouser 500 mm (kg): 15 682
    • Operating weight with triple grouser 20 in (lbs): 34,563
    • Operating weight with triple grouser 24 in (lbs): 35,673
    • Operating weight with triple grouser 600 mm (kg): 15 732

  • Engine Model: Komatsu SAA4D95LE-7*
  • Cooling Type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Variable flow, turbocharged, air-to-air aftercooled
  • Number of cylinders: 4
  • Bore (mm): 95
  • Bore (in): 3.74
  • Stroke (mm): 115
  • Stroke (in): 4.53
  • Piston displacement (in^3): 199
  • Piston displacement (L): 3.26
  • Engine Rated (rpm): 2050
  • Governor: All-speed control, electronic
  • Fan drive method for radiator cooling: Mechanical with viscous clutch
  • Horsepower

    • SAEJ1995 - Gross (HP): 97.3
    • SAEJ1995 - Gross (kW): 72.6
    • ISO 9249 / SAE J1349 - Net (HP): 97.2
    • ISO 9249 / SAE J1349 - Net (kW): 72.5
    • Fan at maximum speed - Net (HP): 90.9
    • Fan at maximum speed - Net (kW): 67.8

  • Fuel tank (US gal): 52.8
  • Coolant (US gal): 4.6
  • Engine (US gal): 3
  • Final drive (US gal): 0.55
  • Swing drive (US gal): 0.7
  • Swing drive (L): 2.5
  • Hydraulic tank (L): 69
  • Hydraulic tank (US gal): 18.2
  • DEF tank (US gal): 3.3
  • Fuel tank (L): 200
  • Coolant (L): 17.7
  • Engine (L): 11.5
  • Final drive (L): 2.1
  • DEF tank (L): 12.6

  • Drive method type: Fully hydrostatic
  • Maximum drawbar pull (lbf): 27,560
  • Maximum drawbar pull (kgf): 123 kN 12 500 kgf
  • Service brake type: Hydraulic lock
  • Parking brake: Wet, multiple-disc
  • Gradeability: 70%, 35°
  • Maximum travel speed

    • High (kph): 5.1
    • High (mph): 3.2
    • Low (mph): 1.8
    • Low (kph): 2.9

  • Center frame: X-leg frame
  • Track frame: Box-section
  • Track adjuster: Hydraulic
  • Number of shoes (each side): 46
  • Number of carrier rollers (each side): 2
  • Number of track rollers (each side): 8
  • Seal of track: Sealed

  • Exterior – ISO 6395 (dB(A)): 101
  • Operator – ISO 6396 (dB(A)): 71
Metric Imperial (US)
Engine
  • Air cleaner, double element with auto dust evacuator
  • Cooling fan, viscous type
  • Debris guards for radiator and oil cooler
  • Engine, Komatsu SAA4D95LE-7
  • Engine overheat prevention system
Electrical system
  • Alternator, 24 V/60 A
  • Auto-decelerator
  • Batteries, 2 x 12 V/72 Ah
  • Electric horn
  • Starting motor 24 V/4.5 kW
  • Working light on boom
  • Working lights on Cab (2)
Hydraulic system
  • Boom holding valve
Guards and covers
  • Fan guard structure
  • Handrails
  • Pump/Engine partition cover
Undercarriage
  • Shoe, 24" triple grouser
Operator environment
  • 2 x 12 V power points
  • 2 way multi-control valve
  • 24 V - 12 V power converter
  • Automatic A/C
  • Auto idle shutdown function
  • Auxiliary input jack
  • Cab includes: antenna, AM/FM radio, floor mat, intermittent front windshield wiper and washer, large ceiling hatch, pull-up front window, removable lower windshield
  • Foldable mirror (LH)
  • Large high resolution LCD monitor
  • Lock lever
  • Mirror (Rear)
  • Operator identification function
  • Operator protective top guard, OPG level 1 (ISO 10262)
  • Rear view monitor system
  • ROPS Cab (ISO 12117-2)
  • Seat belt, 3"
  • Suspension seat
  • Swing holding brake
Other
  • Counterweight (total mass), 7,630 lb
  • Equipment management monitoring system
  • KOMTRAX®
  • Pattern change valve
  • Rear reflector
  • Travel alarm
Engine
  • Air cleaner, double element with auto dust evacuator
  • Cooling fan, viscous type
  • Debris guards for radiator and oil cooler
  • Engine, Komatsu SAA4D95LE-7
  • Engine overheat prevention system
Electrical system
  • Alternator, 24 V/60 A
  • Auto-decelerator
  • Batteries, 2 x 12 V/72 Ah
  • Electric horn
  • Starting motor 24 V/4.5 kW
  • Working light on boom
  • Working lights on Cab (2)
Hydraulic system
  • Boom holding valve
Guards and covers
  • Fan guard structure
  • Handrails
  • Pump/Engine partition cover
Undercarriage
  • Shoe, 600 mm triple grouser
Operator environment
  • 2 x 12 V power points
  • 2 way multi-control valve
  • 24 V - 12 V power converter
  • Automatic A/C
  • Auto idle shutdown function
  • Auxiliary input jack
  • Cab includes: antenna, AM/FM radio, floor mat, intermittent front windshield wiper and washer, large ceiling hatch, pull-up front window, removable lower windshield
  • Foldable mirror (LH)
  • Large high resolution LCD monitor
  • Lock lever
  • Mirror (Rear)
  • Operator identification function
  • Operator protective top guard, OPG level 1 (ISO 10262)
  • Rear view monitor system
  • ROPS Cab (ISO 12117-2)
  • Seat belt, 76 mm
  • Suspension seat
  • Swing holding brake
Other
  • Counterweight (total mass), 3460 kg
  • Equipment management monitoring system
  • KOMTRAX®
  • Pattern change valve
  • Rear reflector
  • Travel alarm
Metric Imperial (US)

Hydraulic system

  • Hydraulic control unit - 1 additional actuator (+ 1 Hydraulics) with one and two-way flow

Guards and covers

  • Cab guard - Full front guard, OPG level 1 (ISO 10262) - Full front guard, OPG level 2 (ISO 10262) - Bolt-on top guard, OPG level 2 (ISO 10262)

Undercarriage

  • Extended track frame steps for 28" tracks
  • Shoes - 20" triple grouser - 28" triple grouser - 20" rubber roadliner

Operator environment

  • Sunvisor

Work equipment

  • Arms - 8'2" arm assembly - 8'2" arm assembly with piping - 9'10" arm assembly - 9'10" arm assembly with piping
  • Booms - 15'1" boom assembly - 15'1" boom assembly with piping
  • Blade - 8'6" wide blade

Hydraulic system

  • Hydraulic control unit - 1 additional actuator (+ 1 Hydraulics) with one and two-way flow

Guards and covers

  • Cab guard - Full front guard, OPG level 1 (ISO 10262) - Full front guard, OPG level 2 (ISO 10262) - Bolt-on top guard, OPG level 2 (ISO 10262)

Undercarriage

  • Extended track frame steps for 700 mm tracks
  • Shoes - 500 mm triple grouser - 700 mm triple grouser - 500 mm rubber roadliner

Operator environment

  • Sunvisor

Work equipment

  • Arms - 2500 mm arm assembly - 2500 mm arm assembly with piping - 3000 mm arm assembly - 3000 mm arm assembly with piping
  • Booms - 4600 mm boom assembly - 4600 mm boom assembly with piping
  • Blade - 2490 mm wide blade
