Entry development

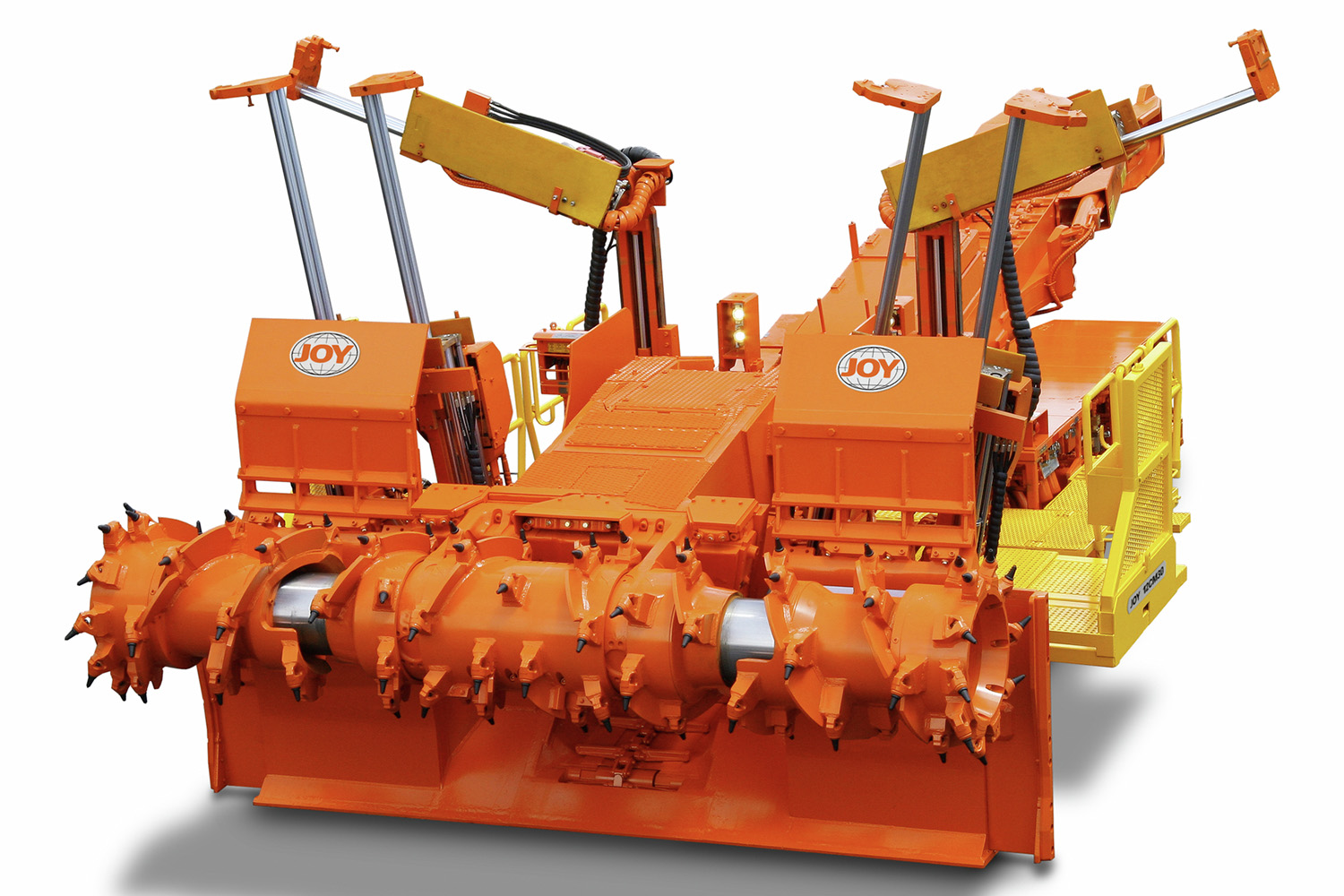

14CM09-16BDX
Miner bolter
- Minimum cut height (ft) 4 ft. 10 in
- Minimum cut height (mm) 1 473
- Maximum cut height (ft) 10 ft. 11 in
- Maximum cut height (mm) 3 327
- Drill center distance (ft) 8 ft. 10 in
- Drill center distance (mm) 2 692
Create entry roads in mid seams faster
Efficiently create mid-seam entry roads by cutting gate roads and bolting the roof. Especially suited for the Pittsburgh seam, when center bolting can be completed after the gate road has been strapped and bolted.
- Single-pass machine
- Multiple cutting widths available
Resources
Features and benefits
Roof and rib bolters
For bolting the entry after cutting, an auger-style roof bolter is equipped on each side of the miner. Drill rolls are available, as are wet and dry drilling options, depending on operations and conditions.
Gathering head
Centrifugal loading arm (CLA) design for particularly effective loading. Extendable wings and multiple widths to match your operational needs. For longevity, gathering head deck plated with chromium-carbide overlay (CCO); multiple materials available for wear shoes.
Proven conveyor system
Universal Joy conveyor links prolong chain life; cam-style adjusting mechanism compensates for chain slack as the conveyor swings. CCO-plated conveyor deck plates for longevity. Dual sprocket conveyor chain for strength and reduced noise.
Cutterhead extensions
For ease of operation, greater flexibility when cutting corners with hydraulic cutterhead extensions on each side retract, enabling efficient withdrawals.
Faceboss Control System
Help optimize your operation with actionable insights. Operator assistance tools, automated sequences, advanced diagnostics and machine performance monitoring from the Faceboss Control System.
Joy OptiDrive AC
A durable, maneuverable machine with the Joy OptiDrive AC system to integrate software with the electronic and mechanical systems.
Specifications
- Full specs
Metric
Imperial (US)
Expand all
- Voltage: 950 V, 60 Hz
- Machine length (ft): 35 ft. 3 in
- Machine weight (lbs): 140,000
- Ground clearance (in): 12
- Ground pressure (psi): 32
- Traction speed (fpm max): 65
- Gathering head disc speed (rpm): 54
- Conveyor width (in): 30
- Conveyor length (ft): 10 ft. nominal
- Conveyor chain speed (fpm): 475
- Crawler chain width (in): 20
- Membrane style: Remote control
- Cutter head diameter (in): 43.5
- Cutter width (ft): 16
- Maximum cut height (ft): 10 ft. 11 in
- Minimum cut height (ft): 4 ft. 10 in
- Bit tip speed (fpm): 683
- Roof bolters: 2 standard HGX - MK2
- Roof drill-to-pick-tip distance (ft): 12 ft. 2 in
- Drill center distance (ft): 8 ft. 10 in
- Drilling features: Drill operator rib guard, drill operator overhead rock deflector and dry drilling w/ dust collection system
- TRS height (ft): Up to 11 ft. 1 in
- Drill height (ft): Up to 7 ft. 10 in
- Timber jack height (ft): 10 ft. 10 in
- Cutter motors (HP): 235
- Gathering head motors (HP): 67
- Traction motors (HP): 80
- Pump motors (HP): 54
- Total horsepower (HP): 827
