Electric rope shovels

2300XPC AC

  • Nominal payload (metric tons) 45
  • Nominal payload (short tons) 50
  • Dipper capacity (m^3) 18 - 25
  • Dipper capacity (yd^3) 24 - 33
  • Production (MTPH) 3 365 - 4 488
  • Production (TPH) 3,710 - 4,947

Purchase options

Request a quote Find a dealer

Powerfully practical

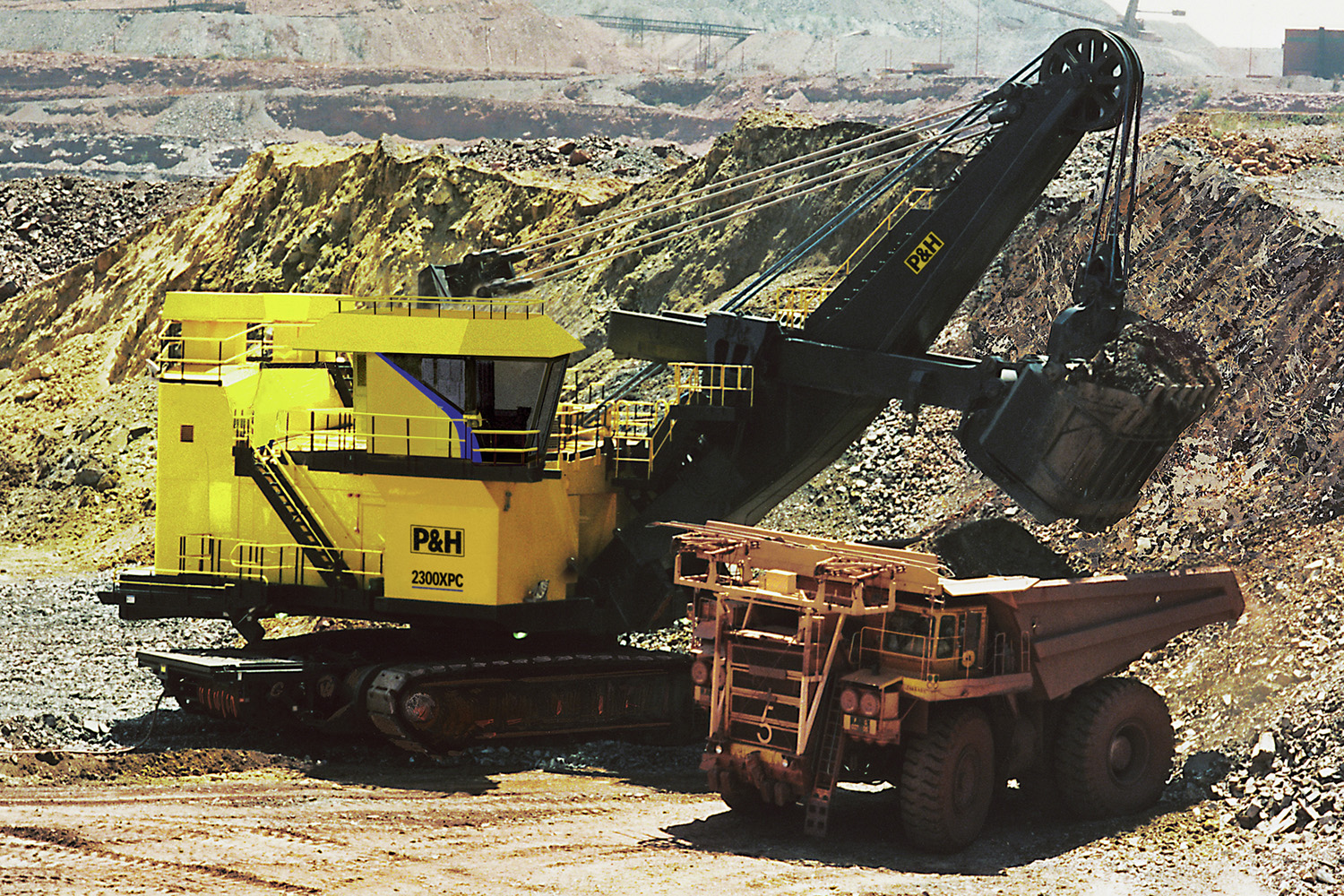

P&H 2300XPC combines the functionality of a high-performance rope shovel with the practicality of a smaller machine. Designed to operate in high production mines, this proven series of shovels are ideal for coal, copper, iron ore and gold mines around the world.

  • Up to 51% less CO2 release per tonne of material moved compared to eqv HEX machines
  • 12% lower cost per tonne of material moved compared to eqv HEX machines

Features and benefits

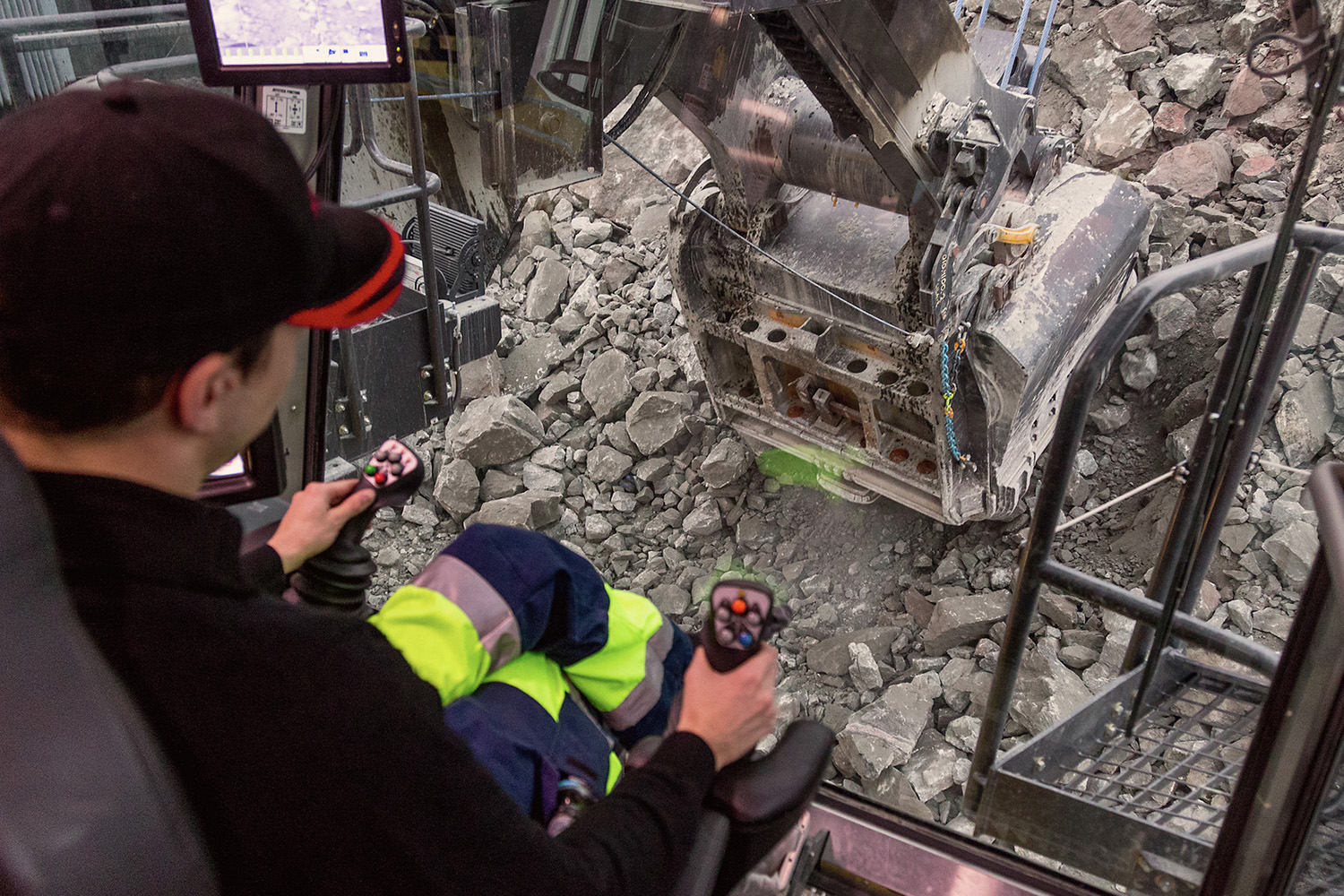

Centurion control system and AC drives

Centurion control system and AC drives

Get the performance and reliability you expect from the larger 4100XPC series shovels delivered in a smaller package with the P&H Centurion control system and ABB Mining Duty drives.

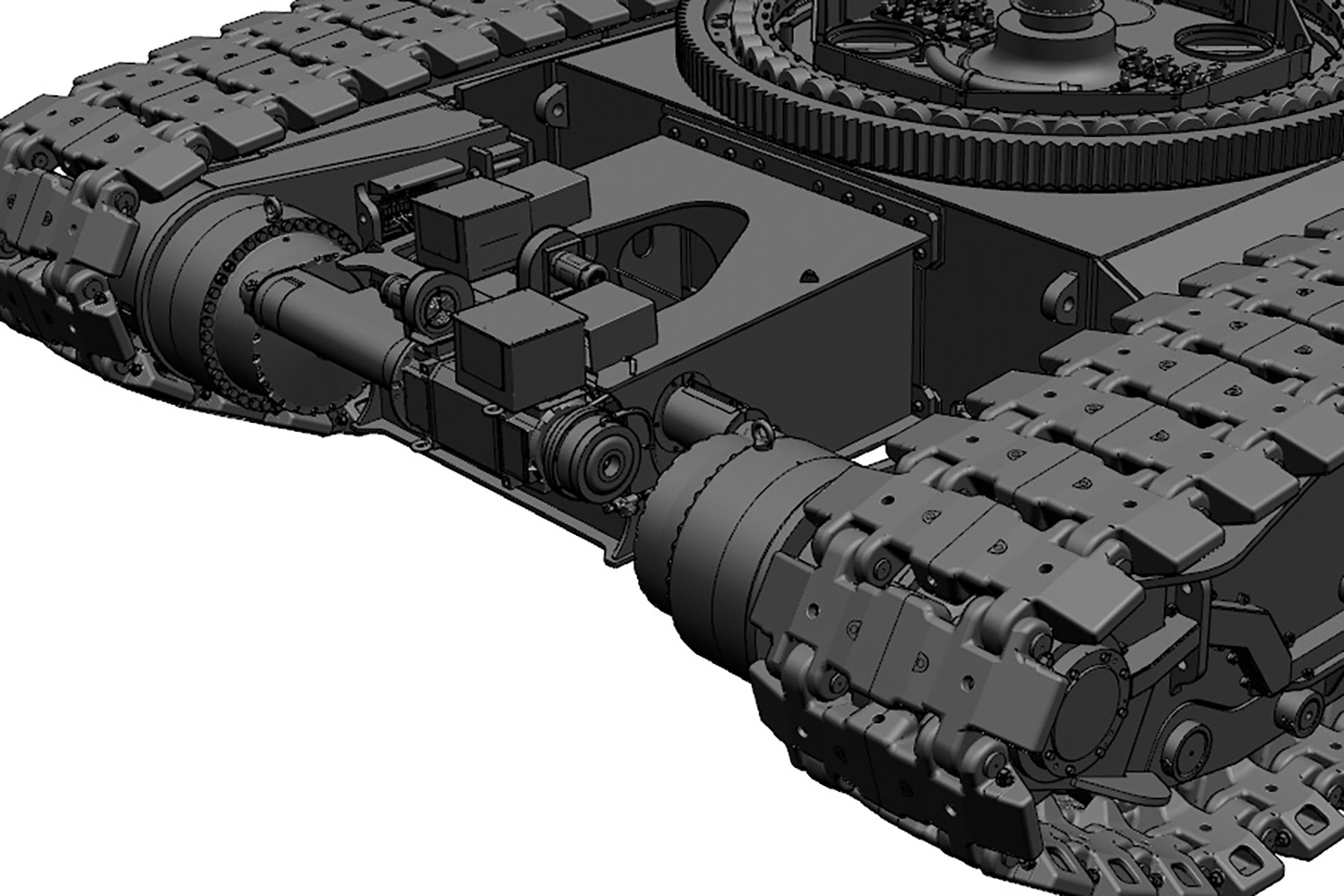

Dual planetary propel

Dual planetary propel

Improve your machine performance and reduce maintenance with dual planetary transmissions propel systems that build on the legacy and reliability of P&H manufacturing.

Twin leg handle

Twin leg handle

The P&H twin leg handle allows the shovel to engage the hardest of materials and easily focus on penetrating the bank instead of wasting energy on twisting or rotating the dipper.

Engineered for performance

Engineered for performance

In the mines, performance matters. The P&H 1900XPC was designed with the latest in advanced simulation software and built with high-quality steels that are meant to last for 120,000 hours.

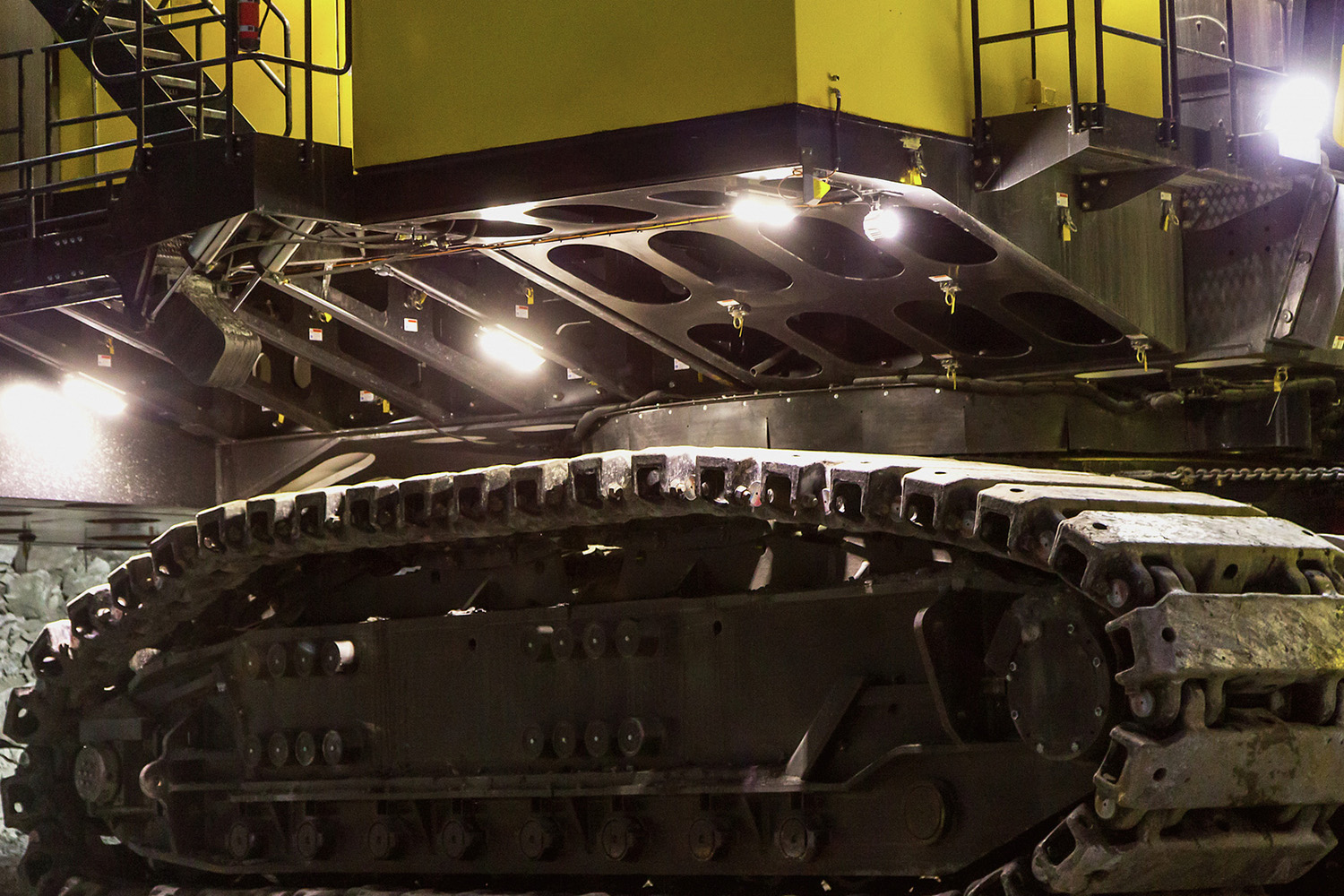

Delta style undercarriage

Delta style undercarriage

Minimize maintenance with a proven shoe and tumbler that requires minimal intervention and allows for operation in a loose track configuration.

Designed for the challenges of developing markets

Designed for the challenges of developing markets

Everywhere you need to be. Leveraging global supply chains, we’re here to support you with an adaptable footprint and flexibility for import taxes and duties.


Specifications

Metric Imperial (US)
Expand all

  • Nominal dipper capacity* (yd^3): 24 - 33 (SAE struck)
  • Nominal dipper capacity* (m^3): 18.3 - 25.5 (SAE struck)
  • Rated suspended load (st): 106
  • Rated suspended load (mt): 96
  • Optimum truck size (180 mt (200 st) truck shown) (st): 120 - 240
  • Optimum truck size (180 mt (200 st) truck shown) (mt): 109 - 218
  • Nominal payload dipper capacity note: *Payload and dipper capacity are dependent on many factors. Contact Komatsu Mining for an analysis of your specific application.

  • Height of cut (ft): 44 ft. 3 in
  • Height of cut (m): 13.5
  • Radius of cut (ft): 70
  • Radius of cut (m): 21.3
  • Dumping height* door open (ft): 28
  • Dumping height* door open (m): 8.5
  • Floor level radius (m): 14.2
  • Floor level radius (ft): 46 ft. 7 in
  • Tail swing radius (m): 10.1
  • Tail swing radius (ft): 33
  • Operator eye level (m): 7.9
  • Operator eye level (ft): 26
  • Dumping height (footnote): *Height shown with bail-type dipper. Heights will be greater than bail-less or compact-bail dippers. Actual dumping height can be greater than door clearance height.

  • Crowd: Powerband V-belt drive between motor and gear case absorbs shock loads. First and second reduction gearing in enclosed gear case for reliable splash lubrication, ease of maintenance, and extended component life. Twin-leg dipper handle with torsion box and rack and pinion drive has inherent stability in the bank for optimal digging. Spring-set air release disc brake.

  • Swing: Two modular P&H planetary gear cases of proven design and a single piece forged swing gear transmit torque for fast cycle times. Spring-set air release disc brakes – one per motor. Splash lube filtration system.

  • Supply voltage: 4,160 or 7,200 V 3 Phase, 60 Hz or 5,000, 6,000 or 6,600 3 Phase, 50 Hz
  • Supply transformer: Minimum 2,750 kVA (For 5,000, 6,000 or 6,600 3 phase, 50 Hz supply voltage)
  • Minimum short circuit VA available at shovel: 22 MVA (For 5,000, 6,000 or 6,600 3 phase, 50 Hz supply voltage)
  • Supply voltage note: *Voltage per customer requirements

  • Propel: Two rugged P&H planetary gear cases of proven design independently transmit torque to the drive sprockets, producing the tractive effort required for fast, efficient propel and positioning operations. P&H brand Delta drive system with heavy duty cast crawler shoes. Spring-set air release disc brakes – one per motor.

  • Hoist for gearing: All gearing housed in single enclosed gear case with filtered and cooled oil fed to all bearings in addition to splash lubrication for reliable operation and ease of maintenance. Large 56 in diameter hoist drum for extended rope bending life. Ferrule becket system and dual electric tuggers are standard for efficient rope change. Spring-set air release disc brakes – one per motor.
