Draglines

9020C

  • Bucket Capacity (m^3) 55 - 93
  • Bucket Capacity (yd^3) 75 - 117
  • Boom length (ft) 300 - 405
  • Boom length (m) 90 - 125

Purchase options

Request a quote

Keep your operation humming

No matter what boom length, bucket capacity or geometry you need, you’ll find a P&H dragline built from the ground up to deliver long-term, consistent, reliable performance.

  • Ultra-strong tub distributes loads evenly for outstanding reliability
  • A-frame engineered to effectively manage load forces
  • Four-chord boom has the structural integrity to operate in tough conditions
  • Electronics platform to help operators perform at peak efficiency

Features and benefits

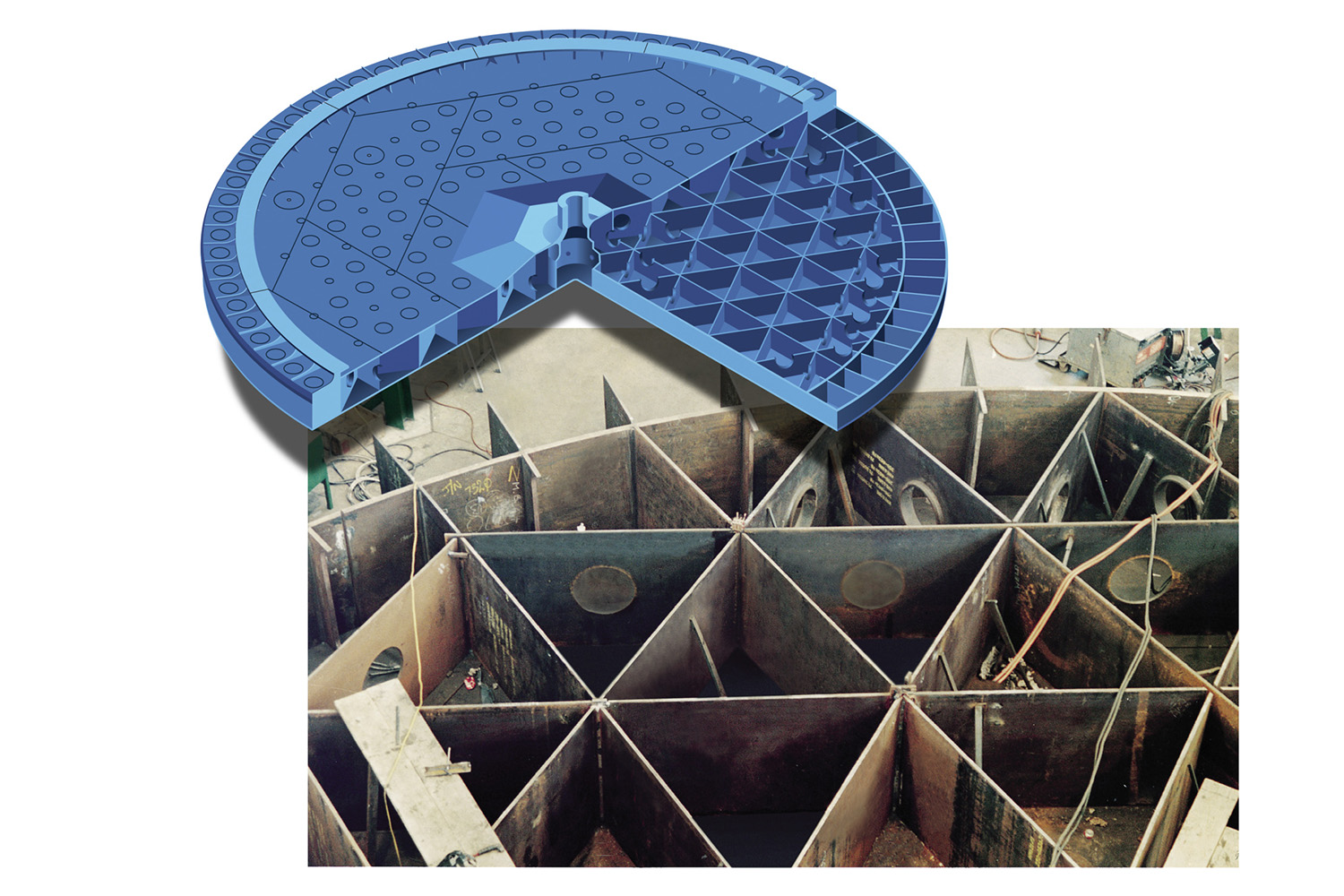

Tub engineered to perform

Tub engineered to perform

Built for long life and low maintenance, P&H tubs handle multi-directional loads and verti-shield welding joins on all intersection plates with one continuous weld resulting in minimal distortion with widely distributed loading and low residual stresses.

Intelligent, productivity-focused electronics

Intelligent, productivity-focused electronics

Track your machine’s performance to support efficient operation and maintenance activities. The Centurion control system utilizes smart electronics to monitor dragline operation.

Highly engineered boom and A-frame

Highly engineered boom and A-frame

Stability, excellent visibility of boom point sheaves and balanced axial working loads with the four-chord boom with flat underside. For maximum-rated suspended load, the A-frame is engineered to keep load forces low.

Engineered with user input

Engineered with user input

Whether it’s pursuing advances in safety, delivery or solutions that improve your day-to-day maintenance and inspection activities, our goal is to help you meet your goals for increased production, reduced downtime and lower cost per unit moved.

Outstanding service

Outstanding service

At the core of our commitment to customers is collaboration to develop innovative parts, products, consumables and systems designed to lower total cost of ownership while optimizing production.


Specifications

Metric Imperial (US)
Expand all

  • Hoist ropes (mm): 101.6
  • Hoist ropes (in): 4.375
  • Drag ropes (in): 4.365
  • Drag ropes (mm): 101.6
  • Hoist drum (cm): 286
  • Hoist drum (in): 112.5
  • Drag drum (cm): 286
  • Drag drum (in): 112.5

  • Tub diameter (m): 22.3
  • Tub diameter (ft): 73
  • Ground pressure (tub) (kPA): 148
  • Ground pressure (tub) (psi): 21.4
  • Tub/deck clearance (ft): 6.7
  • Tub/deck clearance (m): 2
  • Rail circle diameter (ft): 64
  • Rail circle diameter (m): 19.5
  • Quantity and diameter of rollers (in): 141 x 14
  • Quantity and diameter of rollers (mm): 141 x 356
  • Pitch diameter, swing rack (m): 17.9
  • Pitch diameter, swing rack (ft): 58.8
  • Shoe size (maximum dimensions) (ft): 17 x 70
  • Shoe size (maximum dimensions) (m): 5.2 x 21.3
  • Ground pressure (shoes) (psi): 38.5*
  • Ground pressure (shoes) (kPa): 265.9*
  • Width across shoes (ft): 107
  • Width across shoes (m): 32.6
  • Clearance under shoes (ft): 1.9
  • Clearance under shoes(m): 0.6
  • Normal length of step (ft): 7.5
  • Normal length of step (m): 2.3

  • Net weight (kg): 5 288.1
  • Net weight (Ibs): 11,658
  • Counter weight (Ibs): 1,226
  • Counter weight (kg): 556.1
  • Working weight (kg): 5 844.2
  • Working weight (Ibs): 12,884
  • Tub and shoes footnote: *Shoe ground pressure assumes 90% of machine weight is on shoes

  • Length machinery house (m): 35.9
  • Length machinery house (ft): 117.8
  • Width of machinery house (m): 30.5
  • Width of machinery house (ft): 100
  • Rear end radius (ft): 80.3
  • Rear end radius (m): 24.5
  • Center pin to boom foot (ft): 40
  • Center pin to boom foot (m): 12.2
  • Boom foot height (ft): 16.2
  • Boom foot height (m): 4.9
  • Rotating frame depth (in): 112
  • Rotating frame depth (m): 2.84

  • Suspended load rating (Ibs): 485,000
  • Suspended load rating (kg): 219 996
  • Boom length working range (ft): 350
  • Boom length working range (m): 106.7
  • Boom angle (deg): 37.5
  • Operating radius (ft): 323.3
  • Operating radius (m): 98.5
  • Dig depth (practical) (m): 68.3
  • Dig depth (practical) (ft): 224
  • Dumping height (m): 49.9
  • Dumping height (ft): 163.7

  • Boom construction: 4 Wide flanged chords with line pipe lacing
  • Boom material: HSLA
  • Boom point sheave diameter (mm): Pivoting - 3 454
  • Boom point sheave diameter (in): Pivoting - 136
  • Fairlead: Constant Contact Style
  • Fairlead sheaves in diameter (mm): 3 454
  • Fairlead sheaves in diameter (in): 136

P&H draglines are built for cost-effective productivity and reliability

Advanced structural analysis, CAD modeling and high-tech gearing software have been utilized to create a dragline designed to deliver outstanding long-term cost-effective productivity and reliability.
