Dozers

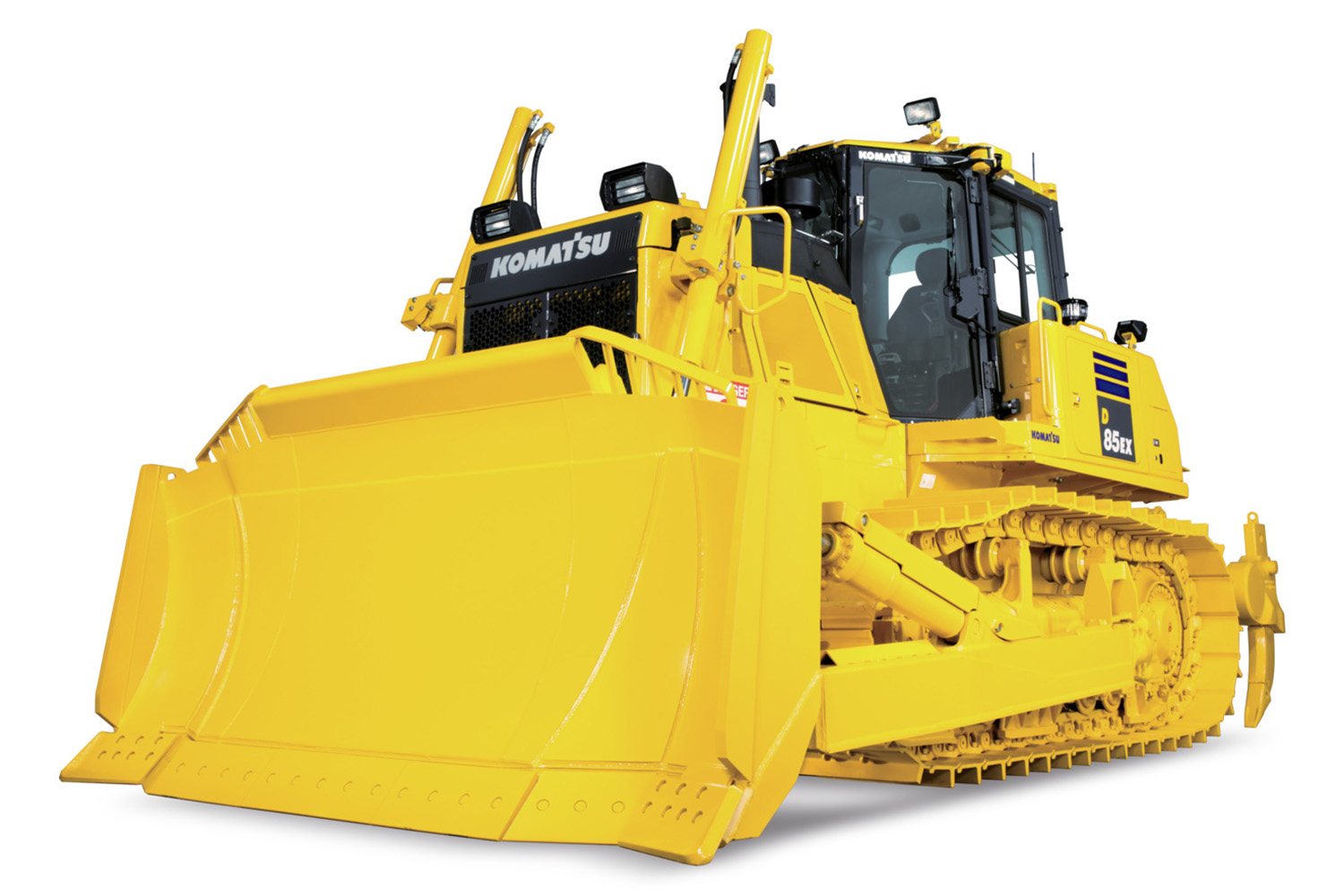

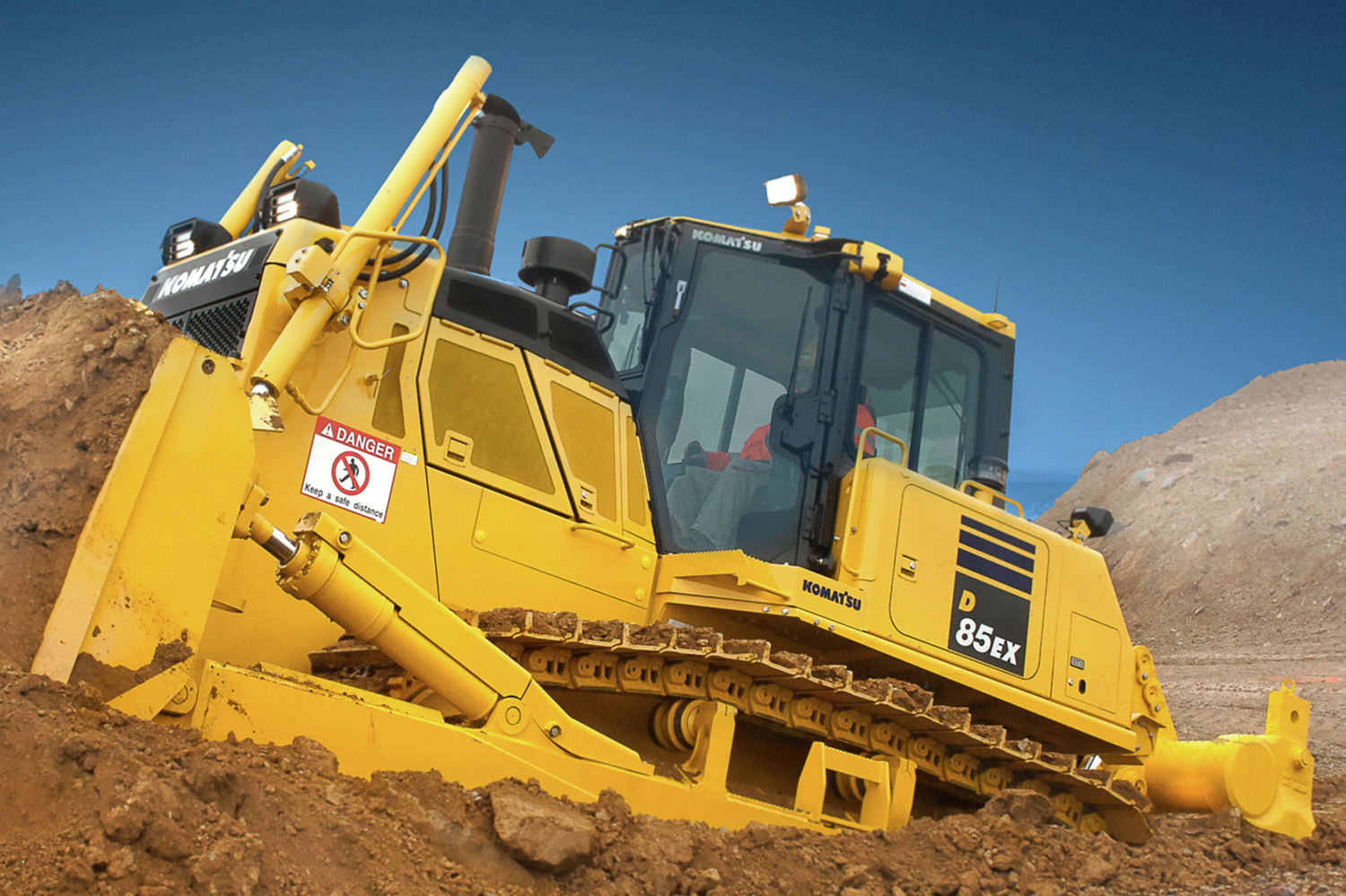

D85EX-18
Large dozers
- Horsepower (HP) 264 HP @ 1,900 rpm
- Horsepower (kW) 197 kW @ 1 900 rpm
- Operating weight (kg) 30 670
- Operating weight (lbs) 67,615
- Blade capacity (m^3) 7
- Blade capacity (yd^3) 9.2
Torque converter dozers for your heavy jobs
Need a larger powerful dozer that's still cost efficient? The D85EX-18 is a great choice. You'll appreciate its 11-liter engine, large capacity power-pitch blade, fuel efficient automatic shift transmission and economical PLUS (Parallel Link Undercarriage System) rotating bushing undercarriage option.
- Engineered for powerful dozing
- Excellent blade capacity
- Quiet cab with smooth ride and great visibility
- Automated blade control with iMC
Features and benefits
Custom build the dozer you need
All the dozers in the D65/85/155 family offer you outstanding power, economy and reliability. Customize yours with the blade (straight, Semi-U, Sigmadozer and Full U (D155 only)), track shoe width and horsepower combo best suited to your particular application.
Helps minimize fuel use
An advanced Tier 4 engine offers you a potent combo of power and fuel efficiency. An auto idle shutdown, adjustable from 5-60 minutes, also helps cut fuel use and emissions.
Controls help fight operator fatigue
Operators will enjoy the palm command electronic control joysticks that fit the natural relaxed shape of their hands. Auto-shift or manual-shift modes are easily selected with one push of a button for precision with less fatigue over the course of a shift.
Smooth, powerful handling
Your operators can execute smooth powerful turns with the hydrostatic steering system. It transmits engine power to both tracks without power interruption and minimizes turning radius with counter-rotation while in neutral.
Long-lasting undercarriage
Get the most from your dozer. The Parallel Link Undercarriage System (PLUS) with rotating bushings delivers up to twice the life of our conventional undercarriage with no pin and bushing turn required. Parts wear evenly and last longer before needing replacement.
Work with fuel-efficient power
Seek maximum work efficiency with a lock-up torque converter. It determines the appropriate gear based on load and conditions. The lockup mechanism then automatically transfers engine power directly to the transmission, helping boost drive train efficiency.
intelligent Machine Control (iMC)
With automatic dozing, rough cut to finish grade, iMC-equipped machines make every pass count. Dozers “learn” operator blade input. In select situations, operators can opt for near-100% auto control. And, iMC helps new operators get up to speed quickly.
Help operators stay focused
Your operators perform best when they’re comfortable. That’s why they’ll love the air suspension seat with lumbar support and tilt. It’s easy for them to adjust to suit their needs, and electric heat helps them stay comfortable in the cold.

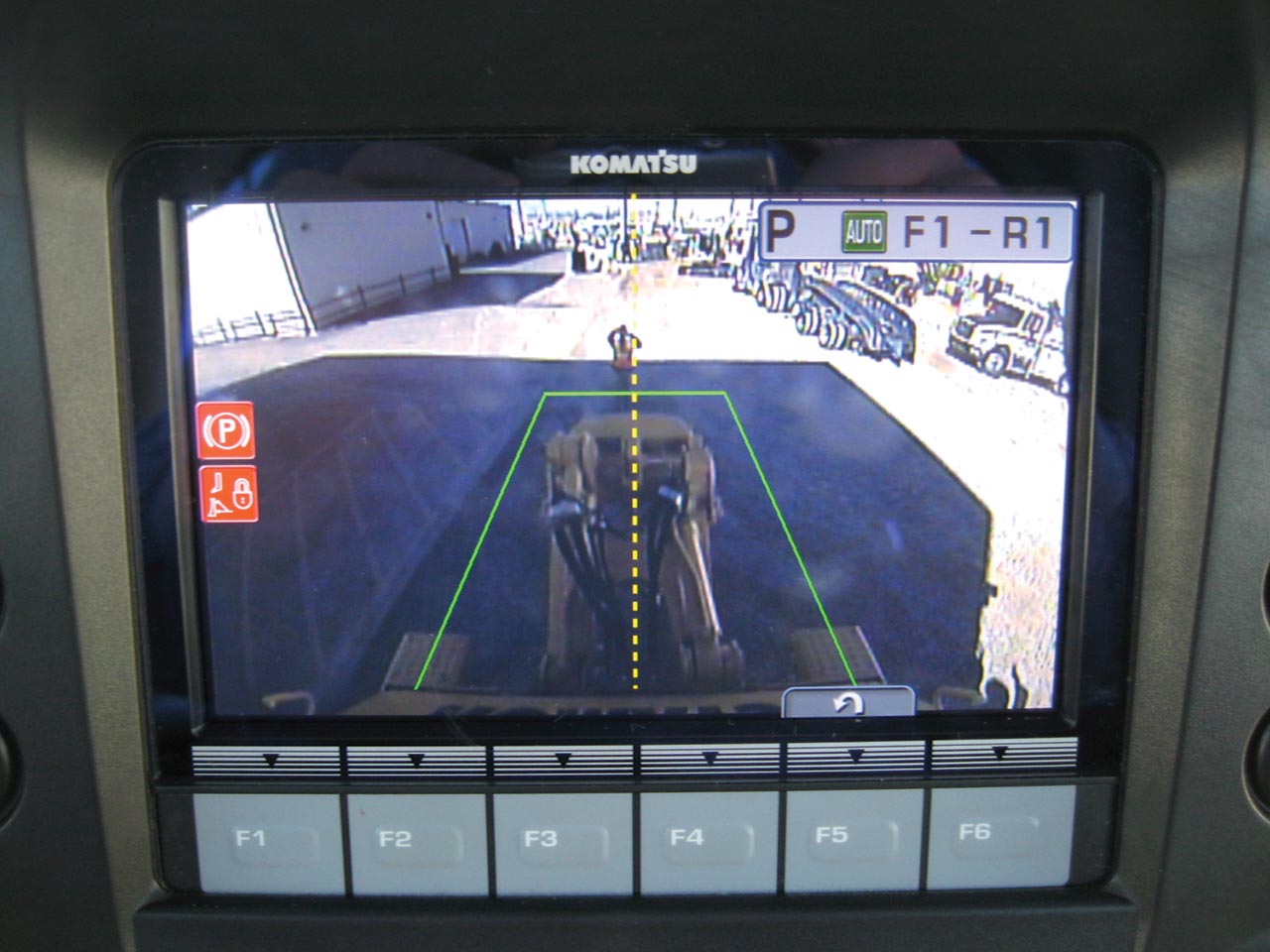

Situational awareness
A standard rear camera monitoring system displays the view behind the dozer on the large color monitor in the cab.

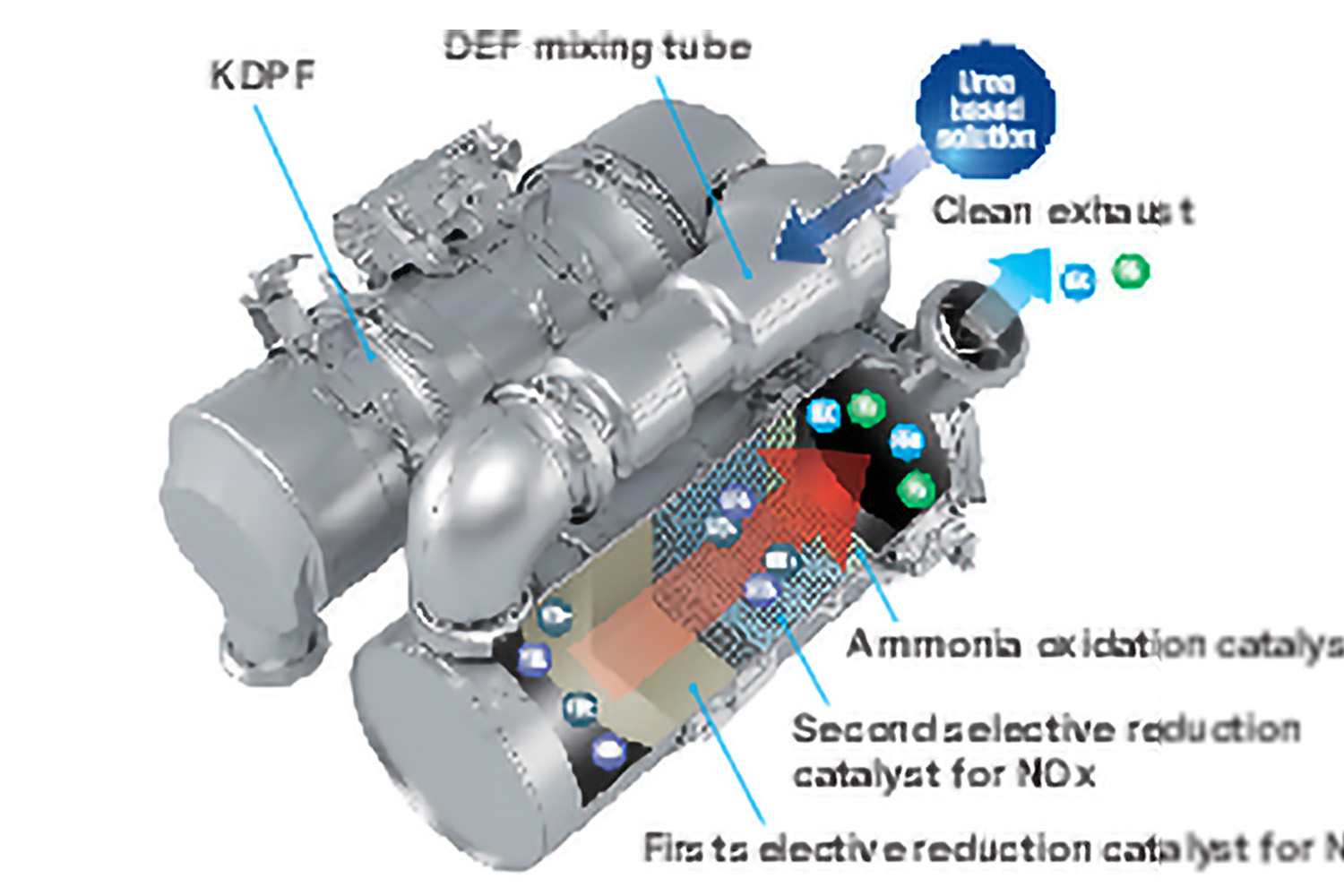

No-hassle DPF regeneration
Tier 4 machines use diesel particulate filters to burn off engine soot via regeneration. To help make sure it rarely impacts your operation, all D65/D85/D155 models use continuous passive regeneration, and active regeneration that typically doesn’t require the dozer to stop.
Specifications
- Full specs
- Standard equipment
- Optional equipment
Metric
Imperial (US)
Expand all
- Suspension: Oscillating equalizer bar and pivot shaft
- Track roller frame: Monocoque, large section, durable construction
- Rollers and idlers: Lubricated
- Type of shoes (standard): Single grouser
- Number of track rollers (each side): 7
- Number of shoes (each side): 41
- Lubricated tracks: Lubricated tracks. Unique seals prevent entry of foreign abrasive material into pin to bushing clearances to provide extended service life. Track tension is easily adjusted with grease gun.
- Grouser height (in): 2.8
- Grouser height (mm): 72
- Shoe width (standard)(in): 26
- Shoe width (standard)(mm): 660
- Ground contact area (cm^2): 45 920
- Ground contact area (ft2): 49.4
- Ground pressure (with standard shoe)(ISO 16754)(psi): 7.5
- Ground pressure (with standard shoe)(ISO 16754)(kpa): 52
- Ground pressure (with standard shoe)(ISO 16754)(kg/cm^2): 0.52
- Track gauge (ft): 6 ft. 7 in
- Track gauge (mm): 2 000
- Length of track on ground (mm): 3 050
- Length of track on ground (ft): 10 ft.
- Hydraulic system features: Closed-Center Load Sensing System (CLSS) designed for precise and responsive control, and for efficient simultaneous operation.
- Hydraulic control unit (U.S. gal/min): All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 87.4 US gpm at rated engine rpm.
- Hydraulic control unit (ltr/min): All spool valves externally mounted beside the hydraulic tank. Piston type hydraulic pump with capacity (discharge flow) of 331 L/min at rated engine rpm.
- Relief valve setting (psi): 3,270
- Relief valve setting (MPa): 22.6
- Control valve: Spool control valves for SIGMADOZER®, semi-u tilt or straight tilt dozer
-
- Blade lift: Raise, hold, lower, and float
- Blade tilt: Right, hold, and left
- Rear attachment: Raise, hold and lower
Positions
- Engine Model: Komatsu SAA6D125E-7*
- Dozers type: 4-cycle, water-cooled, direct injection
- Aspiration: Komatsu variable geometry turbocharged, air-to-air aftercooled
- Number of cylinders: 6
- Bore x stroke (in): 4.49 x 5.69
- Bore x stroke (mm): 125 x 150
- Piston displacement (L): 11.04
- Piston displacement (in^3): 674
- Governor: All-speed and mid-range, electronic
- Footnote: *EPA Tier 4 Final emissions certified
-
Horsepower
- SAEJ1995 - Gross (HP): 267
- SAEJ1995 - Gross (kW): 199
- ISO 9249 / SAE J1349 - Net (HP): 264
- ISO 9249 / SAE J1349 - Gross (kW): 197
- Rated RPM: 1,900
- Fan drive type: Hydraulic
-
Lubrication system
- Filter: Full-flow
- Method: Gear pump, force lubrication
- Transmission features: Komatsu TORQFLOW transmission consists of a water-cooled, 3-element, 1-stage, 1-phase and a planetary gear, multipledisc clutch transmission which is electronically controlled, hydraulically actuated and force-lubricated for optimum heat dissipation. Shift lock lever and neutral safety switch.
-
Reverse
- 1st torqflow reverse (kph): 4.4
- 1st torqflow reverse (mph): 2.7
- 2nd torqflow reverse (mph): 5
- 2nd torqflow reverse (kph): 8
- 3rd torqflow reverse (kph): 13
- 3rd torqflow reverse (mph): 8.1
- 3rdL torqflow reverse (mph): 5.7
- 3rdL torqflow reverse (kph): 9.2
-
Forward
- 1st torqflow forward (mph): 2.1
- 1st torqflow forward (kph): 3.3
- 2nd torqflow forward (mph): 3.8
- 2nd torqflow forward (kph): 6.1
- 3rd torqflow forward (mph): 6.3
- 3rd torqflow forward (kph): 10.1
- 3rdL torqflow forward (kph): 7.8
- 3rdL torqflow forward (mph): 4.8
- Fuel tank (L): 470
- Fuel tank (US gal): 124.1
- Diesel Exhaust Fluid (DEF) tank (US gal): 6.2
- Diesel Exhaust Fluid (DEF) tank (L): 23.5
- Coolant (US gal): 17.2
- Coolant (L): 65
- Engine oil (US gal): 10
- Engine oil (L): 38
- Damper case (L): 1.6
- Damper case (US gal): 0.42
- Torque converter, transmission, bevel gear, and steering system (L): 60
- Torque converter, transmission, bevel gear, and steering system (US gal): 15.8
- Final drive (US gal): 6.9
- Final drive (L): 26
- Hydraulic tank (L): 69
- Hydraulic tank (US gal): 18.2
-
Ripper equipment (additional volume)
- Multi-shank ripper (L): 11
- Multi-shank ripper (US gal): 2.9
- Steering system features: Palm Command Control System (PCCS) lever controls for all directional movements. Pushing the PCCS lever forward results in forward machine travel, while pulling it rearward reverses the machine. Simply tilt the PCCS lever to left to make a left turn. Tilt it to the right for a right turn. Hydrostatic Steering System (HSS) is powered by steering planetary units and an independent hydraulic pump and motor. Counterrotation turns are also available. Wet, multiple-disc, pedal-controlled service brakes are spring-actuated and hydraulically released. Gear shift lock lever also applies parking brake.
- Minimum turning radius (in): 78
- Minimum turning radius (m): 2
- Operator weight (approximate): Including SIGMADOZER and fixed multi-shank ripper (EXi) or straight tilt dozer and long drawbar (PXi) ROPS cab, operator, standard equipment, rated capacity of lubricant, hydraulic control unit, coolant, and full fuel tank.
-
Tractor weight
- Tractor weight (lbs): 53,770
- Tractor weight (kg): 24 390
- Tractor weight inclusions: Including ROPS cab, rated capacity of lubricant, hydraulic control unit, coolant, full fuel tank, operator, and standard equipment.
-
Operating weight
- Operating weight (kg): 30 670
- Operating weight (lbs): 67,615
- Final drive features: Double-reduction final drive of spur and planetary gear sets to increase tractive effort and reduce gear tooth stresses for long final drive life. Segmented sprocket teeth are bolt-on for easy replacement. Triple labyrinth protects seals and improves durability.
Metric
Imperial (US)
- Air cleaner, double element with dust indicator
- Alternator, 90 ampere/24V
- Auto idle shutdown function
- Backup alarm
- Batteries, 200 Ah/2 x 12V
- Battery disconnect switch
- Blade lift cylinders
- Color monitor, LCD
- Decelerator pedal
- Engine hood
- Engine intake centrifugal precleaner
- Engine, gull-wing side covers
- Exhaust pipe with raincap
- Fenders
- Front pull hook
- High mount foot rests
- Horn, warning
- Hydraulic driven radiator cooling fan with reverse clean mode
- Hydraulics for front attachment
--Single tilt, power pitch (EX SIGMADOZER only)
--Single tilt, manual pitch (non-SIGMADOZER) - KOMTRAX® Level 5
- Komatsu Diesel Particulate Filter (KDPF)
- Komatsu Variable Geometry Turbocharger (KVGT)
- Locks, filler caps and covers
- Oil pressure check ports for power train
- Operator ID function
- PM service connector
- Radiator mask, heavy-duty, hinged, perorated
- Radiator reserve tank
- Rear cover
- ROPS Cab**
- 75 dB operator ear noise level
- Air conditioner
- Cab accessories
--12V power supply (2 ports)
--Cup holder
--Rearview mirror
--Rear view monitoring (1 camera)
--AM/FM Radio w/remote AUX plug (3.5 mm) - Work lights
--2 front, hood mounted
--2 front, Cab mounted
--1 rear, left fender mounted
--2 rear, Cab mounted
--1 ripper point (EX/EXi only) - Seat, air suspension, fabric, heated low back, rotates 12.5° to right, headrest
- Seat belt, 3", retractable
- Seat belt indicator
- Sealed electrical connectors
- Starting motor, 11.0 kW/24V
- Steering system: Hydrostatic Steering System (HSS)
- Torque converter
- Track roller guards, center and end sections
- Track shoe assembly
- Heavy-Duty sealed and lubricated track
- 26" extreme service single grouser shoe (EX)
- Transmission with auto/manual shift modes
- Underguards, heavy duty
- Hinged belly pan
- Transmission
- Water separator
- Wide core cooling package
* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards (ROPS standards ISO 3471, SAE J/ISO 3471; FOPS standards ISO 3449)
- Air cleaner, double element with dust indicator
- Alternator, 90 ampere/24V
- Auto idle shutdown function
- Backup alarm
- Batteries, 200 Ah/2 x 12V
- Battery disconnect switch
- Blade lift cylinders
- Color monitor, LCD
- Decelerator pedal
- Engine hood
- Engine intake centrifugal precleaner
- Engine, gull-wing side covers
- Exhaust pipe with raincap
- Fenders
- Front pull hook
- High mount foot rests
- Horn, warning
- Hydraulic driven radiator cooling fan with reverse clean mode
- Hydraulics for front attachment
--Single tilt, power pitch (EX SIGMADOZER only)
--Single tilt, manual pitch (non-SIGMADOZER) - KOMTRAX® Level 5
- Komatsu Diesel Particulate Filter (KDPF)
- Komatsu Variable Geometry Turbocharger (KVGT)
- Locks, filler caps and covers
- Oil pressure check ports for power train
- Operator ID function
- PM service connector
- Radiator mask, heavy-duty, hinged, perorated
- Radiator reserve tank
- Rear cover
- ROPS Cab**
- 75 dB operator ear noise level
- Air conditioner
- Cab accessories
--12V power supply (2 ports)
--Cup holder
--Rearview mirror
--Rear view monitoring (1 camera)
--AM/FM Radio w/remote AUX plug (3.5 mm) - Work lights
--2 front, hood mounted
--2 front, Cab mounted
--1 rear, left fender mounted
--2 rear, Cab mounted
--1 ripper point (EX/EXi only) - Seat, air suspension, fabric, heated low back, rotates 12.5° to right, headrest
- Seat belt, 76mm, retractable
- Seat belt indicator
- Sealed electrical connectors
- Starting motor, 11.0 kW/24V
- Steering system: Hydrostatic Steering System (HSS)
- Torque converter
- Track roller guards, center and end sections
- Track shoe assembly
- Heavy-Duty sealed and lubricated track
- 660mm extreme service single grouser shoe (EX)
- Transmission with auto/manual shift modes
- Underguards, heavy duty
- Hinged belly pan
- Transmission
- Water separator
- Wide core cooling package
* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards (ROPS standards ISO 3471, SAE J/ISO 3471; FOPS standards ISO 3449)
Metric
Imperial (US)
- Drawbar, long type
- Hitch
- SIGMADOZER® (EX)
- Semi-U (EX)
- Straight tilt frame for use with allied blades
- Trunnions for use with allied dozer assembly
- Track roller guard, full length
Multi-shank ripper (for D85EX)
- Weight
5,520 lb - Beam length
7'4" - Maximum lift above ground
1'10" - Maximum digging depth
2'2"
- Drawbar, long type
- Hitch
- SIGMADOZER® (EX)
- Semi-U (EX)
- Straight tilt frame for use with allied blades
- Trunnions for use with allied dozer assembly
- Track roller guard, full length
Multi-shank ripper (for D85EX)
- Weight
2500 kg - Beam length
2246 mm - Maximum lift above ground
565 mm - Maximum digging depth
655 mm
