3D Machine Guidance

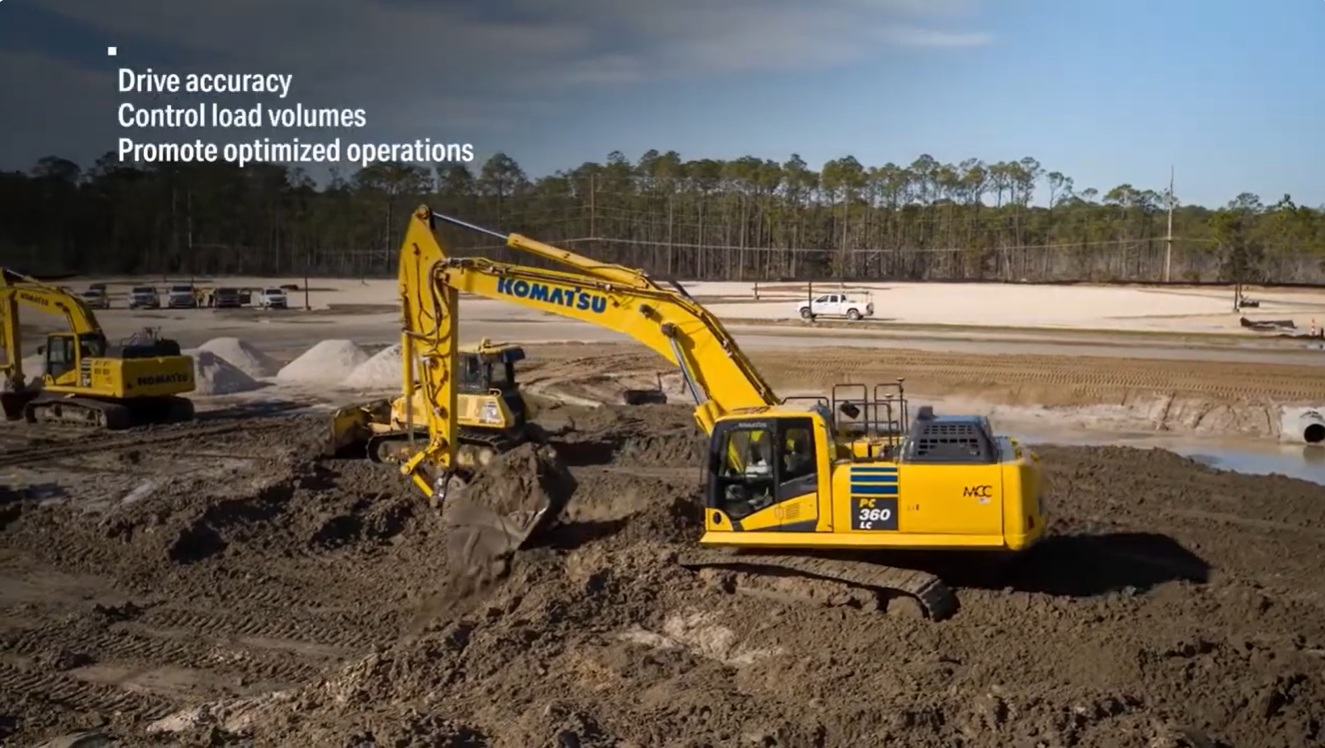

3D Machine Guidance (3DMG) provides ICT functionality to an existing hydraulic excavator. Being equipped with 3DMG allows the use of the following functions, thus enabling machine of a conventional type to perform ICT construction.

Download brochure

What functions are included?

3D machine guidance

Function to acquire the machine location information by GNSS and provide a cab tablet device with the difference between design data of the construction area and location of the bucket edge.

Payload meter

Function to measure the weight of soil loaded in the bucket of the hydraulic excavator.

3D construction data

Function to aquire 3D construction data while operating on a project using 3D digital design. As constructed information is collected from the machine, it can be visualised in Smart Construction Dashboard, allowing automatic updating of the design surface. Change in topography can also be visualised on the in cabin 3DMG screen using SC Pilot application.
