Forklifts

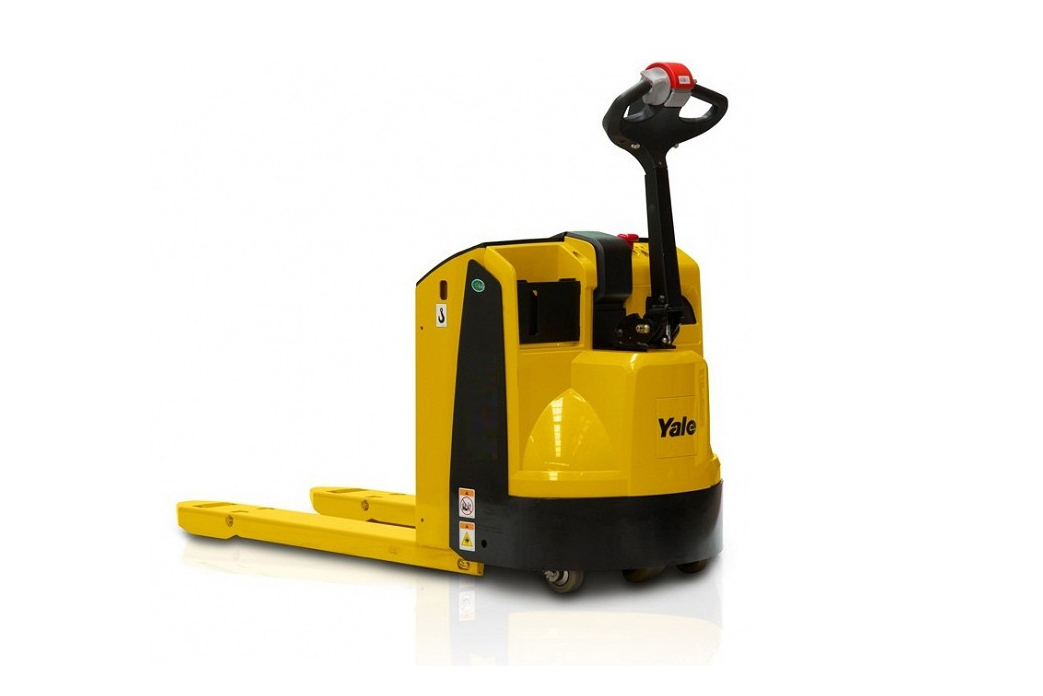

Power Pallet Mover
Pedestrian pallet trucks
- Capacity (kg) 2000
- Capacity (lbs) 4409
- Fuel type Battery
- Tyre type details Polyurethane
Purchase options
Contact usIdeal for use in areas with reduced space for moving, loading and unloading goods
Operators will find it easy and safe to use even in tight working areas like in trailers, retail applications and warehouses. Komatsu Electric Pallet Jack models boast a big battery capacity that ensures a good work cycle. The sensorless drive motor and all AC systems, combined with a new generation electronic controller, deliver high performances and maximum maneuverability during working operations.
- Big battery capacity ensures a good work cycle while the sensor less drive motor and all AC system combined with a new generation electronic controller delivers high performances and maximum manoeuvrability during working operations.
- The Powered pallet truck is ideal for logistics tasks in industry, pharmaceuticals, printing, warehouse, trade and retail applications.
Resources
Features and benefits
Chassis
The chassis of the Electric Pallet Mover is built from folded frame to minimise welding-induced stresses. This offers maximum stability and superior mechanical strength in all transport situations. The battery compartment is accessed simply by lifting the case, thus simplifying daily and periodical checks and recharging.
Steering handle
The steering handle of the Power Pallet Jack is the result of detailed ergonomic study, combining the requirements of operating comfort with modern industrial design. All the controls on the handle are easy to reach, ensuring productivity and precision and greater efficiency. When released, the handle returns to the vertical position without bumping or rebound, thanks to a gas spring with integrated braking system.
Drive
The Komatsu Electric Pallet Jack features Reliable sensor less three phase current traction ac drive motors are able to meet the most demanding performance requirements, delivering the necessary power under all load conditions as the traction speed exactly depends on the position of the drive throttle.
Specifications
- Full specs
- Fuel source type: Battery
- Rated capacity (kg): 2000
- Rated capacity (lbs): 4409
- Mast (ft): N/A
- Tyre type: Polyurethane
- Mast (m): N/A
- Turning radius (in): 63.6
- Turning radius (mm): 1589
