Forklifts

Komatsu EX

Standard IC engine powered

  • Tyre type Puncture proof or pneumatic
  • Fuel type Diesel
  • Capacity (kg) 10000, 11500, 13500 or 16000
  • Capacity (lbs) 22,046, 25,353, 29,762 or 35,274
  • Rated capacity (kg) 10000 (FD100-8), 11500 (FD115-8), 13500 (F135-8) or 16000 (FD160E-8)
  • Rated capacity (lbs) 22,046 (FD100-8), 25,353 (FD115-8), 29,762 (FD135-8) or 35,274 (FD160E-8)

Purchase options

Contact us

Represents the pinnacle of material handling equipment for the most demanding industrial applications

Komatsu puts its technologies and know-how into the design and construction of the EX50 engine. With its 4 key cutting edge technologies, the engine provides better fuel efficiency, maximum productivity, and lowered operating costs. The EX50’s excellent visibility, operator comfort and ease of operation are all designed to deliver greater operator productivity and efficiency.

    Resources

    Features and benefits

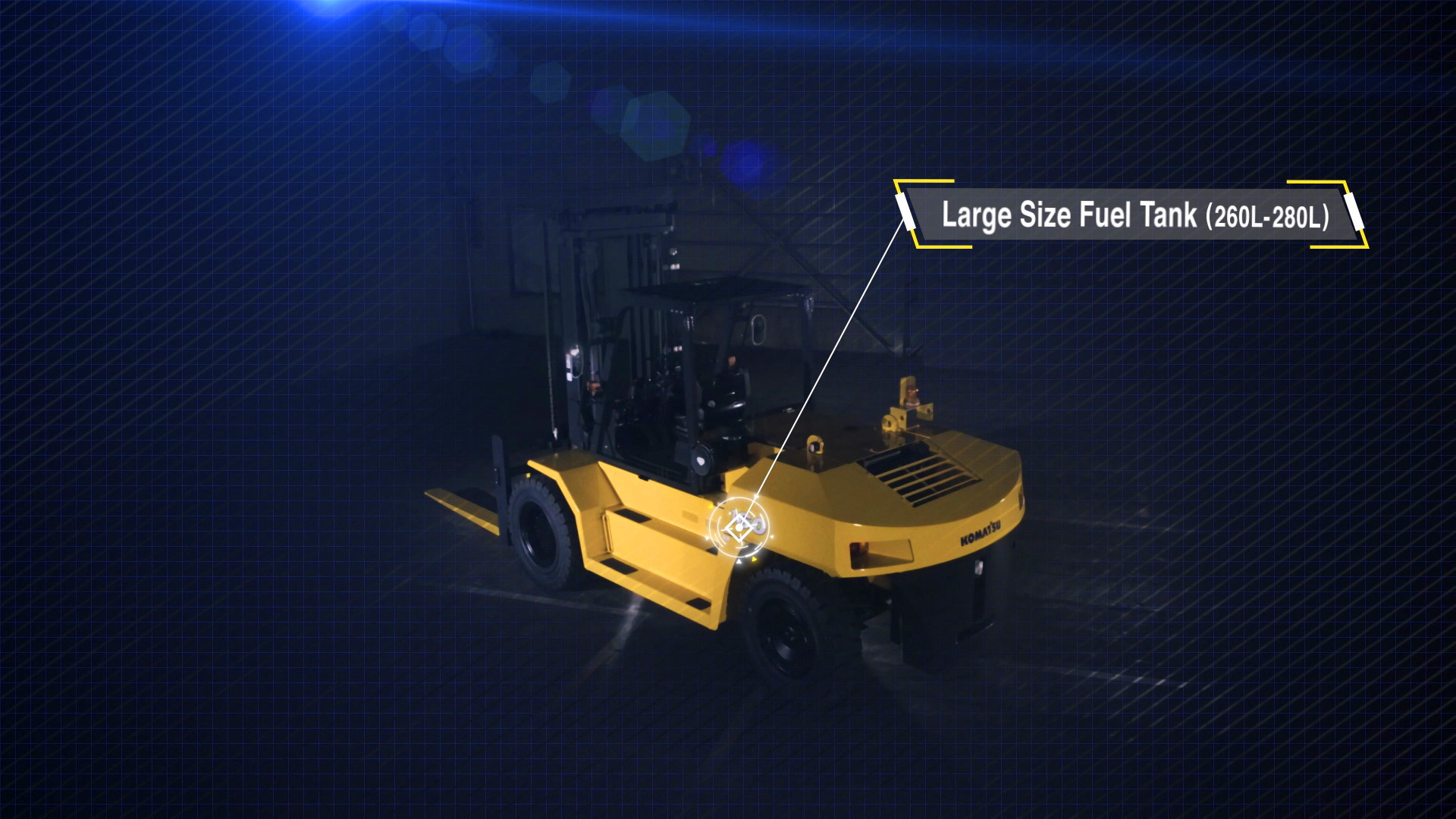

    Reduced operating costs and fuel consumption

    The EX50’s large fuel tank reduces the need for frequent fill-ups and easy-to-see inspection windows show fuel and oil levels. A unique air cleaner automatically ejects airborne dust to reduce clogging of the filter element, thus improving suction efficiency and improving filter element life. A reserve tank for engine coolant keeps the system at a constant level and eliminates the need for frequent refills. High pressure compressed fuel is stored in an accumulator chamber called a common rail. The fuel is injected into each cylinder at the proper time by an ECU (electronic controlled unit). This high pressure compression rail system optimizes fuel burn and greatly reduces fuel consumption.

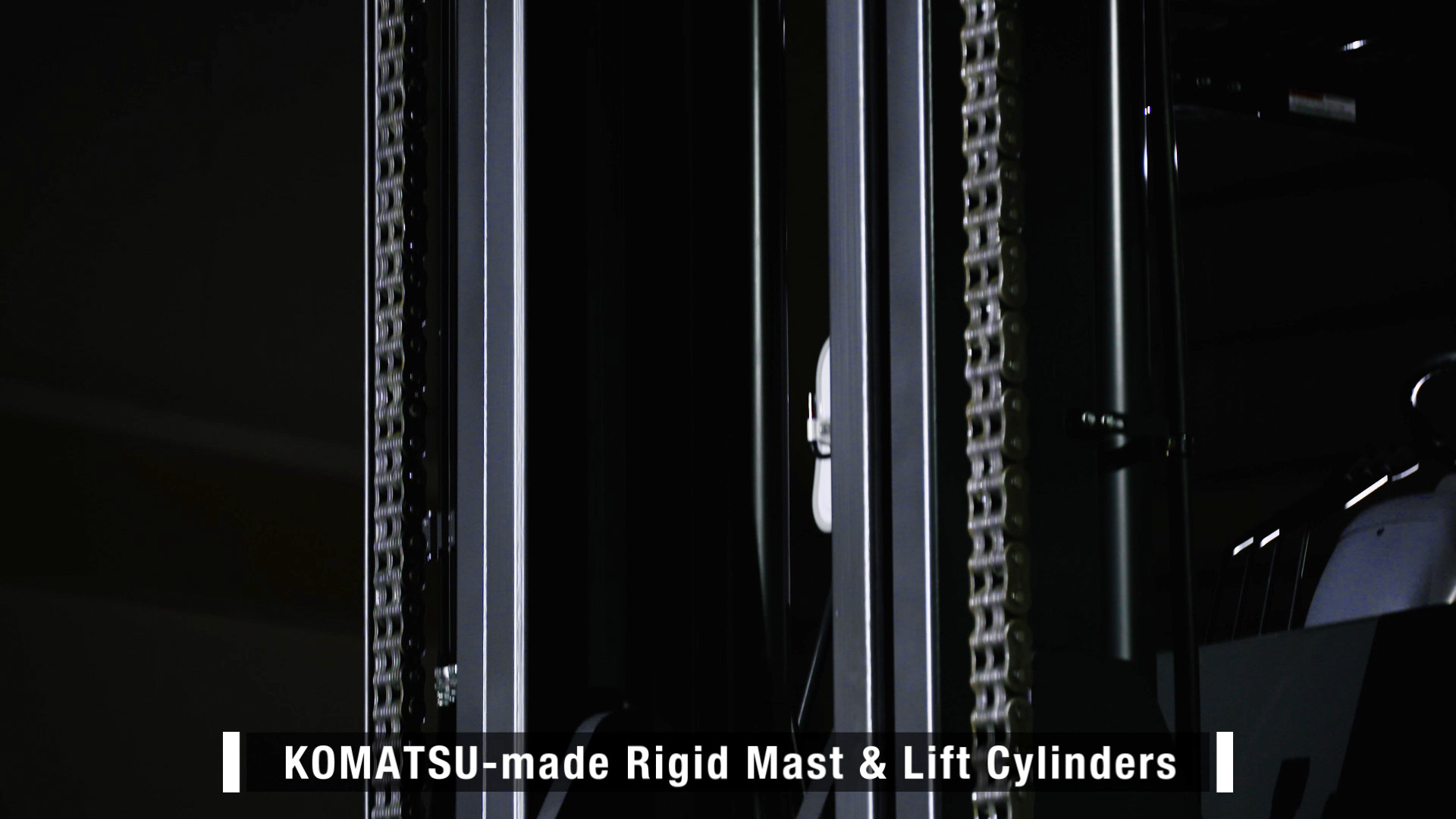

    Komatsu reliability

    A highly rigid frame enhances truck durability and load handling performance. Use of a main frame structure that consists of a single piece of thick plate steel provides high rigidity against twisting caused by static steering, turning, or uneven surfaces resulting in excellent truck durability and load-handling performance.

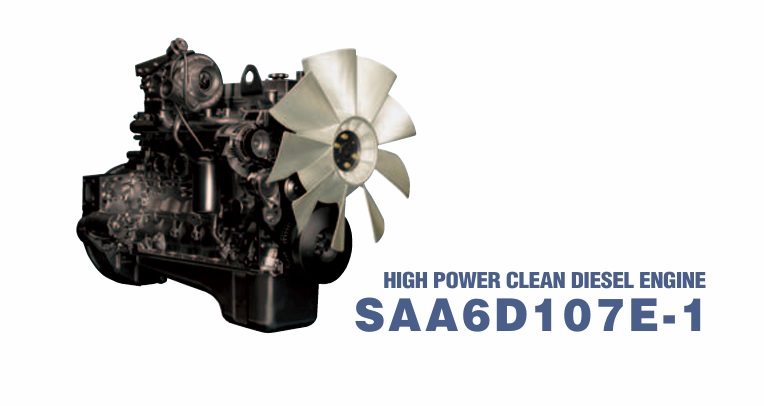

    Environmental and operator safety

    The Komatsu EX forklift offers a clean, powerful diesel engine and low noise.

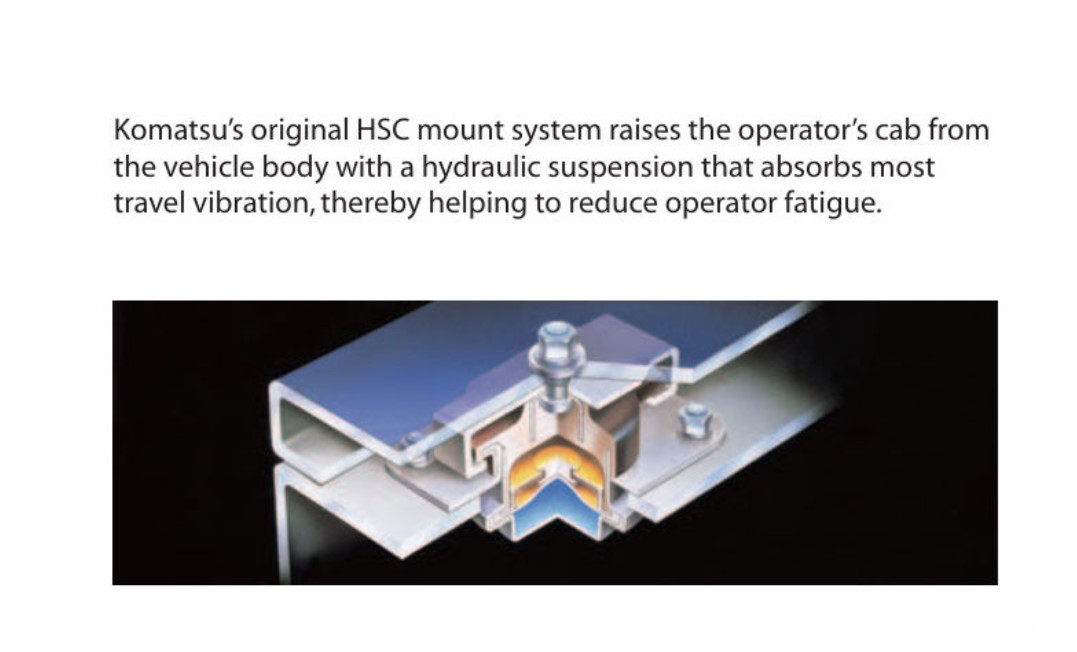

    Hydraulic Suspension Cab (HSC)

    Komatsu's Hydraulic Suspension Cab (HSC) mount system raises the operator’s cab from the vehicle chassis with a hydraulic suspension system that absorbs most operational vibration. This greatly helps improve operator comfort to reduce fatigue even during long work shifts.

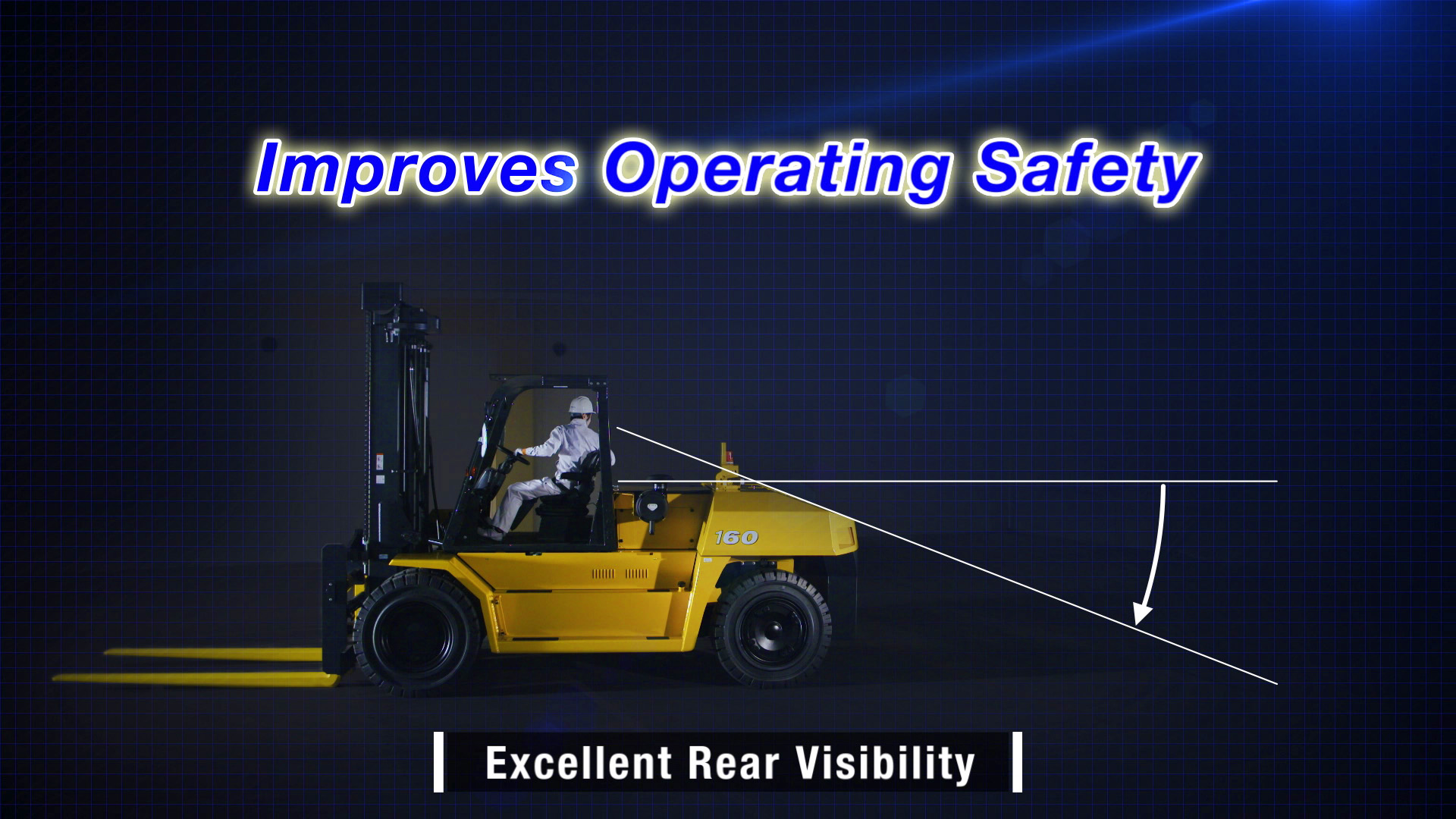

    Operator visibility

    Operational visibility is greatly enhanced through improvements of the shape of the top of the counterweight and through an increased distance between the inner mast rails. Rearward visibility has been improved through a downward angle to the top edge of the counterweight. Also, forward visibility has been improved by re positioning the lift chains to the outside rail.

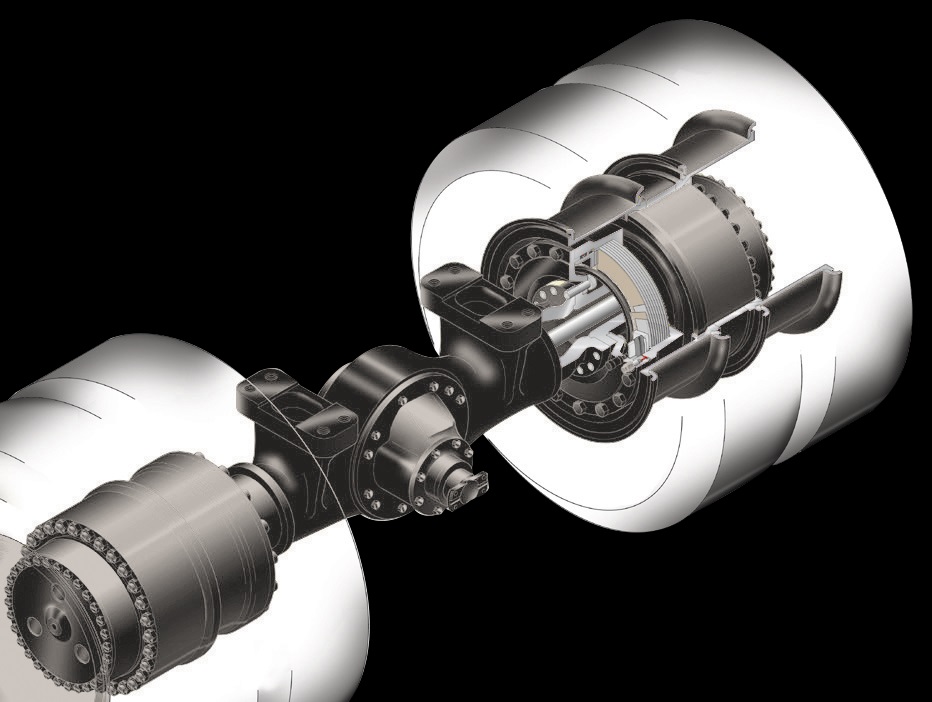

    Safety

    Safety is paramount; this forklift boasts exceptional braking capabilities, enabling precise control and stopping power when needed.

    Komatsu EX series 10-16 tonne diesel Forklifts

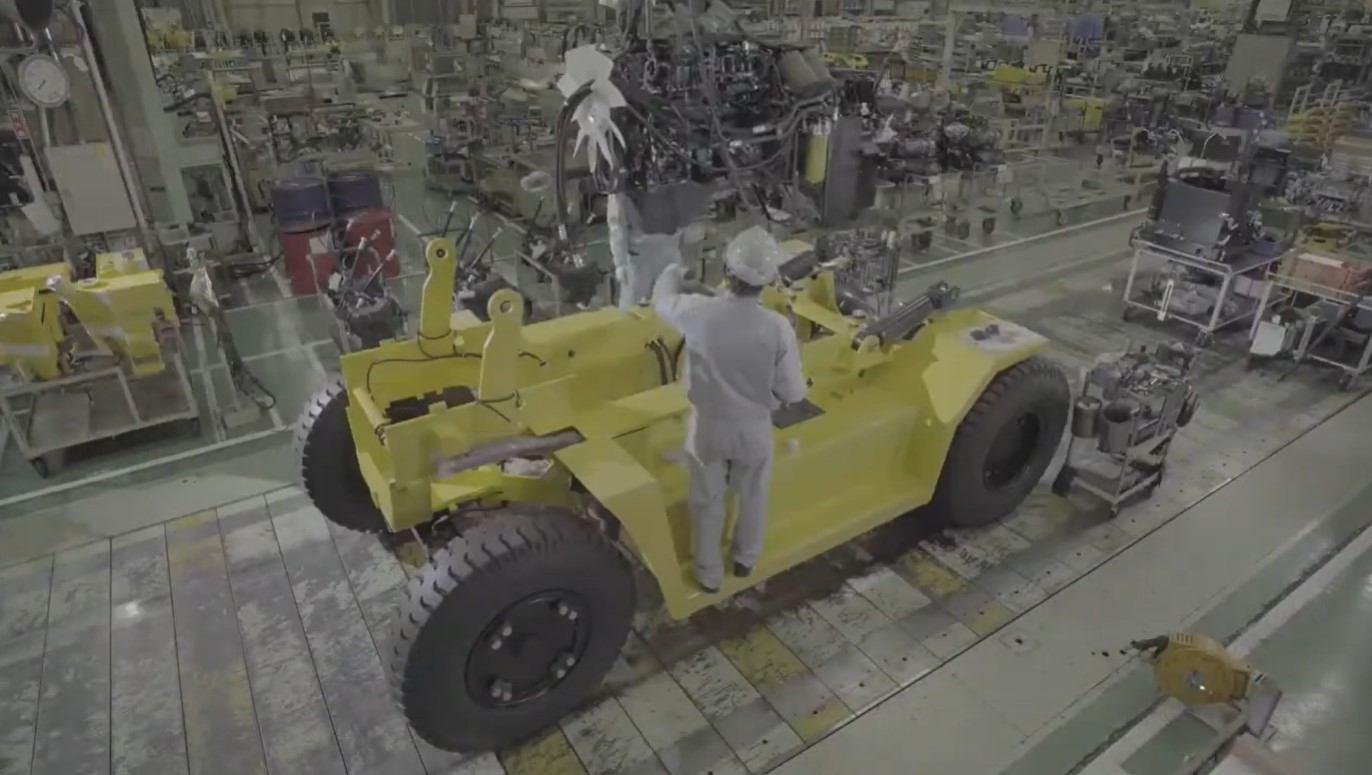

    Video thumbnail
    Model Fuel type Rated capacity Load centre (mm) Tyres Mast (m) Turning radius (mm)
    FD100-8 Diesel 10000 600 Pneumatic Full range 4000
    FD115-8 Diesel 11500 600 Pneumatic Full range 4010
    FD135-8 Diesel 13500 600 Pneumatic Full range 4300
    FD160E-8 Diesel 16000 600 Pneumatic Full range 4500

    Specifications

    Metric Imperial (US)
    Expand all

    • Mast (m): Full range
    • Mast (ft): Full range
    • Fuel source type: Diesel
    • Tyre type details: Pneumatic
    • Turning radius (in): 157 (FD100-8), 158 (FD115-8), 169 (FD135-8) or 177 (FD160E-8)
    • Turning radius (mm): 4000 (FD100-8), 4010 (FD115-8), 4300 (FD135-8) or 4500 (FD160E-8)
