Forklifts

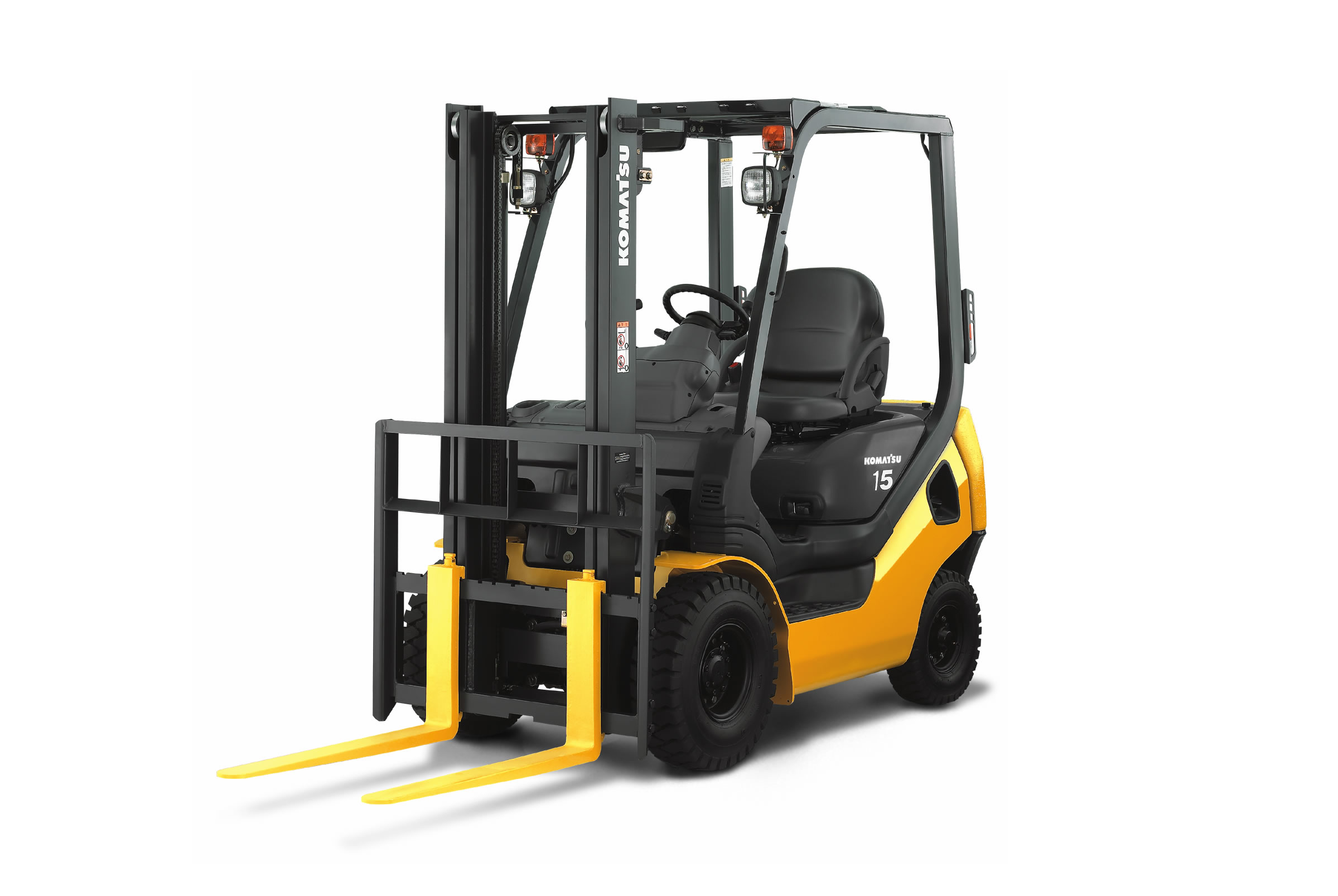

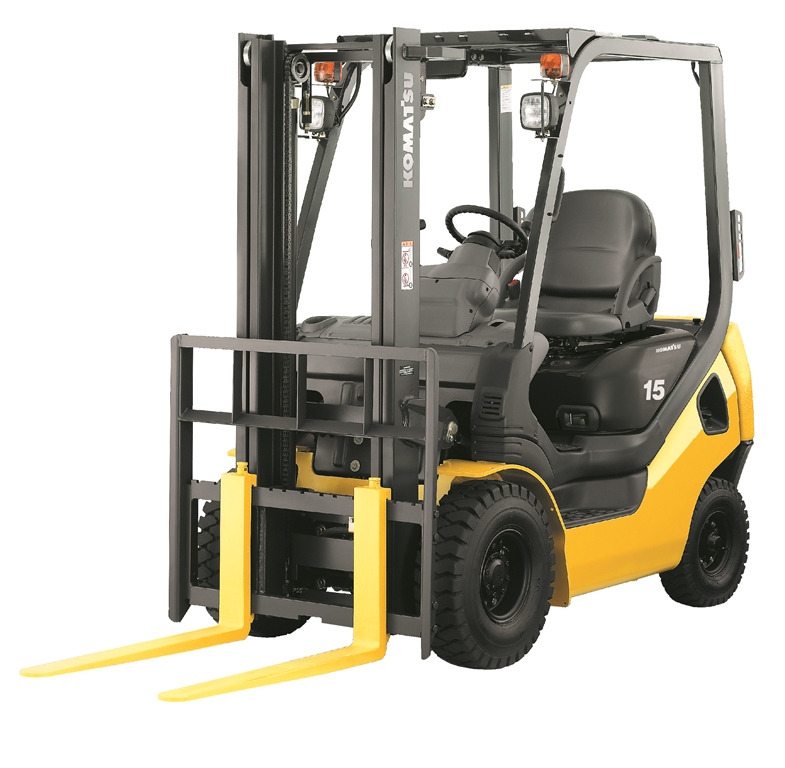

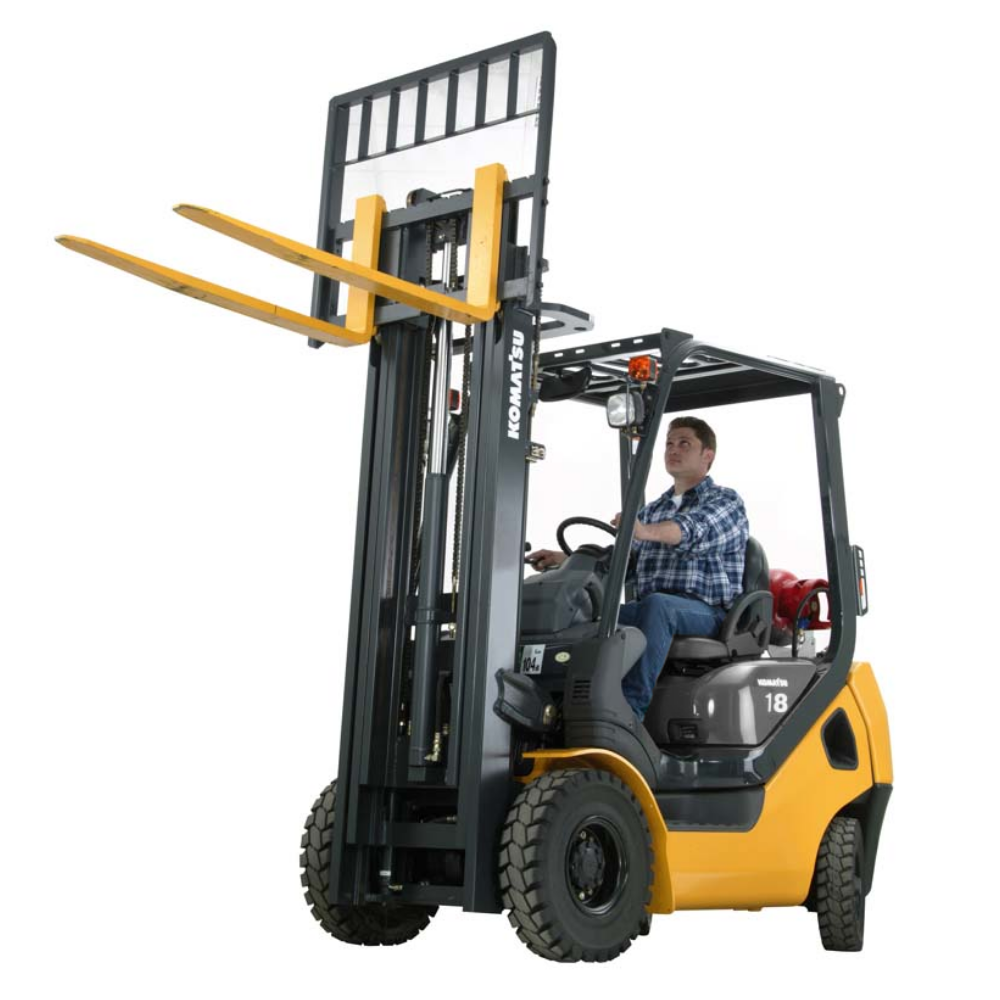

Komatsu AX
Standard IC engine powered
- Tyre type Puncture proof or pneumatic
- Fuel type LPG/petrol (FG18HT-21) or diesel (FD18T-21)
- Capacity (kg) 1750
- Capacity (lbs) 3858
- Rated capacity (kg) 1750
- Rated capacity (lbs) 3858
Purchase options
Contact usGreat design starts on the smallest level and with the Komatsu AX50, no detail has been overlooked.
Building on our 80-year history of superior engineering, the AX50 delivers improved performance and unbeatable strength for your most demanding applications. Great design starts with the Komatsu AX50 Series of Gas Forklift and Diesel Engine Forklift. With our 80-year history and Komatsu’s reliability of superior engineering, no detail has been overlooked. The AX50 series delivers the qualities you’ve come to count on in a Komatsu, exceptional performance, increased productivity, reduced operating costs, trusted safety features and unbeatable power for the most demanding jobs.
Resources
Features and benefits

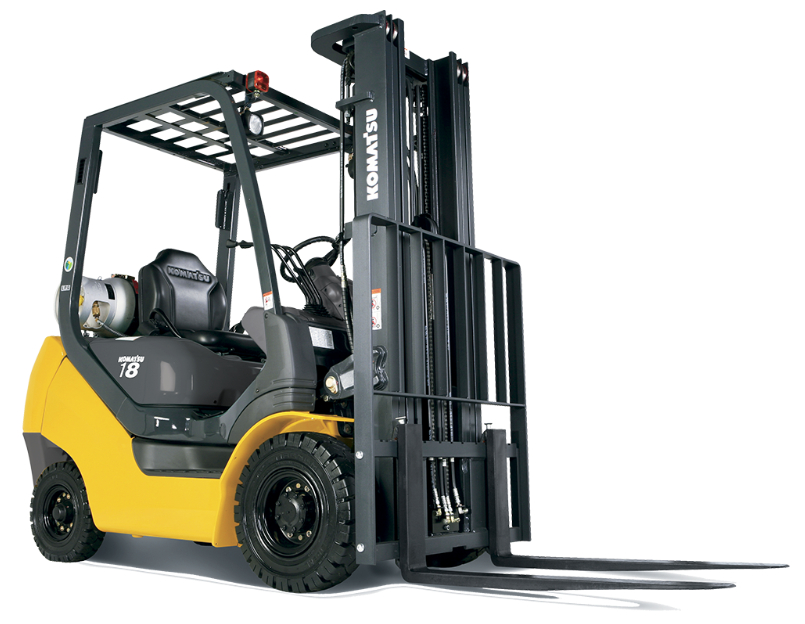

Hydrostatic power steering system
The AX50 Fully Hydrostatic Power Steering system reduces operator fatigue by eliminating kickback and allowing easy steering, even while the forklift is stationary. A small-diameter steering wheel improves operator feel and control.

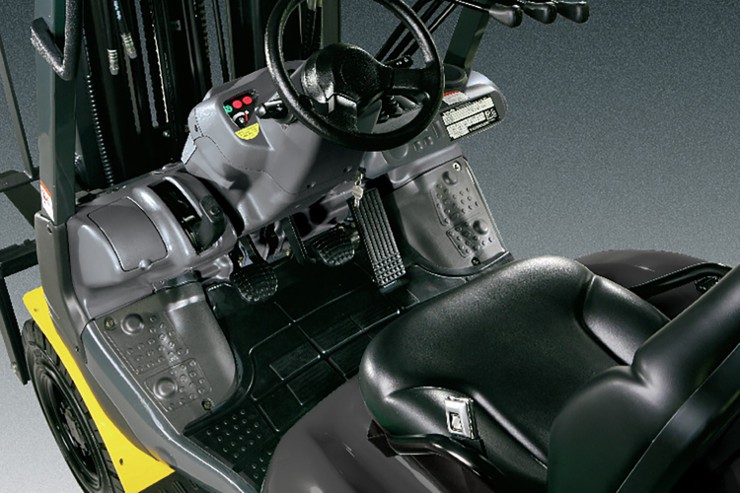

Reduced operating costs
The Komatsu AX50 forklift offers optimum lubrication intervals and simple maintenance for greater efficiency.
New transmission design
A new transmission, designed and manufactured by Komatsu Forklift Limited, handles the high torque provided by the powerful K21 engine. A high-capacity oil cooler protects the torque converter, and an aluminum alloy transmission case improves heat dissipation.

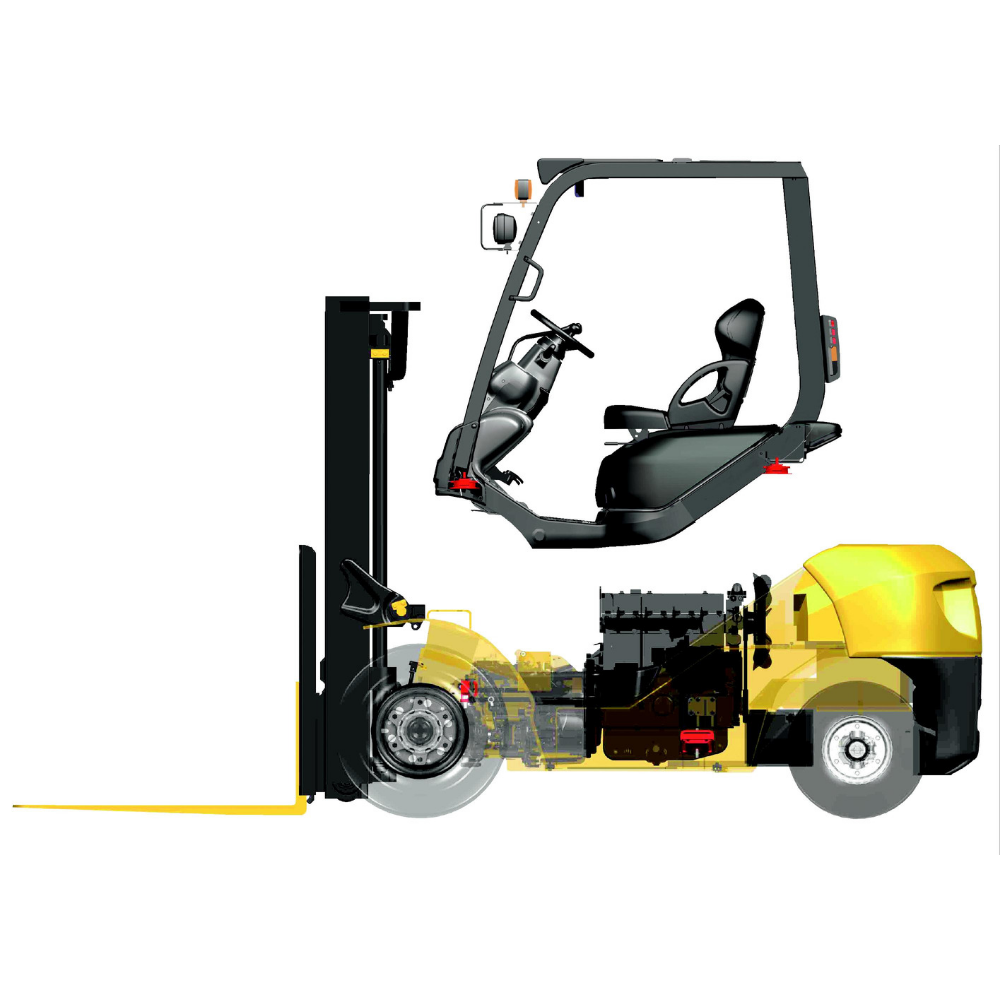

Komatsu Komfort Zone
The Komatsu Komfort Zone design uses a dual floating structure that protects operators. One set of vibration-dampening mounts separate the forklift’s frame from the engine and transmission. A second set of suspension mounts isolate the operator compartment from the frame. In addition, drive-train design reduces vibration transmitted from the differential. The combined technology of both of these Komatsu designed systems further reduce the vibrations transferred to the mast, fork, steering wheel and control lever, as well as the operator's seat. Therefore, ultimately improving operator comfort and cargo safety.

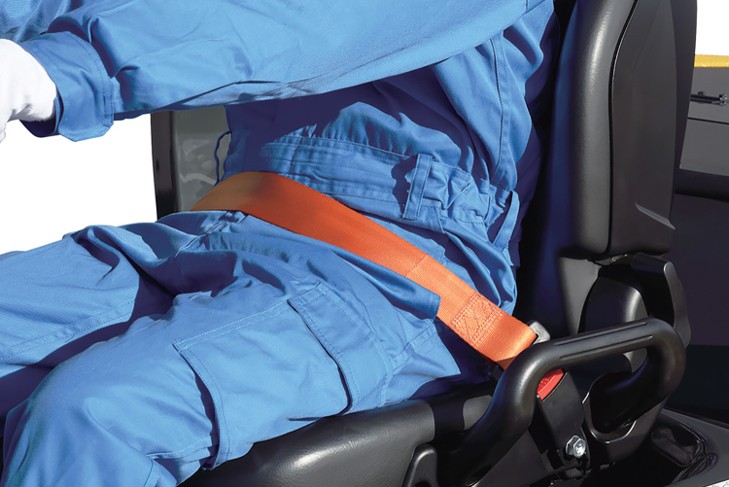

Komatsu reliability
The AX series is designed with a frame structure and changes to the mast to improve durability. The bell-shaped shroud concentrates cooling air into the radiator which also enhances reliability during heavy operations.

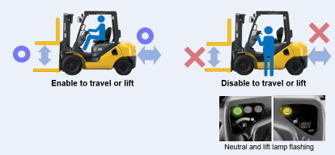

Komatsu Operator Presence System (KOPS)
This system, standard on the AX50 – locks out lift, lower, tilt and traveling functions when the operator leaves the seat for more than three seconds. They do not resume until the operator returns to the seat and resets the controls. A flashing yellow warning light alerts the operator when the KOPS lock is activated. In addition, the forks cannot be lowered while the key is in the off position.
Specifications
- Full specs
- Mast (m): Full range
- Mast (ft): Full range
- Fuel source type: LPG/petrol or diesel
- Tyre type details: Puncture proof or pneumatic
- Turning radius (in): 78.3
- Turning radius (mm): 1990
