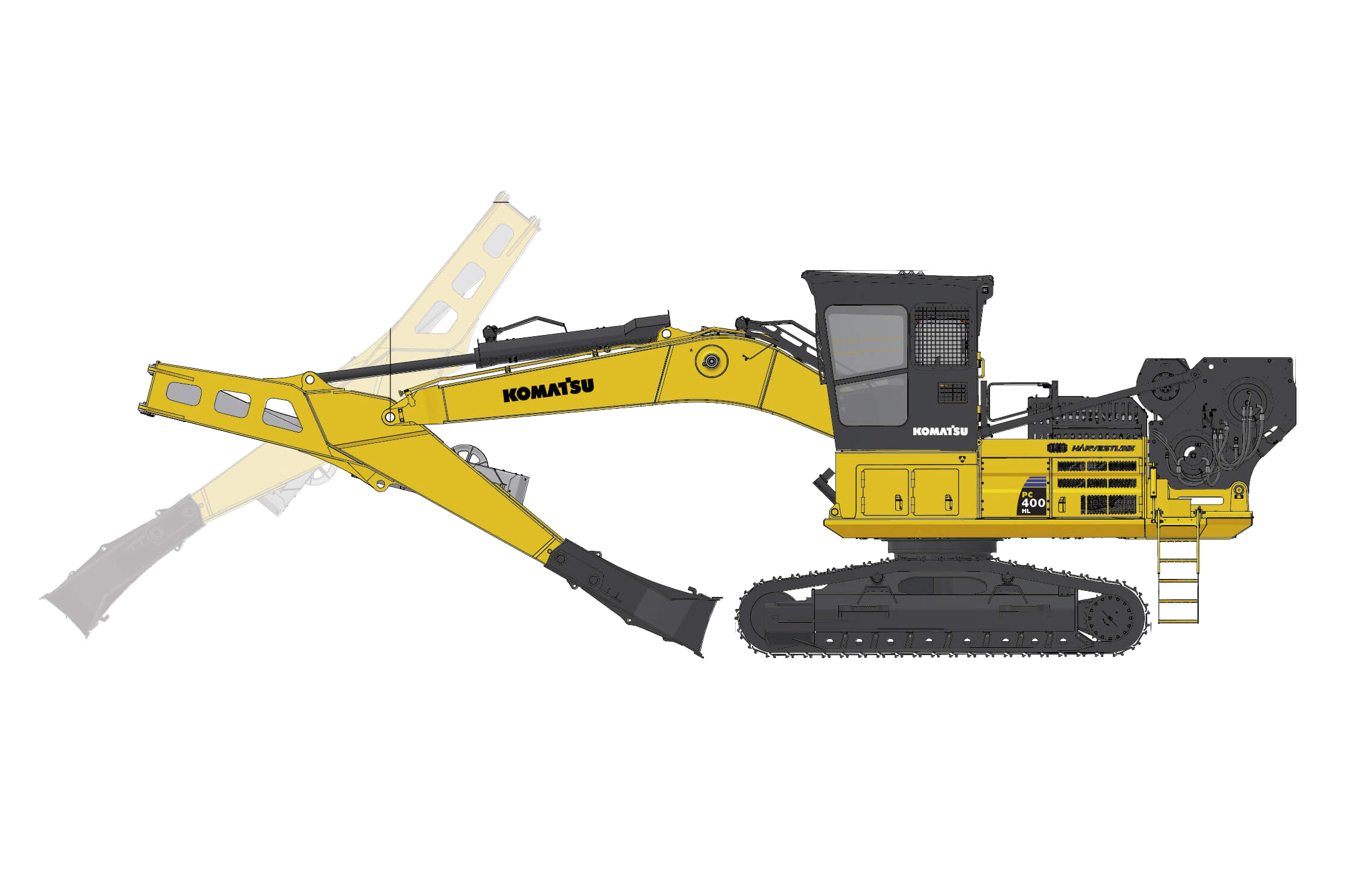

Product Image

Forestry

PC400HL-8

Swing machines

  • Horsepower (HP) 362 (gross) @ 1900 rpm
  • Horsepower (kW) 270 (gross) @ 1900 rpm
  • Operating weight (kg) 105 822
  • Operating weight (lbs) 48 000
  • Swing torque (ft-lbs) 97 024
  • Swing torque (kg-m) 13 414

Purchase options

Contact a sales representative

High-performance Harvestline machine for steep slopes

The PC400HL-8 is equipped with the EMS Harvestline system for efficient cable logging and maximum productivity in challenging terrain.

  • EMS dual winch with interlock function
  • High Wide undercarriage with 700 mm grousers
  • High-rise cab with rear entry for optimal visibility
  • Harvestline boom set for cable logging operations

Resources

Features and benefits

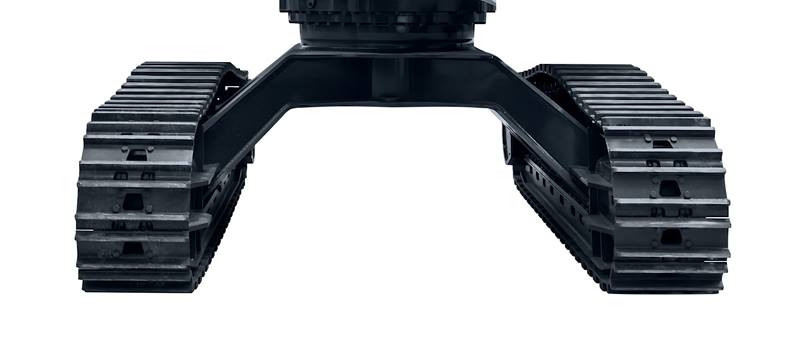

High wide undercarriage

High wide undercarriage

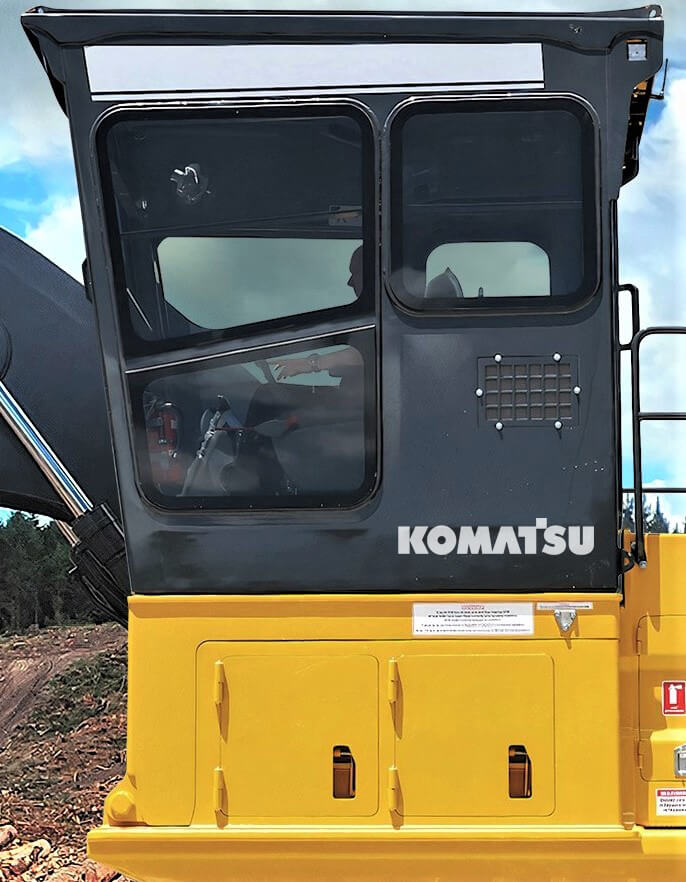

High rise entry cab

High rise entry cab

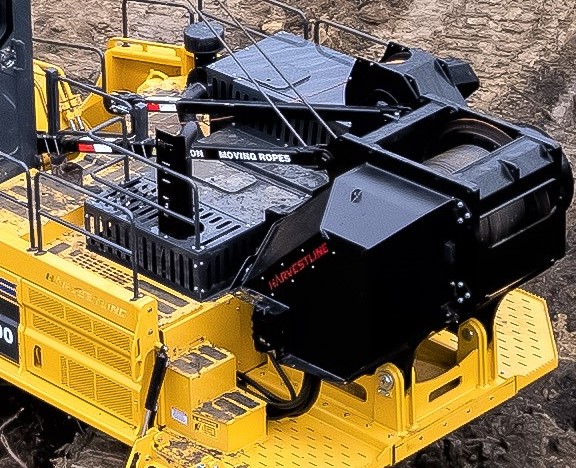

EMS Harvestline winch system

EMS Harvestline winch system

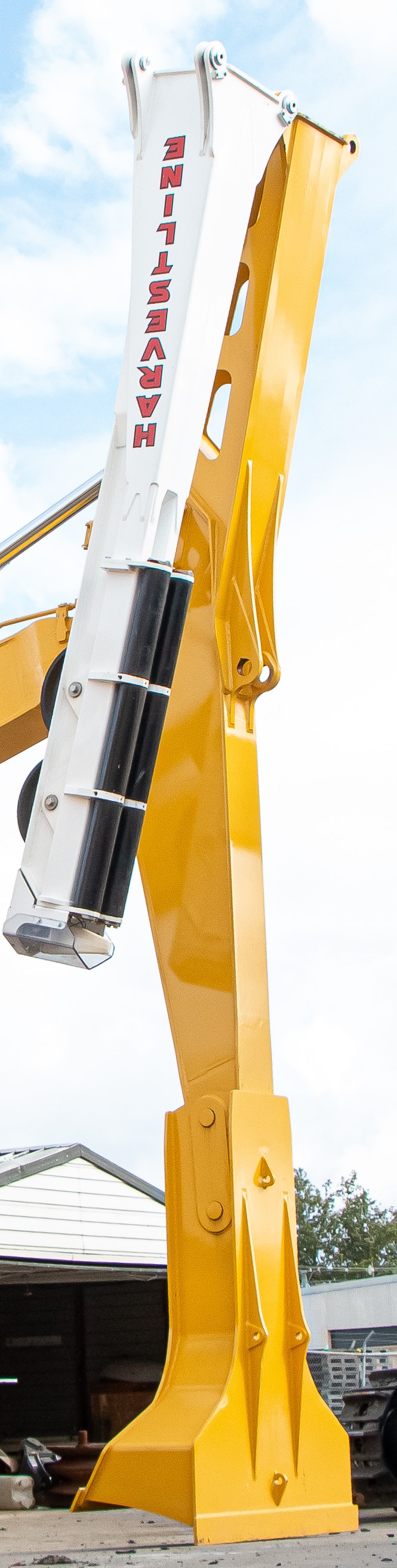

EMS tower boom

EMS tower boom

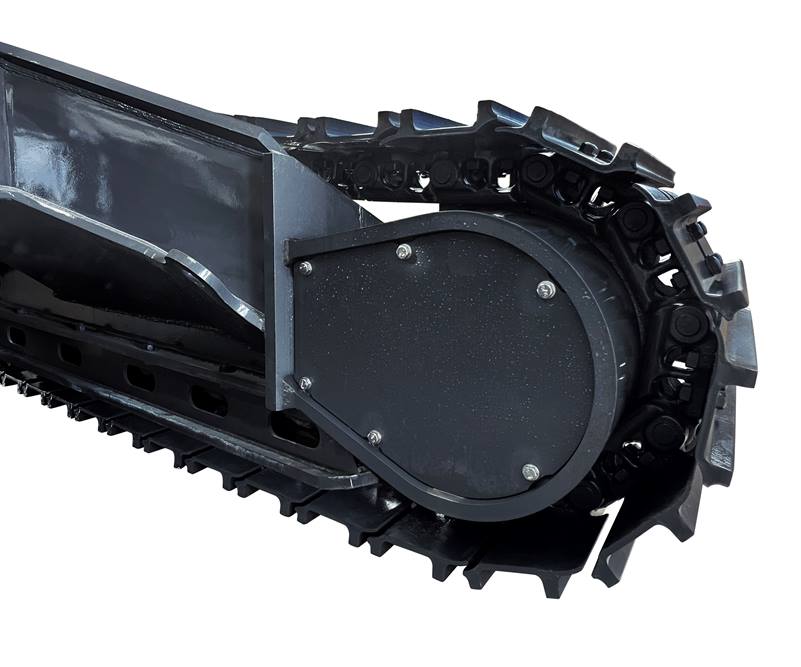

700 mm double bar grousers

700 mm double bar grousers


Specifications

Metric Imperial (US)
Expand all

  • Hydraulics type: HydrauMind
  • : 4

  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motors with parking brake

  • Main pump

    • Hydraulic type: Variable displacement piston type
    • Pumps for: Boom, arm, attachment, swing, and travel circuits
    • Maximum flow (L/min): 690
    • Maximum flow (US gpm): 182.3

  • Maximum travel speed (auto-shift)

    • High (mph): 3.4
    • High (kph): 5.5
    • Parking brake: Mechanical disc brake

  • Maximum travel speed (auto-shift)

    • Service brake: Hydraulic lock

  • Fuel tank (US gal): 171.7
  • Fuel tank (L): 650
  • Engine (US gal): 9.8
  • Engine (L): 37
  • Final drive (US gal): 2.8
  • Final drive (L): 10.5
  • Swing drive (L): 20
  • Swing drive (US gal): 5.3
  • Hydraulic tank (L): 248
  • Hydraulic tank (US gal): 65.5

  • Engine Model: Komatsu SAA6D125E-5
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled
  • : 6
  • Bore (in): 4.9
  • Bore (mm): 125
  • Stroke (in): 5.9
  • Stroke (mm): 150
  • Piston displacement (L): 11.04
  • Piston displacement (in^3): 673.7

  • Center frame: X-frame
  • Track frame: Box-section
