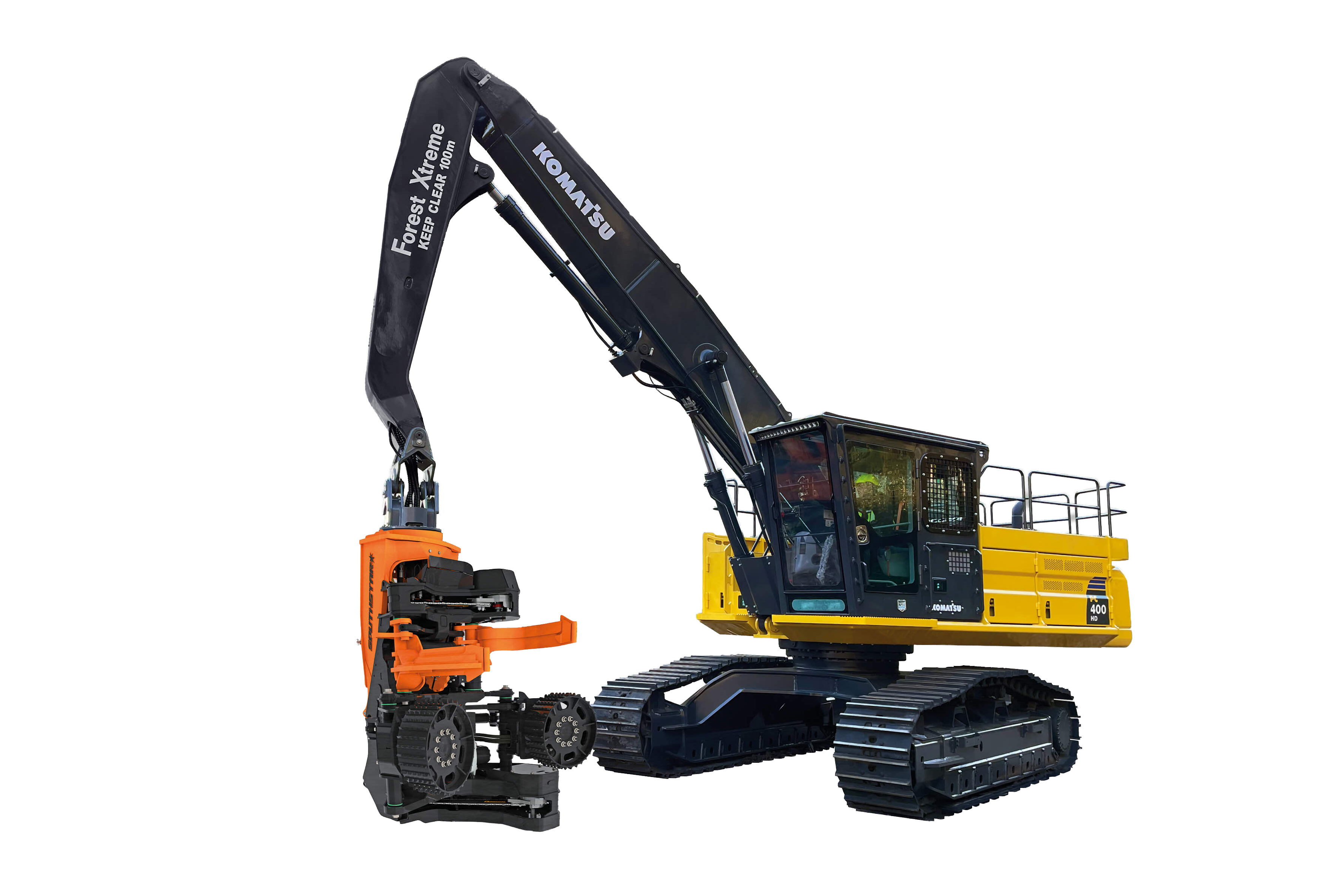

Product Image

Forestry

PC400HD-8

Swing machines

  • Horsepower (HP) 362 (gross) @ 1950 rpm
  • Horsepower (kW) 270 (gross) @ 1950 rpm
  • Operating weight (kg) 44 000
  • Operating weight (lbs) 97 004
  • Swing torque (ft-lbs) 82 313
  • Swing torque (kg-m) 13 414

Purchase options

Contact a sales representative

Heavy-duty carrier for demanding forestry challenges

The PC400HD-8 is engineered for the toughest applications with reinforced construction and high-performance hydraulics.

  • High Wide undercarriage with heavy-duty protection
  • HD cooling system for continuous operation (AKG Cooler)
  • Foresryt boom set for large attachments
  • Certified forestry cab for safety and comfort

Resources

Features and benefits

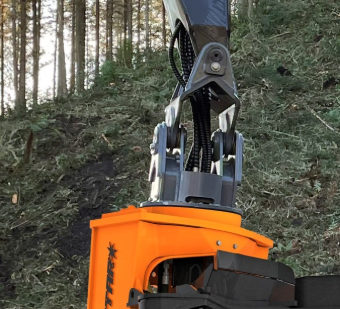

Certified concealed boom attachment hosing

Certified concealed boom attachment hosing

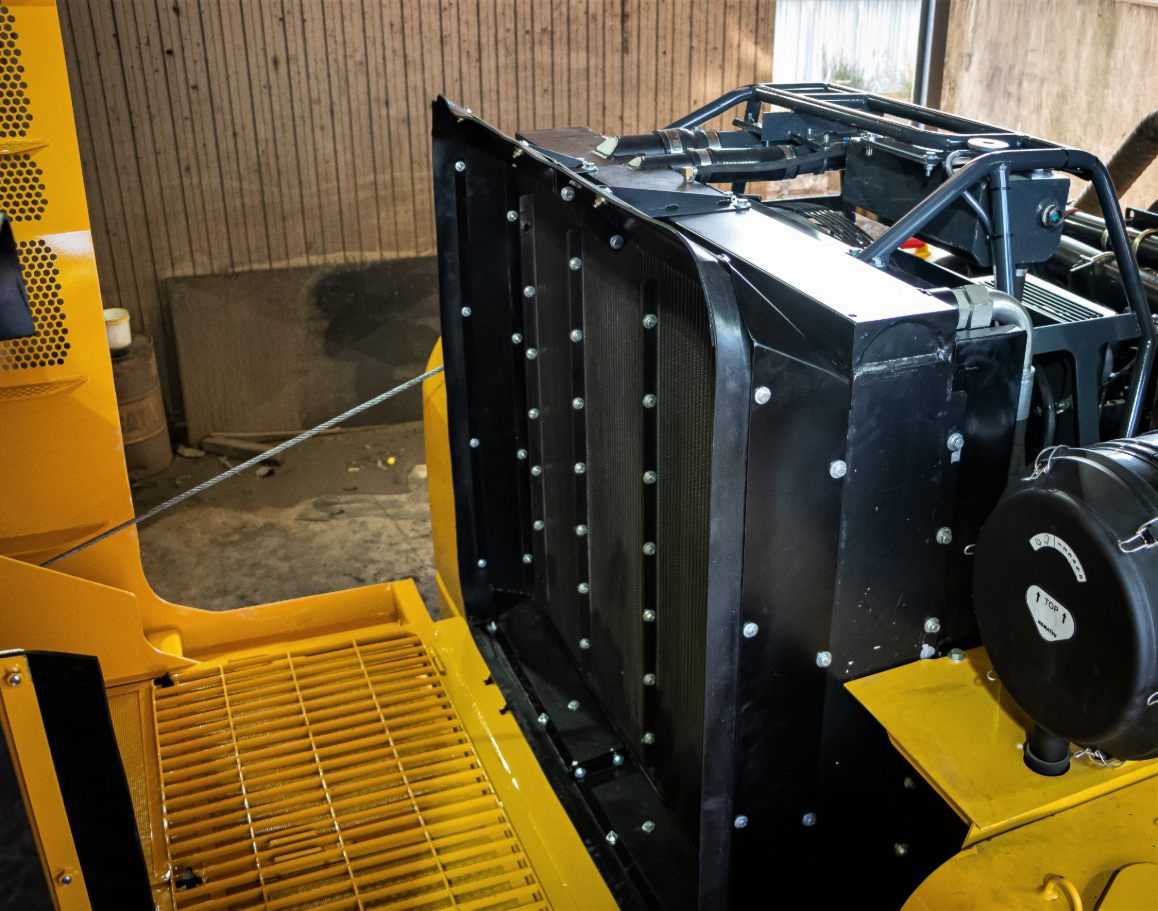

HD cooling package

HD cooling package

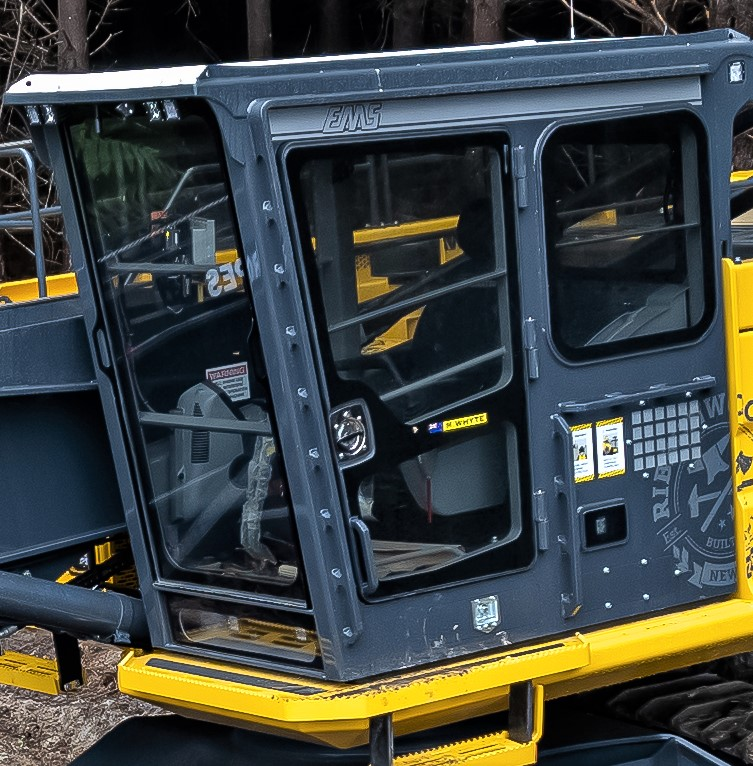

Certified forest cab

Certified forest cab

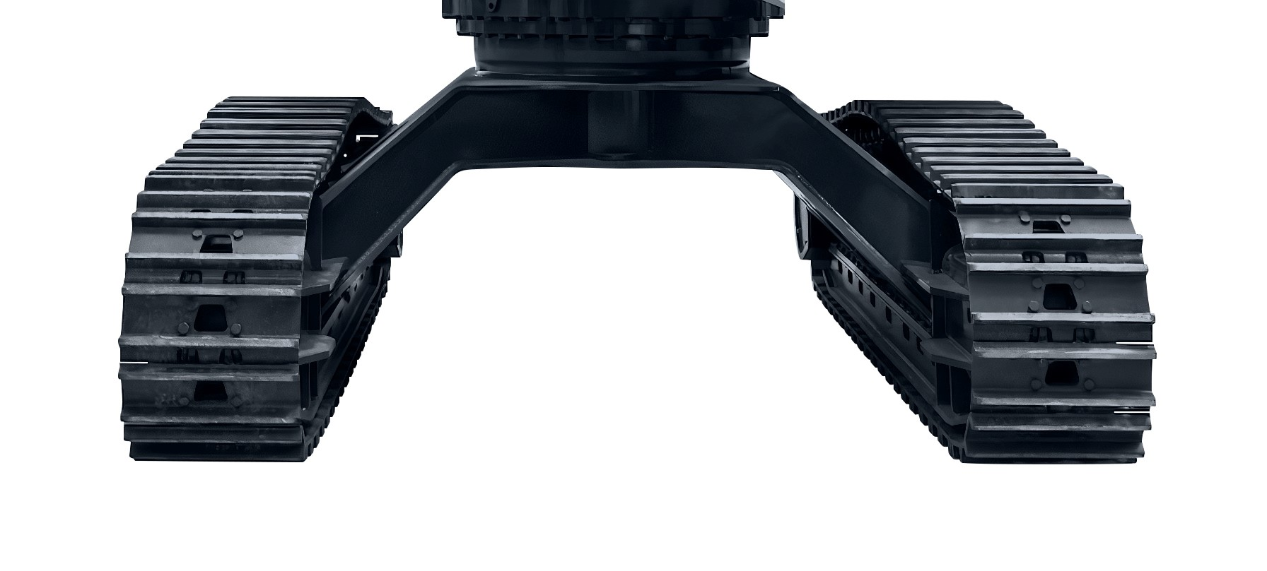

High wide undercarriage

High wide undercarriage

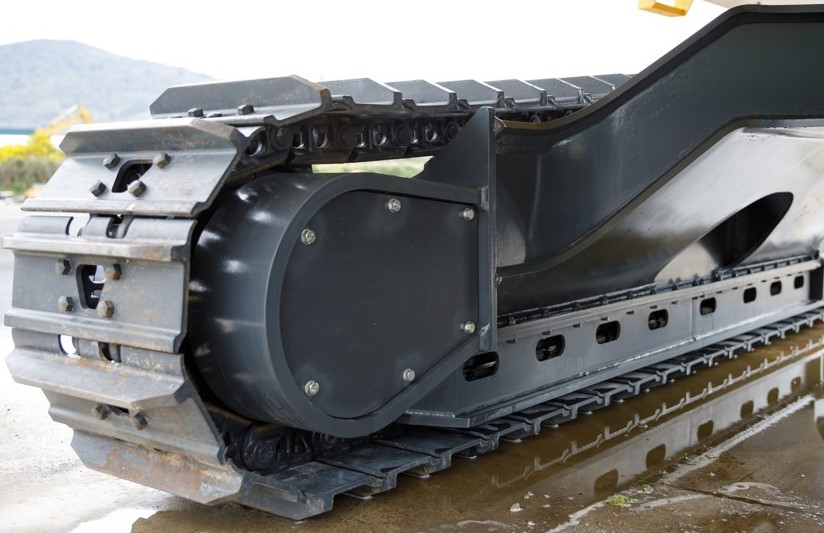

Track guards & hd covers

Track guards & hd covers

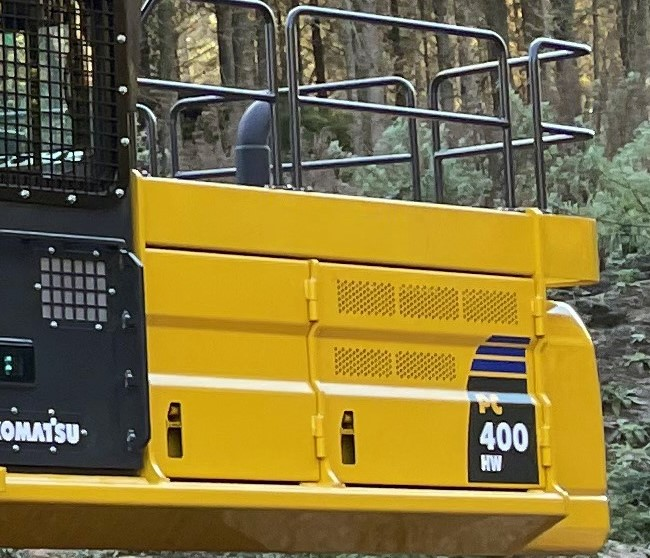

HD panels and guard rail

HD panels and guard rail


Specifications

Metric Imperial (US)
Expand all

  • Hydraulics type: HydrauMind
  • : 4

  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motor with parking brake

  • Main pump

    • Hydraulic type: Two-variable displacement piston type
    • Pumps for: Boom, arm, attachment, swing and travel circuit
    • Maximum flow (L/min): 690
    • Maximum flow (US gpm): 182

  • Steering control: Two levers with pedals
  • Maximum drawbar pull: 330 kN
  • Maximum drawbar pull (lbs): 74 187
  • Gradeability: 70%, 35 degrees

  • Maximum travel speed (auto-shift)

    • High (mph): 3.4
    • High (kph): 5.5
    • Parking brake: Mechanical disc brake

  • Drive method: Hydrostatic

  • Maximum travel speed (auto-shift)

    • Service brake: Hydraulic lock

  • Fuel tank (US gal): 171.7
  • Fuel tank (L): 650
  • Engine (US gal): 9.8
  • Engine (L): 37
  • Final drive (US gal): 2.8
  • Final drive (L): 10.5
  • Swing drive (L): 20
  • Swing drive (US gal): 5.3
  • Hydraulic tank (L): 248
  • Hydraulic tank (US gal): 65.5

  • Engine Model: Komatsu SAA6D125E-5
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled
  • : 6
  • Piston displacement (L): 11.04
  • Piston displacement (in^3): 673.7

  • Center frame: X-frame
  • Track frame: Box-section

  • Minimum width (in): 145.7
  • Minimum width (mm): 3 700
  • Height of cabin (mm): 3 900
  • Height of cabin (in): 153.5
  • Road clearance (mm): 780
  • Road clearance (in): 30.7
