PC350LL-8

Swing machines

  • Horsepower (HP) 260 (gross) @ 1950 rpm
  • Horsepower (kW) 194 (gross) @ 1950 rpm
  • Operating weight (kg) 41 000
  • Operating weight (lbs) 90 389
  • Swing torque (ft-lbs) 82 313
  • Swing torque (kg-m) 13 414
  • Working gear forestry boom set (ft) 33.1 reach
  • Working gear forestry boom set (m) 10.1 reach

Purchase options

Contact a sales representative

High capacity for large-scale log loading

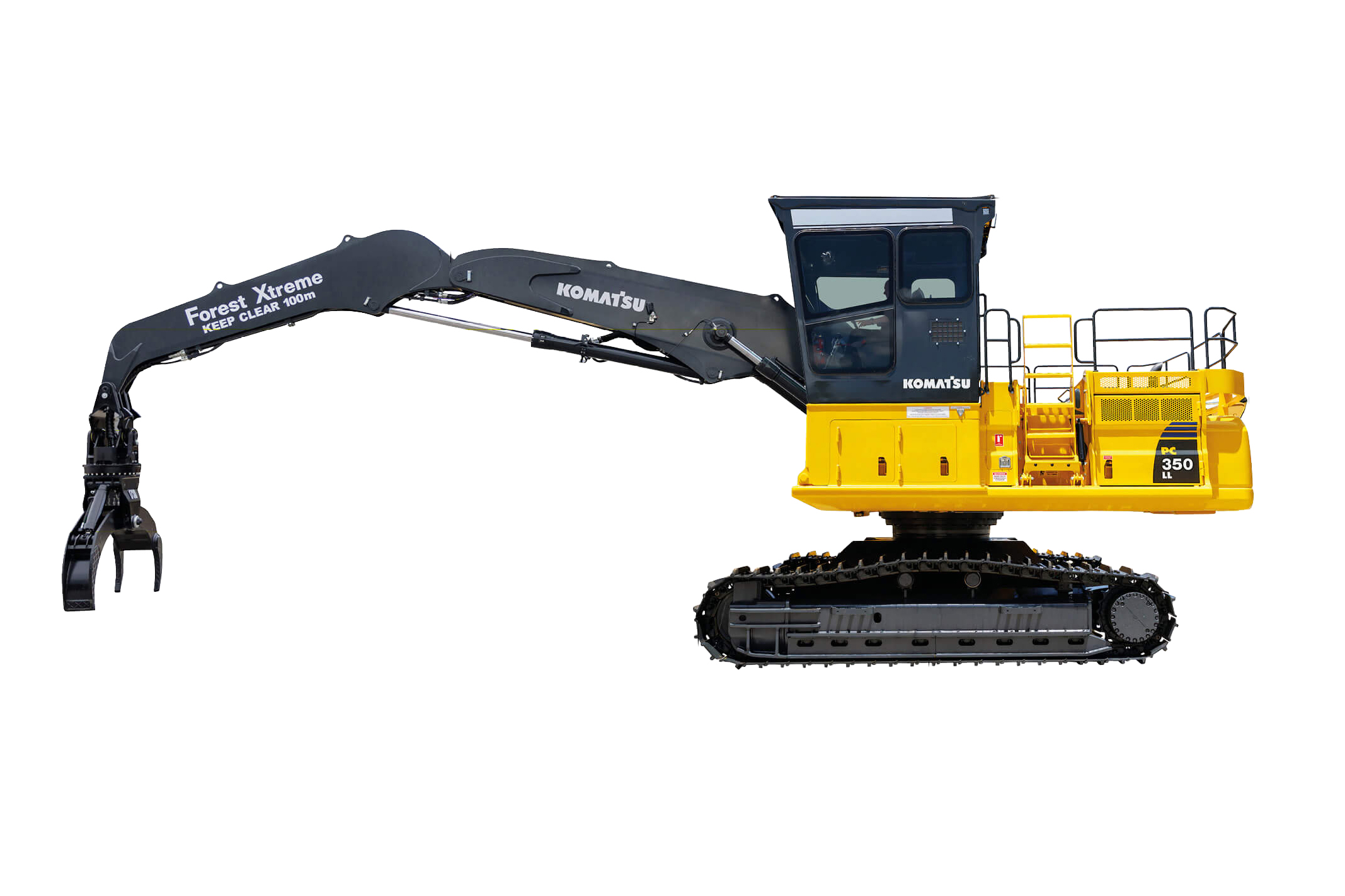

The PC350LL-8 is the largest log loader in the Xtreme series, designed for high-volume loading and oversized timber.

  • High Wide undercarriage for stability under heavy loads
  • High-rise cab with rear entry for optimal visibility
  • Forestry boom set for large grapples
  • Reinforced structure for extended durability

Resources

Features and benefits

High wide undercarriage

High wide undercarriage

High rise rear entry cabin

High rise rear entry cabin

Track guards and HD covers

Track guards and HD covers

Working gear boom set

Working gear boom set

Internal knuckle hoses

Internal knuckle hoses


Specifications

Metric Imperial (US)
Expand all

  • Hydraulics type: HydrauMind

  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motor with parking brake

  • Main pump

    • Hydraulic type: Two-variable displacement piston type
    • Pumps for: Boom, arm, attachment, swing and travel circuit
    • Maximum flow (L/min): 535
    • Maximum flow (US gpm): 141

  • Steering control: Two levers with pedals
  • Maximum drawbar pull (lbs): 59 330
  • Maximum drawbar pull (kN): 264
  • Gradeability: 70%, 35 degrees

  • Maximum travel speed (auto-shift)

    • High (mph): 3.4
    • High (kph): 5.5
    • Parking brake: Mechanical disc brake

  • Drive method: Hydrostatic

  • Maximum travel speed (auto-shift)

    • Service brake: Hydraulic lock

  • Fuel tank (US gal): 160
  • Fuel tank (L): 605
  • Engine (US gal): 9.8
  • Engine (L): 37
  • Final drive (US gal): 2.4
  • Final drive (L): 9
  • Swing drive (L): 16.5
  • Swing drive (US gal): 4.4
  • Hydraulic tank (L): 188
  • Hydraulic tank (US gal): 49.7

  • Engine Model: Komatsu SAA6D114E-3
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled
  • : 6
  • Piston displacement (L): 8.27
  • Piston displacement (in^3): 504.7

  • Center frame: X-frame
  • Track frame: Box-section

  • Minimum width (in): 136.6
  • Minimum width (mm): 3 470
  • Height of cabin (mm): 3 980
  • Height of cabin (in): 156.7
  • Road clearance (mm): 865
  • Road clearance (in): 34
