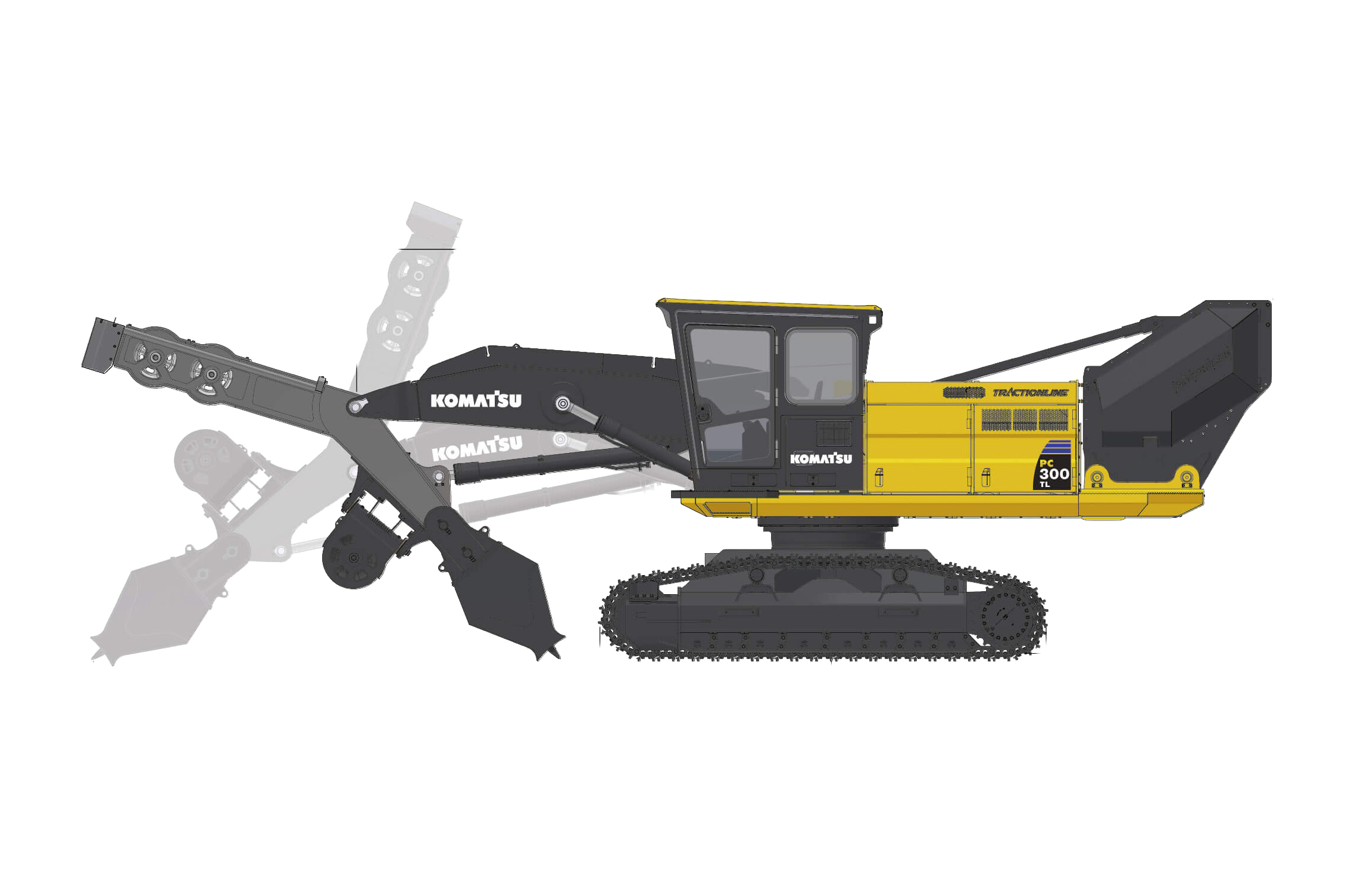

Product Image

Forestry

PC300TL-8

Swing machines

  • Horsepower (HP) 260 (gross) @ 1950 rpm
  • Horsepower (kW) 194 (gross) @ 1950 rpm
  • Operating weight (kg) 42 000
  • Operating weight (lbs) 92 594
  • Swing torque (ft-lbs) 82 312
  • Swing torque (kg-m) 11 380

Purchase options

Contact a sales representative

Safe and efficient traction power with EMS Tractionline

The PC300TL-8 features the EMS Tractionline system for secure and productive cable logging operations. A powerful solution for steep-slope work.

  • EMS dual winch and dual cable system
  • High Wide undercarriage for stability
  • Certified forestry cab with side entry
  • Traction line boom set optimized for cable logging

Resources

Features and benefits

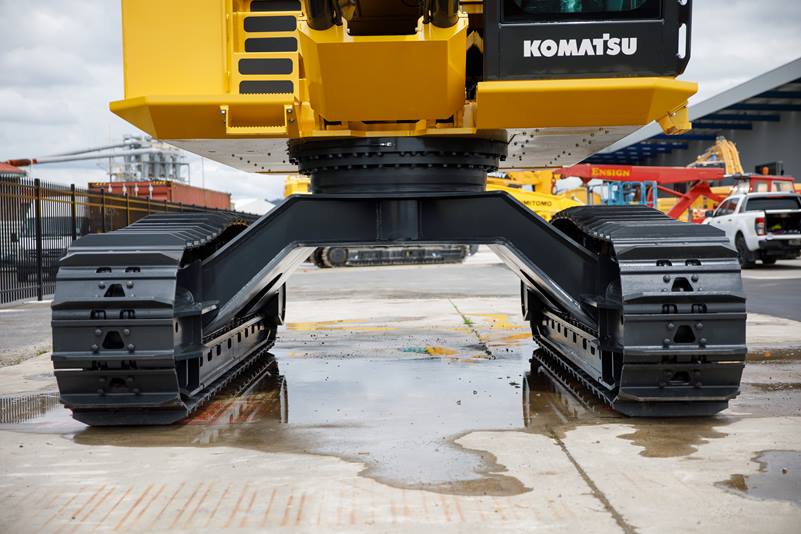

High wide undercarriage

High wide undercarriage

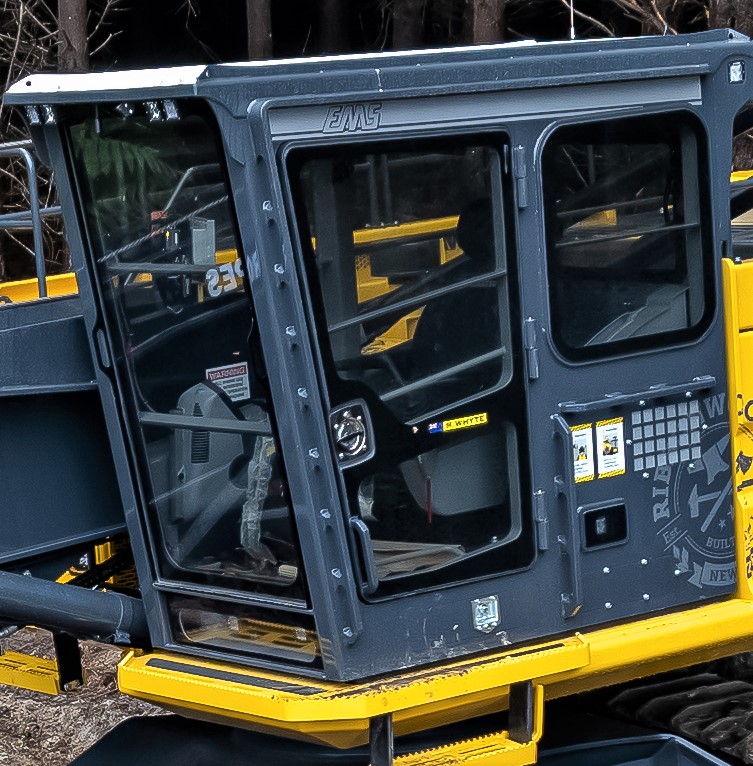

Certified forest cab

Certified forest cab

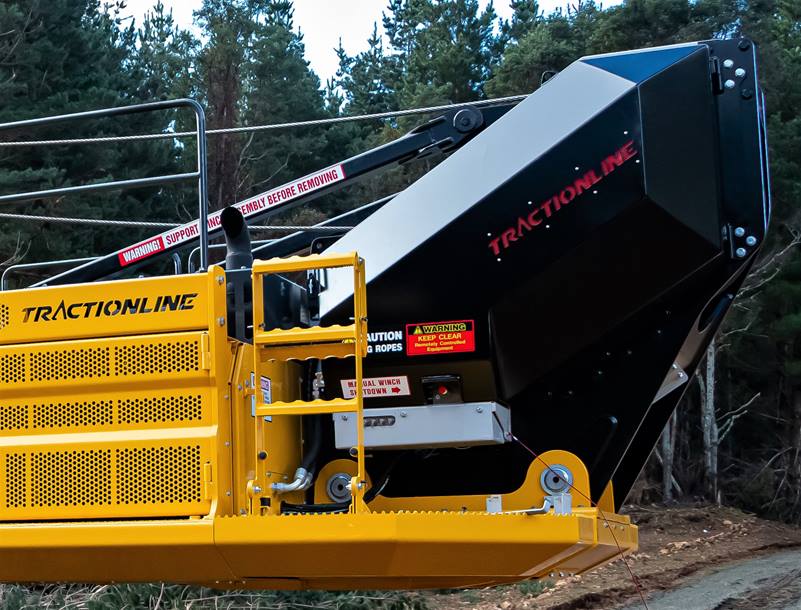

EMS dual winch system

EMS dual winch system

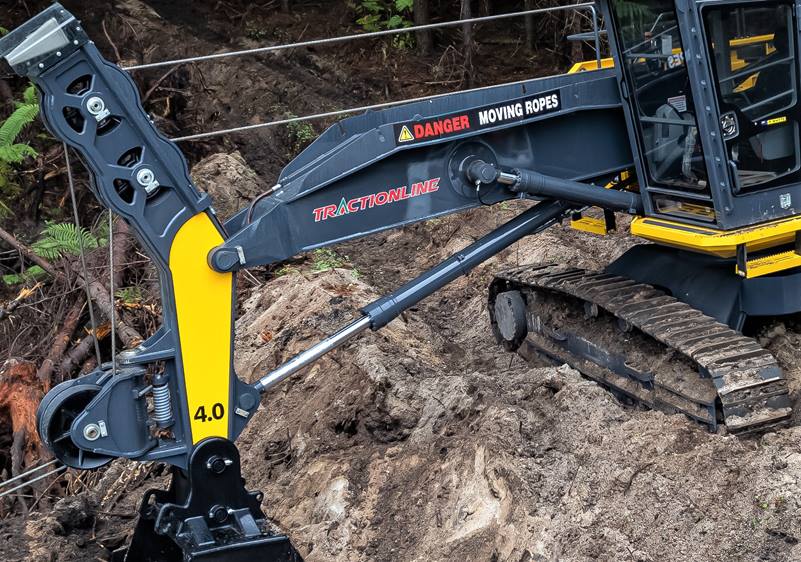

EMS Tractionline boom set

EMS Tractionline boom set

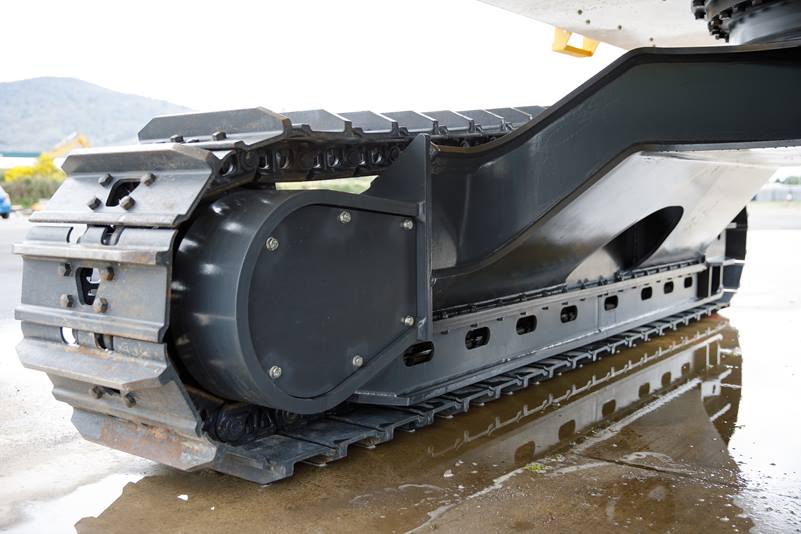

Track guards and HD covers

Track guards and HD covers

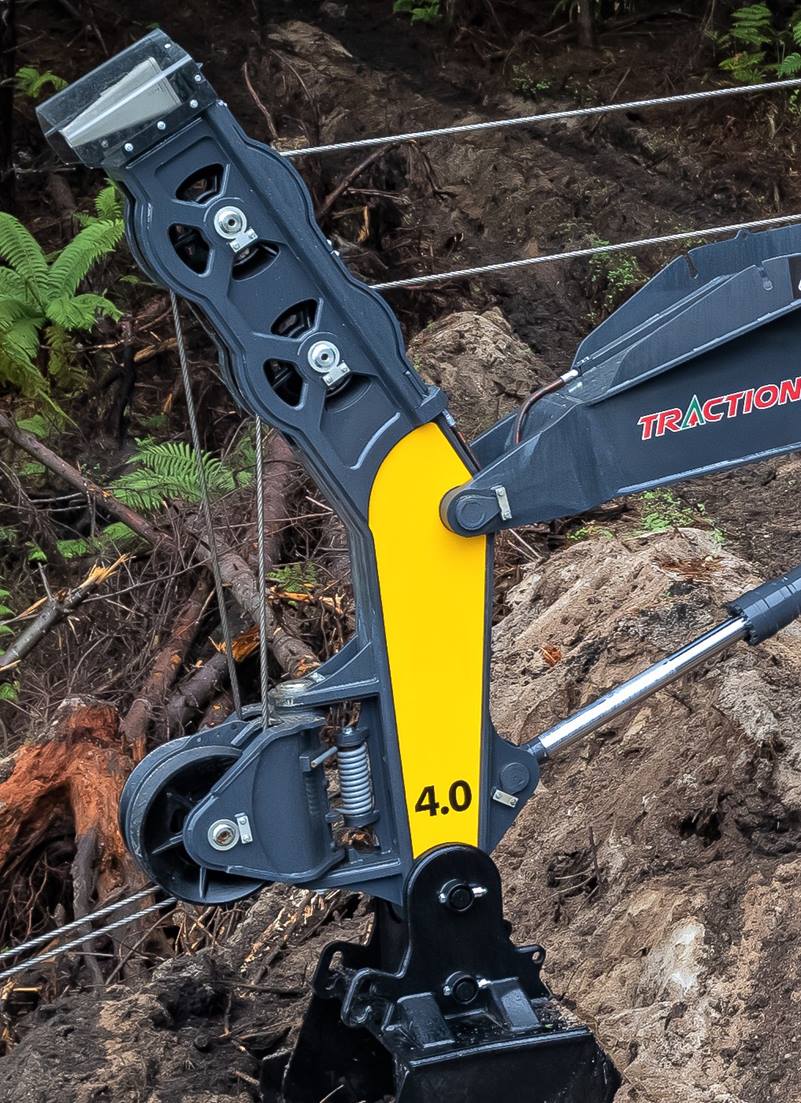

EMS dual cable system

EMS dual cable system


Specifications

Metric Imperial (US)
Expand all

  • Hydraulics type: Two-variable displacement piston type

  • Hydraulic motors

    • Swing: 1 x axial piston motor with swing holding brake
    • Travel: 2 x axial piston motor with parking brake

  • Main pump

    • Hydraulic type: HydrauMind
    • Pumps for: Boom, arm, attachment, swing and travel circuit
    • Maximum flow (L/min): 535
    • Maximum flow (US gpm): 141

  • Steering control: Two levers with pedals
  • Maximum drawbar pull: 264 kN
  • Maximum drawbar pull (lbs): 59 340
  • Gradeability: 70%, 35 degrees

  • Maximum travel speed (auto-shift)

    • High (mph): 3.4
    • High (kph): 5.5
    • Parking brake: Mechanical disc brake

  • Drive method: Hydrostatic
  • Swing torque (ft-lbs): 82 312
  • Swing torque (kg-m): 11 380

  • Maximum travel speed (auto-shift)

    • Service brake: Hydraulic lock

  • Fuel tank (US gal): 160
  • Fuel tank (L): 605
  • Engine (US gal): 9.8
  • Engine (L): 37
  • Final drive (US gal): 2.4
  • Final drive (L): 9
  • Swing drive (L): 16.5
  • Swing drive (US gal): 4.4
  • Hydraulic tank (L): 188
  • Hydraulic tank (US gal): 50

  • Engine Model: Komatsu SAA6D114E-3
  • Engine type: Water-cooled, 4-cycle, direct injection
  • Aspiration: Turbocharged, aftercooled
  • Piston displacement (L): 8.27
  • Piston displacement (in^3): 504.6

  • Center frame: X-frame
  • Track frame: Box-section
  • Number of carrier rollers (each side): 6

  • Minimum width (in): 136.7
  • Minimum width (mm): 3 470
  • Height of cabin (mm): 3 980
  • Height of cabin (in): 156.7
  • Road clearance (mm): 865
  • Road clearance (in): 34
