Forestry
C164-0
Harvester heads
- Weight (kg) 1672.5
- Weight (lbs) 3687
- Maximum cutting diameter (in) 32.7 with 97 cm saw bar
- Maximum cutting diameter (mm) 830 with 97 cm saw bar
- Head opening (in) 29.5
- Head opening (mm) 750
- Maximum delimbing diameter (in) 24.4
- Maximum delimbing diameter (mm) 620
- Fell/Cut diam. theor. max (in) 32.7 (with 97 cm saw bar)
- Fell/Cut diam. theor. max (mm) 830 (with 97 cm saw bar)
Purchase options
Contact a sales representativeProductive and powerful in final felling
The Komatsu C164 is designed for large trees and challenging forests, combining strength, precision, and advanced features. With powerful feeding and cutting capabilities, it excels in handling big stems, rugged buttresses, and thick branches.
- Four-wheel feed with two belly rollers for high traction and powerful feeding
- Optimised for felling large trees with a single cut
- Movable top knife that follows the stem ensures great results when handling crooked trees and large variations of diameter
Resources
Features and benefits

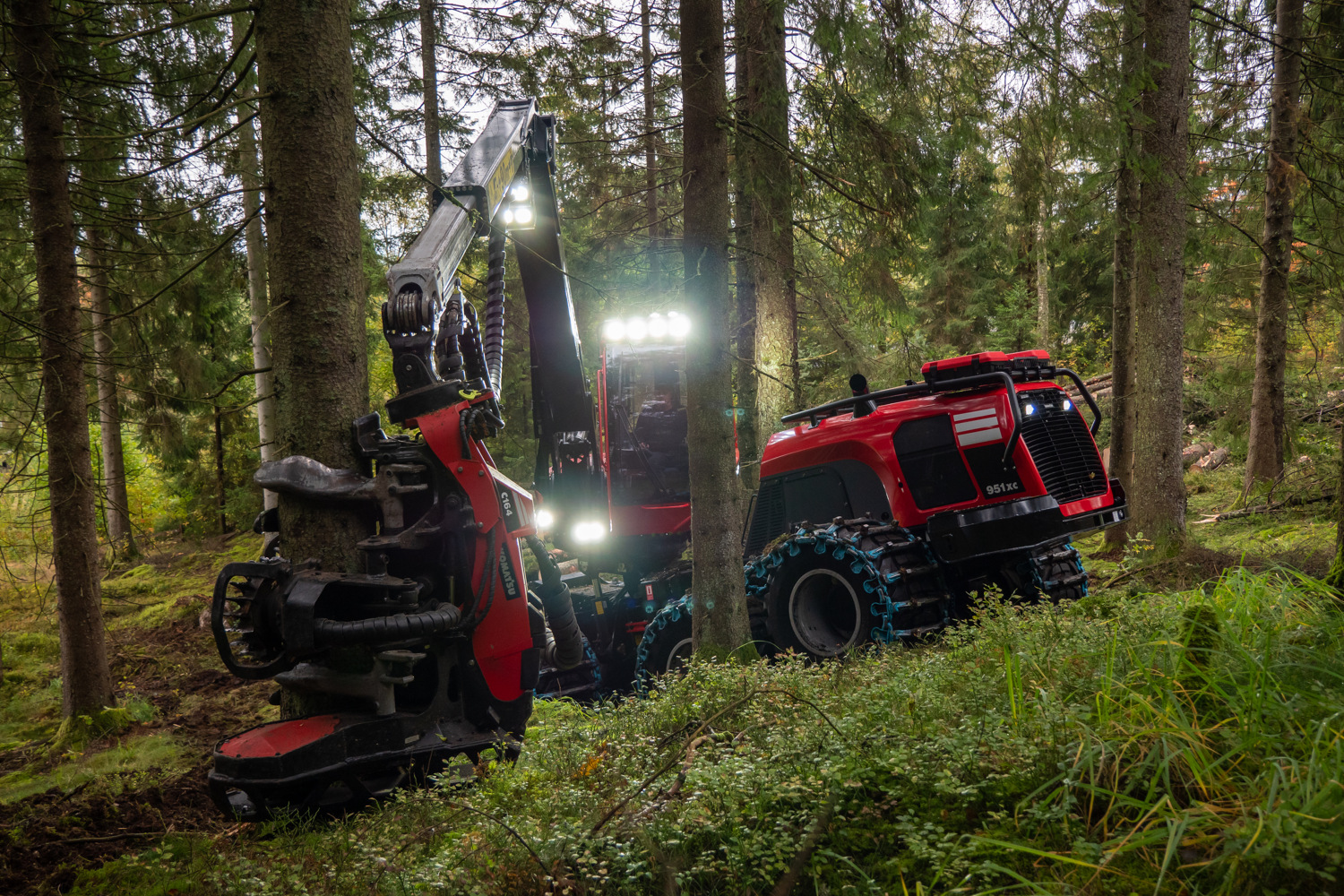

Designed for large trees
Four feed rollers and two belly rollers provide the traction and feed force needed for large-diameter stems. This makes the C164 highly effective in heavy-duty harvesting environments. Features like tilt link locking improve access and efficiency when handling large or crooked trees.

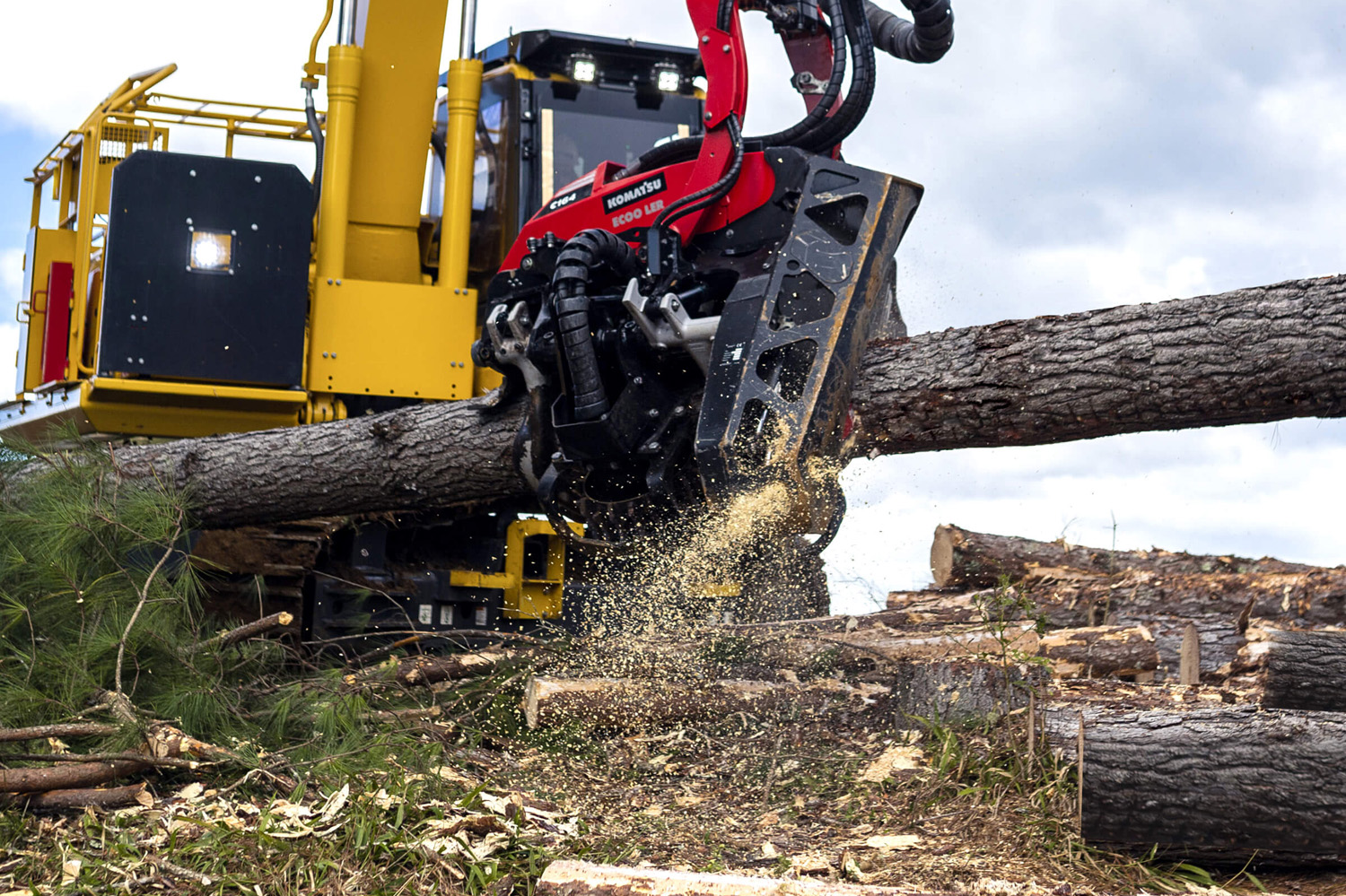

Effective cutting with Constant Cut
The Constant Cut saw unit maintains a high and consistent chain speed throughout the cutting cycle. This prevents overspeeding while reducing the risk of cracks, resulting in reliable cutting and improved timber quality. This is especially essential when felling large and valuable trees.
Convenient service routines
The service-friendly design features fixed service positions and centralised lubrication points. This reduces downtime and ensures efficient daily maintenance.

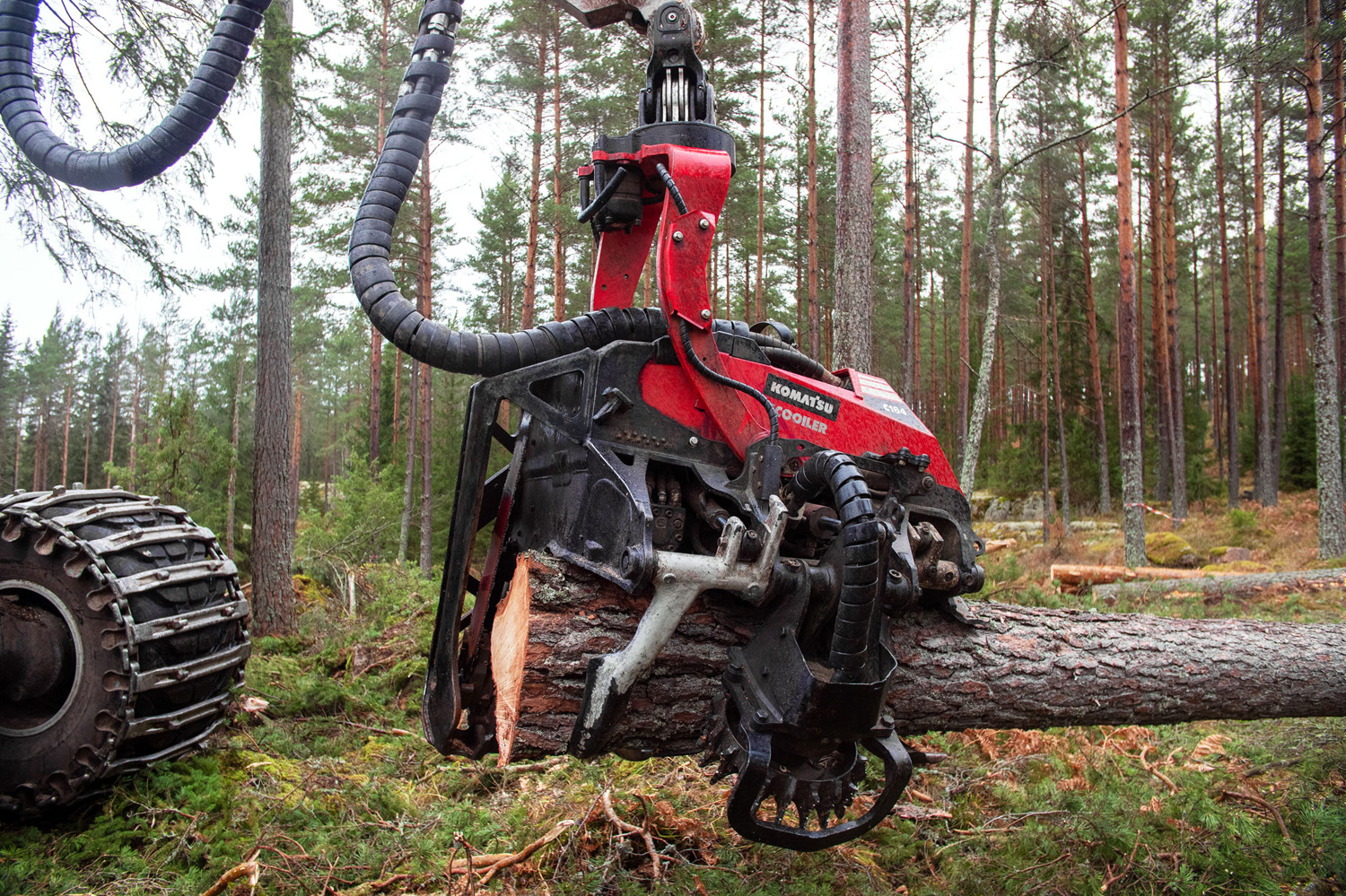

Tailored options for demanding work
Adapt your C164 with options that help make your day more productive and smoother. The Find End function resets length measurement without needing to cut the stem while integrated working lights improve efficiency during dark work hours. There is also a choice of saw bar lengths – 90 or 97 cm.

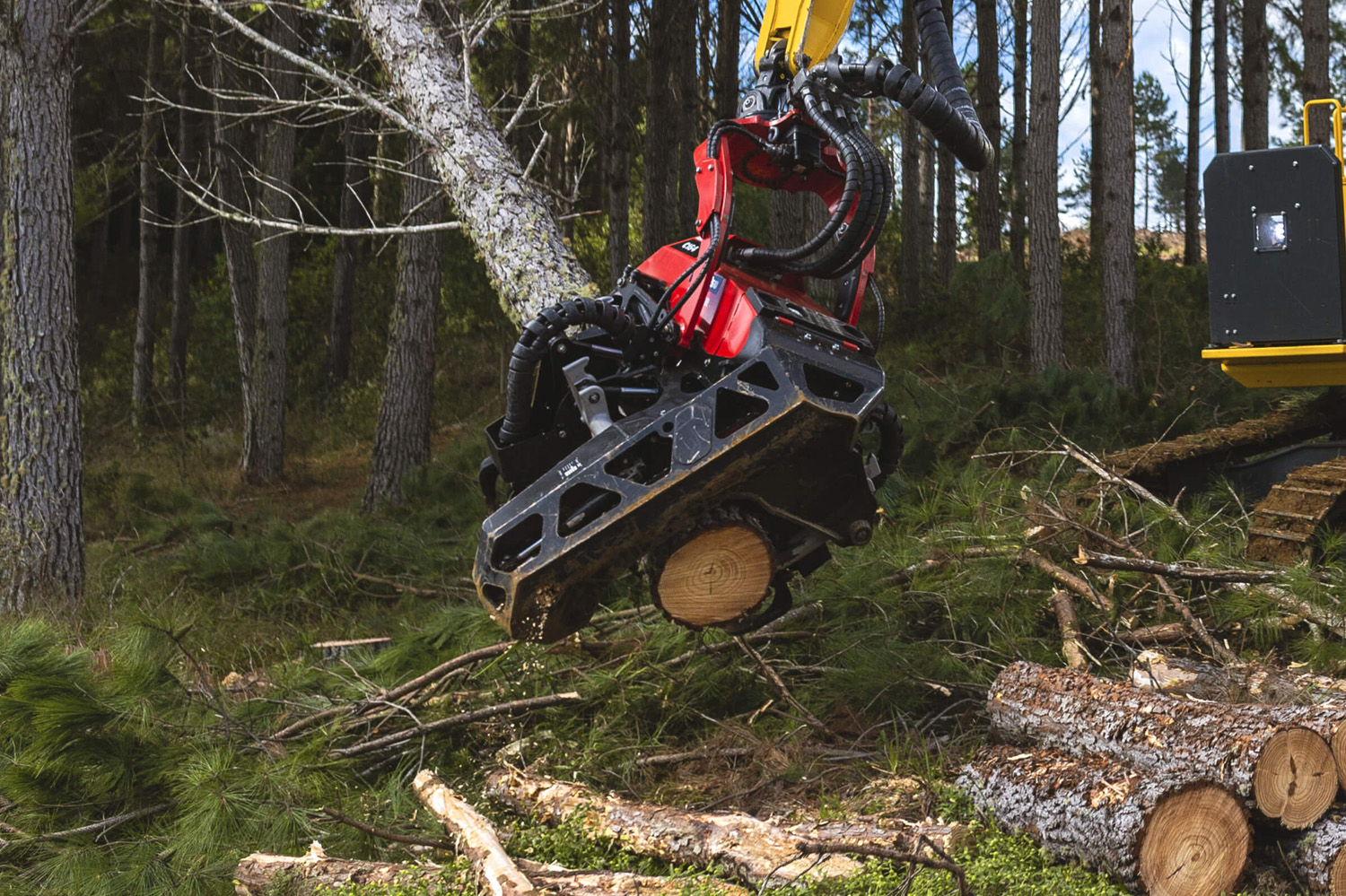

Precise and adaptable processing
Accurate length measurement is supported by a movable top knife that ensures close stem following. This precision improves timber value recovery while ensuring efficient handling of even the largest trees.

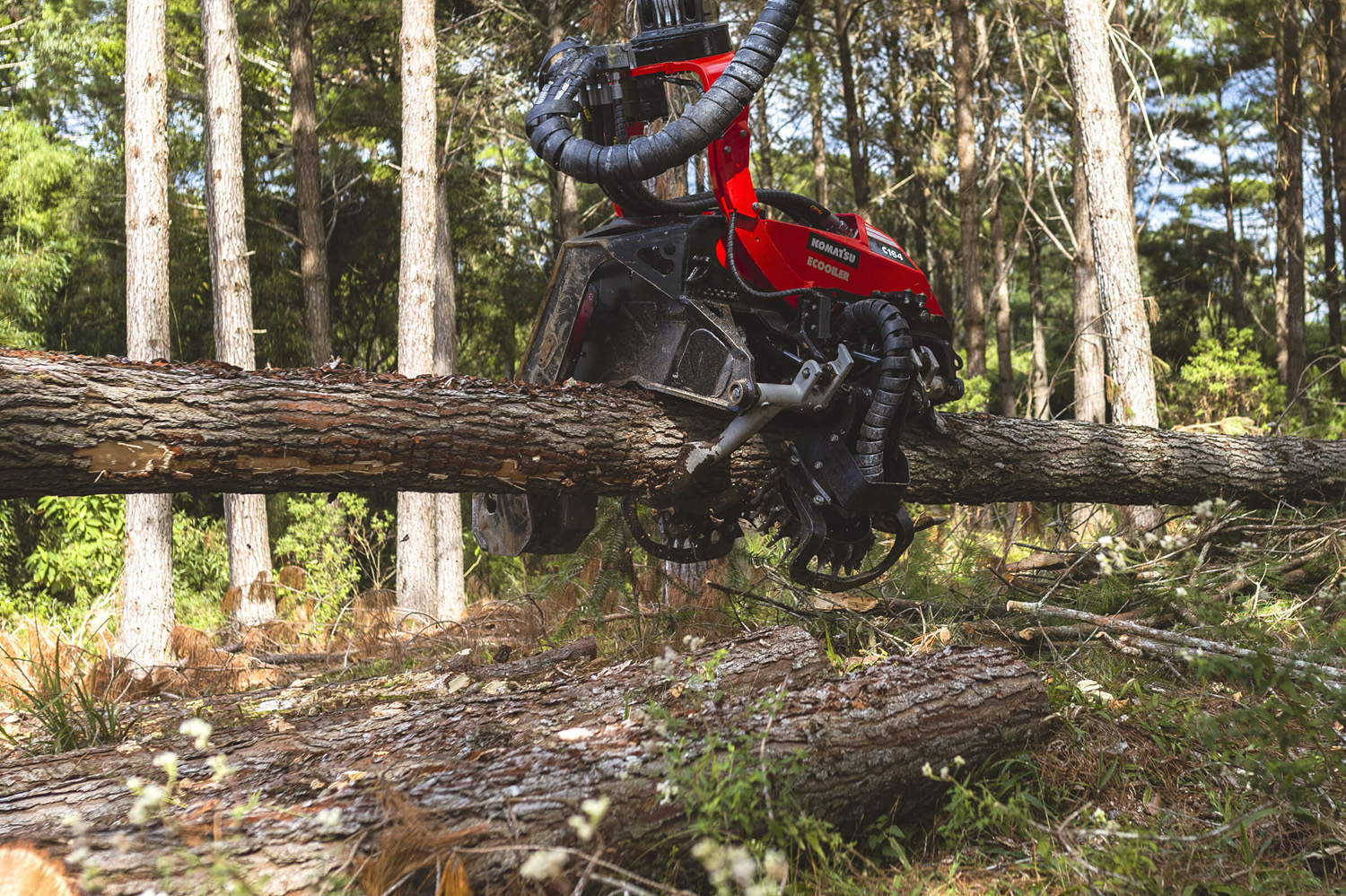

Advanced length measuring
The advanced length measuring system ensures high quality and consistent measurement results. The unit has a durable design that reduces wear and prolongs service life. It also features a user-friendly interface that makes it easy to maintain required measuring results.
Specifications
- Full specs
- Max width (in): 75
- Max width (mm): 1905
- Height including rotator (mm): 1848
- Height including rotator (in): 72.8
- Roller opening, max (in): 33.5
- Weight (lbs): 3687
- Weight (kg): 1672.5
- Feed speed (m/s): 0-5
- Feed speed (ft/s): 0-16.4
- Gross feed force (kN): 35.4 (934 cc), 29.6 (780 cc)
- Feed wheel type: Finger feed rollers
- Delimbing knives, number: 5
- Saw motor (in^3/rev): 1.16
- Saw motor (cm^3/rev): 19
- Max hydraulic flow (L/min): 380
- Max hydraulic flow (gpm): 100.4
- Max hydraulic pressure (psi): 4061
- Max hydraulic pressure (MPa): 28
- Notes: Standard and extra equipment are market-dependent and vary between countries. The specification describes possible equipment, not that which is standard or optional. Stated weights are based on standard equipment. Specifications and designs are subject to change without notice.
