Excavators

PC4000-11

Surface mining excavators

  • Engine power (HP) 1875
  • Engine power (kW) 1400
  • Bucket capacity (m^3) 22.0
  • Bucket capacity (yd^3) 28.8
  • Operating weight (kg) 392992
  • Operating weight (lbs) 866484

Purchase options

Request a quote

Our PC4000-11 offers class leading attributes for you in the 400t excavator range. Available in both excavator and face shovel configuration and powered by Diesel or Electric motor options. The machine functions incorporate the latest development in electro-hydraulic control. The machine has been designed with personnel access/egress in mind. These are just a couple of the latest developments that ensure reliability and reduce mean time to repair. The machine is highly productive as a result of an increased bucket capacity option and new variable torque swing motors that ensures maximum hydraulic power is utilised for attachment functions. The excavator comes standard with the expanded capabilities of Komtrax Plus 2 remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

    Features and benefits

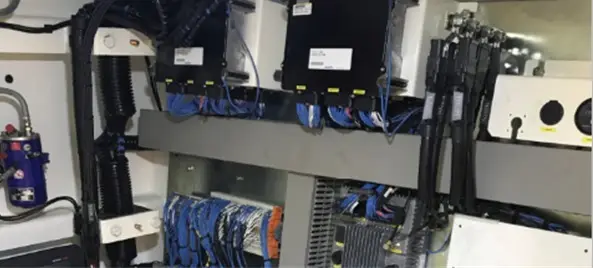

    Simplified Electrical System (SFS)

    Simplified Electrical System (SFS)

    Improved reliability, reduced mean time to repair and more productive

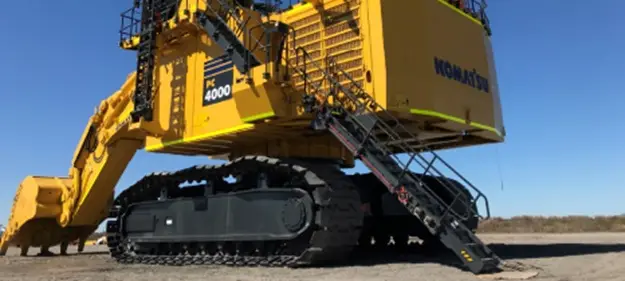

    Improved access/egress

    Improved access/egress

    Designed with EMESRT consultation, built to ISO standards; 45º access ladder from cabin to ground and steps finished with anti-slip treatments.

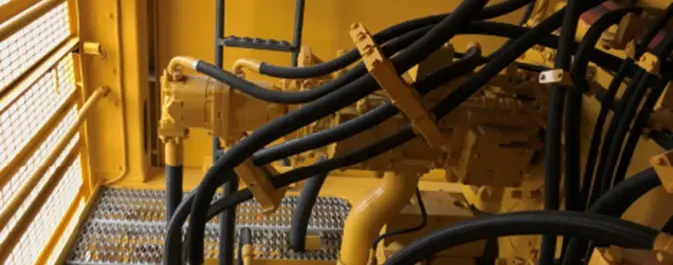

    Reliable Komatsu pumps

    Reliable Komatsu pumps

    4 x Komatsu swashplate double pumps, endmounted with supplementary pumps, electronically controlled and increased lifetime.


    Specifications

    Metric Imperial (US)
    Expand all

    • Relief valve setting (bar): 310
    • Swing flow rate(L/min): 1590
    • Swing flow rate(gpm): 419
    • : 4140
    • High pressure in line filters one per pump located at the valve blocks: 200 microns
    • Hydraulics type: Open circuit hydraulics

    • Engine Model: Komatsu SDA16V160E-3
    • Aspiration: Turbocharger and aftercooled

    • Horsepower

      • ISO 9249 / SAE J1349 - Net (kW): 1400
      • ISO 9249 / SAE J1349 - Net (HP): 1875

    • Hydraulic motors and swing gears: 2
    • Swing ring teeth: External
    • Swing speed (rpm): 4

    • Hydraulic system (US gal): 1559.61
    • Hydraulic system (L): 5900
    • Fuel tank (L): 6910
    • Coolant (US gal): 125.48
    • Coolant (L): 475
    • DEF tank (L): 587
    • DEF tank (US gal): 155.09

    • Hydraulic oil tank (L): 3900
    • Hydraulic oil tank (US gal): 1030.27
    • Fuel (US gal): 1825.1
    • Engine oil (US gal): 76.61
    • Engine oil (L): 290

    • Number of shoes (each side): 49
    • Number of track rollers (each side): 7
    • Number of carrier rollers (each side): 3
    • Track adjuster: Automatic Hydraulic type

    • Batteries: 2 x 2 x 12 V
    • Standard service lights: Throughout the platform
    • Standard working lights (amount): 14 LED lights
