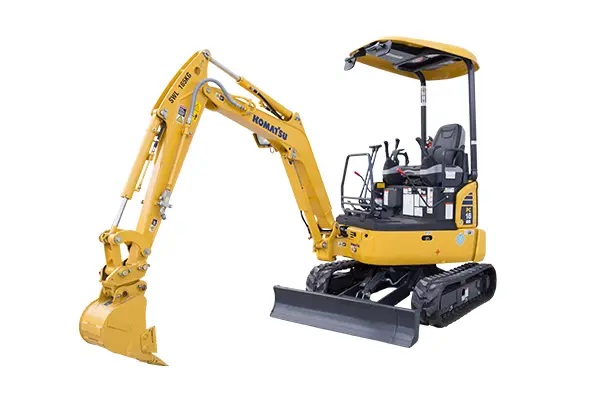

Product Image

Excavators

PC18MR-3

Small excavators

  • Operating weight (kg) 1780
  • Operating weight (lbs) 3924
  • Bucket capacity (m^3) 0.044
  • Bucket capacity (yd^3) 0.06
  • Engine power (HP) 15
  • Engine power (kW) 11.2

Purchase options

Request a quote Rent me

Our smallest excavator is a tough and productive machine in a small package, perfect for rental fleets, owner-operators, builders, plumbers, electricians and other tradies – or anyone who needs to work in confined conditions. It incorporates features of bigger Komatsu excavators, with key components designed and manufactured by Komatsu to work together in an integrated package. And it’s standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

    Features and benefits

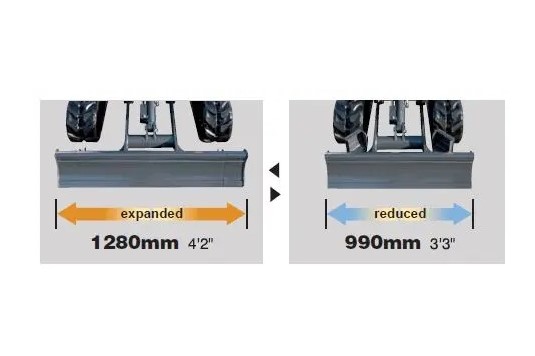

    Expandable undercarriage

    Expandable undercarriage

    The PC18MR-3 can pass through narrow space due to narrow width and undercarriage can be expanded for good stability during excavation.

    Tight tail swing

    Tight tail swing

    Operator is able to focus on the work in front of them and worry less about a rear swing impact, even in confined areas with only an 80mm 3" projection over the tracks.

    Closed-center load sensing system

    Closed-center load sensing system

    When two or more actuators are operated simultaneously, the pressure-compensated CLSS system ensures each actuator works according to its control input, regardless of the size of the load. This gives the operator precise control at all times.


    Specifications

    Metric Imperial (US)
    Expand all

    • HydrauMind Type: HydrauMind System

    • Main pump

      • Pumps for: Boom, arm, bucket, swing, and travel circuits
      • Maximum flow (US gpm): 25.33
      • Maximum flow (L/min): 95.9

    • Relief valve setting

      • Travel: 2 x Variable capacity
      • Swing: 1 x Fixed capacity

    • Maximum drawbar pull (kg): 1700
    • Maximum drawbar pull (lbs): 3,748
    • Gradeability: 58 %

    • Drive method: Fully hydrostatic
    • Service brake: Hydraulic lock
    • Swing speed (rpm): 8.9
    • Driven by: Hydraulic motor

    • Engine Model: Komatsu 3D67E-2
    • Piston displacement (L): 0.78
    • Piston displacement (in^3): 47.6
    • Fan drive method for radiator cooling: Mechanical

    • Horsepower

      • SAEJ1995 - Gross (HP): 15
      • SAEJ1995 - Gross (kW): 11.2
      • ISO 9249 / SAE J1349 - Net (HP): 15
      • ISO 9249 / SAE J1349 - Net (kW): 11.2

    • Fuel tank (L): 19
    • Engine (L): 3.3
    • Engine (US gal): 0.87
    • Coolant (L): 3.1
    • Coolant (US gal): 0.82
    • DEF tank (L): None
    • DEF tank (US gal): None
    • Hydraulic tank (US gal): 4.02
    • Hydraulic tank (L): 15.2

    • Track adjuster: Grease
    • Number of shoes (each side): 35
    • Number of carrier rollers (each side): 0
    • Number of track rollers (each side): 3
