Excavators

PC350LC-8M0

Mid-size excavators

  • Engine power (HP) 250
  • Engine power (kW) 187
  • Bucket capacity (m^3) 1.8
  • Bucket capacity (yd^3) 2.35
  • Operating weight (kg) 36330
  • Operating weight (lbs) 80096

Purchase options

Request a quote Rent me

The PC350LC-8M0 is designed to efficiently and productively carry out a wide range of earthmoving, excavation and rock breaking duties. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

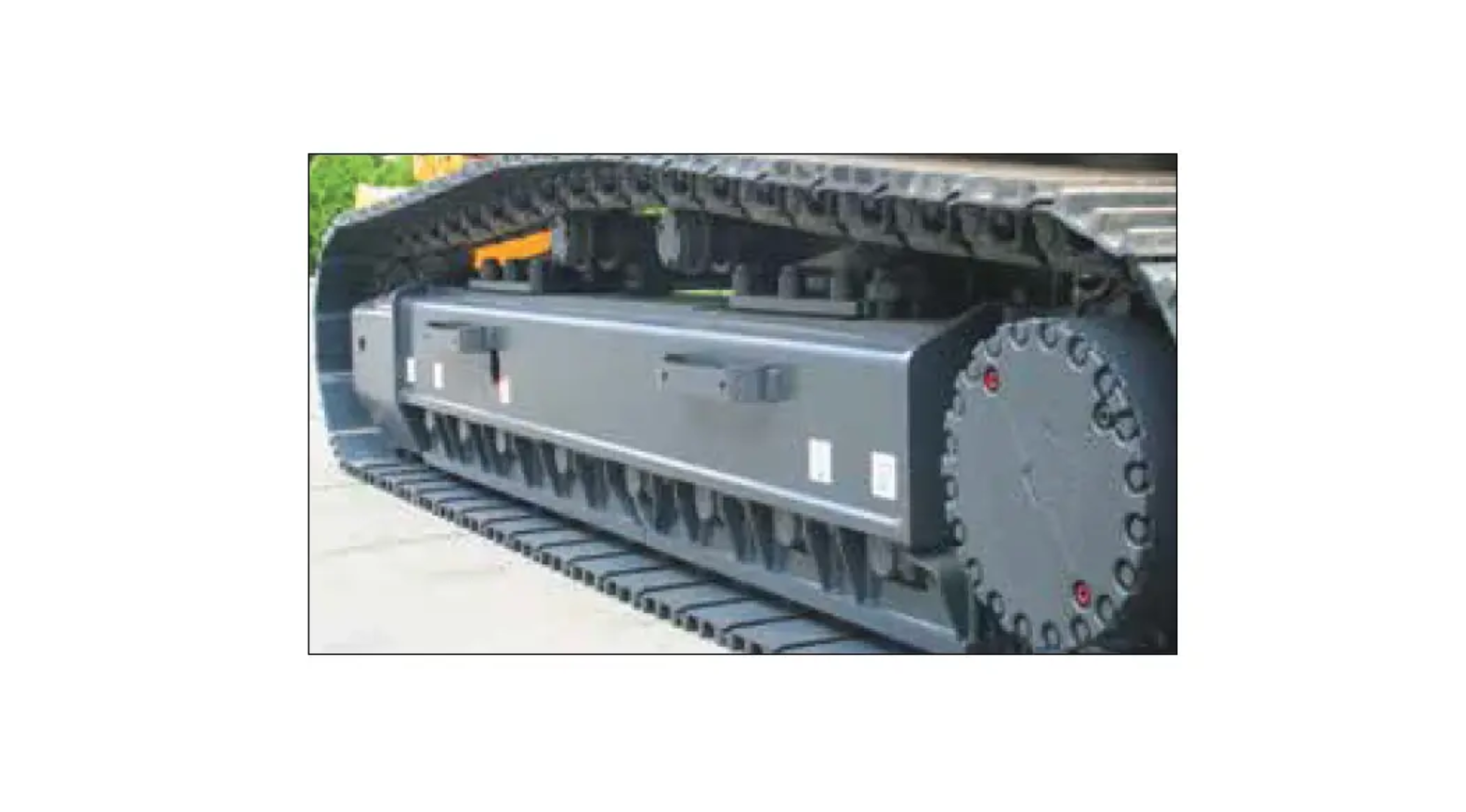

    Heavy duty wide undercarriage

    • Extra heavy duty track frame provides durability in heavy construction and quarry conditions as well as low centre of gravity and wider track gauge for greater stability.
    • Full length track roller guards provide complete protection of track rollers against rock and debris damage.
    • Lift capacity is increased by 12% over the PC300LC-8M0.
    • Centre frame ground clearance is increased to 644mm.
    • Gauge width increased to 3310mm.
    pc350

    Specifications

    Metric Imperial (US)
    Expand all

    • Drive method: Fully hydrostatic
    • Swing reduction: Planetary gear
    • Swing circle lubrication: Grease-bathed
    • Service brake: Hydraulic lock
    • Holding brake/Swing lock: Mechanical disc brake
    • Swing speed (rpm): 9.5
    • Driven by: Hydrostatic

    • HydrauMind Type: HydrauMind System

    • Main pump

      • Pumps for: Boom, arm, bucket, swing, and travel circuits
      • Maximum flow (L/min): 535
      • Maximum flow (US gpm): 141.36

    • Relief valve setting

      • Travel: 2 x axial piston motor with parking brake
      • Swing: 1 x axial piston motor with swing holding brake
      • Implement circuits (psi): 5404.85
      • Travel circuit (psi): 5405
      • Swing circuit (psi): 4054
      • Implement circuits (MPa): 37.27
      • Implement circuits (kgf/cm^2): 380
      • Swing circuit (kgf/cm^2): 285
      • Swing circuit (MPa): 27.94
      • Travel circuit (kgf/cm^2): 380
      • Travel circuit (MPa): 37.3

    • Hydraulic cylinders

      • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-160 x 1825 x 110
      • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 5.91 x 64.37 x 4.33

    • Engine Model: Komatsu SAA6D114E-3
    • Aspiration: Turbocharged, aftercooled
    • Piston displacement (in^3): 504.65
    • Piston displacement (L): 8.27
    • Fan drive method for radiator cooling: Mechanical

    • Horsepower

      • SAEJ1995 - Gross (HP): 260
      • SAEJ1995 - Gross (kW): 194
      • ISO 9249 / SAE J1349 - Net (HP): 250
      • ISO 9249 / SAE J1349 - Net (kW): 187

    • Coolant (US gal): 8.19
    • Engine (US gal): 9.77
    • Swing drive (US gal): 4.36
    • Swing drive (L): 16.5
    • Hydraulic tank (L): 188
    • Hydraulic tank (US gal): 49.68
    • DEF tank (US gal): None
    • Fuel tank (L): 605
    • Coolant (L): 31
    • Engine (L): 37
    • DEF tank (L): None

    • Maximum drawbar pull (kgf): 26900
    • Parking brake: Mechanical disc brake
    • Gradeability: 70 %

    • Center frame: X-frame
    • Track frame: Box-section
    • Track adjuster: Hydraulic
    • Number of shoes (each side): 48
    • Number of carrier rollers (each side): 2
    • Number of track rollers (each side): 8

    • Bucket crowd force - ISO (kgf): 23200
    • Arm crowd force - ISO (kgf): 17400
    • Swing radius (in): 135.8
    • Maximum reach at ground level (mm): 10920
    • Digging depth - maximum (mm): 7380
    • Maximum reach at ground level (in): 429.9
    • Arm size (m) and type: 3.2 heavy duty
    • Swing radius (mm): 3450
    • Boom size (m) and type: 6.47 heavy duty

    • Overall track width (mm): 3310
    • Overall track width (in): 130.3

    • Pilot circuit (kgf/cm^3): 33
