Excavators

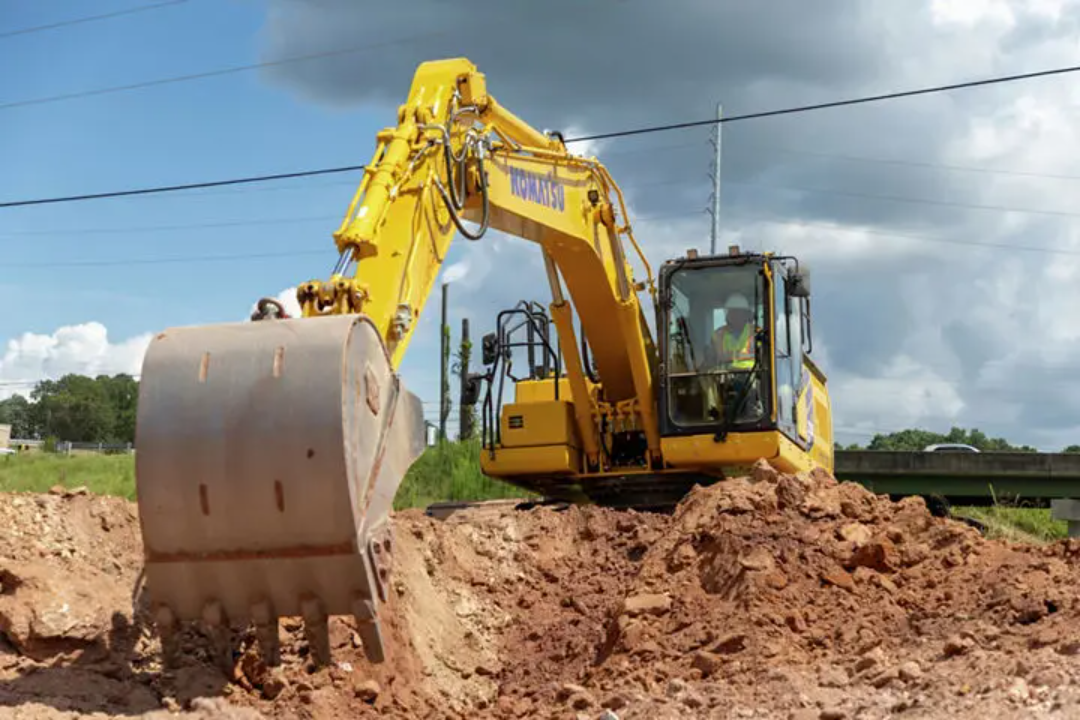

PC220LC-12

Mid-size excavators

  • Horsepower (kW) 129 @ 2,000 rpm
  • Power (HP) 173 @ 2,000 rpm
  • Bucket capacity (m^3) 0.50-1.41
  • Bucket capacity (yd^3) 0.65-1.85
  • Operating weight (kg) 24,200-24,800
  • Operating weight (lbs) 53,352-54,675

Purchase options

Request a quote

Built to empower operators

The PC220LC-12 is designed to empower operators to achieve high productivity on your jobsite while controlling costs. With a strong focus on enhancing the cab, it was engineered with the goal of creating the most comfortable, advanced, customizable and efficient working environment in a Komatsu excavator.

  • Up to an 18% increase in workload productivity in the new P plus mode
  • Up to an 8% increase in digging force and up to a 7% increase in overall lifting capacity
  • The cab is 28% larger with 30% more legroom and 50% improved visibility*
  • Large, intuitive and customizable high-definition cab monitor
  • New multi-function, comfortable operator seat with heating and air suspension
  • Up to a 20% reduction in fuel and diesel exhaust fluid costs*

Note: *All percentage claims are based on a comparison to the previous PC210LC-11 model. Cost reductions are achieved through a new electronically controlled hydraulic system and a high-output engine.

Resources

Features and benefits

Updated cab design

Updated cab design

This new cab design enhances operator comfort and visibility, helping to maintain productivity during long shifts. Improved legroom and visibility (compared to the PC210LC-11).

Intuitive and customizable cab monitor

Intuitive and customizable cab monitor

A clear interface, combined with high-definition visuals, provides an intuitive, user-friendly, and customizable experience for the operator. Joystick controls are also customizable.

Air-suspension multi-function seat

Air-suspension multi-function seat

Komatsu has improved the operator experience and comfort with upgraded seats. The most innovative seat has variable heat/cool settings and is adjustable to a maximum of 60 mm across six levels. The premium seat also features shock absorption providing additional comfort. The air suspension feature can be adjusted to a maximum height of 80 mm, with no level intervals.


Specifications

Metric Imperial (US)
Expand all

  • Drive method: Hydrostatic
  • Swing reduction: Planetary gear
  • Swing circle lubrication: Grease-bathed
  • Service brake: Hydraulic lock
  • Holding brake/Swing lock: Mechanical disc brake
  • Swing speed (rpm): 12.4

  • HydrauMind Type: HydrauMind (Hydraulic Mechanical Intelligence New Design) system, closed-center system with load sensing valves and pressure-compensated valves

  • Main pump

    • Variable Type: Variable displacement piston type
    • Maximum flow (L/min): 504
    • Maximum flow (US gpm): 133.1
    • Supply for control circuit: Self-reducing valve
    • Main pumps for: Boom, arm, bucket, swing, and travel circuits

  • Relief valve setting

    • Travel: 2 x axial piston motors with parking brake
    • Swing: 1 x axial piston motor with swing holding brake
    • Implement circuits (psi): 5400
    • Travel circuit (psi): 5400
    • Swing circuit (psi): 410
    • Implement circuits (MPa): 37.3
    • Pilot circuit (psi): 470
    • Implement circuits (kgf/cm^2): 380
    • Pilot circuit (kgf/cm^2): 33
    • Pilot circuit (MPa): 3.2
    • Swing circuit (kgf/cm^2): 295
    • Swing circuit (MPa): 28.9
    • Travel circuit (kgf/cm^2): 380
    • Travel circuit (MPa): 37.3

  • Hydraulic cylinders

    • Boom (Number of cylinders – bore x stroke x rod diameter)(mm): 130 x 1335 x 90
    • Boom (Number of cylinders – bore x stroke x rod diameter)(in): 5.1 x 52.7 x 3.5
    • Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 140 x 1490 x 100
    • Arm (Number of cylinders – bore x stroke x rod diameter)(in): 5.5 x 58.7 x 3.9
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(in): 4.7 x 43.9 x 3.4
    • Bucket (Number of cylinders – bore x stroke x rod diameter)(mm): 120 x 1114 x 85

  • Operating weight features (mm): Operating weight including 5,700 mm one-piece boom, 2,925 mm arm, heaped 0.8 m3 bucket, rated capacity of lubricants, coolant, full fuel tank, operator and standard equipment.

  • Triple grouser shoes

    • Ground pressure with triple-grouser shoes 700 mm (kg/cm^2): 0.44
    • Ground pressure with triple-grouser shoes 28 in (psi): 6.24
    • Ground pressure with triple-grouser shoes 700 mm (kPa): 43
    • Ground pressure with triple-grouser shoes 31.5 in (psi): 5.5
    • Ground pressure with triple-grouser shoes 800 mm (kg/cm^2): 0.39
    • Ground pressure with triple-grouser shoes 35.5 in (psi): 5
    • Ground pressure with triple-grouser shoes 800 mm (kPa): 38
    • Ground pressure with triple-grouser shoes 900 mm (kg/cm^2): 0.35
    • Operating weight with triple-grouser shoes 700 mm (kg): 24200
    • Operating weight with triple-grouser shoes 800 mm (kg): 24500

  • Engine Model: Komatsu SAA4D107E-5 (U.S. EPA Tier 4 Final and EU Stage 5 emissions certified.)
  • Aspiration: Turbocharged, aftercooled
  • Bore (mm): 107
  • Bore (in): 4.21
  • Stroke (mm): 124
  • Stroke (in): 4.88
  • Piston displacement (in^3): 272.17
  • Piston displacement (L): 4.46
  • Engine Rated (rpm): 2000
  • Governor: All-speed, electronic
  • Fan drive method for radiator cooling: Mechanical

  • Horsepower

    • SAEJ1995 - Gross (HP): 173
    • SAEJ1995 - Gross (kW): 129
    • ISO 9249 / SAE J1349 - Net (HP): 72
    • ISO 9249 / SAE J1349 - Net (kW): 129

  • Fuel tank (US gal): 92.5
  • Coolant (US gal): 7.6
  • Engine (US gal): 4.8
  • Final drive (US gal): 1.1
  • Swing drive (US gal): 1.7
  • Swing drive (L): 6.5
  • Hydraulic tank (L): 119
  • Hydraulic tank (US gal): 31.4
  • DEF tank (US gal): 16.6
  • Fuel tank (L): 350
  • Coolant (L): 28.2
  • Engine (L): 18
  • Final drive (L): 4.1
  • DEF tank (L): 62.9

  • Drive method type: Water-cooled, 4-cycle, direct injection
  • Maximum drawbar pull (lbf): 45415
  • Maximum drawbar pull (kgf): 20600
  • Service brake type: Hydraulic lock
  • Parking brake: Mechanical disc brake
  • Gradeability: 70%, 35 degrees
  • Drive method for drives and brakes: Hydrostatic

  • Maximum travel speed

    • High (kph): 5.5
    • High (mph): 3.4
    • Mid (mph): 2.6
    • Mid (kph): 4.1
    • Low (mph): 1.9
    • Low (kph): 3

  • Center frame: X-frame
  • Track frame: Box-section
  • Track adjuster: Hydraulic
  • Number of shoes (each side): 49
  • Number of carrier rollers (each side): 2
  • Number of track rollers (each side): 9
  • Seal of track: Sealed track

  • Operator – ISO 6396 (dB(A)): 24800
