Product Image

Excavators

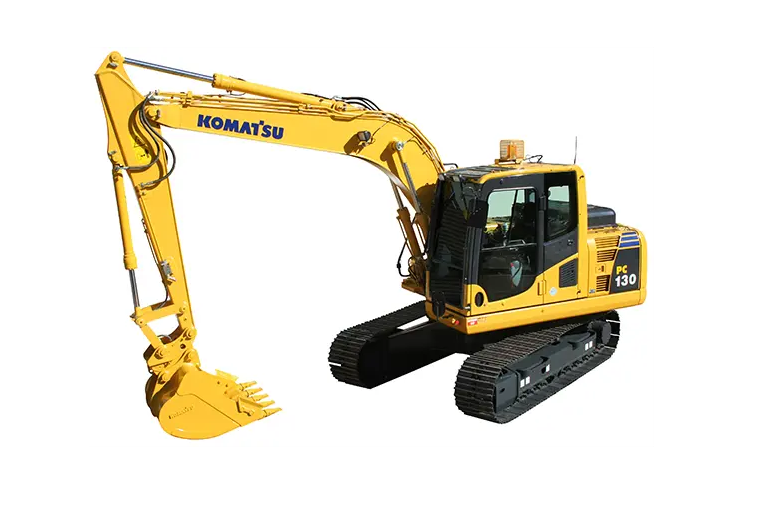

PC130-8

Mid-size excavators

  • Engine power (HP) 92
  • Engine power (kW) 68.4
  • Bucket capacity (m^3) 0.53
  • Bucket capacity (yd^3) 0.69
  • Operating weight (kg) 13060
  • Operating weight (lbs) 28800

Purchase options

Request a quote

This excavator makes an ideal workhorse for smaller building and construction sites where productivity and performance is required. The PC130-8 is also available with blade. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

    Features and benefits

    Low operation noise

    Low operation noise

    Enables low noise operation using the low-noise engine and methods to cut noise at source. Electronically controlled common rail type engine has uulti-staged injection, low noise design, optimal arrangement of sound absorbing materials and a partition between the cab and engine room.

    Wide newly-designed cab

    Wide newly-designed cab

    Newly-designed wide spacious cab includes seat with reclining backrest. The seat height and longitudinal inclination are easily adjusted using a pull up lever. You can set the appropriate operational posture of armrest together with the console. Reclining the seat further enables you to place it into the fully flat state with the headrest attached.

    Easy maintenace

    Easy maintenace

    Including long replacement interval of engine oil, engine oil filter, and hydraulic filter; remote mounted engine oil filter, engine main fuel filter and fuel drain valve for easy access; equipped with the fuel pre-filter as standard (with water separator); side-by-side cooling concept enables individual cooling modules to be serviced; equipped with the EMMS monitoring system.


    Specifications

    Metric Imperial (US)
    Expand all

    • Drive method: Fully hydrostatic
    • Swing reduction: Planetary gear
    • Swing circle lubrication: Grease-bathed
    • Service brake: Hydraulic lock
    • Holding brake/Swing lock: Mechanical Disc brake
    • Swing speed (rpm): 11
    • Driven by: Hydrostatic

    • HydrauMind Type: HydrauMind System

    • Main pump

      • Pumps for: Boom, arm, bucket, swing, and travel circuits
      • Maximum flow (L/min): 241.5
      • Maximum flow (US gpm): 63.79

    • Engine Model: Komatsu SAAD95LE-5
    • Aspiration: Variable flow, turbocharged, Water-cooled
    • Piston displacement (in^3): 198.93
    • Piston displacement (L): 3.26

    • Horsepower

      • SAEJ1995 - Gross (HP): 97
      • SAEJ1995 - Gross (kW): 72.1
      • ISO 9249 / SAE J1349 - Net (HP): 91.66
      • ISO 9249 / SAE J1349 - Net (kW): 68.4

    • Coolant (US gal): 3.67
    • Engine (US gal): 3.04
    • Swing drive (US gal): 0.66
    • Swing drive (L): 2.5
    • Hydraulic tank (L): 90
    • Hydraulic tank (US gal): 23.78
    • DEF tank (US gal): None
    • Fuel tank (L): 247
    • Coolant (L): 13.9
    • Engine (L): 11.5
    • DEF tank (L): None

    • Maximum drawbar pull (kgf): 12500
    • Parking brake: Mechanical disc brake

    • Center frame: X-frame leg
    • Track frame: Box-bathed
    • Track adjuster: Hydraulic
    • Number of shoes (each side): 43
    • Number of carrier rollers (each side): 1
    • Number of track rollers (each side): 7

    • Bucket crowd force - ISO (kgf): 9520
    • Arm crowd force - ISO (kgf): 6880
    • Swing radius (in): 86.2
    • Maximum reach at ground level (mm): 8170
    • Digging depth - maximum (mm): 5520
    • Maximum reach at ground level (in): 321.7
    • Arm size (m) and type: 2.5 standard
    • Swing radius (mm): 2190
    • Boom size (m) and type: 4.6 standard

    • Overall track width (mm): 2490
    • Overall track width (in): 98
