Excavators

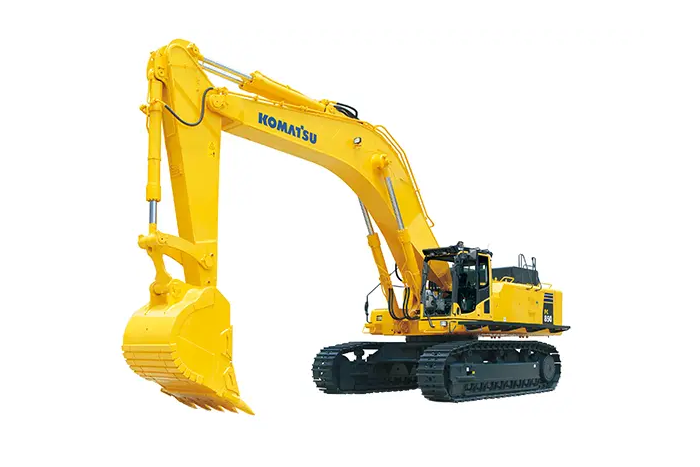

PC850SE-8E0
Large excavators
- Engine power (HP) 487
- Engine power (kW) 363
- Bucket capacity (m^3) 4.5
- Bucket capacity (yd^3) 5.89
- Operating weight (kg) 79900
- Operating weight (lbs) 176097
Our largest construction excavator, the powerful PC850-8E0 SE (Super Earthmover) combines a powerful digging force with a variety of operating modes to maximise machine productivity and efficiency. As with all our construction excavators, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Features and benefits

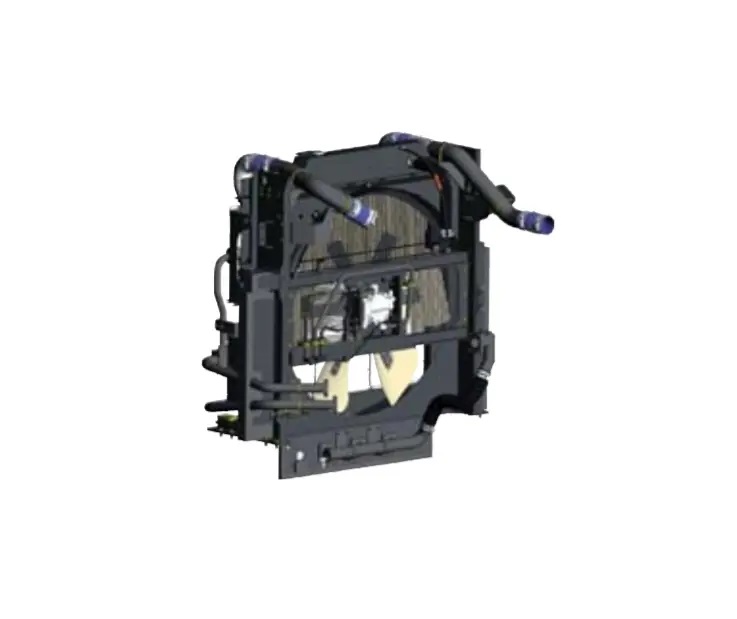

Electronically controlled variable speed fan
The electronic control system sets the revolution speed of the cooling fan according ro the coolant, hydraulic oil, and ambient temperature; effectively uses the engine output to prevent wasteful consumption; and reduces noise during low-speed fan revolution

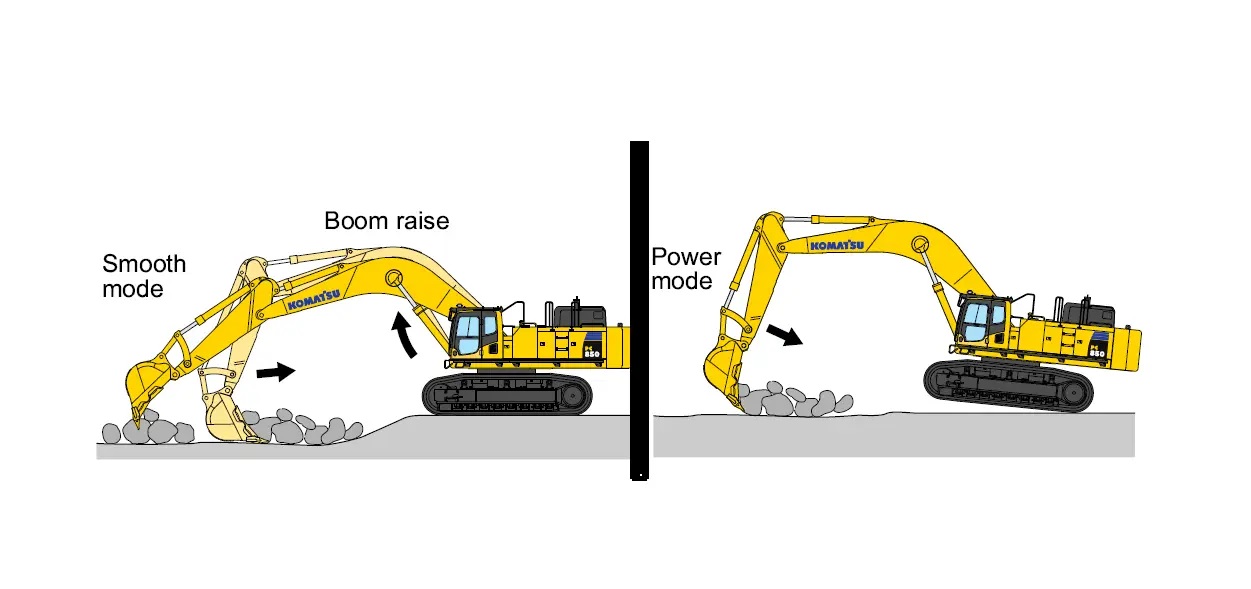

Two-mode setting for boom
Smooth mode provides easy operation for gathering blasted rock and scraping operations. When maximum digging force is needed, switch to power mode for more effective excavating.
Comfortable working space
The wide spacious cab includes a seat with reclining backrest. The seat height and position are easily adjusted using a pull-up lever. The armrest position is easily adjusted together with the console. Reclining the seat further enables it to be fully laid back with the headrest attached.
Specifications
- Full specs
- Drive method: Fully hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Oil disc brake
- Swing speed (rpm): 6.8
- Driven by: Hydraulic motors
-
Hydraulic cylinders
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 7.28 x 71.65 x 4.72
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-185 x 1610 x 120
-
Main pump
- Pumps for: Boom, arm, bucket, swing, and travel circuits
- Maximum flow (US gpm): 2 x 130.46
- Maximum flow (L/min): 2 x 494
-
Relief valve setting
- Travel: 2 x axial piston motor with parking brake
- Swing: 2 x axial piston motor with swing holding brake
- Implement circuits (psi): 4551.46
- Travel circuit (psi): 4978
- Implement circuits (MPa): 31.38
- Swing circuit (psi): 5557
- Implement circuits (kgf/cm^2): 320
- Swing circuit (kgf/cm^2): 390
- Swing circuit (MPa): 38.24
- Travel circuit (kgf/cm^2): 350
- Travel circuit (MPa): 34.3
- Coolant (US gal): 26.42
- Engine (US gal): 13.99
- Swing drive (L): 2 x 24.5
- Swing drive (US gal): 2 x 6.47
- Hydraulic tank (L): 470
- Hydraulic tank (US gal): 124.18
- DEF tank (US gal): None
- Engine (L): 53
- DEF tank (L): None
- Fuel tank (L): 980
- Coolant (L): 100
- Engine Model: Komatsu SAA6D140E-5
- Aspiration: Turbocharged, aftercooled, cooled EGR
- Piston displacement (L): 15.24
- Piston displacement (in^3): 929.98
- Fan drive method for radiator cooling: Hydraulic
-
Horsepower
- SAEJ1995 - Gross (kW): 370
- SAEJ1995 - Gross (HP): 496
- ISO 9249 / SAE J1349 - Net (kW): 373
- ISO 9249 / SAE J1349 - Net (HP): 487
- Maximum drawbar pull (kgf): 57000
- Parking brake: Oil disc brake
- Gradeability: 70 %
- Center frame: H-frame leg
- Track frame: Box-section
- Track adjuster: Hydraulic
- Number of shoes (each side): 47
- Number of carrier rollers (each side): 3
- Number of track rollers (each side): 8
- Heavy lift circuit (kgf/cm^3): 350
- Pilot circuit (kgf/cm^3): 30
- Bucket crowd force - ISO (kgf): 48000
- Swing radius (in): 173.2
- Boom size (m) and type: 7.1 heavy duty
- Maximum reach at ground level (mm): 11945
- Digging depth - maximum (mm): 7130
- Maximum reach at ground level (in): 470.3
- Arm size (m) and type: 2.9 heavy duty
- Arm crowd force - ISO (kgf): 38100
- Swing radius (mm): 4400
- Overall track width (in): 161.8
- Overall track width (mm): 4110
