Excavators
PC490LC-11
Large excavators
- Engine power (HP) 359
- Engine power (kW) 268
- Bucket capacity (m^3) 2.7
- Bucket capacity (yd^3) 3.53
- Operating weight (kg) 48690
- Operating weight (lbs) 107378
Now powered by a new technology Komatsu engine, our PC490LC-11 is designed for heavy construction, quarrying and demolition applications, delivering high productivity and lower owning and operating costs. PC490LC-11SE also available. Key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Features and benefits
Enhanced productivity
Enhanced power mode with increased hydraulic flow provides up to 13% improvement in productivity.

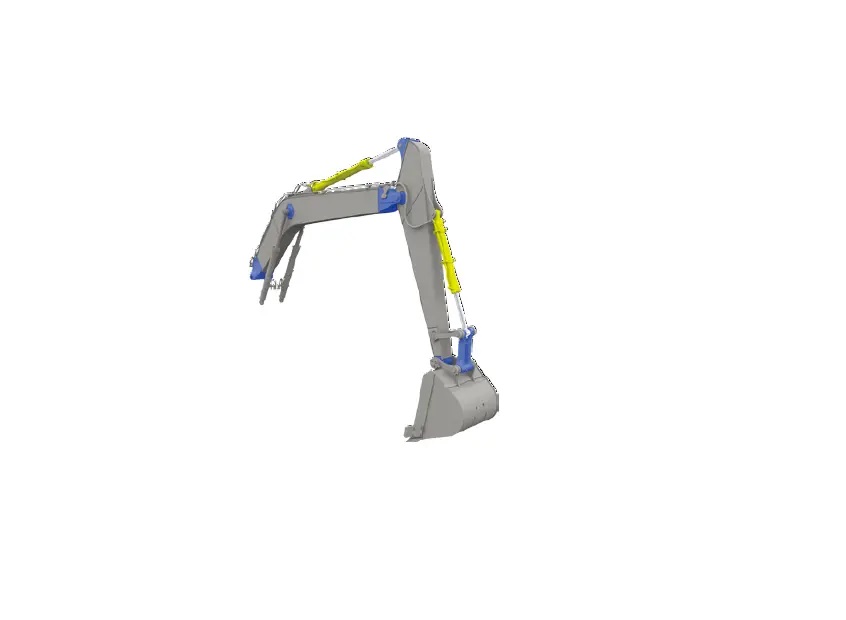

Super stability and durability
Heavy duty, reinforced undercarriage and larger counterweight provide high lift capacity, lateral stability and added durability.
Comfortable working space
The wide spacious cab includes a heated air suspension seat with reclining backrest. The seat height and position are easily adjusted using a pull-up lever. The armrest position is easily adjusted together with the console. Reclining the seat further enables it to be fully laid back with the headrest attached.
Specifications
- Full specs
- Drive method: Fully hydrostatic
- Swing reduction: Planetary gear
- Swing circle lubrication: Grease-bathed
- Service brake: Hydraulic lock
- Holding brake/Swing lock: Mechanical disc brake
- Swing speed (rpm): 9.1
- Driven by: Hydraulic motor
- HydrauMind Type: HydrauMind System
-
Hydraulic cylinders
- Arm (Number of cylinders – bore x stroke x rod diameter)(in): 7.28 x 71.65 x 4.72
- Arm (Number of cylinders – bore x stroke x rod diameter)(mm): 1-185 x 1820 x 120
-
Main pump
- Pumps for: Boom, arm, bucket, swing, and travel circuits
- Maximum flow (US gpm): 206.05
- Maximum flow (L/min): 780
-
Relief valve setting
- Travel: 2 x axial piston motor with parking brake
- Swing: 1 x axial piston motor with swing holding brake
- Implement circuits (psi): 5404.85
- Travel circuit (psi): 5405
- Implement circuits (MPa): 37.27
- Swing circuit (psi): 4054
- Implement circuits (kgf/cm^2): 380
- Swing circuit (kgf/cm^2): 285
- Swing circuit (MPa): 27.94
- Travel circuit (kgf/cm^2): 380
- Travel circuit (MPa): 37.3
- Coolant (US gal): 12.42
- Engine (US gal): 10.04
- Swing drive (L): 20
- Swing drive (US gal): 5.28
- Hydraulic tank (L): 248
- Hydraulic tank (US gal): 65.52
- DEF tank (US gal): 10.3
- Engine (L): 38
- DEF tank (L): 39
- Fuel tank (L): 650
- Coolant (L): 47
- Engine Model: Komatsu SAA6D125E-7
- Aspiration: Turbocharged, aftercooled
- Piston displacement (L): 11.04
- Piston displacement (in^3): 673.69
- Fan drive method for radiator cooling: Hydraulic
-
Horsepower
- SAEJ1995 - Gross (kW): 270
- SAEJ1995 - Gross (HP): 362
- ISO 9249 / SAE J1349 - Net (kW): 268
- ISO 9249 / SAE J1349 - Net (HP): 359
- Maximum drawbar pull (kgf): 33510
- Parking brake: Mechanical disc brake
- Gradeability: 70 %
- Center frame: X-frame leg
- Track frame: Box-section
- Track adjuster: Hydraulic
- Number of shoes (each side): 49
- Number of carrier rollers (each side): 2
- Number of track rollers (each side): 8
- Pilot circuit (kgf/cm^3): 33
- Bucket crowd force - ISO (kgf): 28000
- Swing radius (in): 143.5
- Boom size (m) and type: 7.0 heavy duty
- Maximum reach at ground level (mm): 11810
- Digging depth - maximum (mm): 7755
- Maximum reach at ground level (in): 465
- Arm size (m) and type: 3.4 heavy duty
- Arm crowd force - ISO (kgf): 21800
- Swing radius (mm): 3645
- Overall track width (in): 131.5
- Overall track width (mm): 3340
Support you can count on
Videos
Tier 4 Engine KDPF Regeneration

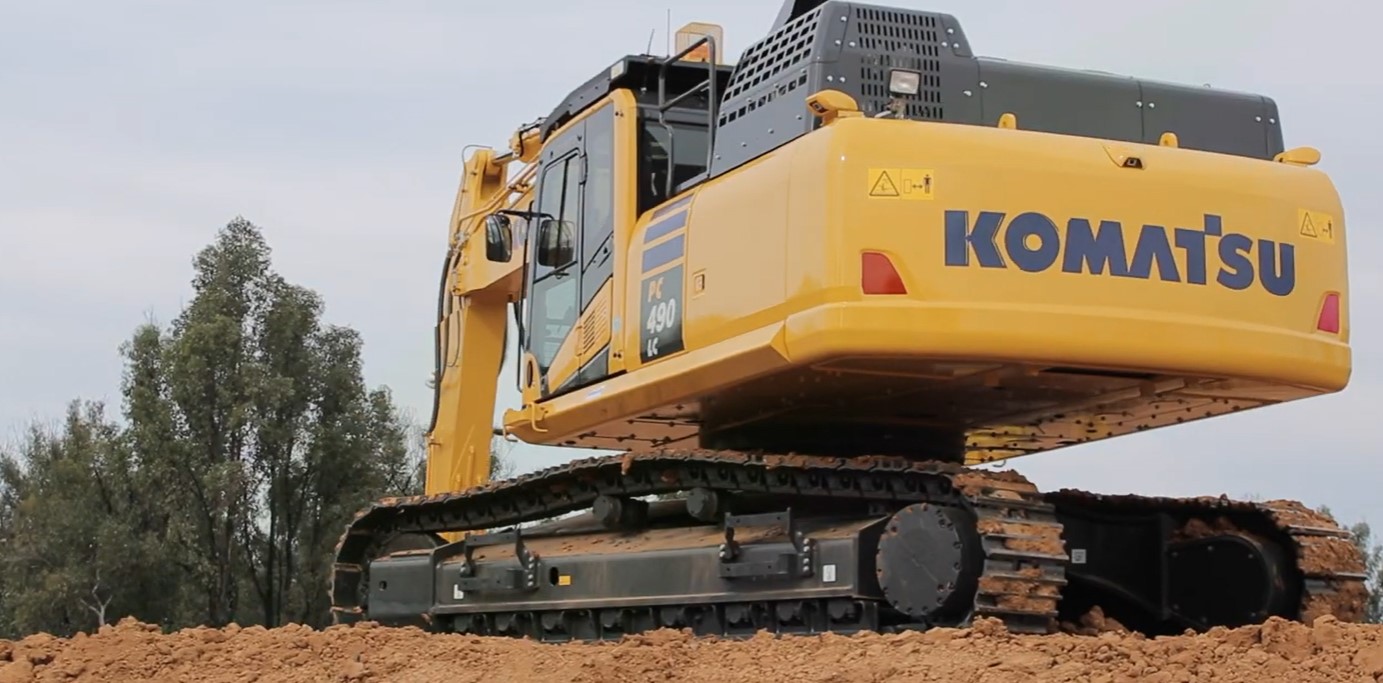

Performance, Durability and Fuel Economy
