Dozers

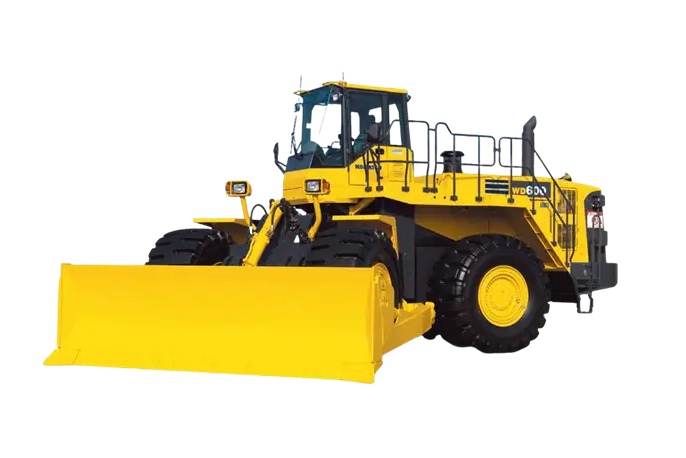

WD600-6
Wheeled dozers
- Gross horsepower (HP) @ 1,800 rpm 530
- Gross horsepower (kW) @ 1,800 rpm 396
- Net horsepower (HP) @ 1,800 rpm 527
- Net horsepower (kW) @ 1,800 rpm 393
- Blade capacity (m^3) 8.0-10.6
- Blade capacity (yd^3) 10.5-13.8
Purchase options
Request a quoteThe agile WD600-6 comes with a low-noise, high-torque engine that greatly reduces fuel consumption while a large-capacity torque converter provides for maximum efficiency in the low-speed range. The cab area is the largest in its class and provides the operator with exceptional front visibility. Key components are designed and manufactured by Komatsu to work together in an integrated package.
Resources
Features and benefits
High productivity & low fuel consumption
The WD600-6 Wheel Dozer features a high performance SAA6D170E-5 engine, which is EPA Tier 3 and EU Stage 3A emissions certified, without sacrificing power or machine productivity. The Komatsu designed lock-up torque converter provides increased production efficiency, reduced cycle times and optimum fuel savings in hill-climb operations.
Excellent operator environment
The WD6006-6 has a wide pillar-less flat glass provides excellent front visibility. The wiper arm covers a large area to provide great visibility even on rainy days. The cab area is the largest in its class providing maximum space for the operator.
Reliability
Komatsu manufactures the engine, torque converter, transmission, hydraulic units, electric parts, on this wheel dozer. Komatsu dozers are manufactured with an integrated production system under a strict quality control system.
Specifications
- Full specs
- Cooling type: Water-cooled, 4-cycle
- Aspiration: Turbocharged, aftercooled, cooled EGR
- Number of cylinders: 6
- Piston displacement (L): 23.15
- Piston displacement (in^3): 1413
- Governor: all-speed, electronic
- Fan drive method for radiator cooling: Hydraulic
- Fuel system: Direct injection
- Air cleaner: Dry type with double elements and dust evacuator, plus dust indicator
- Engine footnote: *Net horsepower at the maximum speed of radiator cooling fan is 374 kW 502 HP. EPA Tier 3 and EU Stage 3A emissions certified.
-
Horsepower
- SAEJ1995 - Gross (HP): 530
- SAEJ1995 - Gross (kW): 396
- ISO 9249 / SAE J1349 - Net (kW): 393 *
- ISO 9249 / SAE J1349 - Net (HP): 527 *
- Rated RPM: 1800
-
- Bore x stroke (mm): 130 x 510
- Bore x stroke (in): 5.1 x 20
Hydraulic cylinders
-
Lubrication system
- Method: Gear pump, force-lubrication
- Filter: Full-flow type
- Steering system type: Articulated type, full-hydraulic power steering
- Steering angle: 43˚ each direction
- Minimum turning radius at the center of outside tire (mm): 7075
- Minimum turning radius at the center of outside tire (ft , in): 23 ft. 3 in
- Drive System: Four-wheel drive
- Front: Fixed, full-floating
- Rear: Center-pin support, full-floating, 26˚ total oscillation
- Reduction gear: Spiral bevel gear
- Differential gear: Conventional type
- Final reduction gear: Planetary gear, single reduction
-
Travel speed
- 1st, forward (kph): 6.7
- 1st, forward (mph): 4.2
- 1st, reverse (kph): 7.3
- 1st, reverse (mph): 4.5
- 2nd, forward (kph): 11.7
- 2nd, forward (mph): 7.3
- 2nd, forward (lock-up clutch ON) (kph): 12.4
- 2nd, forward (lock-up clutch ON) (mph): 7.7
- 2nd, reverse (kph): 12.8
- 2nd, reverse (mph): 8
- 3rd, forward (kph): 20.3
- 3rd, forward (mph): 12.6
- 3rd, forward (lock-up clutch ON) (mph): 13.5
- 3rd, forward (lock-up clutch ON) (kph): 21.7
- 3rd, reverse (kph): 22
- 3rd, reverse (mph): 13.7
- 4th, forward (kph): 33
- 4th, forward (mph): 20.5
- 4th, forward (lock-up clutch ON) (kph): 37.7
- 4th, forward (lock-up clutch ON) (mph): 23.4
- 4th, reverse (kph): 36
- 4th, reverse (mph): 22.4
- Transmission footnote: Measured with 35/65-33 tires. ( ) : Look-up clutch ON.
-
Transmission
- Transmission type: Full-powershift, planetary type
-
Torque converter
- Torque converter type: 3-element, single-stage, double-phase
- Control valve: 3-spool type
-
Steering control
- Hydraulic pump: Piston pump
- Capacity (at rated rpm) (L/min): 180 + 180
- Capacity (at rated rpm) (US gpm): 47.6 + 47.6
- Relief valve setting (MPa): 24.5
- Relief valve setting (psi): 3560
- Relief valve setting (kgf/cm^2): 250
- Hydraulic cylinders type for steering control: Double-acting, piston type
- Number of cylinders in hydraulic cylinders: 2
Hydraulic cylinders
-
Control positions
- Blade lift: Raise, hold, lower, and float
- Tilt and pitch: Tilt-left, tilt-right, hold, pitch forward and back
-
Hydraulic cycle time
- Raise (s): 2
- Lower (s): 1.3
- Tilt (left / right) (s): 0.8 / 1.1
- Pitch (front / rear) (s): 2.1 / 1.6
-
Hydraulic cylinders
- Hydraulic cylinder type for implement control: Double-acting, piston type
- Blade lift (number of cylinders- bore x stroke) (mm): 1- 160 x 1080
- Blade lift (number of cylinders- bore x stroke) (in): 1- 6.3 x 42.5
- Tilt and pitch (number of cylinders- bore x stroke) (mm): 2- 180 x 237
- Tilt and pitch (number of cylinders- bore x stroke) (in): 2- 7.0 x 9.3
- Cooling system (L): 147
- Cooling system (US gal): 38.8
- Fuel tank (US gal): 189.7
- Fuel tank (L): 718
- Engine (L): 86
- Engine (US gal): 22.7
- Hydraulic system (US gal): 117
- Hydraulic system (L): 443
- Axle (each front and rear) (US gal): 41
- Axle (each front and rear) (L): 155
- Torque converter and transmission (L): 83
- Torque converter and transmission (US gal): 21.9
- Service brake: Hydraulically actuated, wet disc brakes actuate on four wheels
- Parking brake: Wet disc brake
- Emergency brake: Parking brake is commonly used
