Dozers

D375A-8

Surface mining dozers

  • Engine power (HP) 610
  • Engine power (kW) 455
  • Blade capacity (m^3) 22.0
  • Blade capacity (yd^3) 28.8
  • Operating weight (kg) 72900
  • Operating weight (lbs) 160717

Purchase options

Request a quote

Powered by a new technology Komatsu engine, the D375A-8 bulldozer sets the industry standard in terms of operator comfort and control, while delivering higher production and lower operating costs for mining and heavy construction applications. As with all our dozers, key components are designed and manufactured by Komatsu to work together in an integrated package. And the dozer comes standard with our Komtrax Plus remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

    Features and benefits

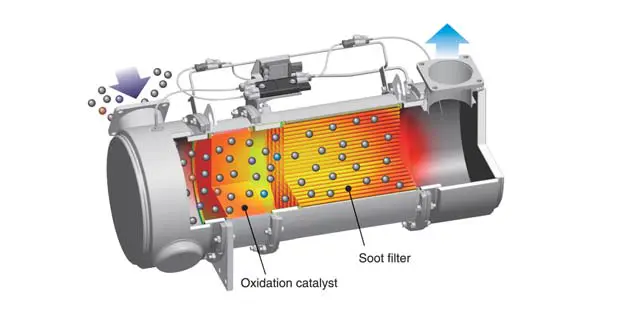

    Heavy-duty aftertreatment system

    Heavy-duty aftertreatment system

    KDPF captures more than 90% of Particulate Matter (PM). Special oxidation catalyst and extra fuel injection in the exhaust stream can decompose accumulated soot in the KDPF filter by either active or passive regeneration. This system does not require any additional operator's action or interrupt normal operation.

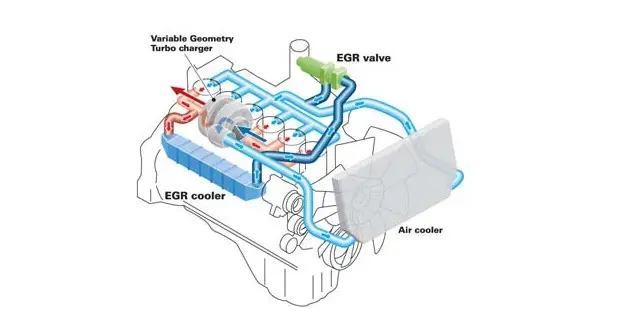

    Heavy-duty cooled Exhaust Gas Recirculation (EGR) system

    Heavy-duty cooled Exhaust Gas Recirculation (EGR) system

    The system recirculates a portion of exhaust gas into the air intake and lowers combustion temperatures, thereby reducing NOx emissions. While EGR gas flow isincreased, by incorporating a high-efficiency and compactly designed cooling system, the system achieves a dynamic reduction of NOx, while helping to reduce fuel consumption.

    The Komatsu D375A mining dozer is equipped with a low drive undercarriage

    Equipped with a low drive undercarriage designed to help reduce wear and tear on your machine while still delivering comfort and stability. Minimal moving parts to help maintain high levels of traction and production when dozing and ripping. Whether you are looking to keep blasting, loading and dump areas clean, or construct and maintain haul roads, dozers have a direct impact on your fleet’s productivity. With new mainframes featuring twice the design life over previous models, the D375A-8 is engineered to be powerful and durable.

    Video thumbnail

    Specifications

    Metric Imperial (US)
    Expand all

    • Ground pressure (kPa): 147
    • Ground pressure (kg/cm^2): 147

    • Suspension: Oscillating equalizer bar with shoulder pad and pivot shaft
    • Track roller frame: Cylindrical, high-tensile-strength steel construction
    • Rollers and idlers: Lubricated track rollers
    • Number of track rollers (each side): 8
    • Extreme service track shoes: Lubricated tracks. Unique seals prevent entry of foreign abrasives into pin to bushing clearances to provide extended service life. Track tension is easily adjusted with grease gun.
    • Number of shoes (each side): 41
    • Number of carrier rollers (each side): 2
    • Komatsu Bogie (K-Bogie) undercarriage: Lubricated track rollers are resiliently mounted to the track frame with a bogie suspension system whose oscillating motion is cushioned by rubber pads.
    • Shoe width (standard)(mm): 610
    • Shoe width (standard)(in): 24.02
    • Ground contact area (ft2): 52.28
    • Ground contact area (cm^2): 48560
    • Ground pressure (tractor)(kPa): 113
    • Ground pressure (tractor)(kg/cm^2): 1.16

    • Fuel tank (L): 1200
    • Coolant (L): 145
    • Coolant (US gal): 38.31
    • Torque converter, transmission, bevel gear, and steering system (L): 150
    • Torque converter, transmission, bevel gear, and steering system (US gal): 39.6

    • Hydraulic system features: Closed-center load sensing system (CLSS) designed for precise and responsive control.
    • Relief valve setting (kg/cm^2): 304
    • Number of ripper lift cylinders: 2
    • Number of ripper tilt cylinders: 2
    • Blade lift cylinder bore (mm): 140
    • Number of blade lift cylinders: 2
    • Ripper tilt cylinder bore (mm): 180
    • Number of blade tilt cylinders: 2
    • Ripper tilt cylinder bore (in): 7.1

    • Number of cylinders

      • Ripper lift (mm): 200

    • Hydraulic oil capacity (refill)

      • Semi-U dozer or U dozer (L): 130
      • Semi-U dozer or U dozer (US gal): 34.34

      • Positions

        • Blade lift: Raise, hold, lower, and float
        • Blade tilt: Right, hold, and left
        • Ripper lift: Raise, hold, and lower
        • Ripper tilt: Increase, hold, and decrease

    • Ripper equipment (additional volume)

      • Multi-shank ripper (variable)(US gal): 11.89
      • Multi-shank ripper (variable)(L): 45
      • Giant ripper (L): 45 (variable)
      • Giant ripper (US gal): 11.89 (variable)

    • Engine Model: Komatsu SAA6D170E-7
    • Aspiration: Turbo-charged, after-cooled, cooled EGR

    • Horsepower

      • SAEJ1995 - Gross (HP): 636
      • SAEJ1995 - Gross (kW): 474
      • SAEJ1995 - gross - reverse (kW): 578
      • SAEJ1995 - gross - reverse (HP): 775
      • ISO 9249 / SAE J1349 - Net (HP): 455 (forward), 558 (reverse)
      • Rated RPM: 1800
