Dozers
D65-16
Mid-size dozers
- Engine power (HP) 205
- Engine power (kW) 153
- Blade capacity (m^3) 4.42
- Blade capacity (yd^3) 5.8
- Operating weight (kg) 19510
- Operating weight (lbs) 43012

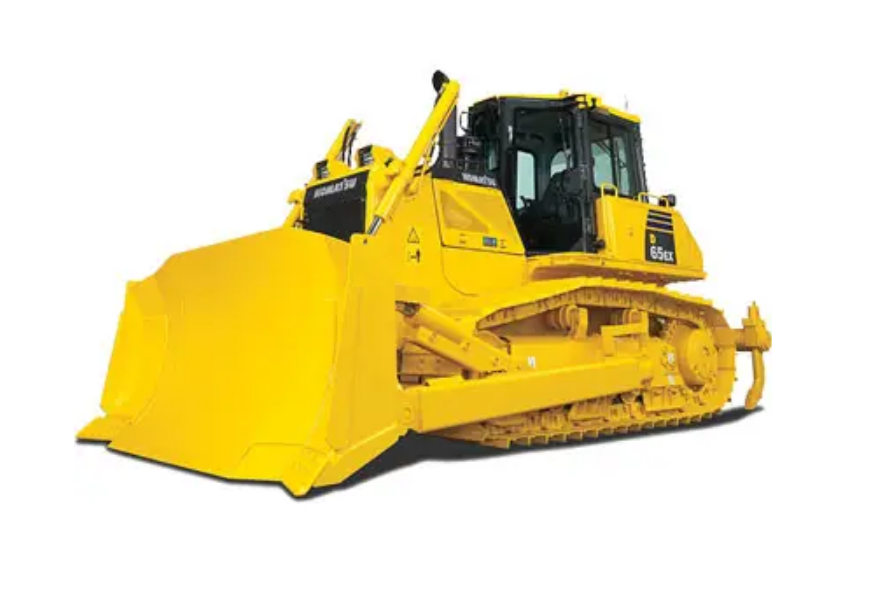

Now available with a new technology Komatsu engine, this bulldozer is offered in standard, low-ground-pressure and wide track configurations. The D65EX/PX-16 bulldozer has operating weights of 20.5-22.9 tonnes, and a choice of PAT, Sigma or semi-U blades. Innovative Sigmadozer reduces digging resistance and smoothly rolls material up for increased blade loads. Automatic transmission with lockup torque converter improves fuel consumption. Complete operator control with PCCS (Palm Command Control System). As with all our dozers, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Ergonomic control system
Palm command travel joystick provides the operator with a relaxed posture and superb fine control without operator fatigue. Transmission gear shifting is simplified with thumb push buttons.
Specifications
- Full specs
- Suspension: Oscillating equaliser bar and pivot shaft
- Track roller frame: Monocoque, large section, durable construction
- Rollers and idlers: Lubricated track rollers
- Type of shoes (standard): Single grouser
- Number of track rollers (each side): 7 - 8
- Number of shoes (each side): 42 - 45
- Shoe width (standard)(mm): 560 - 760
- Shoe width (standard)(in): 22.05 - 29.92
- Hydrostatic transmission features: Dual-path, hydrostatic transmission system
- Relief valve setting (psi): 5,433
- Relief valve setting (kg/cm^2): 382
- Maximum pump flow (gpm): 65.5
- Maximum pump flow (ltr/min): 248
-
Number of cylinders
- Blade tilt /1 (in): 1 x 4.92–5.12
- Blade tilt /1 (mm): 1 x 125-130
- Blade lift / 2 (in): 2 x 3.35–3.54
- Blade lift / 2 (mm): 2 x 85-90
- Blade angle / 2 (in): 4.33
- Blade angle / 2 (mm): 110
- Ripper lift (in): 0.039 x 4.92
- Ripper lift (mm): 1 x 125
- Engine Model: Komatsu SAA6D114E-3
- Aspiration: Turbocharged, after-cooled
- Piston displacement (L): 8.27
- Piston displacement (in^3): 504.65
- Engine certification (standard): EPA Tier 3
-
Horsepower
- SAEJ1995 - Gross (kW): 163.7
- SAEJ1995 - Gross (HP): 219
- ISO 9249 / SAE J1349 - Net (HP): 205
- Rated RPM: 1950
- Fan drive type: Hydraulic
- Fuel tank (US gal): 110
- Fuel tank (L): 415
- Coolant (US gal): 9.51
- Coolant (L): 36
- Engine oil (US gal): 7.4
- Engine oil (L): 28
