Dozers

D85-15E0

Large dozers

  • Engine power (HP) 264
  • Engine power (kW) 197
  • Blade capacity (m^3) 5.9
  • Blade capacity (yd^3) 7.7
  • Operating weight (kg) 28100
  • Operating weight (lbs) 61951

Purchase options

Request a quote Rent me

Our 27.65-28.1 tonne D85EX/PX-15EO bulldozer, is available in standard and low-ground-pressure undercarriage versions, and a choice of Sigma and semi-U blades. Applications include civil construction, local government, waste management, agriculture and other sectors. As with all our dozers, key components are designed and manufactured by Komatsu to work together for higher production, greater reliability, and more versatility. Extra-low machine profile provides excellent machine balance and low center of gravity. Long-life consumable parts such as filters and elements are used to lengthen their replacement interval to lower the maintenance cost. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.

    Resources

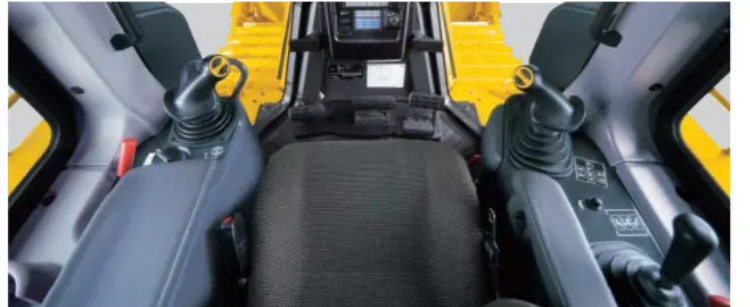

    Ergonomic control system

    Palm command travel joystick provides the operator with a relaxed posture and superb fine control without operator fatigue. Transmission gear shifting is simplified with thumb push buttons.

    d85

    Specifications

    Metric Imperial (US)
    Expand all

    • Suspension: Oscillating equaliser bar and pivot shaft
    • Track roller frame: Monocoque, large section, durable construction
    • Rollers and idlers: Lubricated track rollers
    • Type of shoes (standard): Single grouser
    • Number of track rollers (each side): 7 - 8
    • Number of shoes (each side): 41 - 45
    • Shoe width (standard)(in): 22.05 - 35.83
    • Shoe width (standard)(mm): 560 - 910

    • Relief valve setting (kg/cm^2): 230
    • Relief valve setting (MPa): 22.5
    • Maximum pump flow (ltr/min): 195
    • Maximum pump flow (gpm): 51.5

    • Number of cylinders

      • Blade tilt /1 (mm): 1 x 150
      • Blade tilt /1 (in): 1 x 5.91
      • Blade lift / 2 (mm): 2 x 100
      • Blade lift / 2 (in): 2 x 3.94
      • Ripper lift (mm): 2 x 130

    • Engine Model: Komatsu SAA6D125E-5
    • Aspiration: Turbocharged, after-cooled, cooled EGR
    • Piston displacement (L): 11.04
    • Piston displacement (in^3): 673.69
    • Engine certification (standard): EPA Tier 3

    • Horsepower

      • SAEJ1995 - Gross (HP): 266
      • SAEJ1995 - Gross (kW): 199
      • ISO 9249 / SAE J1349 - Net (HP): 264
      • Rated RPM: 1900
      • Fan drive type: Hydraulic

    • Fuel tank (L): 490
    • Coolant (US gal): 15.32
    • Coolant (L): 58
    • Engine oil (US gal): 10.04
    • Engine oil (L): 38
    • Torque converter, transmission, bevel gear, and steering system (L): 60
    • Torque converter, transmission, bevel gear, and steering system (US gal): 15.9
