Backhoes
WB97R-8
- Horsepower (HP) 101
- Horsepower (kW) 75
- Maximum dig depth (in) 206.5
- Maximum dig depth (mm) 5245
- Operating weight (kg) 9500
- Operating weight (lbs) 20944
With a backhoe dig depth to 5.2 m with extended dipper and a 1.03 m³ loader bucket capacity, our Komatsu WB97R-8E0 is a user-friendly machine with top class performance. As with all utility-sized machines, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Features and benefits

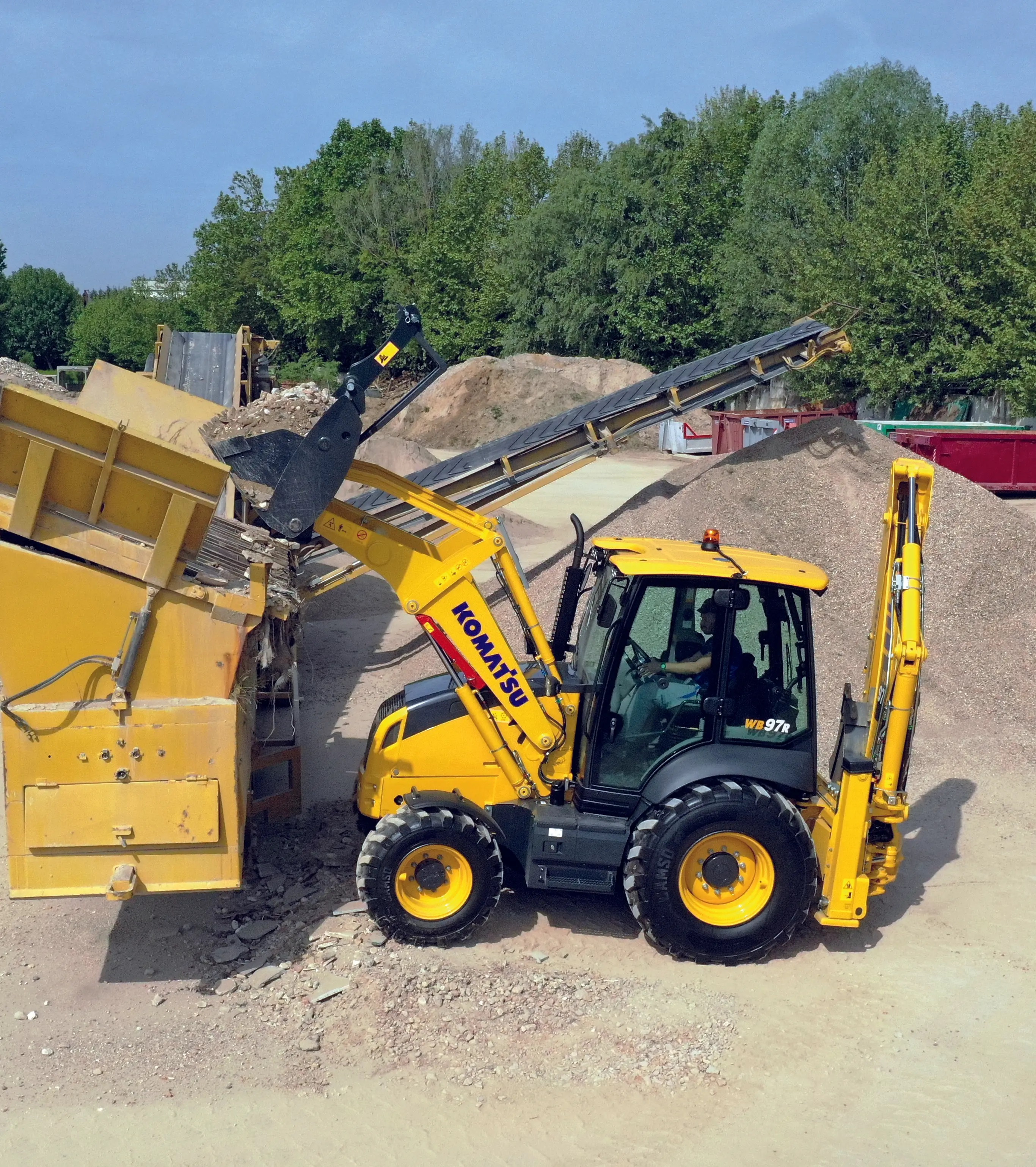

Maximised efficiency
The Komatsu EU Stage V compact engine featuring state-of-the-art technology delivers the highest efficiency in a small package. The aftertreatment system combines a maintenance free Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR). With ultra-low emissions, it provides a lower environmental impact and a superior performance to help reduce operating costs and lets the operator work in complete peace of mind.

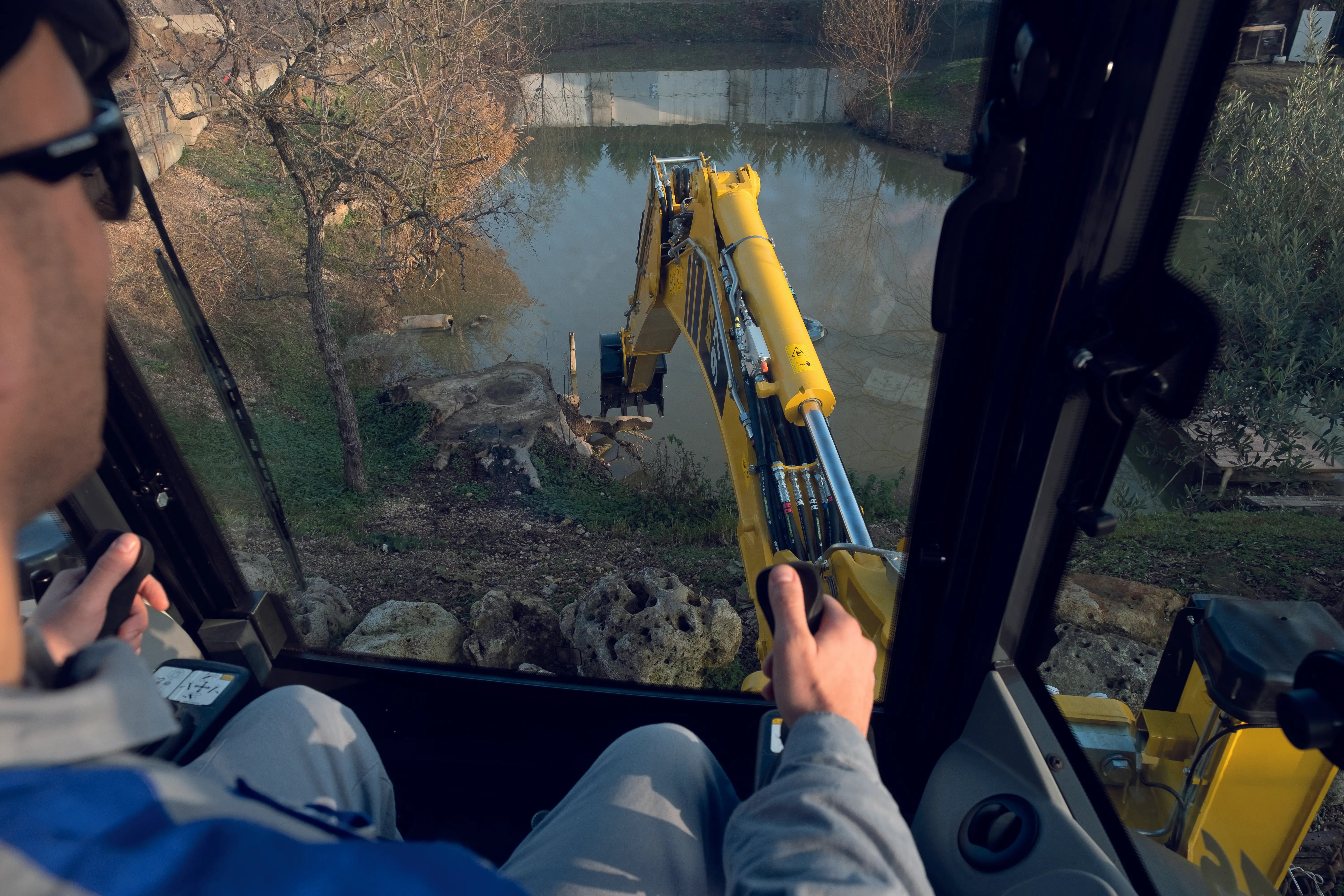

Optimal jobsite safety
The wide round glass surface presents a highly increased visibility. The bonnet shape, the lateral exhaust pipe and the upper front window make it easy and safe to work with the front loader. When operating the backhoe excavator, the operator can easily open the single frame window and comfortably overlook the surrounding area.

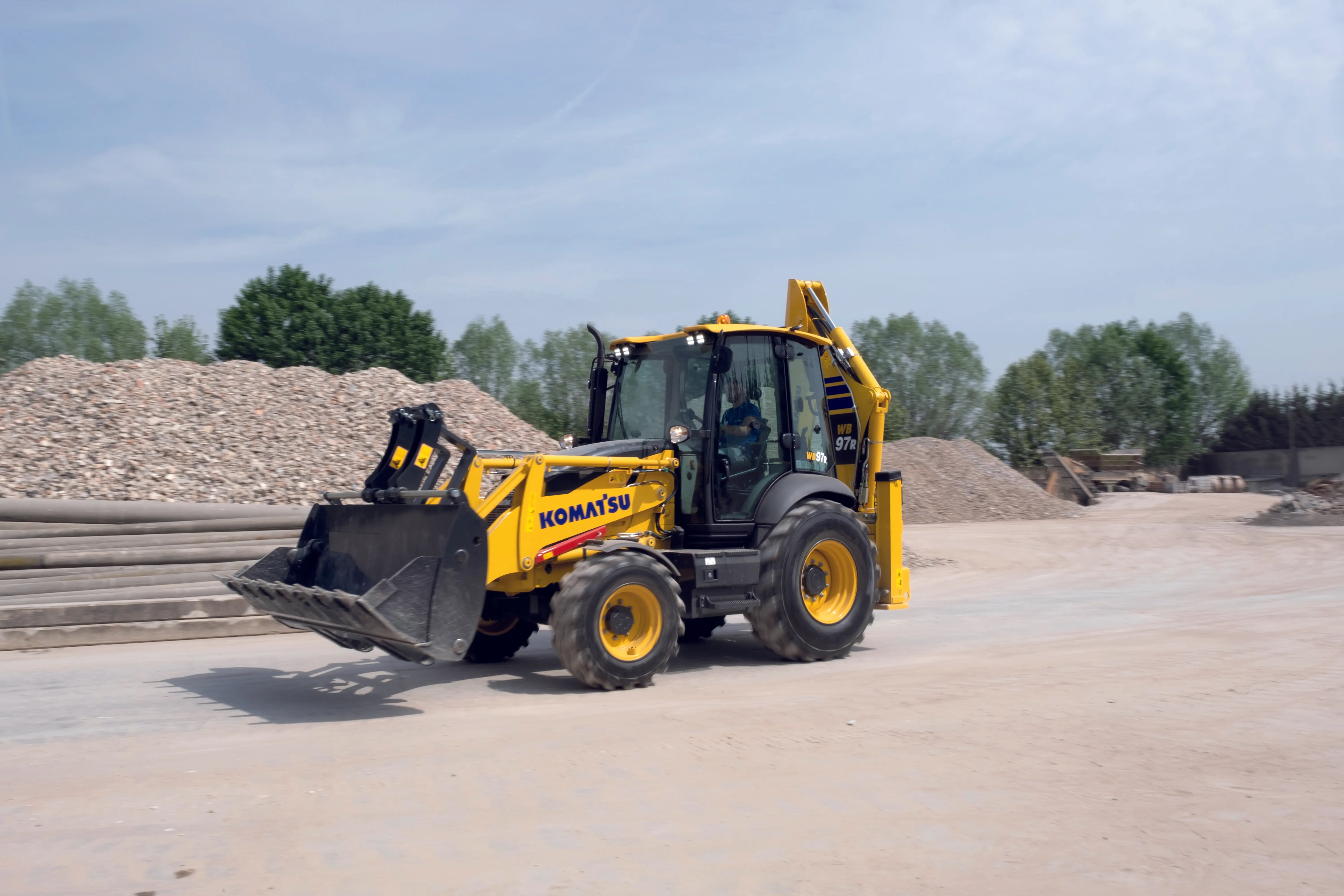

Powerful and environmentally friendly
Including EU Stage V engine, increased engine displacement, viscous fan clutch, monitoring system with Eco gauge, power and Eco mode improve fuel efficiency, maintenance-free Diesel Particulate Filter (DPF) and hyper vent switch for engine cooling fan
Specifications
- Full specs
- Operating weight (lbs): 18,340.6 (standard)
- Cab standard: Two-door cab in conformity with ISO 3471 with ROPS (roll over protective structure) in conformity with SAE J1040c and FOPS (falling object protective structure) in conformity with ISO 3449
- Front axle total oscillation angle (deg): 20
- Max. front axle dynamic load rating (kg): 9177
- Differentials: 100% differential lock in the rear axle, electro-hydraulic, controlled from the cab
- Frame: Reinforced and closed box structure
- Max. rear axle static load rating (lbs): 42152.4
- Max. rear axle static load rating (kg): 19120
- Max. rear axle dynamic load rating (lbs): 16861.0
- Axles type: Heavy-duty axles
- Max. front axle dynamic load rating (lbs): 20231.8
- Max. front axle static load rating (kg): 22944
- Max. front axle static load rating (lbs): 50582.9
- Max. rear axle dynamic load rating (kg): 7648
- 3rd, forward (mph): 12.4
- 1st, reverse (mph): 3.7
- 4th, forward (mph): 24.9
- 4th, reverse (mph): 24.9
- 2nd, reverse (mph): 6.2
- 4th, forward (kph): 40
- 2nd, reverse (kph): 10
- 2nd, forward (mph): 6.2
- 3rd, reverse (mph): 12.4
- 1st, forward (mph): 3.7
- 4th, reverse (kph): 40
- 1st, reverse (kph): 6
- 2nd, forward (kph): 10
- 1st, forward (kph): 6
- 3rd, forward (kph): 20
- 3rd, reverse (kph): 20
- Cooling fan: Viscous fan clutch
- Engine Model: Komatsu SAA4D102SE-1
- System: Reinforced structure, casted swing support and arm ends
- Bucket digging force - ISO (daN): 5985 (ISO 6015)
- Outriggers: Vertical outriggers with adjustable wear device
- Boom swing angle (deg): 180
- Transmission details: Electronically-controlled, four-wheel drive, “Full Power Shift” transmission. The control is automatic, with a knob used to select the direction of travel and the gears, at full power, without losing traction.
- Hydraulic type: Variable displacement axial pistons
- Main valve: LIFD “Load Independent Flow Divider” modular type
- Working pressure, max (bar): 250
- Hydraulic pump: CLSS. Closed-centre system with load sensing and pressure compensation valves
- Turning radius (without using brakes): At bucket edge 5625 mm; at corner of tyres: 4185 mm
- Steering system type: Front steering. Hydrostatic“Load Sensing” system withsteering priority valve
- Turning radius (using brakes): At bucket edge: 4930 mm; at corner of tyres: 3245 mm
- Travel length (mm): 5895
- Travel height (mm): 3780
- Travel length (in): 232
- Travel height (in): 148.8
- Width (mm): 2320
- Fuel (US gal): 39.63
- Powertrain details: Electronically controlled, four wheel drive, Full Power Shift transmission, 4 speed; heavy duty axles; oil immersed disc brakes, individual rear or total integral braking.
- Electrical system details: Alternator, 12 Volt, 120 Ampere; battery, standard, 1 x 12 Volt, 155 Ah; starter motor, 12 Volt, 3.0 kW.
- Engine and related item details: Komatsu SAA4D104E-1 engine; air cleaner, dual element with precleaner; full compliance with EU Stage IIIA and EPA Tier III exhaust emission regulations; side by side cooling cores, (engine, transmission, hydraulic, intercooler).
- KOMTRAX Satellite tracking: Yes
