Backhoes
WB97R-5
- Horsepower (HP) 99
- Horsepower (kW) 74
- Maximum dig depth (in) 239
- Maximum dig depth (mm) 6080
- Operating weight (kg) 9000
- Operating weight (lbs) 19841
With a backhoe dig depth to 6.8 m with extended dipper and a 1.03 m3 loader bucket capacity, our WB97R-5 is a productive, versatile machine featuring the same advanced closed-centre hydraulic system as our market-leading excavators. As with all utility-sized machines, key components are designed and manufactured by Komatsu to work together in an integrated package. And it comes standard with our Komtrax remote monitoring and location system, backed by our Australia-wide service and support network.
Resources
Features and benefits

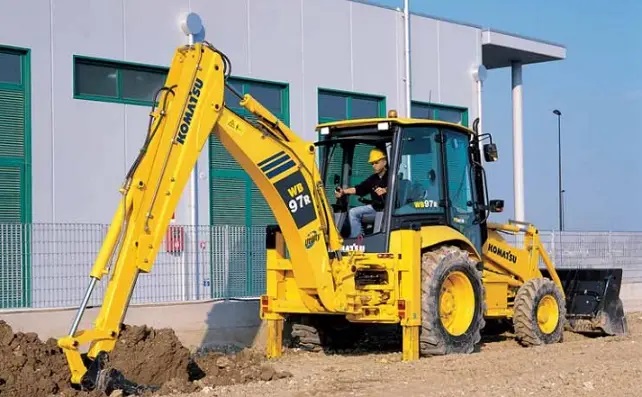

Premium performance
Including PPC servo-controls standard for the front loader and the backhoe, “Full Power Shift” transmission, CLSS (Closed Load Sensing System), variable fl ow piston pump and “Power” and “Economy” working modes

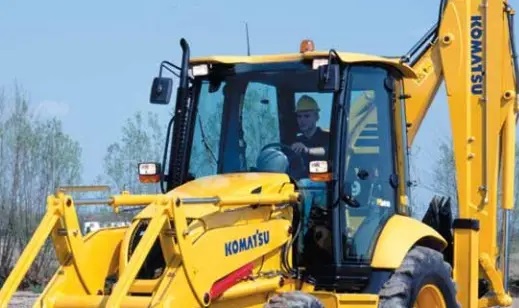

Excellent visibility
Due to wide round glass surfaces, sloped and narrow engine bonnet, upper front window for full visibility of the front bucket and total control of the surrounding area

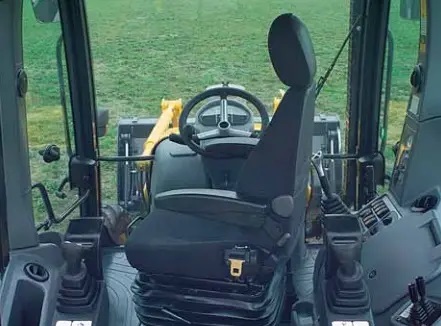

New seat range
The air suspended Deluxe seat or the more traditional mechanical suspended seat both guarantee the best interface between the machine and the operator. The air suspended seat also offers adjustable armrests, headrests and lumbar regulation as standard.
Specifications
- Full specs
- Bucket capacity (m^3): 1.0
- Dump height (mm): 2720
- Loader bucket width (mm): 2320
- Loader bucket width (in): 91
- Dump height (in): 107.1
- Operating weight (lbs): 17,794.8 (standard)
- Engine Model: Komatsu SAA4D104E-1
- Horsepower, Net - EEC 80/1269 (kW): 74
- Backhoe bucket width (min-max)(in): 11.8-47.2
- Load height (mm): 5148
- Arm breakout force (kgf): 4000
- Backhoe bucket width (min-max)(mm): 300-1200
- Slew system: Twin ram
- S/shift or C/mount: Side-shift
- Reach at ground level (mm): 7175
- Load height (in): 16.9
- Reach at ground level (in): 282.5
- Transmission details: Full Power Shift
- Number of speeds, fwd/rev: 4 / 4
- Maximum travel speed (mph): 24.9
- Drive: 2WD / 4WD
- Maximum travel speed (kph): 40
- Pump flow (l/min): 165
- Hydraulic type: Variable displacement piston
- Relief valve setting (bar): 250
- Pump flow (gpm): 43
- Travel length (mm): 5895
- Travel height (mm): 3780
- Travel length (in): 148.8
- Travel height (in): 232
- Width (mm): 2320
- Fuel (US gal): 39.63
- Powertrain details: Electronically controlled, four wheel drive, Full Power Shift transmission, 4 speed; heavy duty axles; oil immersed disc brakes, individual rear or total integral braking.
- Electrical system details: Alternator, 12 Volt, 120 Ampere; battery, standard, 1 x 12 Volt, 155 Ah; Starter motor, 12 Volt, 3.0 kW.
- Engine and related item details: Komatsu SAA4D104E-1 engine; air cleaner, dual element with precleaner; full compliance with EU Stage IIIA and EPA Tier III exhaust emission regulations; side by side cooling cores, (engine, transmission, hydraulic, intercooler).
- KOMTRAX Satellite tracking: Yes
