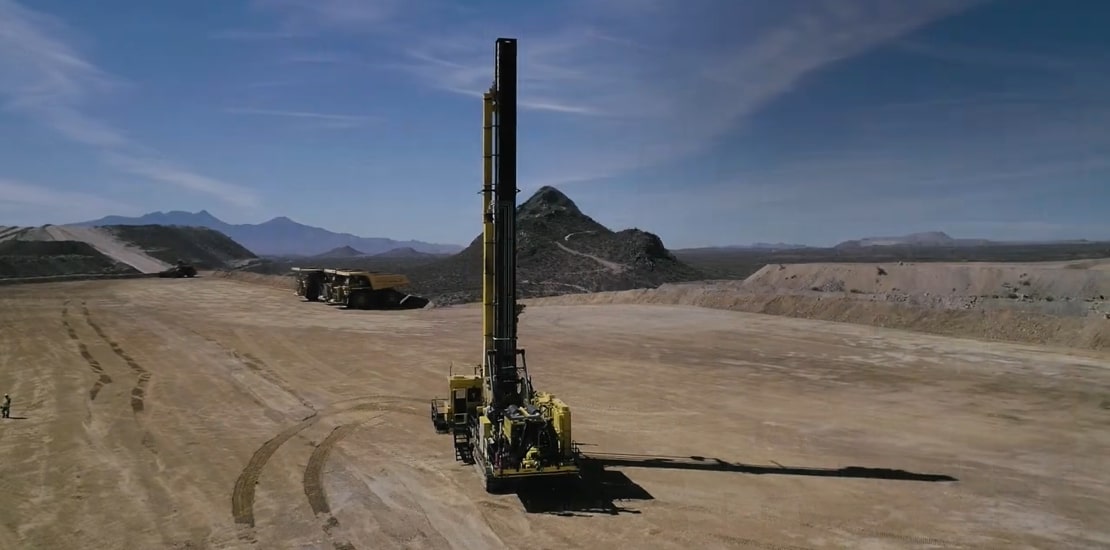

Blasthole drill


  • Hole diameter 349 mm 13 3/4 in
  • Bit loading 55 338 kg 122,000 lbs.
  • Single pass hole depth 20 m 65 ft.

Boost productivity with an advanced drill

Benefit from an enhanced platform drill that reinvents and modernizes drilling. The ZR122 features rugged and reliable rotary carriages, a powerful, precise rack-and-pinion pulldown system, and an enclosed boxer mast; this drill delivers ample torque and bit loading for tough rock conditions.

  • Increase drilling time by up to 12%
  • Improve availability by 2-5%
  • Reduce maintenance costs by up to 10%

    Note: All comparisons and claims of improved performance made herein are made with respect to the prior Komatsu model unless otherwise specifically stated. Materials and specifications are subject to change without notice.

Features and benefits

Komatsu 320XPC blasthole drill on mining site

Solid boxer mast construction

Enclosed section, boxer style mast enhances structural reliability and helps reduce downtime. Makes inspection and repair of potential cracks easier by helping to reduce crack initiation points and stress risers.
Komatsy 77XR blasthole drill on mining site

Innovative rack and pinion pulldown

Help reduce maintenance time by promoting the reliability of the system. Innovative rack-and-pinion pulldown design was engineered to increase drilling forces for excellent dependability.
Komatsu 77XR blasthole drill on mining site

Auto-bit and pipe handling

Help reduce bit change downtime and promote zero harm with an advanced auto-bit changer carousel. Helps to flex into a new hole diameter rapidly so operators can seamlessly adapt the drill pattern to reach peak fragmentation quickly.
Komatsu 77XR blasthole drill in mining site

Enhanced structural design

Enhanced structural design on the mast, main and front frames are engineered for reliability. Easy to configure front frame allows optional add-ons or modification of the power supply.
Komatsu 320XPC blasthole drill auto navigation with HPGPS 1

Auto navigation, high-precision GPS (HPGPS)

Elevate your mine’s productivity with drilling accuracy ― high-precision GPS through auto-navigation capabilities . Allows movement of the drill between holes without the operator inside the cab.
Komatsu 77XR Blasthole Drill in mining site

Single, multi-pass angle drilling

Versatility to allow mines to select their mast configuration. Help mining operations adapt for multiple applications with the same drill.
