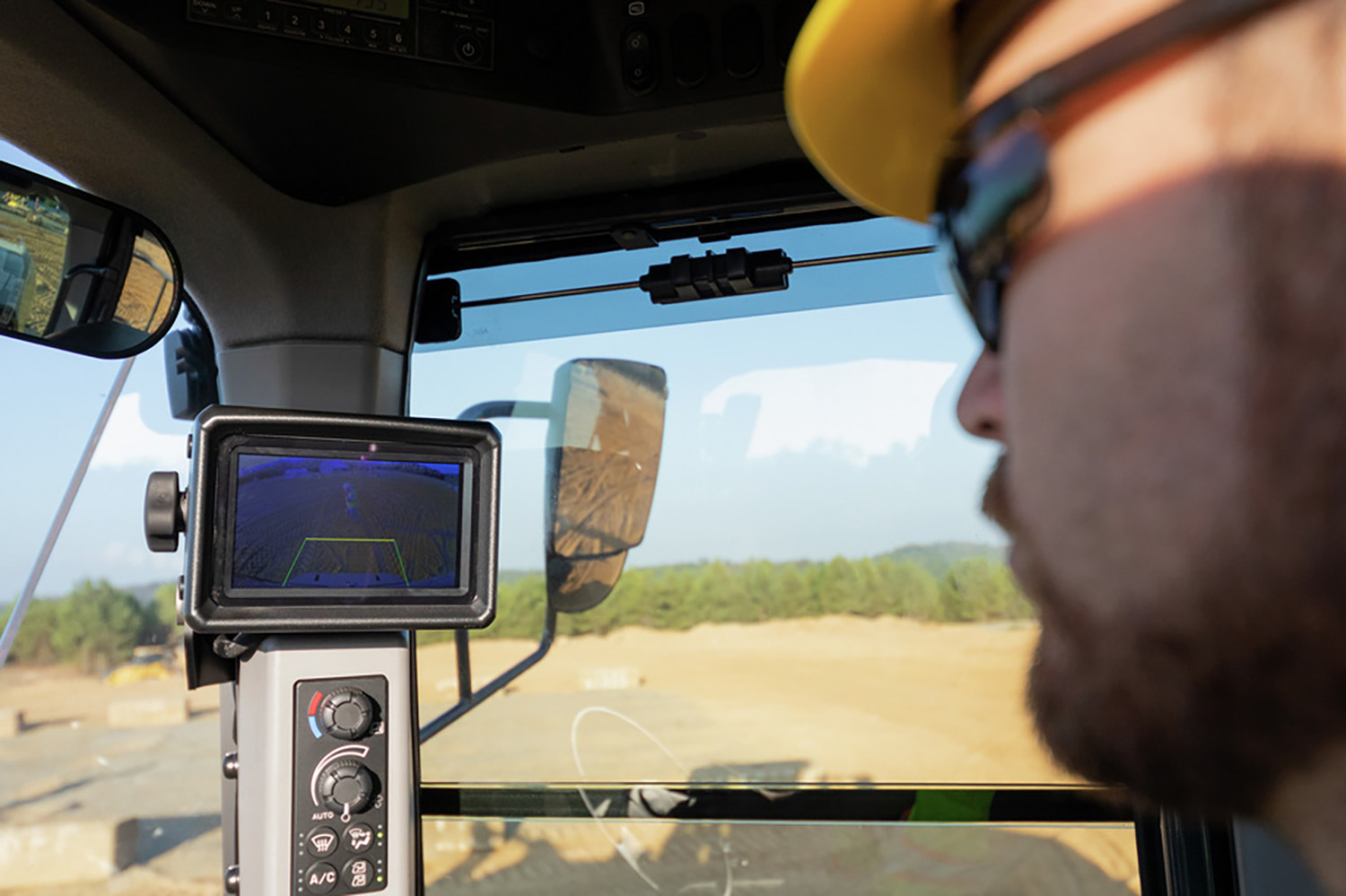

KomVision
Enhance visibility with KomVision, an all-around monitoring system that uses high-definition cameras to provide operators with a real-time bird’s eye-view of their machines’ immediate working area.
Metric
Imperial (US)
Wheel loaders

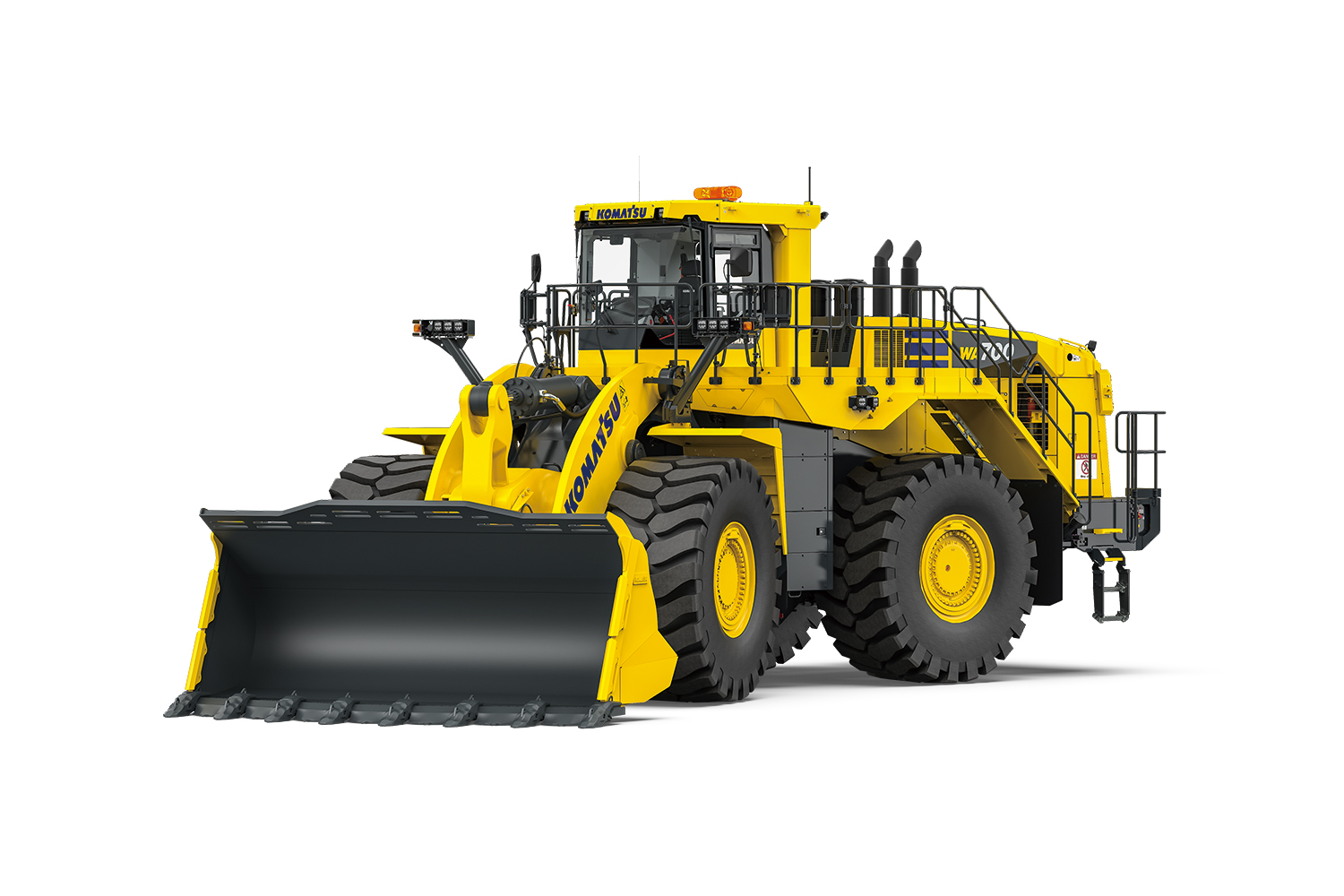

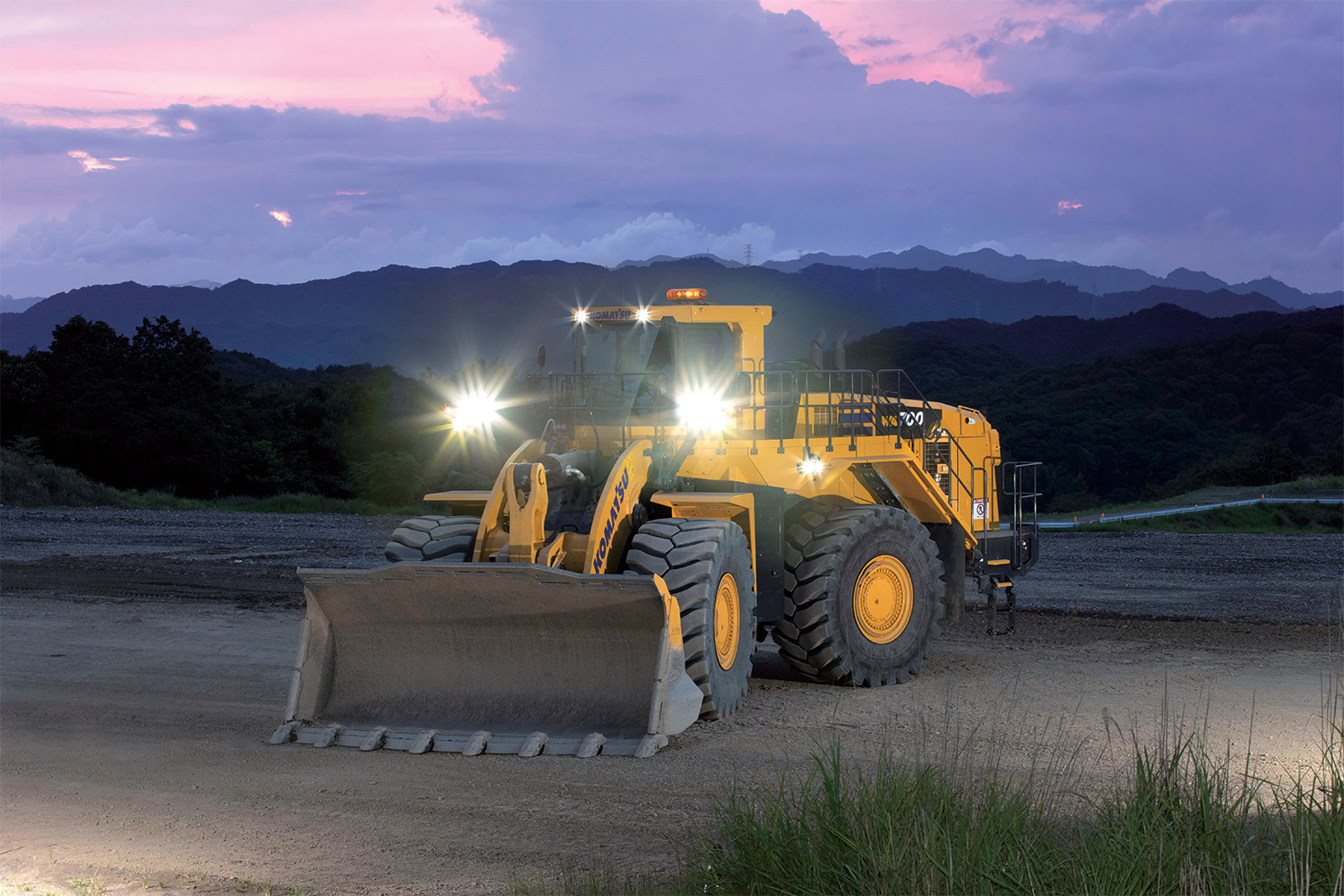

WA700-8
Surface mining wheel loaders
- Horsepower (HP) 773 net HP @ 2,000 rpm
- Horsepower (kW) 568 kW @ 2 000 rpm
- Operating weight (kg) 97 100
- Operating weight (lbs) 214 069
- Bucket Capacity (m^3) 9.2-10.3
- Bucket Capacity (yd^3) 12-13.5

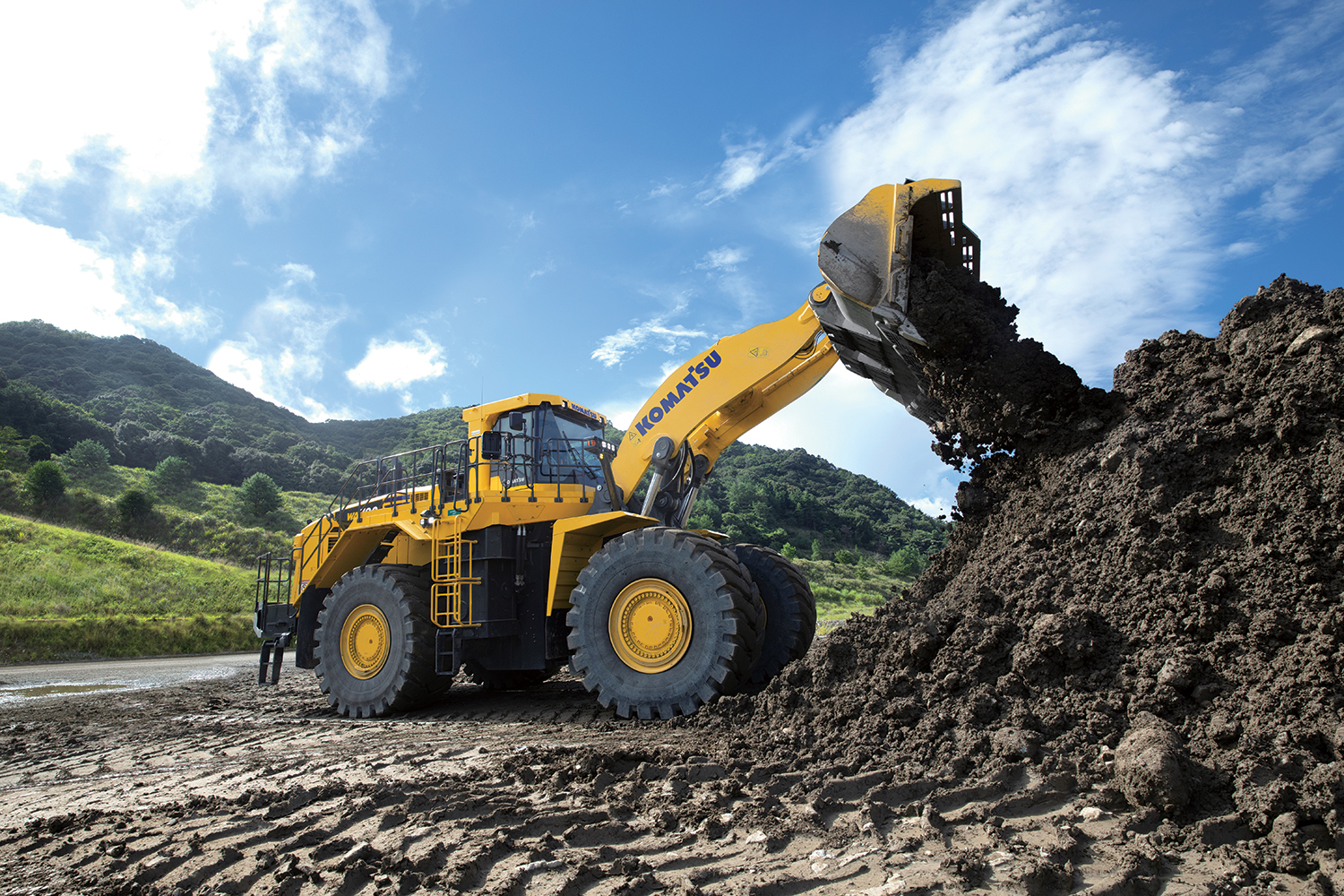

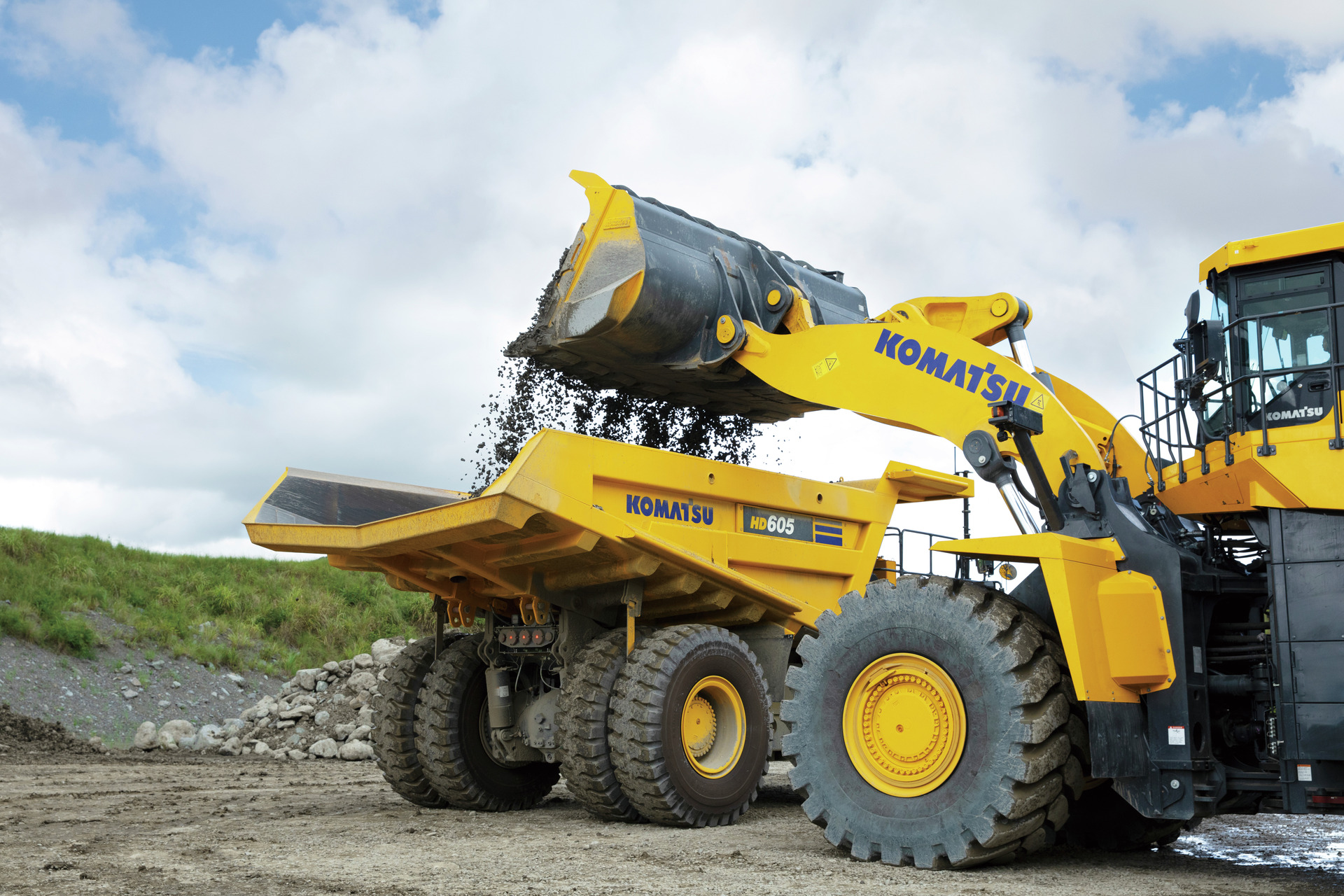

Hit the sweet spot for 70-ton haul truck loading
The Komatsu WA700-8 is an ideal four-pass match with the Komatsu HD605-10 70-ton haul truck. It’s a reliable machine to help keep your quarry operation running strong and productive. Compared to the previous Komatsu model in its class, this workhorse delivers up to:
- 8% more gross power and 15% more torque
- 6% increase in lifting force and rated load
- 8% more fuel efficiency
*All comparisons and claims of improved performance made herein are made with respect to the prior Komatsu model (WA700-3) unless otherwise specifically stated. Materials and specifications are subject to change without notice
Features and benefits

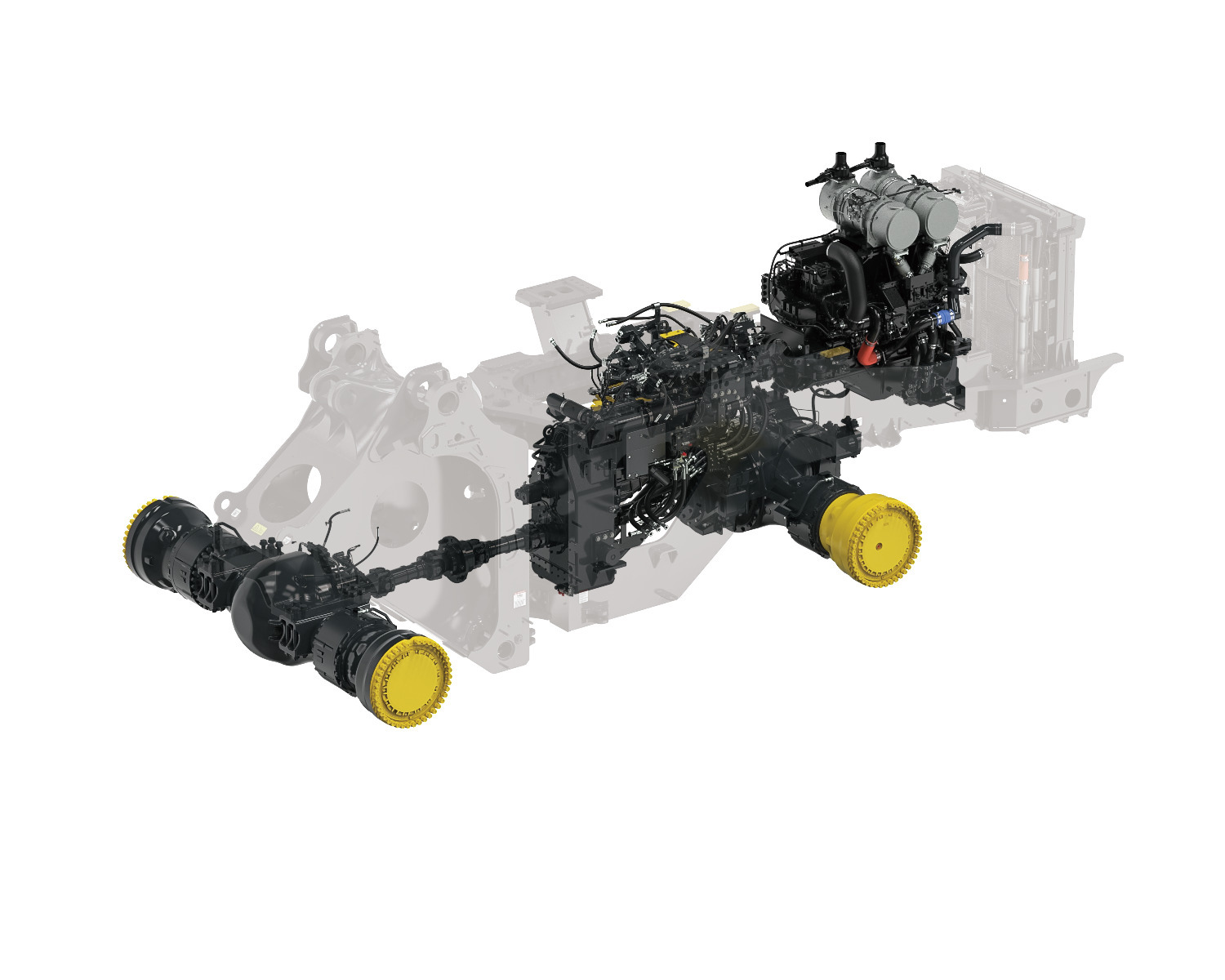

Built tough for demanding digging
Features 8% more gross power and 15% more torque than the previous Komatsu model. Delivers 6% more lifting force and 6% more rated load. The combination of exceptional engine power and torque, as well as breakout force, can help boost digging performance in challenging applications.

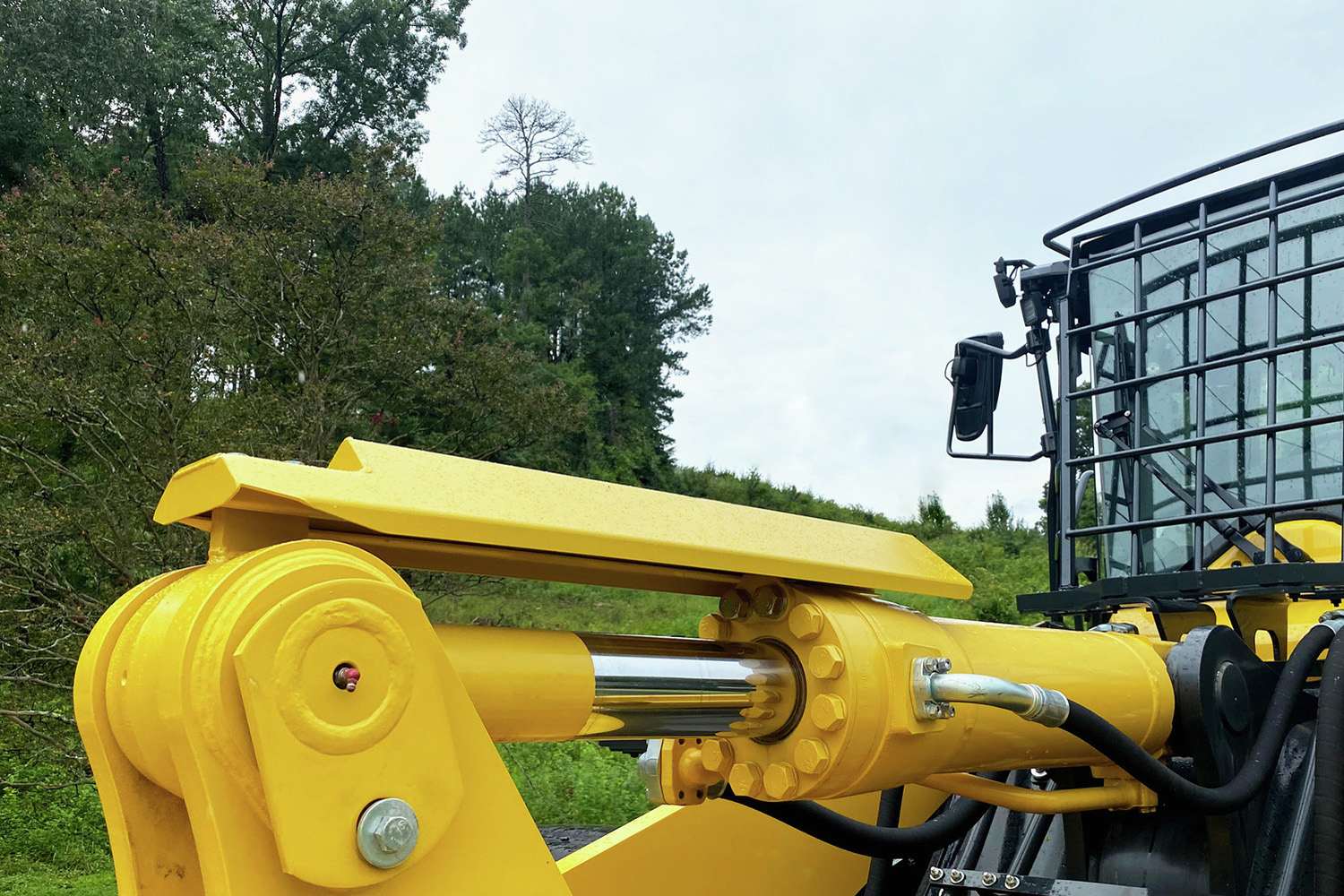

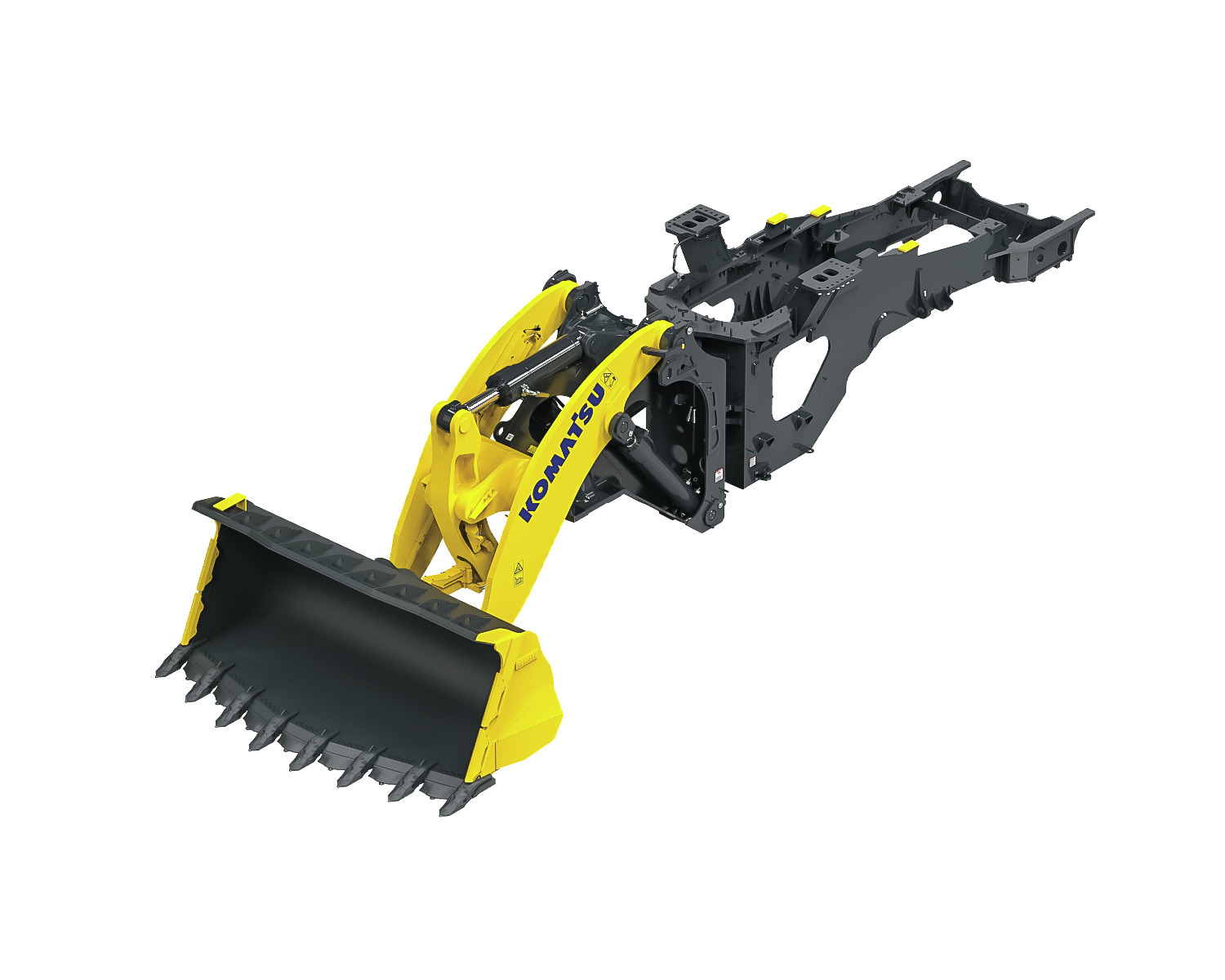

Engineered to last
Proven design foundation with an enhanced frame and loader linkage for enhanced longevity. Excellent breakout force helps ensure exceptional performance in tough digging applications. The common components shared with larger Komatsu wheel loaders are proven to help boost overhaul intervals.

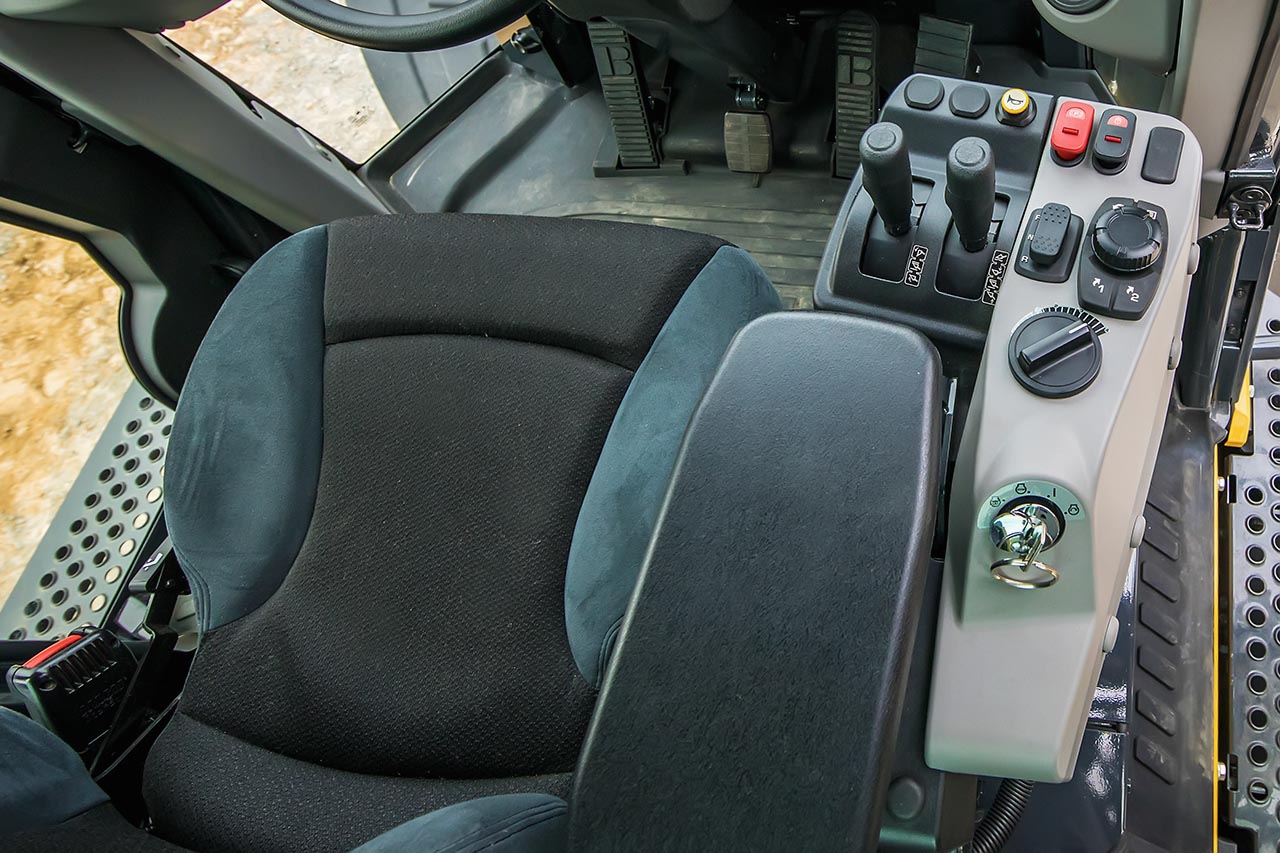

Precise and operator-friendly

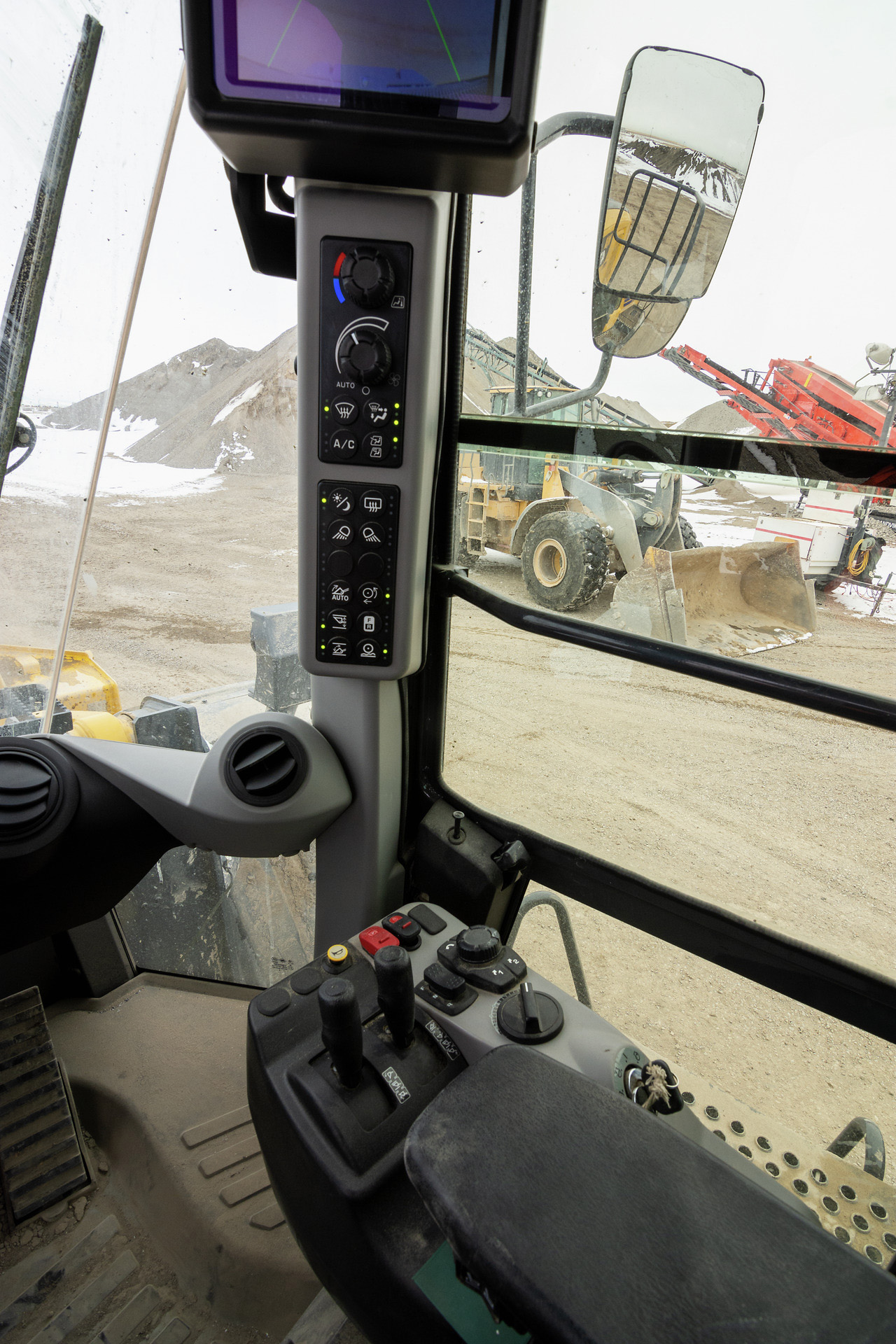

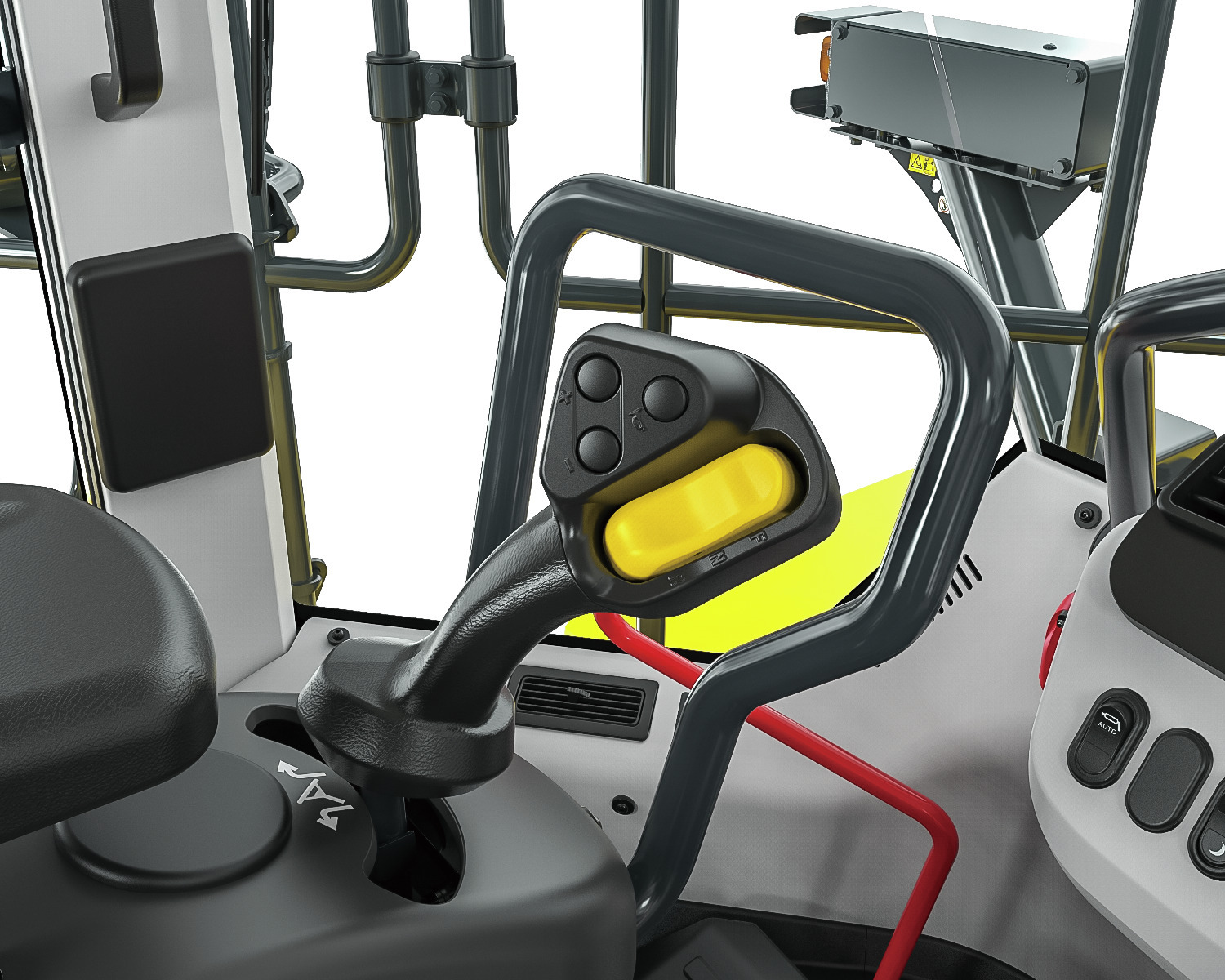

Advanced Joystick Steering System (AJSS) allows precise steering with force feedback integration in the lever motion, matching the machine's steering angle with the joystick's angle. An integrated F-N-R switch, downshift and upshift buttons, and horn button facilitate ergonomic control. The low effort and short-stroke electronic pilot control (EPC) levers facilitate easy operation.
Next-level operator performance
Automatic dig, semi-automatic approach and semi-auto dump systems help boost productivity, especially when V-cycle loading haul trucks. Designed to minimize operator fatigue on long shifts and increase overall efficiency. Automated features help less experienced operators become more adept.

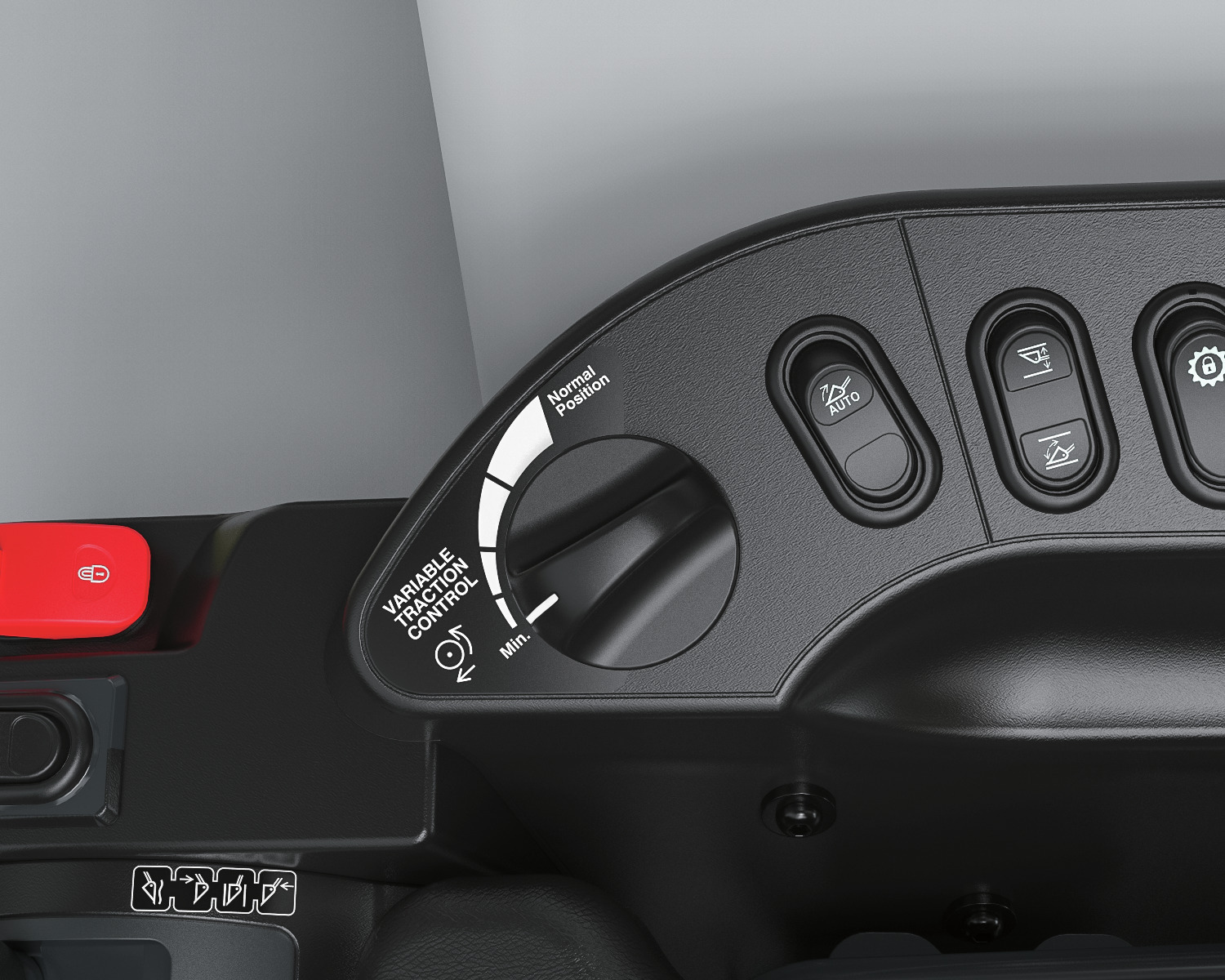

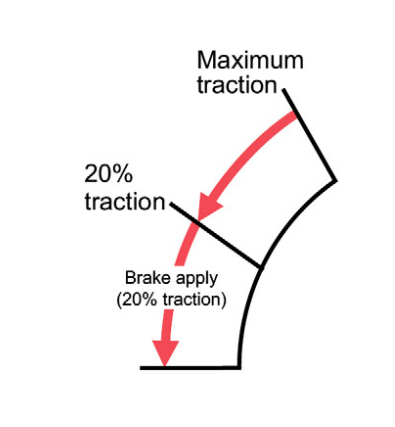

Stay in control in rough terrain
Variable traction control system helps operators maintain traction and reduce tire slippage in slippery or wet conditions. Helps increase tire life. Machine rimpull can be adjusted between 100% and 20% tractive effort depending on conditions, helping operators adjust according to the terrain.

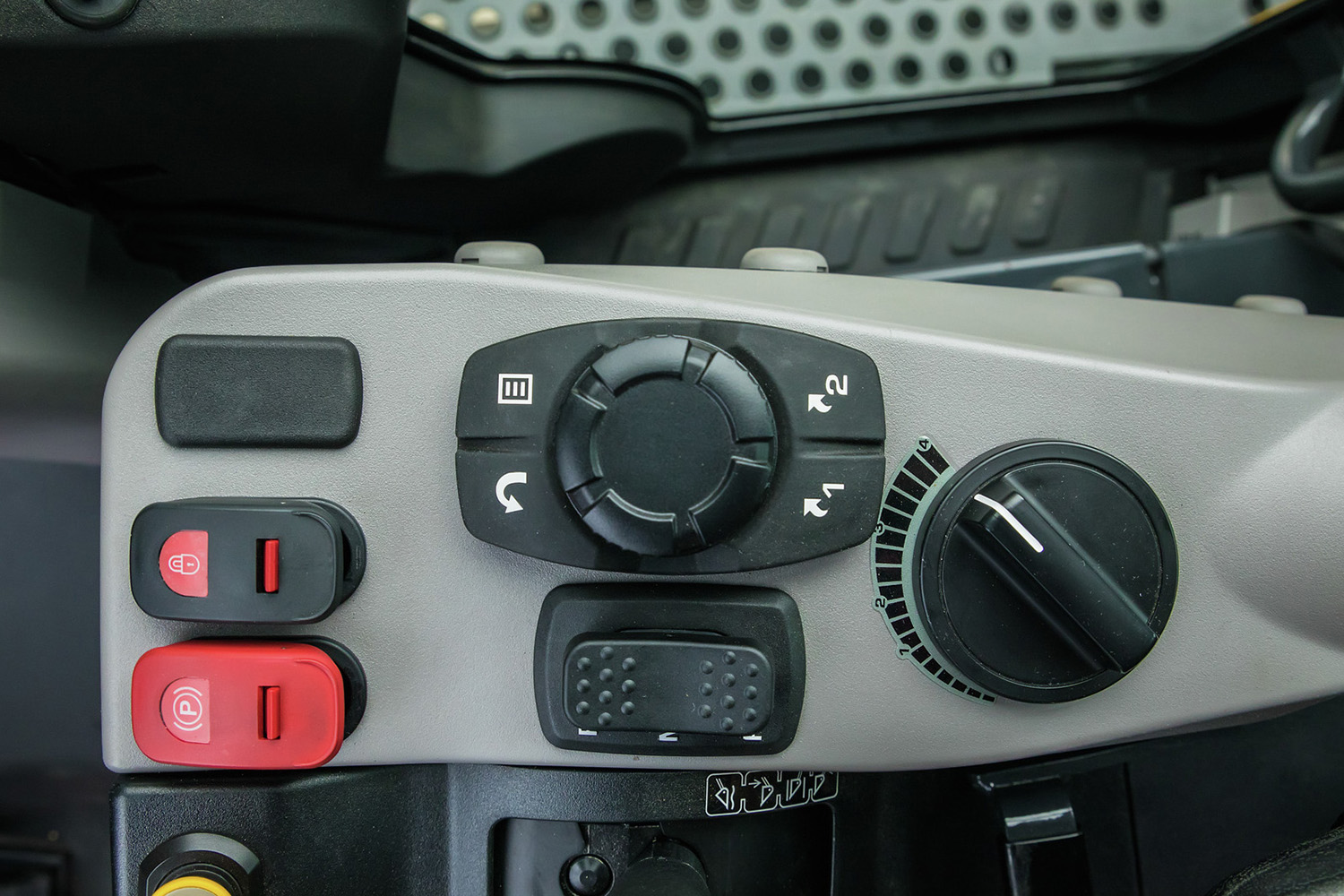

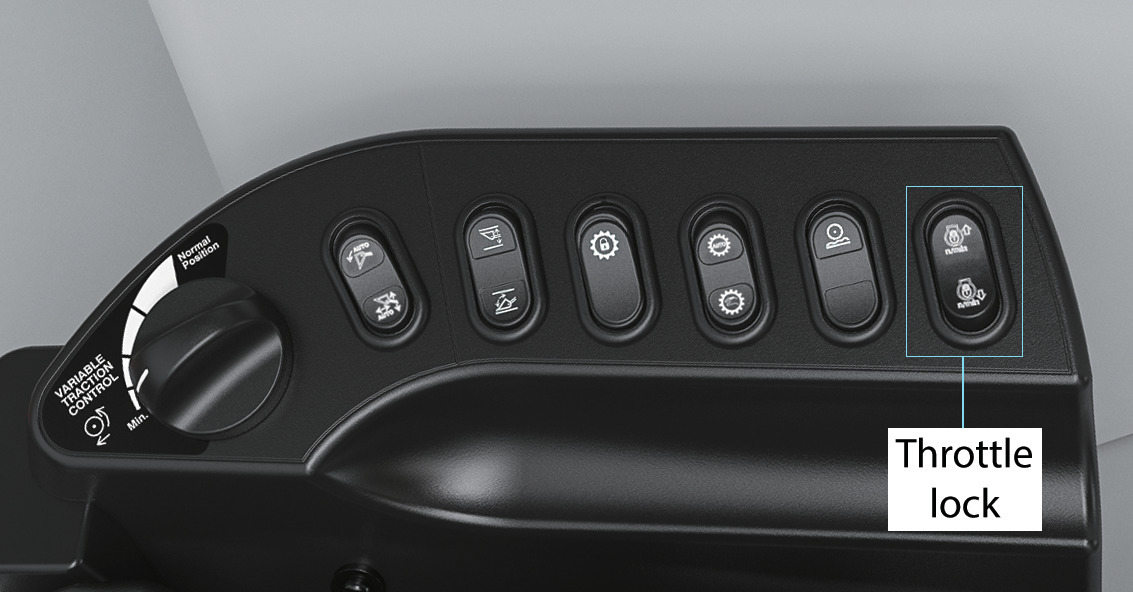

Engine RPM set switch with auto-deceleration
Promote quick cycle times with fast work equipment speeds with throttle lock, an engine feature that sets a constant RPM. When no operator commands are sensed after four seconds, the auto-deceleration feature reduces engine RPM to help save fuel.

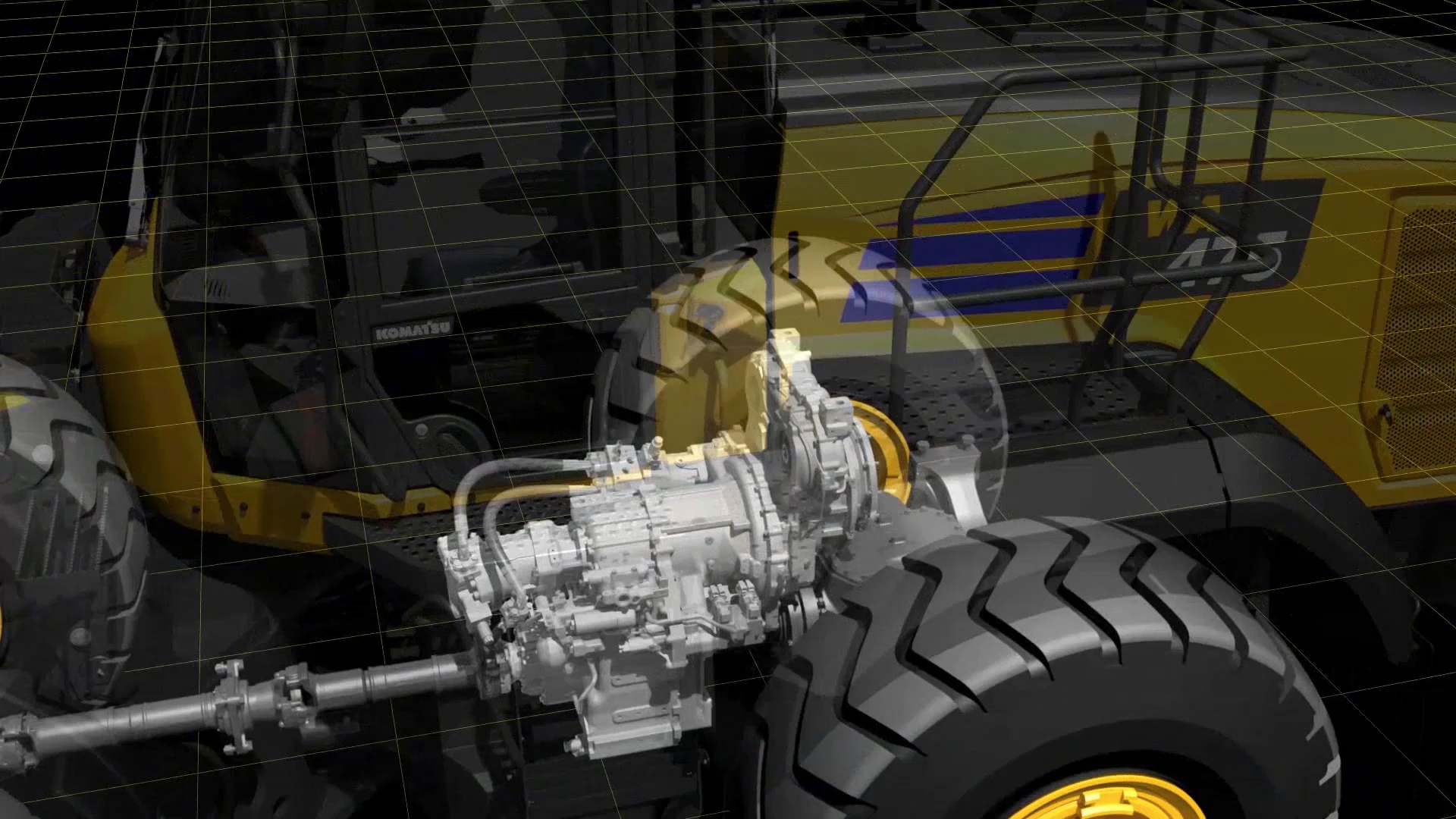

Modulated clutch system for smooth operation
Enables quick acceleration speeds, controlled approaches and reduced shock during directional shift changes. The modulation clutch offers elevated control in v-cycle loading patterns while maintaining production efficiency. This control is made possible using the left-hand pedal that modulates tractive effort from 100-20% of the torque converter output.

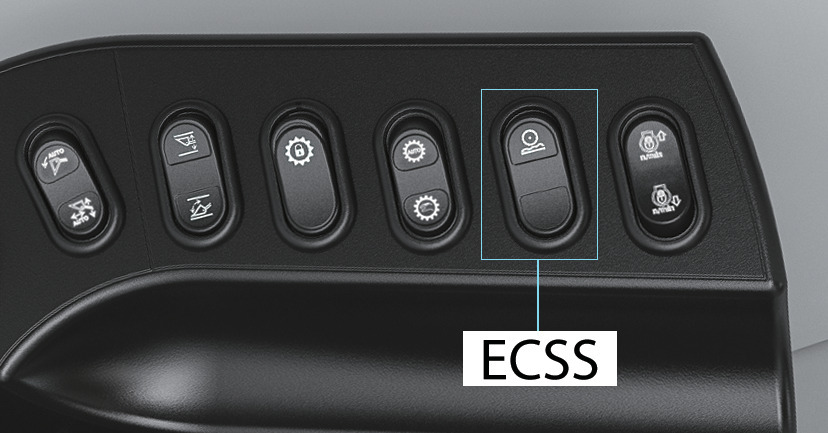

Smooth ride with bucket stability
Electronically controlled suspension system (ECSS) absorbs boom bounce and shock on uneven surfaces. This absorption reduces machine pitch and bounces, helping to decrease bucket material spillage and increase ride comfort. Delivers smoother travel performance, even at higher speeds.

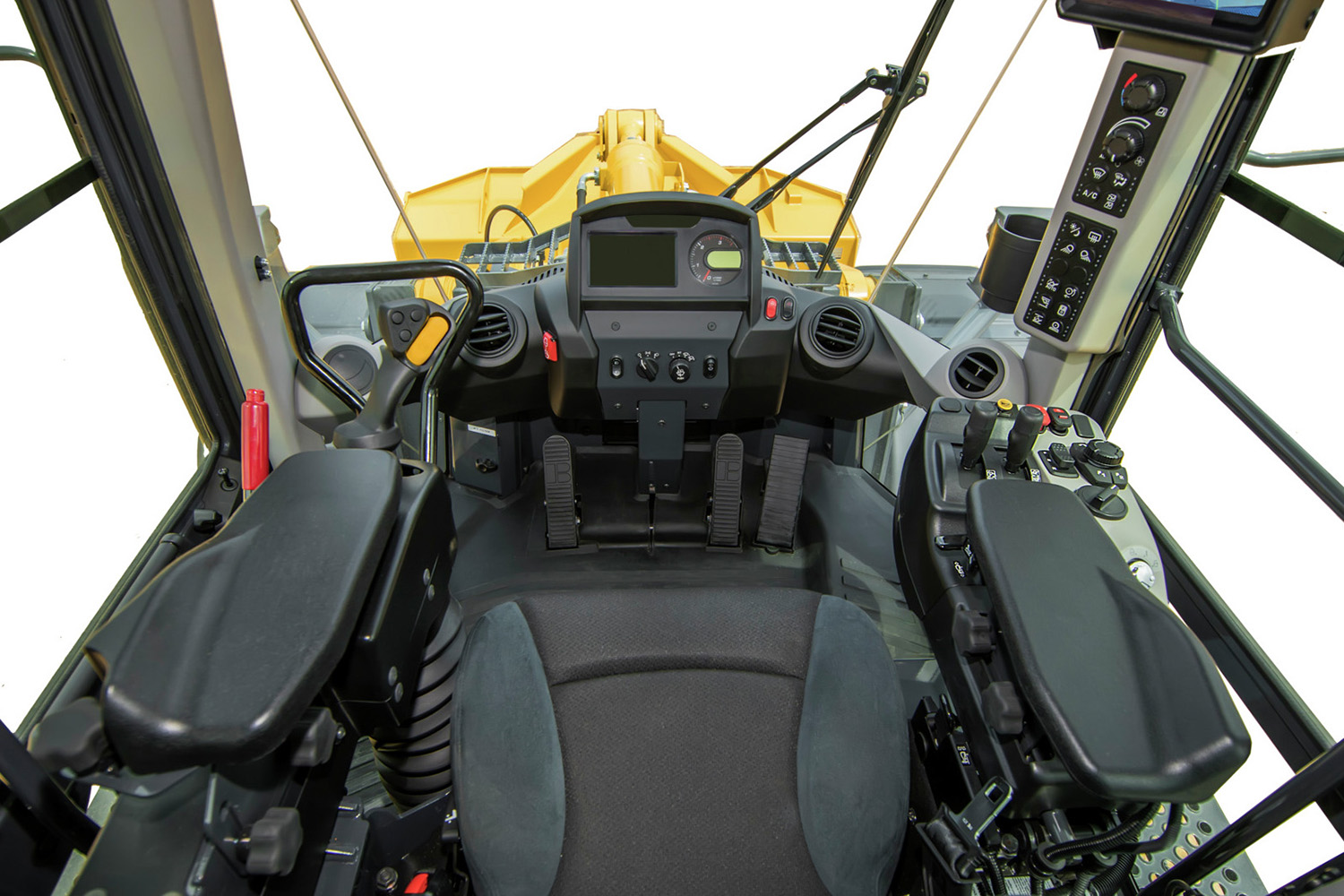

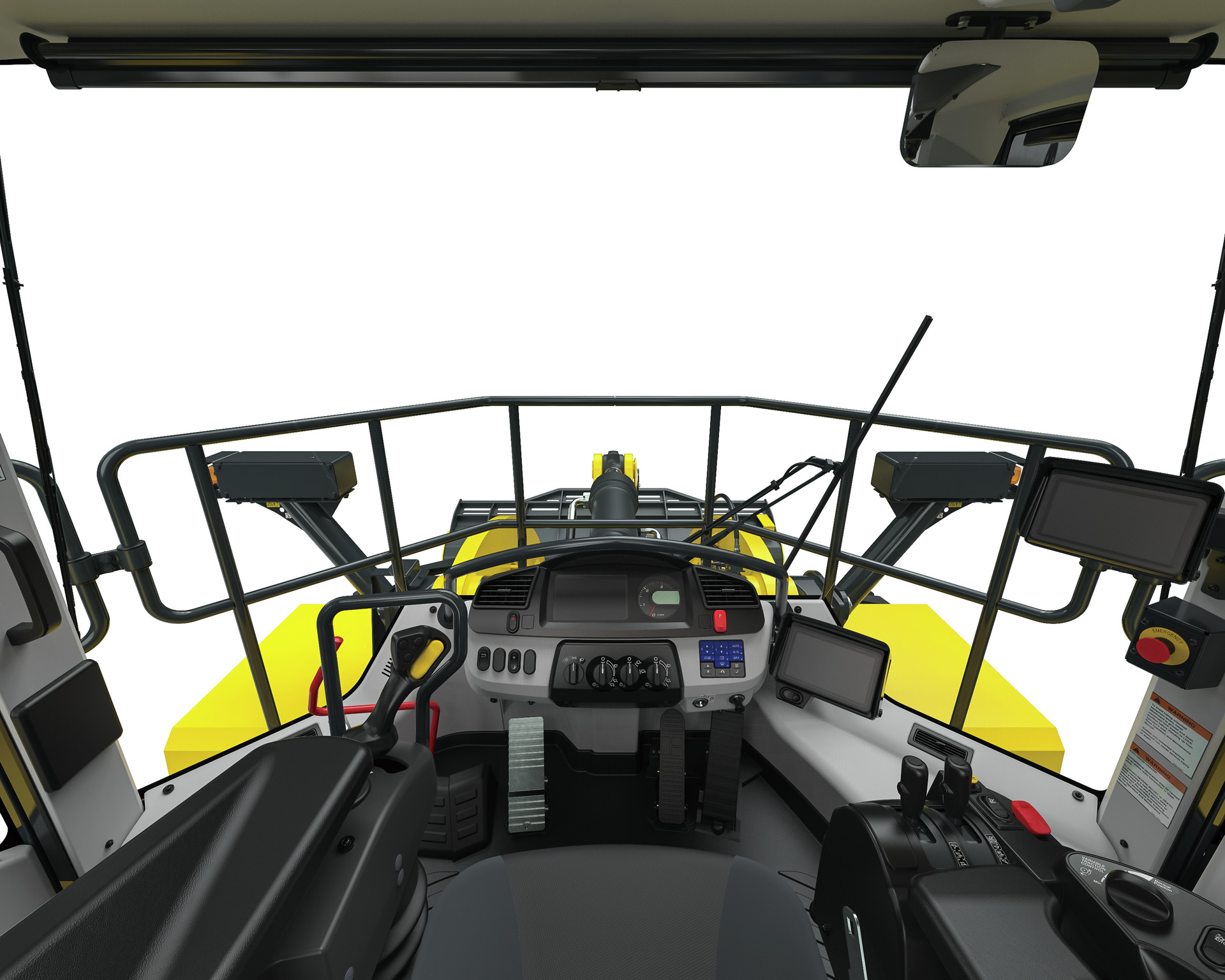

Exceptional visibility and maneuverability
A design with standout line-of-sight views from the cab. The 22 bright LED lamps help operators navigate tricky and dark working conditions during night shifts. Delivers enhanced visibility and situation awareness via KomVision — an all-around monitoring system aided by six high-definition cameras.

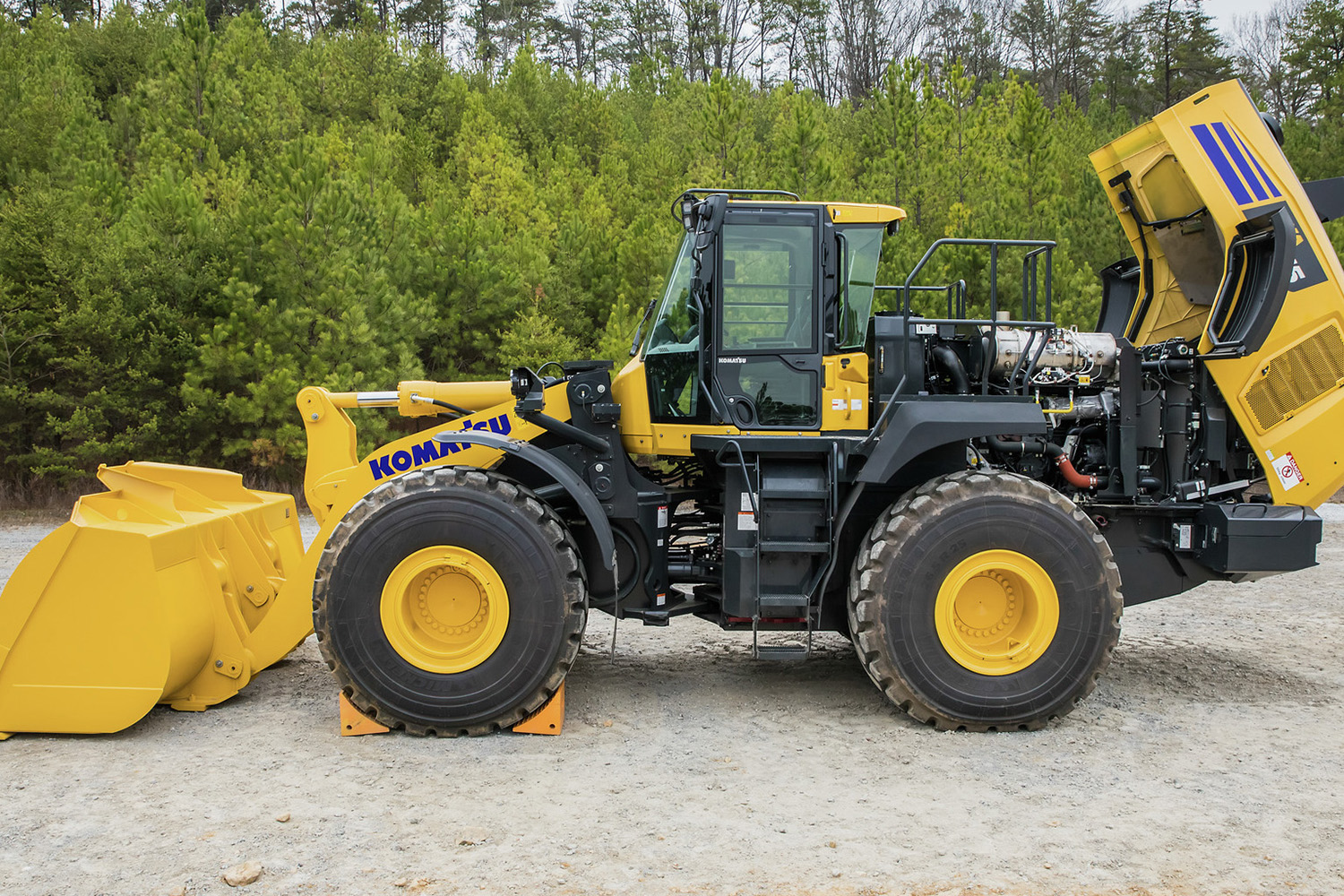

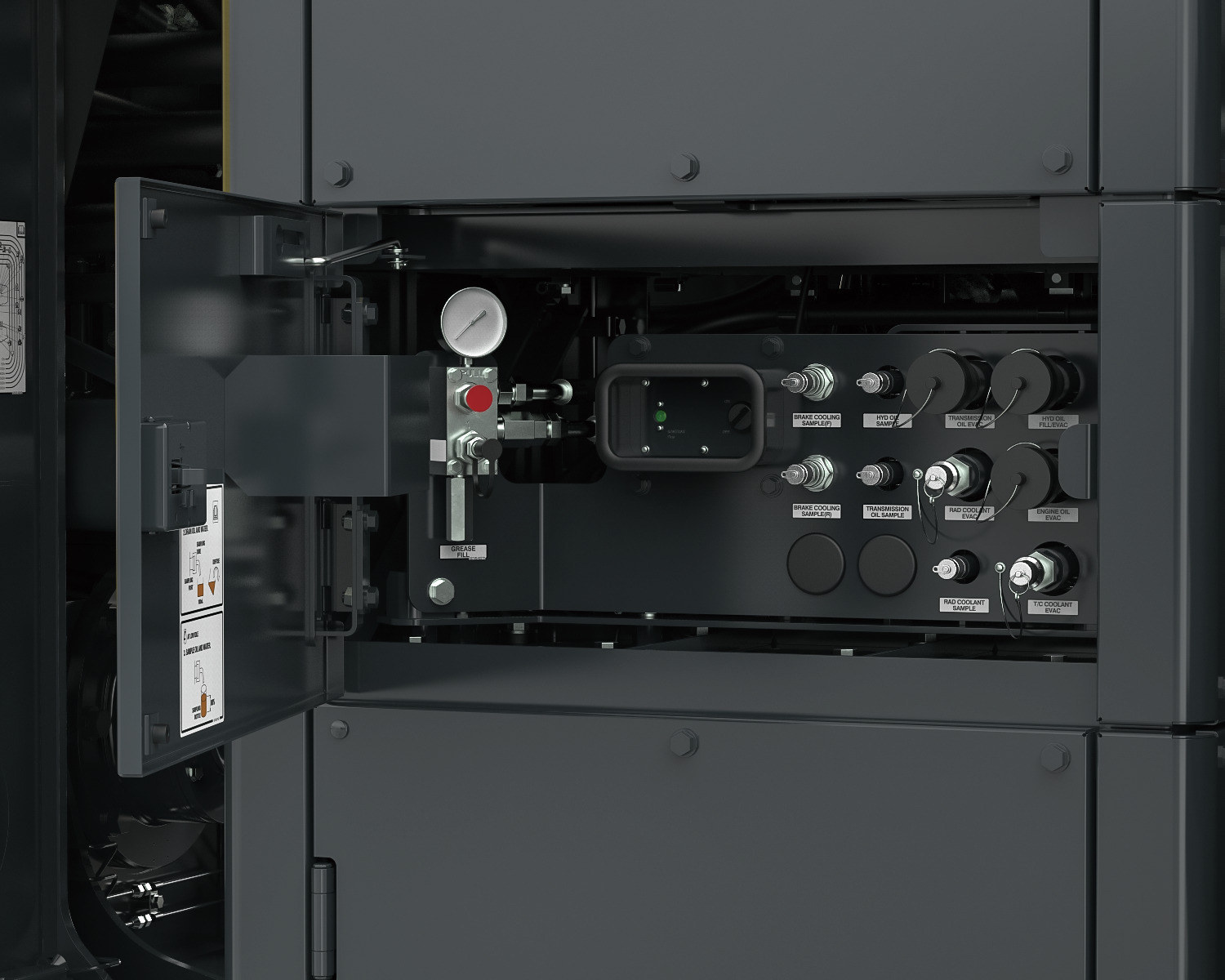

Time-saving centralized maintenance
Easy access to key service areas enables your team to perform preventative maintenance tasks efficiently. A centrally located service center provides ground-level access to ports for draining and refilling critical fluids, as well as sample ports to minimize downtime and get your machine back into production.
Smart engine control logic
SmartLoader Logic automatically adjusts the wheel loader's torque output based on the task at hand. This logic helps reduce fuel consumption while maintaining machine performance during varying conditions and fluctuating power needs.

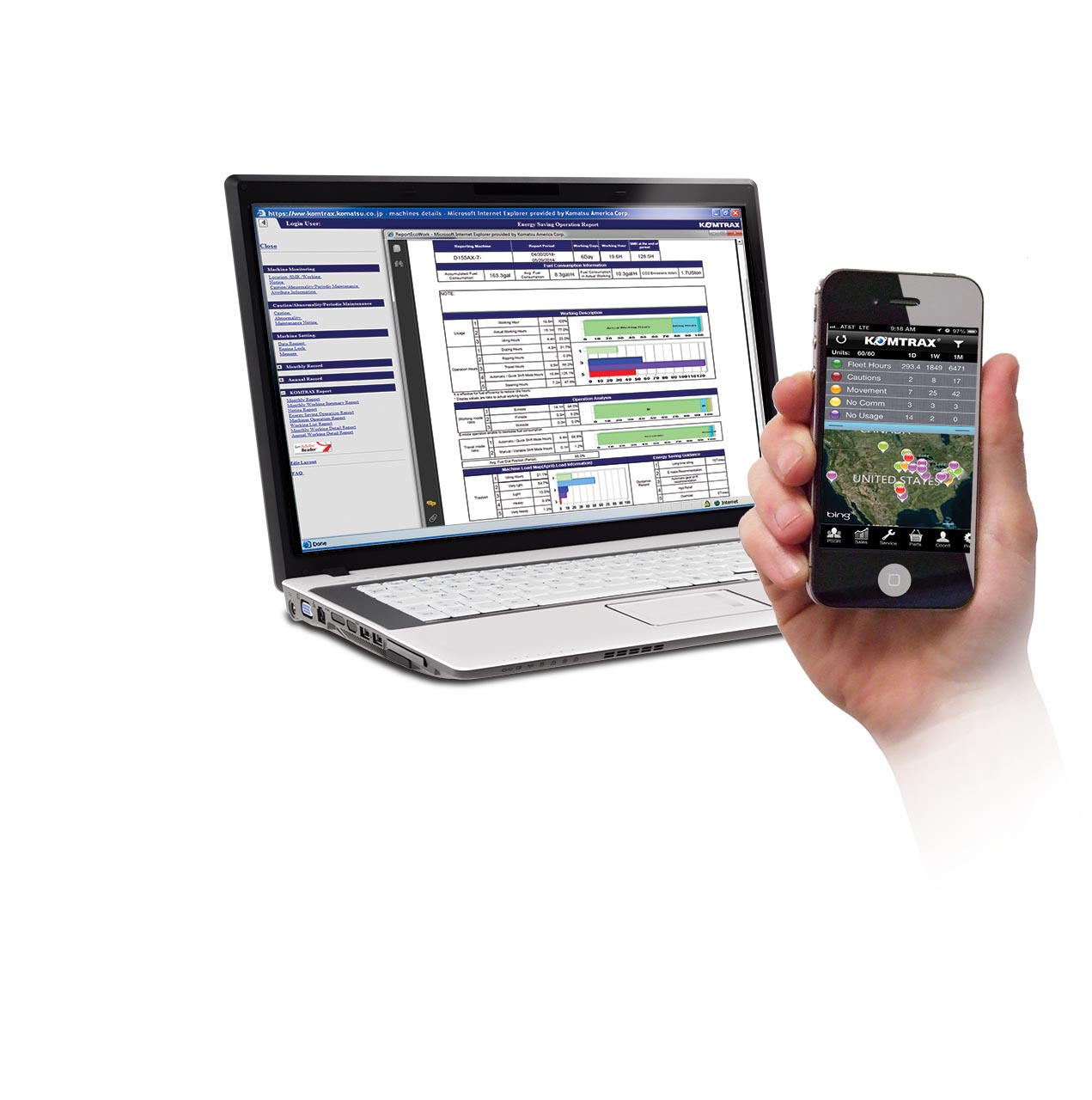

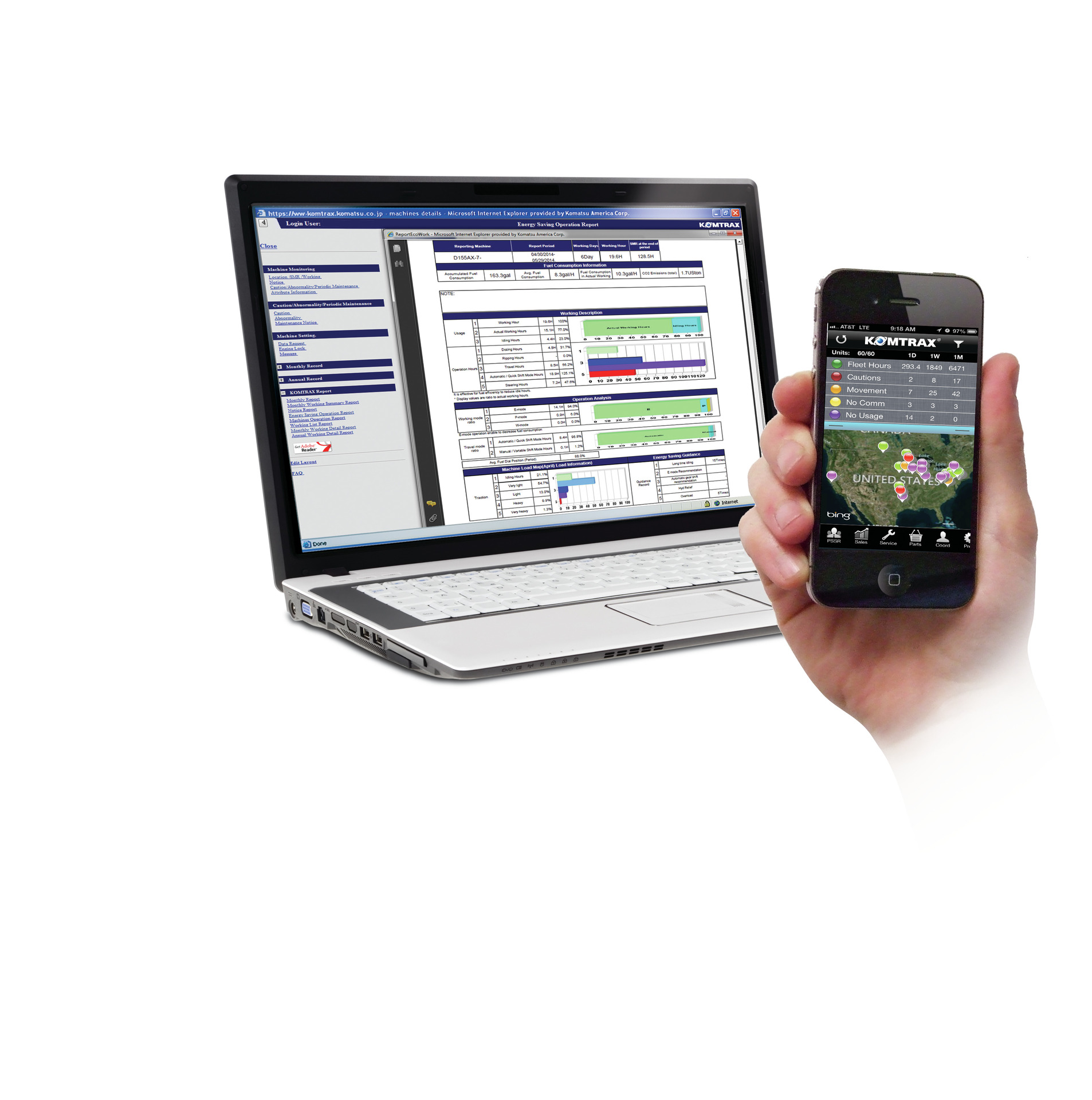

Make informed decisions
Komtrax Plus remote equipment monitoring and management system continuously checks your machine’s settings, condition, fuel usage, performance and operating practices. Empowers smart operational decisions based on vital machine telematics information and data. May help you reduce operational costs.
Specifications
- Full specs
- Standard equipment
- Optional equipment
Metric
Imperial (US)
Expand all
- Engine Model: Komatsu SAA6D170E-7
- Cooling Type: Water-cooled, 4 cycle
- Aspiration: Variable geometry turbocharged and air to air aftercooled, cooled EGR
- Number of cylinders in engine: 6
- Bore x stroke of engine (in): 6.69 x 6.69
- Bore x stroke of engine (mm): 170 x 170
- Piston displacement (L): 23.15
- Piston displacement (in^3): 1,413
- Governor: All-speed, electronic
-
Lubrication system
- Method: Gear pump, force-lubrication
- Filter: Full-flow type
- Air cleaner: Dry type with double elements, plus dust indicator
-
Horsepower
- SAEJ1995 - Gross (kW): 578
- SAEJ1995 - Gross (HP): 775
- ISO 9249 / SAE J1349 - Net (HP): 773
- ISO 9249 / SAE J1349 - Net (kW): 577
- Rated RPM: 2,000
- Fan drive method for radiator cooling: Hydraulic
- Fuel system: Direct injection
- Torque converter: 3-elements, 1-stage, 1-phase, with lock-up clutch, transmission is automatic powershift
-
Travel speed
- 1st, forward (mph): 4.7
- 1st, reverse (mph): 4.9
- 2nd, forward (lock-up clutch ON) (mph): 8.4
- 2nd, forward (kph): 8.4
- 2nd, reverse (lock-up clutch ON) (mph): 8.4
- 2nd, reverse (kph): 8.4
- 3rd, forward (kph): 14.4
- 3rd, forward (lock-up clutch ON) (mph): 16.1
- 3rd, reverse (lock-up clutch ON) (mph): 16.7
- 3rd, reverse (kph): 14.9
-
Cylinders
- Boom cylinder - 2 (mm): 225 x 1 360
- Boom cylinder - 2 (in): 8.9 x 53.5
- Bucket cylinder - 1 (mm): 280 x 825
- Bucket cylinder - 1 (in): 11 x 32.4
- Control valve: Spool type
-
Loader control
- Hydraulic cylinder type for loader control: Double-acting, piston type
- Hydraulic pump: Piston pump
- Relief valve setting (psi): 4,975
- Relief valve setting (Mpa / kgf/cm^2): 34.4 / 350
-
Steering System
- Hydraulic pump for steering system: Piston pump
- Capacity for steering system (at rated rpm) (US gpm): 2 x 41.6
- Capacity for steering system (at rated rpm) (L/min): 2 x 157.5
- Relief valve setting (kgf/cm^2): 320
- Relief valve setting (psi): 4,540
- Relief valve setting (MPa): 31.3
- Hydraulic cylinders type for steering system: Double-acting, piston type
- Number of cylinders in hydraulic cylinders: 2
- Bore x stroke (mm): 150 x 587
- Bore x stroke (in): 5.9 x 23.1
-
Control positions
- Boom: Raise, hold, lower, and float
- Bucket: Tilt-back, hold, and dump
-
Hydraulic cycle time (rated load in bucket)
- Raise (s): 7.4
- Dump (s): 2.8
- Lower (Empty) (s): 4.4
- Steering system type: Articulated type, fully-hydraulic power steering
- Steering angle: 40° each direction
- Minimum turning radius at the center of outside tire (ft , in): 29 ft. 8 in
- Minimum turning radius at the center of outside tire (mm): 9 050
- Cooling system (US gal): 58.4
- Cooling system (L): 221
- Fuel tank (US gal): 375.1
- Fuel tank (L): 1 420
- Engine (US gal): 22.7
- Engine (L): 86
- Hydraulic system (US gal): 220.1
- Hydraulic system (L): 833
- Axle front (US gal): 89.8
- Axle front (L): 340
- Axle rear (US gal): 89.8
- Axle rear (L): 340
- Torque converter and transmission (US gal): 60.8
- Torque converter and transmission (L): 230
- Service brake: Hydraulically actuated, wet multiple-disc brakes actuate on four wheels
- Parking brake: Wet multiple-disc brake
- Drive System: Four-wheel drive
- Front Axle: Fixed, full-floating
- Axle Rear: Center-pin support, full-floating
- Final reduction gear: Planetary gear, single reduction
- Differential gear: Conventional type
- Reduction gear: Spiral bevel gear
- Secondary: One of dual service brake circuits is commonly used.
Metric
Imperial (US)
Lighting system
- Access stair lamp, LH side, LED
- Directional signal
- Engine bay lamp, LED
- Hazard lamps
- Headlamps, LED
- Front work lamps, LED
- Rear corner additional work lamp, LED
- Rear work lamps, LED
- Side work lamps, LED
- Stop and tail lamps and turn signal lamps, LED
Cab
- 2 x DC12V electrical outlets
- Advanced joystick steering system
- Auto air conditioner
- Ashtray
- Cigarette lighter
- Color multi-monitor
- Cup holder
- Electronic Pilot Control fingertip control
- Floor mat
- Front wiper (with washer and intermittent)
- Operator seat with 3-point seat belt ,ventilation, air suspension type
- Radio: AM/FM with AUX terminal, USB port for charging and Bluetooth®
- Rear defroster (electric)
- Rear wiper (with washer and intermittent)
- Room mirror
- Room lamps, LED
- ROPS(ISO 3471)/FOPS (ISO 3449)
- Space for lunch box
- Spot lamp, LED
- Steel cab included front, rear and side wiper with windshield washer
- Sun shades (front and rear), retractable type
- Sun visor (front)
- Trainer seat with 2-point seat belt
General equipment
- Back-up alarm
- Beacon lamp
- Emergency stop switch
- Engine shutdown secondary switch
- Hand rails for platform
- Horn, electric
- KomVision camera system
- Machine lock out system
- Parking brake, electric
- Rear view monitoring system
- Secondary brake
- Secondary steering (ISO 5010)
- Service brakes, wet disc type
Engine
- Air cleaner, Dry type with double elements, plus dust indicator
- Alternator, 24 V/140 A
- Bio diesel fuel, B20
- Engine, Komatsu SAA6D170E-7
- KDPF
- Maintenance free batteries, Large capacity, 4 x 12 V/160 Ah
- Starting motor, 2 x 24 V/11 kW
Others
- 2-way engine power mode
- 3rd gear prohibition and speed limit control
- 45/65R39(L-5) without tire
- Auto greasing system
- Automatic digging system
- Automatic shift transmission
- Battery and starter Isolators
- Boom positioner with kick-out
- Brake cooling system
- Brake oil thermometer display
- Bucket positioner
- Circuit breaker
- ECO guidance, ECO gauge
- Electronically Controlled Suspension System
- Engine RPM set system with auto deceleration
- Engine starter disconnect switch
- Fire extinguisher stand provision
- Front fenders
- Fuel pre-filter with water separator
- Heated mirrors
- Hydraulic-driven fan with reverse rotation
- Inline filters, steering and hydraulic
- Komatsu auto idle shutdown
- Komatsu SmartLoader Logic
- KOMTRAX Plus
- KOWA sampling port
- Lift cylinders and bucket cylinder

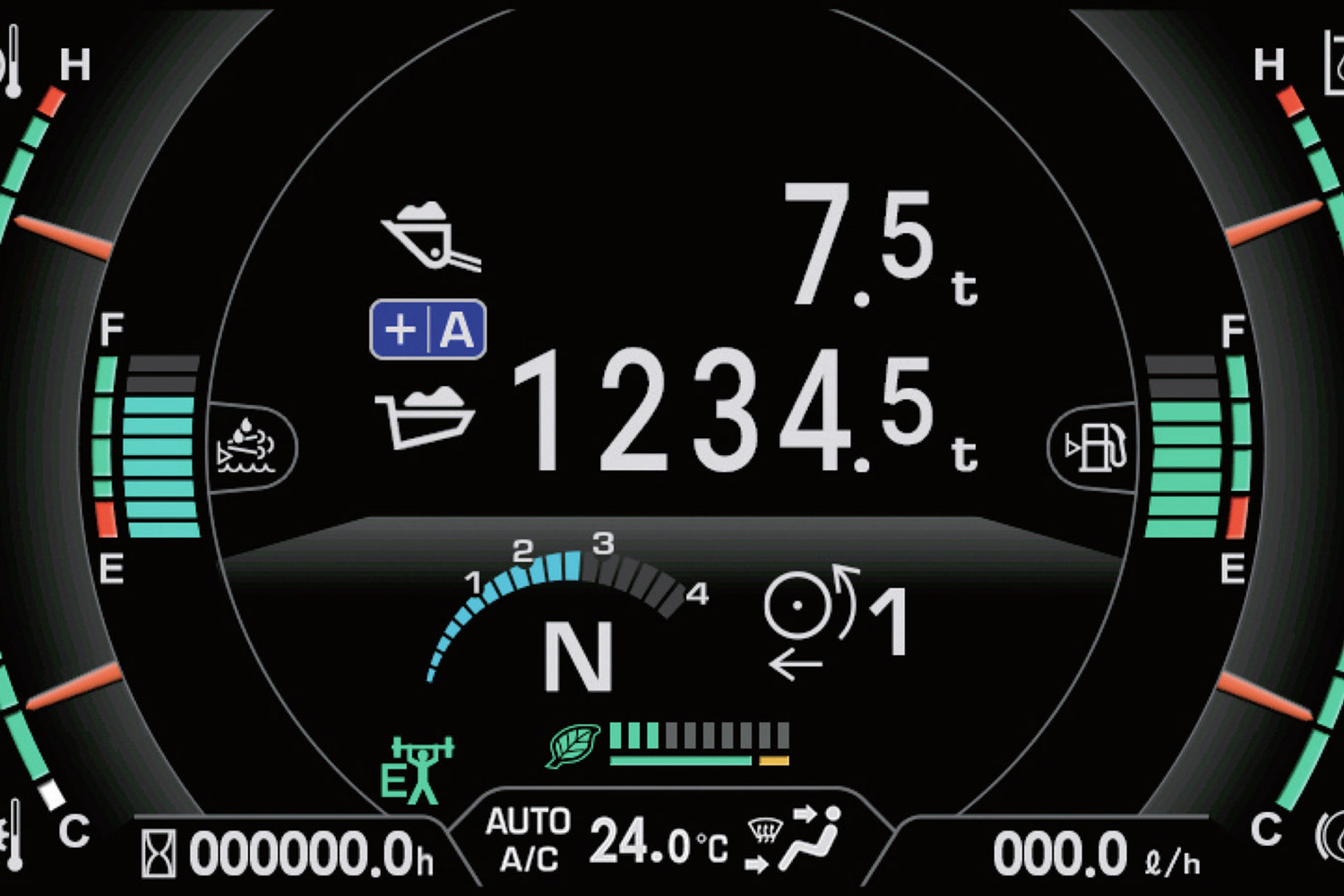

- Load meter system
- Modulation clutch
- Modular radiator core
- Power train guard
- Quick coupling for fuel tank
- Radiator mask, swing out
- Rear access stair with handrail
- Semi-auto approach and dump system
- Service center, engine, transmission, break oil, and coolant
- Starter receptacle
- Sweeper wing
- Tire slip control
- Wall digging prevention control system
- Work equipment shock reduction control
Lighting system
- Access stair lamp, LH side, LED
- Directional signal
- Engine bay lamp, LED
- Hazard lamps
- Headlamps, LED
- Front work lamps, LED
- Rear corner additional work lamp, LED
- Rear work lamps, LED
- Side work lamps, LED
- Stop and tail lamps and turn signal lamps, LED
Cab
- 2 x DC12V electrical outlets
- Advanced joystick steering system
- Auto air conditioner
- Ashtray
- Cigarette lighter
- Color multi-monitor
- Cup holder
- Electronic Pilot Control fingertip control
- Floor mat
- Front wiper (with washer and intermittent)
- Operator seat with 3-point seat belt ,ventilation, air suspension type
- Radio: AM/FM with AUX terminal, USB port for charging and Bluetooth®
- Rear defroster (electric)
- Rear wiper (with washer and intermittent)
- Room mirror
- Room lamps, LED
- ROPS(ISO 3471)/FOPS (ISO 3449)
- Space for lunch box
- Spot lamp, LED
- Steel cab included front, rear and side wiper with windshield washer
- Sun shades (front and rear), retractable type
- Sun visor (front)
- Trainer seat with 2-point seat belt
General equipment
- Back-up alarm
- Beacon lamp
- Emergency stop switch
- Engine shutdown secondary switch
- Hand rails for platform
- Horn, electric
- KomVision camera system
- Machine lock out system
- Parking brake, electric
- Rear view monitoring system
- Secondary brake
- Secondary steering (ISO 5010)
- Service brakes, wet disc type
Engine
- Air cleaner, Dry type with double elements, plus dust indicator
- Alternator, 24 V/140 A
- Bio diesel fuel, B20
- Engine, Komatsu SAA6D170E-7
- KDPF
- Maintenance free batteries, Large capacity, 4 x 12 V/160 Ah
- Starting motor, 2 x 24 V/11 kW
Others
- 2-way engine power mode
- 3rd gear prohibition and speed limit control
- 45/65R39(L-5) without tire
- Auto greasing system
- Automatic digging system
- Automatic shift transmission
- Battery and starter Isolators
- Boom positioner with kick-out
- Brake cooling system
- Brake oil thermometer display
- Bucket positioner
- Circuit breaker
- ECO guidance, ECO gauge
- Electronically Controlled Suspension System
- Engine RPM set system with auto deceleration
- Engine starter disconnect switch
- Fire extinguisher stand provision
- Front fenders
- Fuel pre-filter with water separator
- Heated mirrors
- Hydraulic-driven fan with reverse rotation
- Inline filters, steering and hydraulic
- Komatsu auto idle shutdown
- Komatsu SmartLoader Logic
- KOMTRAX Plus
- KOWA sampling port
- Lift cylinders and bucket cylinder
- Load meter system
- Modulation clutch
- Modular radiator core
- Power train guard
- Quick coupling for fuel tank
- Radiator mask, swing out
- Rear access stair with handrail
- Semi-auto approach and dump system
- Service center, engine, transmission, break oil, and coolant
- Starter receptacle
- Sweeper wing
- Tire slip control
- Wall digging prevention control system
- Work equipment shock reduction control
Metric
Imperial (US)

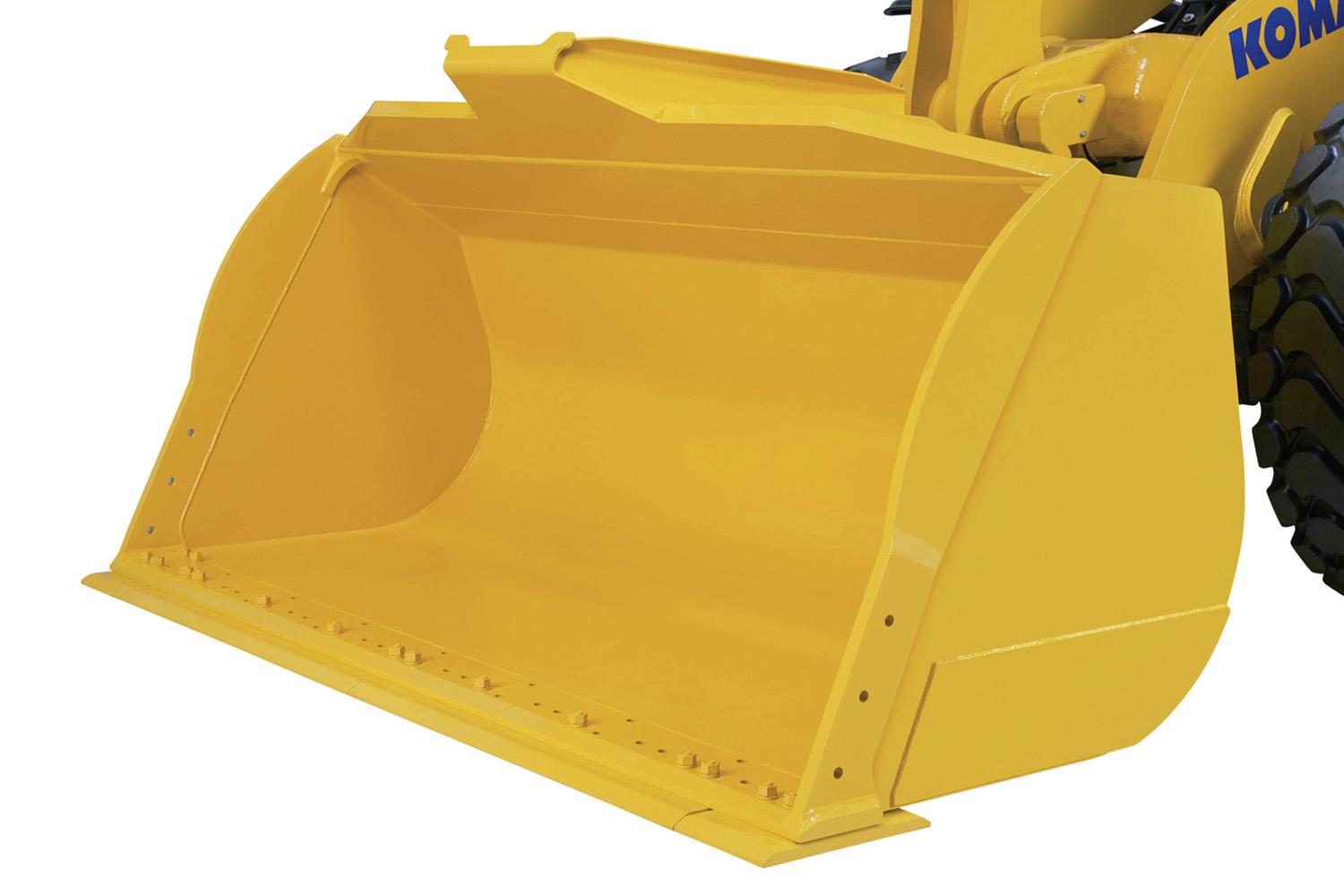

- 12.0 yd3 Hensley Spade Nose Rock Bucket – Kprime P085
- 13.5 yd3 Hensley Spade Nose Rock Bucket – Kprime P085
- 9.2 m3 Hensley Spade Nose Rock Bucket – Kprime P085
- 10.3 m3 Hensley Spade Nose Rock Bucket – Kprime P085
Support you can count on
Technology that works as hard as you do
- KomVision
- Komtrax
- Automated features
Select continent
Komtrax
Manage your machines and their productivity with Komtrax, a free, state-of-the-art remote monitoring service designed to track your assets and help ensure cost control.
Automated features
Help maintain productivity, especially when V-cycle loading haul trucks, with three automated features: automatic dig, semi-automatic approach and semi-auto dump systems. These features help alleviate operator fatigue and improve efficiency.
Find what works for you
