Trucks

HD1500-8E0

Mechanical trucks

  • Capacity (mt) 139
  • Capacity (st) 153.2
  • Gross horsepower (HP) 1,580 HP @ 1,900 rpm
  • Gross horsepower (kW) 1 171 @ 1 900 rpm
  • Operating weight (kg) 249 780
  • Operating weight (lbs) 550,229

Purchase options

Request a quote Find a dealer

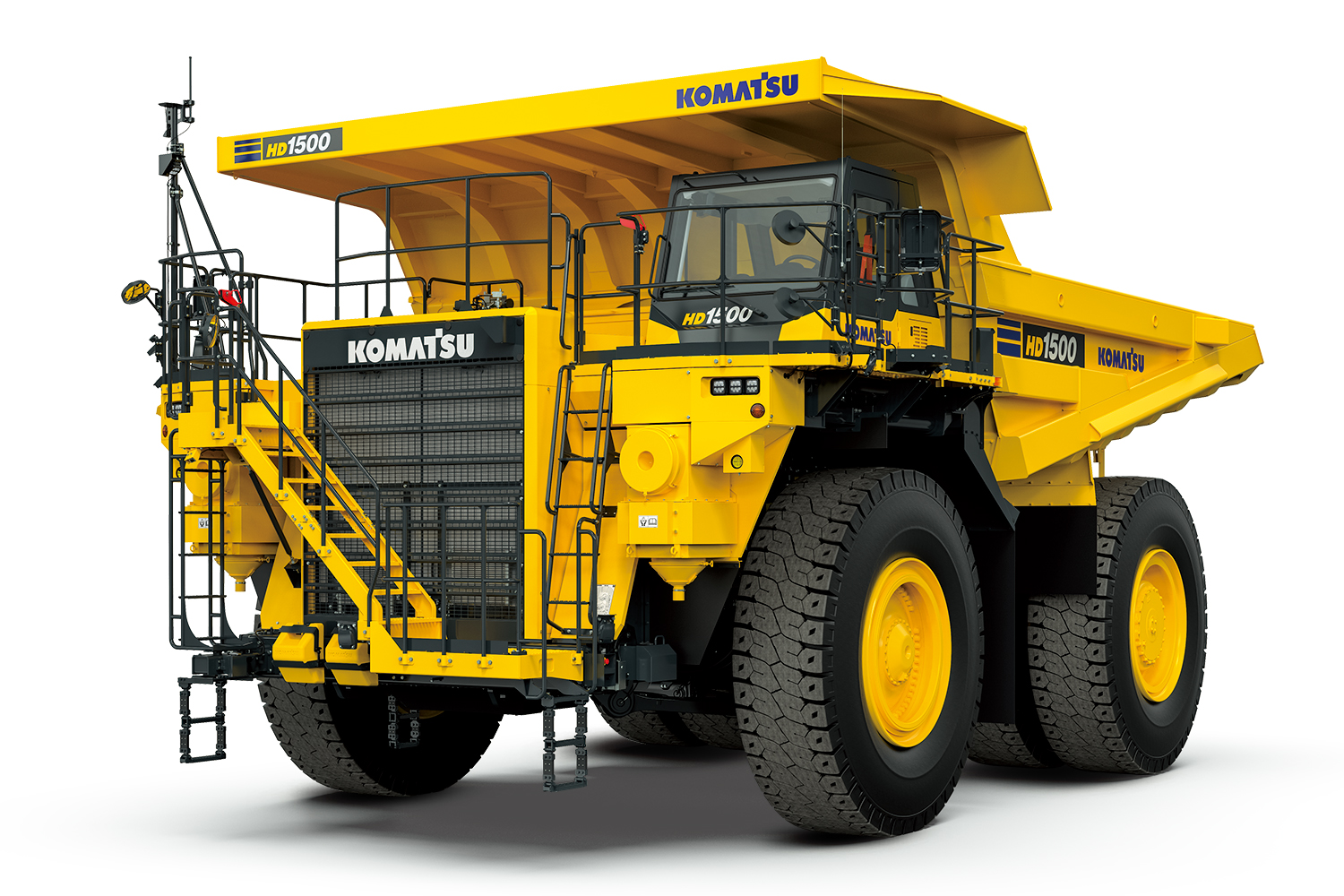

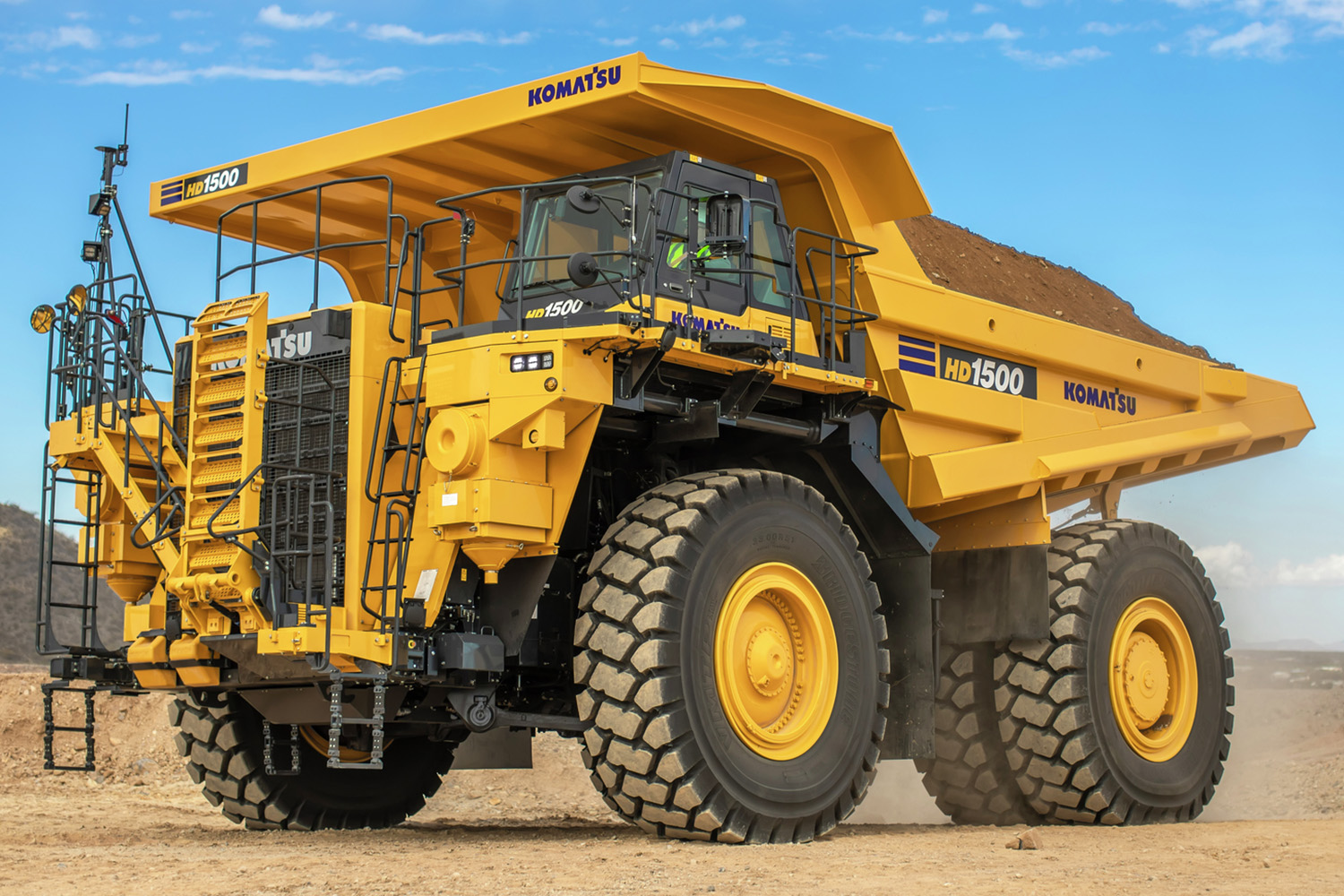

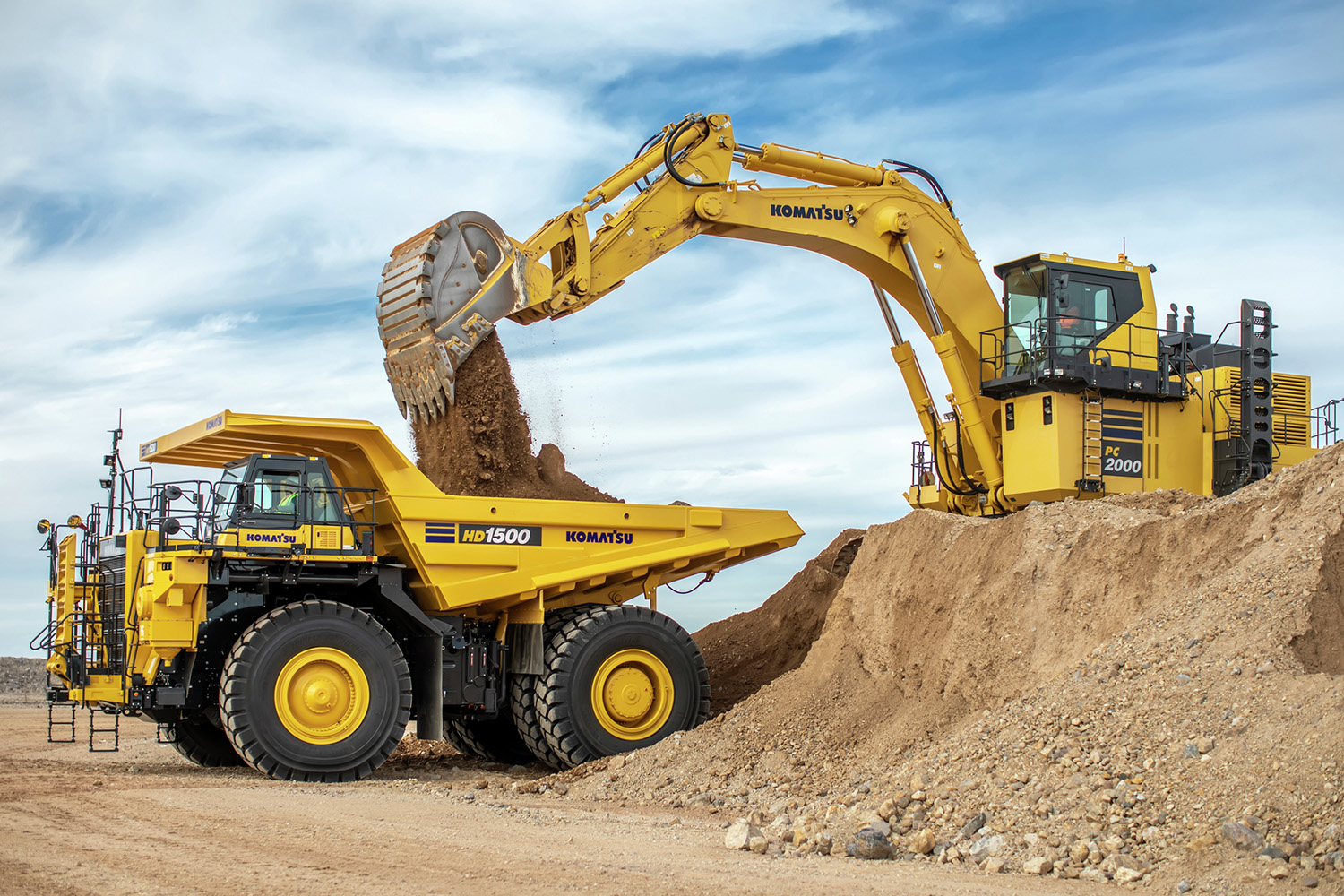

HD1500-8E0 mechanical truck

When you need a mechanical haul truck to help improve productivity and efficiency at your mine operations, the HD1500-8E0 is the solution. This vehicle features a high performance Komatsu SDA16V159E-3 engine, large capacity retarder, tight turning radius and Komatsu Traction Control System (KTCS) to help ensure higher levels of productivity. Help drive efficiency with Komatsu's U.S. EPA Tier 4 Final emission regulation-compliant engine, energy saving operations and selectable operating modes. You can also help keep your mining operations safe with features like KomVision, a 360-degree monitoring system that uses six cameras for a real-time view of your surroundings. In addition to 360-degree view, a six-panel radar obstacle detection system provides an audible/visual alert when an object is detected in the working area.

  • Up to 6% more horsepower over previous model
  • 36’9” tight turning radius
  • 2,346 HP of retarder-absorption capacity
  • Newly designed low noise (72 dbA) cab

Features and benefits

Control your fuel consumption

Control your fuel consumption

Regulate fuel efficiency for lighter work on flat ground with ‘economy’ mode. For higher production jobs and uphill hauling, use ‘power’ mode to increase engine maximum output and raise the upshift and downshift engine speeds during operation.

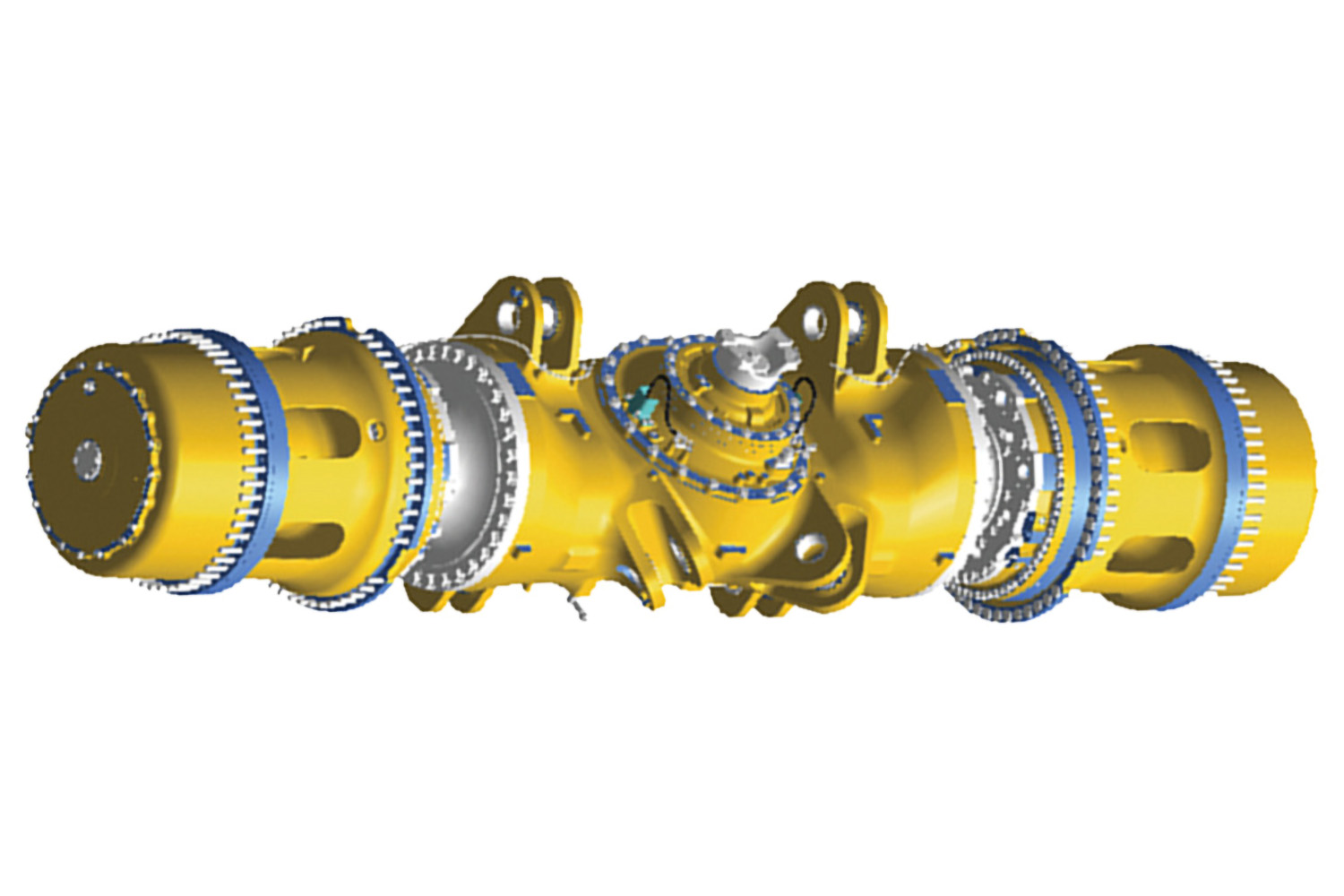

Durable for the haul

Durable for the haul

The newly designed axle increases reliability by optimizing the structural design of castings and adopting the latest in heat treatment and surface finish technology. An added oil filtration system double the recommended oil exchange interval.

Monitor your surroundings

Monitor your surroundings

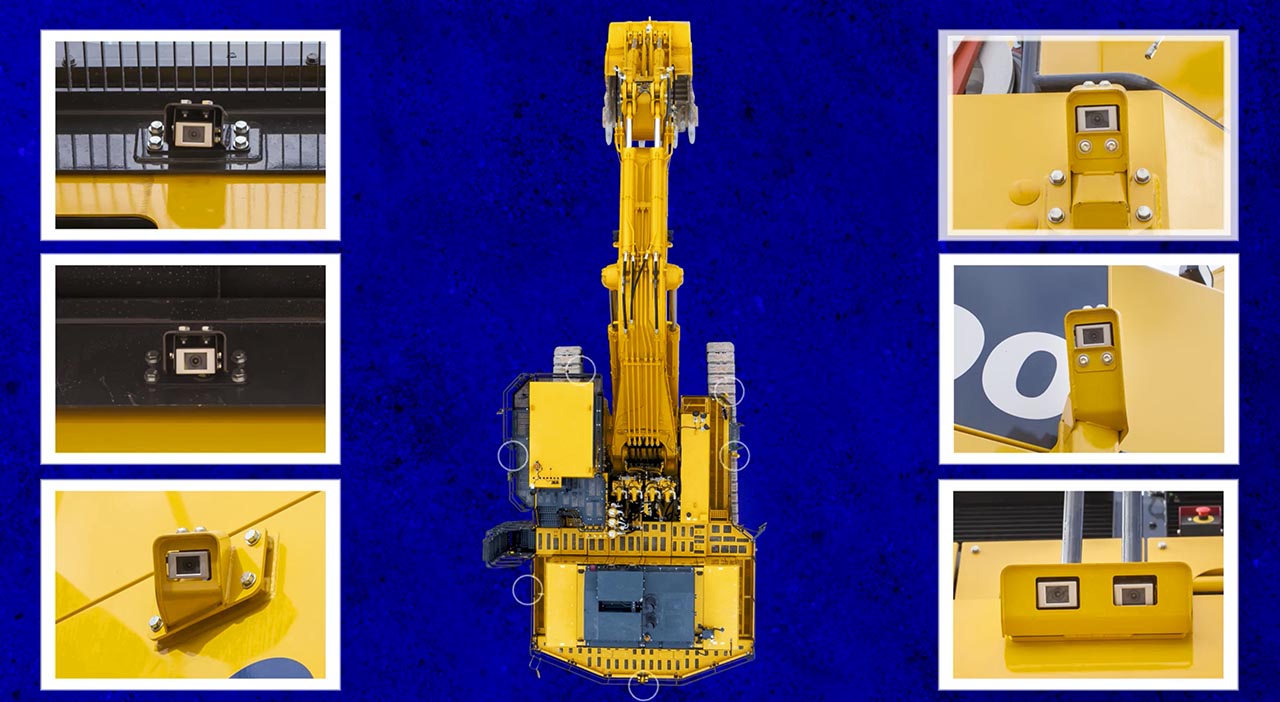

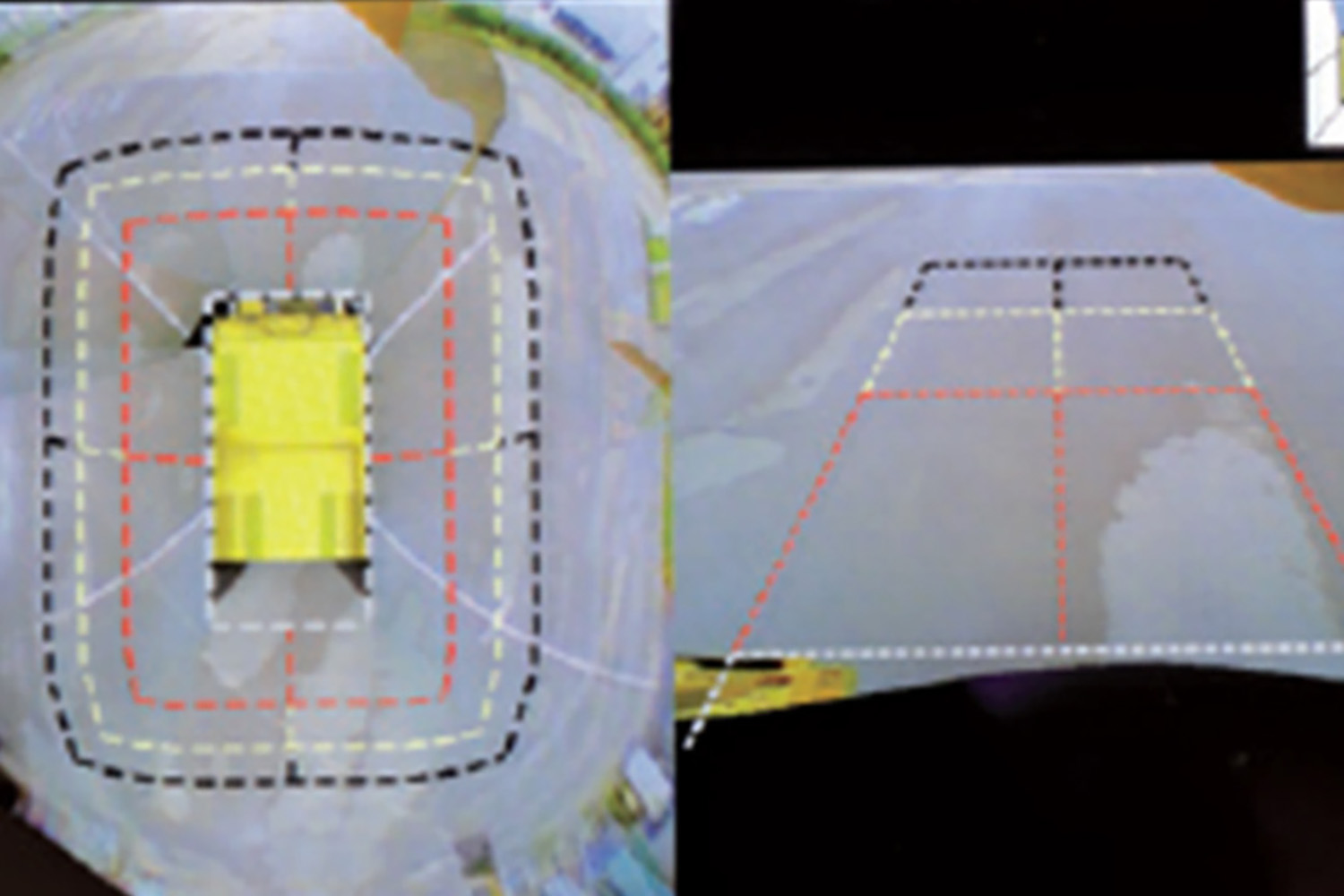

Enhance visibility with KomVision, a 360-degree monitoring system that uses six cameras for a real-time view of your surroundings. Two screen mode allows your operator to view the 360-degree bird’s eye view and any of the 6 cameras to be viewed simultaneously on a dedicated monitor.

Navigate tight spaces

Navigate tight spaces

Maneuver in and out of tight spaces with a tight turning radius (36' 9"). The MacPherson strut-type independent front suspension features an A-arm wheel-to-main frame design for wider spacing and easy access to the engine bay.

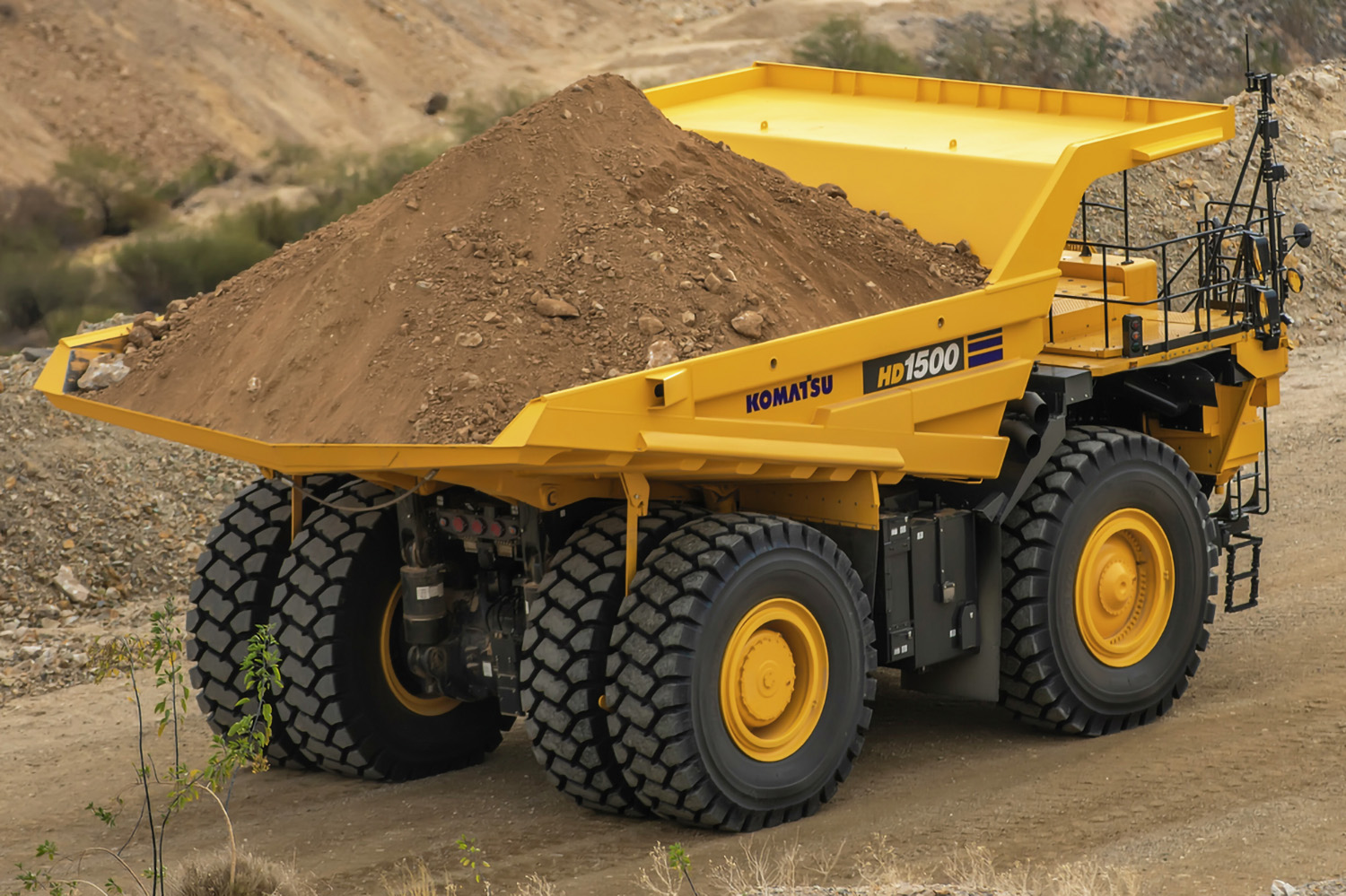

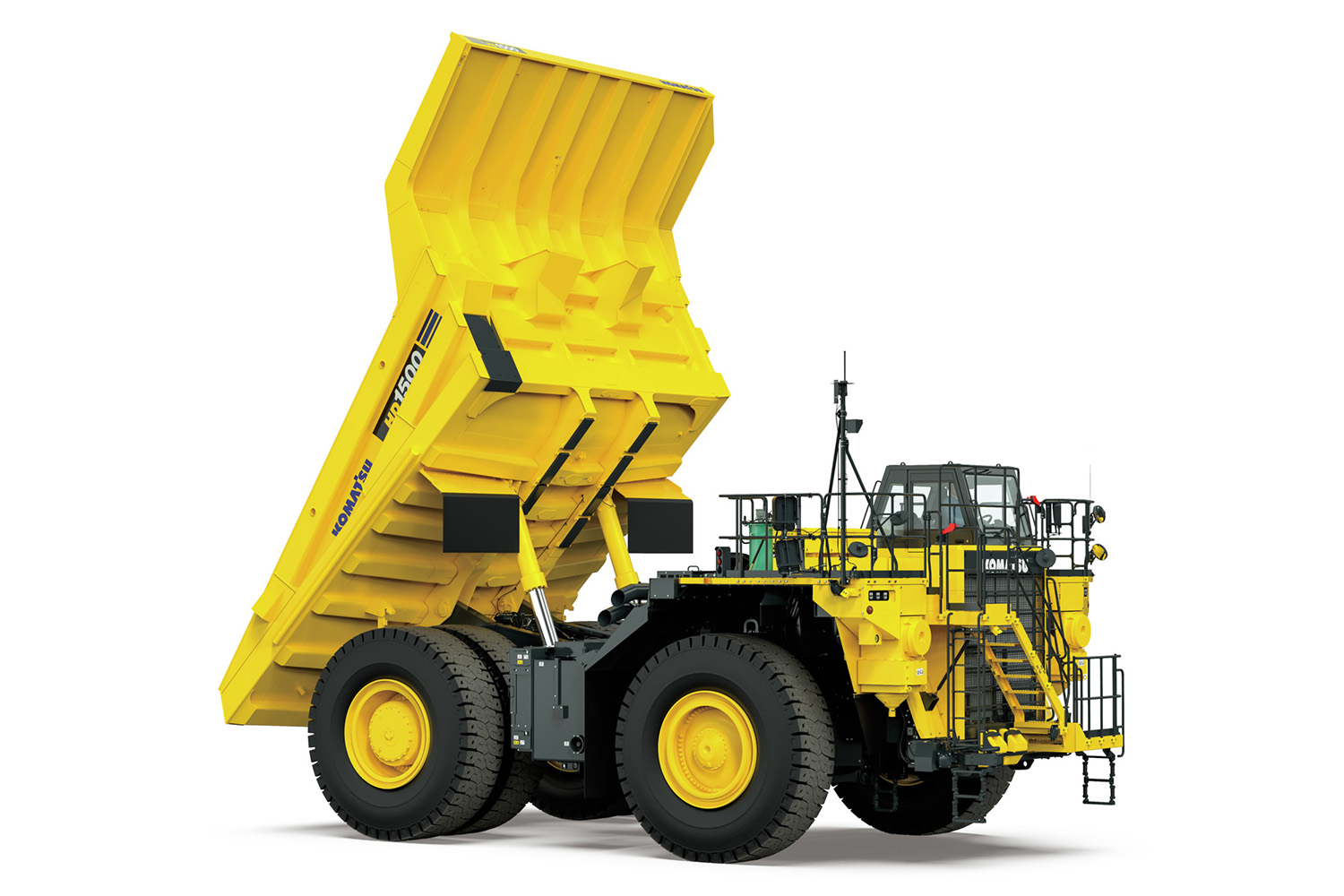

Payload that pays off

Payload that pays off

Enhance payloads, promote productivity and control the life cycle costs of your truck with the integrated payload meter (PLM), which manages the payload of each hauling cycle, analyzing production volume and the working conditions of the machine.

Smooth adaptability with K-ATOMiCS

Smooth adaptability with K-ATOMiCS

Komatsu’s advanced transmission with optimum modulation control system (K-ATOMiCS) provides electronic shift control with automatic clutch modulation, optimizing the clutch engagement at every gear to provide smother shifting without losing torque.

Stay focused on the road

Stay focused on the road

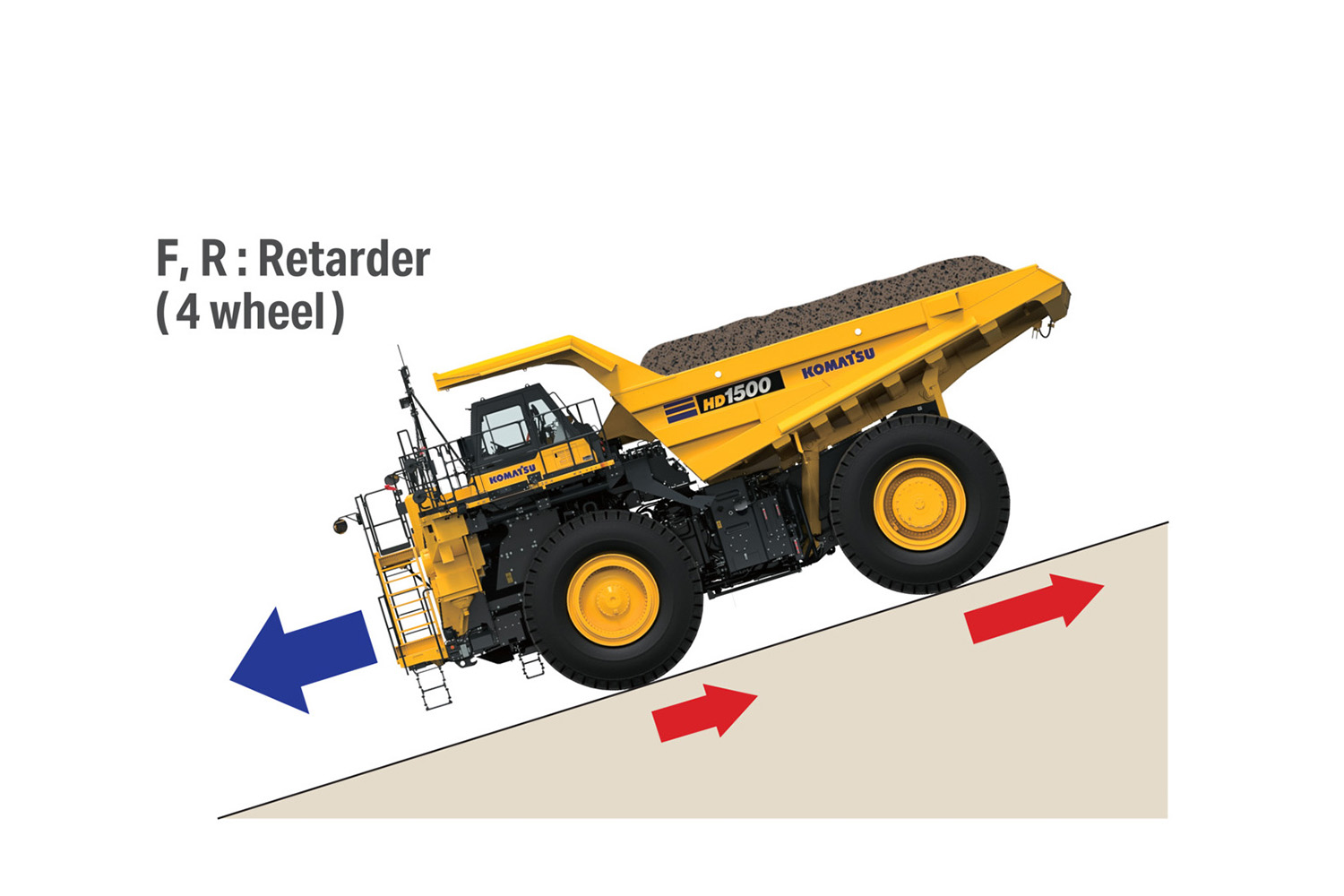

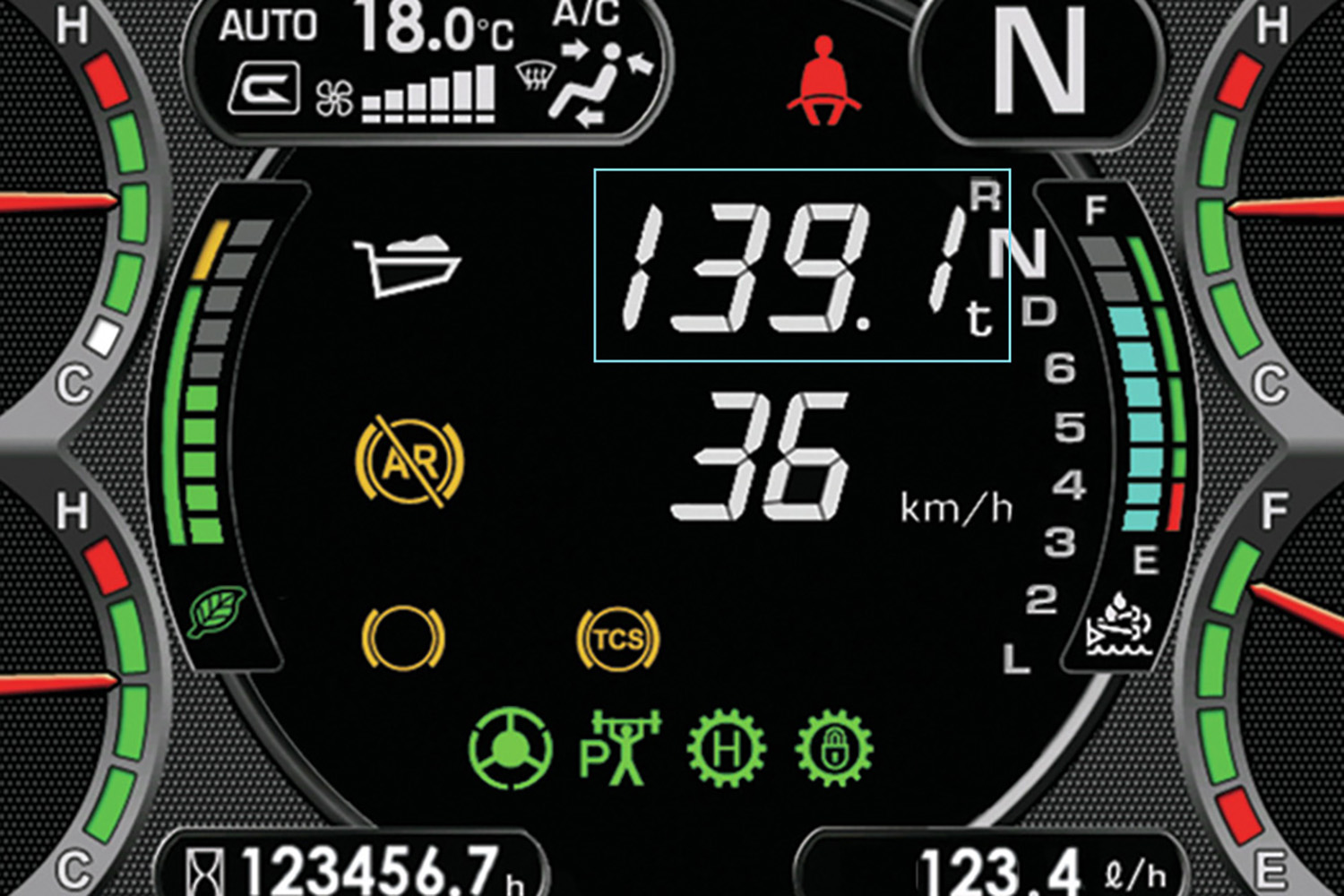

Control downhill descent by setting your desired travel speed with the automatic retard speed control (ARSC), which automatically applies the brake retarder to maintain the desired setting and descend the road with confidence.

Traction that maintains position

Traction that maintains position

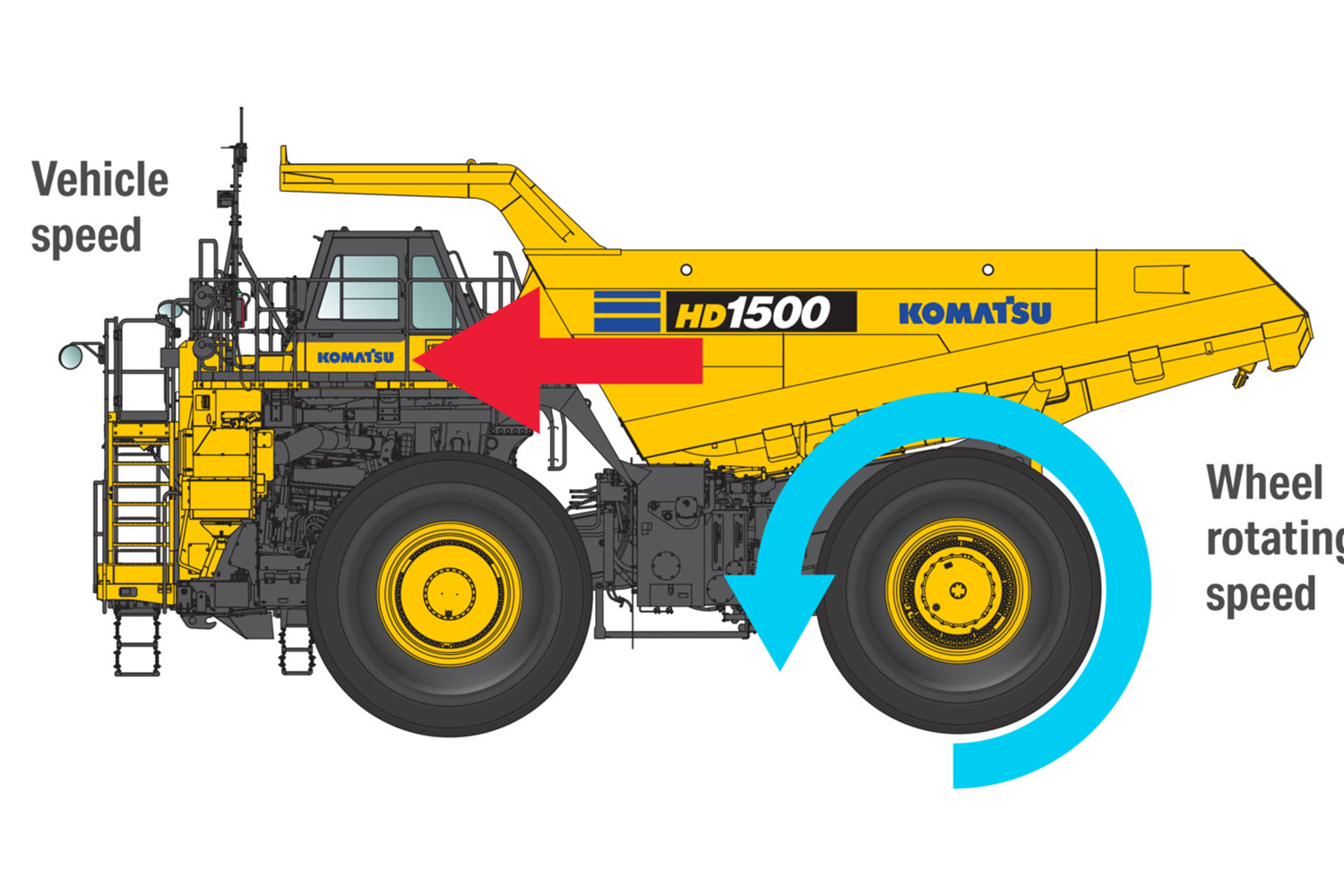

Stay focused while operating in loose or slippery haul road conditions with Komatsu's Traction Control System (KTCS), which monitors the rear wheels for slippage and automatically applies the brakes independently to each wheel for enhanced traction.

Traverse grades with confidence

Traverse grades with confidence

Handle steep grades with fully hydraulic-controlled wet multiple-disc brakes on all four corners. These large-capacity, continuously-oil-cooled brakes also function as a responsive retarder, giving operators confidence at higher downhill speeds.

Automatic greasing system

Automatic greasing system

The standard system automatically supplies grease to each greasing point every pre-set hour, making it unnecessary to periodically lubricate by manual pump. Refill port to the reservoir is accessible from the ground level.

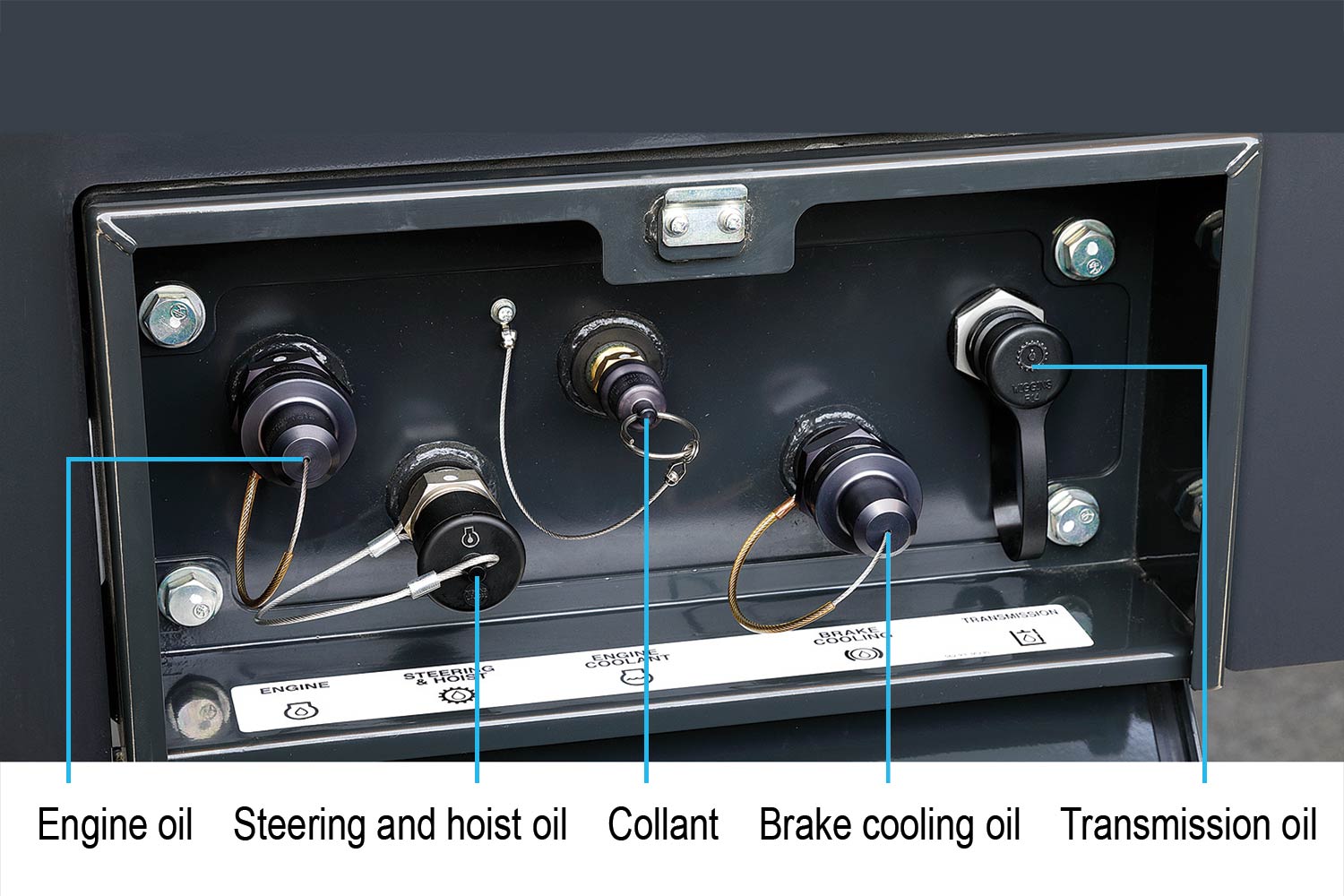

Get quick preventative maintenance

Get quick preventative maintenance

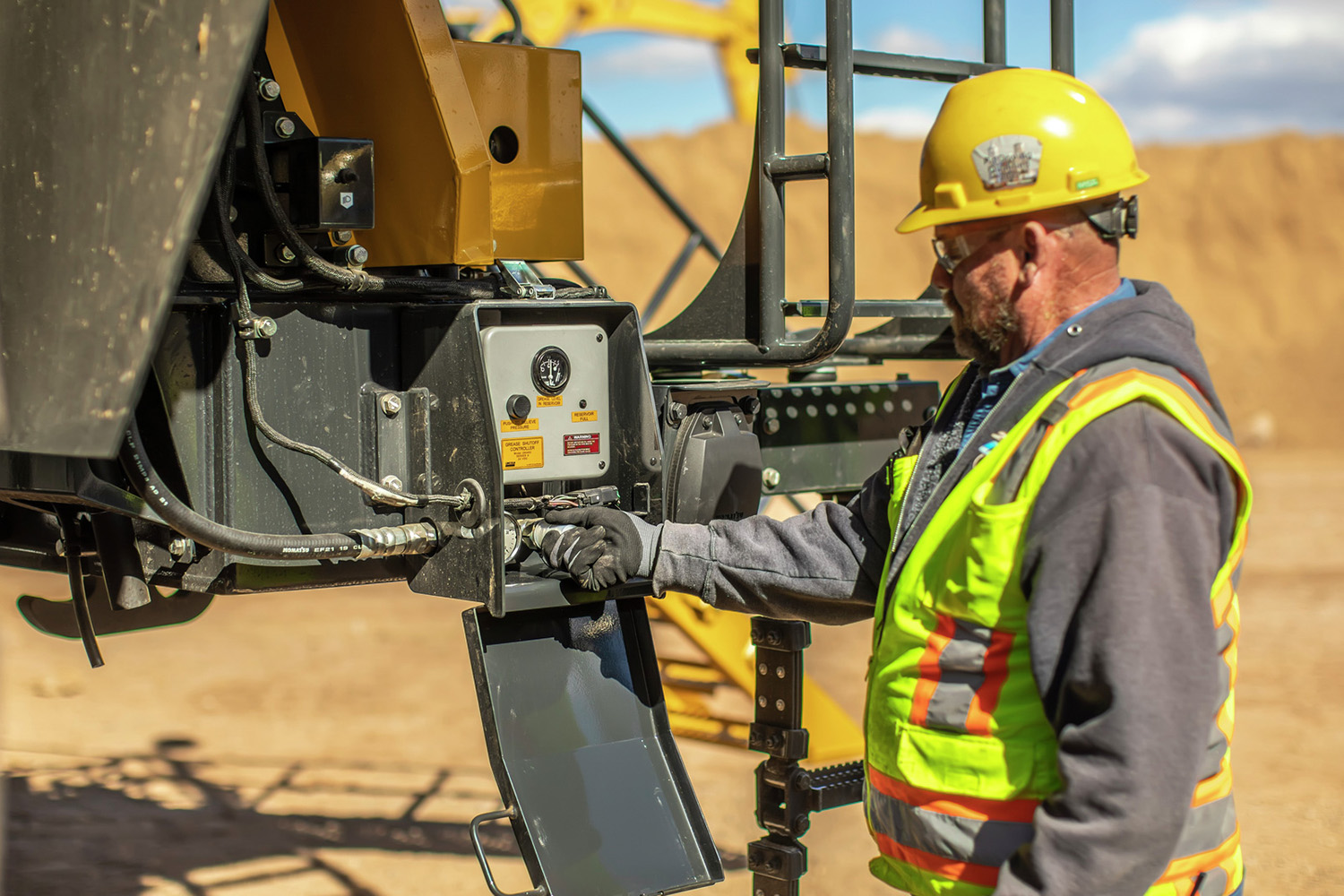

Designed for quick preventative maintenance and servicing, a ground-level service center is located at the bottom of the hydraulic tank, making engine, transmission, brake control and hydraulic oil filling ports accessible in one location.

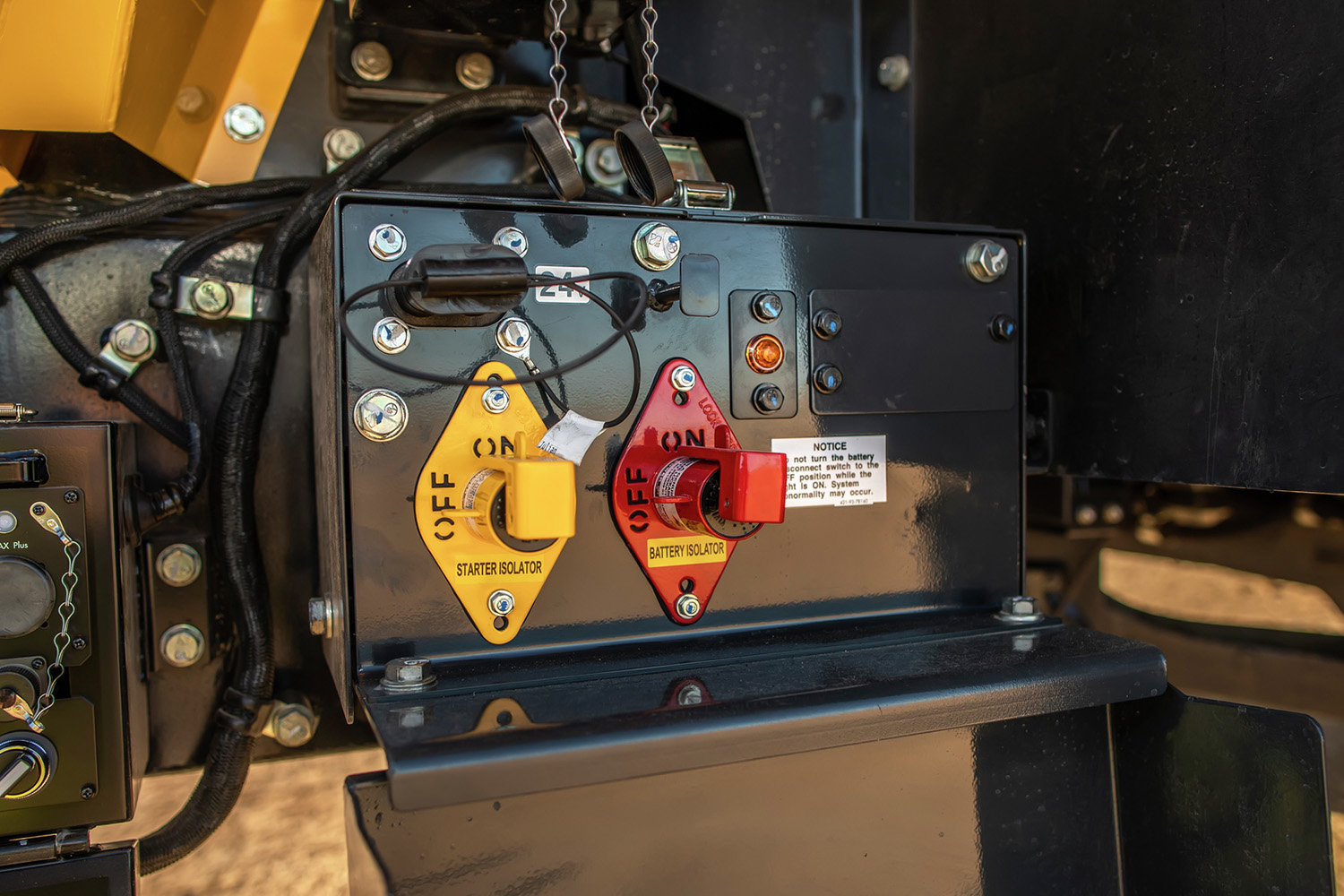

Manage risk with zero-harm

Manage risk with zero-harm

Help promote safety in the workplace with a lockable battery, emergency engine stop switch and starter isolators that are accessible from ground level. A standard LED light package improves visibility during operation, access/egress and maintenance.


Specifications

Metric Imperial (US)
Expand all

  • Hoist cylinder type: Twin, 2-stage telescopic type
  • Hoist time (s): 13.5
  • Relief pressure (psi): 3,481
  • Relief pressure (kg/cm^2 / Mpa): 245

  • Material thickness

    • Front (mm): 12
    • Bottom (in): 0.75
    • Bottom (mm): 19
    • Sides (mm): 9
    • Sides (in): 0.35
    • Dumping angle (degrees): 45
    • Height at full dump (ft.): 37 ft. 11 in
    • Front (in): 0.47
  • Capacity

    • Struck 16.9 Capacity (m^3): 50
    • Struck 16.9 capacity (yd^3): 65.4
    • Structure: V-shape body with V-bottom
    • Heaped 2:1 SAE Capacity (m^3): 78
    • Heaped 2:1 SAE Capacity (yd^3): 102
    • Payload (metric tons): 139
    • Payload (US tons): 153.2

  • Front suspension (mm): 375
  • Front suspension (ft X in): 14.76
  • Rear suspension (mm): 106
  • Rear suspension (in): 4.17
  • Rear axle oscillation oil stopper (degree): 3.9
  • Rear axle oscillation mechanical stopper (degree): 5.8
  • McPherson strut type: Front suspension and four-link type rear axle suspension with independent, hydropneumatic cylinders.
  • Effective cylinder stroke front suspension (ft) (in): 14.76
  • Effective cylinder stroke front suspension (mm): 375
  • Effective cylinder stroke rear suspension (in): 4.17
  • Effective cylinder stroke rear suspension (mm): 106
  • Effective cylinder stroke: Planetary gear
  • Rear axle oscillation

    • Mechanical stopper (degrees): 5.8
    • Oil stopper (degrees): 3.9

  • Piston displacement (in^3): 3,082
  • Piston displacement (L): 50.5

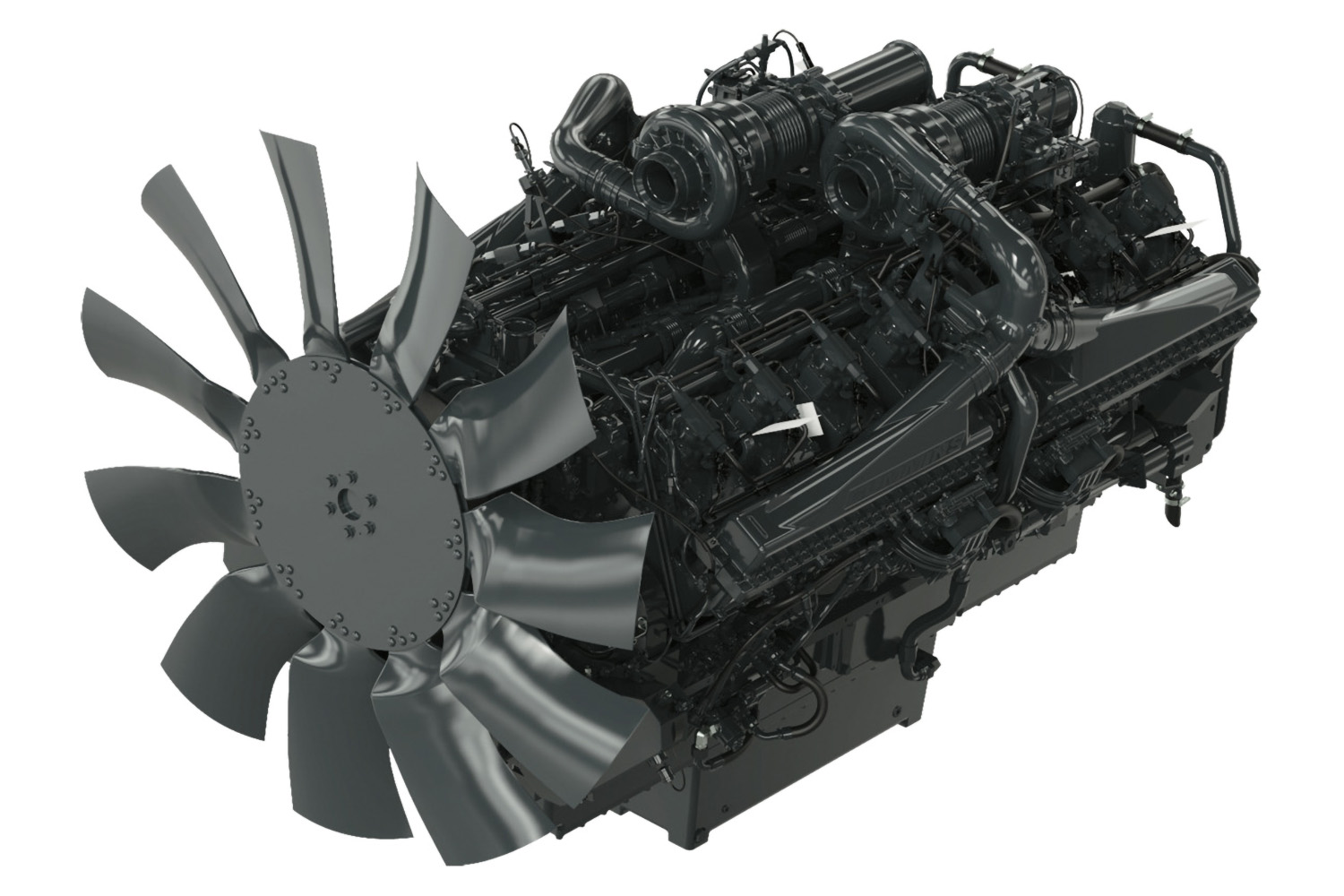

  • Engine Model: Komatsu SDA16V159E-3 (EPA Tier 4 Final emissions certified)
  • Engine type: Water-cooled, 4-cycle
  • Aspiration: Overhead valve, direct injection type, turbocharged, after-cooled
  • Number of cylinders: 16
  • Bore (mm): 159
  • Bore (in): 6.26
  • Stroke (mm): 159
  • Stroke (in): 6.26
  • Lubrication system

    • Method: Gear pump, force-lubrication
    • Filter: Full-flow type
    • Air cleaner: Dry type with double elements, precleaner and evacuator valve
  • Horsepower

    • SAEJ1995 - Gross (kW): 1 180
    • SAEJ1995 - Gross (HP): 1,580
    • Fan drive type: Mechanical with electronic controlled fan clutch
    • Fuel system: Direct injection
    • Governor: Electronically controlled
    • ISO 9249 / SAE J1349 - Net (HP): 1,570
    • ISO 9249 / SAE J1349 - Gross (kW): 1 170
    • Maximum torque (ft-lbs): 5,441
    • Maximum torque (kg-m): 7 378
    • Rated RPM: 1,900

  • Brakes standard: ISO 3450
  • Front brake surface (in^2): 10,530.6
  • Front brake surface (cm^2): 67 939
  • Rear brake surface (in^2): 15,043.6
  • Rear brake surface (cm^2): 97 055
  • Service brakes

    • Parking brake type: Spring applied, multiple-disc type
    • Retarder: Oil-cooled, multiple-disc front and rear brakes act as retarder
    • Front brake type: Fully hydraulic control, oil-cooled multiple-disc type
    • Rear service brakes: Fully hydraulic control, oil-cooled multiple-disc type
    • Service parking brakes: Spring applied, multiple-disc type
    • Service retarder brakes: Oil-cooled, multiple-disc front and rear brakes act as retarder
    • Secondary service brakes: Manual pedal operation when hydraulic pressure drops below the rated level, parking brake is automatically actuated

  • Torque converter: 4 elements, 1 stage, 2 phase
  • Transmission: Full-automatic, planetary type
  • Speed range: Seven speeds forward and two reverse
  • Lockup clutch: Wet, multiple-disc clutch
  • Forward: Torque converter drive in 1st gear, direct drive in 1st lockup and all higher gears
  • Reverse: Torque converter drive and direct (lockup)
  • Shift control: Electronic shift control with automatic clutch modulation in all gears
  • Maximum travel speed (kph): 56.5
  • Maximum travel speed (mph): 35.1

  • Radiator (US gal): 121.5
  • Radiator (L): 460
  • Fuel tank (L): 2 120
  • Fuel tank (US gal): 560
  • Hydraulic system (US gal): 83.5
  • Hydraulic system (L): 316
  • DEF tank (US gal): 56
  • DEF tank (L): 212
  • Engine oil (US gal): 56.8
  • Engine oil (L): 215
  • Torque converter transmission retarder (US gal): 34.1
  • Torque converter transmission retarder (L): 129
  • Differentials (L): 439
  • Differentials (US gal): 116
  • Final drive (L): 214
  • Final drive (US gal): 56.5
  • Suspension (US gal): 50.6
  • Suspension (L): 191.6

  • Minimum turning radius wall to wall (m): 11.2
  • Minimum turning radius wall to wall (ft): 36 ft. 9 in
  • Steering system type: Fully hydraulic power steering with two double-acting cylinder
  • Secondary steering: Automatic/Manual control (meets ISO 5010 and SAE J1511)
  • Maximum steering angle (degrees): 43

  • Final drive type: Planetary gear
  • Differential ratio: 1.72
  • Planetary ratio: 11.482
  • Rear axles: Full-floating

  • Type

    • Articulated type: Box-sectioned structure

  • Empty weight (kg): 110 400
  • Empty weight (lbs): 243,390
  • Gross vehicle weight (lbs): 550,229
  • Gross vehicle weight (kg): 249 580
    • Loaded

      • Front axle - loaded (%): 32.9
      • Rear axles - loaded (%): 67.1

      Empty

      • Front axle - empty (%): 52.5
      • Rear axles - empty (%): 47.5

  • Standard tire 23.5 R25: 33.00 R51

  • FOPS and ROPS standard: FOPS (ISO 3449 level II), ROPS (ISO 3471)
Metric Imperial (US)
Engine and related components
  • Air cleaner, double element dry type with pre-cleaner and restriction indicator
  • Side discharge exhaust configuration
  • Cooling fan clutch with auto belt tensioner
  • Engine, Komatsu SAA16V159E-3, 16 cylinder, turbocharged, after cooled, diesel
    Gross HP: 1580 HP (1180 kW) / 1900 rpm (SAE J1995)
    Net HP: 1570 HP (1170 kW) / 1900 rpm (ISO 9249/SAE J1349)
  • Selective Catalytic Reduction (SCR) after treatment with Diesel Exhaust Fluid (DEF) tank and heated lines
  • Electric priming fuel pump
  • Engine pre-lubrication system
  • Engine starting aid system, ether
  • Engine secondary shutdown switch
  • Radiator, lead free, modular core
  • Automatic Idling Setting System (AISS)
Electrical system
  • Alternator, 250 A, 24 volt
  • Back-up alarm
  • Batteries, 4 x 12V
  • Battery isolator
  • Electric circuit breakers, 24V
  • Emergency stop switch, ground level
  • Horn, electric
  • Lights
  • Access ladder lamps, LED
  • Back-up Lamps, rear , LED
  • Engine compartment lamp, LED
  • Fog lamps, LED
  • Head lamps, high and low beam, LED
  • Side working lamps, LH & RH, LED
  • Stop and tail Lamps, LED
  • Turn signals, hazard warning, front & rear, LED
  • Starter isolator
  • Starting motors, 2 x 9 kW, electric
Power train and controls
  • 7-speed transmission, fully automatic, (7F, 2R)
  • Transmission oil filter clogging alarm
  • Brake cooling oil recovery tank
  • Brakes, oil cooled, multiple disc, hydraulically controlled, front & rear
  • Komatsu Traction Control System (KTCS)
  • Neutral coast inhibitor
  • Parking brake, integrated in front & rear brakes
  • Retarder, manual
  • Automatic Retard Speed Control (ARSC)
  • Secondary brake, pedal actuated, variable
  • Skip shift function
  • Speed limiter
  • Torque converter with electronic lockup control
  • Rear axle oil filtration system
Operator environment
  • Cab with built-in ROPS/FOPS (ISO 3471/ISO 3449)
  • 12V outlet (qty 2)
  • Automatic climate control system with Cab pressurization
  • Body hoist control, electric
  • Cigarette lighter and ashtray
  • Cup holder
  • Door, LH & RH
  • KomVision 360° Monitoring System with Radar Obstacle Detection(6 cameras, 6 radar panels)
  • Machine monitor with 7" color LCD display
  • Power and economy mode selection
  • Operator seat, air suspension, heated, ventilated with 3-point 3" retractable seat belt
  • Power windows, LH & RH
  • Radio, AM/FM with aux input, USB, & bluetooth
  • Rearview mirror, outside Cab mount, heated
  • Rearview monitoring system with dedicated monitor
  • Secondary steering, automatic & manual
  • Steering wheel, tilt and telescopic
  • Sun screen, retractable
  • Tinted thermoshield glass
  • Trainer seat with 3" retractable lap belt
  • Underview mirror
  • Wiper/washer, windshield (intermittent)
Guard and cover group
  • Cab & platform guard
  • Catwalk with handrails, skid resistant
  • Driveline guards, front & rear
  • Engine side covers
  • Engine underguard
  • Exhaust thermal guard
  • Fire safety shield (located behind Engine)
  • Mud flaps
  • Rock ejector bars
  • Transmission underguard
Other standard equipment
  • Anchor points, tie off type (ISO 14567)
  • Diagonal access stairway
  • Buddy (disabled Body raise) system
    • Disabled truck quick connect couplers
    • Dump counter
    • Ecology guidance and ecology gauge
    • Fast fill coupler for fuel tank
    • Filler cap lock & cover lock
    • Ground level service center fluid ports - transmission, Engine,brake control, steering and hoist oil
    • Automatic greasing system with ground level refill port
    • Hydropneumatic Suspension, Front & Rear
    • Jump start receptacle
    • Electric Engine oil and coolant heater
    • Electric hydraulic oil tank heater
    • Ether Engine starting aid system
    • Komtrax Plus satellite communication (iridium)
    • Overload prevention system
    • Overrun warning and prevention
    • Overturn warning system
    • Payload meter
    • PM service connectors
    • Smart rims for 33.00 R51 Tires with large bore valve stems (qty 6)
    • Body safety pins (qty 2)
    • Wheel chocks (qty 2)
Engine and related components
  • Air cleaner, double element dry type with pre-cleaner and restriction indicator
  • Side discharge exhaust configuration
  • Cooling fan clutch with auto belt tensioner
  • Engine, Komatsu SAA16V159E-3, 16 cylinder, turbocharged, after cooled, diesel
    Gross HP: 1580 HP (1180 kW) / 1900 rpm (SAE J1995)
    Net HP: 1570 HP (1170 kW) / 1900 rpm (ISO 9249/SAE J1349)
  • Selective Catalytic Reduction (SCR) after treatment with Diesel Exhaust Fluid (DEF) tank and heated lines
  • Electric priming fuel pump
  • Engine pre-lubrication system
  • Engine starting aid system, ether
  • Engine secondary shutdown switch
  • Radiator, lead free, modular core
  • Automatic Idling Setting System (AISS)
Electrical system
  • Alternator, 250 A, 24 volt
  • Back-up alarm
  • Batteries, 4 x 12V
  • Battery isolator
  • Electric circuit breakers, 24V
  • Emergency stop switch, ground level
  • Horn, electric
  • Lights
  • Access ladder lamps, LED
  • Back-up Lamps, rear , LED
  • Engine compartment lamp, LED
  • Fog lamps, LED
  • Head lamps, high and low beam, LED
  • Side working lamps, LH & RH, LED
  • Stop and tail Lamps, LED
  • Turn signals, hazard warning, front & rear, LED
  • Starter isolator
  • Starting motors, 2 x 9 kW, electric
Power train and controls
  • 7-speed transmission, fully automatic, (7F, 2R)
  • Transmission oil filter clogging alarm
  • Brake cooling oil recovery tank
  • Brakes, oil cooled, multiple disc, hydraulically controlled, front & rear
  • Komatsu Traction Control System (KTCS)
  • Neutral coast inhibitor
  • Parking brake, integrated in front & rear brakes
  • Retarder, manual
  • Automatic Retard Speed Control (ARSC)
  • Secondary brake, pedal actuated, variable
  • Skip shift function
  • Speed limiter
  • Torque converter with electronic lockup control
  • Rear axle oil filtration system
Operator environment
  • Cab with built-in ROPS/FOPS (ISO 3471/ISO 3449)
  • 12V outlet (qty 2)
  • Automatic climate control system with Cab pressurization
  • Body hoist control, electric
  • Cigarette lighter and ashtray
  • Cup holder
  • Door, LH & RH
  • KomVision 360° Monitoring System with Radar Obstacle Detection(6 cameras, 6 radar panels)
  • Machine monitor with 7" color LCD display
  • Power and economy mode selection
  • Operator seat, air suspension, heated, ventilated with 3-point 3" retractable seat belt
  • Power windows, LH & RH
  • Radio, AM/FM with aux input, USB, & bluetooth
  • Rearview mirror, outside Cab mount, heated
  • Rearview monitoring system with dedicated monitor
  • Secondary steering, automatic & manual
  • Steering wheel, tilt and telescopic
  • Sun screen, retractable
  • Tinted thermoshield glass
  • Trainer seat with 3" retractable lap belt
  • Underview mirror
  • Wiper/washer, windshield (intermittent)
Guard and cover group
  • Cab & platform guard
  • Catwalk with handrails, skid resistant
  • Driveline guards, front & rear
  • Engine side covers
  • Engine underguard
  • Exhaust thermal guard
  • Fire safety shield (located behind Engine)
  • Mud flaps
  • Rock ejector bars
  • Transmission underguard
Other standard equipment
  • Anchor points, tie off type (ISO 14567)
  • Diagonal access stairway
  • Buddy (disabled Body raise) system
    • Disabled truck quick connect couplers
    • Dump counter
    • Ecology guidance and ecology gauge
    • Fast fill coupler for fuel tank
    • Filler cap lock & cover lock
    • Ground level service center fluid ports - transmission, Engine,brake control, steering and hoist oil
    • Automatic greasing system with ground level refill port
    • Hydropneumatic Suspension, Front & Rear
    • Jump start receptacle
    • Electric Engine oil and coolant heater
    • Electric hydraulic oil tank heater
    • Ether Engine starting aid system
    • Komtrax Plus satellite communication (iridium)
    • Overload prevention system
    • Overrun warning and prevention
    • Overturn warning system
    • Payload meter
    • PM service connectors
    • Smart rims for 33.00 R51 Tires with large bore valve stems (qty 6)
    • Body safety pins (qty 2)
    • Wheel chocks (qty 2)
Metric Imperial (US)

Engine and related components

  • Exhaust Body heating

Operator environment

  • Additional Cab heater

Other equipment

  • 102 yd3 dump Body
  • Hydraulic powered boarding ladder
  • LH relocate fast fill coupler for fuel tank
  • Payload meter scoreboard
  • Spare smart rim with valve (front)
  • Spare smart rim with valve (rear outer)
  • Spare smart rim with valve (rear inner)

Engine and related components

  • Exhaust Body heating

Operator environment

  • Additional Cab heater

Other equipment

  • 102 yd3 dump Body
  • Hydraulic powered boarding ladder
  • LH relocate fast fill coupler for fuel tank
  • Payload meter scoreboard
  • Spare smart rim with valve (front)
  • Spare smart rim with valve (rear outer)
  • Spare smart rim with valve (rear inner)

Technology that works as hard as you do

Select continent

Adjust to road conditions

Maximize machine availability with the road condition analysis function. Map haul road conditions such as road roughness and road gradient along with helpful geographical data via Komtrax Plus.

See more with KomVision

Enhance visibility to the work area with KomVision, a 360-degree monitoring system that uses six cameras for a real-time view of your surroundings. In addition to 360-degree view, a six-panel radar obstacle detection system provides an audible/visual alert when an object is detected in the working area.

technology-image

Track it with Komtrax Plus

Manage your machines and keep track of productivity with Komtrax Plus, a free, state-of-the-art remote monitoring system that provides efficiency metrics about your equipment to help promote peak jobsite performance.
